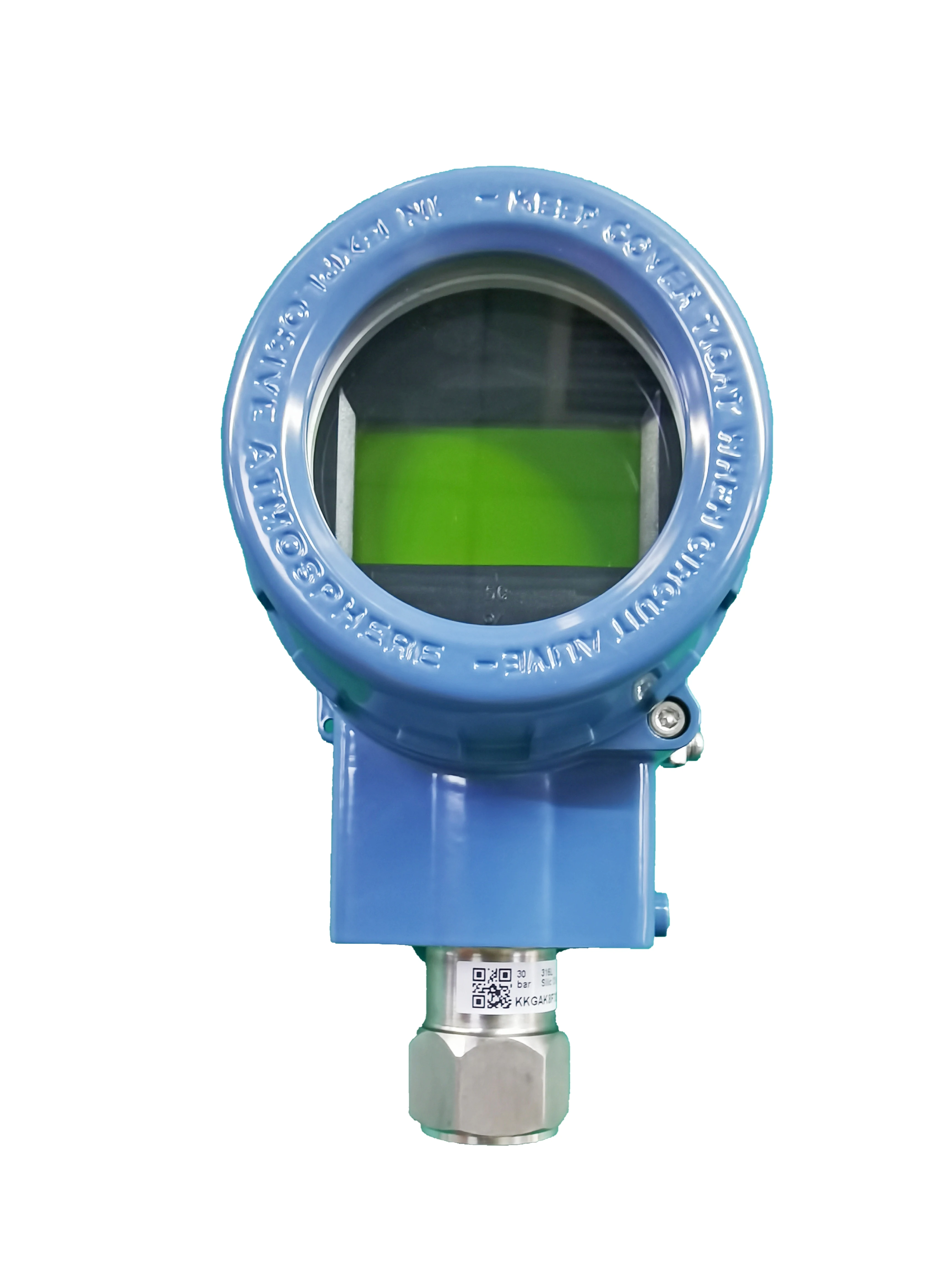

Низкая цена высокая точность 0.1% RP2003 RS485 выходной датчик

Низкая цена высокая точность 0.1% RP2003 RS485 выходной датчик

Категория: >>>
Поставщик: All-Instruments International Trading (Shanghai) Co. Ltd.

Цена:184,00 $ - 203,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Qualified Chinese original manufacturer that exported pressure transmitters to overseas markets (EURO,AMERICA,ASIA) more than 200,000+ sets.

Enough Experience on local applications for overseas markets

Meet your toughest environmental conditions with -45℃ working LED display (Option), Customerized color of Housing, Special manual with local language, technical support for OEM,ODM coopertion,etc.

Product Paramenters

Range

3kPa～40MPa

Accuracy

0.1%

Power Voltage

14～45VDC

Output Signal

4～20mA/HART

Ambient Temperature

-20～+80℃

Working Temperature

-40～+85℃

Related Moisture

0%～100%

External magnetic field

≤400A/m

Stability

±0.1%/ year

Temperature Influence

±0.1%/10℃

Install Location Influence

≤0.4kPa

Voltage Influence

≤±0.01%/V

Connector Material

Stainless Steel

Sealing Ring Material

NBR/Viton/Customized

Overload Limit（MPa）

Range

C/L

D/M

F/O

H/I

Limit

0.2

	Pressure Transmitter
Code 1	Accuracy
C	±0.1%
Code 2	Output
1	4mA-20mADC
2	485 Modbus
3	4mA-20mADC/HART Modbus
Code 3	Range（No migration）（kPa）
B	0～3-6
C	0～4-40
D	0～25-250
F	0～250-3000
G	0～1000-10000
H	0～2000-21000
I	0～4000-40000
L	0～10-40 abs
M	0～25-250 abs
N	0～250-3000 abs
Code 4	Diaphragm	Filling Fluid
A	SS316L	Silicon Oil
B	SS316L	Fluorine Oil
C	Hastelloy C	Silicon Oil
D	Hastelloy C	Fluorine Oil
Code 5	Process Connection
1	1/2NPT Female
3	M20×1.5 Male
0	Customized
Code 6	Electrical Connection
122	M20×1.5 Female（With Cable Gland）
222	NPT1/2 Female
Code 7	Mounting Bracket
N	None
1	Stainless Steel Mounting Bracket
2	Carbon Steel Mounting Bracket
Code 8	Tag Plate
N	None
2	Hanging Stainless Steel Tag Plate
Code 9	Manual
C	Chinese
E	English

Company Profile

All-Instruments International Trading (Shanghai) Co.,Ltd is an international business solution supplier for domestic manufacturer and overseas suppliers in instruments.We hope for being the strong belt between Chinese manufacturer and overseas customers in any instrumental industy.NowAll-Instruments International Trading (Shanghai) Co.,Ltd deal with the business of the import and export, production base, storage, sales, logistics multiple new pathways. The company not only have their own brands, covers hundreds of types of products, abut lso distributing the international famous brands, for the partners to provide wider and wider cooperation platform. Now, our cooperation network has over the eight countries and areas.AIT will promote Chinese instruemtns to all over the world.

Exhibition

OUR CUSTOMERS

Russia, South Korea, the United States, Italy,
Germany, the Netherlands, Singapore, Malaysia,
India,Morocco, etc.

Overseas sales accounted for approximately 40% of total sales revenue。
