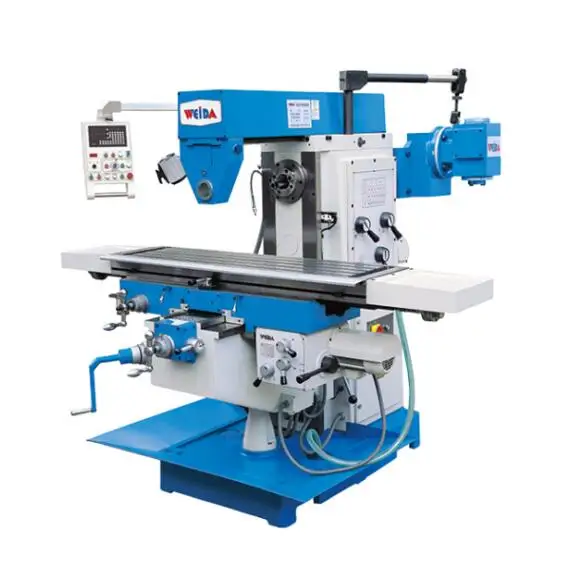

Универсальный фрезерный станок weida XW6136 для продажи
631 780,35 ₽ - 1 114 906,50 ₽
Vertical and Horizontal Milling Machine Zay7550/1
- Категория: Фрезерные станки >>>
- Поставщик: Anhui Chizhou Household Machine Tool Co. Ltd.
Сохранить в закладки 1600190860423:
Описание и отзывы
Характеристики
Features
Vertical milling head can be moved forward or backward
Vertical milling head can swivel ±90° vertically and ±360°Horizontaly
Adjustable stops on table
Manual quill feed
High tensile casting iron elevative table
Double motor with powerful force
Vertical milling head can swivel ±90° vertically and ±360°Horizontaly
Adjustable stops on table
Manual quill feed
High tensile casting iron elevative table
Double motor with powerful force
Model | ZAY7550-1 | ||
Max. drilling capacity | 50mm | ||
Max. face milling capacity | 100mm | ||
Max. end milling capacity | 32mm | ||
Swivel angle of head-stock (End milling) at perpendicular direction | ±90º | ||
Spindle travel (End milling) | 130mm | ||
Distance between spindle nose and table | 80-480mm | ||
Sliding arm travel | 500mm | ||
Spindle taper (Horizon milling) | MT4 | ||
Spindle taper (End milling) | MT4 | ||
Spindle feed | 0.12, 0.18, 0.25 | ||
Spindle speed (1400r/1280r/min Double speed motor) r/min | 4pole | 38,67,110,216,380,640 | |
2pole | 76,134,220,432,760,1280 | ||
T-solt | |||
Forward and backward travel of table | 300mm | ||
Left and right travel of table | 785mm | ||
Travel of table on perpendicular direct | 400mm | ||
Table size | 1000mm×240mm | ||
Motor (Double speed) | 400V/ 50 Hz 1.5 kW / 1.8 kW | ||
Net weight | 920 kg | ||
Main Parts Photo and details instruction
![]()
![]()
![]()
![]()
Standard And Optional
Standard: Allen wrench, Wedge-Wrenches, Drill chuck arbor, screw, draw bar and washers.
Optional: Stand /oil, tripPower feed Attachment, 90mm parallel vise,125mm parallel vise, Drill chuck, Milling holder dia. 63mm, Changing sleeve, Milling chuck, Boring bar, Auto-tapping system, Work light, Coolant system, DRO.
