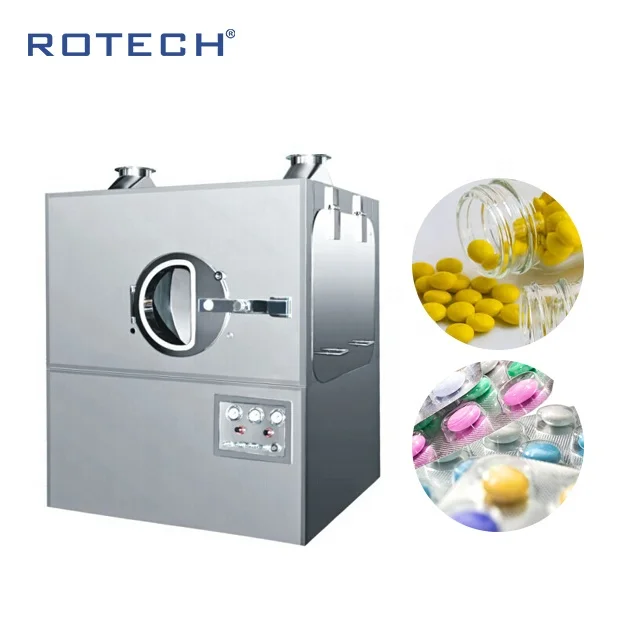

BG Automatic tablet film coating machine

Scope of application

The machine can be used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film, etc.And it has such characteristics as high efficiency, low energy consumption and small floor area, etc. and it can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc. In such fields as of pharmaceutical, food and biological products etc.

This machine is widely used in the fields of pharmacy, food, biological products, etc. It can package various organic films, water-soluble films and sugar coatings for various tablets, pills, candies, etc. (in terms of drugs, it can achieve slow and controlled release effects). The whole machine has the advantages of beautiful appearance, high efficiency, low energy consumption and small occupation.

The coating process has no dust scattering and no slurry splashing, which improves the working environment and reduces cross-contamination of tablets; the tablet coating process is simple, which greatly shortens the coating time and improves production efficiency.

Basic working principle

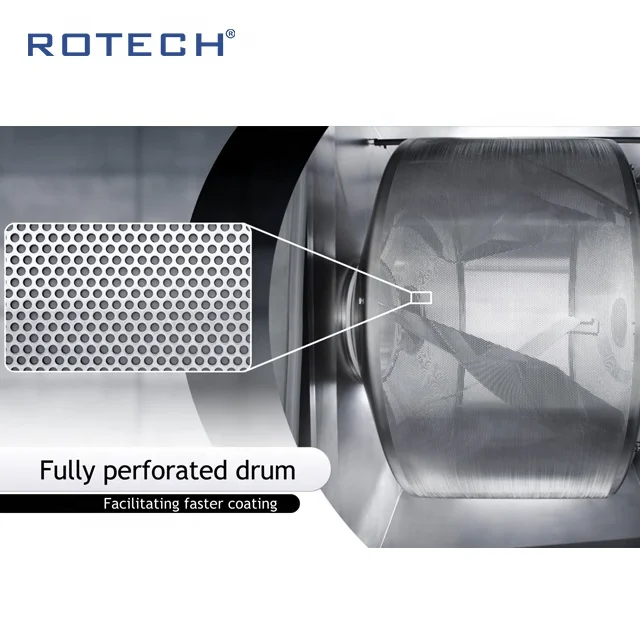

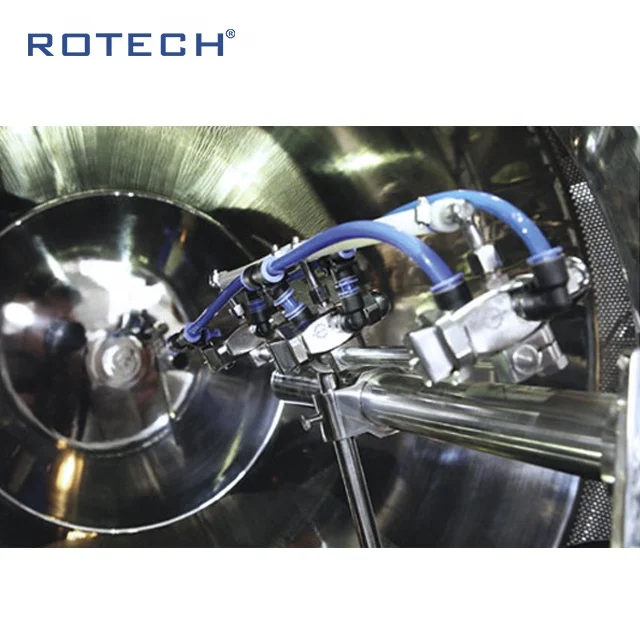

The tablet core is in the clean and airtight rotating drum of the coating machine, constantly making complex trajectories, turning smoothly, and frequently exchanges. The coating medium stirred by the constant temperature mixing barrel is sprayed from the spray gun to the tablet core through the action of the peristaltic pump. At the same time, under the action of hot air and negative pressure, the 100,000-grade clean hot air supplied by the hot air cabinet passes through the tablet core, passes through the bottom sieve, and is discharged from the air door, so that the coating medium is quickly dried on the surface of the tablet core to form a firm and dense , Smooth surface film, the whole process is automatically completed under PLC control.

Technical parameters
