PCIe x1 Однопортовый 2 5G медный сетевой адаптер Ethernet на основе чипсета
- Категория: Network Cards >>>
- Поставщик: Linkreal Co. Ltd.
Сохранить в закладки 1600191662839:
Описание и отзывы
Характеристики

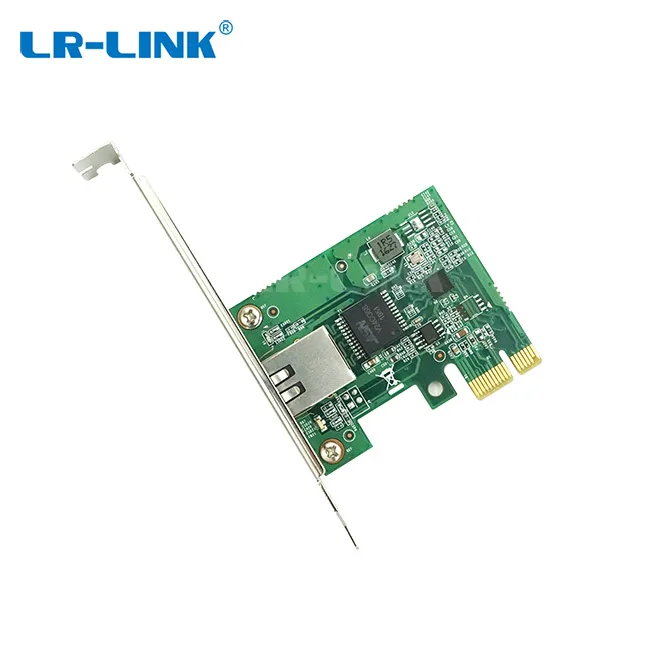

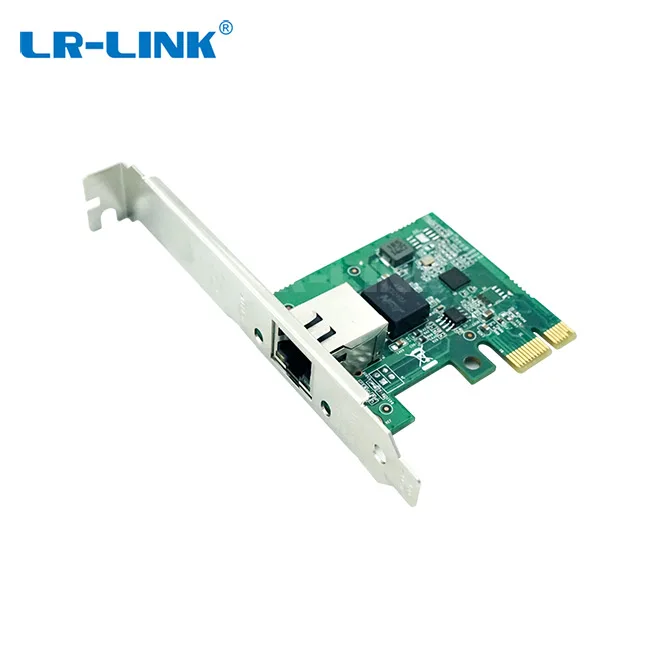

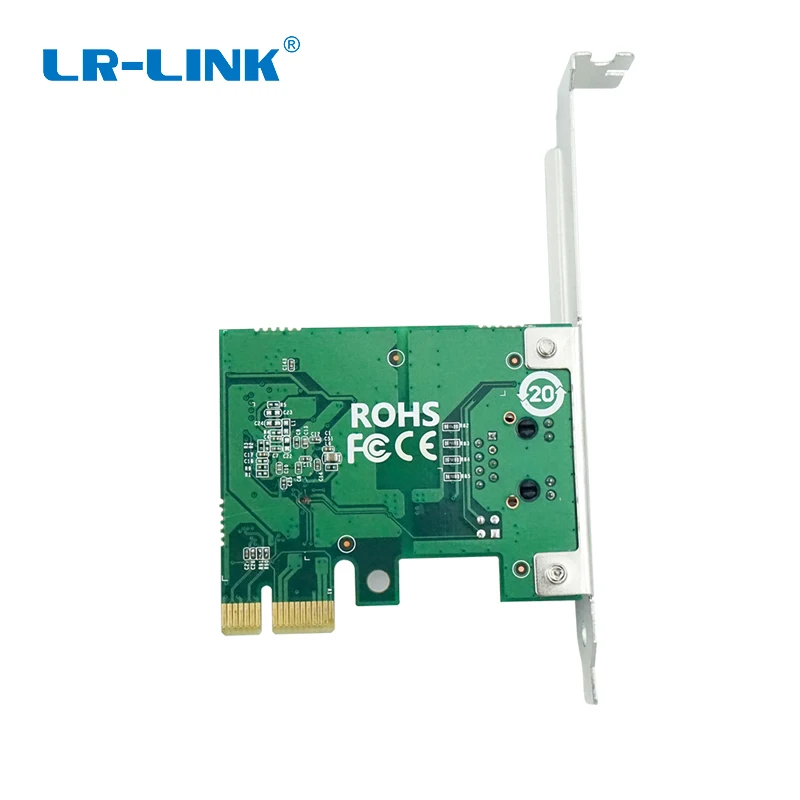

LRES2022PT is a PCIe x1 2.5G Ethernet network adapter independently developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Realtek RTL8125B solution. This adapter card has a universal and low-cost way to deploy 2.5GbE Ethernet network connections. It can provide the network with four speed links: 2.5 Gbps, 1G, 100Mbps, 10Mbps. This product is designed to be used without the need for a 10 Gigabit port but a Gigabit network port, which can solve the computer's link demand for network speed.
This network adapter card adds a 2.5GBASE-T technology Ethernet port to the computer through the PCIe x1 slot. Can be widely used in industrial control computers, embedded computers, single board computers, digital multimedia and other network equipment, can achieve Windows, Linux and other system support. Through the existing Gigabit Ethernet network, 2.5 Gigabits, which is up to 250% higher than the Gigabit network speed, is realized, and an efficient, energy-efficient and cost-effective multi-gigabit Ethernet solution is realized.
This network adapter card adds a 2.5GBASE-T technology Ethernet port to the computer through the PCIe x1 slot. Can be widely used in industrial control computers, embedded computers, single board computers, digital multimedia and other network equipment, can achieve Windows, Linux and other system support. Through the existing Gigabit Ethernet network, 2.5 Gigabits, which is up to 250% higher than the Gigabit network speed, is realized, and an efficient, energy-efficient and cost-effective multi-gigabit Ethernet solution is realized.
•Low cost, low power,energy-efficient Ethernet and DMA merging.
•Single-port 2500MBASE-T controller with integrated MAC and PHY
•2500Mbps Ethernet networks transition.
•PCI Express x1 interface
•Single-port 2500MBASE-T controller with integrated MAC and PHY
•2500Mbps Ethernet networks transition.
•PCI Express x1 interface
Controller | RTL8125 | ||||||
Bracket | Full height & half height | ||||||
Power Consumption | 1.0W | ||||||
System Support | Windows 7/8/8.1/10 Windows Server 2008 R2/2012 R2/2016 R2/2019 (R2) Linux Stable Kernel version 2.6.32/3.x/4.x or later Linux Cent OS/RHEL 6.5/7.x or later Ubuntu 14.x/15.x/16.x or later VMware ESX/ESXi 4.x/5.x/6.x or later | ||||||
Bus Type | PCI Express v2.0 x1 | ||||||
Data Rate | 10/100/1000/2500Mbps | ||||||
Connector | 1 * RJ45 | ||||||
Technical Features | ||||||||
Standards Compliant | IEEE 802.3bz (2.5GBASE-T) IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3i 10BASE-T IEEE 802.3x Full Duplex and flow control IEEE 802.3ad Link aggregation for parallel links IEEE 802.1Q VLAN IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE) | |||||||
PXE | Yes | |||||||
iSCSI | No | |||||||
FCoE | No | |||||||
DPDK | Yes | |||||||
WoL | Yes | |||||||
Jumbo Frames | Yes | |||||||
Environment Features | ||||||||
Operating Temperature | 0 ℃ to 50 ℃ (-13 ℉ to 122 ℉) | |||||||
Storage Temperature | -25 ℃ to 55 ℃ (-13℉ to 131 ℉) | |||||||
Storage Humidity | Maximum: 95% non-condensing relative humidity at 35 ℃ | |||||||
Physical Features | ||||||||
Size (mm ±1.0mm) | 80*120*21 | |||||||
Weight (g) | * | |||||||
LED Indicators | ||||||||
LED Indicators | 2500Mbps: Green Link + Green Blink 1000Mbps: Yellow Link + Green Blink 10Mbps/100Mbps: Green Blink | |||||||
Order Information | ||||||||
P/N | Description | |||||||
LRES2022PT | PCIe x1 Single-port 2.5G Copper Ethernet Network Adapter | |||||||
PS: The above details are for reference only, no prior notification for any changes. | ||||||||
