Влагостойкий сухой грузовой фургон кузов грузовик CKD изготовлен из легких композитных
- Категория: Truck Parts >>>
- Поставщик: Hangzhou Holycore Composite Material Co. Ltd.
Сохранить в закладки 1600191759858:
Описание и отзывы
Характеристики
Product Description
Lighter than aluminum, strong as galvanized steel
· 30% Lighter Than Traditional Truck Bodies
· Easy Washable From the Outside as From the Inside
· Translucid/Opaque Wall and Roof
· Hardly Scratched and Resistant to Impact

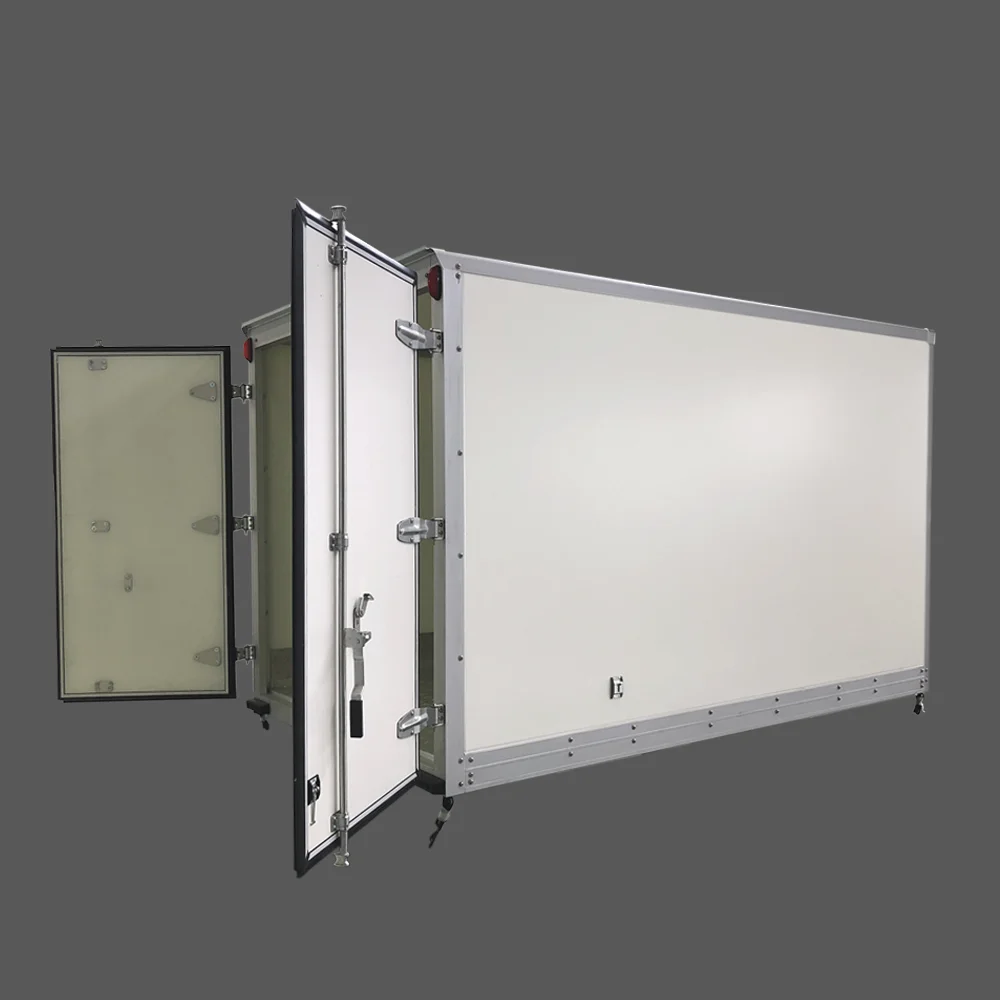

Truck Body Introduction

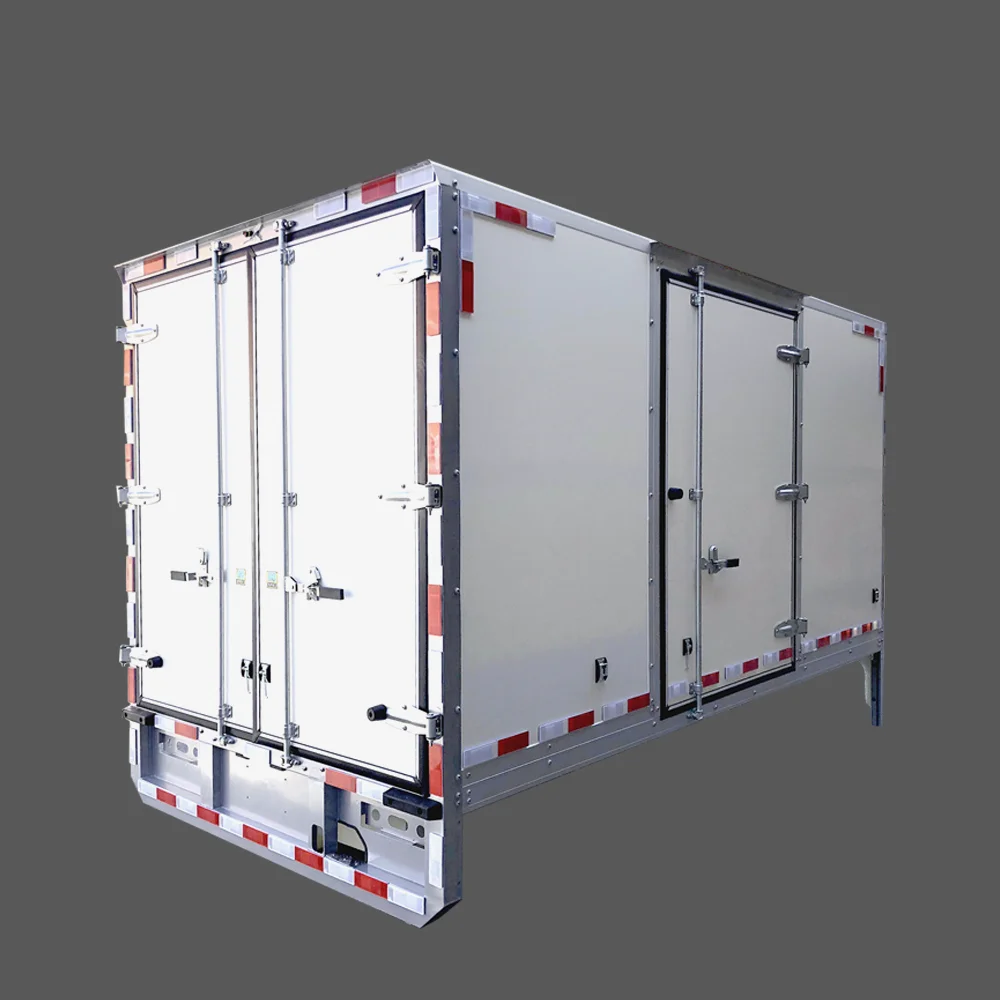

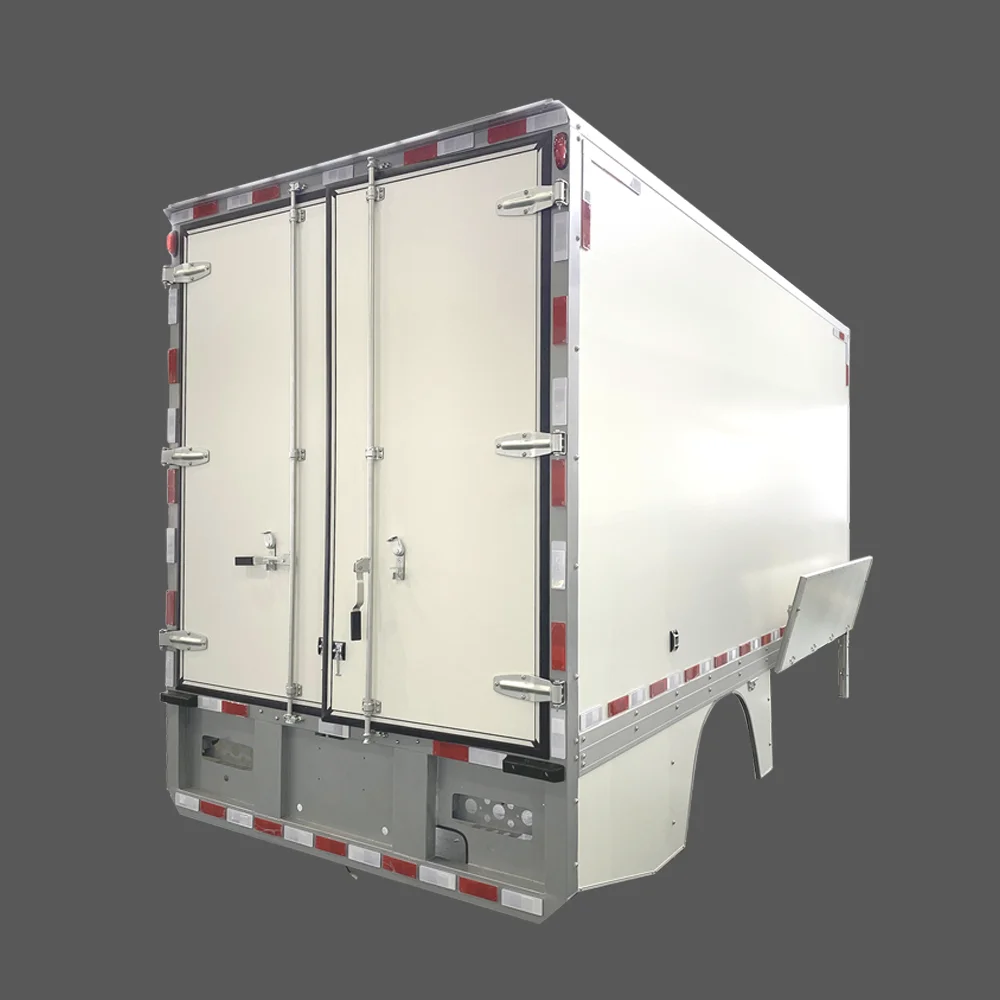

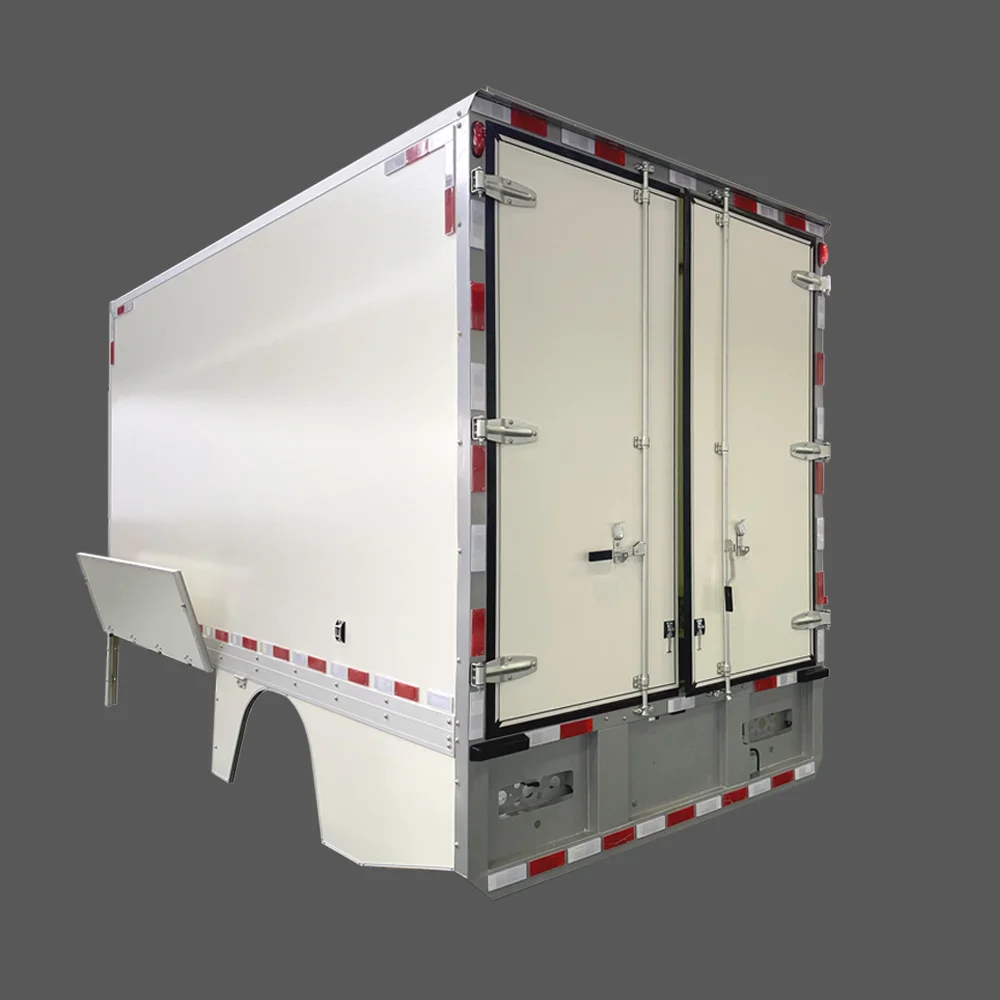

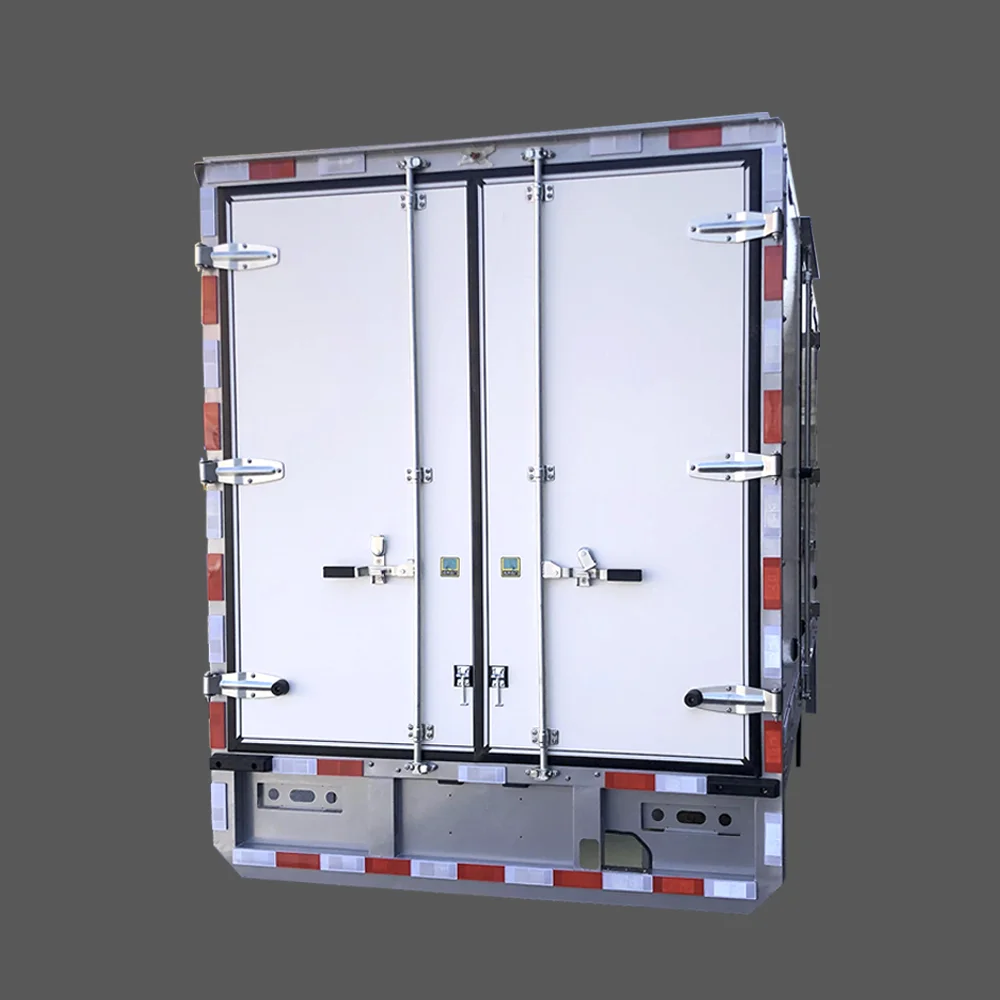

HolyCore 4.2m dry freight body is made of 20mm HolyPan (Thermoplastic honeycomb sandwich panel) and aluminum profiles, the weight of the body is much lighter than other materials and is very suitable for urban electric light trucks.
We have two most conventional sizes (MM),
4150-2100-2150 (L*W*H)
4150-2300-2300 (L*W*H)
In addition, we accept customized truck bodies
Regarding the packing and delivery, we offer CKD units.
CKD assembly overview:
1. We produce the panels and purchase the parts that are necessary for the entire body
2. We pre-assemble the six pieces, which are front wall, left wall, right wall, rear door, roof, floor
3. We package these six packages separately, and attach the accessories such as glues, rivets etc.
4. When you receive the container, unload the parts and assemble the parts according to our instructions
Easy to connect by profiles
As a sandwich panel, HolyPan is suitable for most common profiles, and could effectively reduce the assembly time and cost.
HolyPan - The Best Material for Van Bodies
Regarding the carriage, we have different configurations to provide options:
Underframe: aluminum alloy or high-strength steel
Floor: All aluminum, bamboo plywood, HolyPan + aluminum/fiberglass checkered board, non-slip honeycomb board, checkered steelplate, etc.
Wall and door panels: transparent, opaque
Profile: Aluminum alloy
Rear door frame: stainless steel, iron, aluminum alloy
Side door frame: stainless steel, iron, aluminum alloy
Locks and hinges: stainless steel, galvanized parts
Side door: none, single opening, double opening
Side guardrail: aluminum alloy, iron, honeycomb panel skirt
Cargo control track: galvanized steel, aluminum, stainless steel
Please contact us If you need additional configurations
Above is a comparison between HolyPan and other truck bodies
If you are looking for a light weight truck body that is easy to be assembled and could help reduce fuel consumption or just increase payload, HolyPan truck body will be your good choice.
Packing & Delivery
To delivery CKD products, we will carefully fix all the parts in the container with packing strap.
A 20 FT container could load about 7-8 unites of 4.2 meters truck bodies, depending on whether you need the sub frames or not.
FAQ
1. How can I order the truck bodies?
First we need the exterior dimension of the box you need,and after we confirm the configurations we will be able to make quotations for you, and then we need a draft of the chassis to process the order if you need the floor or sub-frames.
2. Why choose HolyPan for the van bodies?
HolyPan is really light, a lighter body means higher loading capacity, or just simply to save fuel cost. HolyPan could also help reduce assemble labor cost and make the production more efficient.
3.How to fix HolyPan truck bodies?
As HolyPan is thermoplastic, it will be quite easy to fix, we have demo videos on youtube.
4.Do you have any distributors?
We have the distributors of HolyPan all over the world, but so far so distributors of truck bodies.
5.What is the service life of HolyPan truck body?
We guarantee 10 years in appropriate using conditions
Certifications
Похожие товары
Брызговики SYTBK
16,50 $ - 19,00 $

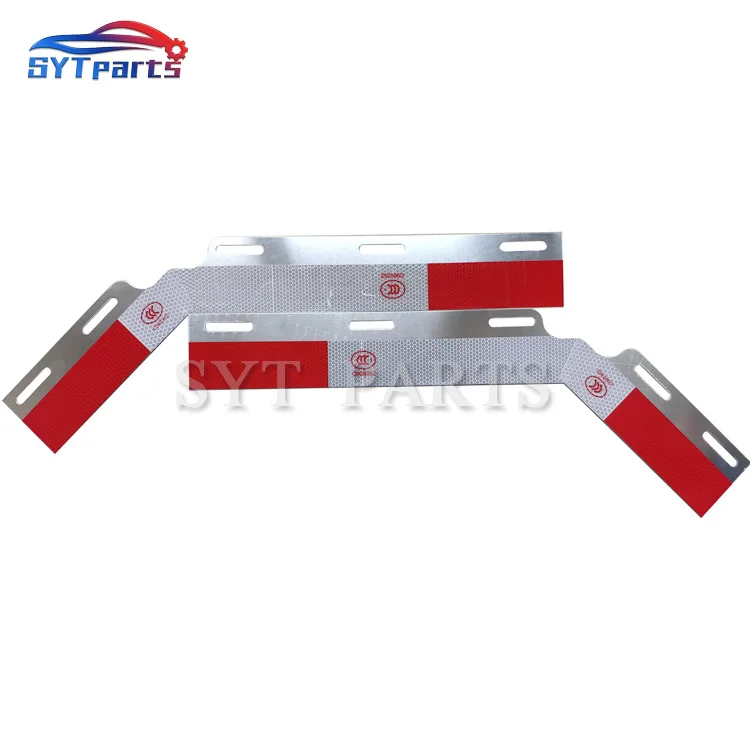

Высококачественные Угловые вешалки с
9,50 $ - 10,00 $
Тяжелая вешалка для грузовика отражающая полоса подпружиненная грязеотталкивающая
5,10 $ - 6,00 $
Электрическая Передняя и задняя кабельная система tarping model

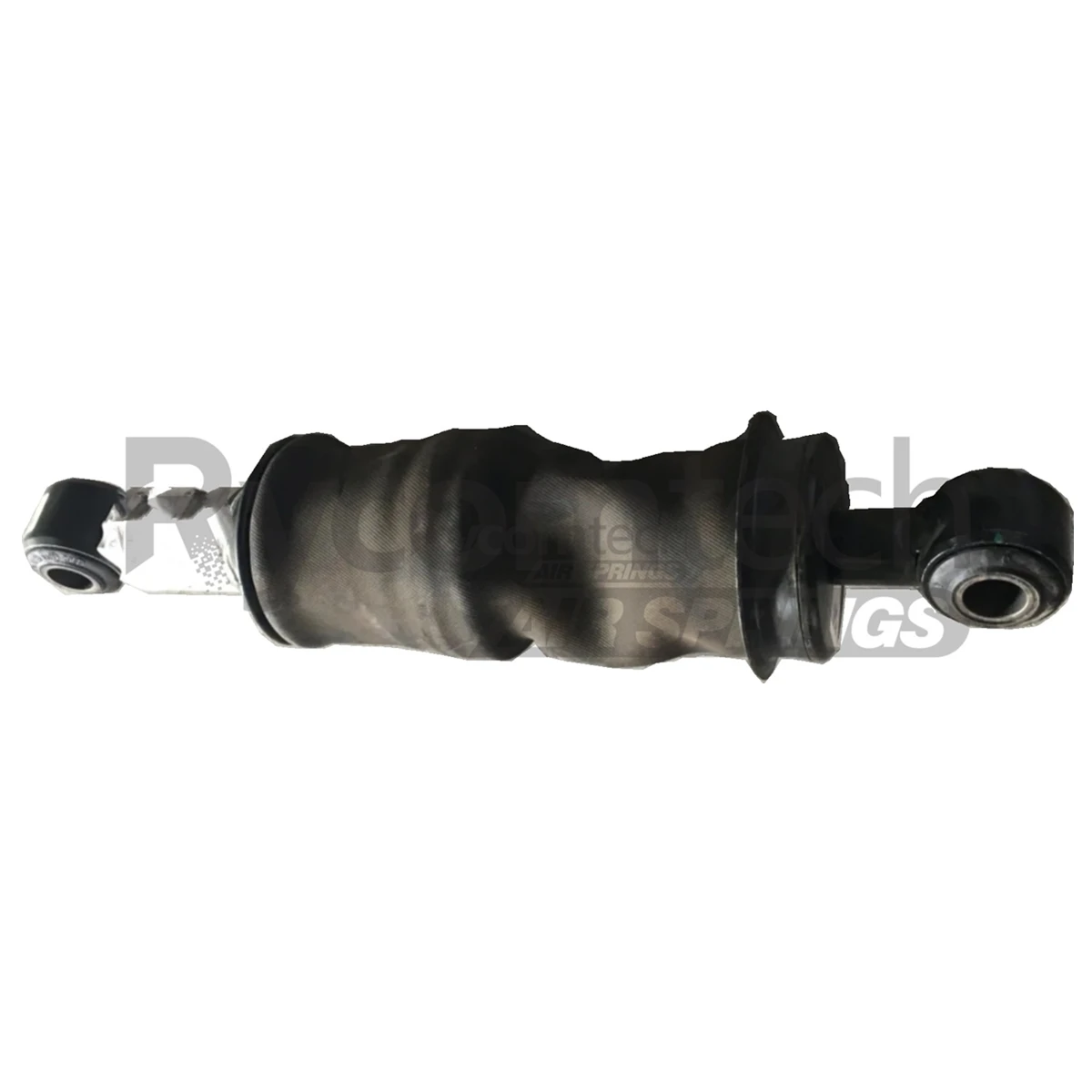

Кабины грузовика пневматического пружинного амортизатора воздуха ниже спереди для SINO-TRUNK Китай тяжелый автомобиль HOWO T7 2010 WG1664430201/1

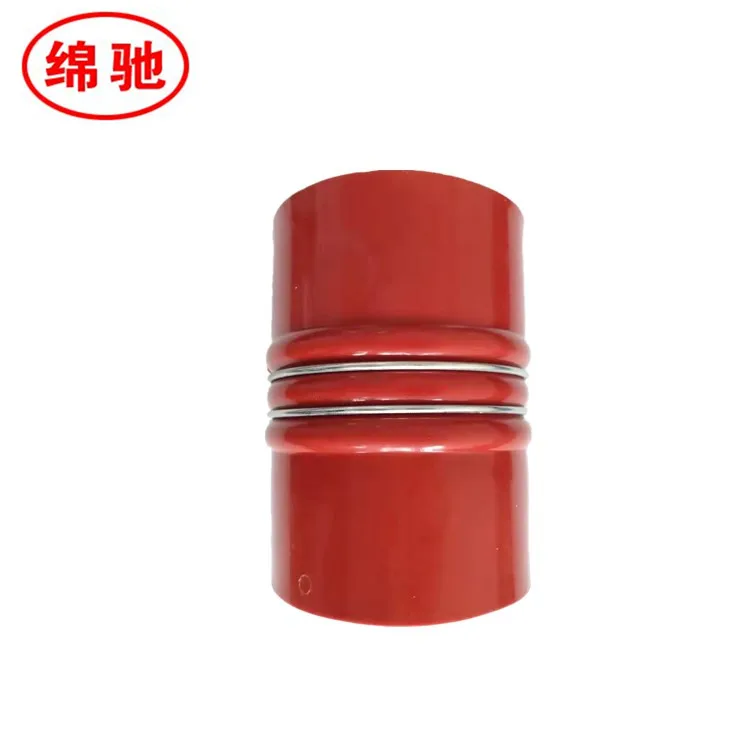

Оригинальные детали двигателя грузовика интеркулер шланг DZ9112530003 для shacman F2000

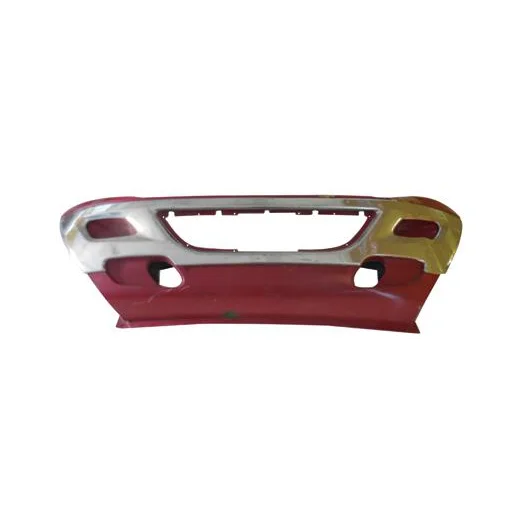

2015 межнациональной сборный передний бампер ProStar с хромированной
