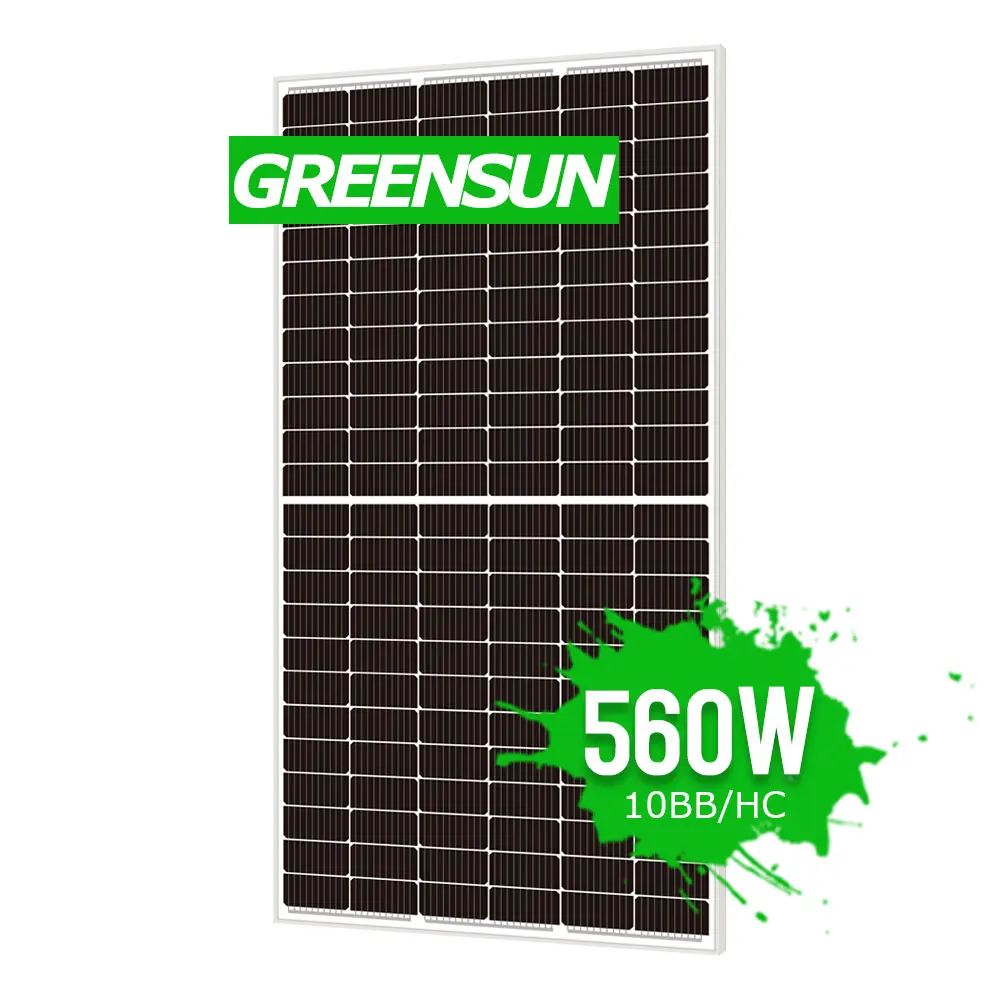

Солнечная крыша 540 Вт 550 560

Сохранить в закладки 1600192726469:


Цена:11,10 ₽ - 16,64 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description






Model

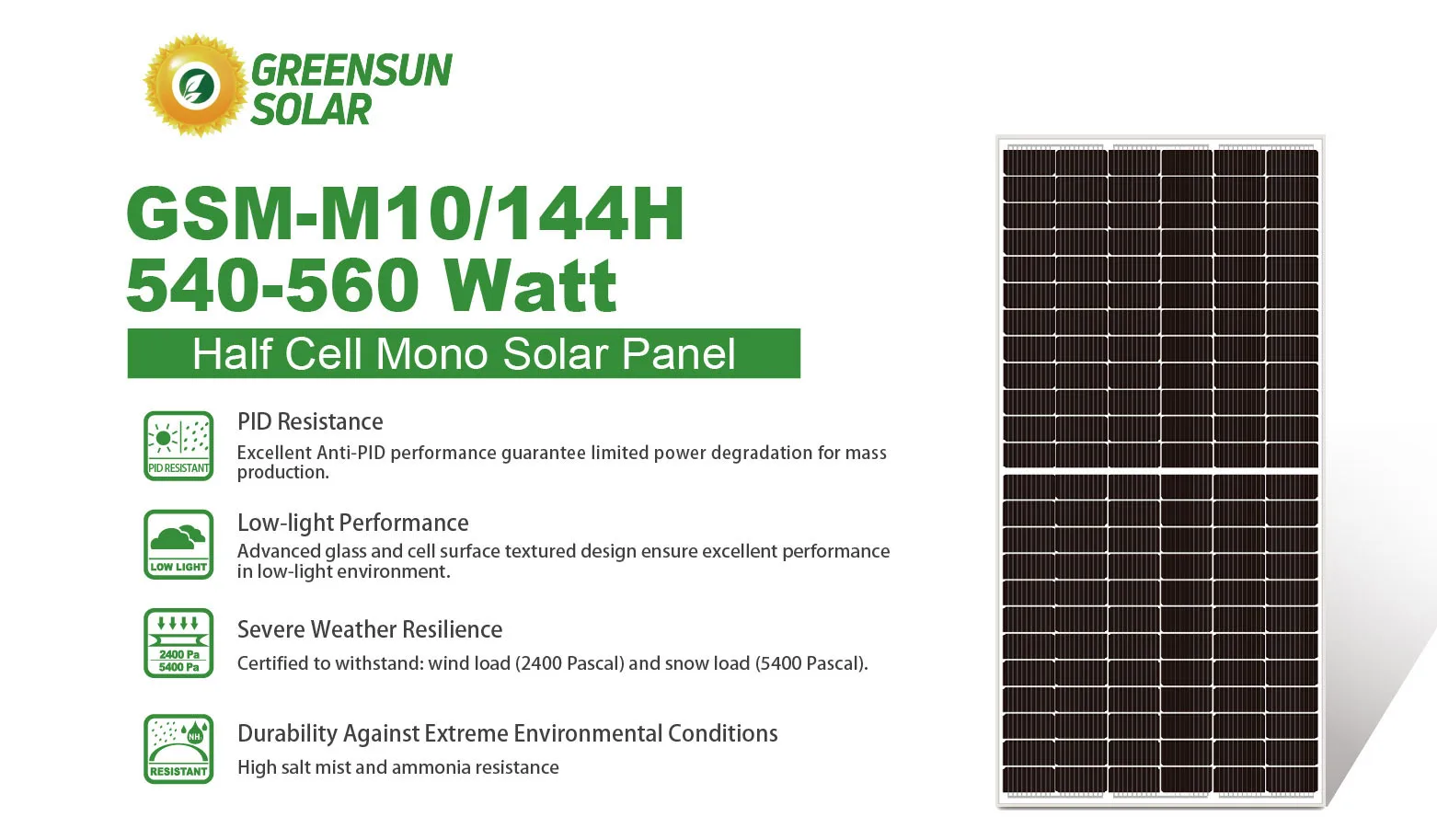

GSM-M10/144H 540-560W
GSM550-72HC
GSM555-72HC
GSM560-72HC
Rated Maximum Power(Pmax) [W]
545
550
555
560
Open Circuit Voltage(Voc) [V]
49.67
49.80
49.93
50.06
Maximum Power Voltage(Vmp) [V]
41.15
41.28
41.41
41.54
Short Circuit Current(Isc) [A]
13.93
14.01
14.09
14.17
Maximum Power Current(Imp) [A]
13.24
13.32
13.40
13.48
Module Efficiency [%]
21.2
21.4
21.6
21.8
Power Tolerance
0~+5W
Temperature Coefficient of Isc(α_Isc)
+0.051%/℃
Temperature Coefficient of Voc(β_Voc)
-0.289%/℃
Temperature Coefficient of Pmax(γ_Pmp)
-0.350%/℃
STC
Irradiance 1000W/m²,ᅠcell temperature 25℃, AM1.5G


Grade A Materials




10BB PERC Mono Half Cells

* PERC Half Cells

* Higher Power Output

* Less Shading Effect

* Appearance Consistency




Tempered Glass

* 12% Ultra Clear Tempered Glass.
* 30% Lower Reflection

* 3.2mm thickness

* >91% Higher Transmittance
*  High mechanical strength



EVA

* >91% Higher Transmittance EVA,

* Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability



Frame

* Aluminum Alloy Frame

* 120N Tensile Strength Frame
* 110% Seal-lip Design Glue Injection

* Black/Silver Optional



Production




PERC Solar Cells
Perc 182mm size solar cell
Grade A quality
More than 21% efficiency
9 Bus Bar, Anti PID
Junction Box
IP68 water proof junction box
Silver or Black frame
Max DC 1500V
25 Years warranty

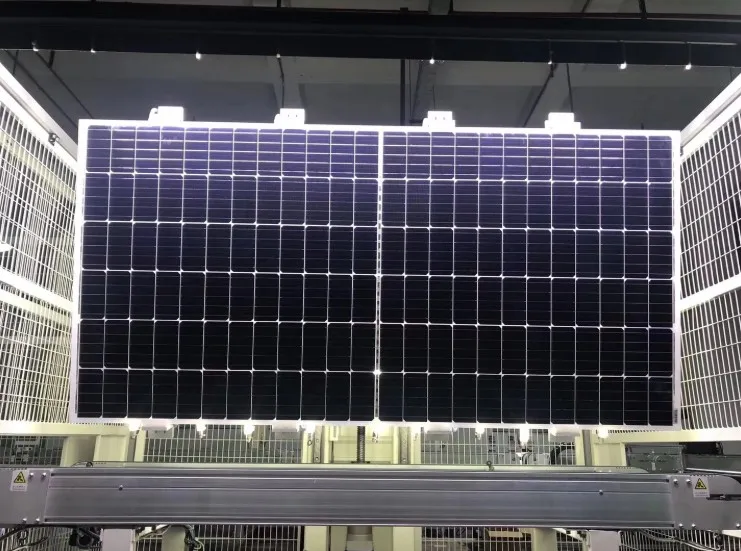

Factory

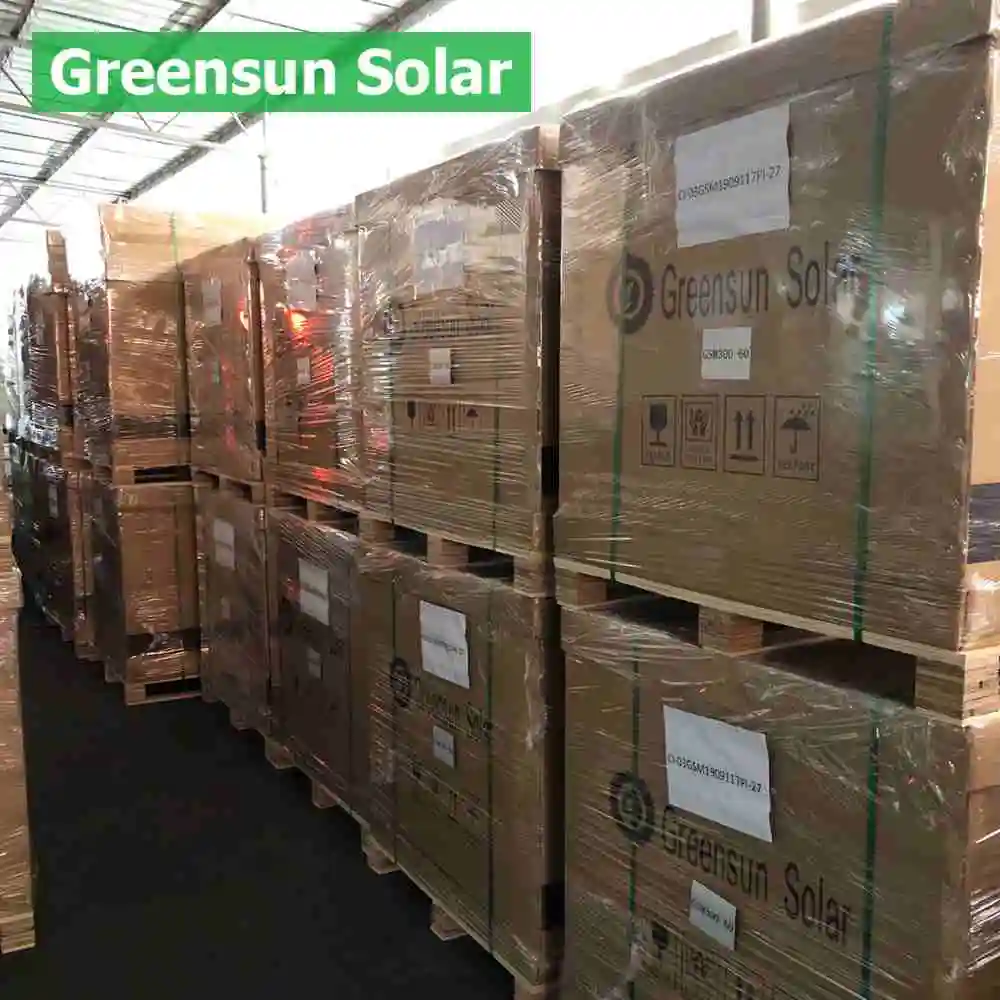

Packing & Transport




Transport:

Accodring to your products quantity and requirement , we will choose Security and Economical transportation for you .

Including Sea transportation ,Air transportation , Land transportation and Express .





Payment&Warranty


Payment Terms
EXW


30% T/T in advance, paid the balance before shipment
FOB
CNF
CIF
LC
L/C amount above 300,000 usd, we can accept L/C at sight
West Union
Accpetable
Delivery Time
7~15days after receiving payment for one container

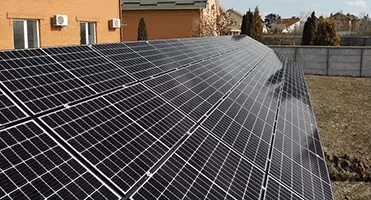

Project


5KW Residential Solar Power System in Poland

220KW Solar Power Plant in Sweden





500KW in Poland 300KW in United Sates


2MW Solar Power Plant in Germany
