Новый контроллер Hi Target Irtk5 Gnss Rtk System ру 336 каналов Ihand30, программное обеспечение для дорог
6 899,00 $ - 7 100,00 $
UHF pll высокая частота профессиональный УВЧ беспроводной
- Категория: >>>
- Поставщик: Guangzhou Cast Sound Lighting Entertainment Equipment Co. Ltd.
Сохранить в закладки 1600194031038:
Описание и отзывы
Характеристики
Product Description
Recommend Products
Specification
Technical parameters (touch screen true diversity)
Comprehensive characteristics
Carrier frequency range: 610MHz-960MHz (depending on the applicable country range)
Modulation method: FM frequency modulation
Maximum frequency deviation: ±45KHz
Frequency response: 50Hz-15KHz
Signal to noise ratio (S/N): >105dB(A)
Distortion: (1KHz): <0.3%
Working temperature: -10℃~55℃
Working distance: 80 meters (under ideal environment)
Receiver
Oscillation mode: PLL (digital frequency synthesizer)
Spurious suppression: ≥80dB
Image suppression: ≥80dB
Sensitivity: 5dBuV
Audio output level: balanced output (XLR output jack): 250mV/600Ω
Unbalanced output (1/4" output jack): 400mV/3KΩ
Working voltage: DC 13.5-16V
Working current: ≤800mA

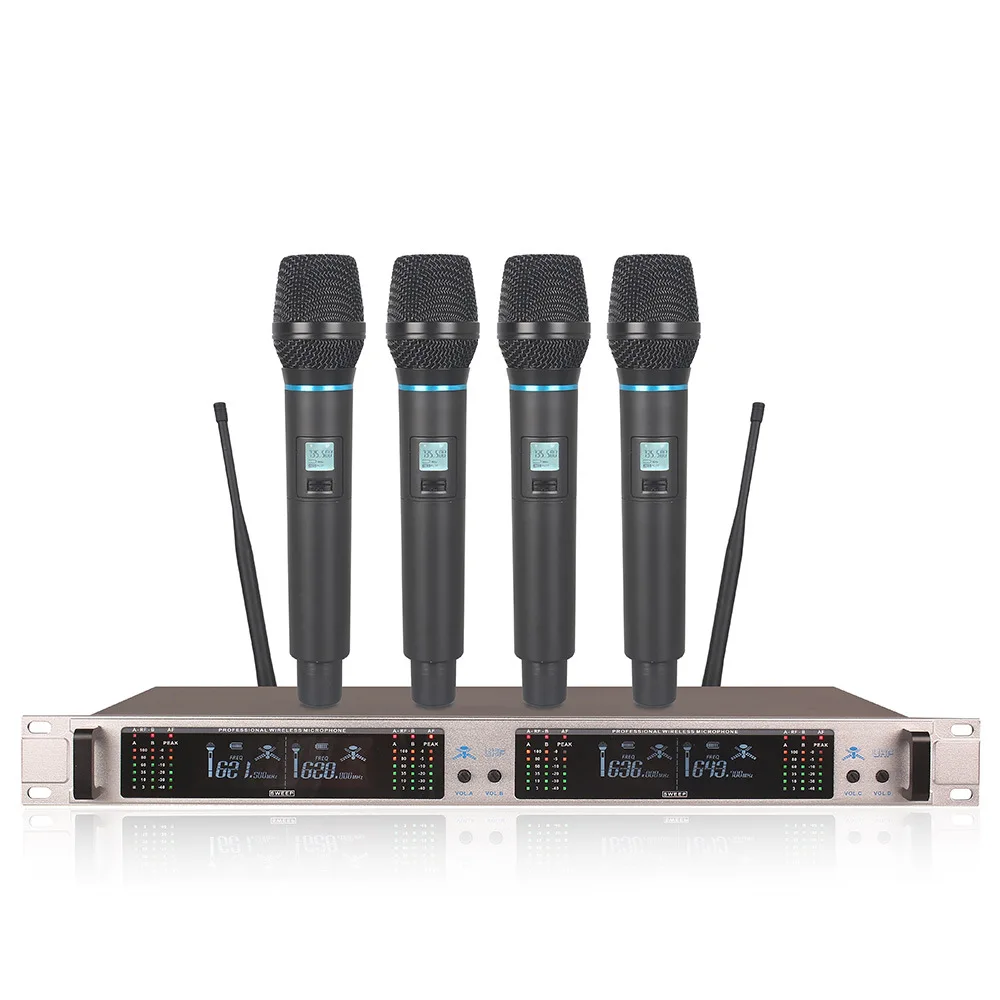

Handheld transmitter
RF power output: 30mW max (depending on applicable national regulations)
Oscillation mode: PLL (digital frequency synthesizer)
Transmit frequency stability: <30ppm
Dynamic range: ≥100dB (A)
Frequency response: 50Hz-15KHz
Maximum input sound pressure: 130dB SPL
Microphone pickup: dynamic
Power supply: 2 (1.5V) AA alkaline batteries
Comprehensive characteristics
Carrier frequency range: 610MHz-960MHz (depending on the applicable country range)
Modulation method: FM frequency modulation
Maximum frequency deviation: ±45KHz
Frequency response: 50Hz-15KHz
Signal to noise ratio (S/N): >105dB(A)
Distortion: (1KHz): <0.3%
Working temperature: -10℃~55℃
Working distance: 80 meters (under ideal environment)
Receiver
Oscillation mode: PLL (digital frequency synthesizer)
Spurious suppression: ≥80dB
Image suppression: ≥80dB
Sensitivity: 5dBuV
Audio output level: balanced output (XLR output jack): 250mV/600Ω
Unbalanced output (1/4" output jack): 400mV/3KΩ
Working voltage: DC 13.5-16V
Working current: ≤800mA
Handheld transmitter
RF power output: 30mW max (depending on applicable national regulations)
Oscillation mode: PLL (digital frequency synthesizer)
Transmit frequency stability: <30ppm
Dynamic range: ≥100dB (A)
Frequency response: 50Hz-15KHz
Maximum input sound pressure: 130dB SPL
Microphone pickup: dynamic
Power supply: 2 (1.5V) AA alkaline batteries
Carrier frequency range: 610MHz-960MHz (depending on the applicable country range) Modulation method: FM frequency modulation Maximum frequency deviation: ±45KHz Frequency response: 50Hz-15KHz Signal to noise ratio (S/N): >105dB(A) Distortion: (1KHz): <0.3% Working temperature: -10℃~55℃ Working distance: 80 meters (under ideal environment) | Receiver Oscillation mode: PLL (digital frequency synthesizer) Spurious suppression: ≥80dB Image suppression: ≥80dB Sensitivity: 5dBuV Audio output level: balanced output (XLR output jack): 250mV/600Ω Unbalanced output (1/4" output jack): 400mV/3KΩ Working voltage: DC 13.5-16V Working current: ≤800mA | Handheld transmitter RF power output: 30mW max (depending on applicable national regulations) Oscillation mode: PLL (digital frequency synthesizer) Transmit frequency stability: <30ppm Dynamic range: ≥100dB (A) Frequency response: 50Hz-15KHz Maximum input sound pressure: 130dB SPL Microphone pickup: dynamic |
