Высокопроизводительная автоматическая линия производства вафель/машина для вафель

Material and Parameters

♦Baking framework: Grey cast iron;

♦Baking plate: Special heat resistant cast iron;

♦Automatic spring system:stretch according to the oven and frame;

♦Gas solenoid valve: Italian import components;

♦Gas relief pressure valve:components imported from Japan;

♦Baking temperature adjustable range:Normal to 180°C(adjustable)

♦Baking plate size: 470×325mm; 470×350mm; 500×350mm

♦Sheet thickness adjustment: 2.5mm~5.0mm(adjustable)

♦Wafer output:50 grams~60 grams(adjustable)

♦Oven frame structure:GB steel

♦Oven sheet metal and smoke exhaust chimney:304 stainless steel

♦Guiding Rail:45# cold drawn steel

♦Thermal insulation material: Silicon insulation board

Electric components

♦10.4 inch colorful touch screen: Mitsubishi

♦PLC: Mitsubishi

♦Electric Motor: SEW

♦Bearing: SKF

♦Cylinder: Festo

♦Switches:Schneider

♦Frequency converter:Danfoss

♦Proximate switch: OMRON

Capacity list

♦Biscuit samples

Features

2.1 There many kinds of shape are available, checkered, hexagon, etc. Special shape can also be designed upon client’s need.
2.2 All motor, electrical equipments are international standard---famous international brand or Chinese brand

2.3 Reasonable layout, compact structure, small occupation

2.4 High automatic, stable performance, machine can be controlled separately, simple operation and easy maintenance

Technical characteristics

3.1 Adapting servo batter deposit structure.

3.2 Controlled by touch screen, safer, more convenient and more accurate.

3.3 High efficiency, high productivity, stand-alone machine can be controlled separately, simple operation and easy maintenance.

3.4 All parts which touch the food products are made of 304 stainless steel and meet food-grade requirements to ensure safety.

Machine Pictures

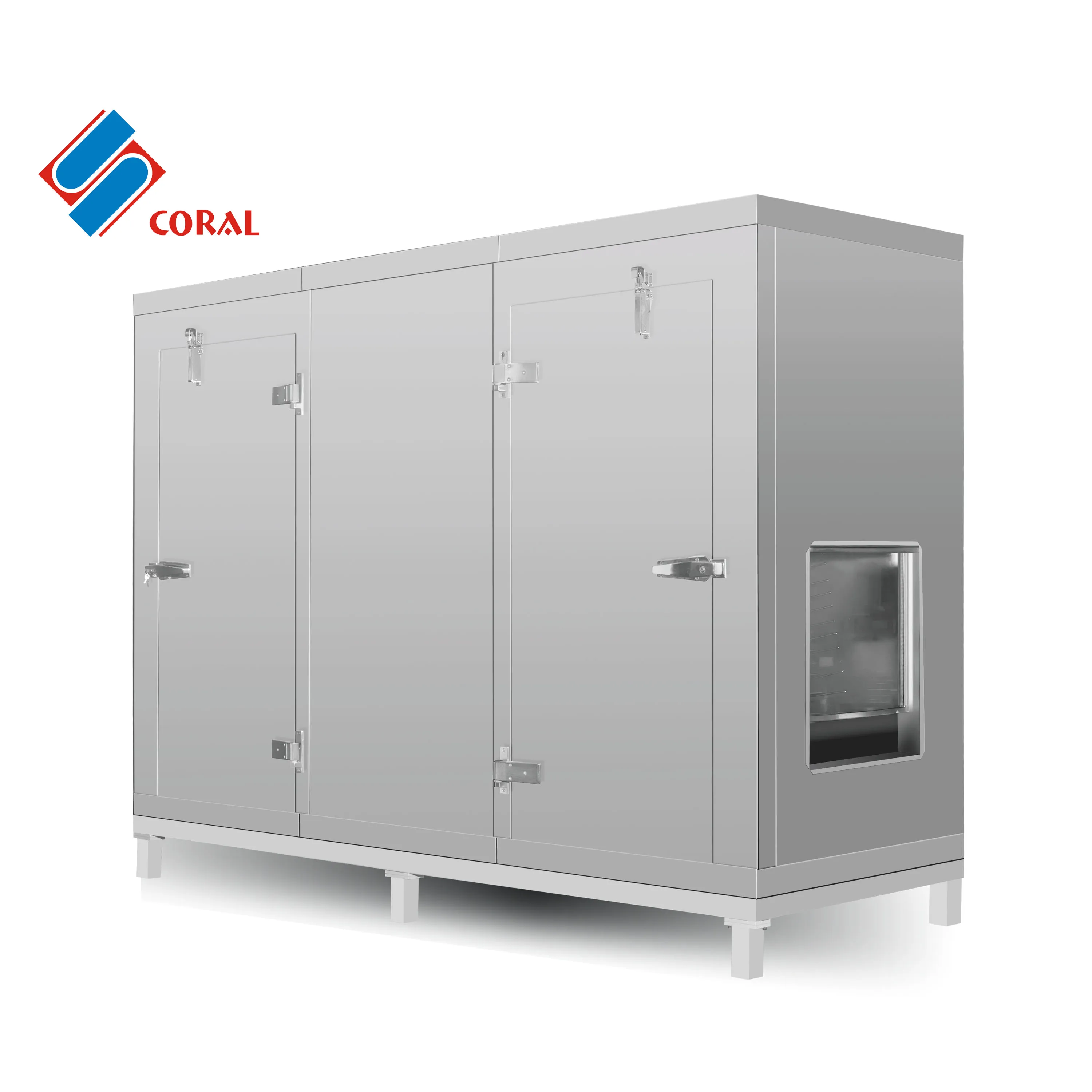

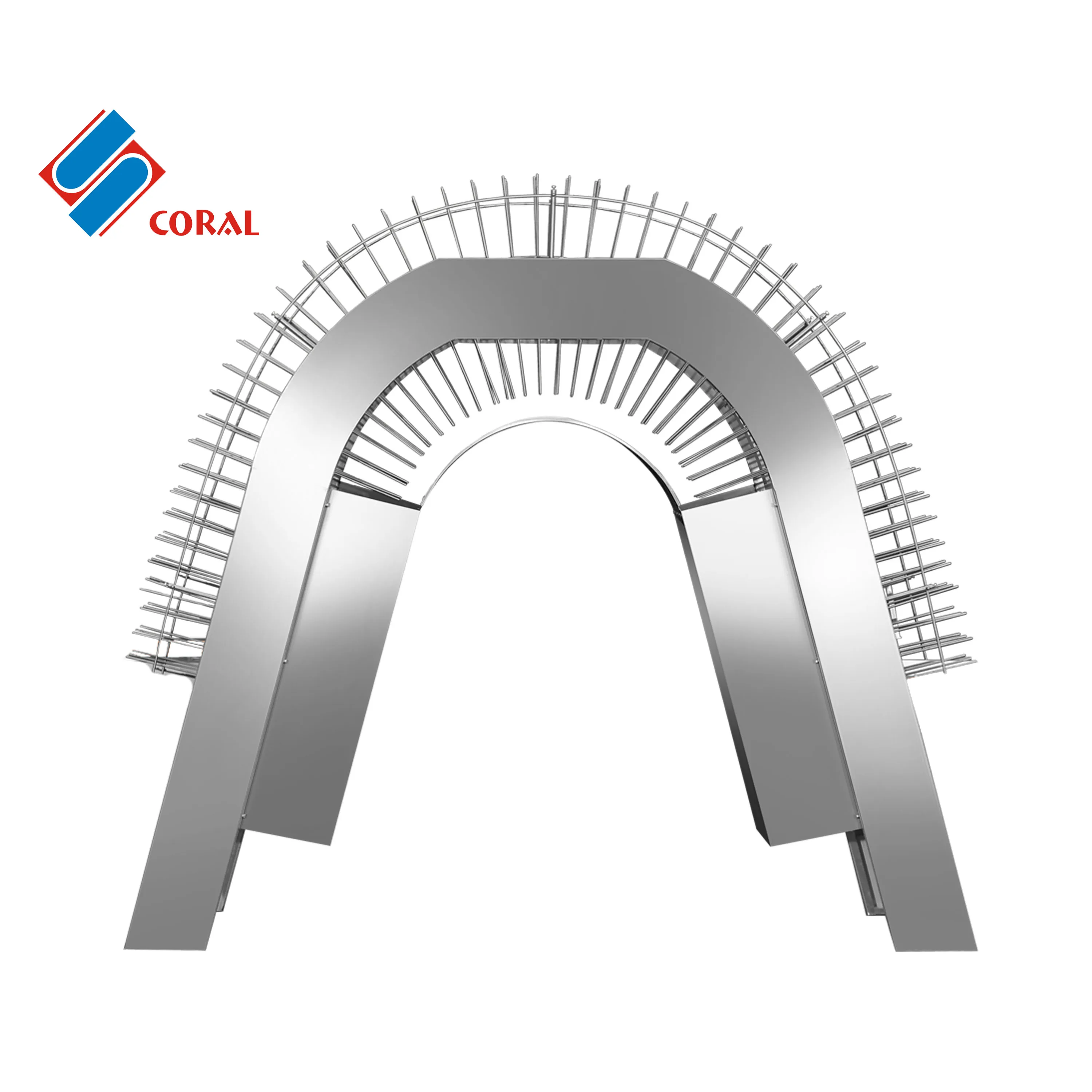

Wafer sheet baking from oven, automatically transfer to cooling tower and cooling in the air. Cream will be automatically applied on wafer sheet, after the cooling from cooling cabinet, wafer book cut on cutting machine.

Detail Pictures

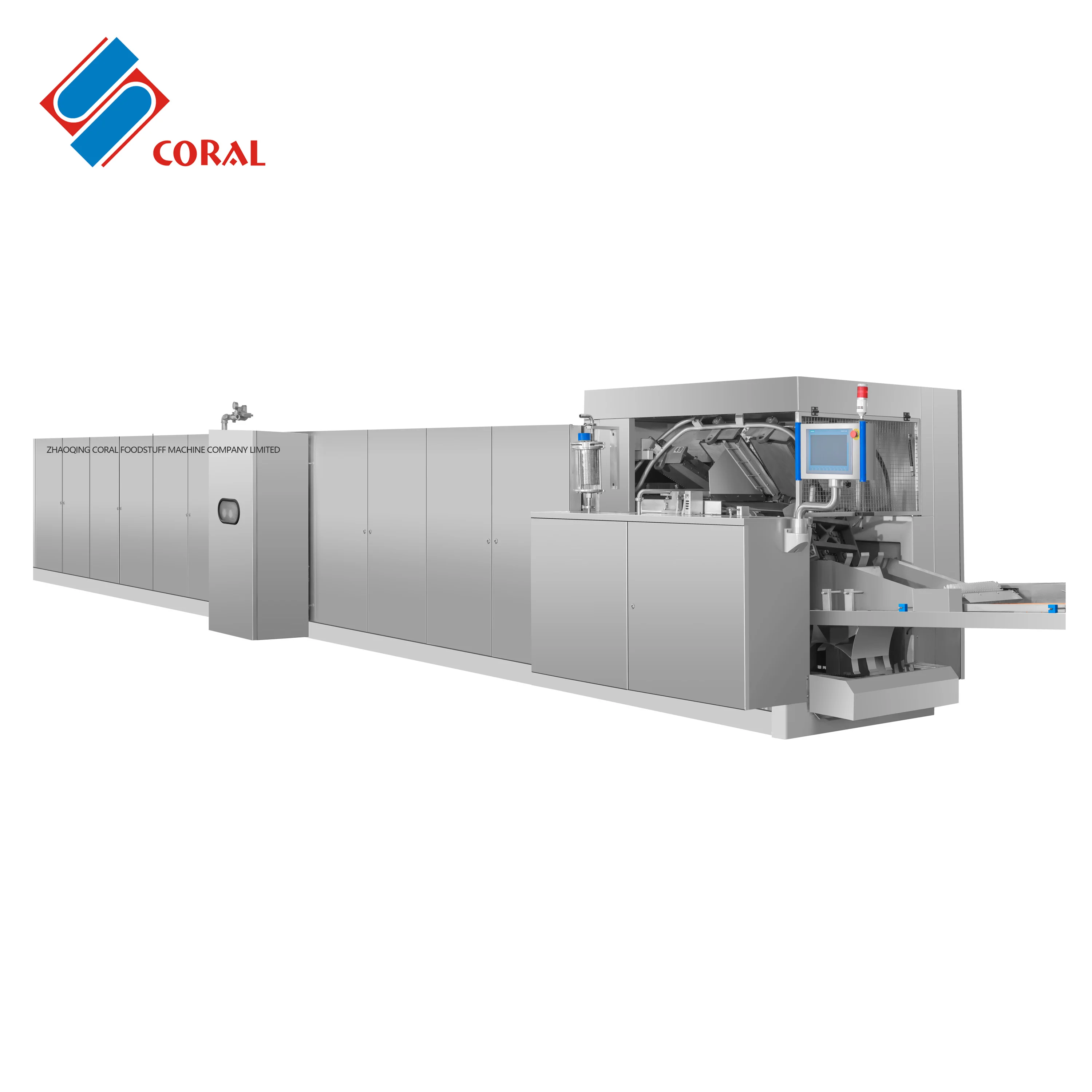

Baking oven has a great and effective burning inside oven chamber

Automatic batter deposit with accurate positioning

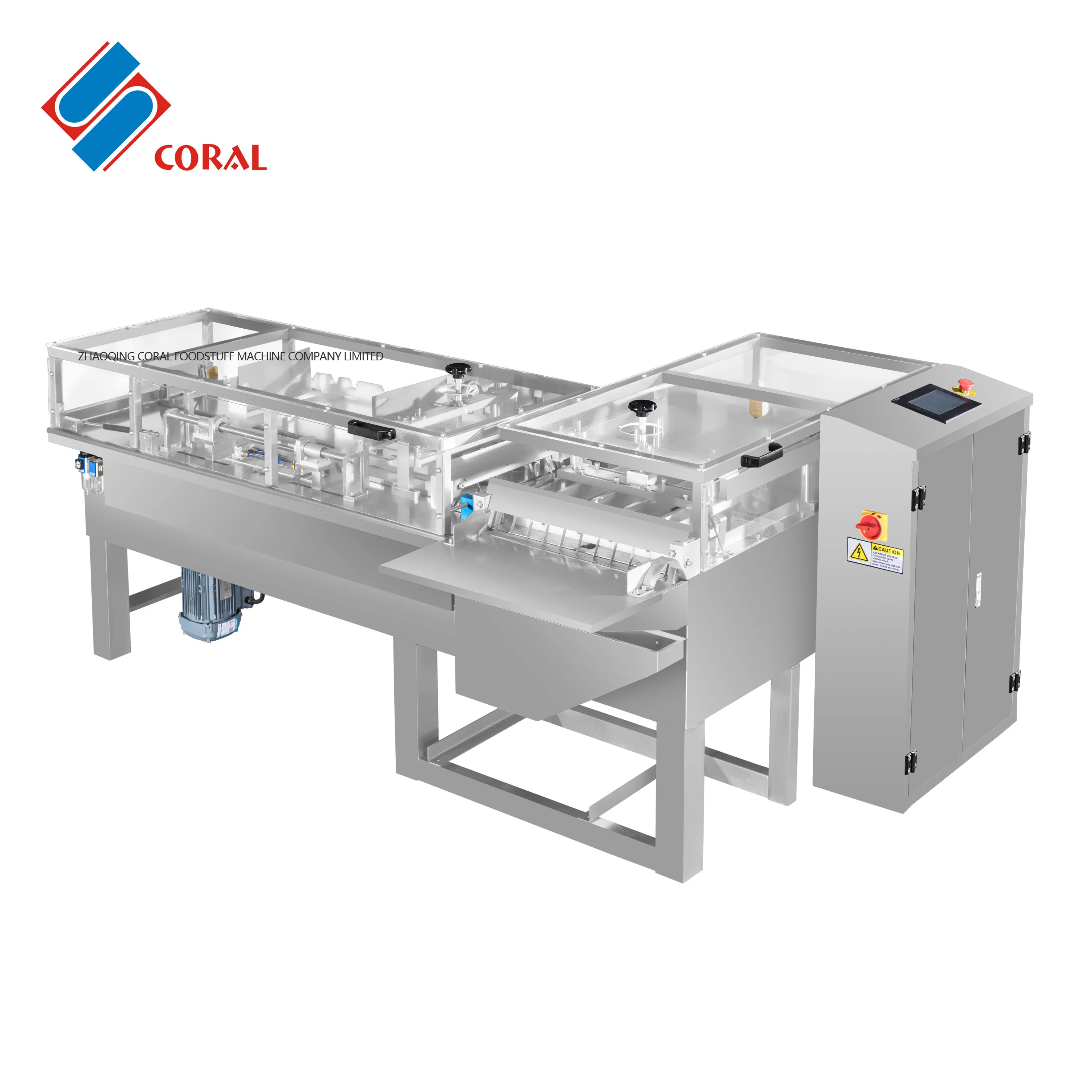

Cream applies on wafer sheet evenly by cream scraper

Wafer book cut in straight and smooth on Cutting machine by sanitation blade

Packing details:Standard packing in container for seaworthy

Port:Guangzhou/Shenzhen
