Product Description
Brief introduction of beer filling machine
The beer production process is divided into several processes such as malt manufacturing, wort manufacturing, pre-fermentation, post-fermentation, filter sterilization, and packaging. The beer filling and capping machines are part of the packaging process. After being filtered by the membrane, the beer is sent to the rotary beer tank through the pipeline, and then into the bottle through the filling valve, and bottled beer is obtained after capping. The working efficiency and automation of beer filling and capping machines directly affect the daily output of beer.
This series of glass bottle beer filling machine is dedicated to the isobaric filling production line of glass bottled beer and carbonated beverages. The filling adopts one-time or two-time vacuuming technology, it has the functions of automatically closing the valve and flushing broken glass, and using hot water to stimulate foam before pressing the lid.
Main Features of beer filling machine
1. This machine adopts fully automatic working mode, which automatically completes the station transfer of bottles and the cleaning and filling of each station without manual operation by personnel.
2. It is equipped with a separate cleaning function, only cleaning but not filling, and can be used as a pre-washing machine.
3. The mechanical transmission mechanism adopts the mechanical curved rod linkage mode to make the beer filling machine run smoothly, reliably, and accurately locate, and avoid the occurrence of failure rate.
4. The equipment is equipped with automatic flow detection, pressure detection, residual liquid detection after purging, wine spear opening detection and other detection functions, as well as station alarms.
5. The water tank is automatically filled with water, heated automatically and kept constant temperature.
6. The filling adopts CO2 backup pressure and pressure-maintaining low-pressure differential fully enclosed filling method. The filling volume is detected by imported flowmeters, which can ensure low foam, low consumption and accurate filling volume after filling.
7. The equipment can set and adjust the filling capacity through the touch screen, and can adjust the error, and can display the number of bottles and liters filled in real time.
Specification
Glass Bottle Beer/ Wine Filling Machine
Bottle Material: Glass Bottle
Cap: Metal Crown Cap
Bottle Volume: 100-2500ml
Production Speed: 1000-32000bph
Suitable Bottle:
Height 170-320
Diameter 50-100
Project | Beer Bottling Machine | ||||||||||||||||
Model | BCGF 14-12-4 | BCGF 18-18-6 | BCGF 24-24-8 | BCGF 32-32-10 | BCGF 40-40-12 | BCGF 50-50-12 | BCGF 60-60-15 | BCGF 70-70-18 | BCGF 80-80-22 | ||||||||
Capacity (BPH) | 2000 | 3500 | 6000 | 9000 | 11000 | 18000 | 22000 | 25000 | 30000 | ||||||||
Bottle type | φ=50-115 H=160-330 (200ML TO 2000ML) | ||||||||||||||||
Air pressure (Mpa) | 0.3-0.7 | ||||||||||||||||
Power supply | 2.2 KW | 3.5 KW | 3.8 KW | 5.5 KW | 7.5 KW | 10 KW | 13 KW | 13 KW | 13 KW | ||||||||
Overall dimension | 2100×1800×2700 | 2600×2100×2700 | 3200×2300×2700 | 4200×2600×2700 | 4800×2800×2700 | 5700×3600× 2700 | 6000×4200×2700 | 6500×4500×2700 | 7000×5000×2700 | ||||||||
Weight (KG) | 2300 | 3500 | 4600 | 6500 | 8500 | 10000 | 11000 | 13000 | 14000 | ||||||||
ITEM | DEVICES | BRAND | ORIGINS |
1 | PLC | Germany | |
2 | Inverter | ||
3 | Touch Screen | ||
4 | Switch | France | |
5 | Contactor | ||
6 | Relayer | ||
7 | Solenoid Valve | FESTO | Germany |
8 | Drive Motor | SEW EURODRIVE | |
9 | Reducer | SEW EURODRIVE | |
10 | Water Pump | GRUNDFOS | Denmark |
11 | Main Bearing | SKF | Sweden |
12 | Sensor | SICK | Germany |
13 | Air Component | FESTO | Germany |
14 | Stainless Steel Frame | POSCO | Korea |
Details Images
Working Principle of Beer Bottling Machine
The beer filling and capping machine adopts the pressure filling method, which is filled at higher than atmospheric pressure, the pressure in the liquid storage tank is higher than the pressure in the bottle, and the beer liquid flows into the bottle by the pressure difference.
Using the rotary motion generated by the rotary wine tank, the vacuum valve fixed on the upper part of the wine tank is opened through the mechanical mechanism for the empty bottle placed on the tank position, and the sealed bottle is vacuumed.
The vacuum cam continues to open the vacuum valve to draw out the mixed gas of air and carbon dioxide in the bottle, and the gas valve opens again to fill the bottle with carbon dioxide gas. Turn the outer operating valve stem, open the gas valve, and fill the bottle with carbon dioxide gas.
The liquid valve in the filling valve opens when the pressure in the bottle is close to the gas pressure, the beer is injected into the bottle along the bottle wall, and the beer is filled through the electric control of the filling valve.
Washing parts of beer filling machine:
1. Safety and hygiene: Stainless steel 304/316L for all components
2. Latest water-saving technology: Saving 30% water consumption
3. Latest Machine Structure: Avoid a large amount of water accumulation inside the machine structure
4. Strong and Durable
5. The latest drainage design will not accumulate water

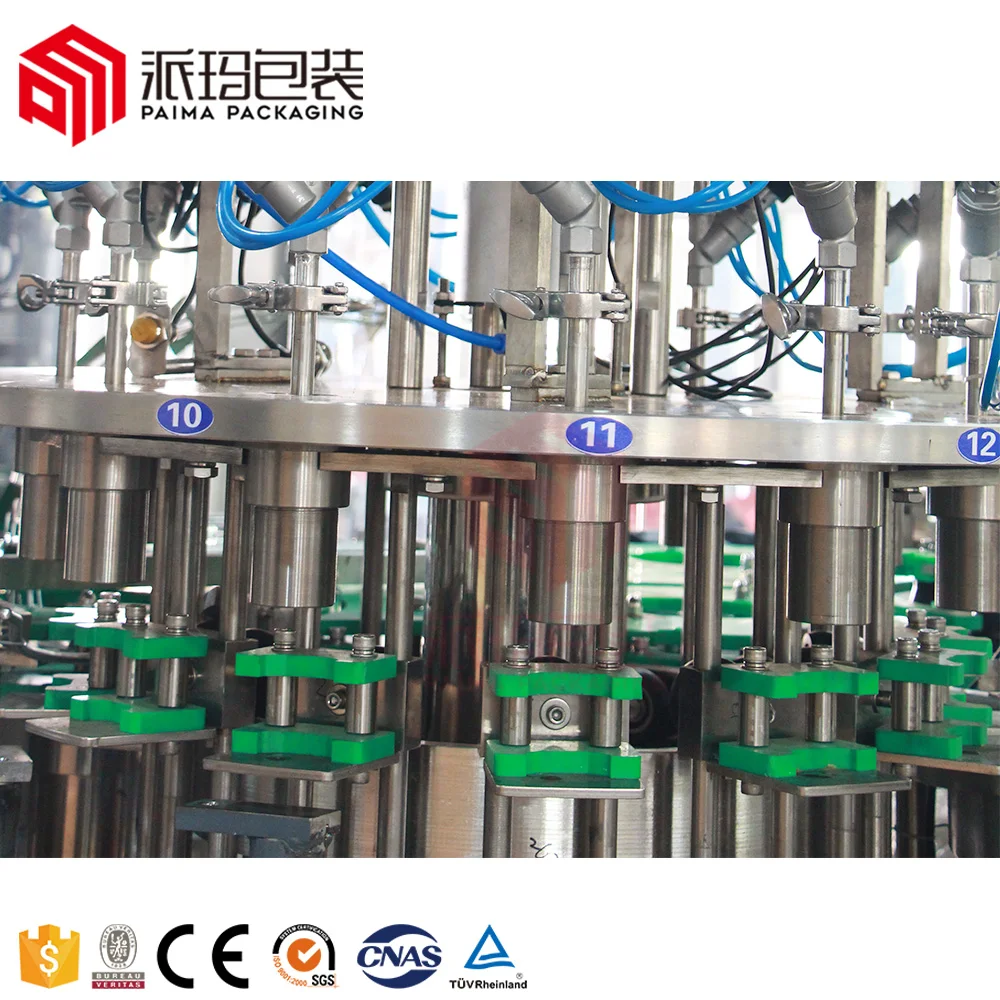

Filling parts of beer filling machine：
1. 2 times vacuum, 2 times CO2 injection
2. No bottle , no filling
3. Stainless Steel 304/316 high precision filling nozzle
4. Level height can be adjusted , bought from Nanjing , the best valve in China
5. Efficient spray nozzle rinse throughly and save water for flushing
6. The latest drainage design will not accumulate liquid

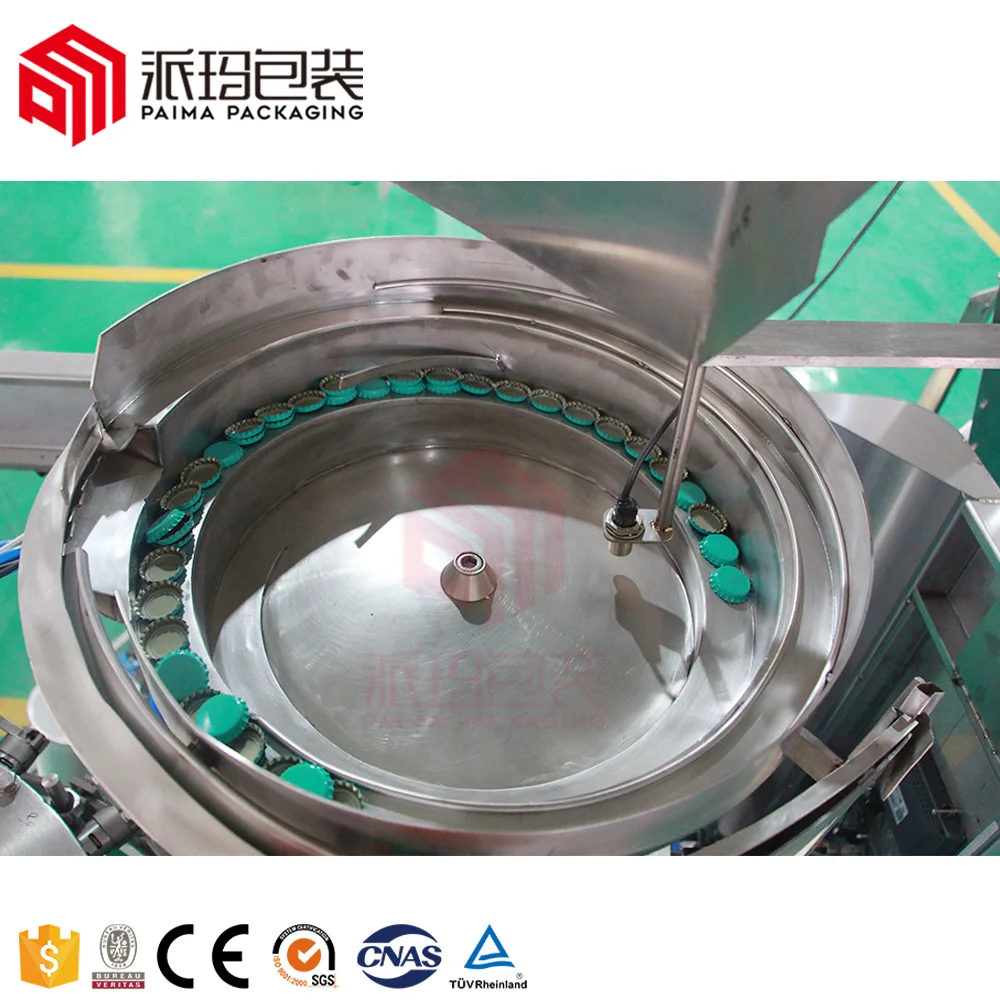

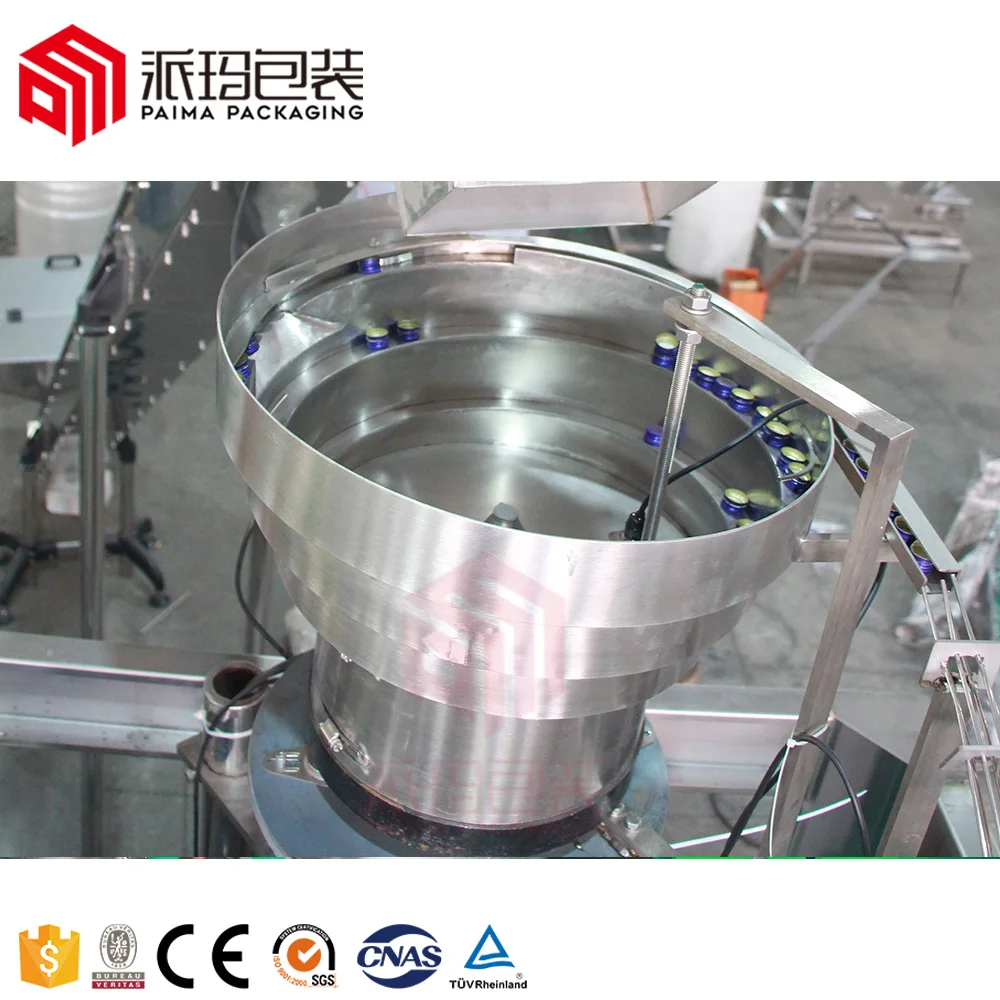

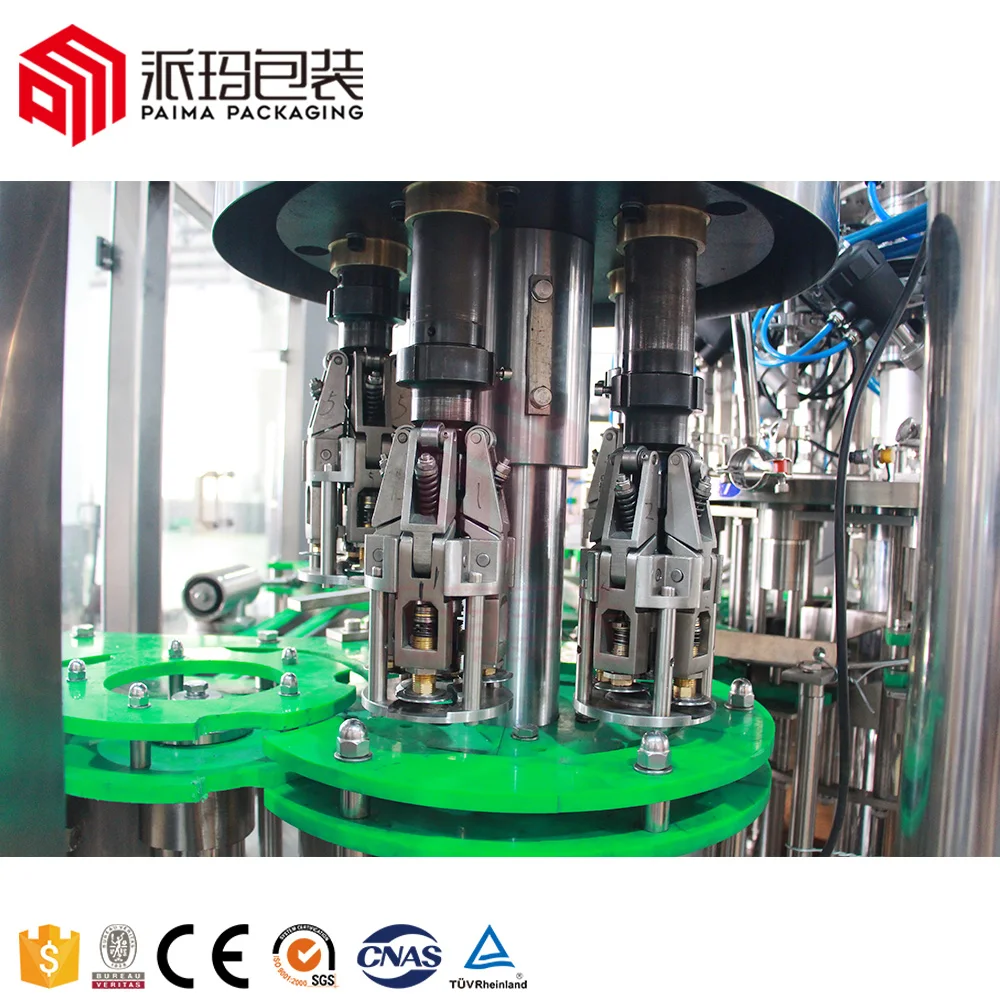

Capping parts of beer filling machine：
1. All 304/316 stainless steel construction
2. No bottle no capping
3. Automatic stop when lack of bottle
4. Capping effect is stable and reliable ,Defective rate ≤0.2% .
5. Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
6. The latest drainage design will not accumulate liquid

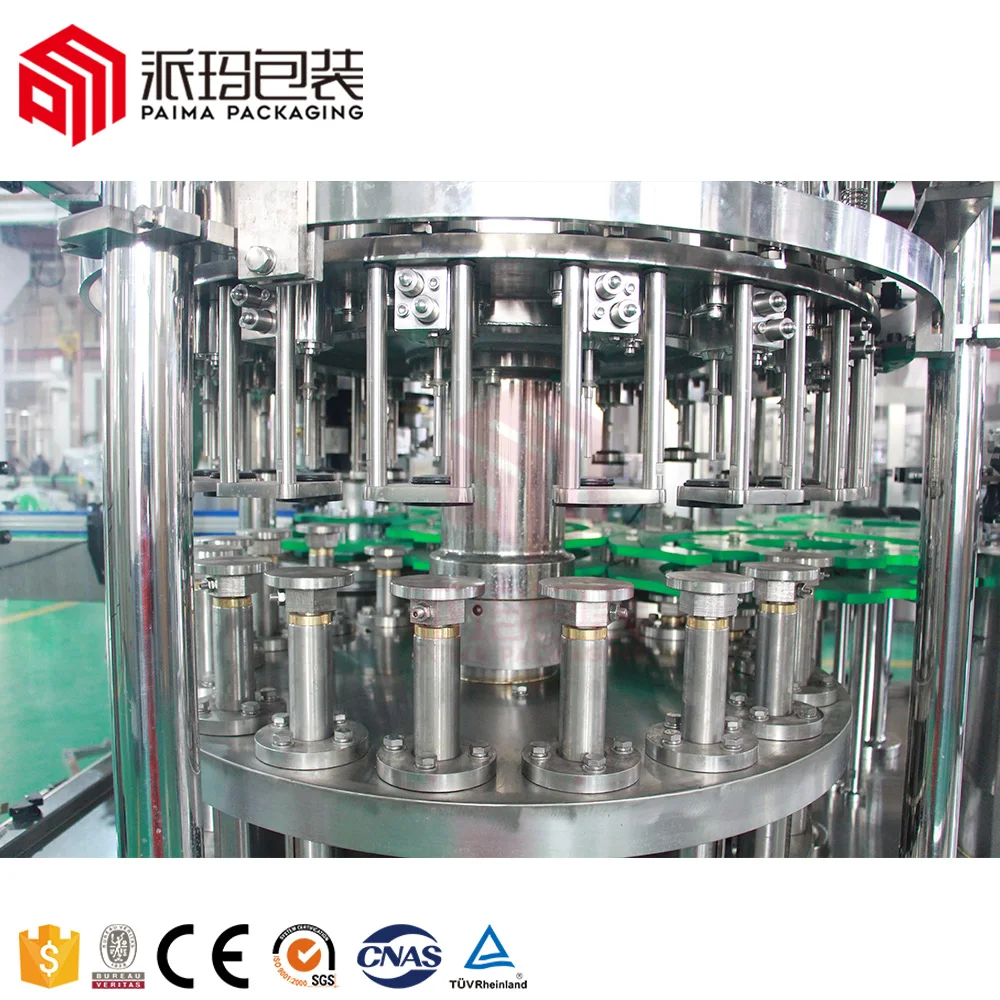

Filling Valves of beer filling machines:
Open the charge valve, form a pathway between the bottle and alcohol tank’s CO2. The CO2 will fill into the bottle through the pathway. The charge valve will be closed when the setting time reached, which means the CO2 pre-charge process end.
Open the take-out-vacuum valve pole, form a pathway between bottle and vacuum. The CO2 and air will be discharged from the bottle by the pathway, and form into the vacuum in the bottle.The take-out-vacuum will be closed when the setting time arrived, then the once take-out-vacuum ends.
Related Products
Complete beer production line
1. Malt Milling System 2. Brewhouse System 3. Fermentation System
4. Cooling System 5. CIP System 6. Filter system7. Filling System (all in one beer filling machine)
8. Labeling System (Shrink sleeve labeling machine / OPP labeling machine / Sticker labeling machine)
9. End packaging ( PE shrink wrapping machine / Carton packing machine )
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
P&M is a professional manufacturer consists of research&design,production and marketing in one unit, It is a professional manufacturer of beverage filling and packaging production line and packing material Since the establishment, we Rely on the ideal " faith and Steadfast,pursue remarkable" we insist on the realistic policy and show the perfect service to our customer,we are always design and update our machine quality based on the ended user's actual use situation,due to our hard working, we help our customer save a lot of labor cost and enhance their market competitiveness.
Due to the advanced technology,the fine processing equipment,we are already popular and reliable to our customer with its machine quality and faith,we welcome the customer from all around the world visit our company,thank you for your trust and help honestly,we believe mutual cooperate and respect mutual benefit and treat the person faithfully,at the end,we will successfully together.
1.HOW TO FIND US?
● Search Alibaba, Made in China, Google, Youtube and find suppliers and manufactrue and not traders
● Visit exhibition in different countries
● Send us an request and tell your basic inquiry
● Our sales manager will reply you in short time and add instant chatting tool
2.YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.
● If we can fullfill your request and you interested in our products, you may pay a visit to Paima Machine site
● The meaning of visiting supplier, because seeing is believing, Paima Machine with own manufacture and developed& research team, we can send you engineers and make sure your after sales service.
3.HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
● Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
● After the factory visit, You can ensure the facticity of our bank account.
4.HOW TO ENSURE THE QUALITY?
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 5 years
●After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory
5.THE AFTER-SALE SERVICE OF PAIMA MACHINE?
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow thecustomers' project.
Похожие товары
1U стойка Ftth Olt epon 4pon olt совместима с любым брендом onu включая модули 4sfp px20 +++ 2AC +
320,00 $ - 370,00 $
Дешевый контроллер солнечного зарядного устройства 12 В 24 10 А 20 30 PWM для домашнего или уличного
Надувной спасательный плот из ПВХ на заказ надувной фламинго 6 человек плавающий
Excavator Engine Overhaul Rebuild Kit 4D95 6D102 6D105 6D125 Piston Overhaul Repair Kit For Cummins Construction Machinery Parts
Сырье PBT, смола PBT GF10 GF20 GF30, пластиковые гранулы PBT, гранулы

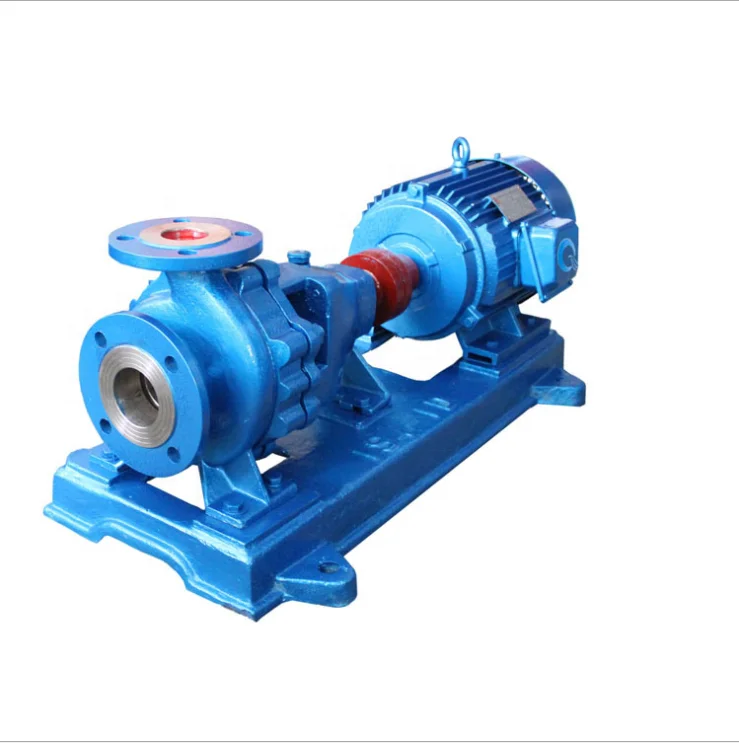

Горизонтальный самовсасывающий химический многоступенчатый центробежный насос высокого давления для воды
