Крыло с гвоздем для Hilux Revo/Rocco 2021
- Категория: Other Universal Parts >>>
- Поставщик: Anhui Light Industries International Co. Ltd.
Сохранить в закладки 1600197182514:
Описание и отзывы
Характеристики
Product Overview

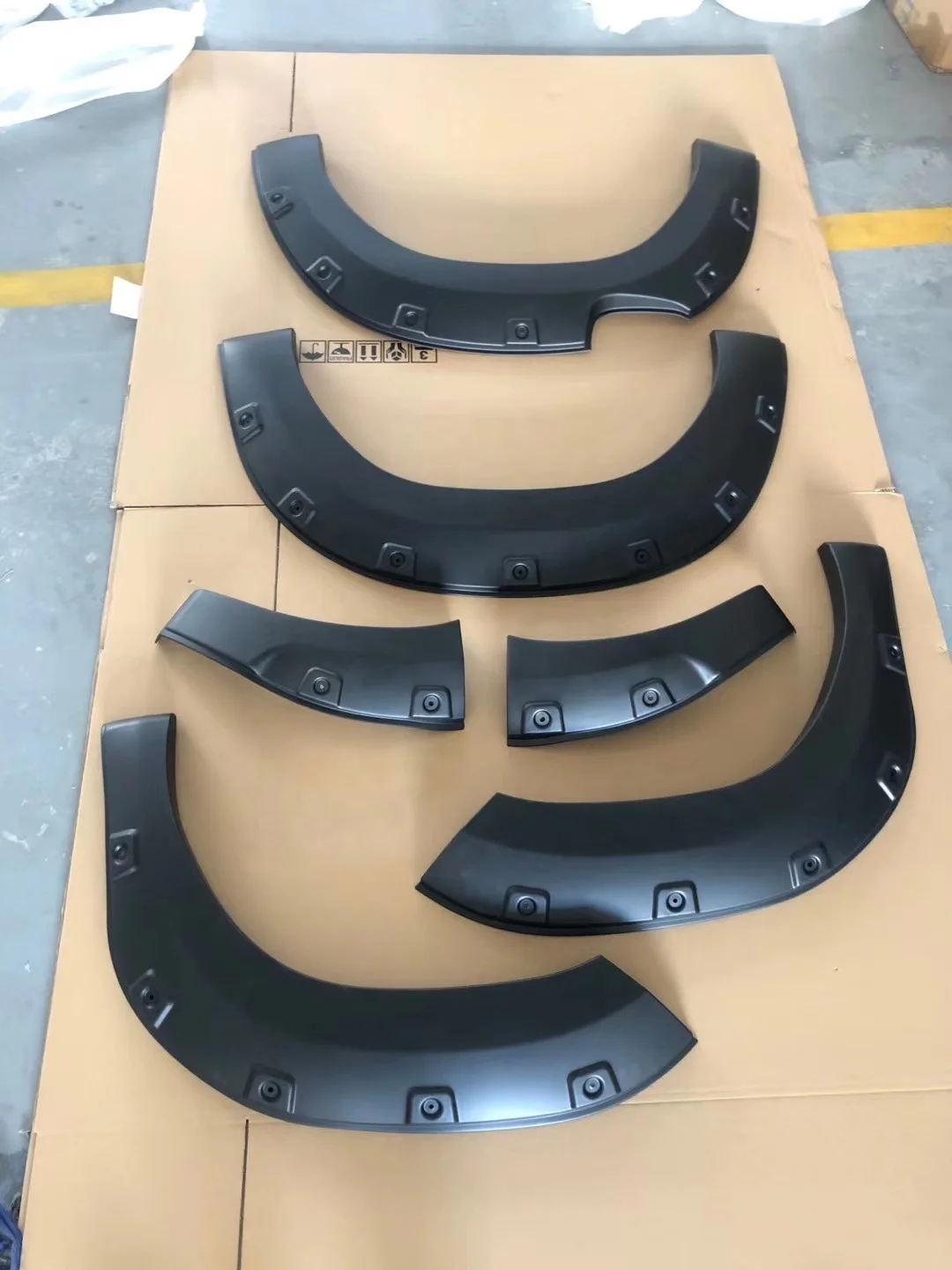

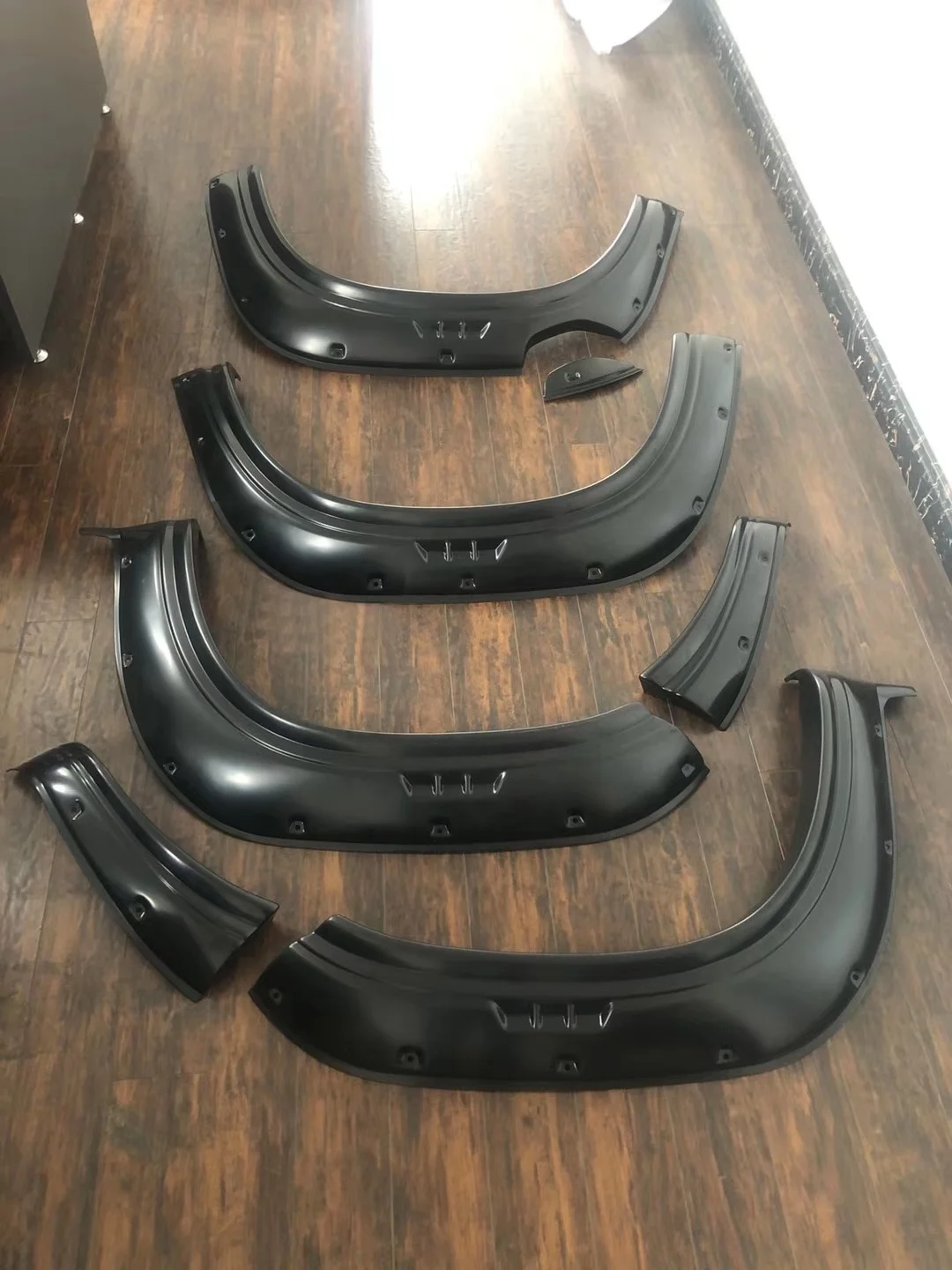

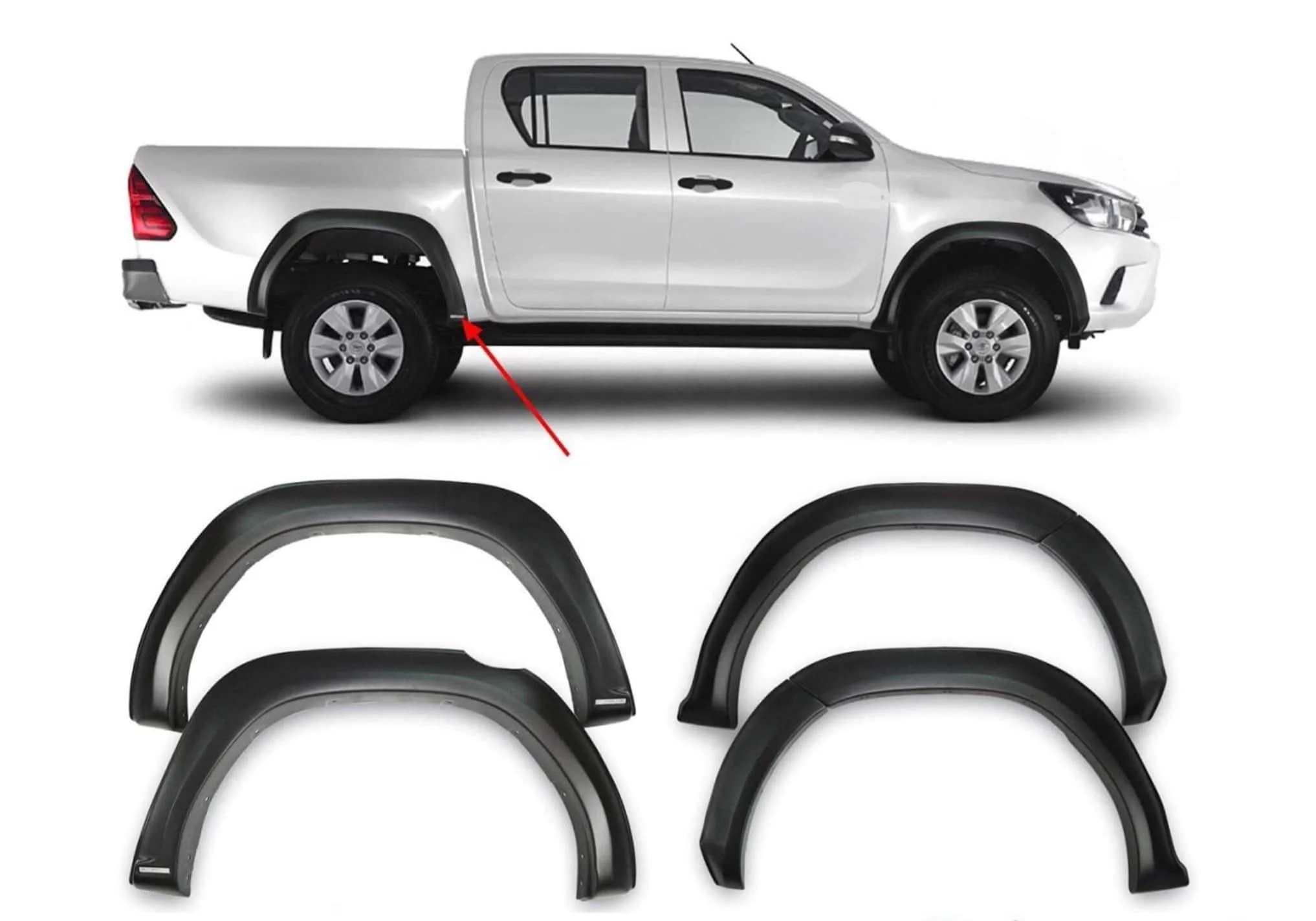

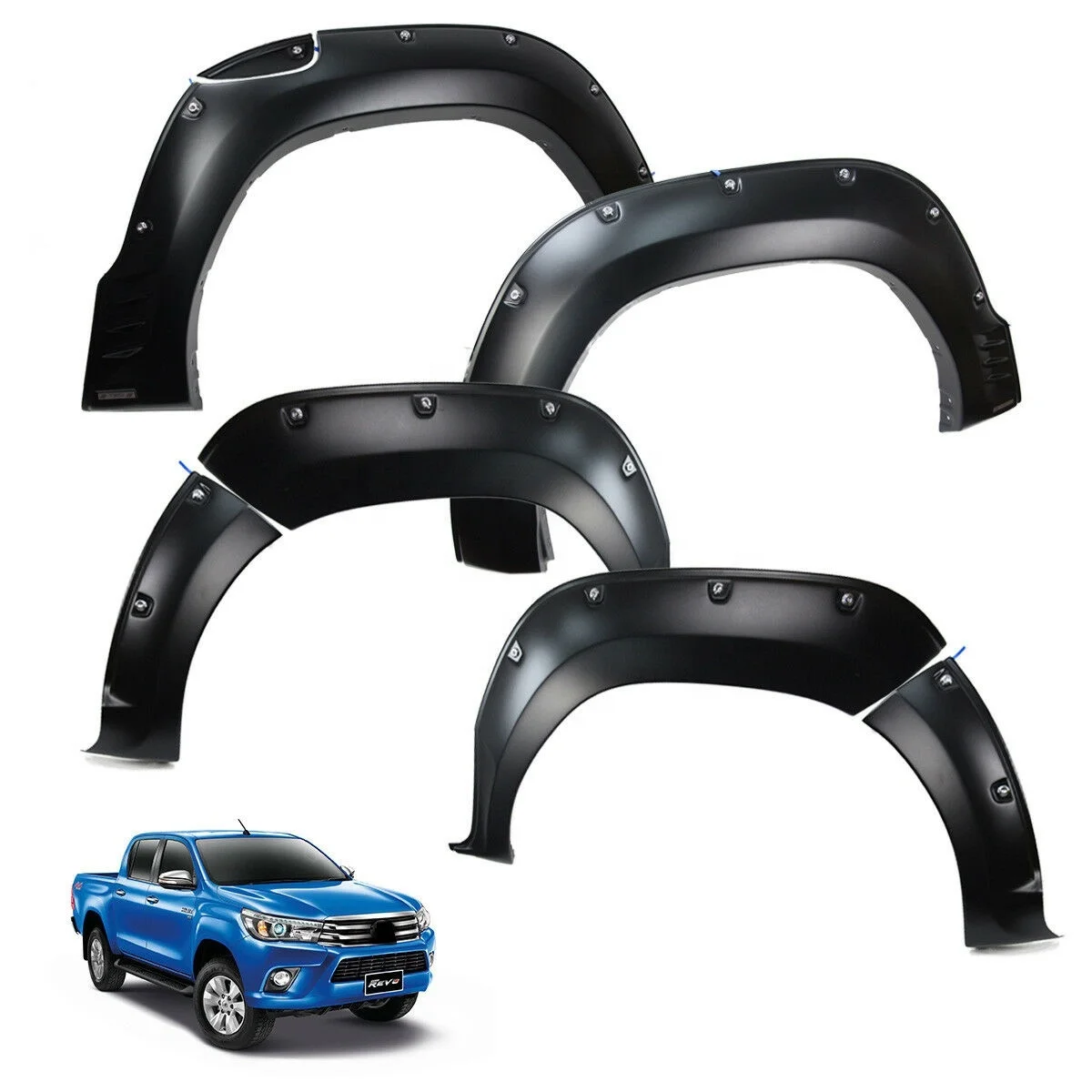

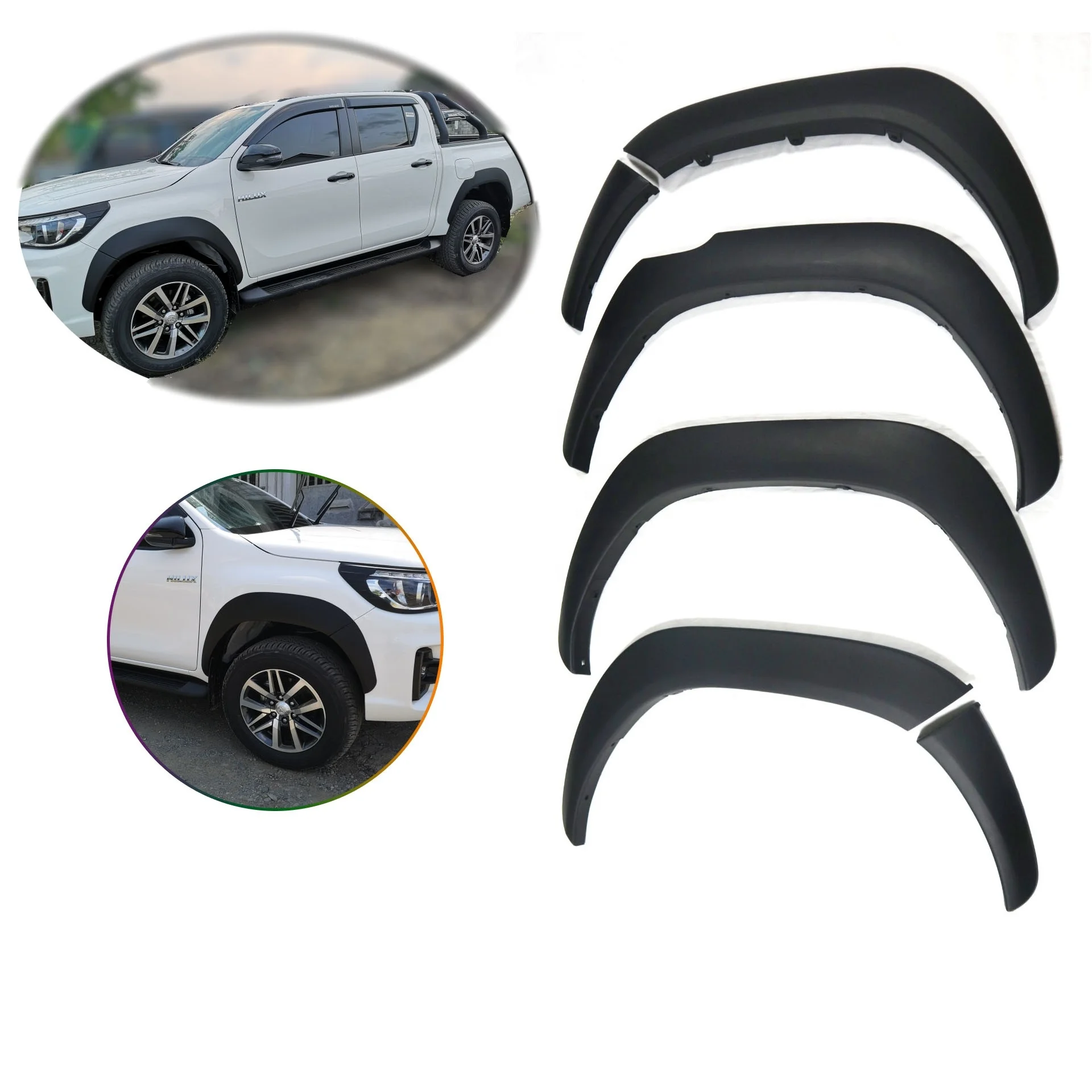

Fender Flare With Nail for Hilux Revo/Rocco
This Fender Flare have could suit for Hilux/Revo/Rocco and many of other pick up.(Ford Ranger;F150;Doge Ram ;NP300 and so on).
Suit for Pick UP as following
HILUX REVO/ROCCO
FORD RANGER
FORD F150
DOGE:RAM
ISUZU:D-MAX
TOYOTA:CRUISER
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Color | Red/Grey/Black | ||
2 | Material | ABS | ||
3 | Packing | Two sets in one Box | ||
4 | Packing Size | 122*36*71mm | ||
5 | Weight | 4KG | ||
6 | Suit Type | Hilux Revo/Rocco | ||
7 | MOQ | 2PCS | ||
8 | OEM | Accept |
PRODUCT MANUAL
Step 1:Using flat head screwdriver remove and retain the 3 plastic scrivets from the front fender as shown.
Step 2:Using Phillips head screwdriver remove and discard the top scrivet from the front bumper bar inner arch. Using flat
screwdriver remove and discard the lower plastic scrivet as shown.
screwdriver remove and discard the lower plastic scrivet as shown.
Step 3:Remove and discard the 2 screws holding mud flap and 1 screw from the wheel arch as shown. Use 10mm spanner or Phillips head screwdriver. Mud flap will still remain attached to the vehicle.
Step 4:Wash the areas of contact on the vehicle and wipe dry with a clean cloth.
Step 5:On the inside of the fender flare remove approximately 25mm of the protective liner from all the double sided tape locations. Fold the liner over and secure with masking tape to the outside of the fender flare.
Step 6:Fit the fender flare to the vehicle as shown.
Step 7:While pressing and holding the fender flare in position of best fit, secure the fender flare with 3 plastic scrivets previously removed in step1.
Step 8:Using 10mm spanner or Phillips head screwdriver secure the mud flap and fender flare using 3 new screws supplied.
Step 9:Once the fender flare is fitted, pull all exposed liners at right angle to flares. Apply pressure around edge of the fender flare to achieve proper adhesion.
Step 10:On the inside of the bumper flare remove approximately 25mm of the protective liner from the double sided tape locations. Fold the liner over and secure with masking tape
to the outside of the bumper flare.
to the outside of the bumper flare.
Step 11:Fit the bumper flare to the vehicle as shown.
Step 12:Using 10mm spanner or Phillips head screwdriver secure the bumper flare with 1 new screvet and 2 new screws
supplied, as shown.
supplied, as shown.
Step 13:Once the bumper flare is fitted, pull all exposed liners at right angle to flares. Apply pressure around edge of the bumper flare to achieve proper adhesion.
Step 14:Wash the areas of contact on the tub as shown and wipe dry with a clean cloth.
Step 15:Using flat head screwdriv
Step 16:Remove and discard the 2 screws holding mud flap and 1 screw from the wheel arch as shown. Use 10mm spanner or Phillips headscrewdriver. Mud flap will still remain attached to the vehicle.er remove and retain the 7 plastic scrivets from the rear fender as shown.
Step 17:On the inside of the fender flare remove approximately 25mm of the protective liner from the double sided tape locations. Fold the liner over and secure with masking tape
to the outside of the fender flare.
to the outside of the fender flare.
INSTALL VIEW
RELATED PRODUCT
TOOL BOX/STORAGE FOR HILUX REVO/ROCCO ;FORD RANGER ;F150 AND SO ON
ROLL BAR FOR HILUX REVO/ROCCO ;FORD RANGER ;F150 AND SO ON
NEW DESIGN FOR HILUX REVO GRILLE
Delivery&Logistics
Company Profile
FAQ
Q1,What is our product range ? lamp, mirror,friction plate, electric parts, sensor, alternator, starter, filter, and so on
Q2, Sample : For sample,Generally speaking , we can free send samples to our guest , but the all value need less than 50$, if the value more the 50$, we need sample value , we accept west union and T/T ,if we can cooperate in future , we will reture back sample value to our guest! For the sample transport , we use DHL, and TNT, and FEDEX.
Q3: How to order our product : A: pls contact by our alibaba or send by email
Q4: Payment: For the order, we generally accept 20-30% Deposit, Balance payment against the B/L copy , If we have stock, we don't need deposit!
Похожие товары
2017-2020 Z-ART для G30 корпус из углеродного волокна комплект для всех Новые 5 шт/упаковка Подставка-тренога из углеволокна серия Тюнинг Комплект для G30 карбоновое волокно aerokit
800,00 $
Чехол для Ranger 2016
150,00 $ - 200,00 $
Z-ART углеродного волокна тюнинг-пакет для Panamera Turbo 2017-2019 Реальные углеродного волокна аэродинамическим комплектом для 971 средства ухода за кожей комплект
600,00 $
Комплект втулок передней и нижней Подвески 54584-2T000 545842T000 54584 2T000 для Hyundai Kia Sportage Sonata
3,00 $

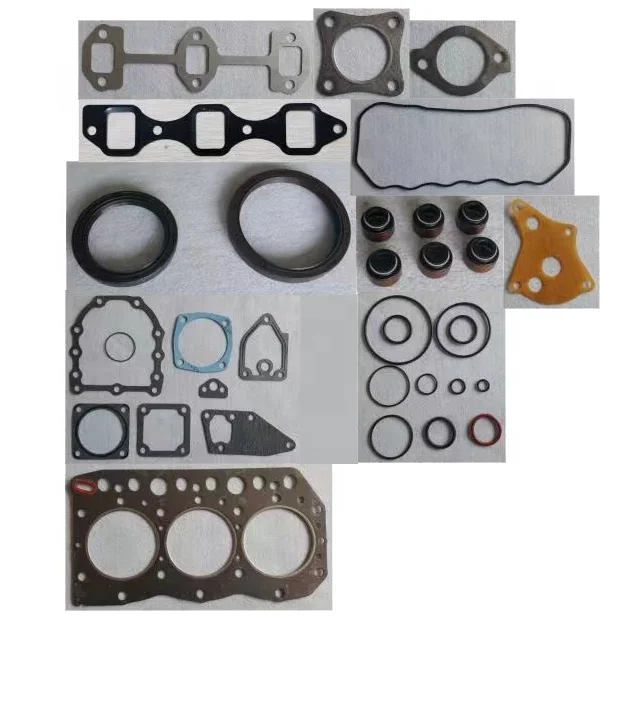

Подходит для Yanmar 3TN75 3TN75RJ полный комплект прокладок, запасные части для дизельного двигателя
