To Customers
Hengwang Group, as a history manufacturer of drilling rigs in China, could offer hydraulic water well drilling rgs, peumatic water well drilling rigs, dth rock drilling rig, geological exploration drilling rig, and series of engineering drilling rigs. Classified from the chassis, we have portable type, wheeled type, crawler type, tractor type, truck type for choice. Click to find the suitable one!!!
Hot Sales
Product Description

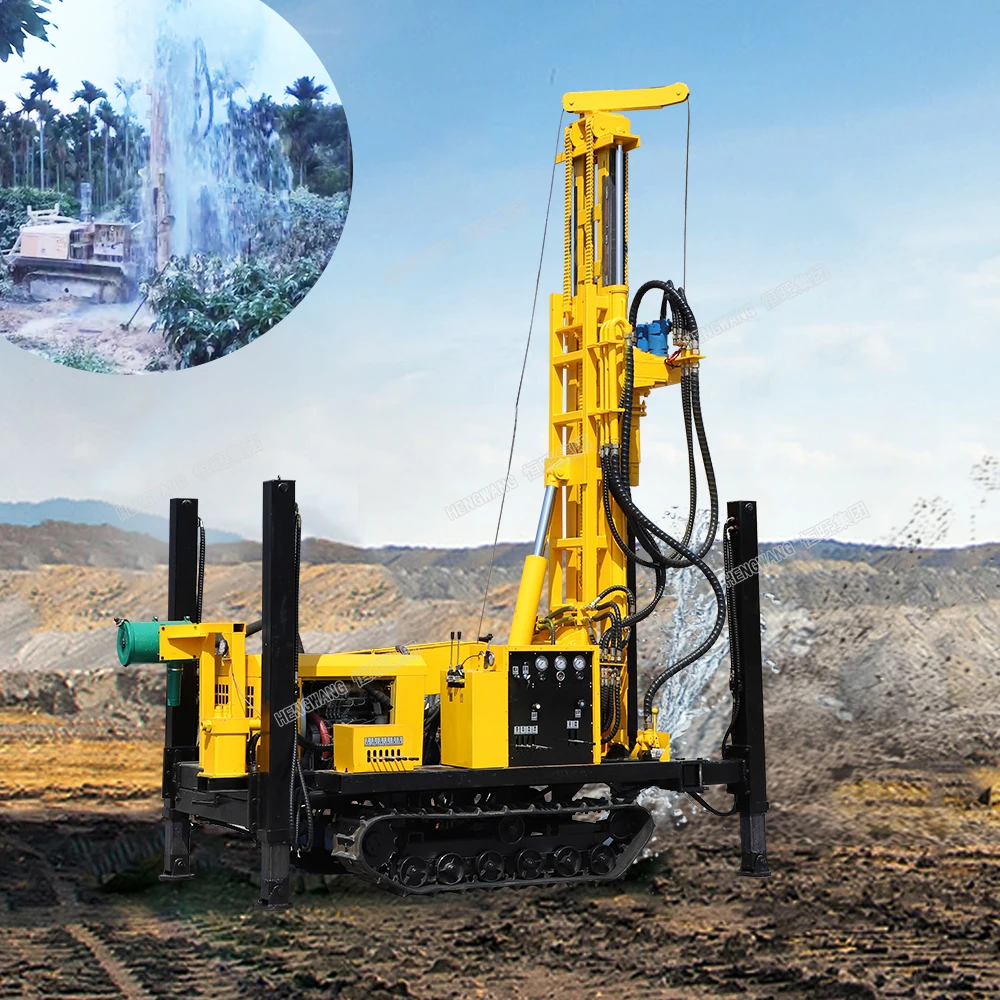

Hengwang HQZ-260L china borehole 200m air compressor mine drilling rigs machine for rock
HQZ series water well drilling rig is a lightweight, efficient and multifunctional drilling equipment , it is mainly applicable to industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc.. It is especially suitable for water intake in mountainous and rocky strata.
* The rig can create drilling jobs in different strata, borehole diameter can up to 245-294mm. The rig with hydraulic technology, supporting high torque hydraulic motor rotation and large bore hydraulic cylinder push, the multi cylinder engine of famous factory provides power for the hydraulic system, two stage air filter, air compressor air intake design, prolong the service life of diesel engine. Special pump set design is convenient for maintenance and reduce the cost of maintenance. Centralized control of the hydraulic control table, convenient operation.

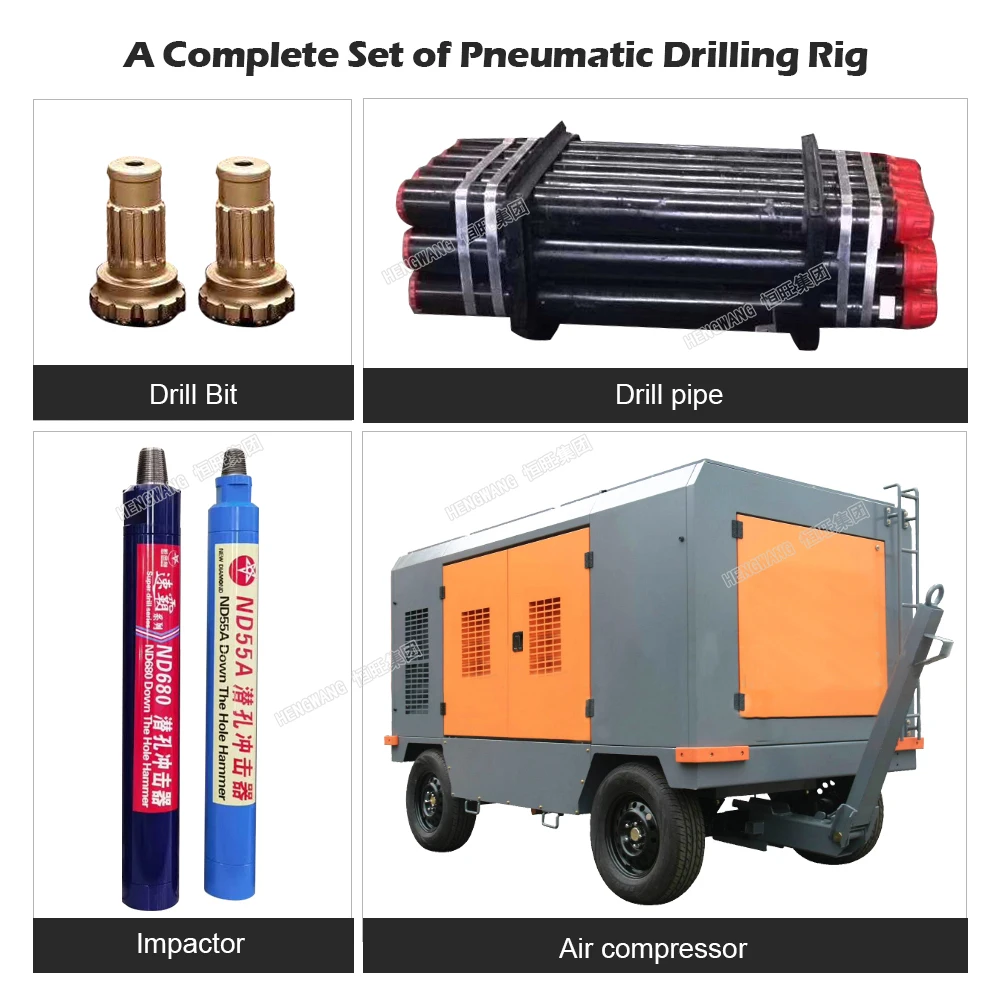

* allows the drill to be mounted on the truck to increase its mobility. Two speeds of rotating and advancing speed can meet the different needs of soil and rock drilling. Combined positioner, the positioning disc can be adjusted and replaced according to different types of drill pipe and impactor, so as to ensure the accuracy and reliability of the positioning and centering. The hoisting mechanism is convenient for hoisting of drill pipe and impactor, so as to reduce the labor intensity.
* This machine can be applied to various strata, used in water well engineering, geothermal well, anchor pile hole and so on, and can be used with follow-pipe drilling. It has the advantages of whole machine hydraulic control, automatic loading and unloading drill pipe, crawler type chassis, large horsepower diesel engine, four hydraulic support leg balance, stronger terrain application ability and so on.
* The rig can create drilling jobs in different strata, borehole diameter can up to 245-294mm. The rig with hydraulic technology, supporting high torque hydraulic motor rotation and large bore hydraulic cylinder push, the multi cylinder engine of famous factory provides power for the hydraulic system, two stage air filter, air compressor air intake design, prolong the service life of diesel engine. Special pump set design is convenient for maintenance and reduce the cost of maintenance. Centralized control of the hydraulic control table, convenient operation.
* allows the drill to be mounted on the truck to increase its mobility. Two speeds of rotating and advancing speed can meet the different needs of soil and rock drilling. Combined positioner, the positioning disc can be adjusted and replaced according to different types of drill pipe and impactor, so as to ensure the accuracy and reliability of the positioning and centering. The hoisting mechanism is convenient for hoisting of drill pipe and impactor, so as to reduce the labor intensity.
* This machine can be applied to various strata, used in water well engineering, geothermal well, anchor pile hole and so on, and can be used with follow-pipe drilling. It has the advantages of whole machine hydraulic control, automatic loading and unloading drill pipe, crawler type chassis, large horsepower diesel engine, four hydraulic support leg balance, stronger terrain application ability and so on.
Technical Parameter
Model | HQZ260L |
Total Weight（T） | 6.4 |
Dimensions（mm） | 4100*1900*2600 |
Drilling Diameter（mm） | 140-300 |
Drilling Depth（m） | 260 |
One-time Advance Length of the Drill（mm） | 3000 |
Walking Speed（Km/h） | 2.5 |
Climbing Ability（max） | 30 |
Min. Ground Clearance（mm） | 250 |
Working Air pressure（Mpa） | 1.7-3.0 |
Air Consumption（m³/min） | 17-35 |
Main Power（kw） | 85/Yuchai |
Rotation（rpm） | 40-70 |
Rotary Torque（Nm） | 7000-9000 |

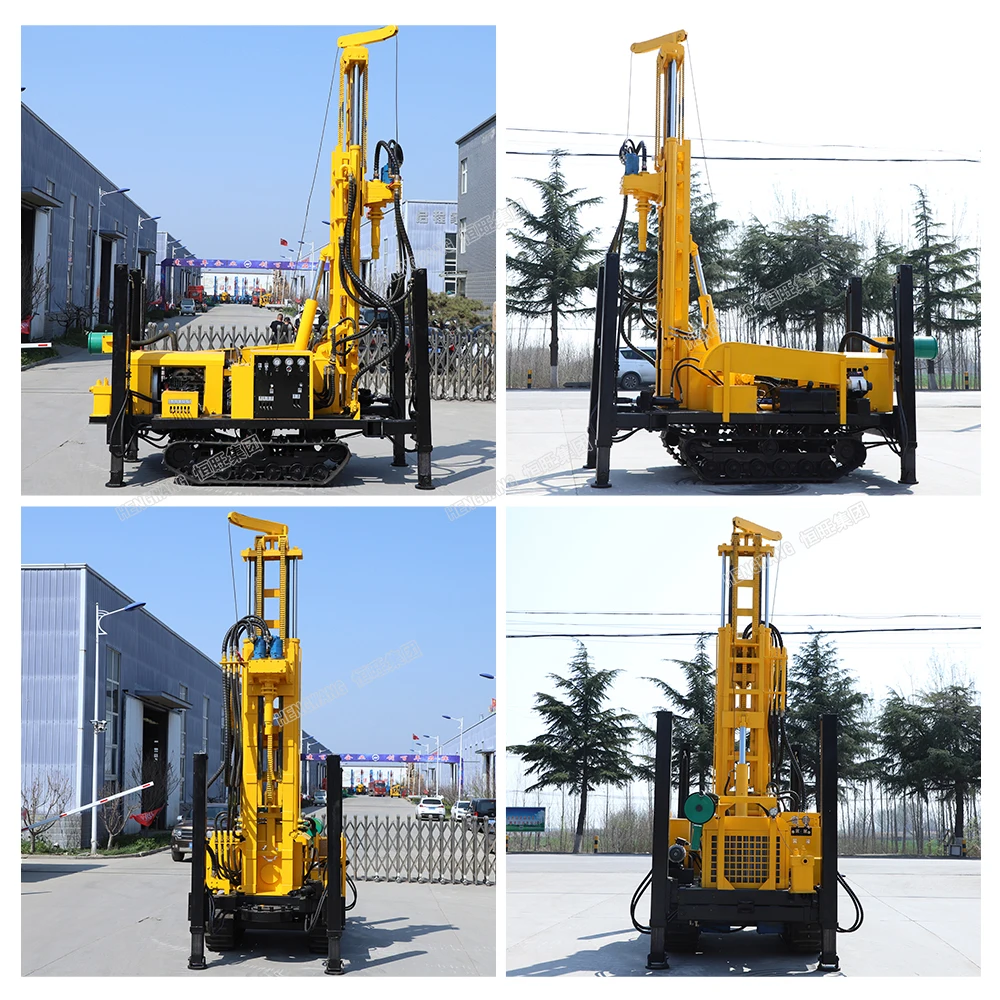

Detailed Image
Customer feedback
Packaging & Shipping

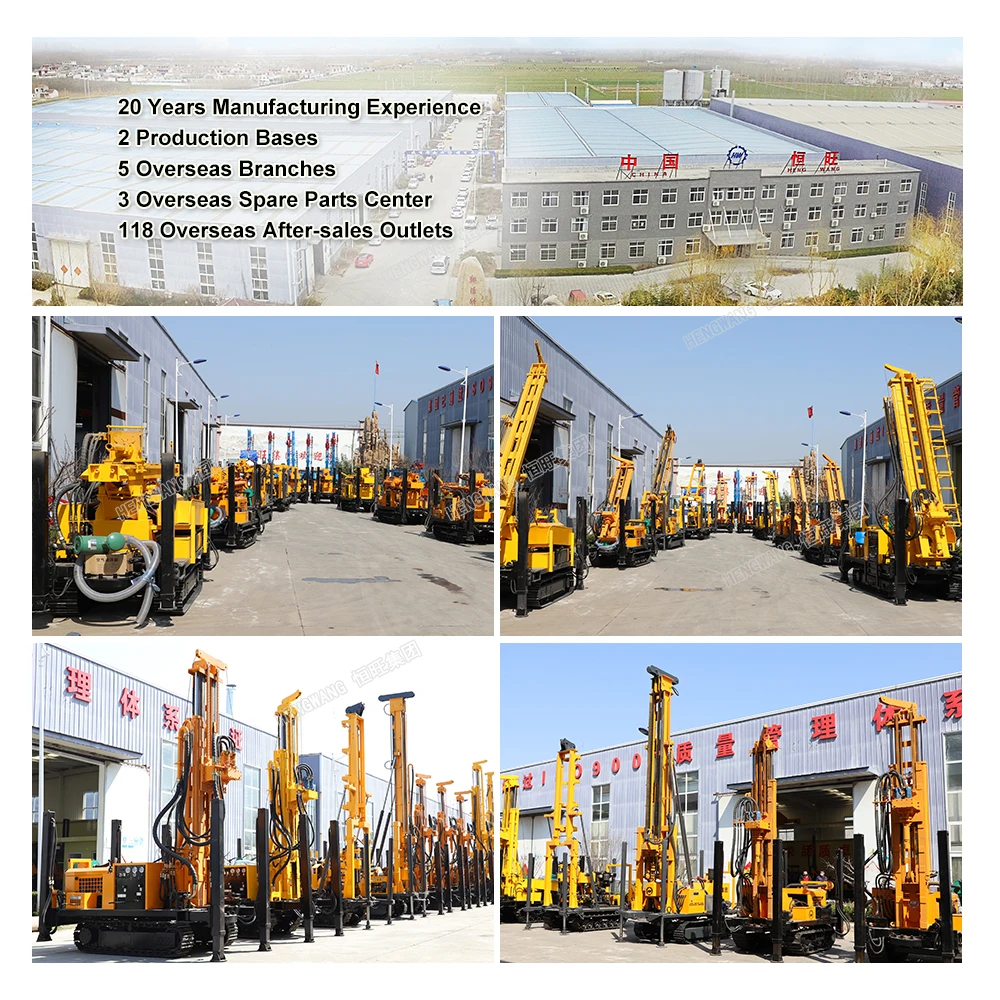

Company Profie
Похожие товары
Цена на удобрение Dap, удобрение из сульфата аммония, DAP фосфатное удобрение 18-46-0

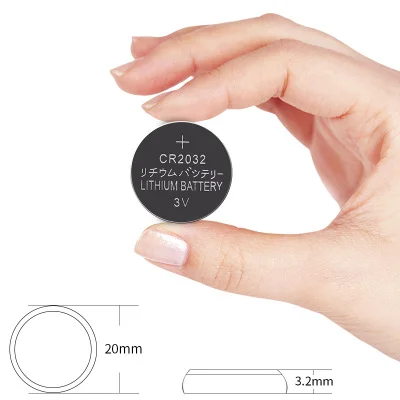

3 В, cr1220, cr2016, cr2025, cr2032, 2032, cr2450, cr2477, cr1120
Дорожный флакон-распылитель для духов, 2 мл, 3 мл, 5 мл, прозрачные мини-флаконы для духов, многоразовый флакон-распылитель 10 мл с распылителем
0,29 $ - 0,35 $

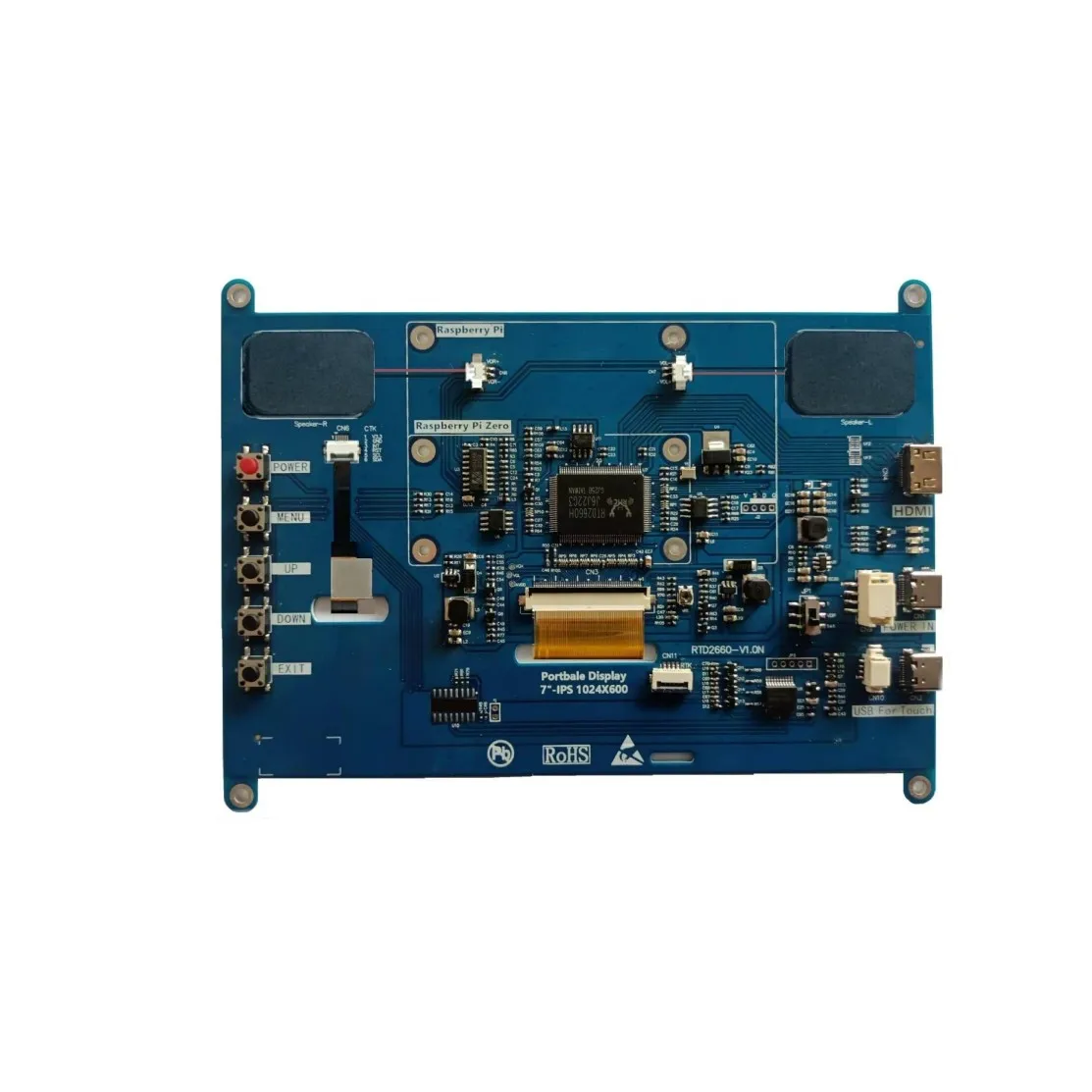

Водителя с ЖК-дисплеем 1024*600 разрешение конденсатор с алюминиевой крышкой/резистор дополнительно 50pinrgb ЖК-интерфейс, подходит для всех размеров ЖК-панелей

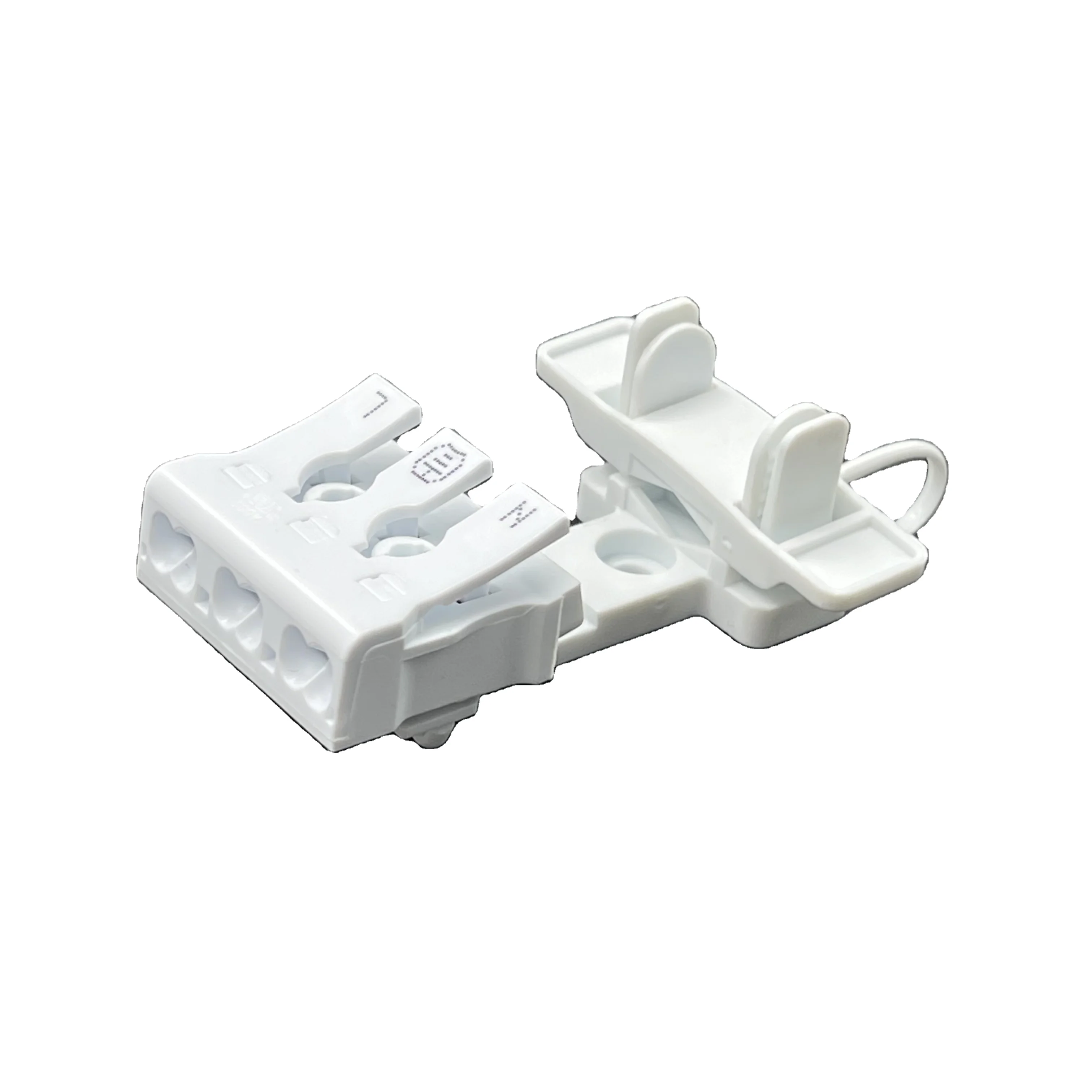

ENEC CE Кабельные Зажимы 3 штифтов проволочный коннектор
Супер-конденсатор 2,7 в 500F 0,75 uF 1000V Dip

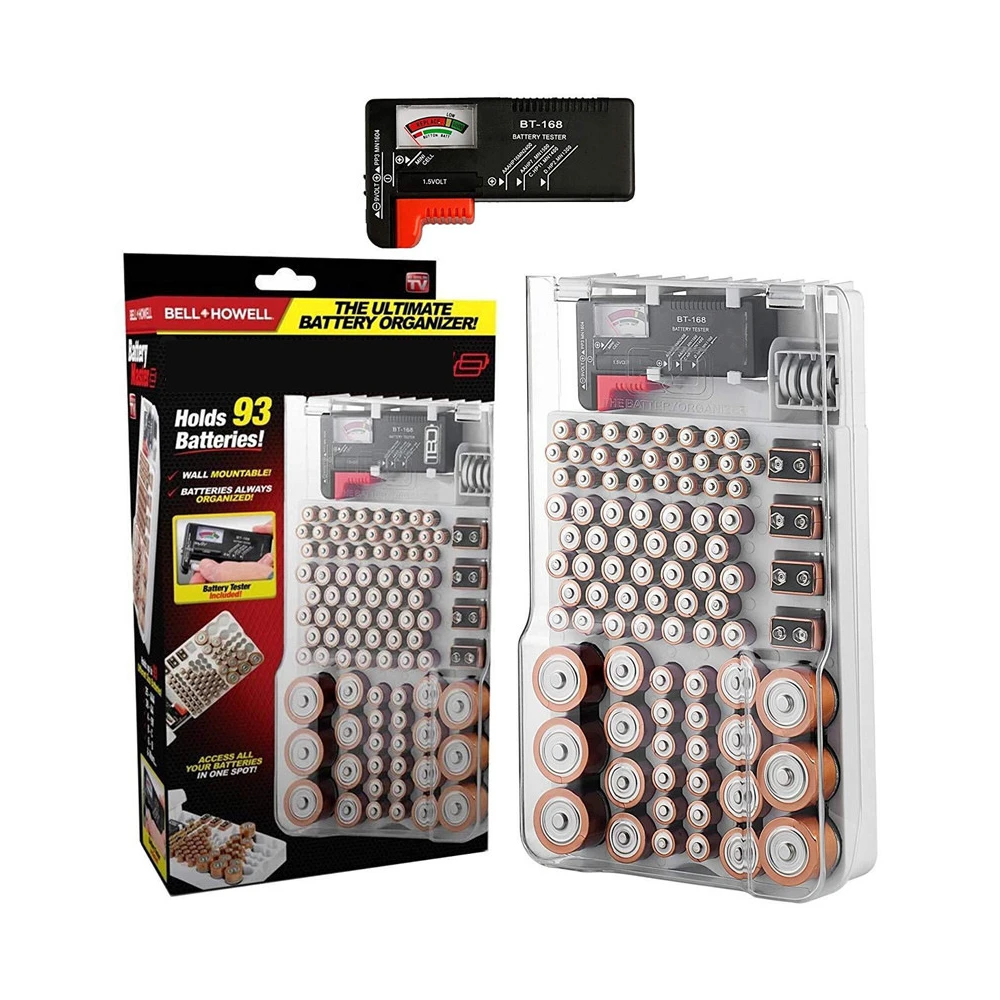

Портативный органайзер для хранения аккумуляторов с тестером энергии и пластиковой крышкой, вмещает 93 аккумулятора разных размеров
