PoLight кварцевая хорошая термоустойчивая трубка из плавленого кварцевого стекла с открытым концом
- Категория: >>>
- Поставщик: Donghai PoLight Quartz Co. Ltd.
Сохранить в закладки 1600198676329:
Описание и отзывы
Характеристики
Prices and sizes listed online are just for reference since our quartz glass products are usually used as components,we cannot listed all sizes and shapes.Please contact us and send your request (technical drawing better),you can get all information you need with prompt reply.
Trace Elements(ppm) | ||||||||||||||||||
Criteria | AI | Ca | Cr | Cu | Fe | K | Li | Mg | Mn | |||||||||
Typical | 16.2 | 1 | ＜0.05 | ＜0.05 | 0.5 | 1.2 | 0.9 | 0.2 | ＜0.05 | |||||||||
Maximum | 25 | 1.5 | 0.1 | 0.1 | 1 | 1.5 | 1.5 | 0.2 | 0.2 | |||||||||
Criteria | Na | Ti | Zr | |||||||||||||||
Typical | 1.1 | 1.5 | 1 | |||||||||||||||
Maximum | 2 | 4 | 2 | |||||||||||||||
Product features:
*Clear and clean
*free of airline,scrtach,bubble
*High homogeneity
*High temperature resistant
*High light transmission
*Anti chemistry attack
*free of airline,scrtach,bubble
*High homogeneity
*High temperature resistant
*High light transmission
*Anti chemistry attack
Working temperature:
*Regular working temperature: 1000°C
*Working temperature for short term:1100°C
*instant working max temperature:1300°C
*Working temperature for short term:1100°C
*instant working max temperature:1300°C

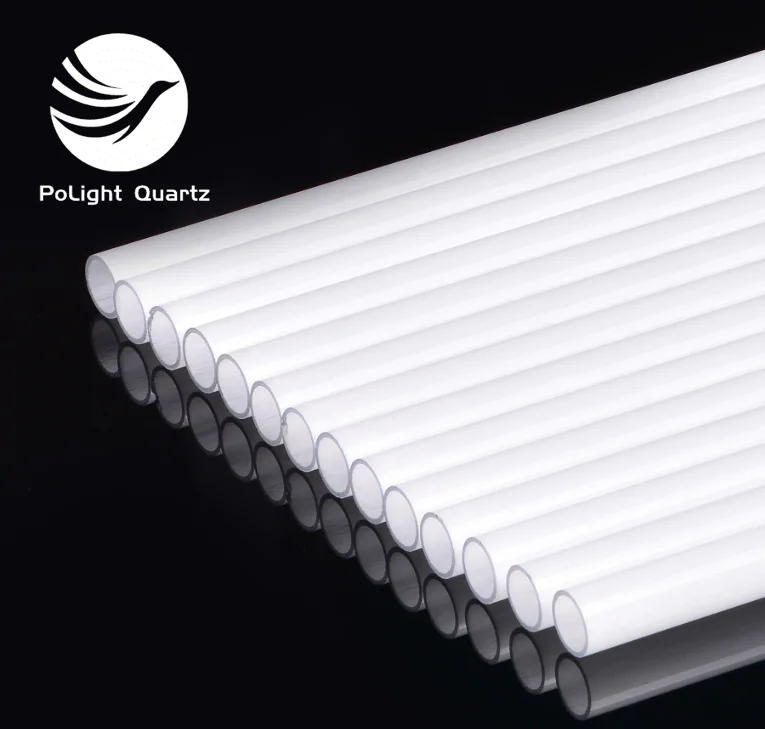

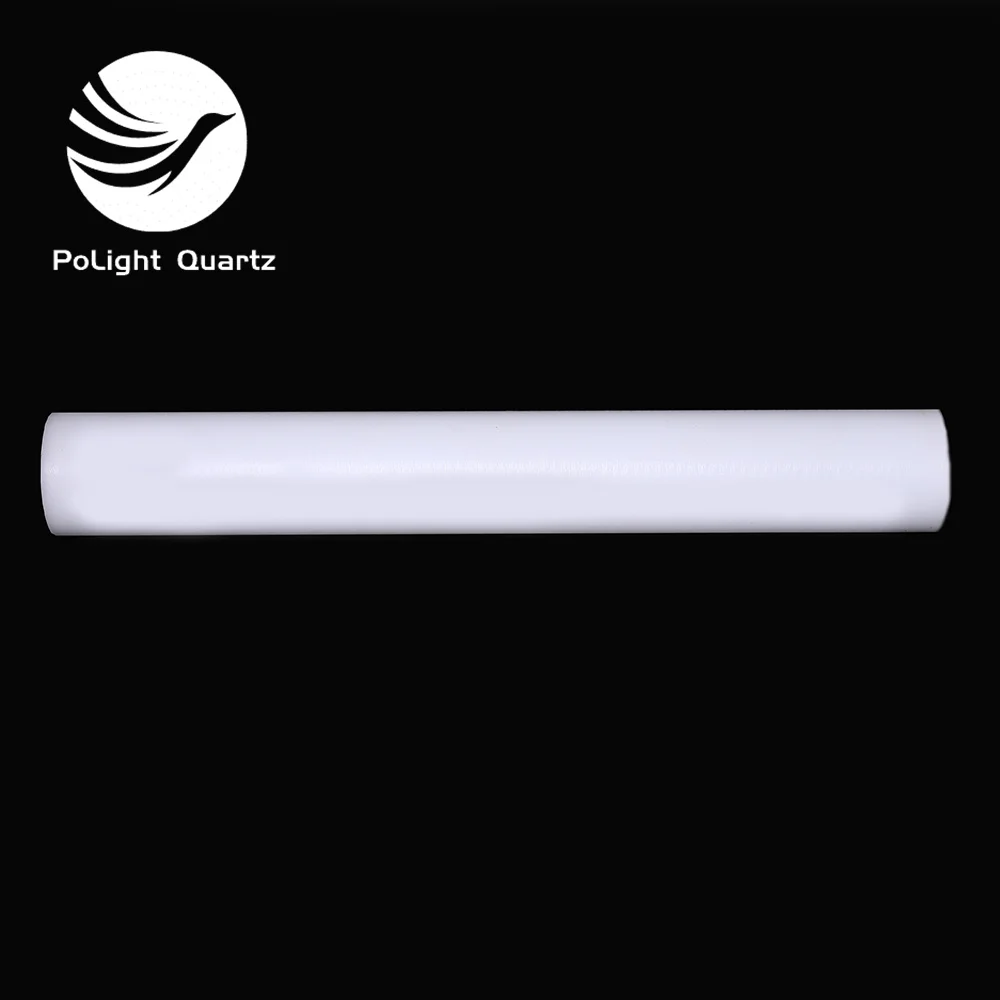

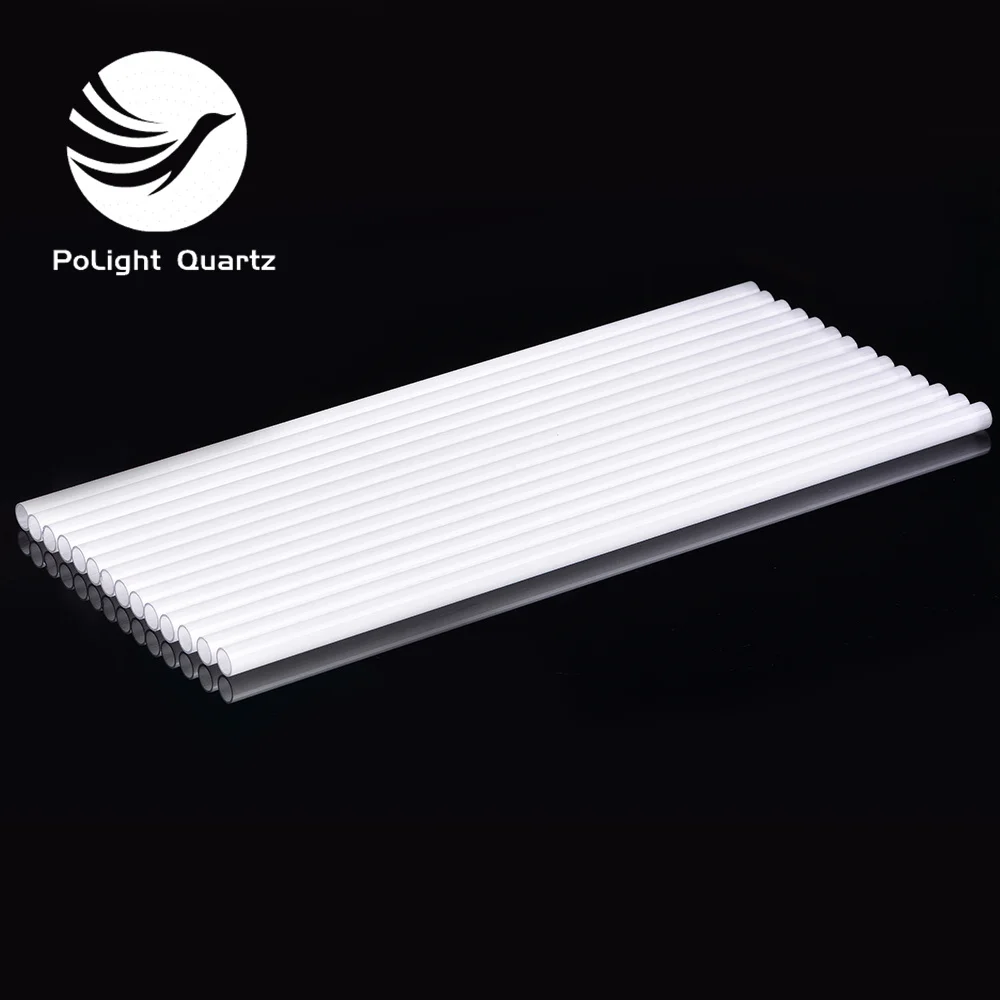

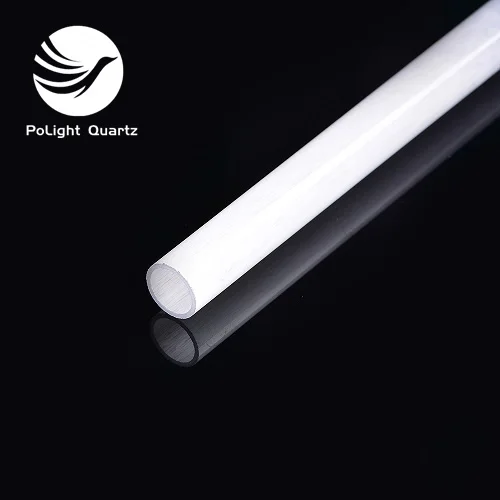

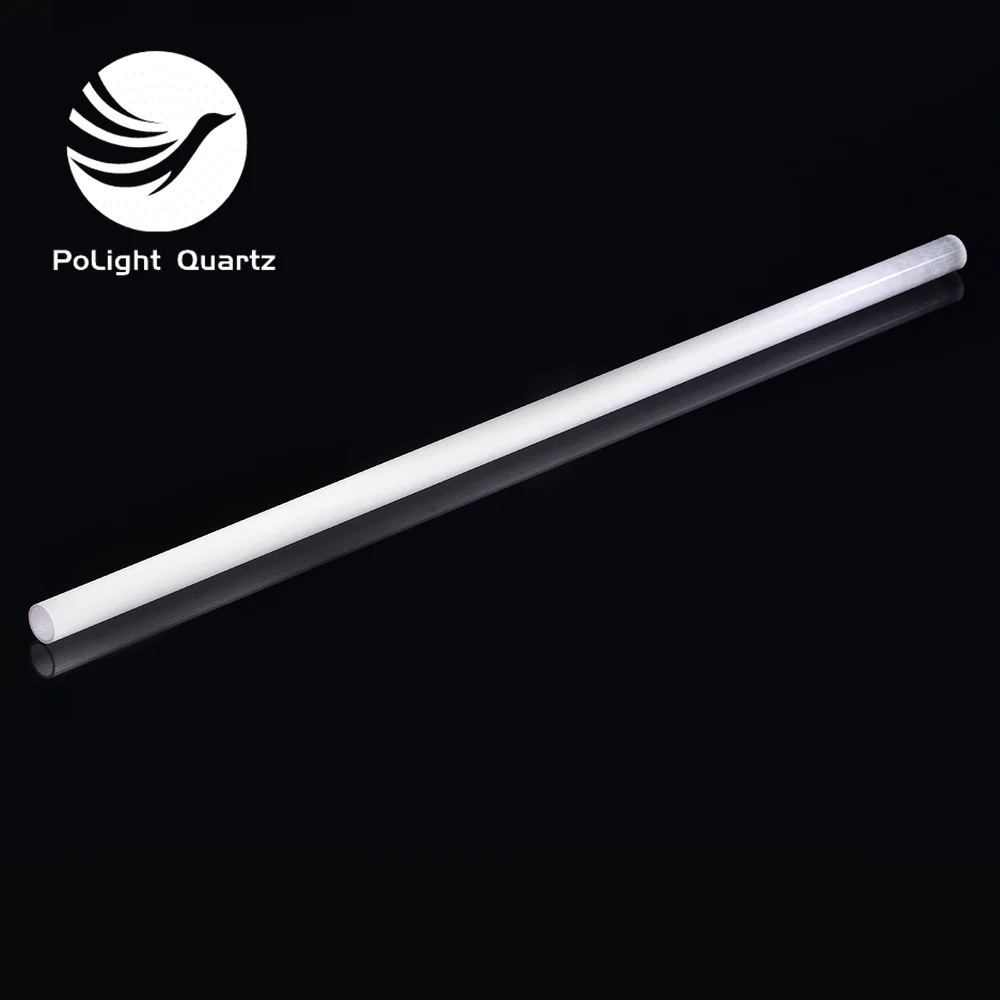

Product Name | Opaque Quartz Glass Tube |
Diameter (mm) | customized |
Thickness (mm) | 2mm/2.5mm |
Tolerance (mm) | ±0.8mm |
Length | customized |
Edges | normal cutting |
Properties | see below data sheet |
Purity | SiO2≥99.99% |
Density | 2.2(g/cm3) |
Microhardness | 8000-9000 |
Mohs hardness | 5.5-6.5 |
Modulus of elasticity/MPa | 7.25 x 104 |
Poisson's ratio | 0.17 |
Compressive strength/MPa | 1150 |
Tensile Strength/MPa | 50 |
Flexural strength/MPa | 67 |
Working temperature | 1100-1200℃ |
Max temperature can reach in a short time | 1450℃ |
Melting point | 1732℃ |
Annealing point | 1210℃ |
Softening point | 1670℃ |
Coefficients of thermal expansion(20-300°C） | 5.5 x 10-7 °C-1 |
Thermal Conductivity | 1.4W/°C·m |
Thermal shock resistance | From 1000°C suddenly cool down to 20°C,will not break |
Viscosity | 1000-10000 times than ordinary glass |
Acid tolerance | 30 times than ceramics,150 times than stainless steel |
Applications:
(1). Lighting/Special light source/Others
(2). Infrared Heating
(3). Water treatment/Germicidal
(4). Furnace tubes for equipment
lighting, and heating
(5).Halogen lamp, the mercury lamp, single-ended lamp, automotive lamp, water treatment lamp).
(6).Metal Halide Lamp
Quality Control | 100% inspection for each item by QC Dept. |
Deliver time | 7-10 days after payment |
Shipping method | express,sea shipping ,air shipping |
Insurance | Alibaba insurance |
Production Process:
Packing:
100% inspection surface quality,randomly inspect sizes to ensure stable high quality of our selling products.
Inner:bubble wrap
Outer:wooden crate
Port:Shanghai , Qingdao , Lianyungang
The best transportation solutions are recommended as follows:
* For small quantities, you can choose DHL,TNT, FedEx and other express . It is safe and fast.
* Ocean Shipment is economical for big quantity.
* We can also help Custom clearance at destination port and deliver goods to your warehouse or office. And the cost is extra
Outer:wooden crate
Port:Shanghai , Qingdao , Lianyungang
The best transportation solutions are recommended as follows:
* For small quantities, you can choose DHL,TNT, FedEx and other express . It is safe and fast.
* Ocean Shipment is economical for big quantity.
* We can also help Custom clearance at destination port and deliver goods to your warehouse or office. And the cost is extra
PoLight Quartz Products Co., Ltd. Is one of the leading high quality quartz products suppliers in China,Our main products include quartz plate,which max size can be 2000mm;quartz tube with max OD750mm,quartz rod,quartz crucible,quartz flask and other thermal processing quartz products.
We have our own factory in Donghai, which has the manufacturing base of raw materials. With a wide range, good quality, reasonable prices and stylish designs, our products are popular in both overseas and domestic market.
The products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
We have our own factory in Donghai, which has the manufacturing base of raw materials. With a wide range, good quality, reasonable prices and stylish designs, our products are popular in both overseas and domestic market.
The products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
Why Choose PoLight Quartz Co.,Ltd.
1.Replacement products Or refund can be offered if any damages/defects found before accepting delivery(please keep all packaging materials,take pictures and report to PoLight immediately)
2.OEM/ODM products available
3.Testing report offered if needed
3.Testing report offered if needed
4.Trade assurance available always
5.Quick delivery date(7 -15 days)
6.Continuously stable high quality instead of one-time business.
1.How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.What can you buy from us?
quartz tube,quartz plate,quartz singing bowls,quartz rod,quartz ring,other heat resistant glass products
3. Why should you buy from us not from other suppliers?
PoLight is your one-stop supplier for all your quartz products.Our quartz tube/rod can be up to 750mm OD,quartz ring&flange and other customized parts can be got from our CNC center.The material for quartz plate&disc is JGS1&2&3 for option.
4. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
Always final Inspection before shipment;
2.What can you buy from us?
quartz tube,quartz plate,quartz singing bowls,quartz rod,quartz ring,other heat resistant glass products
3. Why should you buy from us not from other suppliers?
PoLight is your one-stop supplier for all your quartz products.Our quartz tube/rod can be up to 750mm OD,quartz ring&flange and other customized parts can be got from our CNC center.The material for quartz plate&disc is JGS1&2&3 for option.
4. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
