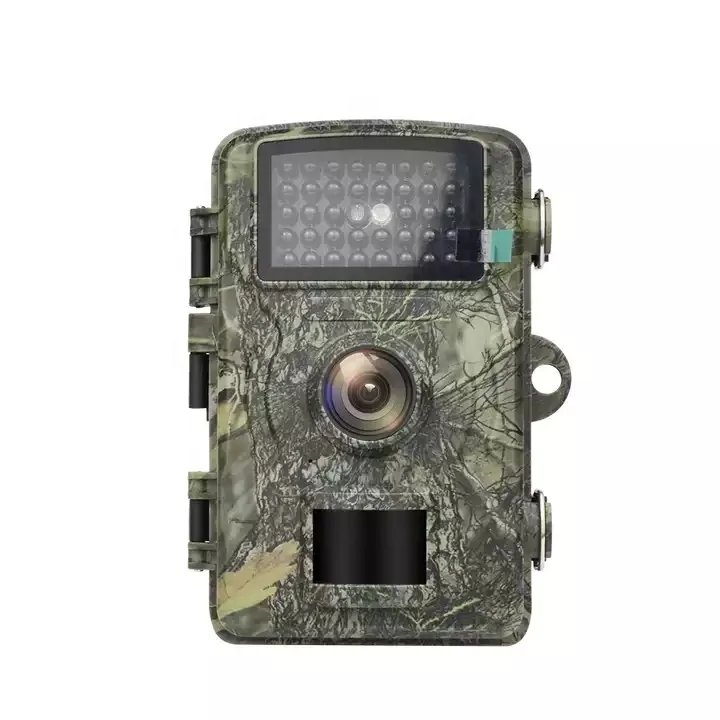

DL001 пассивный инфракрасный датчик движения 1080P ночное видение водонепроницаемый безопасности фермы охотничий прицел для отслежки дикой термический фотоаппарат для охоты камеры
15,29 $ - 16,79 $

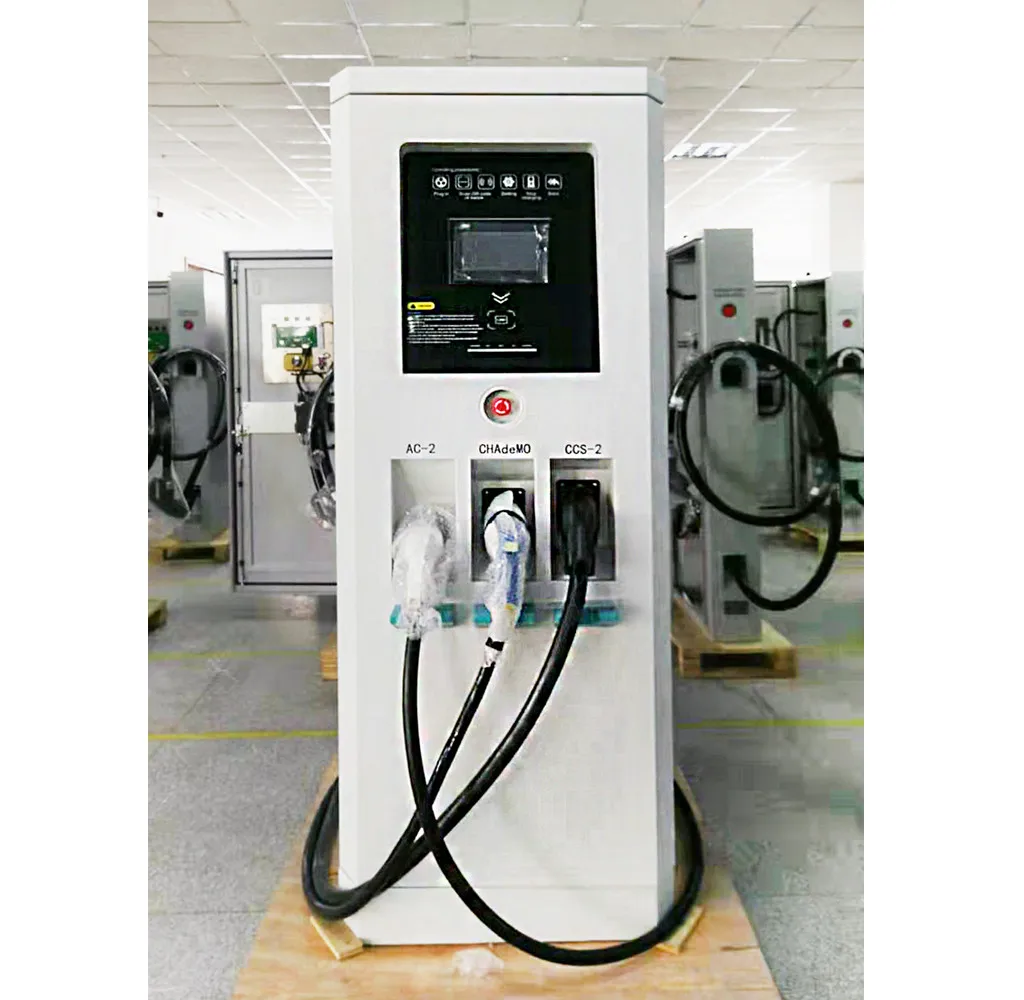

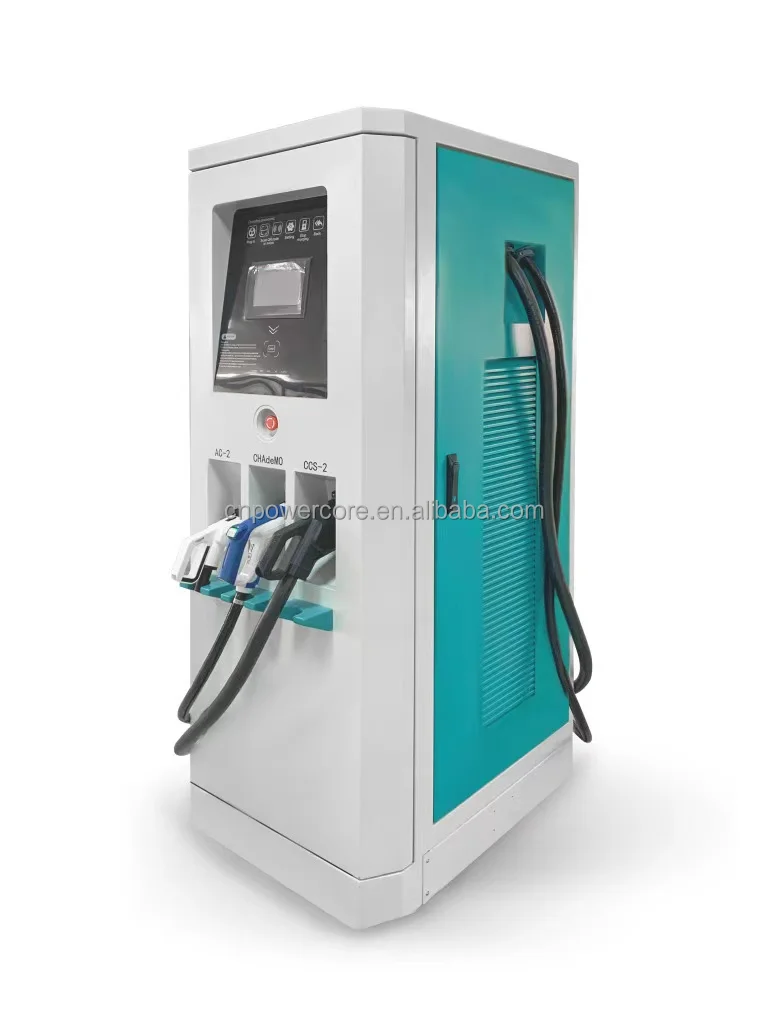

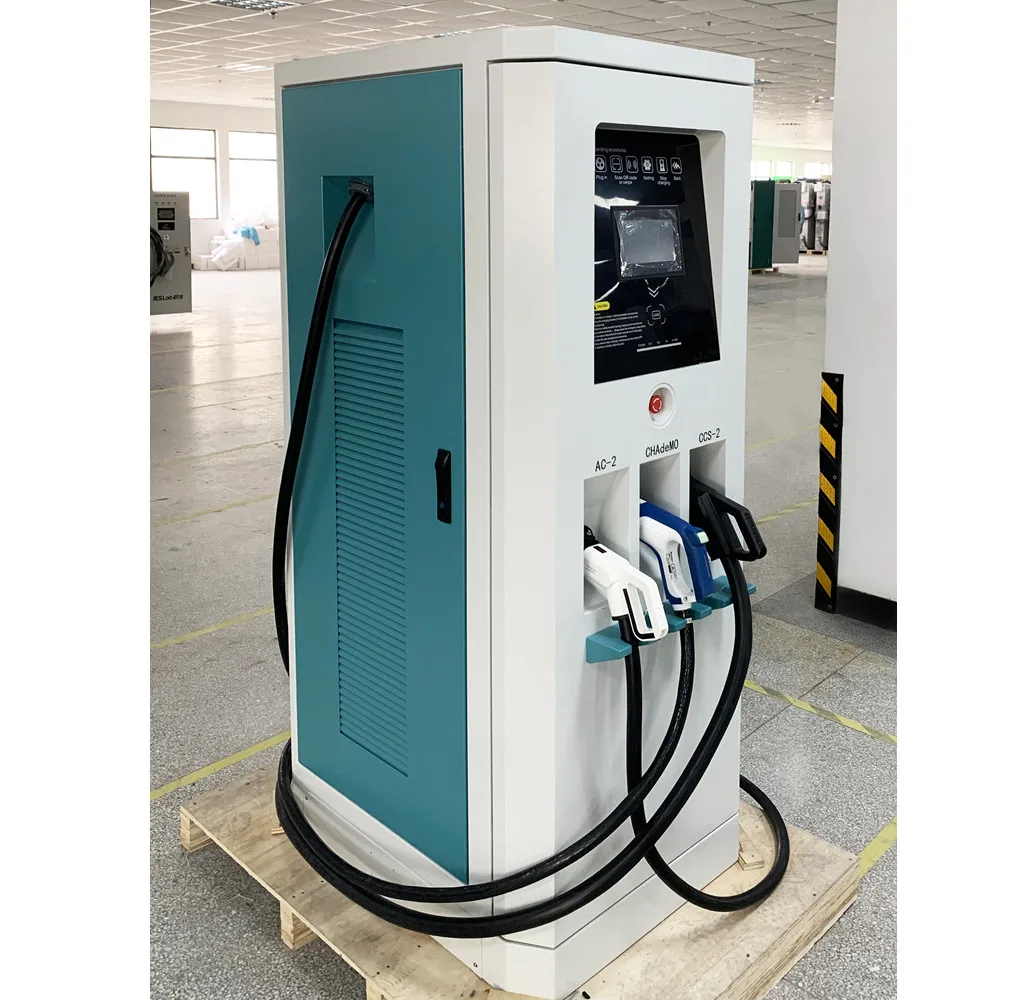

Быстрая зарядная станция постоянного тока 60 кВт 80 100 120 с зарядным модулем 20
- Категория: >>>
- Поставщик: Nanjing Powercore Tech Co. Ltd.
Сохранить в закладки 1600200321012:
Описание и отзывы
Характеристики
Product Description
Charging Point Management Cloud Platform
This cloud management platform mainly include station management, charging management and order management. It will be your good helper to manage/analysis your charging station no matter you install it as commercial or as free charger.
All of our chargers support OCPP1.6J now and acheive all the function include the charging profile which is the most
difficulut part. OCPP2.0 is in developing.
All of our chargers support OCPP1.6J now and acheive all the function include the charging profile which is the most
difficulut part. OCPP2.0 is in developing.
EVCC
PC-ECC12 EVCC satisfies the communication protocols of European standard
DIN 70121 and American standard IEC/ISO-15118, which can be widely used for
intelligent charging communication between electric vehicles and EVSE. The SECC
developed and produced by our company can easily realize European standard and
American standard DC charging
DIN 70121 and American standard IEC/ISO-15118, which can be widely used for
intelligent charging communication between electric vehicles and EVSE. The SECC
developed and produced by our company can easily realize European standard and
American standard DC charging
Specification
Structure Description | Application scenes | Parking lot/Public charging station |
Housing material | Metal case | |
Dimension | 789*680*1890mm (L*W*H) | |
Installation method | Floor-stand type | |
Cable routing | Bottom inlet wiring,up outlet wiring | |
Weight | 288-350kg | |
Cable length | 5m | |
Charging outlets | Single/double/triple (CCS/CHAdeMO/AC) | |
Input voltage | 3-phase 260-530Vac | |
Input frequency | 50Hz/60Hz | |
Rated power | 150 | |
Measuring accuracy | Level 0.5 | |
Electrical Specification | Output voltage | 150~750Vdc |
Output current | 0 ~ 200Adc | |
Efficiency | ≥95% | |
Power factor | ≥0.99 | |
Function design | User Interface | Emergency stop button, LED indicator, card swiping, touch screen |
Charging standards | IEC 61851-1/IEC 61851-23/-24:2014/ISO15118-1-2013 ISO15118-2-2014/ISO 15118-3:2015/IEC 62196-1-2014 IEC 62196-3-2014/DIN 70121-2014 | |
Network interface | Ethernet(WIFI, 3g/4gLTE as optional) | |
OCPP | OCPP 1.6J | |
Environment condition | Application place | Indoor/Outdoor |
Working temperature | -30 ° C ~ +70 ° C (Output degraded above 50° C ) | |
Working humidity | 5% ~ 95% without condensation | |
Altitude | <2000m | |
Protection grade | IP54/IK10 | |
Cooling | Forced-air cooling | |
MTBF | 100,000 hours | |
Safety standard | EN 61851-1-2001; EN 61851-21-2001; EN61851-22-2001 | |
Security design | Over/under voltage protection, overload protection, current leakage protection, grounding protection, over temp protection, lightening surge protection |
Packing & Delivery
Carton box for airplane.
Wooden case for ocean shipping
Sales and Service Network
Company Profile
NanJing POWERCORE Tech co., ltd. is an industry-leading high-tech company in charge technology and service of electric vehicles,
committed to providing customers with stable and reliable products and solutions.We focused on charging standards. Since 2015, We
has developed overseas full-standard charging agreements and owned a number of patented technologies.Our Products series include:
OCPP central management system, OCPP controller for EVSE, 7 ~ 43 kw AC charging controller, DC charging controller, IEC/ISO15118\\
DIN70121 EVCC and SECC. Japanese standard CHAdeMO communication controller for EV and EVSE,etc. Our core products have been get
TUV rheinland and TUV SUD related certification
committed to providing customers with stable and reliable products and solutions.We focused on charging standards. Since 2015, We
has developed overseas full-standard charging agreements and owned a number of patented technologies.Our Products series include:
OCPP central management system, OCPP controller for EVSE, 7 ~ 43 kw AC charging controller, DC charging controller, IEC/ISO15118\\
DIN70121 EVCC and SECC. Japanese standard CHAdeMO communication controller for EV and EVSE,etc. Our core products have been get
TUV rheinland and TUV SUD related certification
.The company has a high-quality research and development team, bachelor's degree orabove accounts for 100%, master's degree or
above accounts for more than 50%.
above accounts for more than 50%.
We have rich experience in power electronics technology (device, topology, control, structure, ther-mal), communication software and hardware system development, the central managementsystem and big data development.Our core products have formed orders and contracts witha number of large energy companies, and formed strategic cooperation with a number of automobile manufacturers.We are committed to become the most cost-effective overseasmulti-protocol integration of new energy vehicle intelligent charging system solution provider.
After-Sale Service
Best Service
-Two Year Wanrranty
We provide two years wanrranty for whole parts. A new-repleaced part will be sent if any quanlity problem happen.
-OEM/ODM
We have ability to OEM and ODM your Logo/Menu/Color.
-One to One Technology Support
User Manual will be delivered and we also provide one to one online technology support for your installation and operation.
We provide two years wanrranty for whole parts. A new-repleaced part will be sent if any quanlity problem happen.
-OEM/ODM
We have ability to OEM and ODM your Logo/Menu/Color.
-One to One Technology Support
User Manual will be delivered and we also provide one to one online technology support for your installation and operation.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2019,sell to South America(20.00%),North America(20.00%),Mid East(10.00%),Western Europe(10.00%),Eastern Europe(10.00%),Southeast Asia(6.00%),Northern Europe(5.00%),Africa(5.00%),South Asia(4.00%),Central America(4.00%),Oceania(4.00%),Eastern Asia(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
charger station,ev charger station,ev charger,ev fast charger,ac charger
4. why should you buy from us not from other suppliers?
Japanese standard CHAdeMO standard charging communication protocol software and hardware system
American standard SAE, European standard IEC, charging communication protocol software and hardware system adopting ISO15118/DIN70121 protocol standard
Build
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken:English,Chinese
We are based in Jiangsu, China, start from 2019,sell to South America(20.00%),North America(20.00%),Mid East(10.00%),Western Europe(10.00%),Eastern Europe(10.00%),Southeast Asia(6.00%),Northern Europe(5.00%),Africa(5.00%),South Asia(4.00%),Central America(4.00%),Oceania(4.00%),Eastern Asia(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
charger station,ev charger station,ev charger,ev fast charger,ac charger
4. why should you buy from us not from other suppliers?
Japanese standard CHAdeMO standard charging communication protocol software and hardware system
American standard SAE, European standard IEC, charging communication protocol software and hardware system adopting ISO15118/DIN70121 protocol standard
Build
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken:English,Chinese
Похожие товары
2023 оригинальный легкий электровелосипед 750 Вт, электрический велосипед для взрослых
809,00 $ - 1 059,00 $
Лидер продаж с завода, изготовление на заказ, рассеиваемая древесная масса, нетканое полотно Spunlace, сырье
1 500,00 $
Высококачественная нержавеющая сталь, индивидуальная этикетка, цвет под заказ, Профессиональное использование, 4 шт., набор заколок для волос
4,50 $ - 6,50 $
12 1 дюйма ip65 Intel i3 i5 i7 J1900 все в одном промышленная сенсорная панель планшет мини-ПК
100,00 $ - 350,00 $

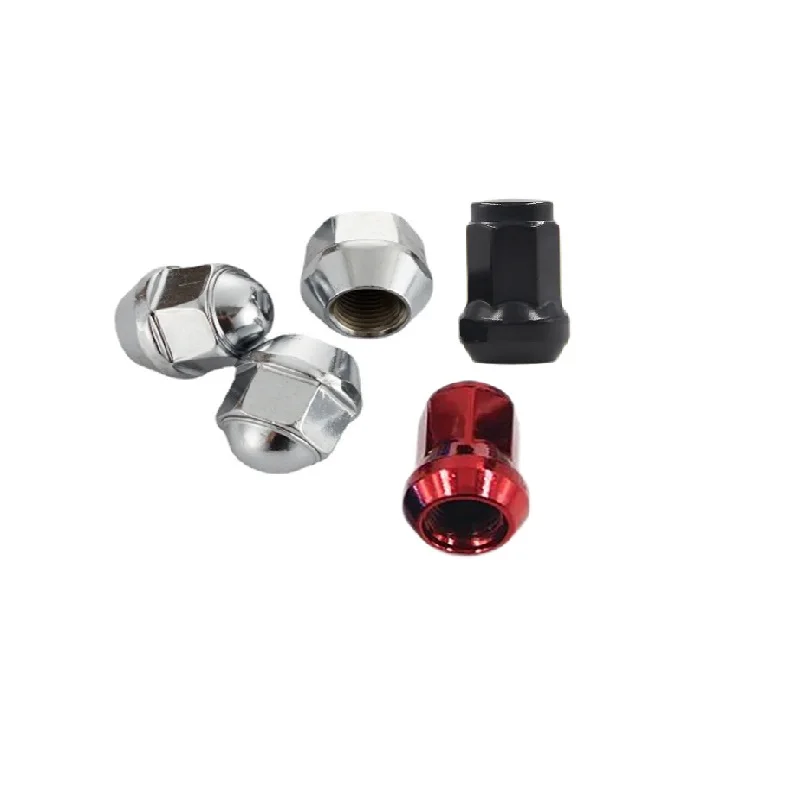

Высокоточные пользовательские M12 * 1,25, M12 * 1,5 Gr5 титановые Колесные гайки из углеродистой стали с круглой головкой
0,21 $ - 0,50 $
E & R деревянные резная текстура настенные панели из твердой древесины декоративное настенное покрытие доска 3D настенный лист для украшения дома
19,00 $ - 23,50 $

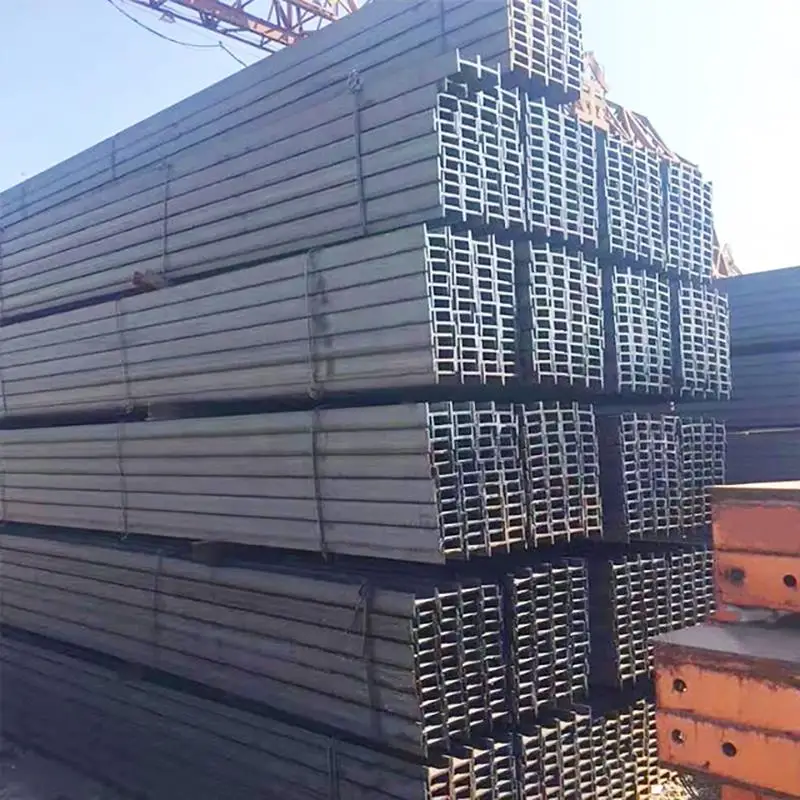

Горячекатаный/холоднокатаный профиль ASTM AISI JIS, сталь H типа, железо Q235 Q345 S235jr A36 S355jr
