Sae j1772 тип 1 EV зарядная станция 7,2 кВт ev wallbox зарядное устройство с синей вилкой CEE и зарядкой
205,00 $ - 220,00 $
Новая Энергия 220 В 7 кВт AC 32a gbt ev электромобиль зарядная станция typ2 typ1 адаптер wallbox
- Категория: Настенные зарядные станции >>>
- Поставщик: Guangzhou Max Power New Energy Technology Co. Ltd.
Сохранить в закладки 1600200496025:
Описание и отзывы
Характеристики
Guangzhou Max Power New Energy Technology Co., Ltd. is a high-tech company which has been invested by the fund supported by Jiangxi provincial government. It focuses on the R&D for the core parts such as on/off board charger & DCDC for new energy vehicle(EV, PHEV etc.). The core team members have rich working experience in Valeo with background of overseas education. The products we developed (OFBC,OBC & DCDC) have excellent performance and dominant position in the market.
Product Description
EV CHARGER 7KW
This AC charging pile provides AC 50Hz, rated voltage 220V AC power supply for electric vehicles with on-board charging machine, mainly used in the following places:
1.Charging stations for large, medium and small electric vehicles
2.Urban residential areas, shopping malls, electric business places and other public places with electric car parking Spaces
3.Expressway service area, station terminal and other transportation hub area
1.Charging stations for large, medium and small electric vehicles
2.Urban residential areas, shopping malls, electric business places and other public places with electric car parking Spaces
3.Expressway service area, station terminal and other transportation hub area
Feature
* Provide wall-mounted mounting mode* Adapt AC220V AC input
* The main control board USES a single chip microcomputer with an embedded operating system, and the charging mode is divided into four kinds: automatic charging, fixed time, fixed amount and fixed power, which can provide an optional GPRS networking mode
* 4.3-inch 480x272 resolution color screen display, charging mode can be set
* The background program of the main control board is used to identify the charger, record the user information and calculate the charging cost
* The incoming line switch adopts the switch with leakage protection function and installs the emergency stop button
*The appearance adopts part ABS plastic structure
*The appearance adopts part ABS plastic structure

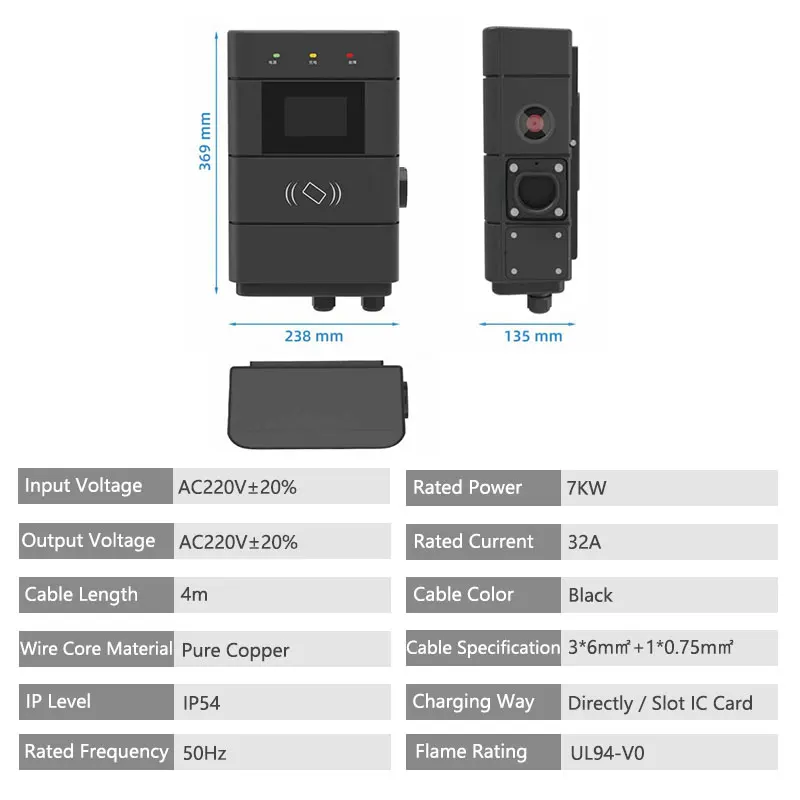

Specification
Charging Device | Installation | Wall Mounting Type |
Undervoltage protection | Take-up Mode | Up-Out and Down-In |
Overload protection | Input Voltage | AC220V±20% |
Shortcircuit protection | Input Frequency | 50±3Hz |
Earthleakage protection | Output Voltage | AC220V±20% |
Over-temperation protection | Max Output Current | 32A |
Cable Length | 4m | |
Lightning protection | Measuring Accuracy | 0.5 Level |
Function Design | Human Machine Interface | 4.3 Inch TFT |
Connection | Charging Mode | Automatic charge/Fixed charge/Fixed amount/Fixed time |
RCD | Charging Way | Charge by Slot Card / Charge by Scan Code |
LED Indicator light | Payment Way | Pay by Slot Card / Pay by Scan Code |
Safety Design | Safety Standard | GB/T20234, GB/T18487, GB/T27930, NB/T33008, NB/T33002 |
Evironment temperature | Over-voltage protection, Under-voltage protection, Overload protection, Short-circuit protection, Grounding protection, Over-temperature protection, Low-temperature protection, Lightning protection, Emergency stop protection, Leakage protection | |
Environmental Index | Operating Temperature | -25℃~+50℃ |
Operating Humidity | 5%~95%, No Condensation | |
Altitude | <2000m | |
IP Level | IP54 | |
Type of Cooling | Air Cooling | |
Noise Control | ≤60dB | |
MTBF | 100,000 Hours |
SUPPORT CAR:
Packing & Delivery
1. During the transportation process, the charger body package should be firmly sealed and the loading and unloading direction should be identified by a solid wooden packing box. The charger should not be stored upside down. Corresponding tightening measures should be taken during transportation to avoid strong vibration and bumps that damage the outer packaging of the equipment.
2. After the arrival of the goods, it should be checked for damage. If there is any damage to the transportation, it should be
settled with the transportation party and our company. Immediately after unpacking, check that the contents of the box match the packing list.
3. The packaged equipment should be stored in a room with a relative humidity of ≤80% and an ambient air temperature of -10 °C to +40 °C. Storage places should be dry, clean, air circulated, and can prevent the intrusion of various harmful gases. It is strictly forbidden to store in corrosive materials in the same place.4.For customers to choose, DHL, Fedex, TNT, UPS, Air freight, Ocean freight. The package and label can be with customer's requirement.
2. After the arrival of the goods, it should be checked for damage. If there is any damage to the transportation, it should be
settled with the transportation party and our company. Immediately after unpacking, check that the contents of the box match the packing list.
3. The packaged equipment should be stored in a room with a relative humidity of ≤80% and an ambient air temperature of -10 °C to +40 °C. Storage places should be dry, clean, air circulated, and can prevent the intrusion of various harmful gases. It is strictly forbidden to store in corrosive materials in the same place.4.For customers to choose, DHL, Fedex, TNT, UPS, Air freight, Ocean freight. The package and label can be with customer's requirement.
Company Profile
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q9:Are you a factory or trading company?
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q9:Are you a factory or trading company?
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years
