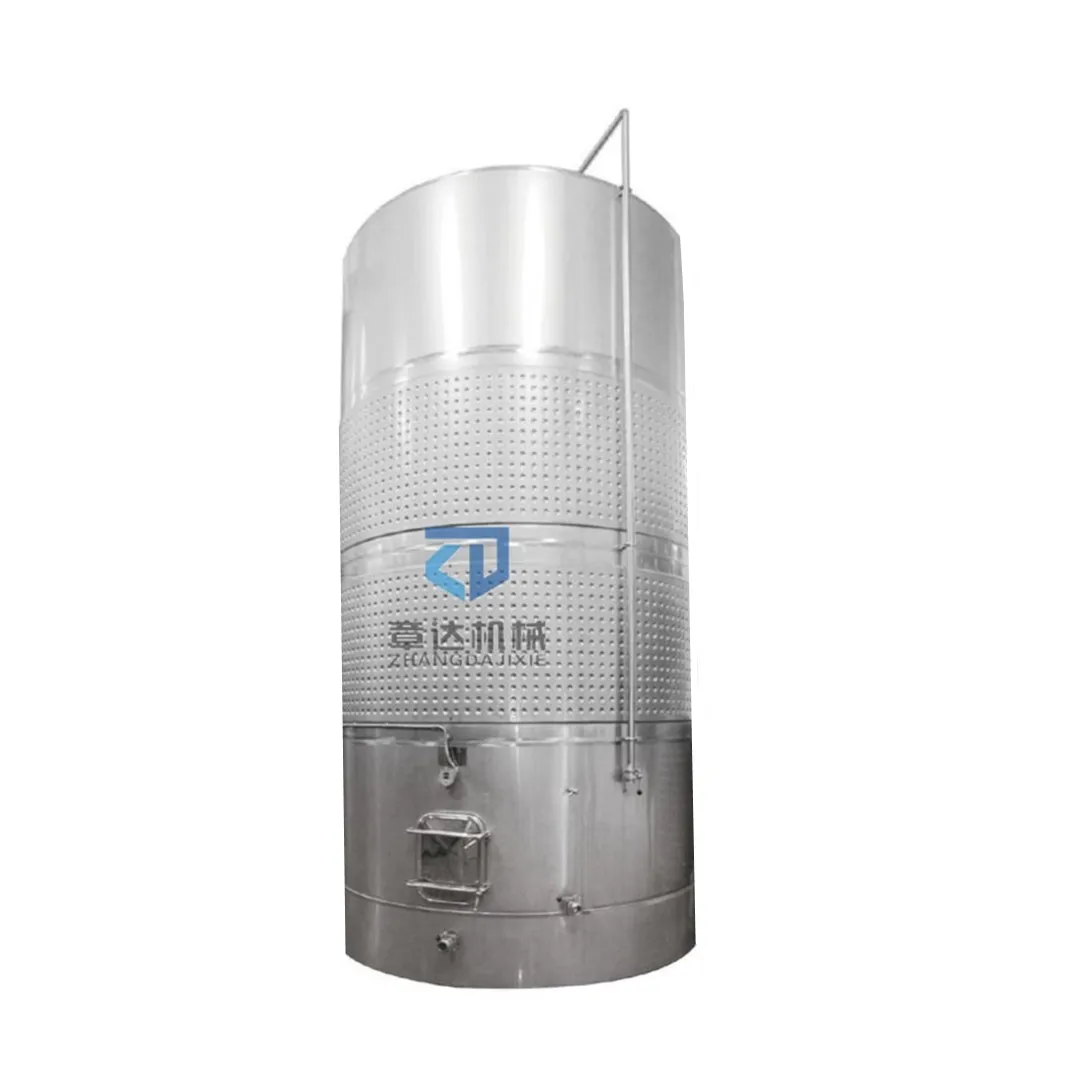

Резервуар реактора 1000 литровый резервуар для брожения пива
4 900,00 $
Сахарный тростник этанол растение подсолнечник Phermentor реактор из нержавеющей стали
- Категория: >>>
- Поставщик: Shanghai Biochemical Co. Ltd.
Сохранить в закладки 1600201263760:
Описание и отзывы
Характеристики
Product Description
Material: 316L stainless steel inside and 304 jacket
The diameter and height ratio: 1:2-3
Mixing method: magnetic stirring or mechanical stirring one of the two optional
Sterilization method: on-site sterilization auto control or manual control
Control system: Siemens PLC, industrial LCD touch computer control, parameters can be set to store,can be remotely connected to the computer through the USB interface, the data
Stirring system
Mechanical sealing system : high-powered stirring oar, anti-foam oar; AC electrical machine: infinite speed variation; rpm in the fermenter: 50~1000 rpm±1%,The height of the stirring oar can be adjusted
Temperature detection and control
Heat by thermostatic water tank and circulate by circulating pump(Grundfos, Denmark), auto control (cooling water+5℃) to 65℃±0.1℃,temperature probe(PT100)
pH detection and control
2.00-12.00±0.05 pH, autocontrol by adding acid and base, pH sensor (Mettler/Hamilton, Switzerland) and shielding lead (Mettler/Hamilton, Switzerland). fermenter is auto controlled with peristaltic pump
DO detection and control
0-150±3% displaying precision 0.1%, sensor (Mettler/Hamilton, Switzerland) and shielding lead(Mettler/Hamilton, Switzerland)
Feed control
Uses peristaltic pump (Spriax, UK) to add materials
Anti-foam control
Tested by sensor and added anti foamer by peristaltic pump
Intake control (air) manual control rota meter
Pressure detection and control
Pressure Control: Pressure meter and digital display and digital remote control, pressure control
we are compliant fermentation equipment for research, development, pilot and production applications.

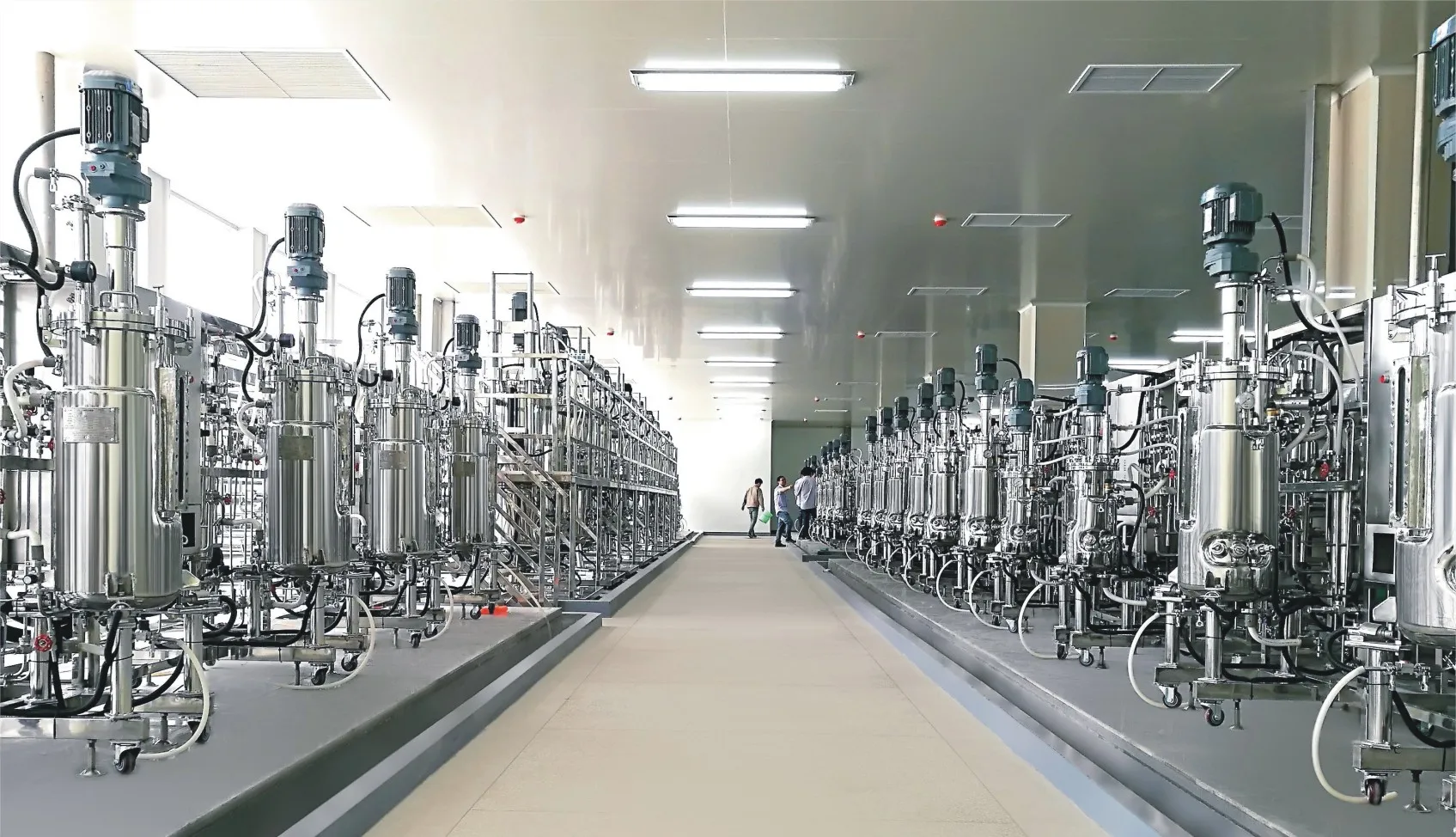

Our Factory in China.

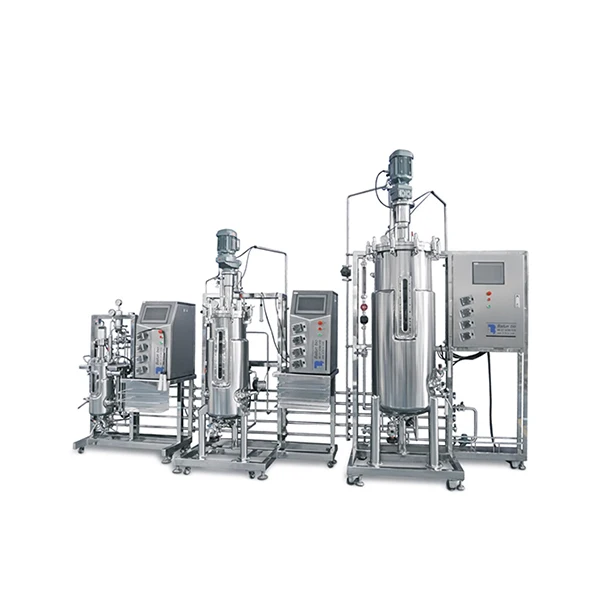

We provide the fermentor products including : Stainless steel fermenter, Pilot combo stainless steel fermentor,glass fermentor,fermenter, Multi-Union fermenter,Multi-stagefermentation tank,and shaking Incubators, positive join stainless steel fermentor.
The diameter and height ratio: 1:2-3
Mixing method: magnetic stirring or mechanical stirring one of the two optional
Sterilization method: on-site sterilization auto control or manual control
Control system: Siemens PLC, industrial LCD touch computer control, parameters can be set to store,can be remotely connected to the computer through the USB interface, the data
Stirring system
Mechanical sealing system : high-powered stirring oar, anti-foam oar; AC electrical machine: infinite speed variation; rpm in the fermenter: 50~1000 rpm±1%,The height of the stirring oar can be adjusted
Temperature detection and control
Heat by thermostatic water tank and circulate by circulating pump(Grundfos, Denmark), auto control (cooling water+5℃) to 65℃±0.1℃,temperature probe(PT100)
pH detection and control
2.00-12.00±0.05 pH, autocontrol by adding acid and base, pH sensor (Mettler/Hamilton, Switzerland) and shielding lead (Mettler/Hamilton, Switzerland). fermenter is auto controlled with peristaltic pump
DO detection and control
0-150±3% displaying precision 0.1%, sensor (Mettler/Hamilton, Switzerland) and shielding lead(Mettler/Hamilton, Switzerland)
Feed control
Uses peristaltic pump (Spriax, UK) to add materials
Anti-foam control
Tested by sensor and added anti foamer by peristaltic pump
Intake control (air) manual control rota meter
Pressure detection and control
Pressure Control: Pressure meter and digital display and digital remote control, pressure control
we are compliant fermentation equipment for research, development, pilot and production applications.
Our Factory in China.
We provide the fermentor products including : Stainless steel fermenter, Pilot combo stainless steel fermentor,glass fermentor,fermenter, Multi-Union fermenter,Multi-stagefermentation tank,and shaking Incubators, positive join stainless steel fermentor.
Specification
Item | Value |
Processing | Fermenting Equipment |
Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Vaccine, Bacterial Culture |
Condition | New |
Place of Origin | Shanghai, China |
Brand Name | Bailun |
Processing Types | lactic acid bacteria,yeast,enzymes,microorganisms,Fungus,MSG,soy sauce |
Certification | ISO CE ASME |
Warranty | 1 Year |
Field installation, commissioning and training | |
Machinery Capacity | 50L, 100L, 200L, 300L, 400L, 500L, 600L, 700L, 800L, 1000L, 1200L, 1500L, 1800L, 2000L, 2500L, 3000L, 3500L, 4000L, 5000L, 10000L, 20000L, 50000L |
Machinery Test Report | Provided |
Warranty of core components | 1 Year |
Core Components | Gearbox, Motor, Gear, Pump, Pressure vessel, PLC, OTHER, Bearing, Engine |
Key Selling Points | Automatic |
Marketing Type | Hot Product 2019 |
Video outgoing-inspection | Provided |
After-sales Service Provided | Engineers available to service machinery overseas |
Application | Culture bacterial yeast cell |
Control system | PLC Siemens |
Function | PH/DO/Foam/Temp control |
Feeding volume | 70% |
Volume | 2L-500000L |
Material | Stainless steel 304/316 |
Sterilizatiom | In situ |
PH/DO sensor | Mettler or Hamilton |
FAQ
Q:Are you factory or trading company?
A:We are a factory.
Q:What's the MQQ?
A:1 unit.
Q:Do you offer overseas service?
A:Yes,We are dispatch engineer to overseas.
Q:Can we visiting your factory?
A:Yes,warmly welcome.
Q:How about your delivery time?
A:1 week to 3 months.Depend on the size and quantity.
A:We are a factory.
Q:What's the MQQ?
A:1 unit.
Q:Do you offer overseas service?
A:Yes,We are dispatch engineer to overseas.
Q:Can we visiting your factory?
A:Yes,warmly welcome.
Q:How about your delivery time?
A:1 week to 3 months.Depend on the size and quantity.
Other downstream products
Tubular Centrifuge
Why Choose Us
1. Good price good quality with beautiful shape.
2. Stable availability, complete specification.
3. MOQ 1unit.
4. The strong support of advanced technology and detection capability.
5. ISO /CEcertification.
6. Reliable factory, established since 1998.
7. Professional service and technology support.
2. Stable availability, complete specification.
3. MOQ 1unit.
4. The strong support of advanced technology and detection capability.
5. ISO /CEcertification.
6. Reliable factory, established since 1998.
7. Professional service and technology support.
Certifications
Packing & Delivery
Похожие товары
Высококачественный Мини-роутер Type-C QCA9531 4G LTE со слотом для sim-карты
54,80 $ - 90,00 $
Лабораторный химический реактор на 1 л ~ 5 л, двухслойный стеклянный реактор с мешалкой
Брожения судно большой объем вина ферментера 100000L 304/316L биологический ферментер реактор покрытый кожухом

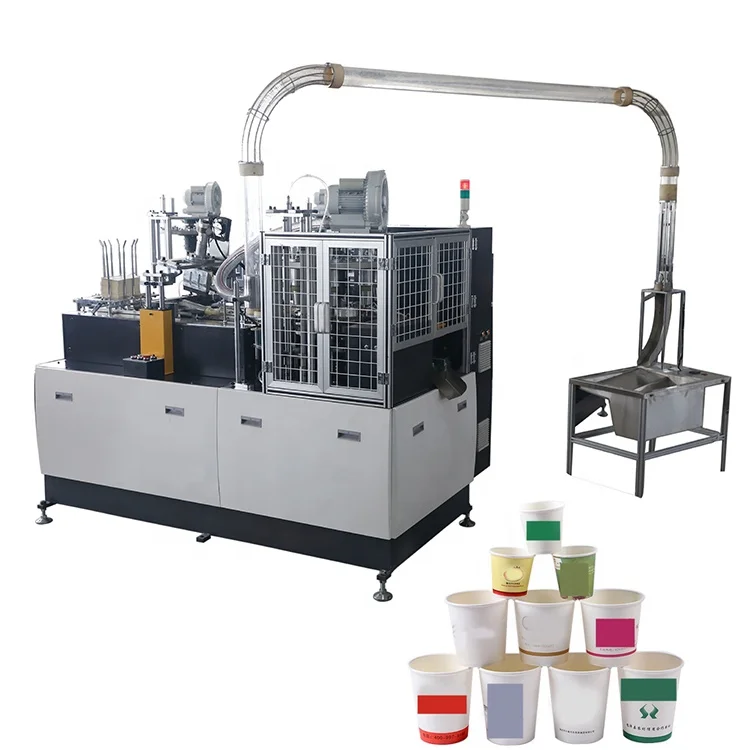

Jbz-Ocm12 конический бумажный стаканчик мати на машины для производства бумажных стаканчиков, машина для Гофрированные бумажный стаканчик мА

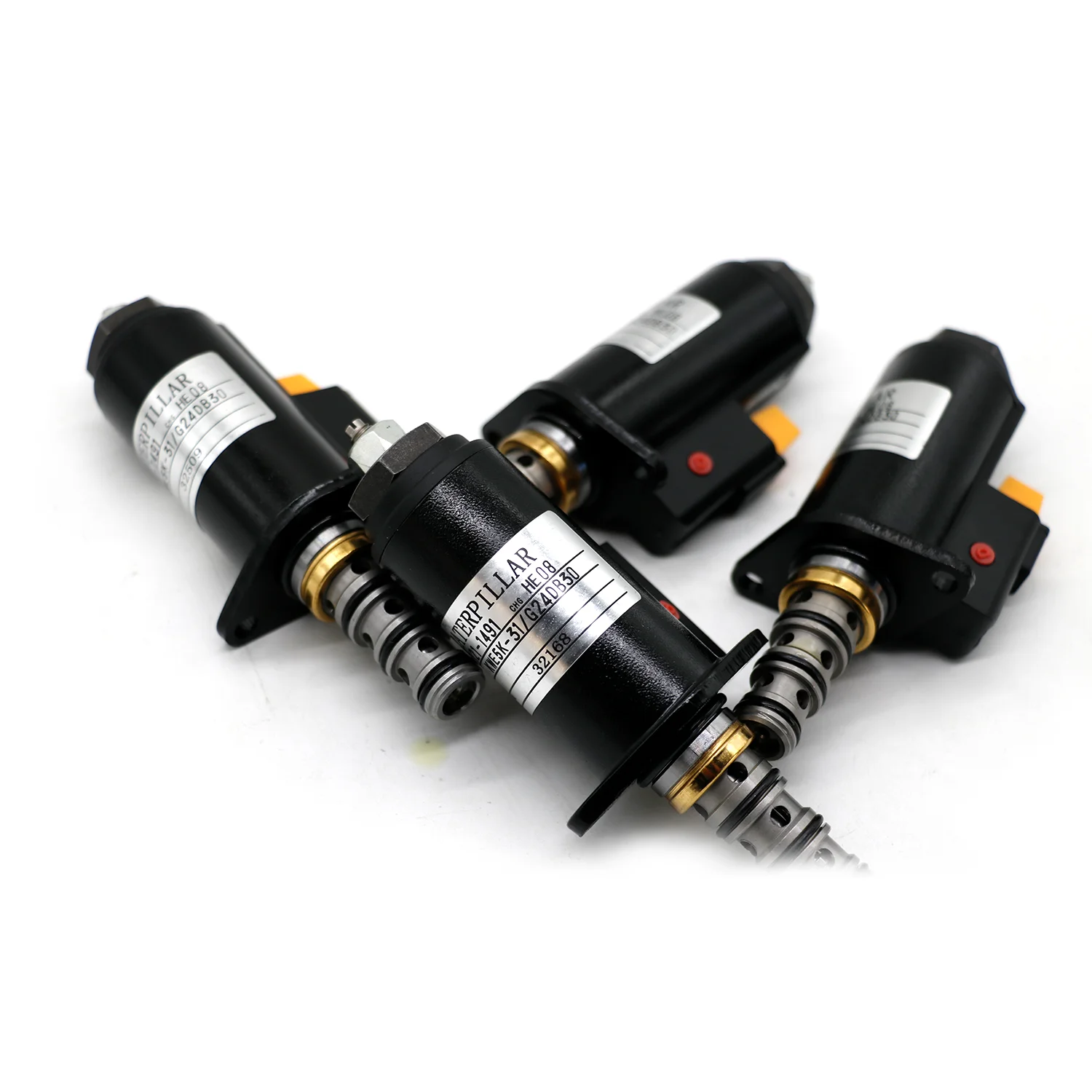

Соленоидный клапан SKX5P-17-210 KDRDE5KR-20/40 C13-203A Соленоидный клапан для SH200-5 SH350-5 SK60/100/200/210lc дизельный двигатель 6HH1
62,00 $ - 77,00 $
Индивидуальная стеклянная бутылка для духов ручной работы в арабском стиле 10 мл 15 мл 20 мл с металлическими украшениями в виде цветов
1,25 $ - 4,45 $

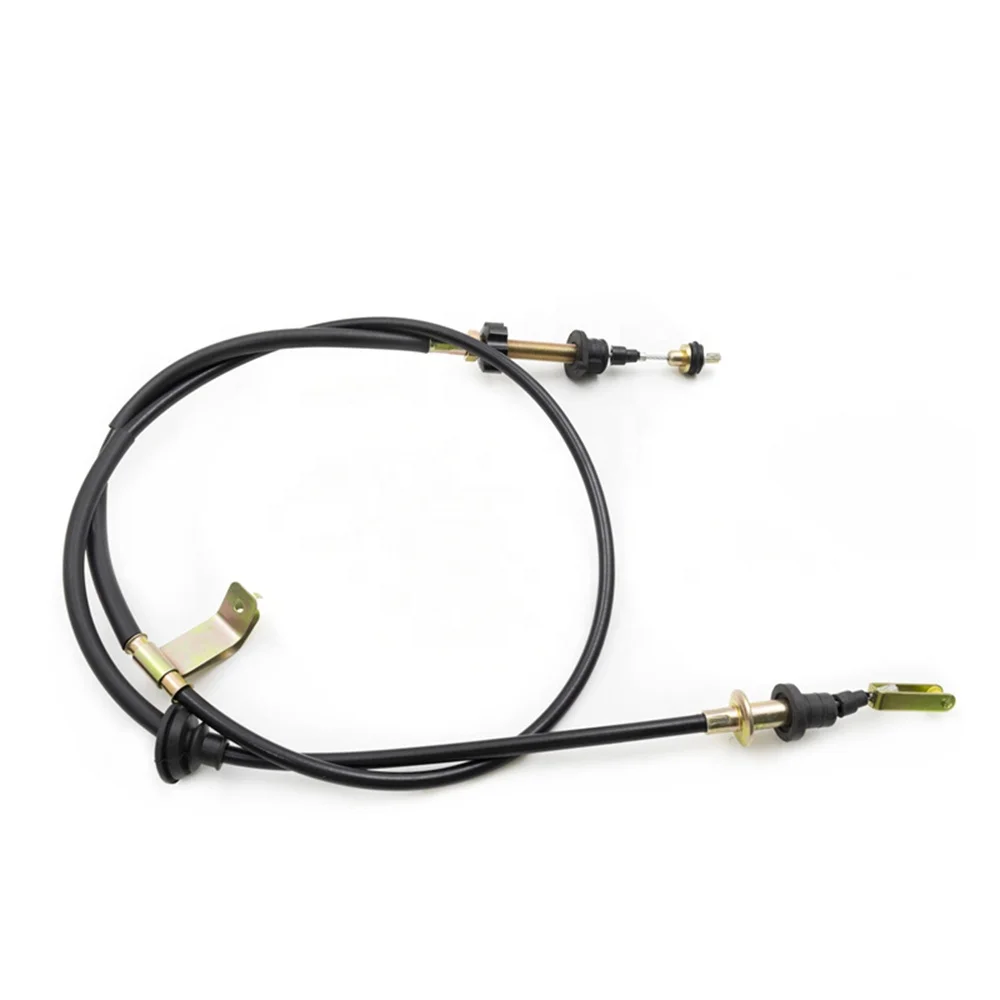

Соединительный кабель сцепления DFSK Sokon C31C32V27
