TYL китайский производитель Painel солнечная панель модуля PV 100W 110W 120W с CE
- Категория: >>>
- Поставщик: Guangzhou Tongli New Energy Co. Ltd.
Сохранить в закладки 1600201757610:
Описание и отзывы
Характеристики

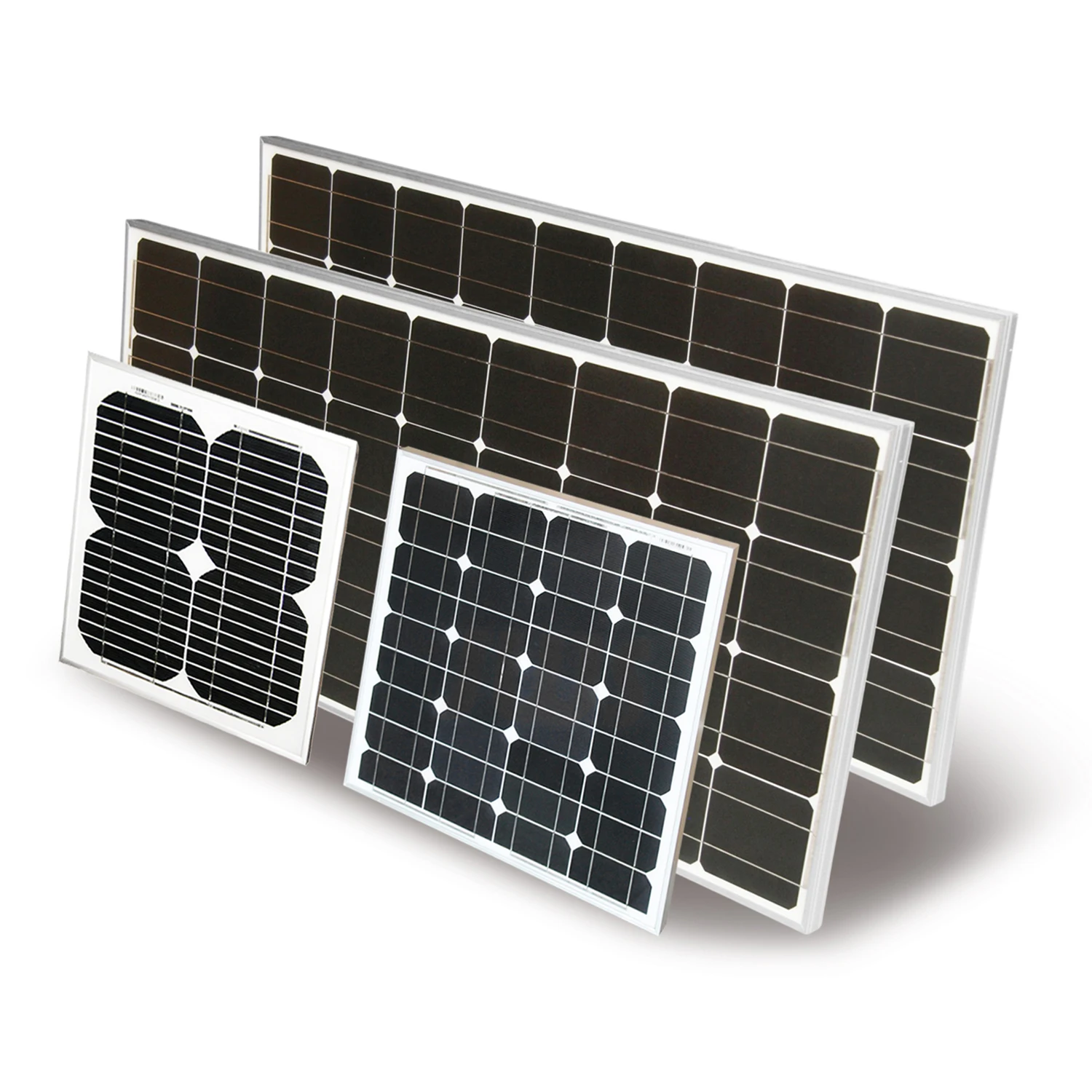

TYL China Manufacturer Painel Solar PV Module Panel 100W 110W 120W with CE
The TYL 120W highly efficient Monocrystalline panels convert sunlight into electricity, for mobile traveler in caravans, Motorhomes, and other recreational vehicles.
Key Feature:
1. Grade A Mono Solar Cells
2. Higher Module Conversion Efficiency
3. Dust Tight and Waterproof with IP67 Rating
4. 100% apply EL (electroluminescence) technology
1. Grade A Mono Solar Cells
2. Higher Module Conversion Efficiency
3. Dust Tight and Waterproof with IP67 Rating
4. 100% apply EL (electroluminescence) technology
Product Description
Model:Mono | 100W | 110W | 120W | |||
Maximum Power (W) | 100 | 110 | 120 | |||
Power Tolerance Range (%) | ±3% | ±3% | ±3% | |||
Open Circuit Voltage/Voc (V) | 22.3 | 22.3 | 22.3 | |||
Maximum Power Voltage/Vmp (V) | 18.0 | 18.0 | 18.0 | |||
Short Circuit Current/Isc (A) | 6.04 | 6.60 | 7.20 | |||
Maximum Power Current/Imp (A) | 5.55 | 6.11 | 6.67 | |||
Maximum System Voltage (V) | 600 | 600 | 600 | |||
Maximum Series Fuse Rating (A) | 10 | 10 | 10 | |||
Working Temperature(℃) | -40~ +85 | -40~ +85 | -40~ +85 | |||
Dimension (mm) | 1005*665*30 | 1005*665*30 | 1005*665*30 | |||
Weight (Kg) | 8 | 8 | 8 | |||
MECHANICAL PARAMETERS | ||||||
Solar Cells | Monocrystalline | |||||
Cell Orientation | 36 cells (4*9) | |||||
Module Dimensions | 1005*665*30mm | |||||
Weight | 8 kg with 3.2 mm glass | |||||
Glass | 4.0 mm for PERC Mono; 3.2 mm for Std Mono, | |||||
Backsheet | White | |||||
Frame | Silver Anodized Aluminium Alloy | |||||
J-Box | IP 67 or IP 68 rated | |||||
Cables | Photovoltaic Technology Cable 4.0mm², 1200 mm Modules per pallet: | |||||
WORKING CONDITIONS | ||||||
Maximum System Voltage | 1000 V DC (IEC) | |||||
Operational Temperature | -40 to +85°C | |||||
Mechanical Load | 5400 Pa | |||||
Wind Load | 2400 Pa | |||||
NOCT | 45°C (±2) | |||||
Application class | Class A | |||||
Detailed Images

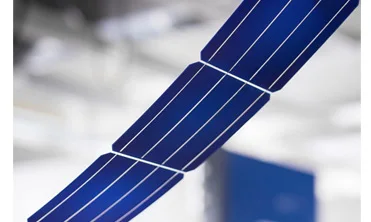

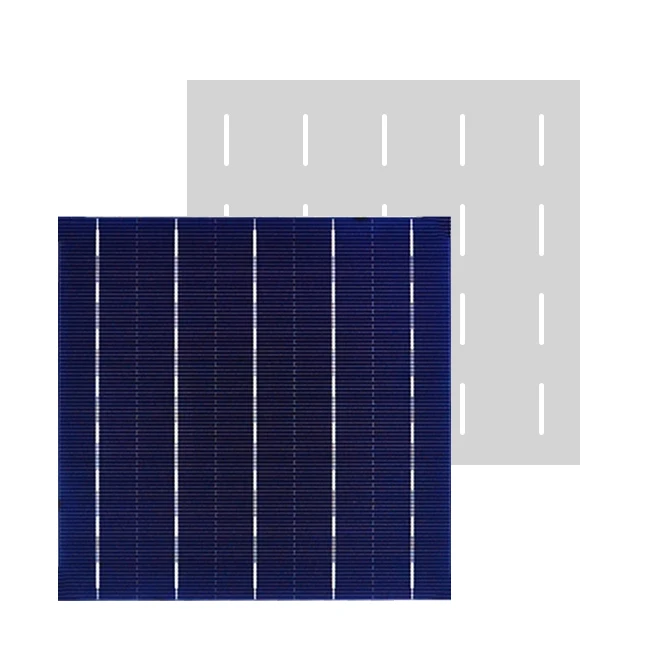

Solar Cell
> High efficiency 5BB PV cell
> Uniform color
> Anti-PID
> Germany standard Cell
> Full test
> Uniform color
> Anti-PID
> Germany standard Cell
> Full test

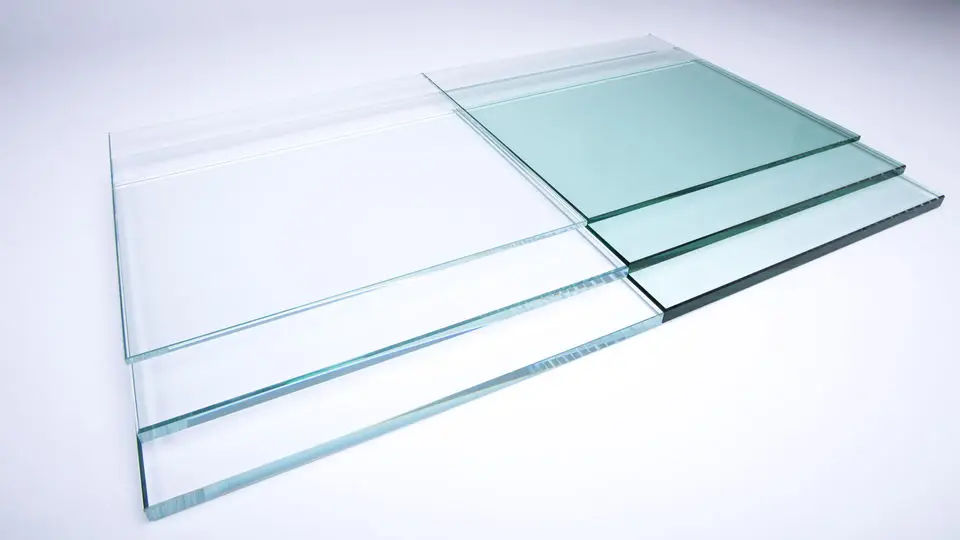

Glass
> Antireflective glass> Translucency of normal luminance is increased 2%
> Module efficiency is increased 2%
> Self-clean function
> Service life 25 years
> Module efficiency is increased 2%
> Self-clean function
> Service life 25 years

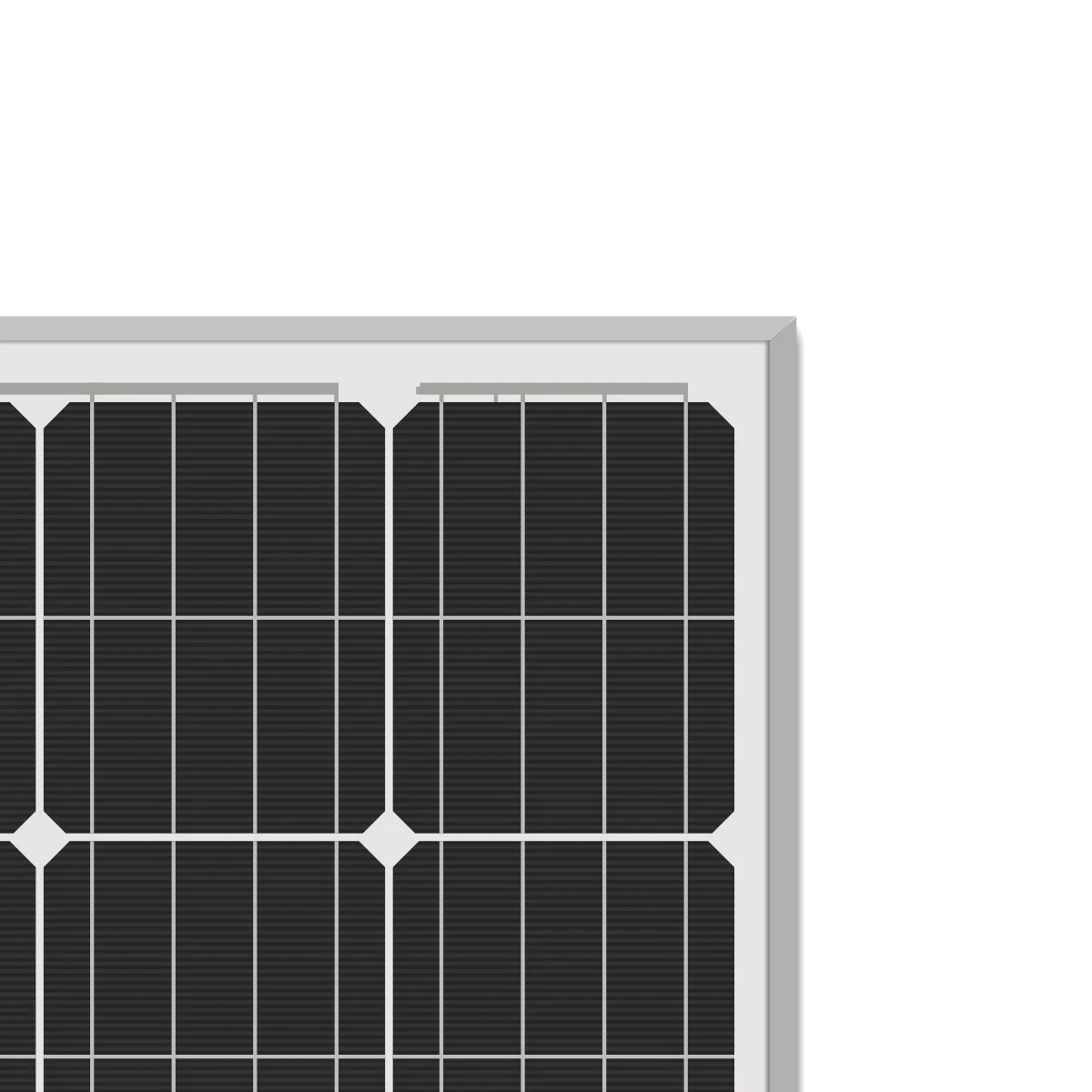

Frame
> Stock-size
> Silvery and black
> thickness 30/35/40/45/50mm
> stress test.
> Silvery and black
> thickness 30/35/40/45/50mm
> stress test.
EVA
>High Transmittance EVA,
>High GEL Content To Provide Good Encapsulation
>Protect Cells From Vibration With Longer Durability.
Humanized design
> More protection with practical and effective design
> Prevent the aluminum frame from scratching the hand
> Using the rain to clean dirt remaining on the solar module
> Prevent the aluminum frame from scratching the hand
> Using the rain to clean dirt remaining on the solar module
Junction box
>Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
Production Process
Cell sorting
Cell sorting and cutting
Aotomatic Stringing
Battery chip receiving area

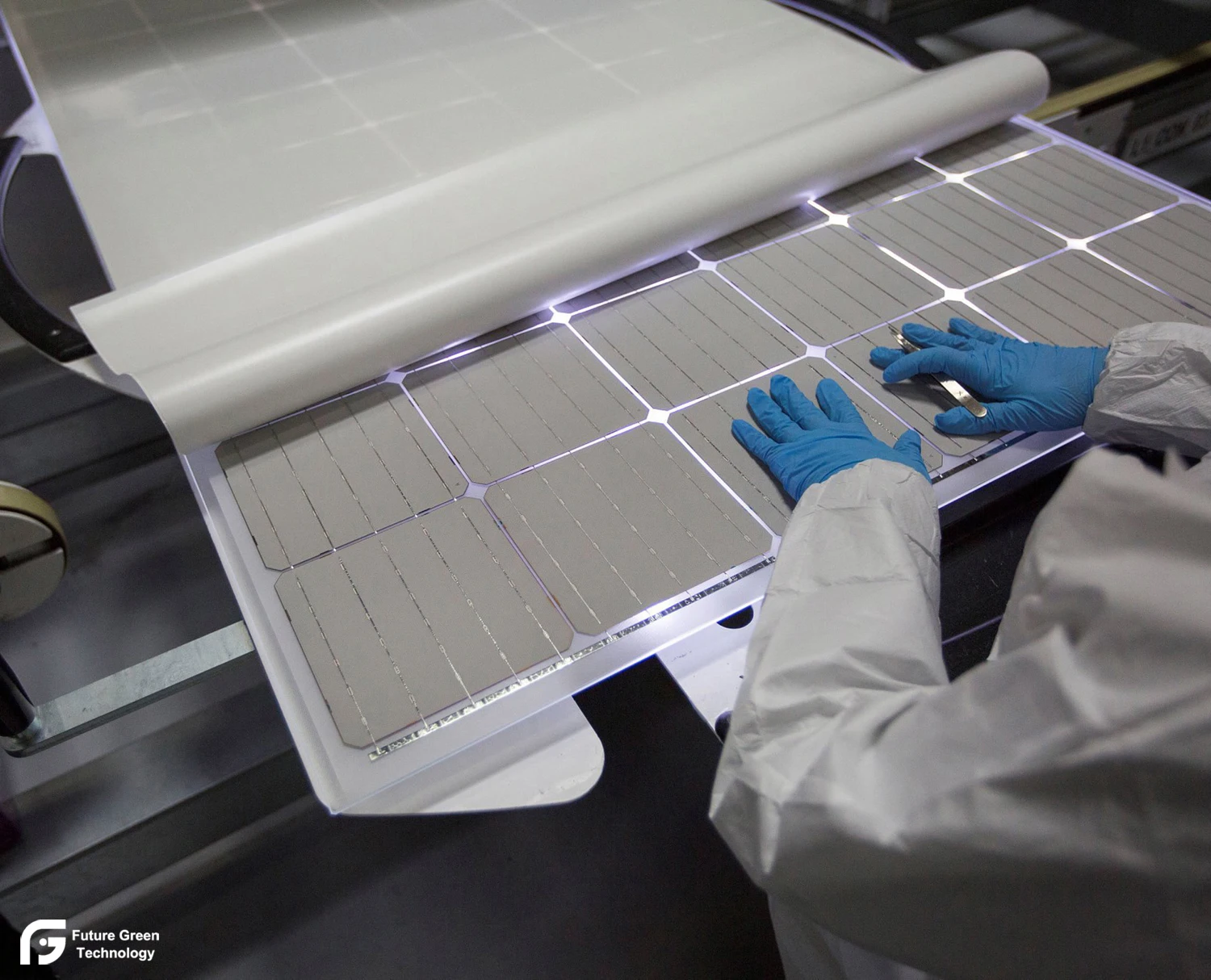

Laying
Solar Panel Kanban Inspection
Solar panel EL test
Laminate solar panel
Fully automatic lamination of solar panels
Fitted Frame
Flexible solar panel sorting and packaging
Integrated solar street light assembly
Related Products
Company Profile
Guangzhou Tongli New Energy Co., LTD.
Belongs to Guangdong Tongli Group, itch was founded in Guangzhou in 1999 by Dr Tony Tong, which is a comprehensive hi-tech enterprise of R&D, manufacturing and trade. And the first company that is engaged in Solar Power system, Solar panels, Solar Gel Battery, Solar street light,
Quality Objective:
1.The wastage rate of production is controlled below 0.1%.
2.The rate of contract fulfillment on schedule is 100%.
3.The degree of customer satisfaction is above 99%.
Environment Policy:
1.Being disciplined and law-abiding;
2.Control of environmental pollution;
3.Promoting energy conservation by innovation;
4.Full participation;
5.Continual improvement.
Public-spirited
Help-Guangdong Tongli donated 140KW solar power station in "Da Aipingjiang" Archives
Helping the poor-Guangdong Tongli donated 70KW solar power station in the "Ai Pingjiang" Anding Home for the Elderly
Assistance-Guangdong Tongli donated home drinking water project
Teaching Assistant-Guangdong Tongli Donated Hometown Alma Mater Construction
Teaching Assistant-Guangdong Tongli donated multimedia teaching to Guangzhou Yongxing Primary School
Teaching Assistant-Guangdong Tongli donated 70KW solar power station in Pingjiang No.1 Middle School
Teaching Assistant-Guangdong Tongli Boss initiates the establishment of his hometown alma mater Pingjiang No. 1 Middle School with 3 million scholarships
Student Aid-Guangdong Tongli Boss Gives Big Red Envelopes to Employees of 211 University
Solar power generation on roofs of factories in Guangdong Tongli
Guangdong Tongli boss donates blood to employees every year
Guangdong Tongli boss was named the county's model worker
The general manager of Guangzhou Tongli New Energy was awarded the caring entrepreneur by Guangdong Pingjiang Chamber of Commerce
French LV customer
Indian customers
Certifications
Похожие товары

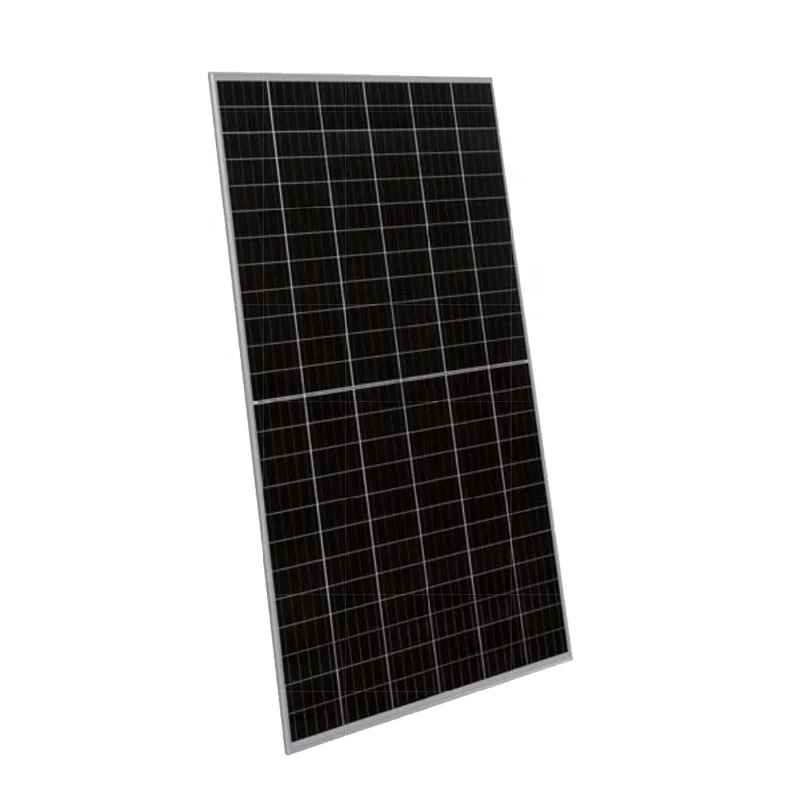

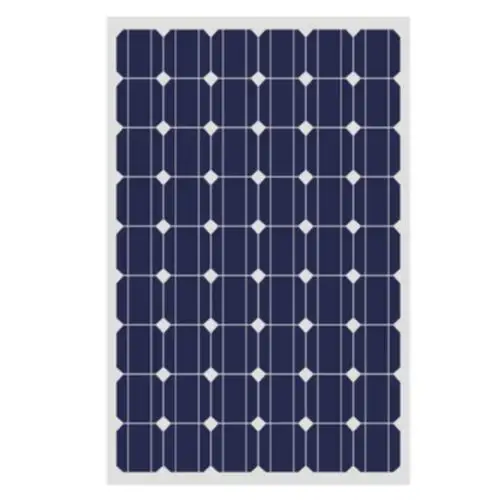

Высокая эффективность, разумная цена, моно-панели солнечных батарей 200 Вт, производитель fotovoltaicos в Китае, доставка по морю
JinKO 385 Вт ~ 405 Вт 5 шина 72 ячейки с рамой солнечная панель двухсторонний Монокристаллический Модуль
0,18 $ - 0,23 $

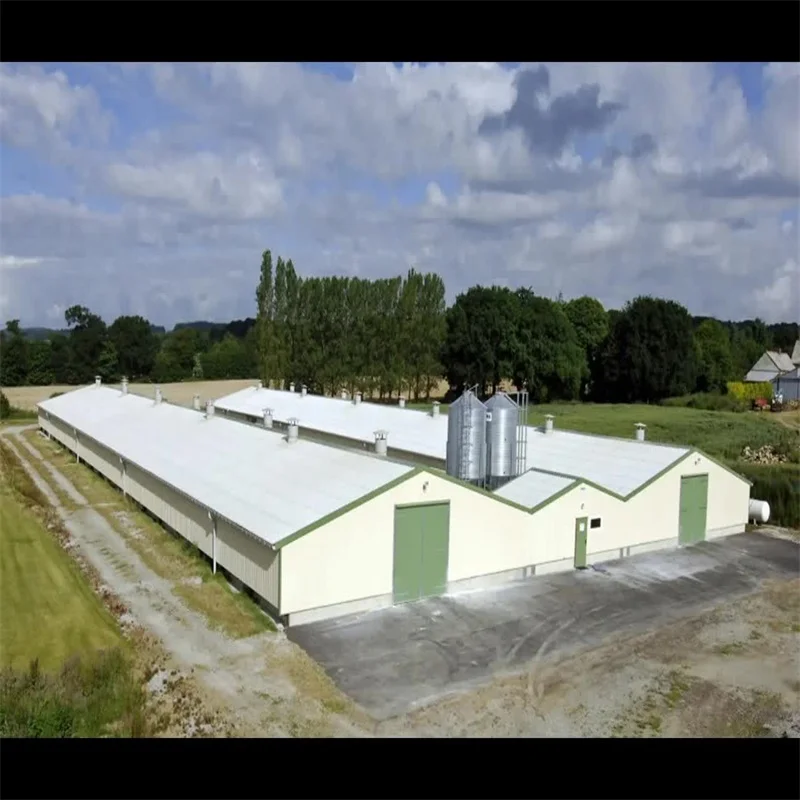

Китай дизайн предварительно изготовленная стальная конструкция склад здание фермы сарай дешевая
20,00 $ - 35,00 $

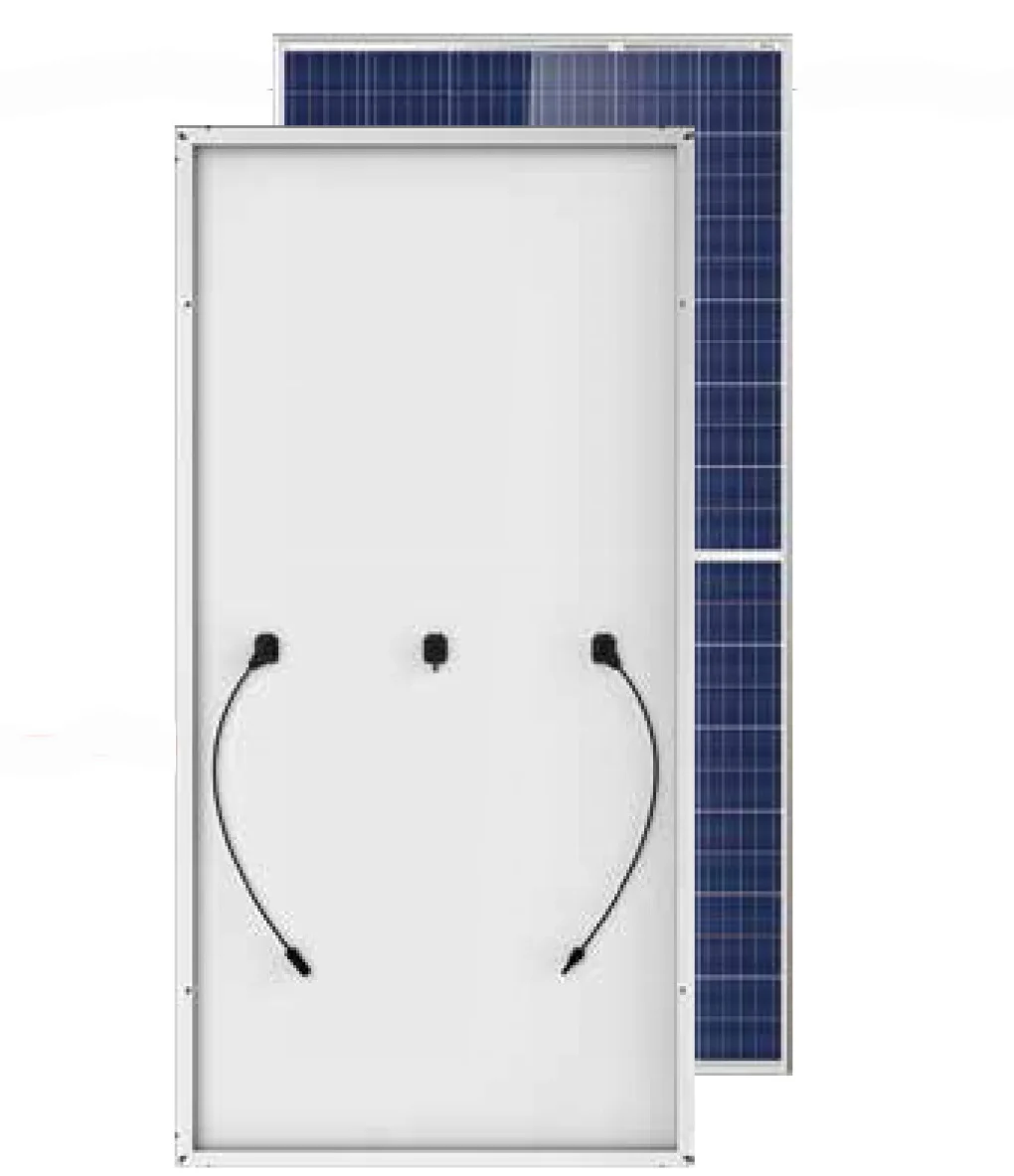

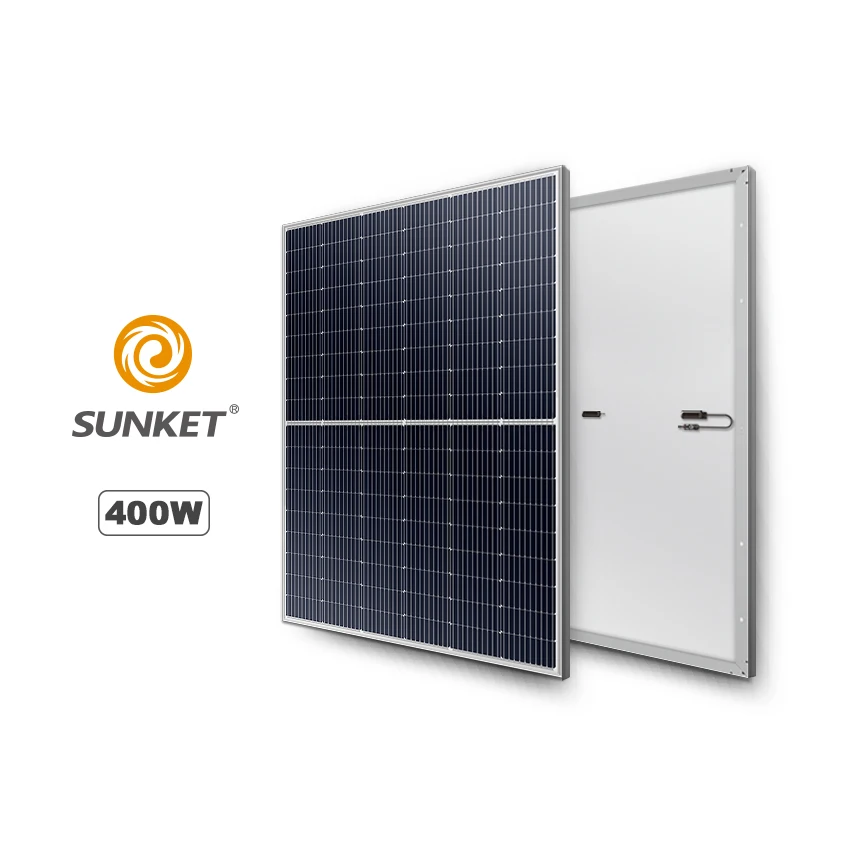

Производство солнечных панелей, 400 Вт, 405 Вт, PV модуль для домашней солнечной системы, 410 Вт солнечная панель
0,23 $ - 0,25 $
Китайский Топ производитель моно солнечная батарея 375Wp моно солнечная панель 365 Вт моно солнечная панель 370 Вт
Производитель солнечных панелей futusalar, фотогальванические 450 Вт, 480 Вт, 500 Вт для сертификации TUV CE
0,25 $ - 0,26 $

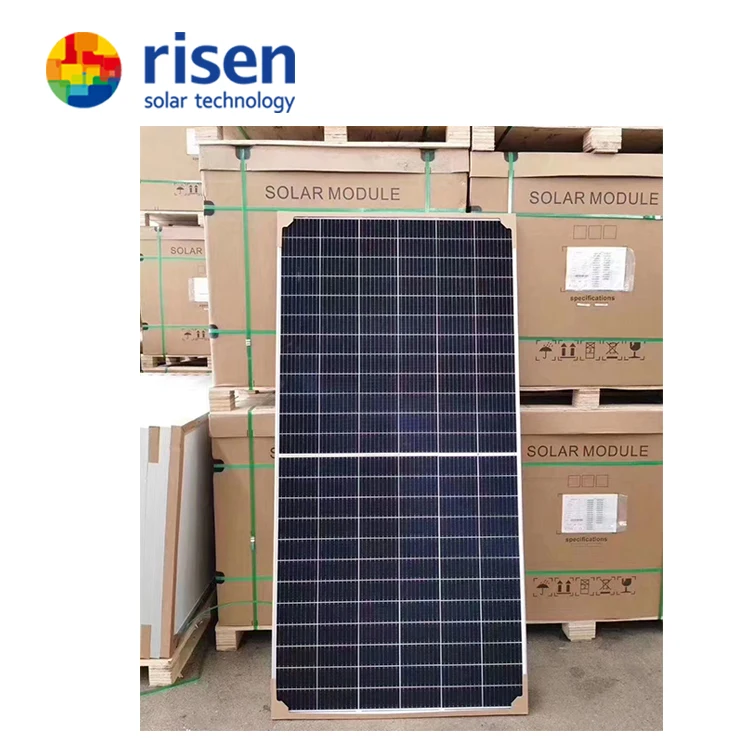

1378 Топ производитель Китай Longi Jinko Ja Райзен monofacial двусторонние панели солнечных батарей 400 450 500 Вт Фотоэлектрические модули PV солнечная P
