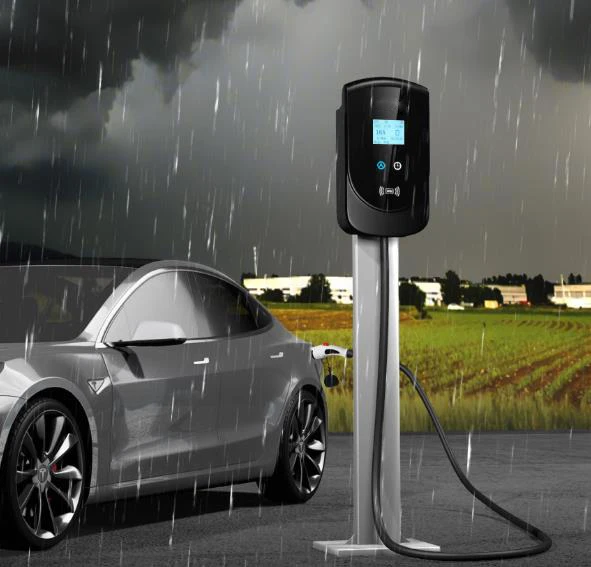

Производитель автомобильное зарядное устройство настенная зарядная станция переменного тока для домашней электрической автомобильной зарядки
- Категория: Wall-mounted Charging Stations >>>
- Поставщик: Nanjing Powercore Tech Co. Ltd.
Сохранить в закладки 1600201776757:
Описание и отзывы
Характеристики

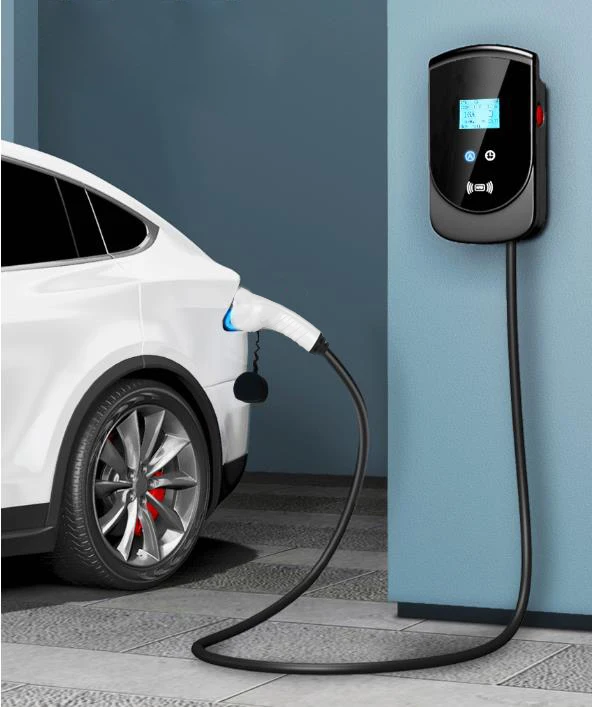

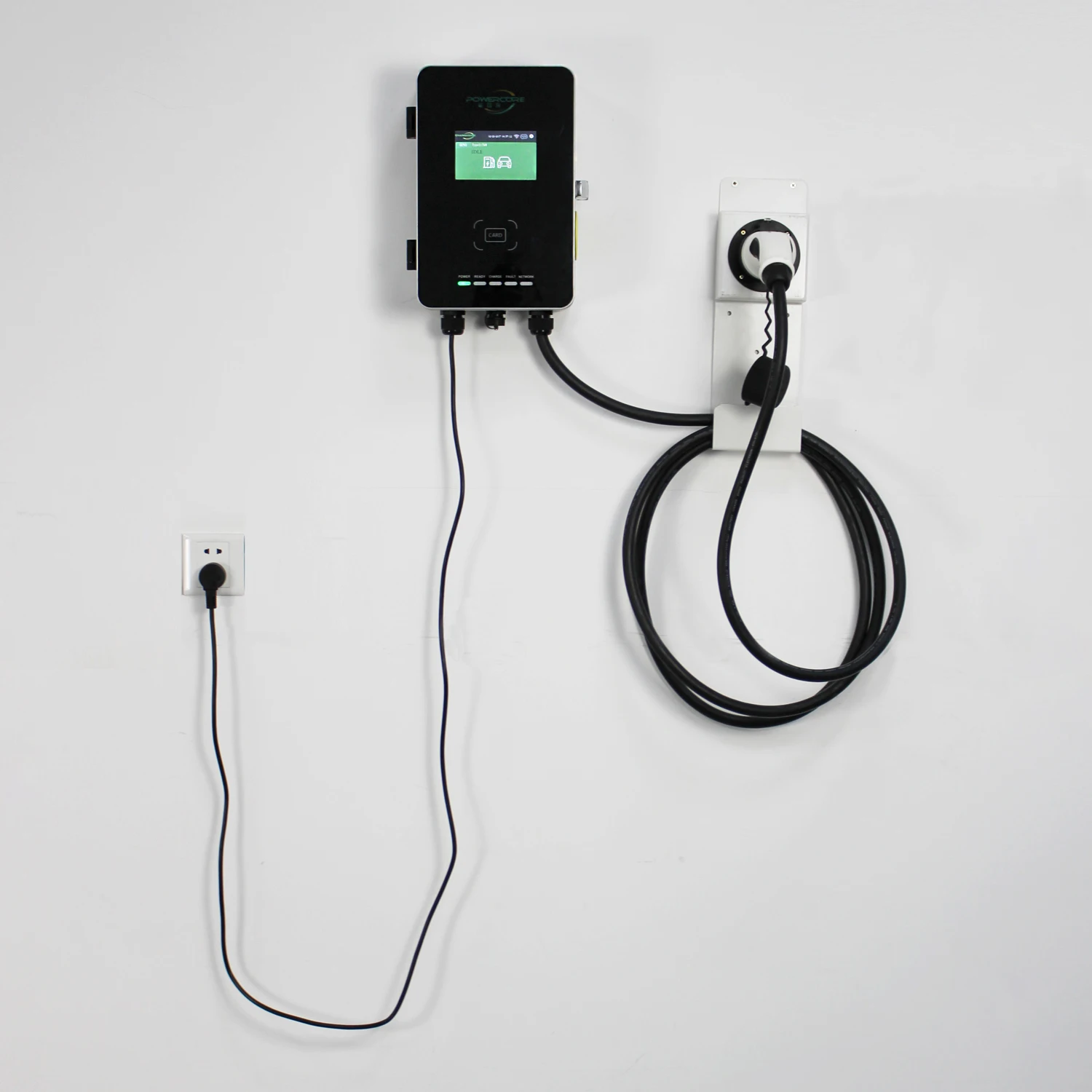

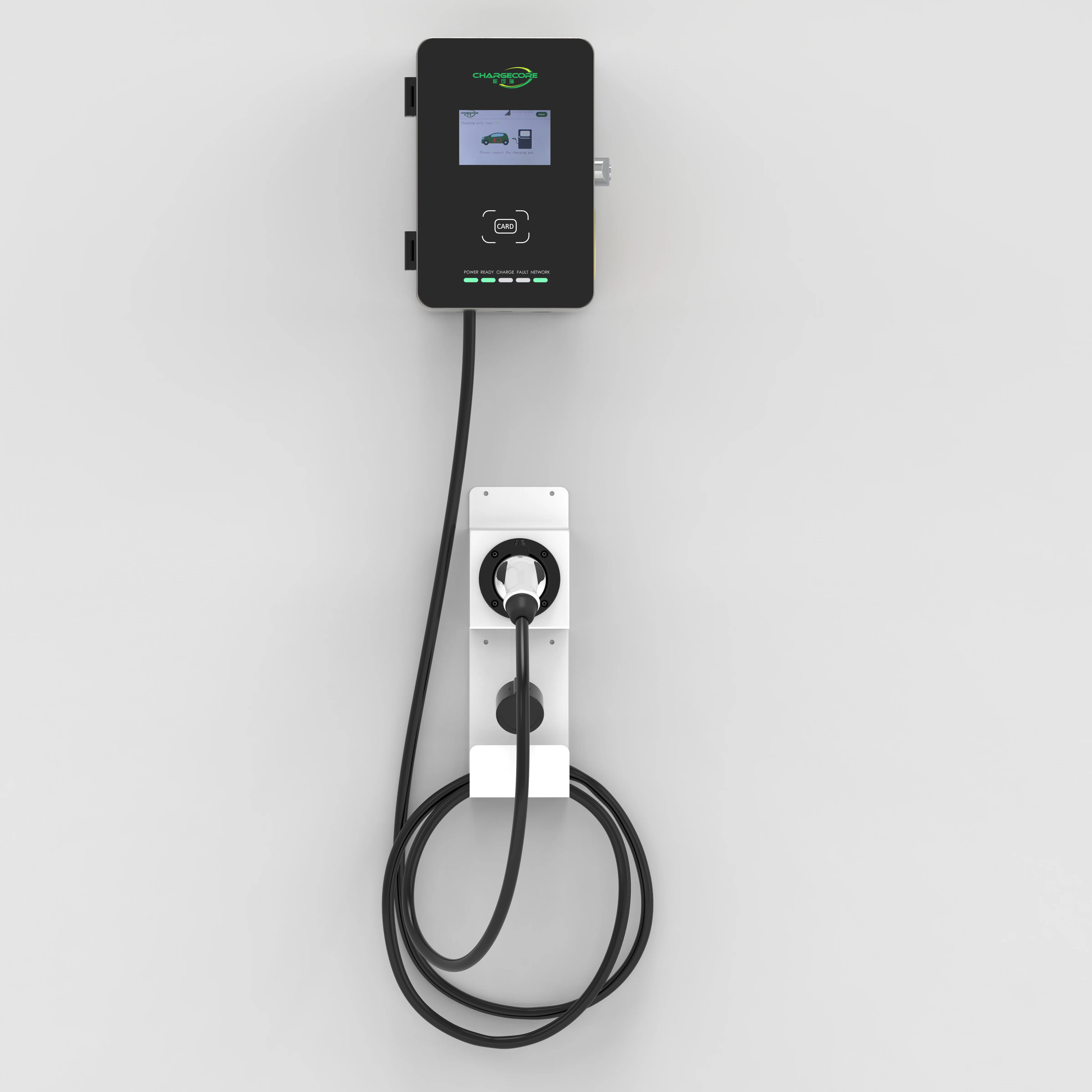

Manufacturer Car charger wall mounted ac charging station for home electric car charging
Product Description
Charging Point Management Cloud Platform
This cloud management platform mainly include station management, charging management and order management. It will be your good helper to manage/analysis your charging station no matter you install it as commercial or as free charger.
All of our chargers support OCPP1.6J now and acheive all the function include the charging profile which is the most
difficulut part. OCPP2.0 is in developing.
All of our chargers support OCPP1.6J now and acheive all the function include the charging profile which is the most
difficulut part. OCPP2.0 is in developing.
EVCC
PC-ECC12 EVCC satisfies the communication protocols of European standard
DIN 70121 and American standard IEC/ISO-15118, which can be widely used for
intelligent charging communication between electric vehicles and EVSE. The SECC
developed and produced by our company can easily realize European standard and
American standard DC charging
DIN 70121 and American standard IEC/ISO-15118, which can be widely used for
intelligent charging communication between electric vehicles and EVSE. The SECC
developed and produced by our company can easily realize European standard and
American standard DC charging
Specification
Appearance | Wall Box Dimension | W25*T11*H31cm |
Weigth | 7kgs | |

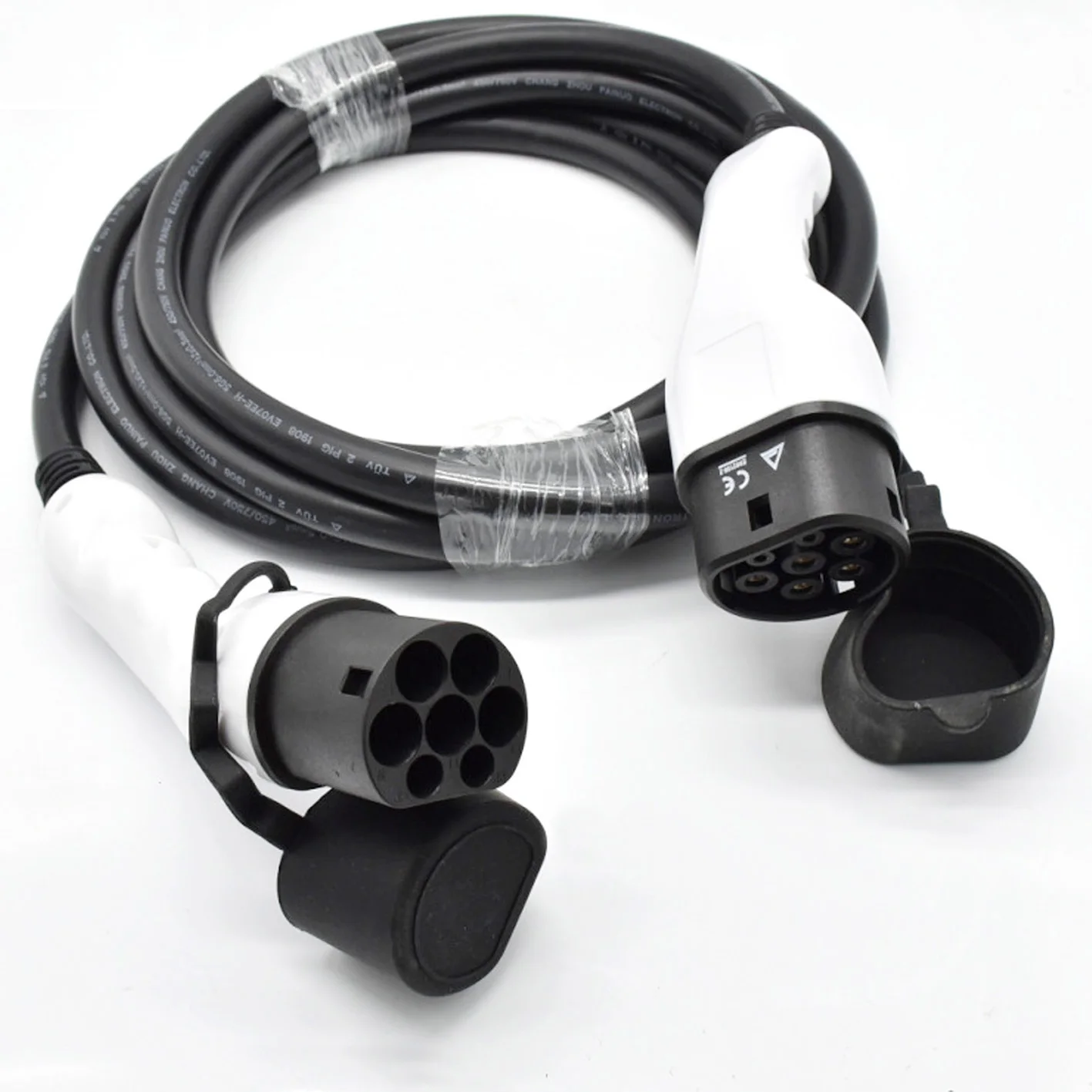

Cable length | 4meters | |
Box Material | Aluminum Alloy | |

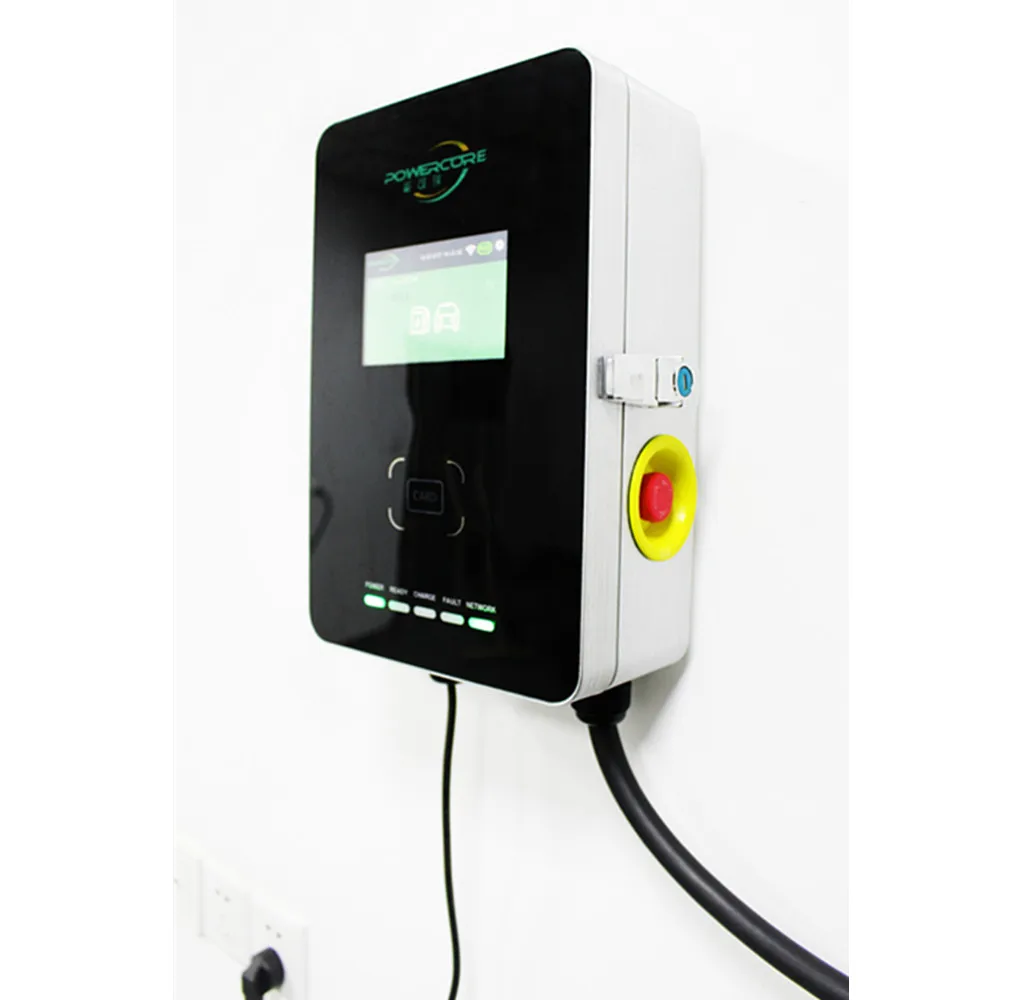

Screen | 5 inch LCD touch screen | |
Electrical Features | Input Voltage | Single phase 110~240Vac Three phase 260~530Vac |
Input frequency | 50Hz/60Hz | |
Rated power | 7/22/43kw | |
Precision | Level 1 | |
Max Output Current | 7kw-single phase 32A 22kw-three phase 32A 43kw-three phase 63A | |

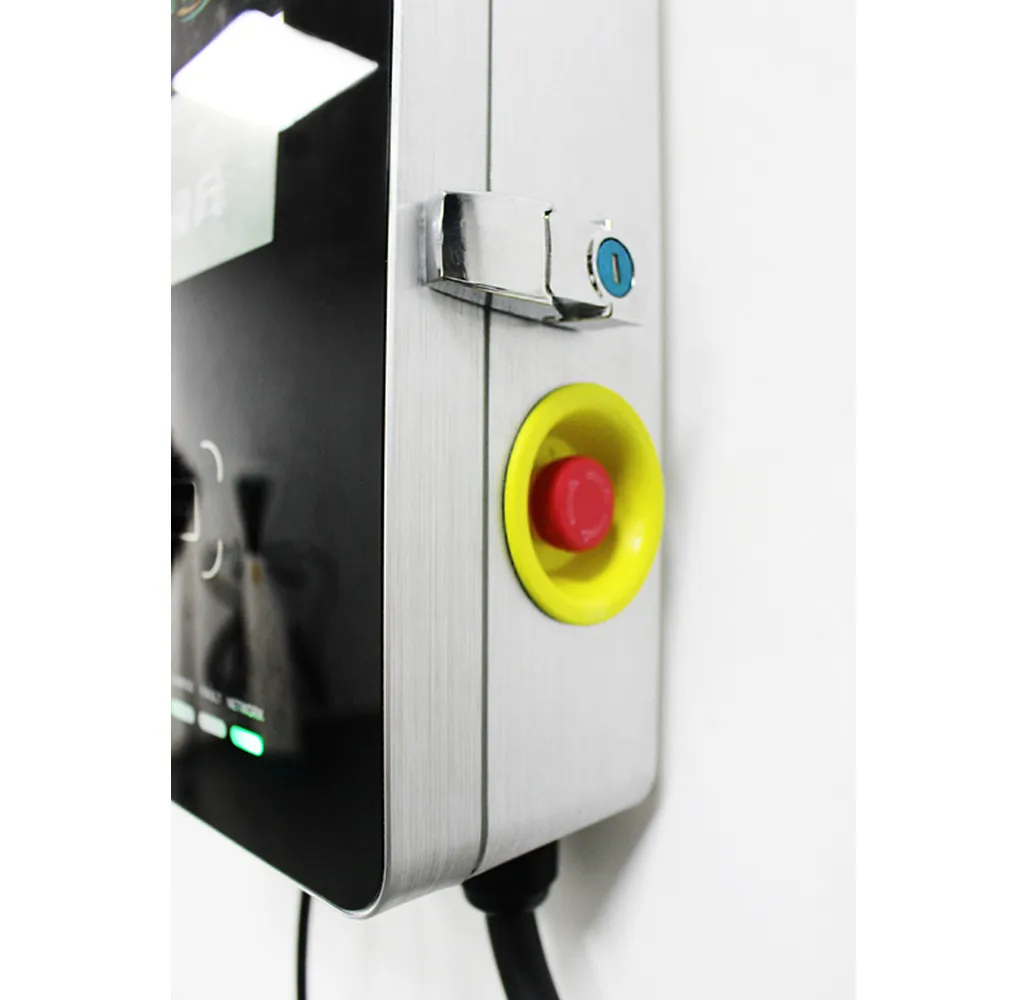

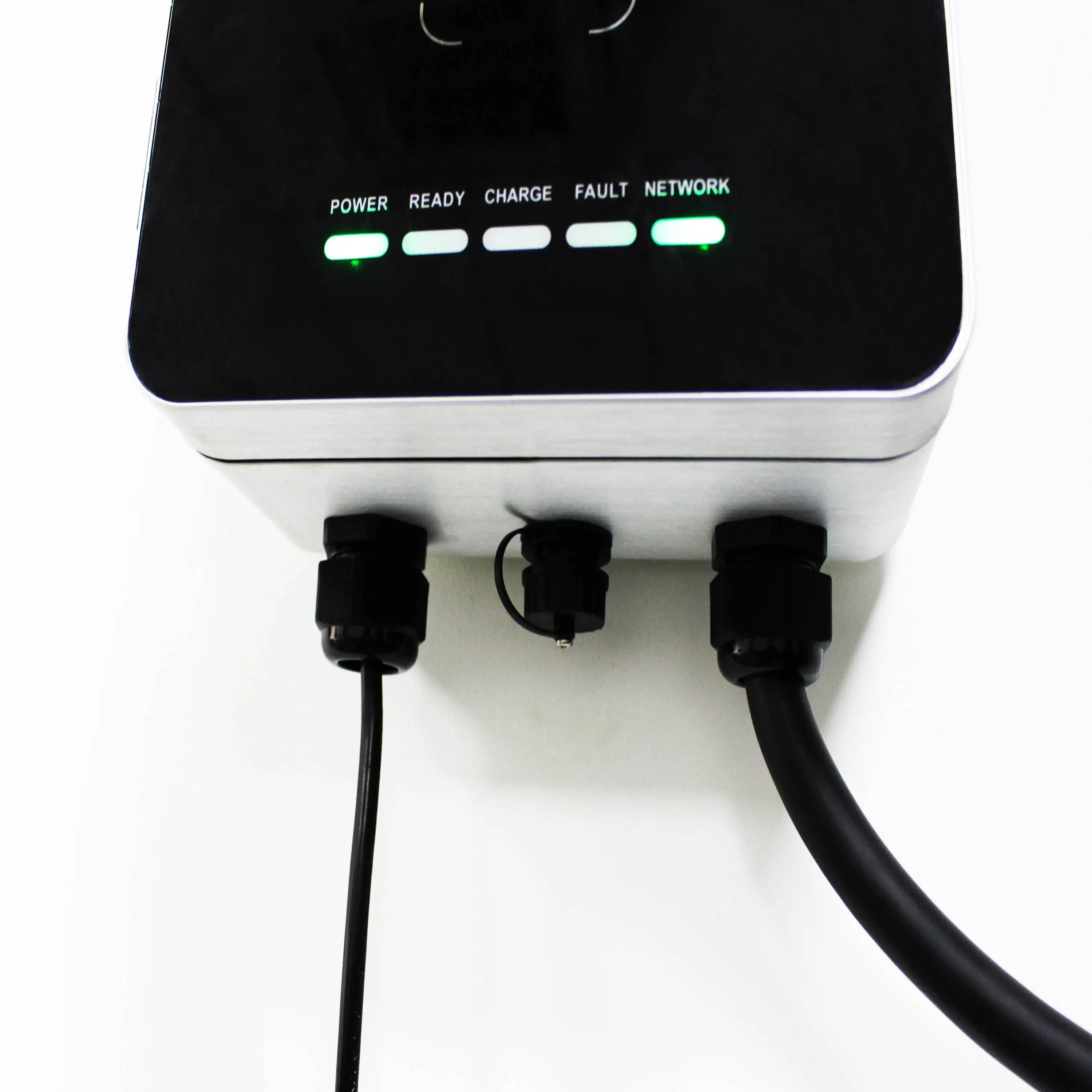

Functional Features | User Interface | Emergency Stop/LED indicator/RFID/APP |
Communication Interface | OCPP1.6, Ethernet, wifi/4g as option | |
Safety Features | Overvoltage/undervoltage protection, overload protection, leakage protection, over current protection, ground protection | |
Working environment | Working latitude | <2000m |
Working temperature | -30° C～+55° C | |
Working humidity | 5 %~ 95% | |
Protection level | IP54 | |
Cooling | Natural cooling | |
MTBF | 100,000 Hours | |
Safety standards | IEC61851-1/2017 | |
Special protection | Anti-UV protection | |
Cooling | Natural cooling | |
MTBF | 100,000 Hours | |
Safety standards | IEC61851-1/2017 | |
Special protection | Anti-UV protection |
Packing & Delivery
Carton box for airplane.
Wooden case for ocean shipping
Sales and Service Network
Company Profile
NanJing POWERCORE Tech co., ltd. is an industry-leading high-tech company in charge technology and service of electric vehicles,
committed to providing customers with stable and reliable products and solutions.We focused on charging standards. Since 2015, We
has developed overseas full-standard charging agreements and owned a number of patented technologies.Our Products series include:
OCPP central management system, OCPP controller for EVSE, 7 ~ 43 kw AC charging controller, DC charging controller, IEC/ISO15118\\
DIN70121 EVCC and SECC. Japanese standard CHAdeMO communication controller for EV and EVSE,etc. Our core products have been get
TUV rheinland and TUV SUD related certification
committed to providing customers with stable and reliable products and solutions.We focused on charging standards. Since 2015, We
has developed overseas full-standard charging agreements and owned a number of patented technologies.Our Products series include:
OCPP central management system, OCPP controller for EVSE, 7 ~ 43 kw AC charging controller, DC charging controller, IEC/ISO15118\\
DIN70121 EVCC and SECC. Japanese standard CHAdeMO communication controller for EV and EVSE,etc. Our core products have been get
TUV rheinland and TUV SUD related certification
.The company has a high-quality research and development team, bachelor's degree orabove accounts for 100%, master's degree or
above accounts for more than 50%.
above accounts for more than 50%.
We have rich experience in power electronics technology (device, topology, control, structure, ther-mal), communication software and hardware system development, the central managementsystem and big data development.Our core products have formed orders and contracts witha number of large energy companies, and formed strategic cooperation with a number of automobile manufacturers.We are committed to become the most cost-effective overseasmulti-protocol integration of new energy vehicle intelligent charging system solution provider.
After-Sale Service
Best Service
-Two Year Wanrranty
We provide two years wanrranty for whole parts. A new-repleaced part will be sent if any quanlity problem happen.
-OEM/ODM
We have ability to OEM and ODM your Logo/Menu/Color.
-One to One Technology Support
User Manual will be delivered and we also provide one to one online technology support for your installation and operation.
We provide two years wanrranty for whole parts. A new-repleaced part will be sent if any quanlity problem happen.
-OEM/ODM
We have ability to OEM and ODM your Logo/Menu/Color.
-One to One Technology Support
User Manual will be delivered and we also provide one to one online technology support for your installation and operation.
Похожие товары

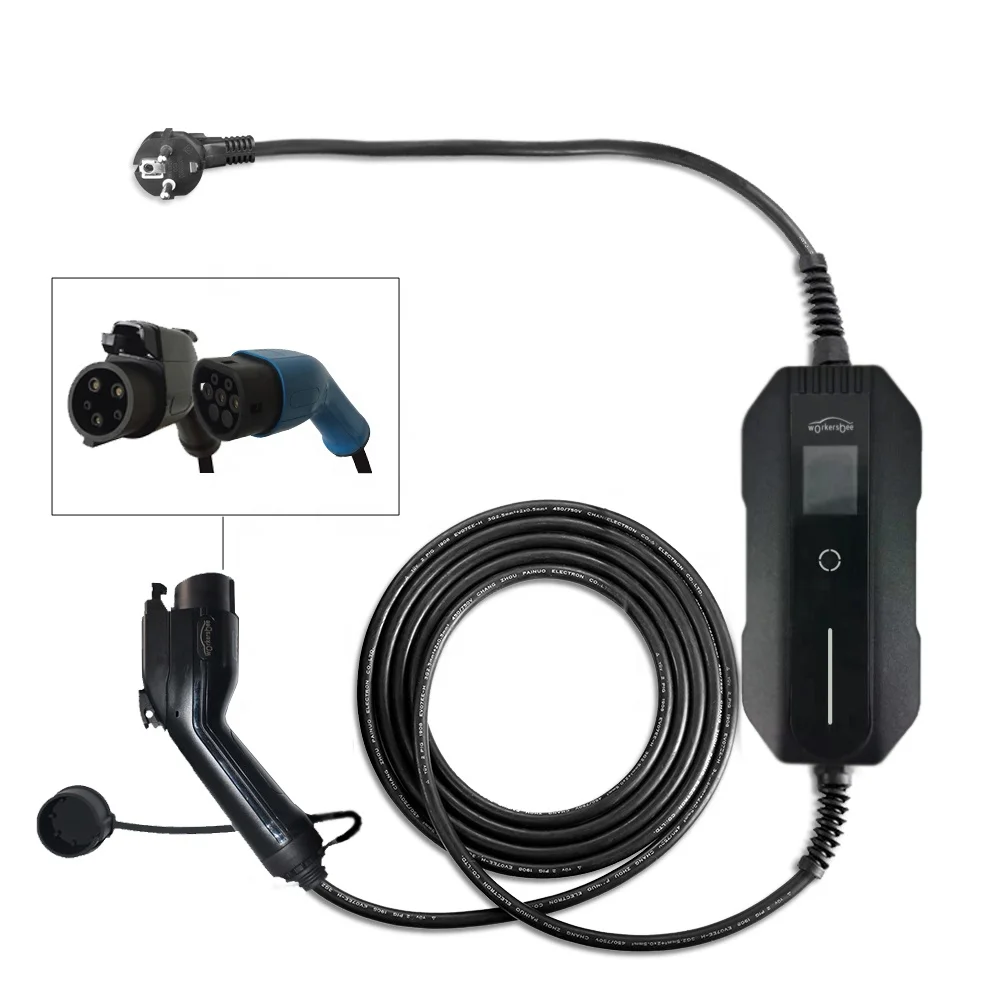

10A 16A 20A 24A 32A Регулируемый Ампер однофазный SAEJ1772 тип 1 новой энергии автомобиля портативная модель 2 зарядное устройство 32A тип 1 разъем
