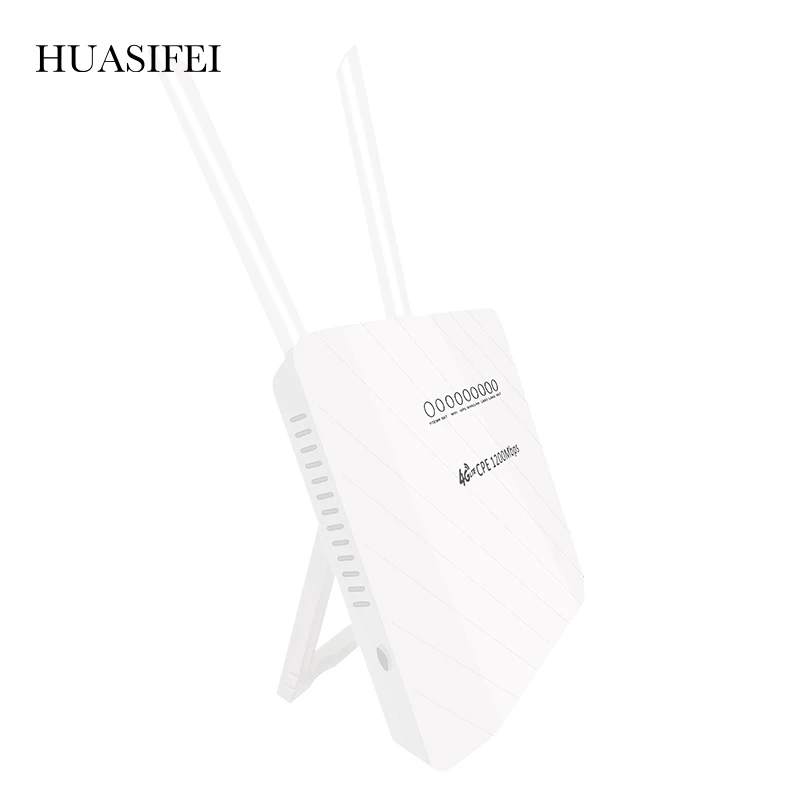

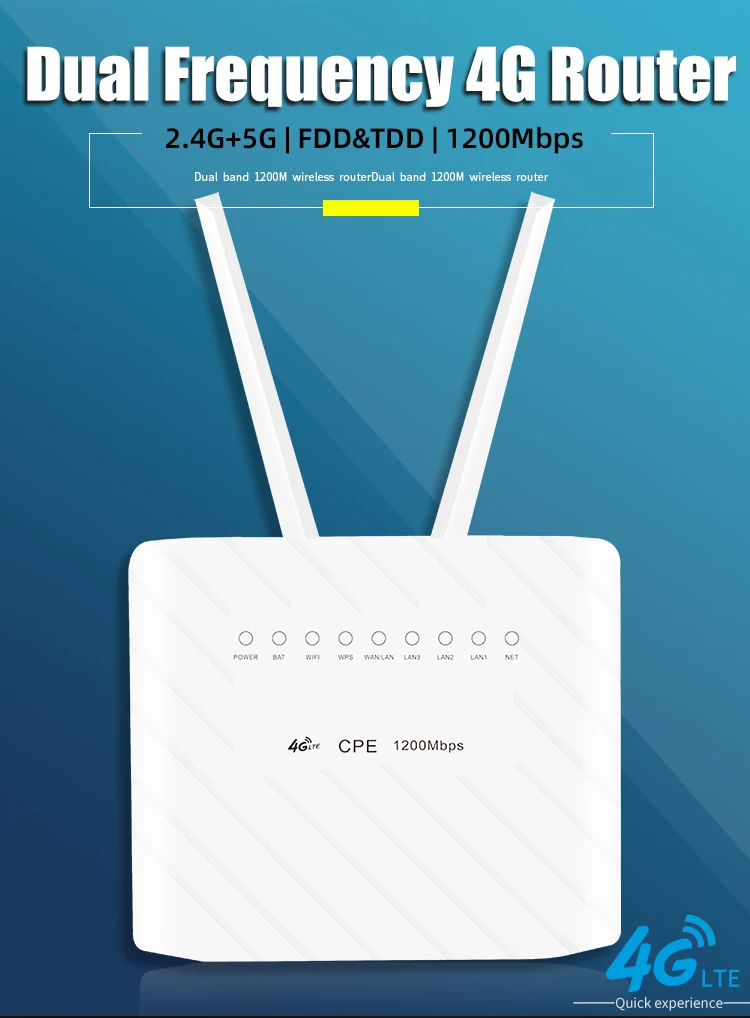

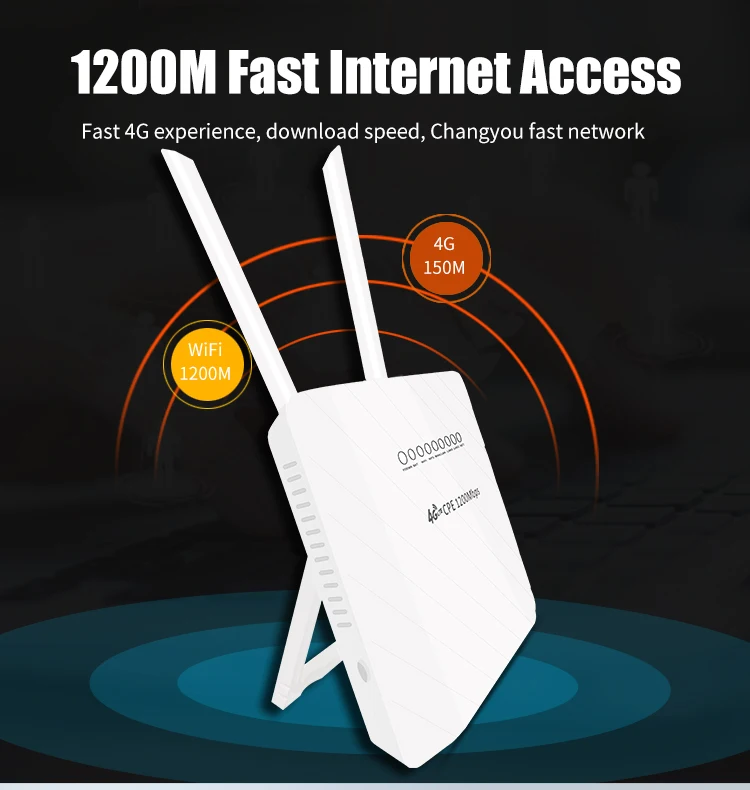

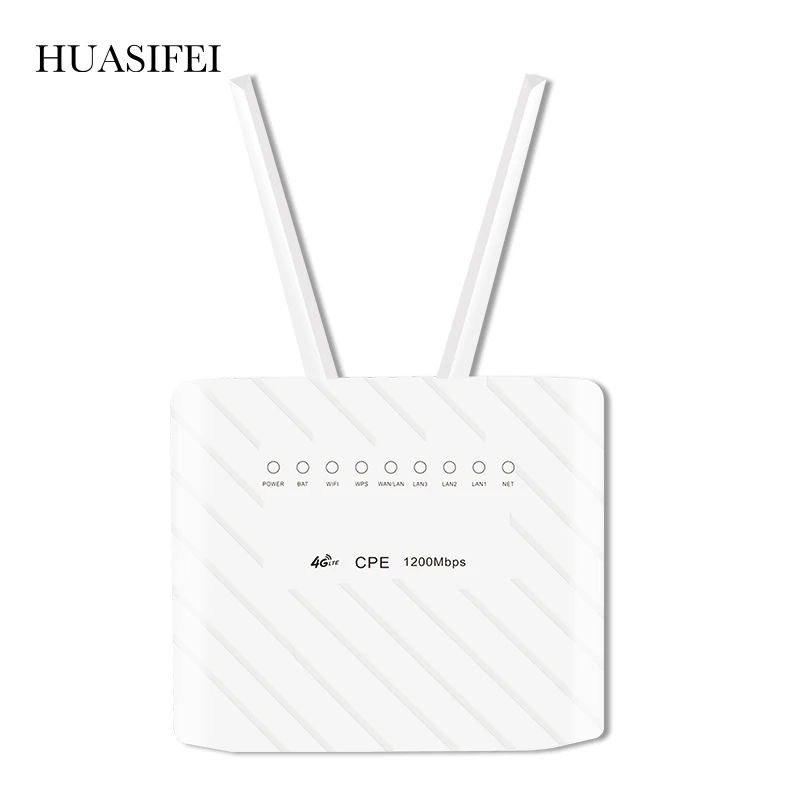

HUASIFEI разблокированный беспроводной маршрутизатор LTE Cat6 CA CPE 4G слот для Sim карты скорость 1300 Мбит/с 100 пользователей Wi Fi
- Категория: Маршрутизаторы >>>
- Поставщик: Shenzhen Huasifei Technology Co. Ltd.
Сохранить в закладки 1600202493961:
Описание и отзывы
Характеристики
Product Description
11AC 4G CAT6 High Power Enterprice Industrial CPE Router
| Platform | MTK7628A +MT7612E | ||
| SA Time | Oct.2018 | ||
| Band/Mode | TDD-LTE: B38/40/41 FDD-LTE: B1/3/5/7/8/20 WCDMA:B1/B5/B8 | The frequency will reflect the cost. If you have some special request on this, please mark, we will quote accordingly. | |
| Data service 2×CA | B1+B1/B5/B8/ B3+B3/B5/B7/ B8/B20; B7+B5/B7/B8/ B38+B38; B40+B40; B41+B41 | ||
Mobile data speed | LTE-FDD(CAT6): Max 300Mbps (DL)/Max 50Mbps (UL) LTE-TDD(CAT6): Max 226Mbps (DL)/Max 28Mbps (UL) | UMTS: DC-HSDPA: Max 42Mbps HSUPA: Max 5.76Mbps WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL) | |
| Type | Industrial 11AC Router | ||

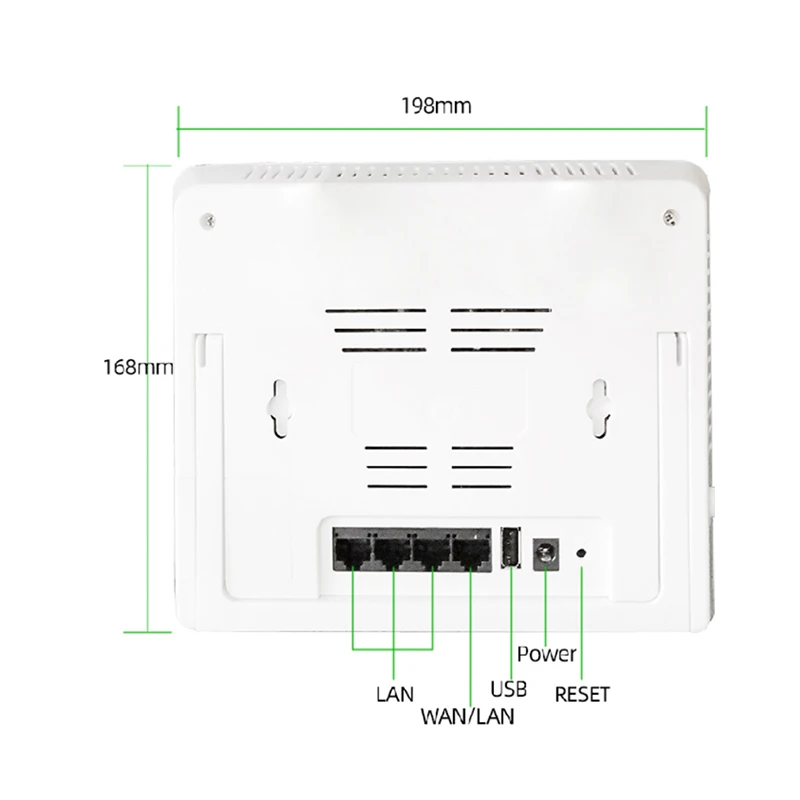

| Size(mm) | 200*170*35Cmm | ||
| Weight(g) | 520G | ||
| System memory | 128MB DDR2,16MB SPI | ||
| WiFi Coverage | Wireless coverage to mobile phone up to 150 Meters | ||
| Selling Points | OpenWRT System customized supported | ||
| Support TR069 | TBD | ||
| 12V 1.5A | |||
| Support Advertising,Cloud Service | TBD | ||

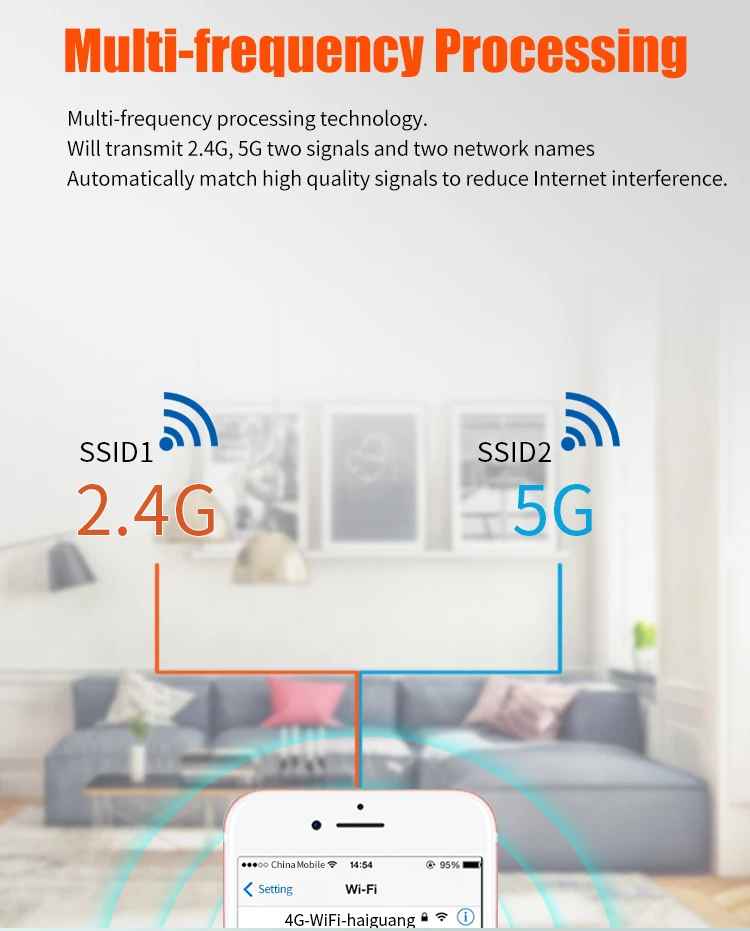

| 2.4G+5.8G frequency | |||

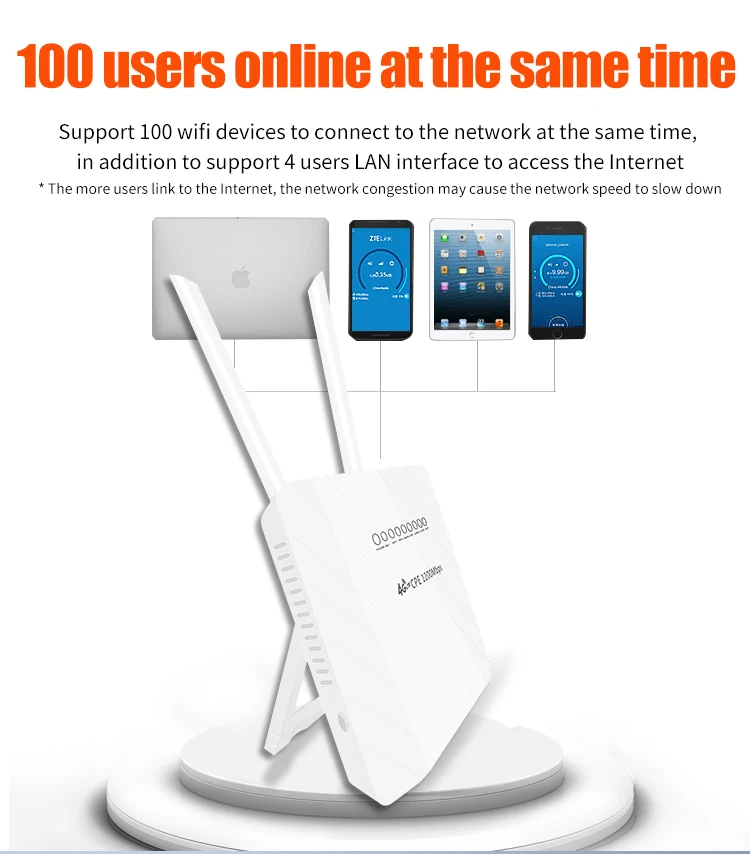

| Supports up to 100 users | 100users by wireless | ||
| Supports frequency customized | TBD | ||
| Support WAN/WLAN Port | |||
| Memory | |||
| * System memory | 128MB DDR2,16MB SPI | ||
| * External memory | USB Stick up to 32GB | ||

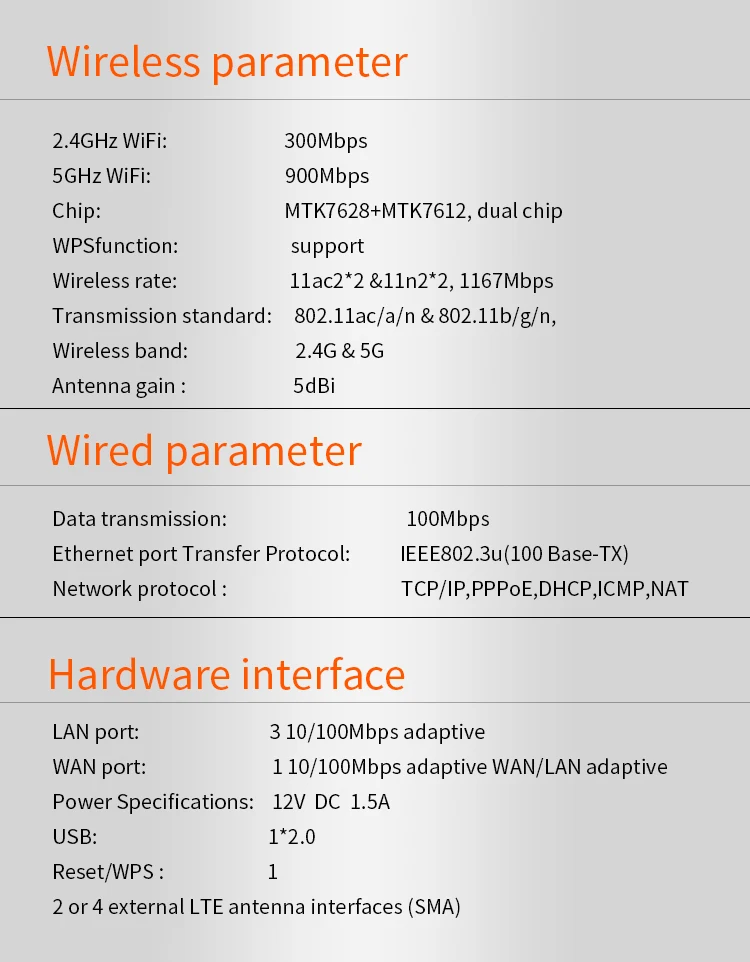

| WIFI | |||
| * Frequency Band | 2.4GHz+5.8G | 5.8G is optional | |

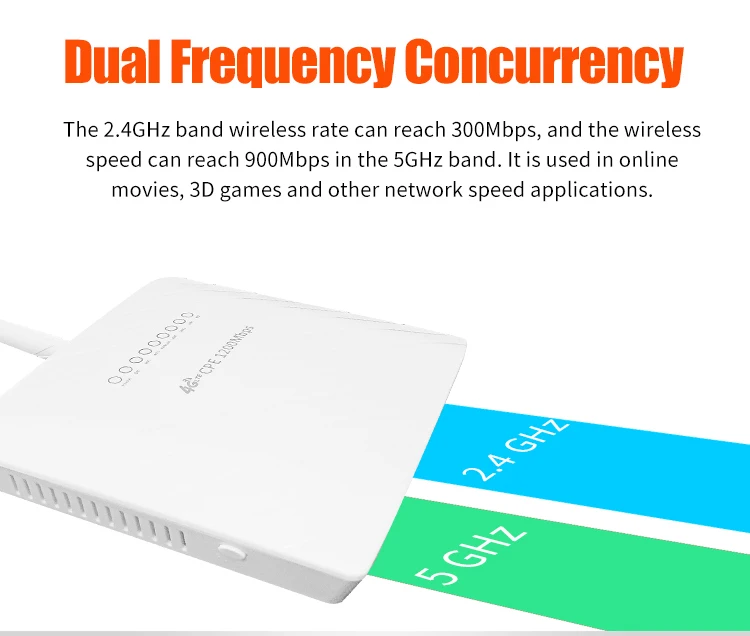

| * 802.11a/b/g/n/ac | 5G MT7612 up to 866.7Mbps PHY Rate | 2.4 G:2T2R(300Mbps );5.8G:866.7Mbps PHY Rate | |
| * AP Features | Security modes | Open WPA-PSK WPA2-PSK WPA-WPA2 Hybrid mode (Mixed Mode) | |
| Concurrency (FC quality for LE1.0) | AP Independent security modes (Open,, WPA, WPA2, WAPI) for concurrency modes Channel of operation - same channel | ||
| Other | QoS and PS WMM WMM-PS/uAPSD ERP protection Coexistence LTE coexistence (static channel selection) Data Switching/Forwarding Switching of packets amongst clients Support for forwarding data to and from WAN DNS | ||
| Interface | |||

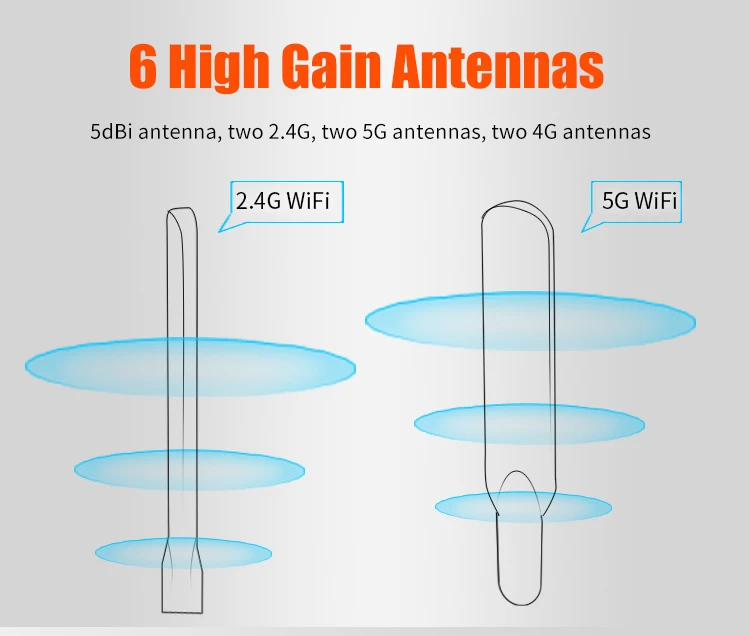

| * Antenna | 4G/3G/2G Main antenna 4G MIMO/3G Rx Diversity antenna WiFi antenna | External | |
| * USB | USB 3.0 | USB 3.0 High Speed | |

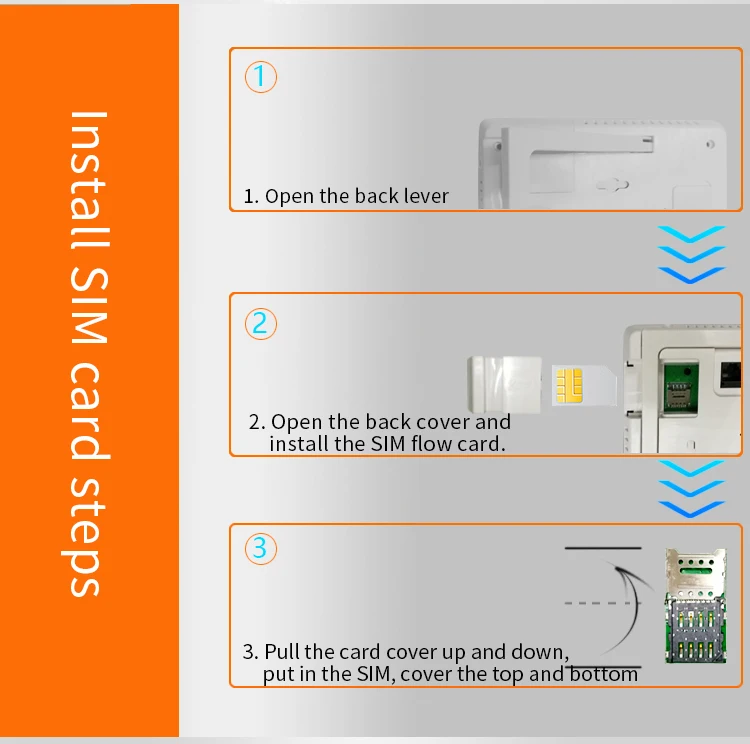

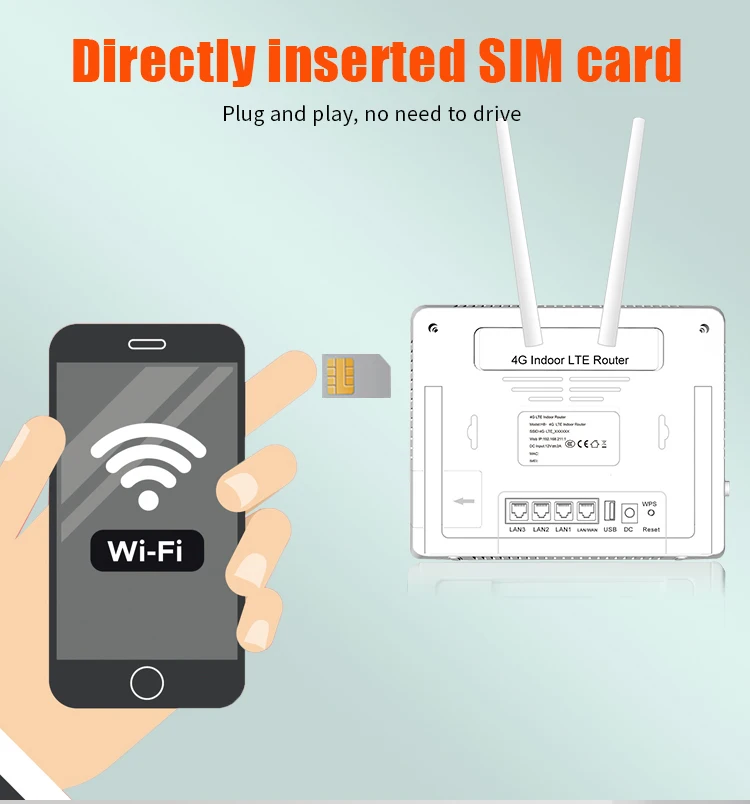

| * SIM/USIM Card slot | Yes | Standard 6 PIN SIM card interface, compliant with 3GPP 31.101 and 31.102 | |
| * Micro-SD Card slot | Yes | ||

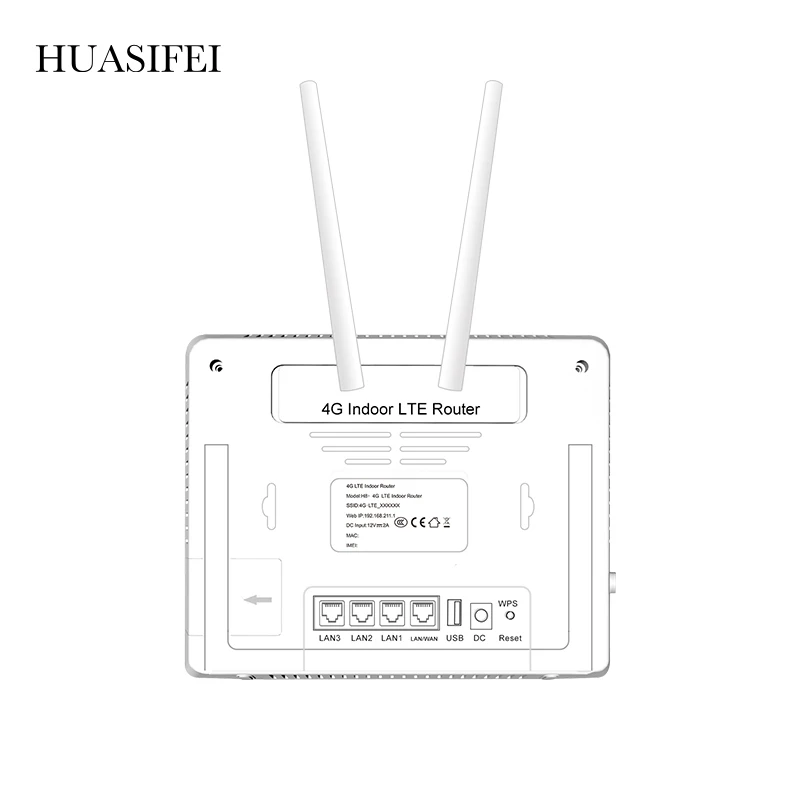

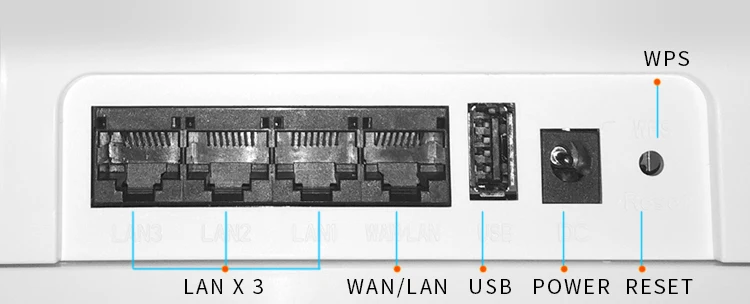

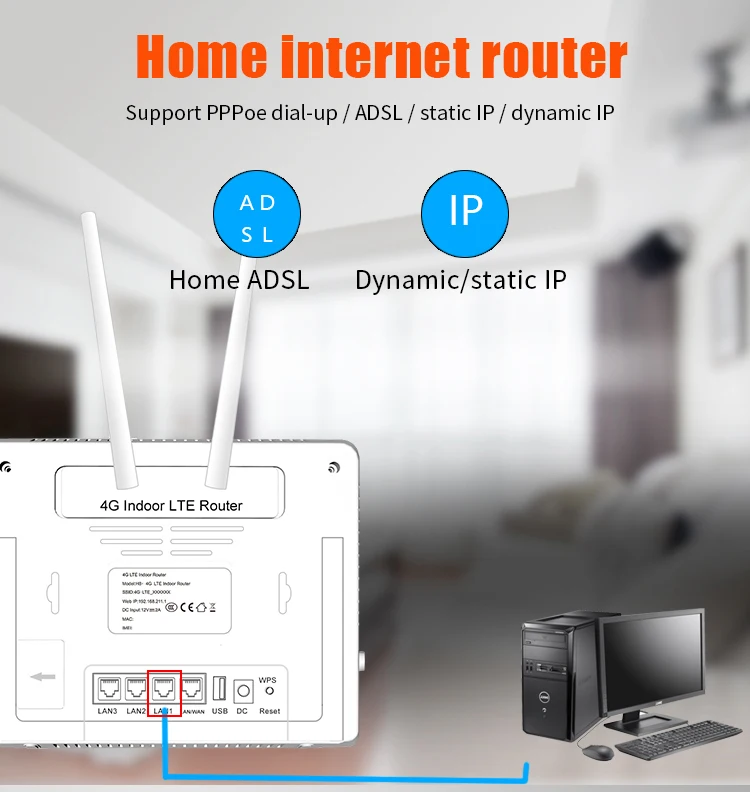

| * RJ45 Port | 1WAN; 3 LAN | ||
| * L*H*W (mm) | |||
| *Weight(g) | 520G | ||
| Button | |||
| * Power | Yes | ||
| * Reset | Yes | ||
| Other Description | Item | Remark/Supplier | |
| Electrical performance spec | |||
| * RF Power Spec | Class 4 for UMTS/HSPA/LTE; Class 4 for GSM 850/900; Class 1 for GSM 1800/1900; Class E2 for EDGE 850/900/1800/1900 | ||

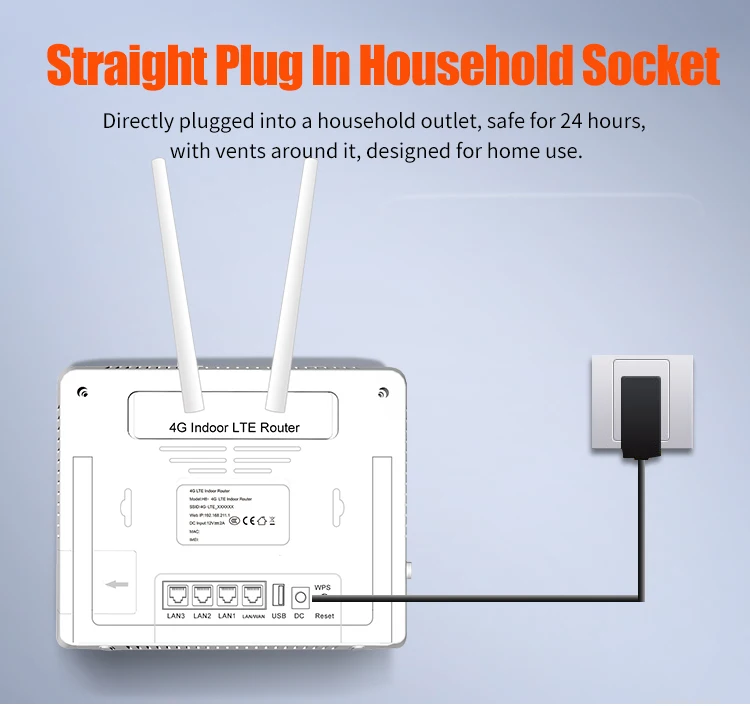

| * Power supply input | Yes;12V, 1.5A | ||
| * Power supply output | Yes | ||
| Environmental reliability test condition | |||
| * Normal Operation | -10°C to +55°C | ||
| * Restricted Operation | -20°C to +55°C | ||
| * Storage | -20°C to +70°C | ||
| Compliance | |||
| * ROHS | YES, EU RoHS | ||
| * JATE | Yes | ||
| * TELEC | Yes | ||
| * PSE | YES | ||
| * others | depend on customer required | ||
Details Images
Company Information2
HUASIFEI is a manufacturer professional in R&D and producing network equipments, products are included Access Point, openWRT wifi router, Vehicle router, outdoor CPE, 3G/4G/5G wifi router. HUASIFEI also is a wifi coverage sloutions provider, provides the solution for hotel, school,hospital,enterprise,vehicle field etc. with 50 people R&D team and around 700 people in factory, 20,000 Square meters production scale, is very skilled at processing OEM/ODM design, also builds the long term cooperation with Mediatek, Broadcom,Qualcomm, capably offering good quality product and fast after-sale service.Till now, HUASIFEI's products have exported to over 30 countries and regions.
Packaging & Shipping
FAQ
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q7. What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
Q8. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
Похожие товары
SmileMBB 4g Wifi Router With Sim Card Slot 4g Router wifi 4g
40,00 $
Промышленная разблокировка OpenWRT 300Mpbs RS232 RS485 WCDMA 3g 4g Lte Sim-роутер
69,84 $ - 75,48 $

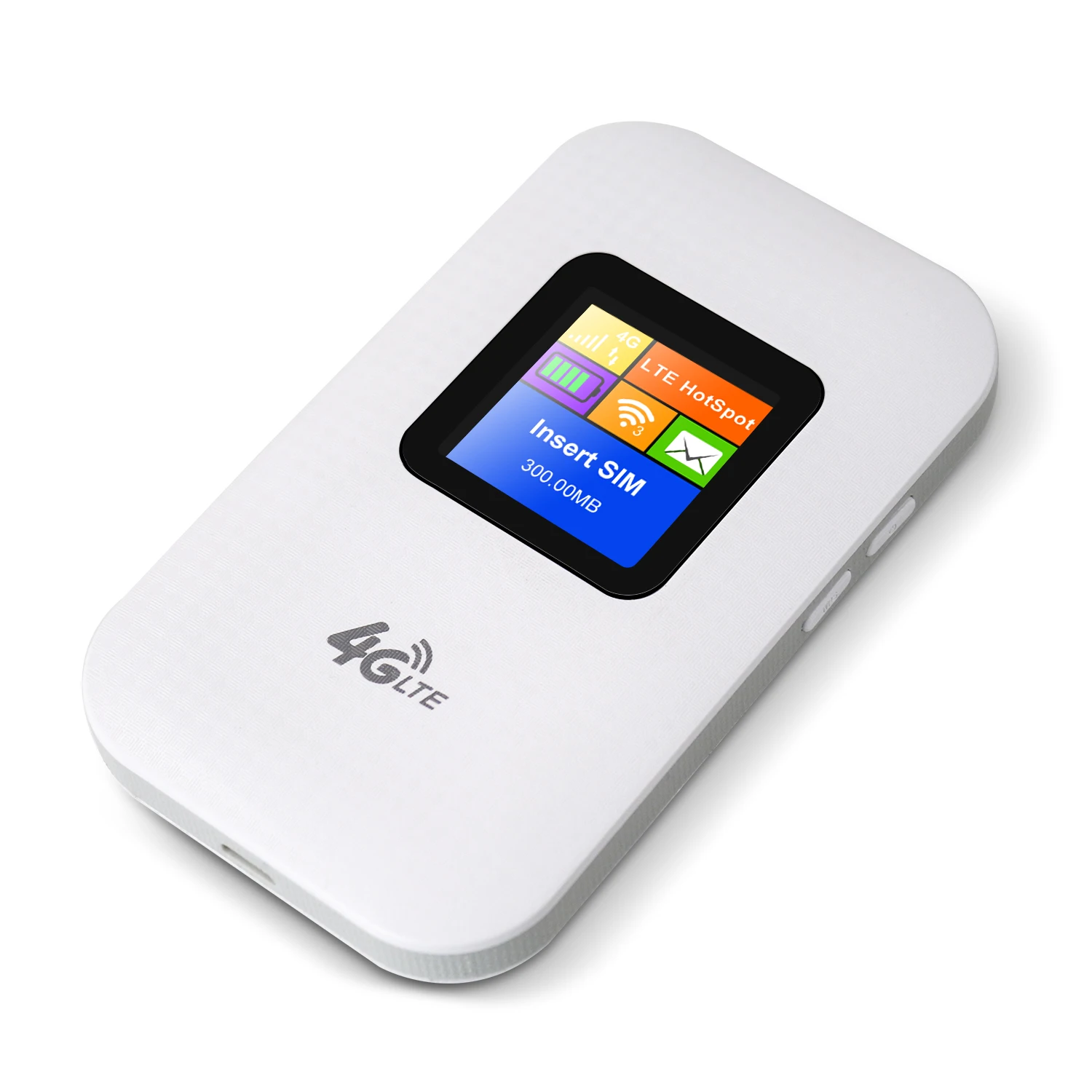

EDUP Wireless Pocket 4G LTE Hotspot Wifi Portable WLAN Modem Router 150Mbps MiFis in stock
