25 HP воздушное охлаждение упакованный Тип трансформаторного масла холодильник охладитель
- Категория: >>>
- Поставщик: Jinan Mgreenbelt Machinery Co. Ltd.
Сохранить в закладки 1600202831398:
Описание и отзывы
Характеристики

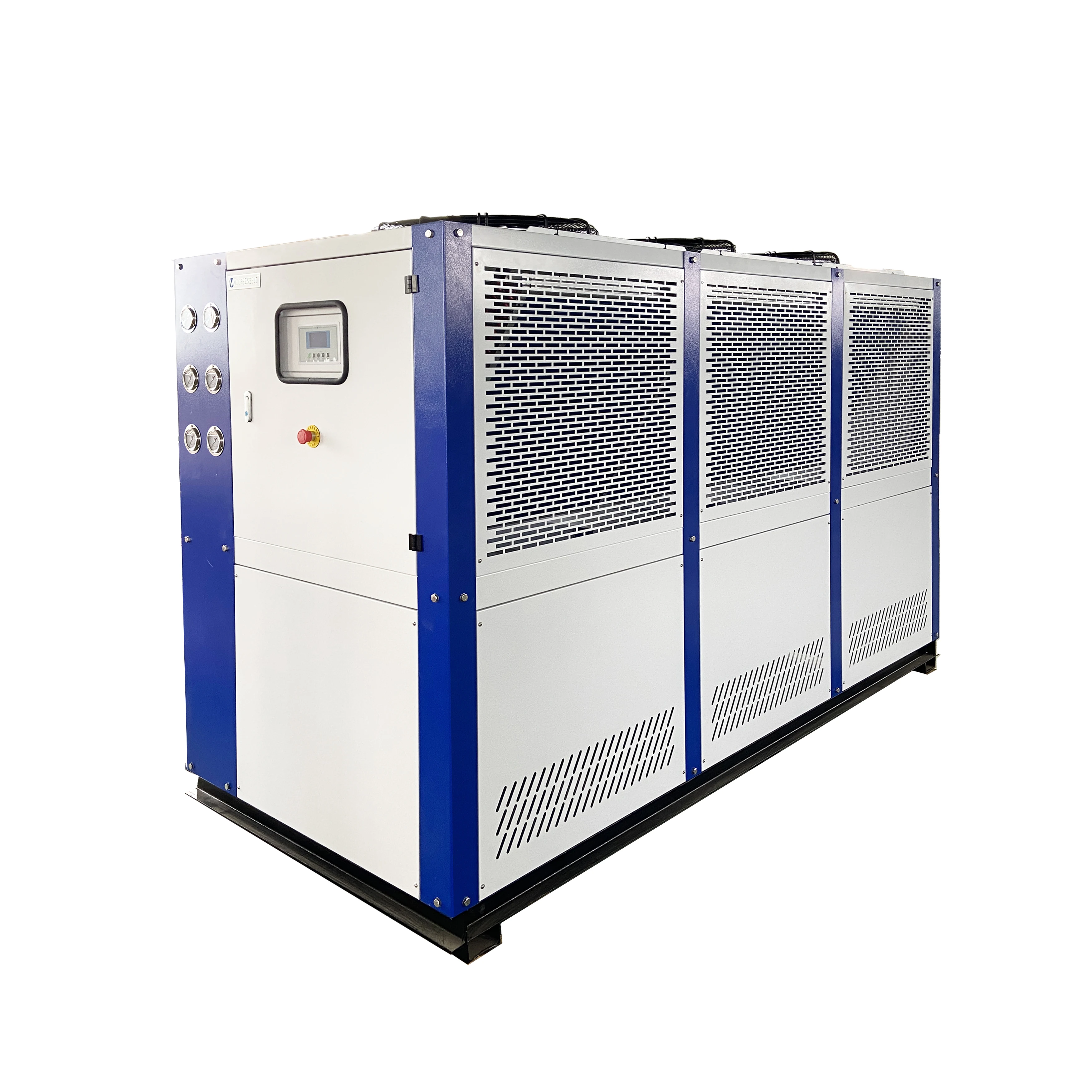

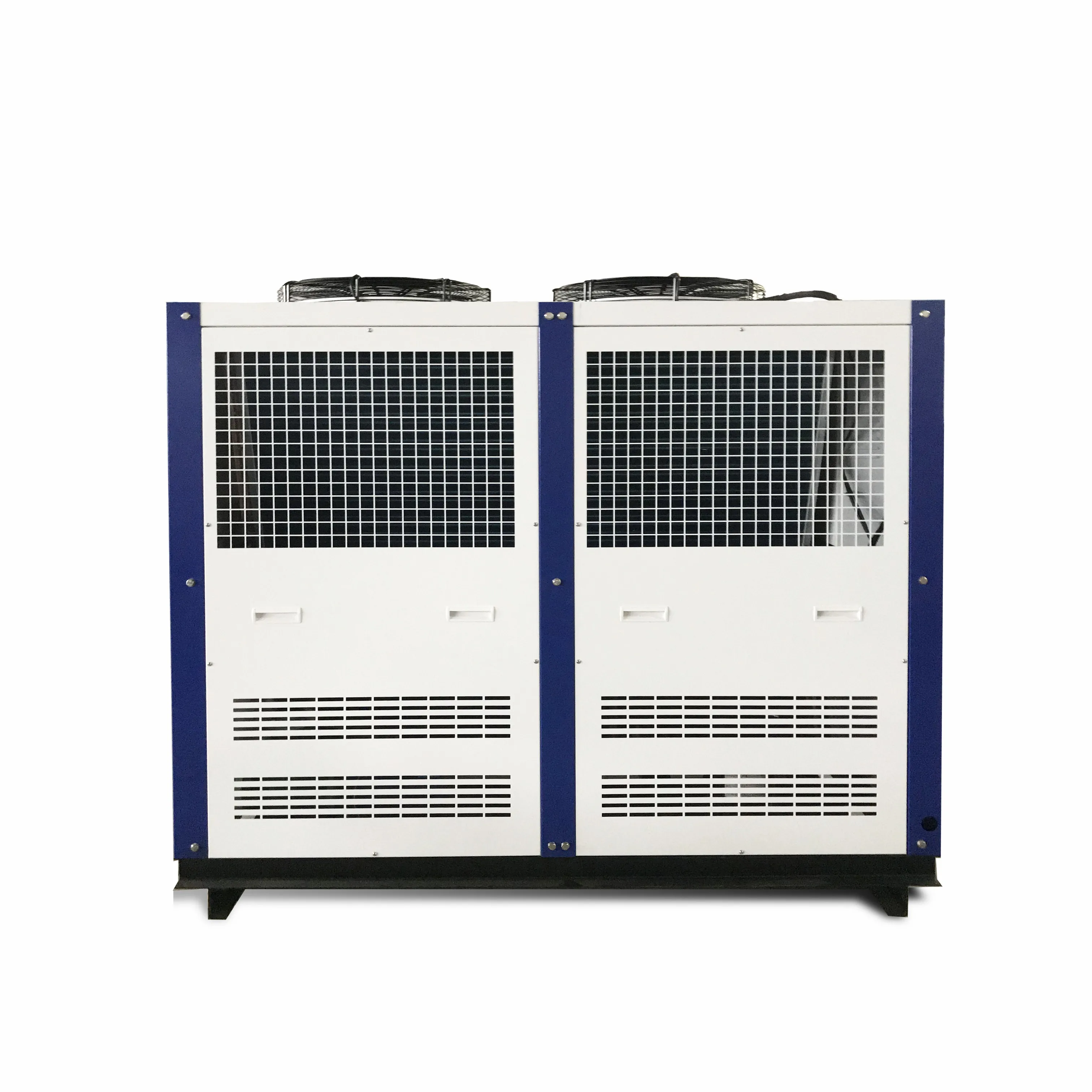

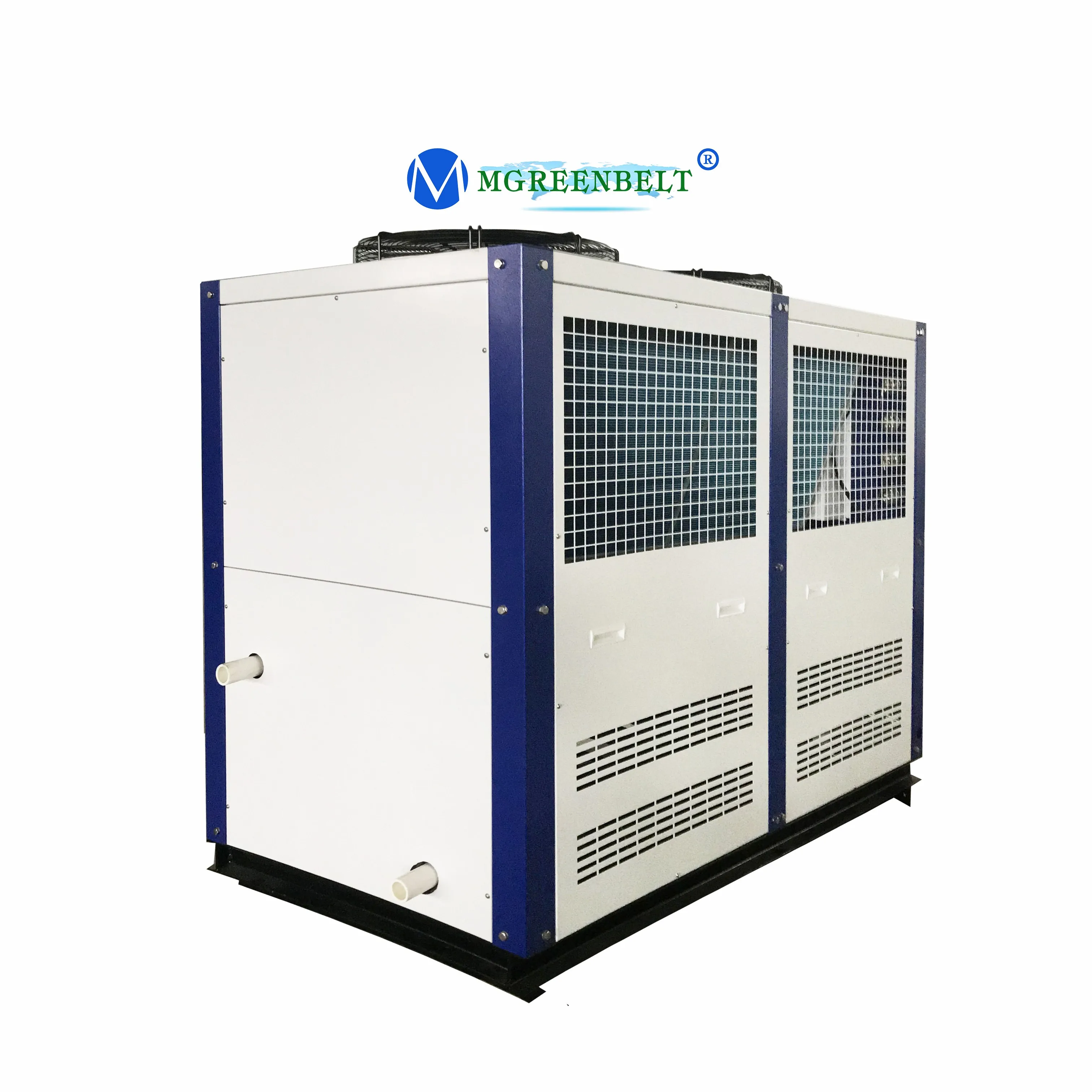

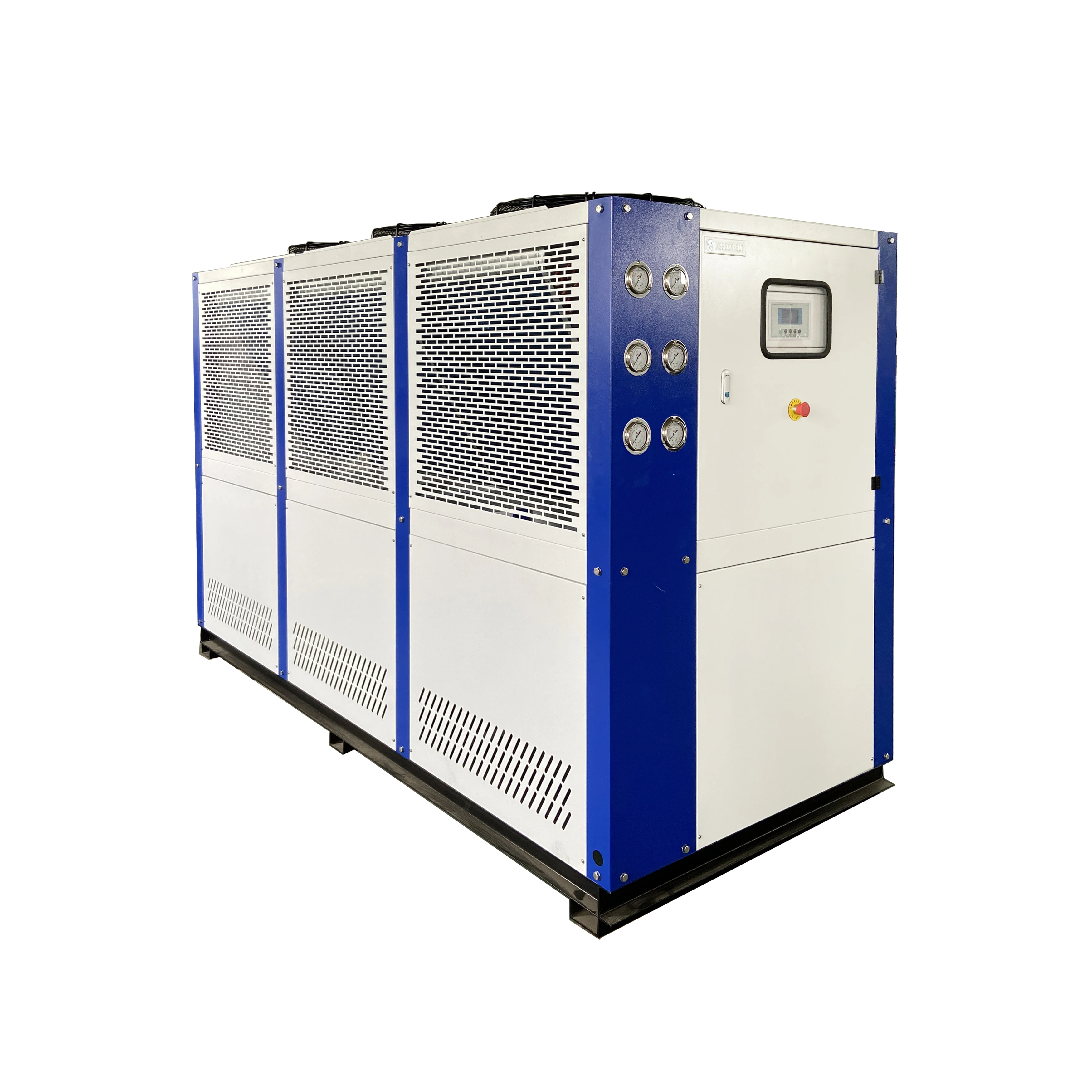

MGREENBELT Air Cooled Chiller Description
1). Brand and durable Scroll type compressor: Copeland, Danfoss, or Panasonic.
2).Three type evaporator support different working circuit.
A.Tank with coil, easy clearance
B. Shell and tube, high efficient
C. Brazed plate heat exchanger type( BPHE)
3). High efficient V type condenser: Screw copper tube covered aluminum fins
4). Expansion valve: Emerson
5) .Iron and stainless steel pump for different option
6). Buffer tank installed inside chiller optional
7). Inbuilt iron or stainless steel circulation water pump
8). Muti- protection devices: -Compressor inner protection,Over current protection,High/low pressure protection,Over temperature protection ,Flow switch,Phase sequence/phase missing protection,Low coolant level protection,Anti freezing protection ,Exhaust overheat protection
2).Three type evaporator support different working circuit.
A.Tank with coil, easy clearance
B. Shell and tube, high efficient
C. Brazed plate heat exchanger type( BPHE)
3). High efficient V type condenser: Screw copper tube covered aluminum fins
4). Expansion valve: Emerson
5) .Iron and stainless steel pump for different option
6). Buffer tank installed inside chiller optional
7). Inbuilt iron or stainless steel circulation water pump
8). Muti- protection devices: -Compressor inner protection,Over current protection,High/low pressure protection,Over temperature protection ,Flow switch,Phase sequence/phase missing protection,Low coolant level protection,Anti freezing protection ,Exhaust overheat protection
Air cooled scroll chiller | ||||||||||||||||
Model | MG-5C | MG-10C | MG-15CD | MG-20CD | MG-25CD | MG-30CT | MG-40CF | |||||||||
Cooling capacity | Kcal/h | 11266 | 24510 | 35948 | 47558 | 54352 | 71896 | 100104 | ||||||||
kw | 13.1 | 28.5 | 41.8 | 55.3 | 63.2 | 83.6 | 116.4 | |||||||||
power | kw | 5.61 | 10.83 | 16.31 | 21.27 | 24.35 | 32.33 | 41.66 | ||||||||
Power input | 3PH-380V-50HZ | |||||||||||||||
Type | R22/R407C | |||||||||||||||
Control | Thermostatic expansion valve | |||||||||||||||
Compressor | Type | Hermetic scroll type | ||||||||||||||
Power（kw） | 4.2 | 9.05 | 6*2 | 9.05*2 | 10.6*2 | 9.05*3 | 9.05*4 | |||||||||
Type | SS Tank with coil or Shell and tube | |||||||||||||||
Water flow m³/h | 2.25 | 4.89 | 7.17 | 9.48 | 10.83 | 14.33 | 19.95 | |||||||||
Capacity L | 70 | 200 | 270 | 350 | 350 | 450 | 580 | |||||||||
Inlet/Outlet | DN25 | DN32 | DN40 | DN40 | DN40 | DN65 | DN65 | |||||||||
Type | High efficiency hydrophilic aluminum foll finned type | |||||||||||||||
Power | 0.52 | 0.46*2 | 0.55*2 | 0.78*2 | 0.78*2 | 1.32*2 | 0.78*4 | |||||||||
Type | Centrigual water pump | |||||||||||||||
Power kw | 0.55 | 0.55 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | |||||||||
Lift m | 25 | 20 | 20 | 20 | 20 | 21 | 20 | |||||||||
Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||||||||||||||||
Dimension | L mm | 1220 | 1610 | 1870 | 2120 | 2120 | 2700 | 2300 | ||||||||
W mm | 690 | 820 | 900 | 1000 | 1000 | 1120 | 1860 | |||||||||
H mm | 1200 | 1500 | 1600 | 1720 | 1720 | 1800 | 1800 | |||||||||
Wight | kg | 200 | 450 | 750 | 850 | 900 | 1150 | 1350 | ||||||||
Water Chiller Specification Details
Compressor\tPANASONIC
Evaporator\tMGREENBELT
Condenser\tMGREENBELT
Thermal expansion valve\tEMERSON/DANFOSS
Temperature Controller\tPUNP
Drier Filter\tDANFOSS/EMERSON
Electric Components\tSCHNEIDER/LS
Evaporator\tMGREENBELT
Condenser\tMGREENBELT
Thermal expansion valve\tEMERSON/DANFOSS
Temperature Controller\tPUNP
Drier Filter\tDANFOSS/EMERSON
Electric Components\tSCHNEIDER/LS
Advantage of industrial water chiller
(1). Electric box design with water leakage protection, chiller could be placed outside without roof.
(2) Design working condition ambient temperature from -20C degree to +50C degree.
(3). Working condition: good air circulation place to discharge the heat.
(4). Remote and local control available.
(5). Power off - Auto strart up turn on function supported.
(6). Inlet and outlet pipe stainless steel;
(2) Design working condition ambient temperature from -20C degree to +50C degree.
(3). Working condition: good air circulation place to discharge the heat.
(4). Remote and local control available.
(5). Power off - Auto strart up turn on function supported.
(6). Inlet and outlet pipe stainless steel;
Packing&Shipping
We consider all different potential situation in the delivery, so we use every prevention measures to avoid any
potential inconvenience or trouble.
1.Bulk cargo: Standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the surface of our products.
2. Container cargo: the equipment will be bound firmly and won't easily swing to the side, or up, or down.
Shipping: Deliver from Qingdao port within 15-35 days after the payment
potential inconvenience or trouble.
1.Bulk cargo: Standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the surface of our products.
2. Container cargo: the equipment will be bound firmly and won't easily swing to the side, or up, or down.
Shipping: Deliver from Qingdao port within 15-35 days after the payment
company profile
RFQ
Q:How to choose a right chiller model?
A:Please make sure the details as follow:
1.What's the flow rate need?
2.Inlet and outlet temperature need ?
Then we will calculate what's hte cooling capacity you need.
Q: How to quote a accurate solution for you?
A: After make sure the cooling capacity,please inform us:1.What's the power supply need? Phase/Voltage/Frequency.
2.What's the refrigerant need? R22/R407C/R410A/R134A and etc.
If this water chiller not suitable for your working need, we have different chiller series, please choose it as follows.
1. Air Cooled Scroll Chiller : cooling capacity range from 1 ton to 35 tons;
2. Water Cooled Scroll Chiller : cooling capacity range from 1 ton to 40 tons;
3. Air Cooled Screw Chiller : cooling capacity range from 20 tons to 150 tons;
4. Water Cooled Screw Chiller :cooling capacity range from 25 ton to 400 tons;
Temperature range: -25 deg C~+35 deg C based on different industry working need.
A:Please make sure the details as follow:
1.What's the flow rate need?
2.Inlet and outlet temperature need ?
Then we will calculate what's hte cooling capacity you need.
Q: How to quote a accurate solution for you?
A: After make sure the cooling capacity,please inform us:1.What's the power supply need? Phase/Voltage/Frequency.
2.What's the refrigerant need? R22/R407C/R410A/R134A and etc.
If this water chiller not suitable for your working need, we have different chiller series, please choose it as follows.
1. Air Cooled Scroll Chiller : cooling capacity range from 1 ton to 35 tons;
2. Water Cooled Scroll Chiller : cooling capacity range from 1 ton to 40 tons;
3. Air Cooled Screw Chiller : cooling capacity range from 20 tons to 150 tons;
4. Water Cooled Screw Chiller :cooling capacity range from 25 ton to 400 tons;
Temperature range: -25 deg C~+35 deg C based on different industry working need.
Похожие товары

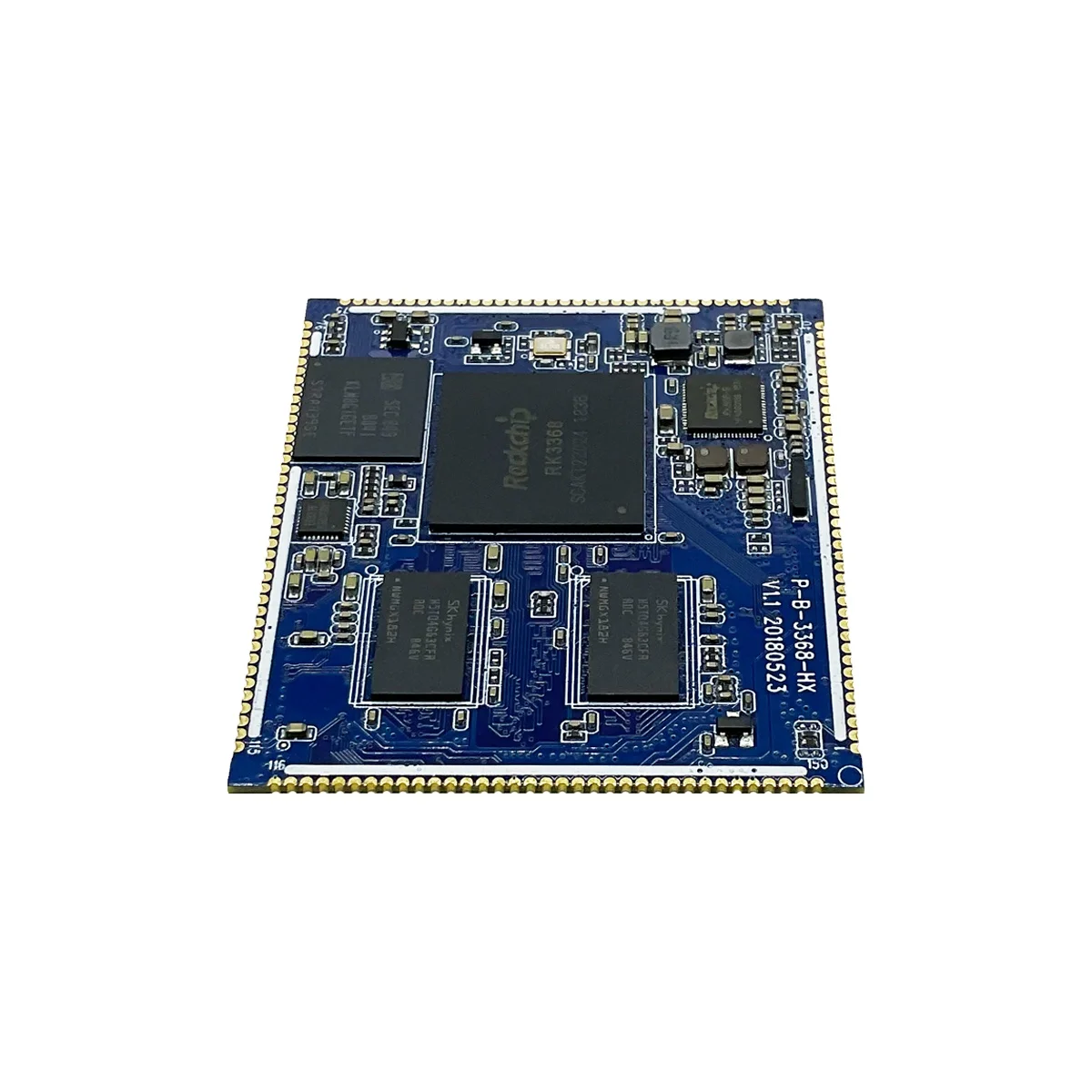

P-B-3368-HX RK3368 Android core плата с открытым исходным кодом материнская плата android плата 2 ГБ оперативной памяти + 8 ГБ ROM
25,00 $ - 50,00 $
Тактический нож Zunelotoo Hero D2 Сталь, горячая Распродажа на amazon
28,00 $ - 38,00 $

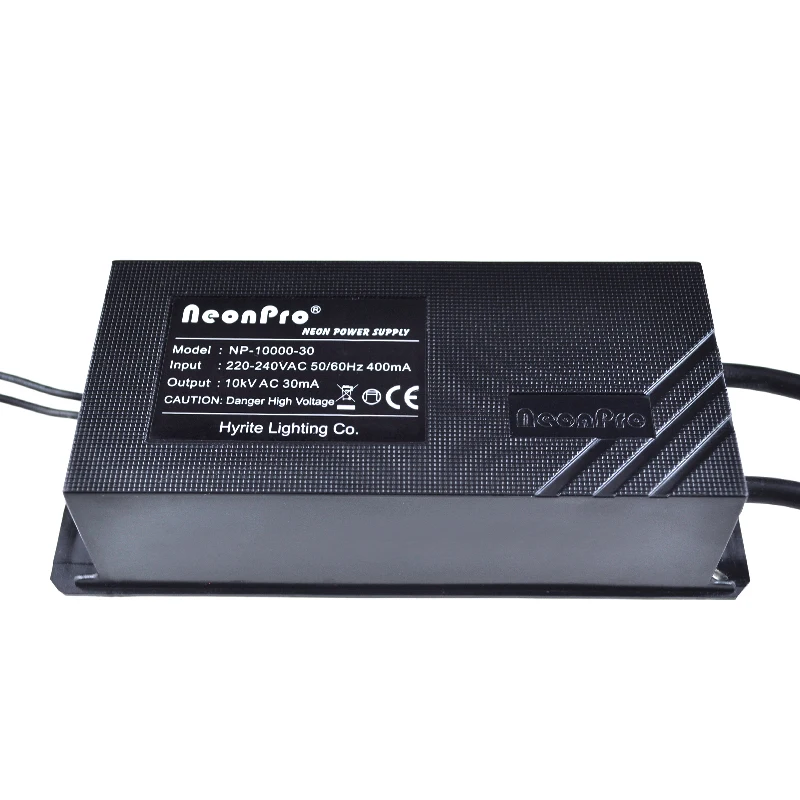

NP-10000-30 неоновые питания 10KV 30mA 220V для дома и улицы neonpro
18,72 $ - 19,00 $

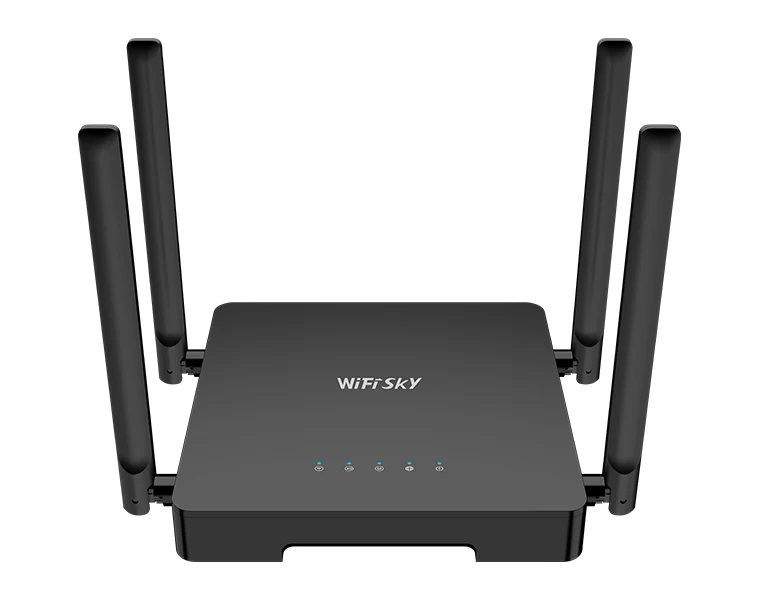

Wifisky WS-GR402 разблокировать точку доступа Wi-Fi 4 аппарат не привязан к оператору сотовой связи беспроводного маршрутизатора gsm с мобильными микрoуправлением
46,50 $ - 49,90 $

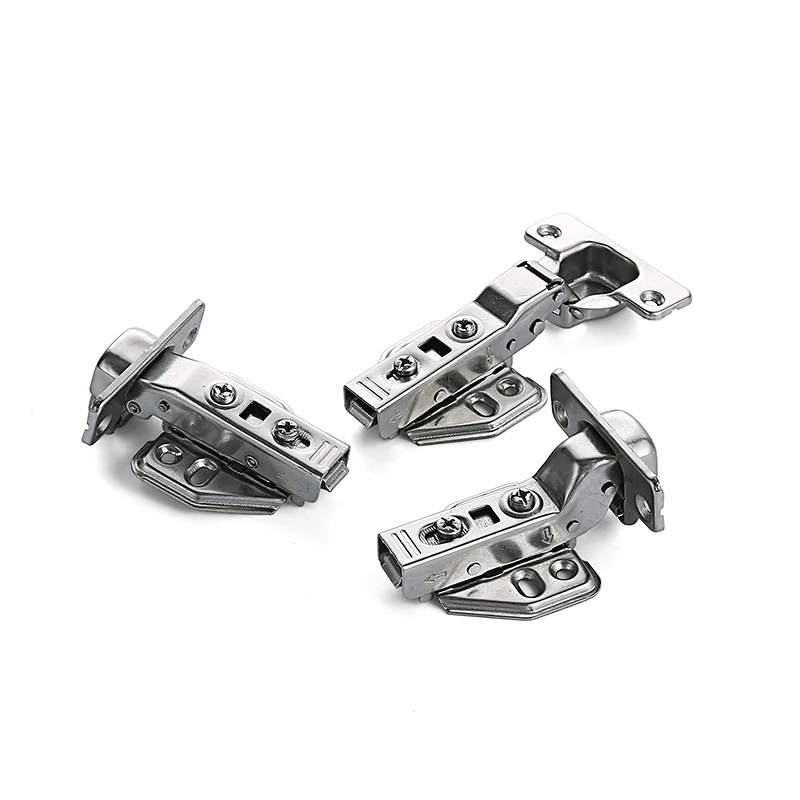

35 мм зажим на гидравлический шарнир из нержавеющей стали зажим на автоматические шарниры мягкое закрытие
0,25 $ - 0,27 $

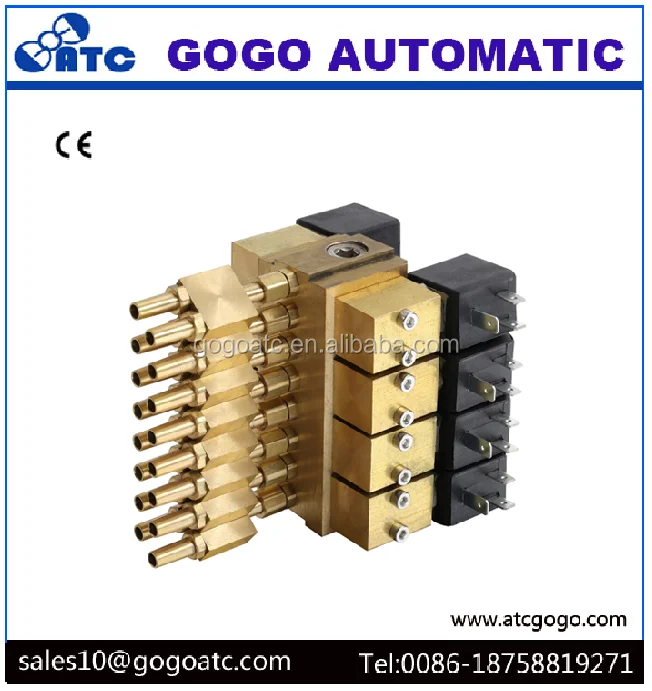

Соленоидный клапан для водяной занавески
