Высоко Качестенные промышленные быстрого мгновенного индивидуальных и лотки Тип спиральная морозильная установка для производства

Сохранить в закладки 1600202989344:


Цена:5 700,00 $ - 220 000,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


122

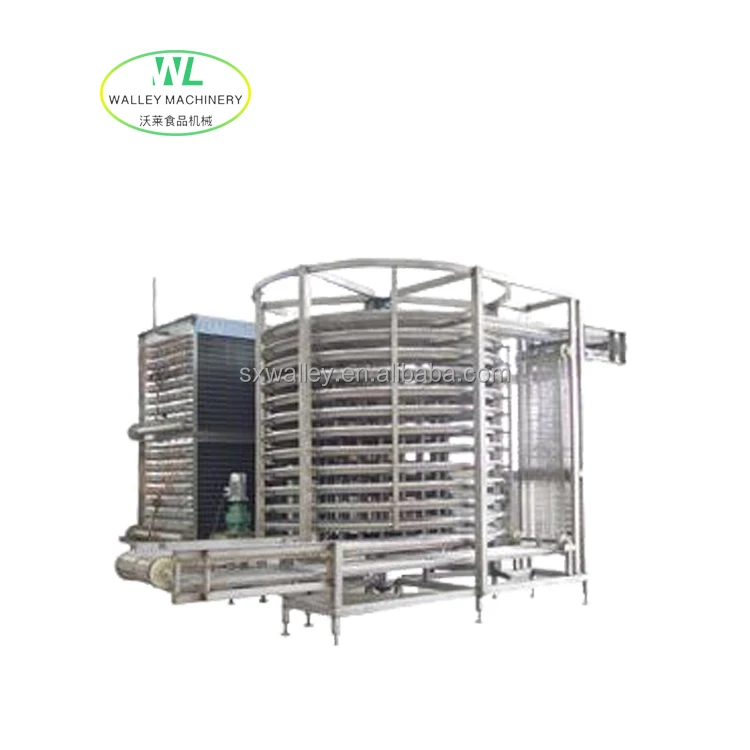

Spiral freezer is a high efficient quick freezing machine with small floor space and large capacity. It is mainly suitable for bread fermentation and cooling; freezing aquatic products, flour products, meat, poultry, bagged condiment, dairy products and ice cream, etc. The capacity is 300kg/hr~3000kg/hr.


According to the rotary drum quantity, it can be divided into two types: DSF single-drum spiral freezer and SSF double-drum spiral freezer.


(1) Conveying belt adopts SUS304 high strength stainless steel spiral mesh, with a long service life;


(2) Evaporator is made of industrial aluminum alloy or stainless steel, with a great performance of heat exchange;


(3) Freezer is equipped with conveyor turnover sensor, belt regulation sensor and scram switch;


(4) Electric control cabinet is made of SUS304 stainless steel, if necessary the operation interface can be PLC and touch screen.





(1), Single-drum Spiral Freezer:




















































































ModelDSF-300DSF-400DSF-500DSF-750DSF-1000

Capacity


Kg/Hr


3004005007501000

Dimension


m


8.6x4.3x3.08.9x4.7x3.09.6x5.3x3.09.6x5.3x4.010.2x6.0x4.0

Freezer Length


m


5.65.96.66.67.2

Belt Width


mm


400500620700700

Input Temp.


°C


+15

Output Temp.


°C


-18

Freezing Temp.


°C


-36+/-2

Freezing Time


Min


5-50 Continually Adjustable
CoolantR717/R22/R404A

Cold Load


Kw


507085135170

Power


KW


1216182025




(2), Double-drum Spiral Freezer:




















































































ModelSSF-1000SSF-1500SSF-2000SSF-2500SSF-3000

Capacity


Kg/Hr


10001500200025003000

Dimension


m


12.5X4.6X3.113.1X5.0X3.616.1X5.1X3.916.1X5.3X4.317.6X6.0X4.8

Freezer Size


m


9.3x4.6x2.49.9x5.0x2.912.9x5.1x3.212.9x5.3x3.614.4x6.0x4.1

Belt Width


mm


620700700750750

Input Temp.


°C


+15

Output Temp.


°C


-18

Freezing Temp.


°C


-36+/-2

Freezing Time


Min


15-90 Continually Adjustable
CoolantR717/R22/R404A

Cold Load


Kw


165220300360400

Power


KW


2024324046







Note: 1, capacity based on naked frozen shrimp;


          2, working condition of cold load: +35/-42°C


          3, power required excludes refrigeration system.











Note: the above models and dimensions are only for your reference, but not are the standard ones. The size will be changed according to the different applications.
