Лазерный уровень Huepar 903CG перезаряжаемый литиевый аккумулятор 3D 12 поперечных линий
- Категория: Лазерные уровни >>>
- Поставщик: Zhuhai Levelsure Technology Co. Ltd.Zhuhai Ltd.
Сохранить в закладки 1600203015892:
Описание и отзывы
Характеристики
Product Description
With advanced laser level technology, Levelsure is committed itself to providing solutions for a wide variety of applications of greater accuracy and precision.
903CG Laser Level Specifications: | GF360R | |
Laser Beam Color: Green Laser Class: Class 2 (IEC/EN60825-1/2014), output power <1mW Laser Wavelength: 510 nm Leveling Accuracy: ±3mm/10m(±1/9 inch at 33Ft) Leveling/Compensation Range: 4°±1° Working Distance (Line): 45m/147ft, up to 60m/200ft with laser reveiver Operating Time: 4 hours with all laser beams on Spread Coverage: H360°/ V360° / V360° (3*360°) Power Source: Li-lon battery IP Rating: IP54, waterproof, dustproof and shockproof, reliable and tough. Size: 8.9*6.5*9.1cm (3.5”x3.58”x2.56”) | 3 x 360° | |
Our Service
Product Features
WARNING:* Avoid direct exposure of the laser beam to the eyes.
903CG Laser Level Features:

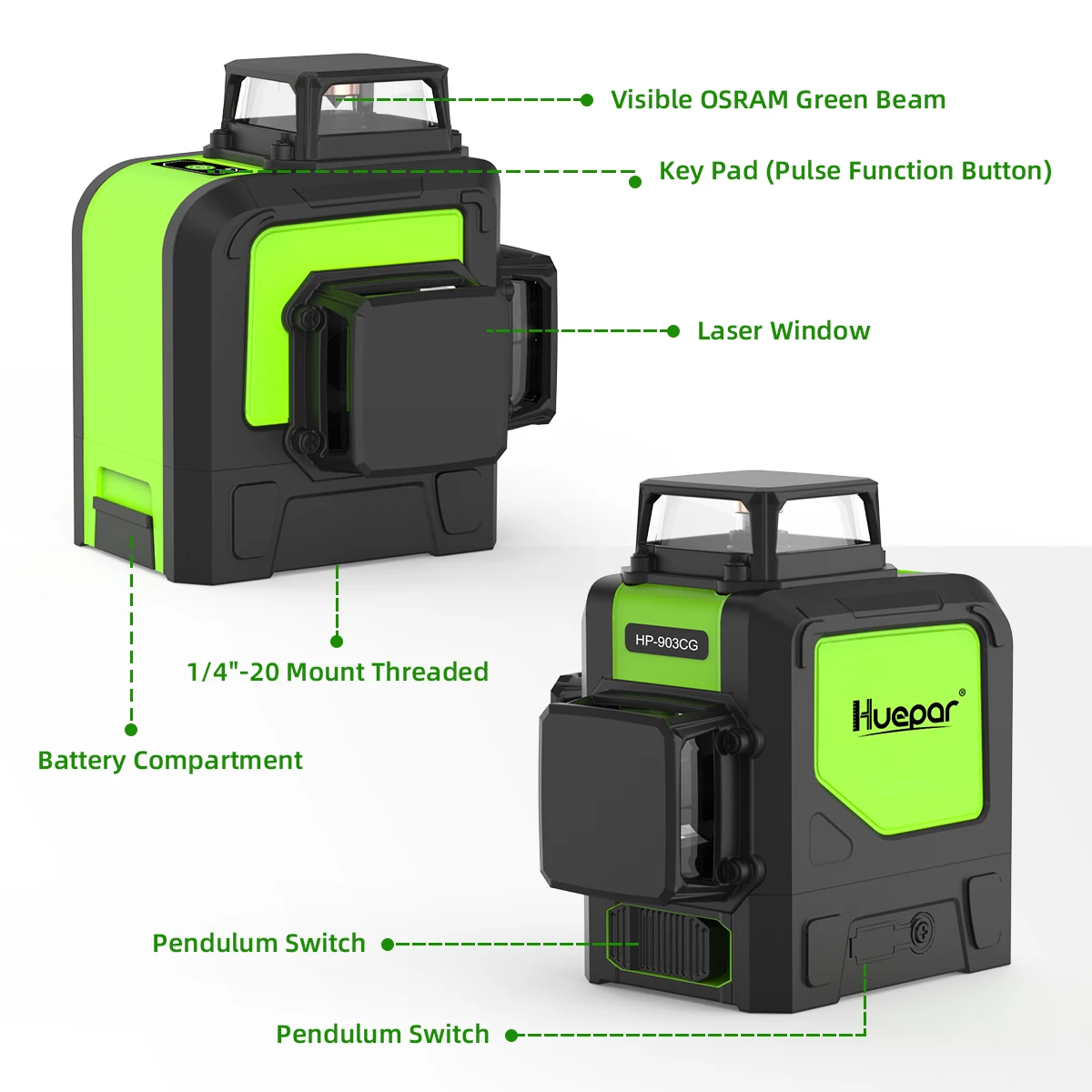

✿ The button introduction:
The laser level has three laser windows, each window can launch 4 laser lines, totally 12 laser lines(4 laser lines combine to a plane). Attention: There are at least 4 laser lines, it can not keep 1 or 2 laser lines.
✿ Product Highlights:
The 903CG laser is a cross line laser level. This unit is self-leveling with accuracy range of within ± 4 °. The working range of this laser is up to 45m, depending on the work area’s illumination.
✿ Design:
The 3D 903CG laser level is a compact, practical option for basic cross line leveling work. Measuring at 1/4 ", the laser can fit comfortably in the palm of your hand. It has a hard plastic housing to protect the laser beams and pendulum leveling system within. The housing has a ribbed rubber casing that protects it from scratches while giving extra friction to make it slip resistant.
✿ Mounting Option:
The 3D 903G laser level has 2 mounting nut with a 1/4 " thread and a 5/8" thread at the bottom of the unit. This allows you to mount it either to a bracket or a tripod for security. The unit can be placed on a regular surface, but securing it usually guarantees less movement for more accurate work. A magnetic base is included in the package.
✿ Leveling Function:
Once the pendulum is in unlocked condition, the instrument will be self-leveling within 4 degrees, when the unit is using out of the leveling range, laser lines and main indicator will keep flashing.
✿ Pendulum Lock:
The 12 lines Green beam laser level is a precision instrument and should be treated with care. When not in use, the pendulum should always be in the Off position (OFF mode). Locking the pendulum allows the Cross Line Laser to better withstand vibration and Trauma incurred during transportation or if the units is dropped.
✿ The difference between the green laser and the red laser:endulum Lock:
They are from the same factory, the function is same.The green laser's visibility is four times of the red laser, it's material costing is higher than red laser, it sales more expensive than red laser.
✿ Product Highlights:
The 903CG laser is a cross line laser level. This unit is self-leveling with accuracy range of within ± 4 °. The working range of this laser is up to 45m, depending on the work area’s illumination.
✿ Design:
The 3D 903CG laser level is a compact, practical option for basic cross line leveling work. Measuring at 1/4 ", the laser can fit comfortably in the palm of your hand. It has a hard plastic housing to protect the laser beams and pendulum leveling system within. The housing has a ribbed rubber casing that protects it from scratches while giving extra friction to make it slip resistant.
✿ Mounting Option:
The 3D 903G laser level has 2 mounting nut with a 1/4 " thread and a 5/8" thread at the bottom of the unit. This allows you to mount it either to a bracket or a tripod for security. The unit can be placed on a regular surface, but securing it usually guarantees less movement for more accurate work. A magnetic base is included in the package.
✿ Leveling Function:
Once the pendulum is in unlocked condition, the instrument will be self-leveling within 4 degrees, when the unit is using out of the leveling range, laser lines and main indicator will keep flashing.
✿ Pendulum Lock:
The 12 lines Green beam laser level is a precision instrument and should be treated with care. When not in use, the pendulum should always be in the Off position (OFF mode). Locking the pendulum allows the Cross Line Laser to better withstand vibration and Trauma incurred during transportation or if the units is dropped.
✿ The difference between the green laser and the red laser:endulum Lock:
They are from the same factory, the function is same.The green laser's visibility is four times of the red laser, it's material costing is higher than red laser, it sales more expensive than red laser.
PULSE MODE：
➤ Unlock the pendulum, press and hold the power button (for about 5 seconds) to turn on the pulse mode, then turn it on red.

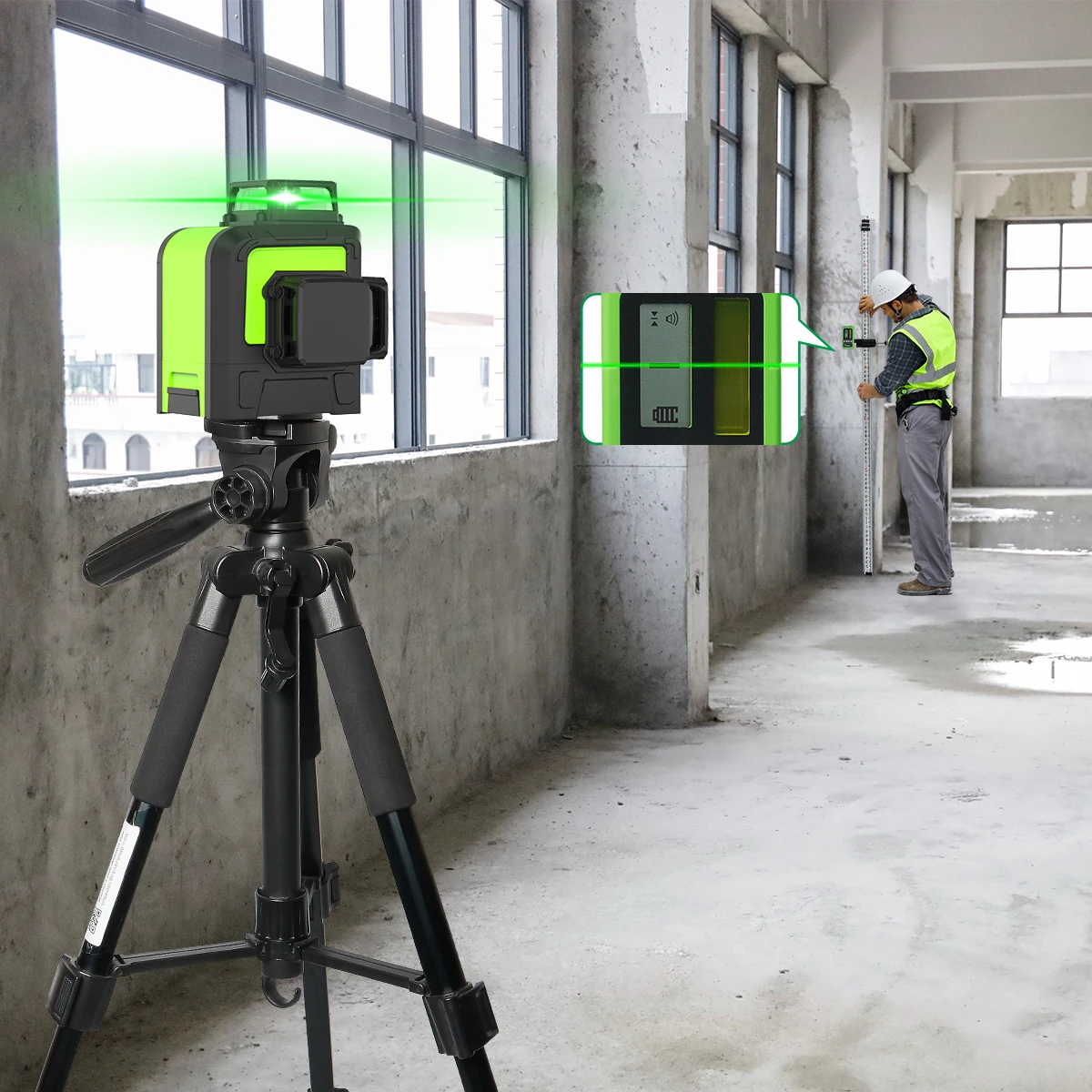

➤ When outdoor work is required (the receiver needs to be purchased separately, the laser receiver can receive pulses.
➤ The receiver frequency is 10khz and the Huepar brand is the best pairing.
➤ When outdoor work is required (the receiver needs to be purchased separately, the laser receiver can receive pulses.
➤ The receiver frequency is 10khz and the Huepar brand is the best pairing.

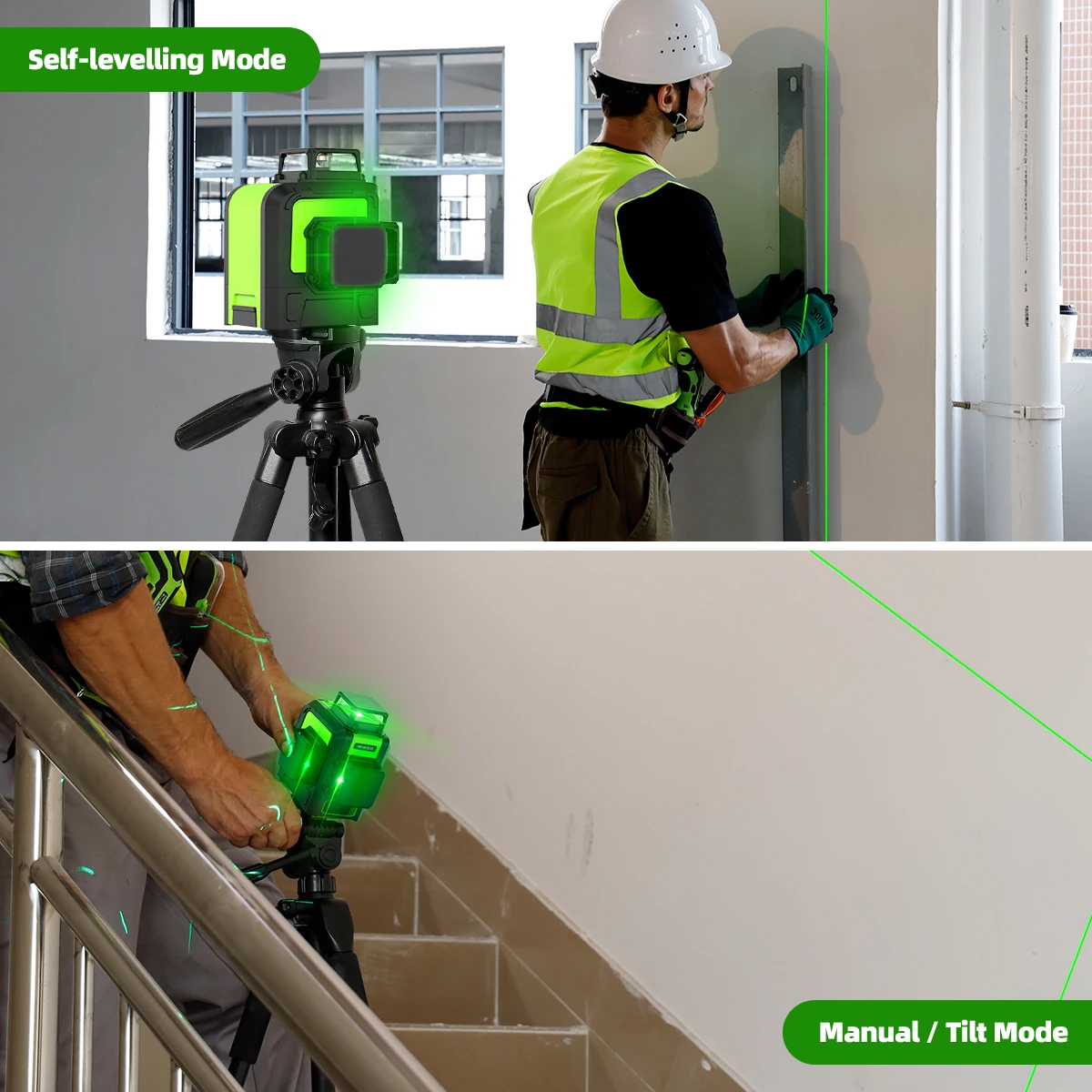

TWO MODES OF USE, WITH LOCK DESIGN, REDUCE LOSSES AND LOCK THE MOVEMENT.
Unlock the pendulum, self-leveling mode is enabled. The laser beam will blink continuously at 2Hz when the tool is beyond self-leveling range (4°±1°).
➤Manual mode:
Lock the pendulum, you can （use tripod or other bracket ）place the laser tool at various angles to project non-level straight laser lines. Slashes can be projected.The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.
➤Manual mode:
Lock the pendulum, you can （use tripod or other bracket ）place the laser tool at various angles to project non-level straight laser lines. Slashes can be projected.The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.

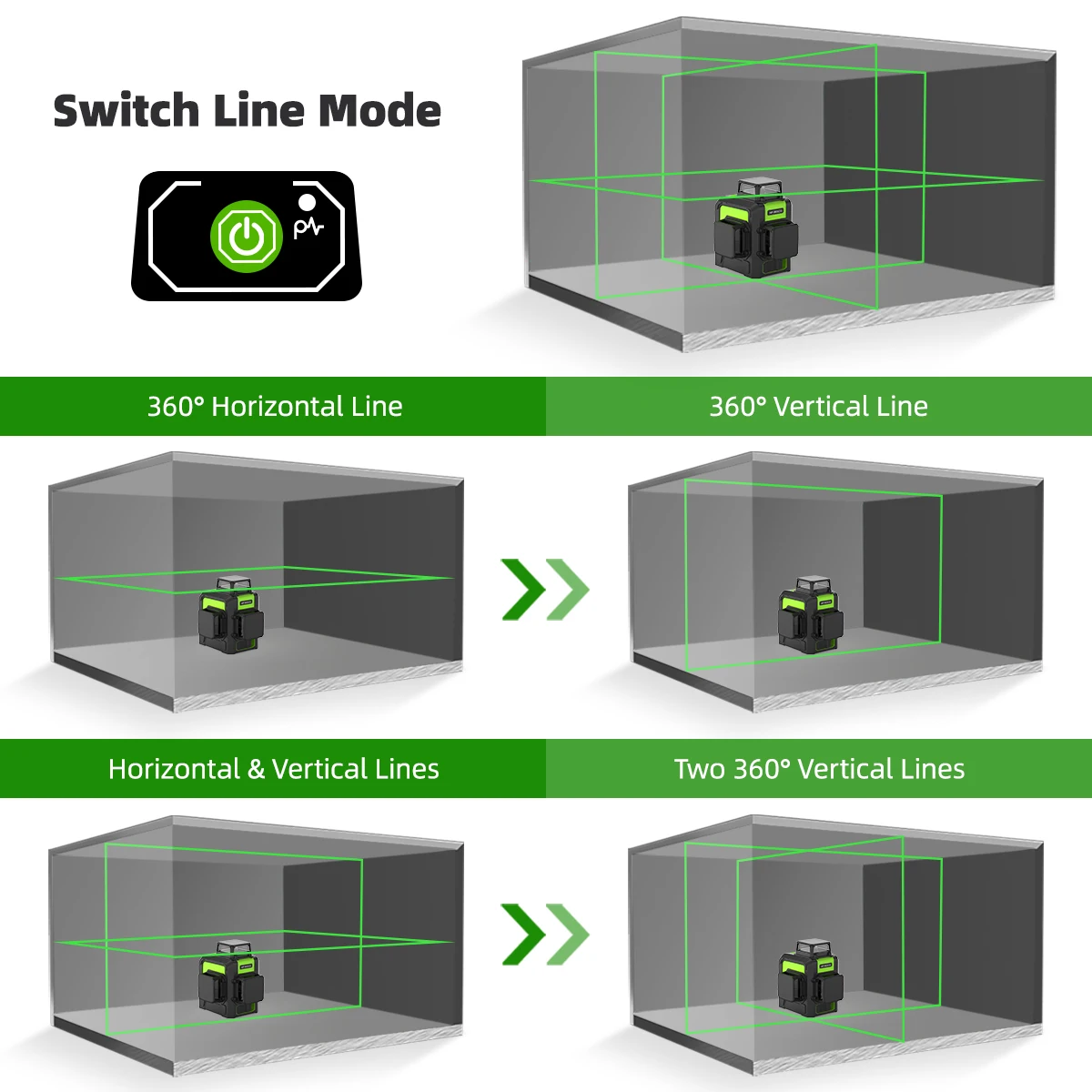

THREE KINDS OF CIRCUIT SWITCHING FUNCTIONS:
➤ Each time the power button is pressed once, the laser tool projects 360° horizontal lines, 360° vertical lines, and 360° vertical lines in sequence.
➤ 360° cover horizontal line and 360° vertical line and 360° vertical line (H360°/V360° /V360°)
➤ 360° cover horizontal line and 360° vertical line and 360° vertical line (H360°/V360° /V360°)

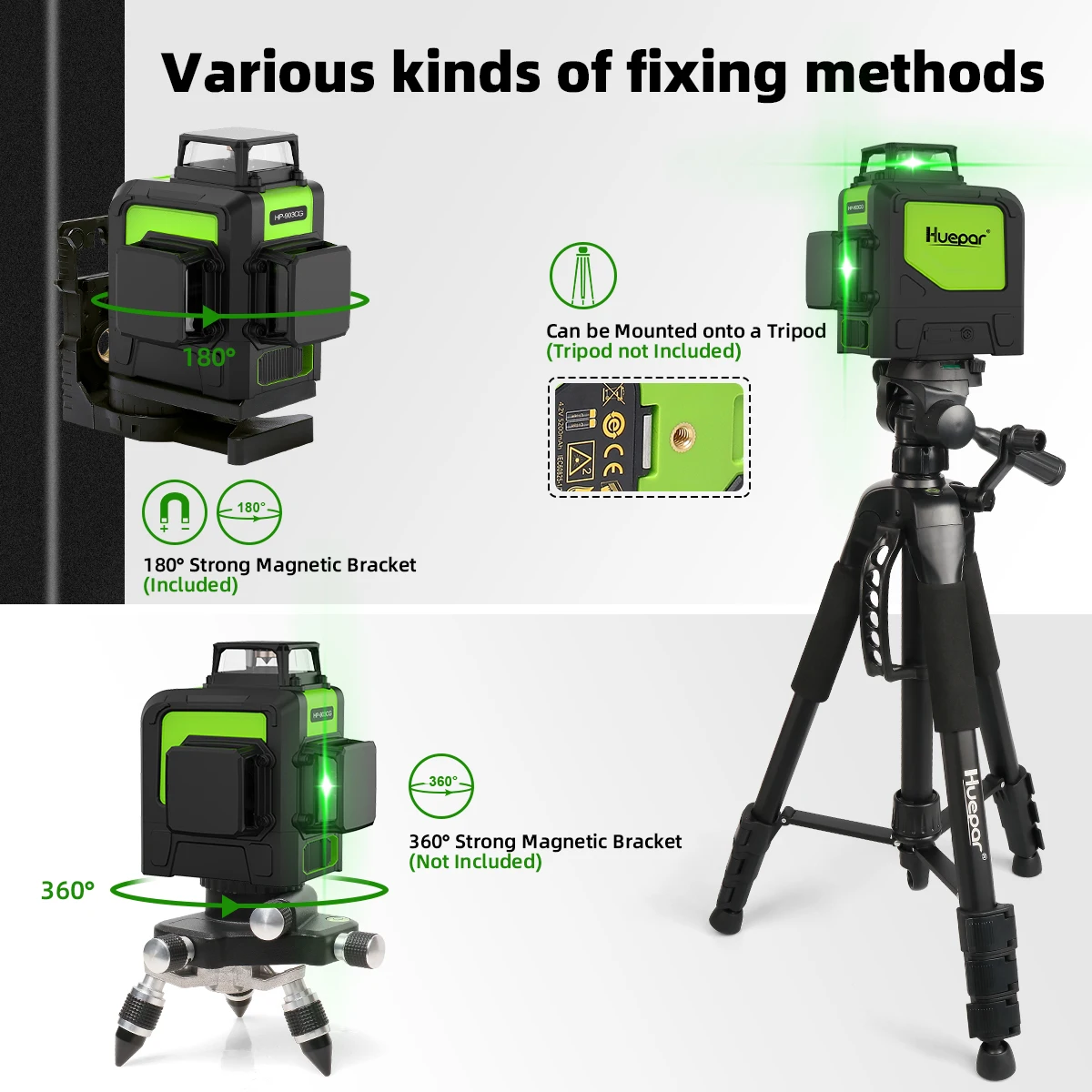

VARIOUS KINDS OF FIXING METHOD:
➤ Strong Magnetic L mount with triop thread can attaches the laser to any steels easily, turning around 180-degree as you like.
➤ It can also accepts a standard tripod screw to do height adjustment.
➤ It can also accepts a standard tripod screw to do height adjustment.
Customer Praise

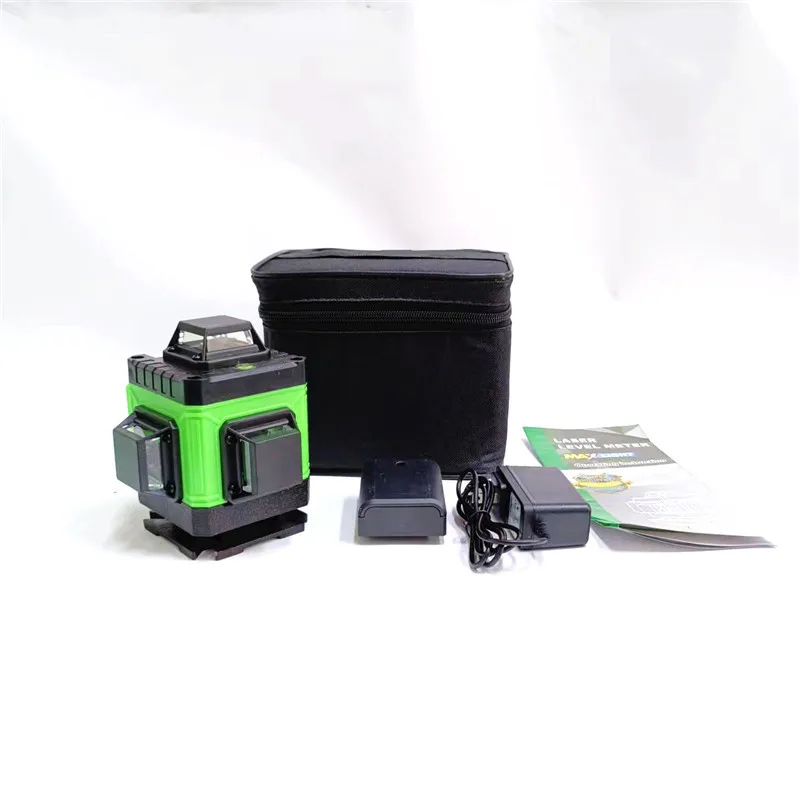

Product Packaging
1 x Laser Level
1 x Lithium batter
1 x Power adapter
1 x USB Power Cable
1 x Magnetic Base
1 x Target Plate
1 x Carrying bag
1 x User Manual
1 x Lithium batter
1 x Power adapter
1 x USB Power Cable
1 x Magnetic Base
1 x Target Plate
1 x Carrying bag
1 x User Manual
Company Profile
FAQ
1.How can you guarantee payment safety?
Our company supports TRADE ASSURANCE service. If you will choose payment through ALIBABA TRADE ASSURANCE service, you payment will be guaranteed. Because we are not able to receive payment until you confirm goods receipt
2. What kinds of shipment for goods and how long time it takes?
Our company supports DHL, FEDEX, UPS, by sea and other methods. Shippment day is 3-5 workdays after payment receipt.
3.what can you buy from us?
Laser Level,Laser Distance Meter,Accessories,Power Tool,Garden Tool
4. What kind payment method we accept?
T/T, L/C at sight, Western Union, Trade Assurance on Alibaba and PayPal
5. Do you have other items not displayed on your website?
Yes, our company supplies full survey range products. If you are looking for product not displayed on our website. Please contact us freely. We will reply you on time.
Our company supports TRADE ASSURANCE service. If you will choose payment through ALIBABA TRADE ASSURANCE service, you payment will be guaranteed. Because we are not able to receive payment until you confirm goods receipt
2. What kinds of shipment for goods and how long time it takes?
Our company supports DHL, FEDEX, UPS, by sea and other methods. Shippment day is 3-5 workdays after payment receipt.
3.what can you buy from us?
Laser Level,Laser Distance Meter,Accessories,Power Tool,Garden Tool
4. What kind payment method we accept?
T/T, L/C at sight, Western Union, Trade Assurance on Alibaba and PayPal
5. Do you have other items not displayed on your website?
Yes, our company supplies full survey range products. If you are looking for product not displayed on our website. Please contact us freely. We will reply you on time.
Похожие товары
Портативный автоматический вращающийся лазерный уровень зеленый луч перекрестный с 5 линиями
24,50-30,00 $
Лазерный уровень 360 с 5 лучами и штативом 1 м
20,00-22,00 $
Лидер продаж промышленный/DIY 360 лазер с зеленым лучом 5 проводов 30 м рабочее расстояние вращающийся лазерный уровень литиевым питанием
35,00-39,00 $

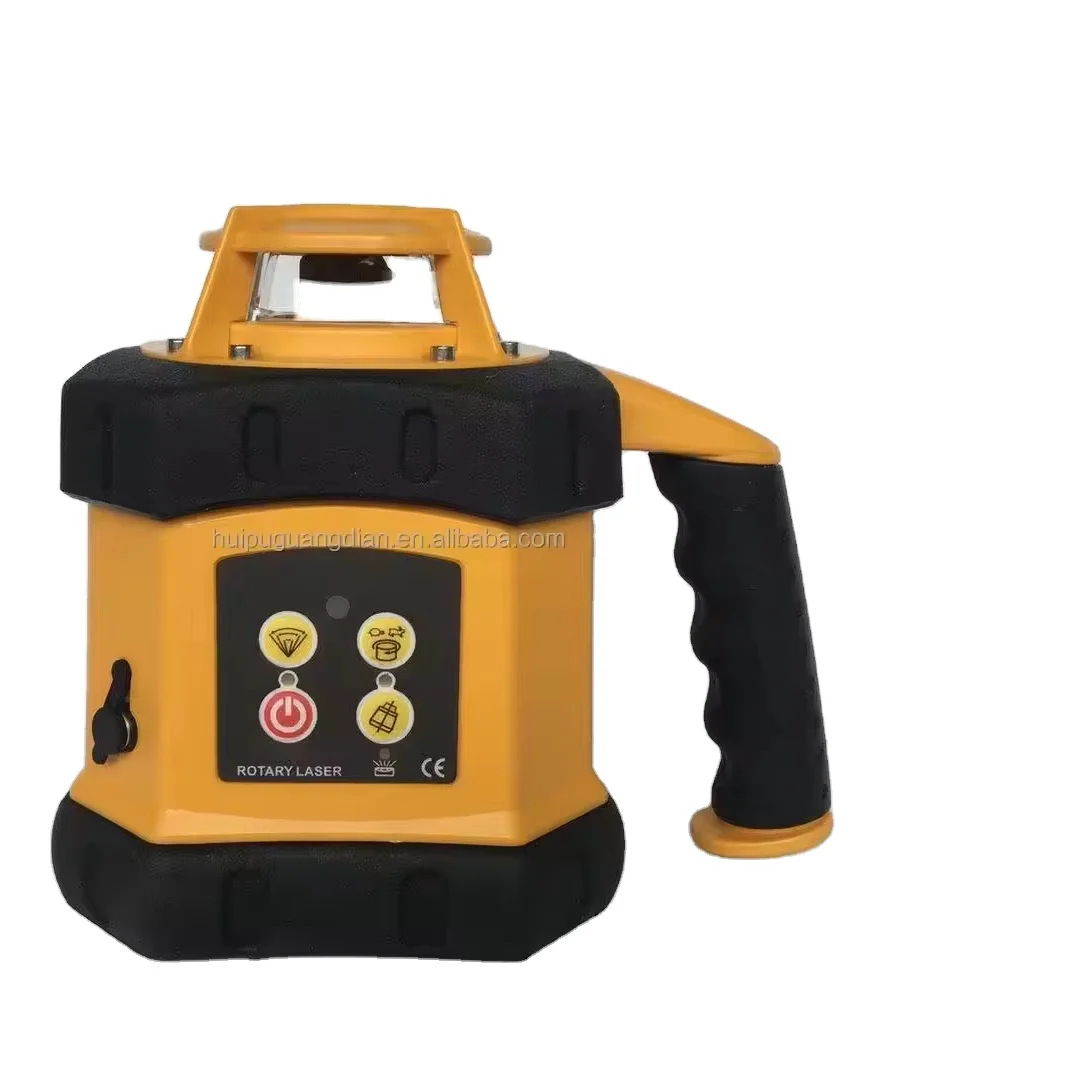

3D 5 угол красный луч роторный автоматический лазерный уровень
104,00-135,00 $

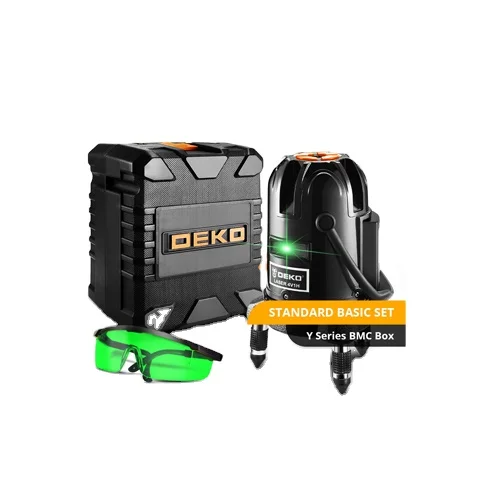

Уровень лазерный DEKO LL58G самовыравнивающийся 5 линий 6 точек поворот на 360 градусов
