Универсальный Турбокомпрессор T3 T4 T04E комплект с отходным ИНТЕРКУЛЕРОМ трубопроводная масляная линия 10

Универсальный Турбокомпрессор T3 T4 T04E комплект с отходным ИНТЕРКУЛЕРОМ трубопроводная масляная линия 10

Категория: >>>
Поставщик: Chongqing Guoyu Technology Co. Ltd.

Цена:395,00 $ - 470,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Specification

T3 T4 T04E Universal Turbo Kit
Application	for 1.5L to 2.5L any 4/6 cylinder engine

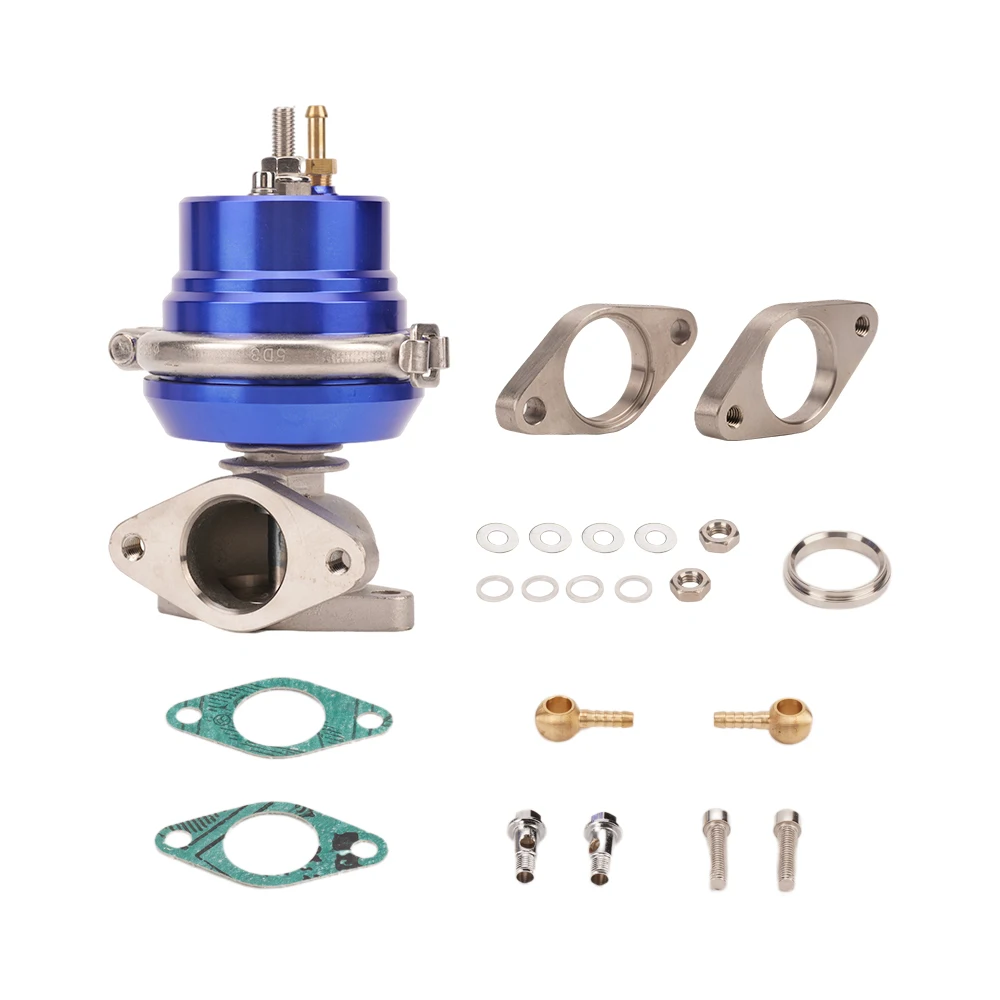

Package Included	1x T3/T4 Turbocharger 1x Oil Feed Line & Oil Return Line 1x 35/38mm Wastegate (Random Color) 1x 5 Bolt Turbo Pipe 1x Turbo Boost Gauge 1x Turbo Intercooler 1x Tubo Boost Controller 1x Type-S Blow Off Valve (Random color) 1x BOV Adapter 1x Turbo Piping Kit

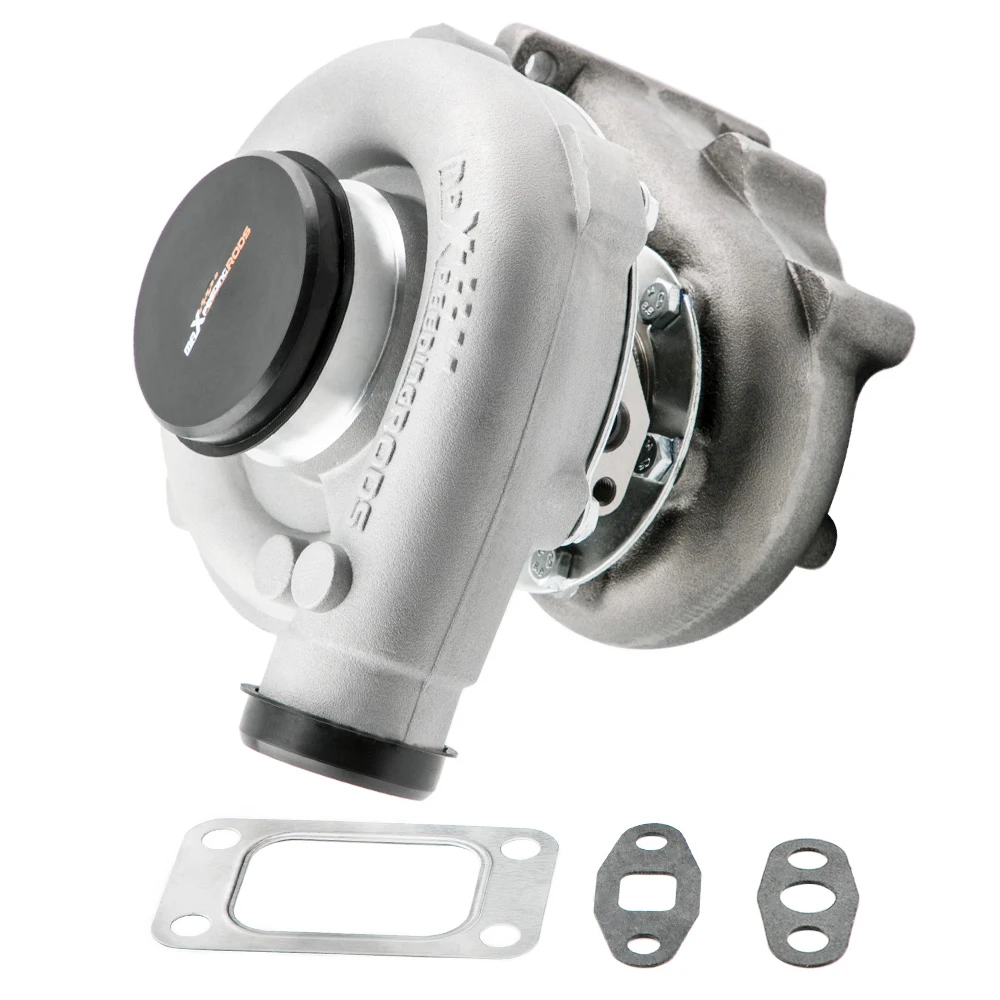

Turbo Specification:	T3/T4 Hybrid Turbo Charger: Inlet Diameter: 3" Outlet Diameter: 2" Oil Inlet: 1/8 NPT Compressor Wheel: .55 Trim A/R Compressor: .50 A/R A/R Turbine: .63 A/R Power performance output capability = 7.5-14.5psi Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns Turbine wheel: Exducer: 2.48" Mayor: 2.89" Compressor wheel: Exducer: 2.07" Mayor: 2.36"
Features of components

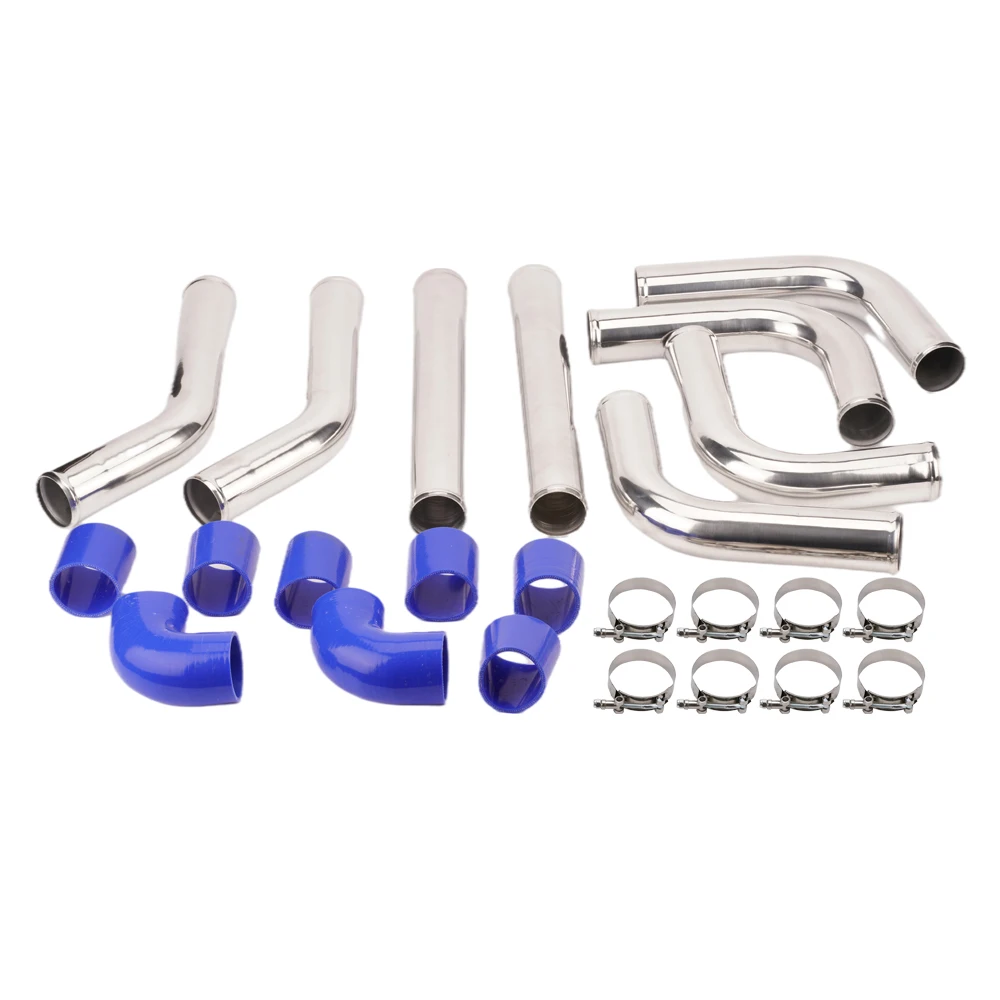

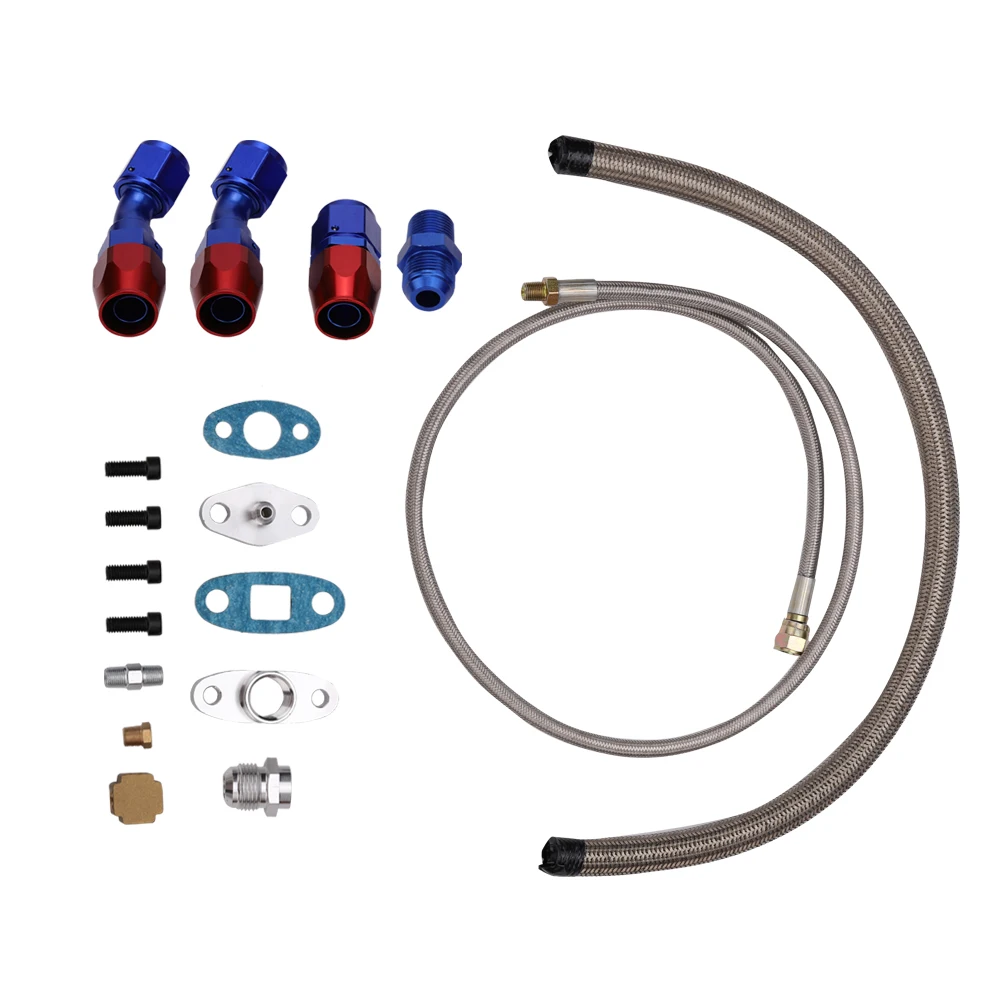

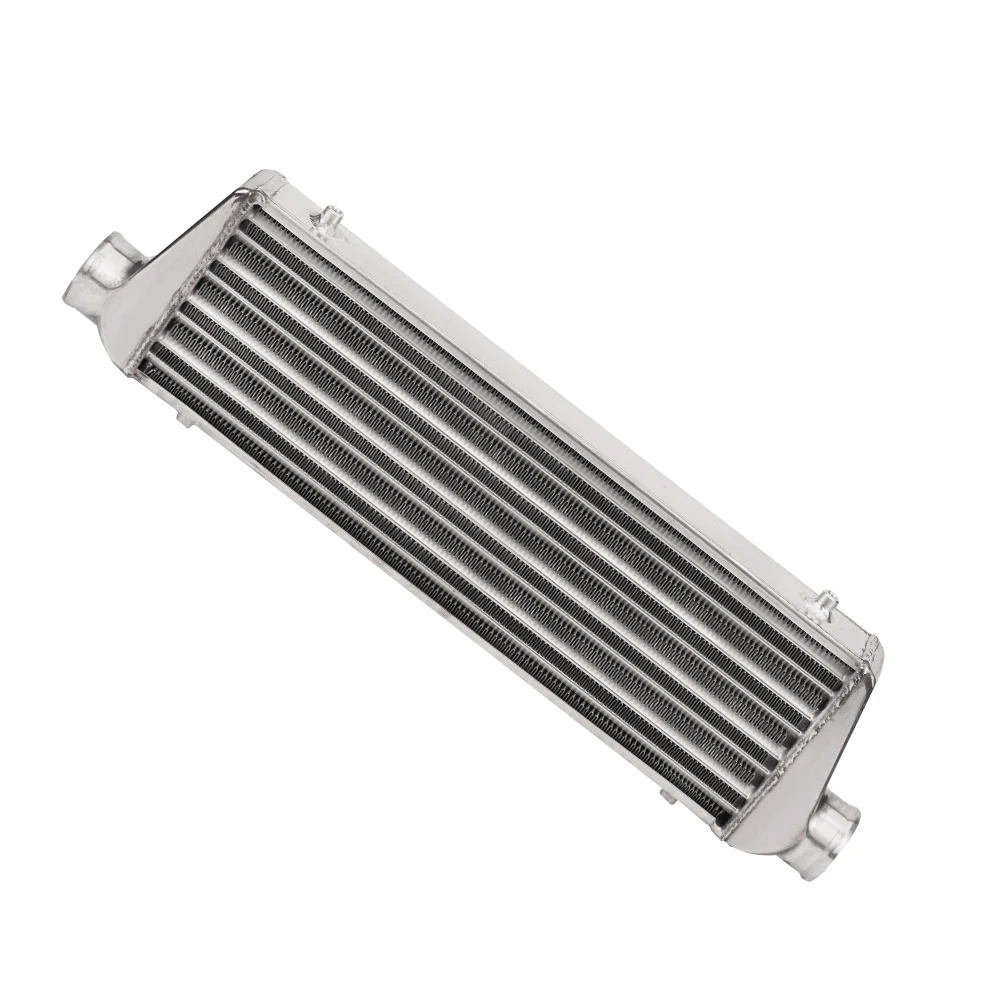

1.Turbo charger: * Capable of Boosting Horse Power up to 500+ HP * Turbine housing uses ductile iron QT450-10 Can withstand temperatures up to 700 ℃ * Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 ℃ * Cast aluminium blades with good gas tightness and corrosion resistance. 2. Intercooler * core size:2172.5 cools down the turbocharged air efficiently * Lightweight aluminum racing intercooler， * Strong TIG welds will support high PSI levels 3.Boost controller * Can be setup to adjust boost PSI on the fly * Can be adjusted for any PSI level desired * Control your boost with a precise click * Includes complete install kit * Anodized aluminum finish * CNC machined design 4. Intercooler piping kit * Made of 6061 aluminum * Lightweight yet strong aluminum piping * High pressure silicone couplers and T-bolt clamps 5. Turbo Oil returen /Feeding line kit * Stainless Steel Braided * Includes complete install kit * It helps circulate oil from the turbo charger to the oil pan. * The kit provides a anodized look * gives a best cooling performance on your turbo and long lasting life. 6.Blow Off Valve Kit * CNC Billet Aluminum Type RS Style Blow off Valve * Easy Mount Piping Set Included For Bolt-On. * Including all necessary hardwares. * easily adjustable to prevent both permature boost leakage and compressor surge. * Fast response One For Low And High Boost Pressure. * Performance design produces a powerful and aggressive sound * Quality design will not leak under high boost conditions * Flanges can be installed at user discretion 7. 38MM Wastegate * Most reliable wastegates For competition vehicles. * accurate boost control * high quality appearance features Dual port design * comes with waste gate spring (fully adjustable, up to 15 psi), allow you to add the spring to get desired high psi. 8. 5 Blot Turbo Pipe * CNC machined surface * Fits all of our turbo kits that feature a turbocharger with a 5-bolt exhaust housing. 9. BOV pipe/Adapter * can install anywhere suitable 10.Turbo Boost Gauge * 2" (52mm) Turbo Boost Meter Gauge. * It shows the turbo pressure as "Bar" not “Psi” * Red LED Illuminated Needles. * Comes with All the Wiring Necessary for Installation. * All Accessories are Included for Installation. * Accurately monitor boost pressures from the turbo system * Back lit for use at night time
