Тяньцзинь мост завод THY 51B флюсовая сварочная проволока aws E71T 1C порошковая e71t1

Описание и отзывы

Характеристики

50 kg grade structure steel gas shield flux cored wire

GB/T10045 E501T-1

       ISO 17632-A-T422PC2H10

  NB/T 47018 E501T-1

AWS A5.36 E71T1-C1A2-CS1

Application:Applying for the welding of carbon steel and low alloy steel for shipbuilding, bridges, buildings, vehicles, and machinery.

Characteristic:This wire is CO2 gas shielded flux cored wire of titanium slag system,applying for all position welding,with excellent mechanical properties and process performance. When welding is small, the arc is stable and soft.effortless slag removal, the weld molding is beautiful. The wire approved by the classification society of ten country ,which is CCS, ABS, BV, DnV, LR, GL, NK, KR, CWB, RINA . Approval grade is 3YH10.

attentions:

1.Direct Current Electrode Positive(DCEP)welding.(Welding wire connecting anode)

2, Use CO2 as shielded gas ,whose purity is more than 99.9%, and flow rate is 20-25L/min.

3, when in multi pass welding, keep the layer temperature at about 150 to 200 degrees celsius.

4, In order to prevent the occurrence of pores, please the  remove the grease and rust from the surface of base metal before welding

5, the preservation of welding wire: wire has been taken measures to resist moisture before using.It should be used as soon as possible when opening the package , do not leave the welding wire has not been used up for a long time in the air.

6,Due to the softer solid wire ,do not lock the pressure roller of wire feeding device too tight.

DEPOSIT COMPOSITION:( shielded gas-CO₂)              (%)

MECHANICAL PROPERTIES:

Content of diffusion hydrogen in deposited metal(Typical Results):5.4ml/100g  (Mercury method)

Welding reference specification:

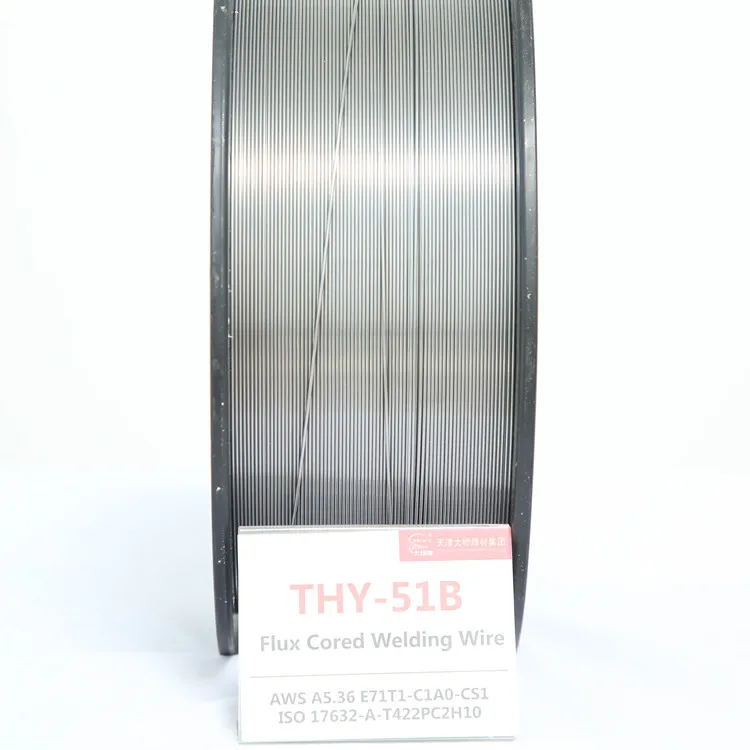

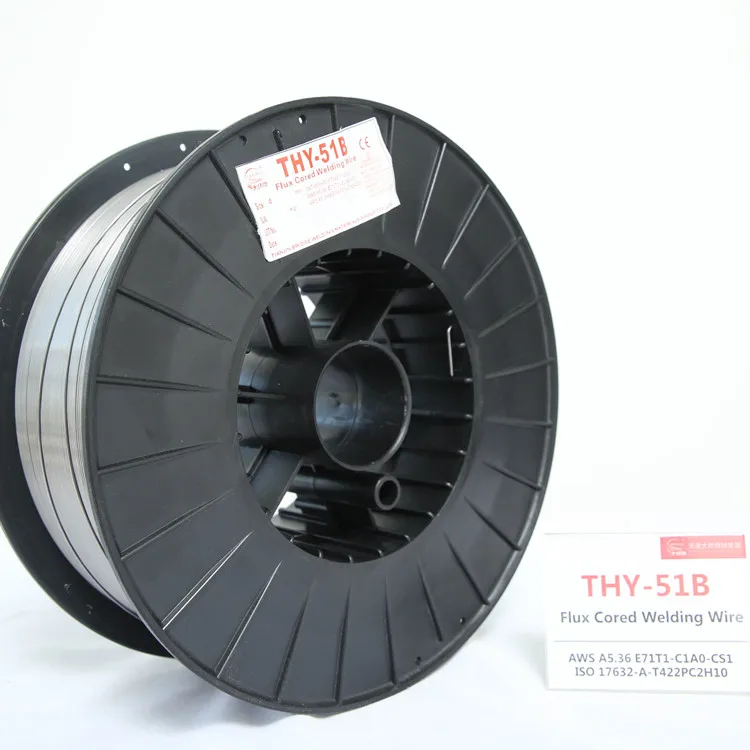

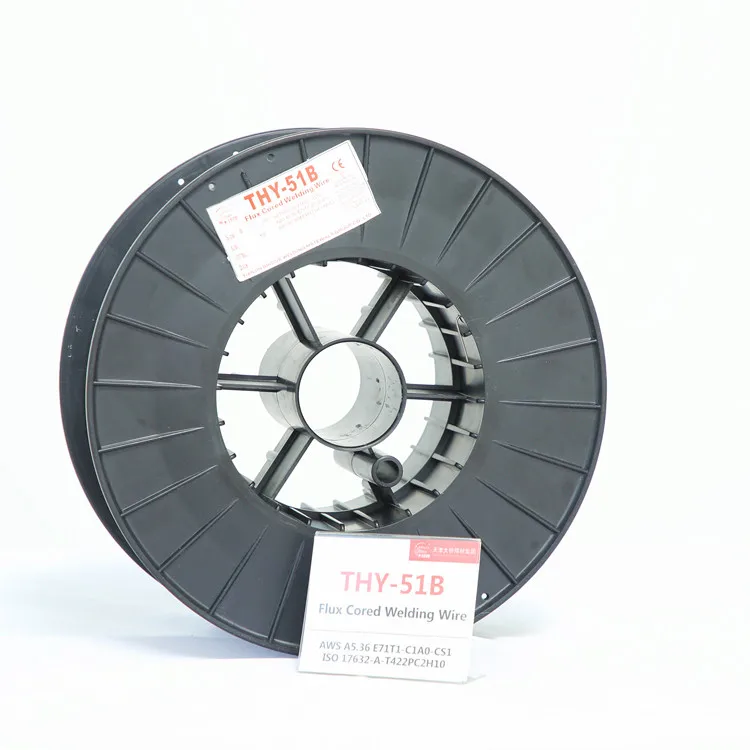

  --- PRODUCT DISPLAY ---

 --- PRODUCT APPLICATION ---

Some of our products have been applied to overseas key projects.

Electrode, SAW wire and flux of 600MPa Grade & 800MPa Grade applied to hydro steel at Laos pumped storage power station E6010 cellulose electrode Applied to the Ghana TEMA pipeline project in Africa successfully. It breaks the monopoly of Bohler cellulose electrode and won the bidding of oil pipeline Ghana tank project.
