Фрезерный алюминиевый станок с 2 головками и алюминиевым профилем

Описание и отзывы

Характеристики

Features

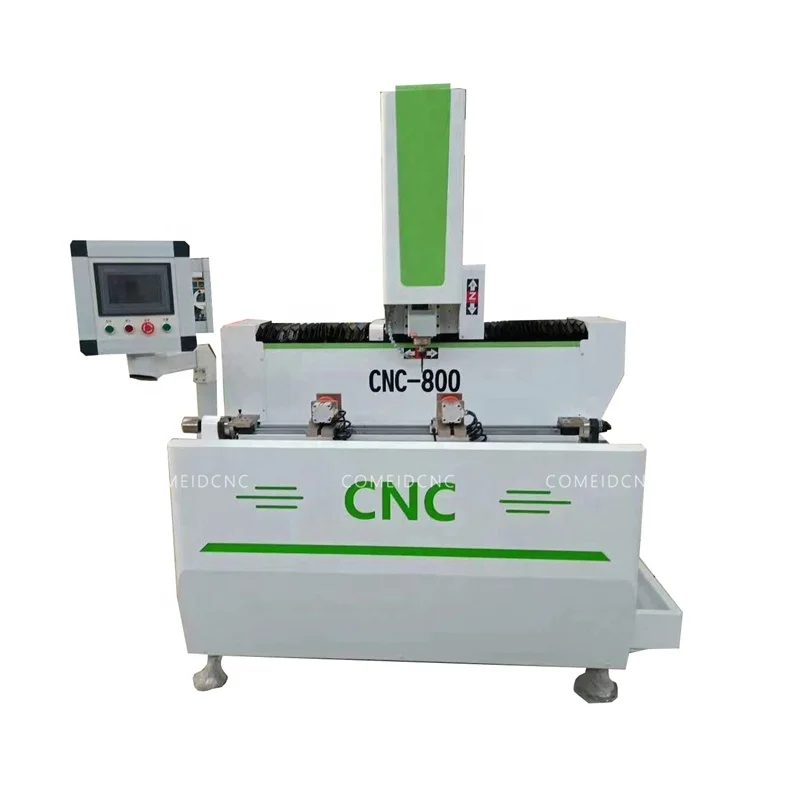

2 Heads Aluminium Profile CNC Milling Aluminum Machine

Application:

1. Thicken the bed, spray plastic treatment and inlay lamp belt.

2. The CNC system is easy to operate and has high stability.

3. X-axis high-precision helical gear, rack drive, y-axis, z-axis high-precision ball screw drive, smooth operation

4. The overturned beam is equipped with square rail, which is easy to adjust with clamping module.

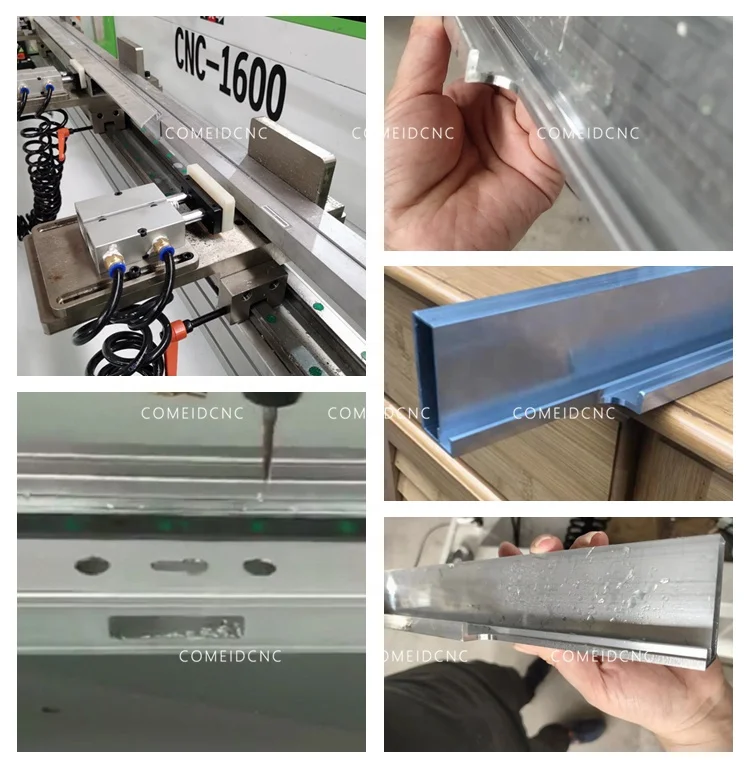

5. The worktable is overturned by 180 ° and the profile can be clamped at one time to realize three-sided processing. When processing deep through hole (heterogenous hole), it has high efficiency and high precision.







Configuration	Brand	Parameter	Standards
CNC control system	Customised system	Power supply	380V/50Hz
Step Motors	HENGHE 450B	Spindle power	4.5kw
Driver	LEADSHINE 860H	Spindle Rotate	18000RPM
Switch Power Supply	MINGWEI BRAND	Working pressure	0.5-0.9Mpa
Limit switch	HUGONG	X axis travel	1200mm
Power source	CHNT	Y axis travel	350mm
Inter Relays	YIJIA	Z axis travel	350mm
Spindle Motor	SHANGKE	Working area	3000*120mm
Inveter	BEST	Tool holder	ER20
Air cylinder	HANSANHE Pneumatics	Turning angle	180°
Electromagnetic valve	HANSANHE	Weight	700kg
Dyad	HANSANHE	Outsize	2060*1500*1970mm









	Cool liquid and Auto oil lubrication

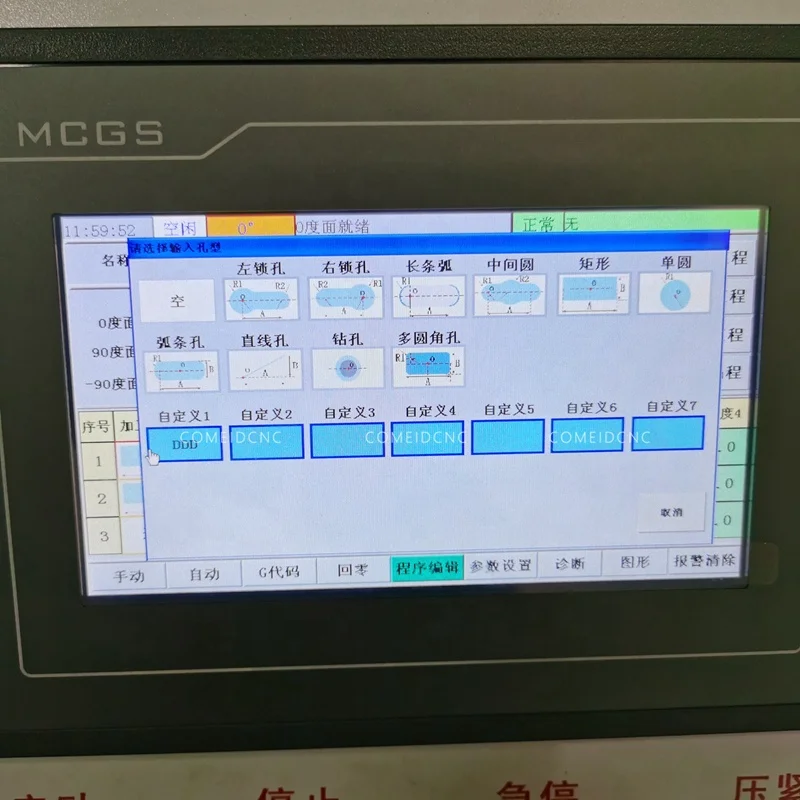

	Rotating touch screen
	Linear rails with dust proof
	Powder painting and LED light

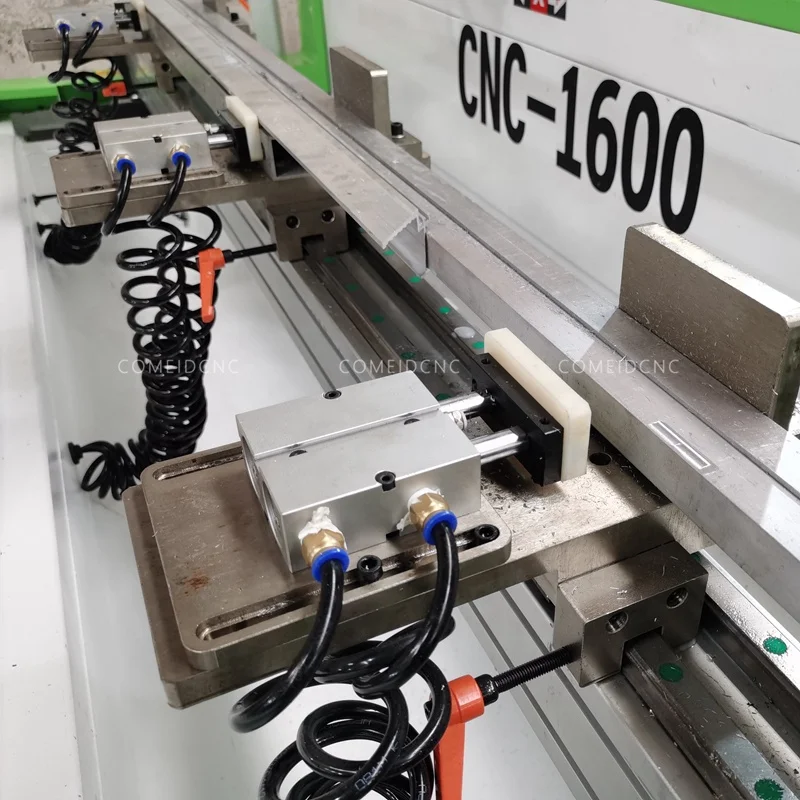

	Slide guide and Pneumatic clamping device





Since 2009 our company began production and sales of CNC equipment. It accumulated customers and dealers from all around the world. Their feedback help improving product value-added.

Publicity, sales, production, inventory, quality control, R & D departments perForm their duties orderly. Product design with good operation, important parts carefully selected, low failure rate.

Production of 50 per month production capacity, each machine manufactured before the rigorous testing and 8 hours uninterrupted operation.
It provides excellent service. According to customer needs to choose the most suitable products. 24-hour telephone, mail, WeChat in a timely manner. Software and mechanical engineers accumulated years of experience, they offer quick and effective after-sale problem-solving.

1.How about the documents after shipment?

After shipment, we will send original documents to you by DHL which including Packing List,

Commercial Invoice, Bill of Landing, and other certificates as required by Clients.
2.How long is the delivery time?

For standard machines, it would be 7-10 days; For special ordered machines, it would be 15 to 30 days depends on the factory arrangement.
3.Do You Arrange Shipment For The Machines?

Yes, we will arrange shipment for you with FOB and CIF tem as you required.
4.How is the packing?

Waterproof plastic film package with foam protection in each corner. Plywood Wood Case Package with Steel Belt. It save space as much as possible for container loading.
5.Payment terms:

--TIT : 30% TIT in advance and pay the balance 70% against goods ready before shipping.
—Western Union :Total amount should be below than $5000USD Warranty: 1 year except consumables as the cutting nozzles.
