Product Description
About Product
Detailed introduction: The Functions of Wedge and Shims Wedge is a kind of manual tools that uses manpower to impact the metal wedge into holes on stone, thereby split stone. It is mainly used in splitting cracked stone and arch stone which by utilizing a wedge set can be separated into smaller or standard stone blocks. Wedge can also trim relative large and irregular stone blocks.
Applications:
·Mainly used in mining the stone, secondary breakup of large pieces of ore (metal mining, non-metallic minerals);
·Partial and full concrete structures demolition operations;
·Natural stone mining, splitting and broking.
Advantages:\t
Uncomplicated structure, easy to operate, small size, light weight, low cost
We can design and manufacture according to your enquirement.
The features of Wedge and Shims:

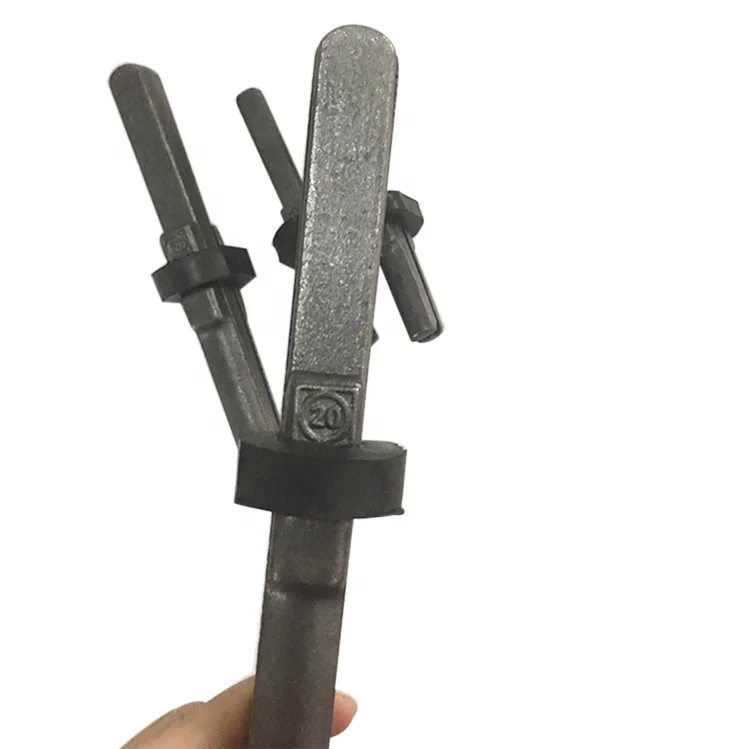

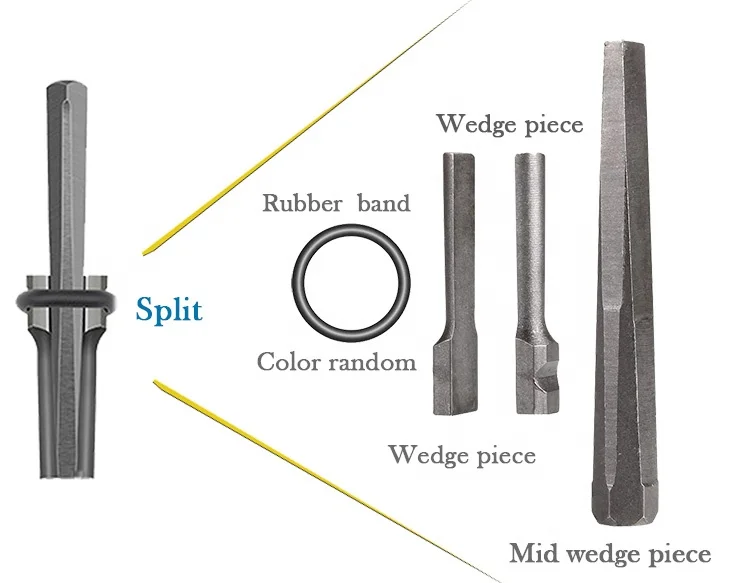

Each set shims and wedges consist of a metal wedge (the plug), and two shims (the feathers). The feathers are wide at the bottom, and tapered and curved at the top. When the two feathers are placed on either side of the plug, the combined width of the set is the same at both ends. The depth of drilled hole depends on the length of wedge.
Specification
Shims & Wedges (Feather Pair & Wedges) | ||||
Hole Diameter(mm) | Length(mm) | Net Weight(kg) | ||
14 | 125 | 0.16 | ||
16 | 125 | 0.18 | ||
20 | 190 | 0.5 | ||
24 | 200 | 0.6 | ||
32 | 270 | 1.5 | ||
34 | 280 | 1.7 | ||
38 | 325 | 2.2 | ||
38 | 600 | 3.6 | ||
Product Display

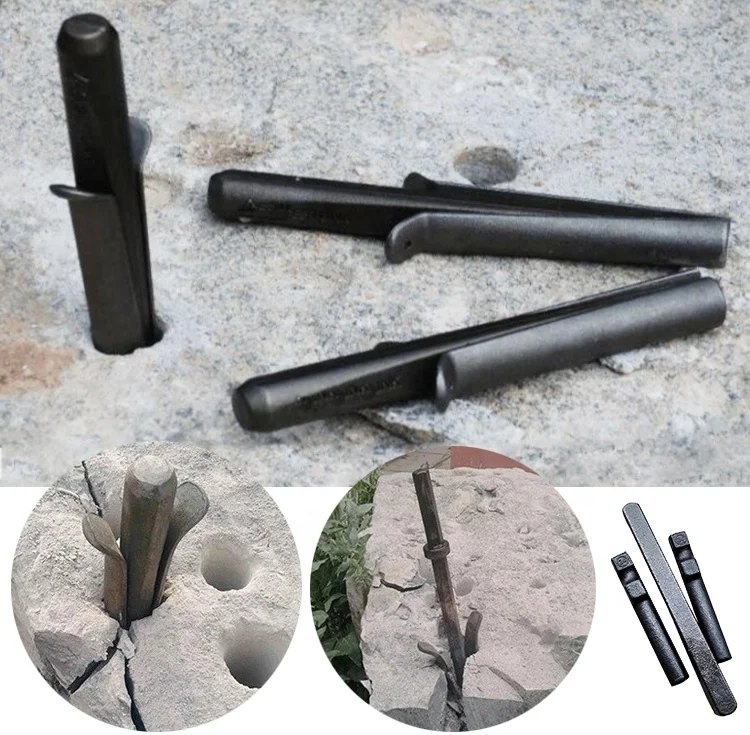

how to use?
1) First using quarrying dedicated drill holes, remove residual powder of hole.
2) Next upside down the big side of 2 wedges (flat to flat),and put it into hole.
3) Then upside down the small side of central wedge between 2 wedges , and finally using the hammer split stone.
Application
Packing & Delivery
About lead time and shipping time:
The lead time depend on quantity of order. Usually big order shipped by sea, small order or
urgent order we can send you by air after received your agreement.
According the distance from china to your port, usually from China to European about 25 days.
To West of American 20 days.
The lead time depend on quantity of order. Usually big order shipped by sea, small order or
urgent order we can send you by air after received your agreement.
According the distance from china to your port, usually from China to European about 25 days.
To West of American 20 days.
