Product Description


Introduction:

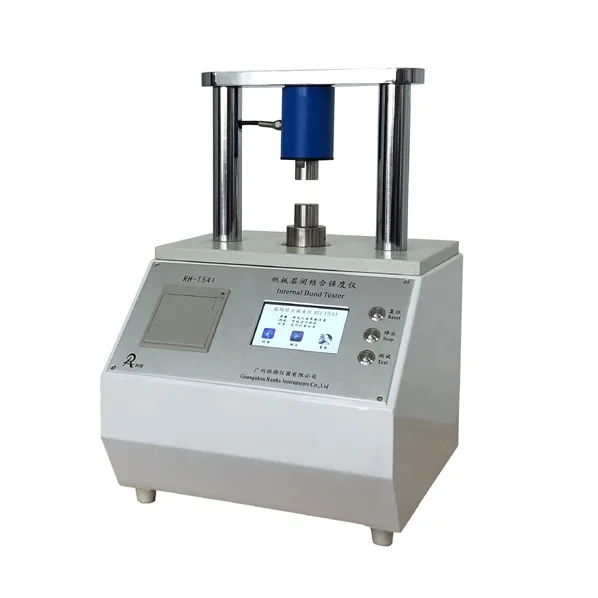

RH-T541 Z-directional Tensile Strength Tester is designed for measuring the internal fiber strength (Z-direction tensile strength) of paperboard. It widely used in the white paper board, box paper, kraft paper, white cardboard, parchment, bond and other internal bond strength testing. The bonding strength is an important index of cardboard printing performance.Internal Bond Tester RH-T541 Internal Ply Bond Tester For Paperboard





Standards:

ISO15754,TAPPI T541,GB/T 31110-2014Internal Bond Tester RH-T541 Internal Ply Bond Tester For Paperboard



Product Features:

1.High precision and repeatability

Using high precision load cell transmission force value, American computer chip high-speed sampling control, stepper motor precision ball screw drive, coupled with reasonable design precision machining, to ensure the equipment is of high accuracy and repeatability.



2. High level of automation

From the compression and pasting time of adhesive tape to the z-direction rapid stretching (stripping).The automatic completion is not only convenient but also reduces human error, greatly improving the test accuracy.

3. Easy to use, easy to operate

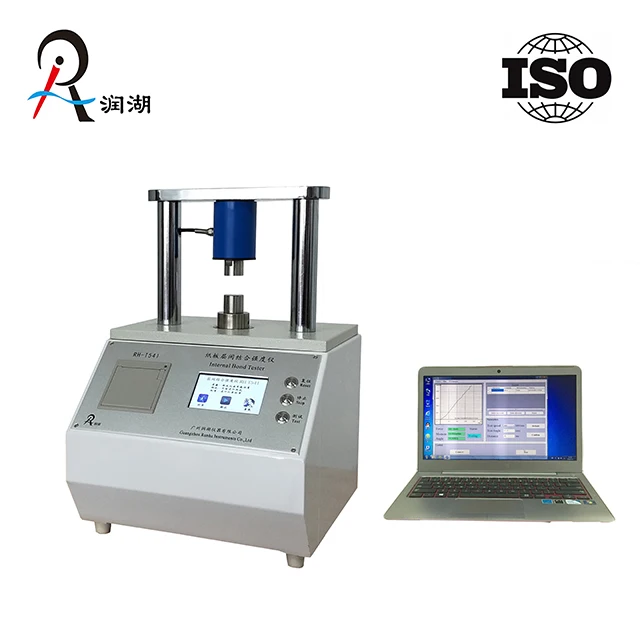

High resolution color touch screen display in English, friendly man-machine interface operation. The test data statistical handling function, miniature printer output can also be connected to PC. Results when connected to a computer, in addition to the automatic memory storage, can also show that the tensile curves and save.



4. Used in scientific experiments and analysis

Stretch (peel off) test speed adhesion pressure compression time and other changeable preset, convenient for school scientific research units and other departments to conduct scientific experiments and analysis.

5. Easy to clean, easy calibration

The upper and lower pressure heads are easy to be removed, which makes it easy to leave residues on the adhesive tape during the cleaning experiment and to connect the standard sensor for force value calibration.

6. Superior performance

This instrument is a new generation of products developed and produced by our company according to the latest international standards.Internal Bond Tester RH-T541 Internal Ply Bond Tester For Paperboard




Technical Parameters:



Measure Range
(10~1000) kPa
Resolution
0.1 kPa
Accuracy
±1%
Test area
(645±10)mm²
Test speed
(1~200) mm/min(Standard:66mm/min)
Pressure Range
99~1999N(Standard :900N) or 0.15~3.1MPa(Standard :1.4 MPa )
Time Range
1~200s
Dimensions
335 ×325 ×515 mm
Weighs
33kg
Power
AC220V,50Hz


Detailed Images

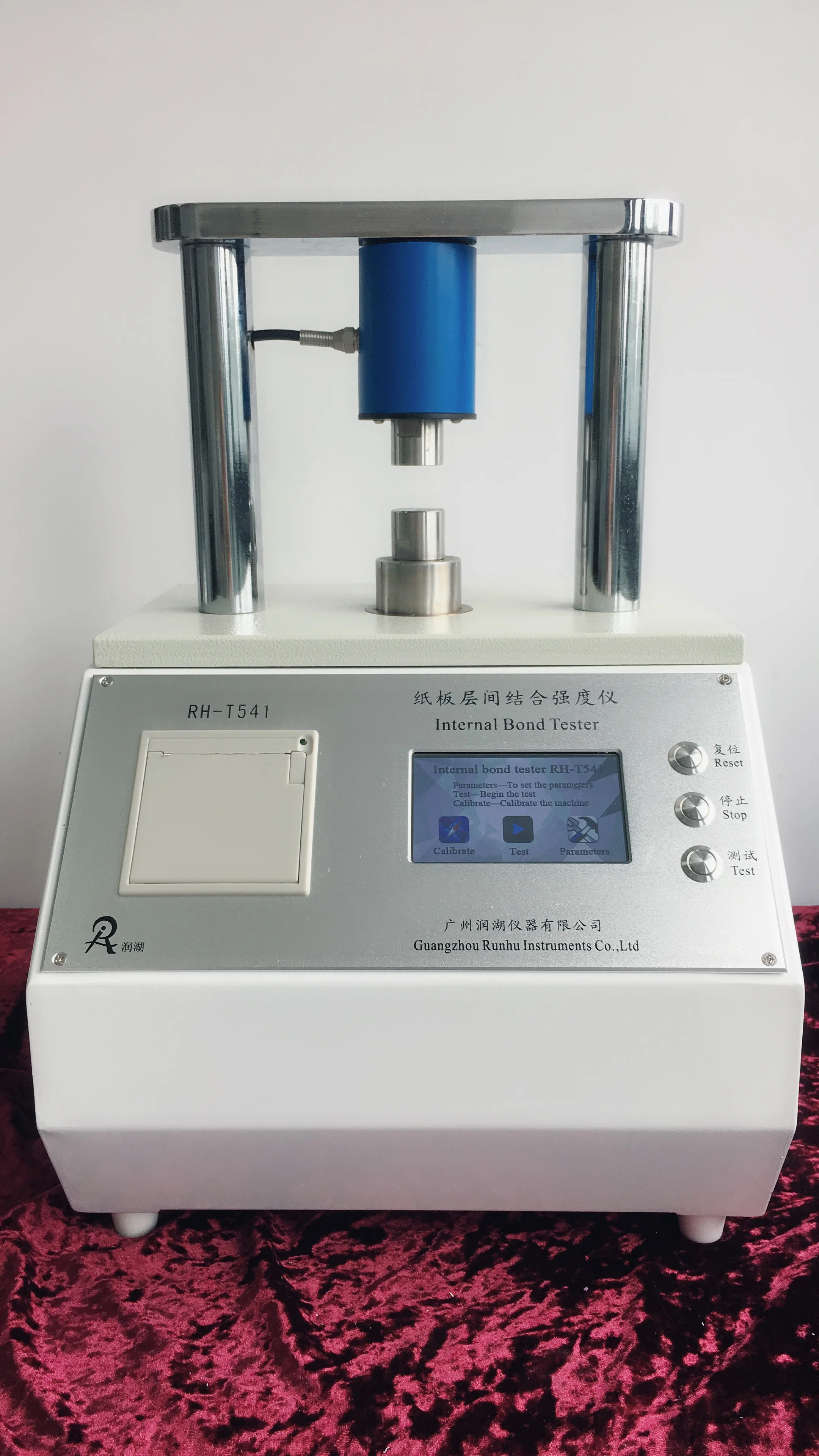

High resolution color touch screen & High precision machining







Related Products




Certifications




Our Company


About US:

Guangzhou Runhu Instrument Co., Ltd. is a professional instrumentation company consisting of research, production, sales, and technical service. As a high-tech company, Runhu's main production includes professional testing equipment and facilities of paper, packaging, printing, plastic film and tobacco sheet. The headquarters of the company locates in Tianan Energy-saving Technology Park, Panyu District, Guangzhou.
Our company has a research team formed by several top technical professionals of the country. Its core innovational concept is to develop more advanced and more precise instruments. And it has developed a multi-series of high-quality and patented products. The quality of its main products (such as compression tester, bursting strength meter, tear tester, paper stiffness device, paper tensile testing machine, tobacco filled level detector, etc.) is of the leading technical level in the country better than many domestic counterparts and has reached an international advanced level. Some other products (such as grooves instrument, cardboard layer with strength meter, crease stiffness device, thin water-resistant device, etc.) has filled the domestic production gap.

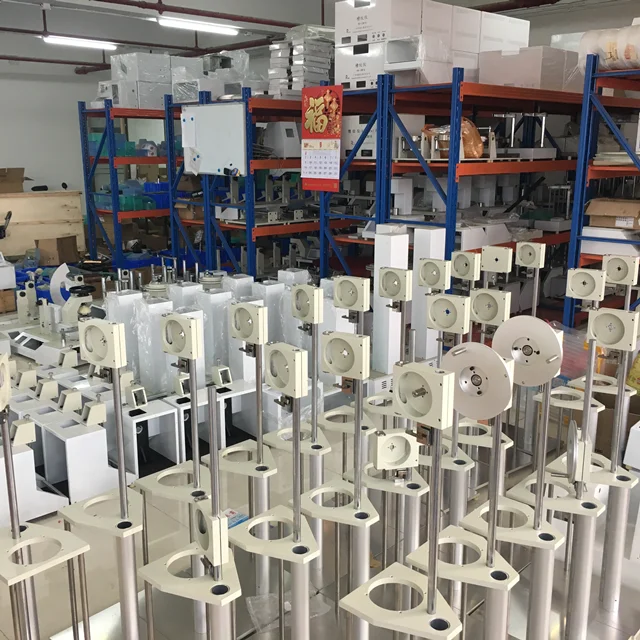

Our company has invested its own research and development center, independent mechanical plant, assembly lines and product quality inspection workshop. There are advanced production and testing equipment in the factory. Through scientific and strict management, product quality is ensured and thus reliable.
