Высокопроизводительная машина для резки абразивной проволоки с ЧПУ из Нефритового стекла и керамики
678 239,08 ₽ - 711 057,10 ₽
Станок для резки абразивной проволоки с ЧПУ нефрита
- Категория: Stone Machinery >>>
- Поставщик: TAIZHOU JIANGZHOU NUMBER-CONTROLLED MACHINE TOOL MANUFACTURE CO. LTD.
Сохранить в закладки 1600204648572:
Описание и отзывы
Характеристики
Products Description
Reciprocating numerical control abrasive wire cutting machine
1. This machine is widely used for cutting and forming semi-conductive and non-conductive materials such as graphite, jade, glass and ceramics.The machine is convenient to operate, occupies a small area and is convenient to transport.
2. In the jade and jadeite industry, this machine is especially widely used. When cutting jade materials, the loss is small, the cost is saved, and the forming quality of jade jadeite is improved.
3. The machine can be equipped with taper function, which has outstanding performance for the processing of upper and lower abnormity workpieces.
Main Technical Data
2. In the jade and jadeite industry, this machine is especially widely used. When cutting jade materials, the loss is small, the cost is saved, and the forming quality of jade jadeite is improved.
3. The machine can be equipped with taper function, which has outstanding performance for the processing of upper and lower abnormity workpieces.
Main Technical Data
Model | SX7720 | SX7725 | SX7732 | SX7740 | SX7750 | SX63 | |||||
Worktable size(mm) | 270x420 | 340x520 | 380x600 | 410x710 | 596x880 | 720x1260 | |||||
X axis travel(mm) | 250 | 320 | 400 | 500 | 650 | 1000 | |||||
Y axis travel(mm) | 200 | 200 | 320 | 400 | 550 | 630 | |||||
Max.load weight(kg) | 100 | 200 | 300 | 400 | 500 | 750 | |||||
Max.Workpiece Thickness(mm) | 200 | 300 | 400 | 500 | 600 | 600 | |||||
Stroke of taper device (optional) (mm) | 30x30 | ||||||||||
Maximum taper (optional) | ±1.5° /80 | ||||||||||
Max.diameter of rotating fixture (optional) (mm) | 200 | 300 | 400 | 500 | 600 | 600 | |||||
Max.load of Rotating Fixture (Optional) | 30 | 50 | 50 | 100 | 150 | 150 | |||||
Dia of abrasive wire (mm) | 0.33-0.45 | ||||||||||
Working speed (m/s) | 11 | ||||||||||
Length(m) | ≤200 | ≤200 | ≤300 | ≤300 | ≤400 | ≤400 | |||||
Cutting material | Non-conductive materials such as graphite, jade, ceramics, etc | ||||||||||
Working Liquid | Pure water or tap water, emulsifying water (According to the material) | ||||||||||
Tension control | Precision pneumatic control | ||||||||||
Total power of machine (kw) | ≤3 | ||||||||||
Machine dimension (mm) | 1300x1100 x1700 | 1485x1050 x1700 | 1660x1330 x1700 | 1830x1490 x1800 | 2010x1800 x1900 | 2200x2200 x1900 | |||||
Machine weight(kg) | 500 | 1200 | 1400 | 1600 | 2000 | 3000 | |||||
Homepage | Price | ||||||||||

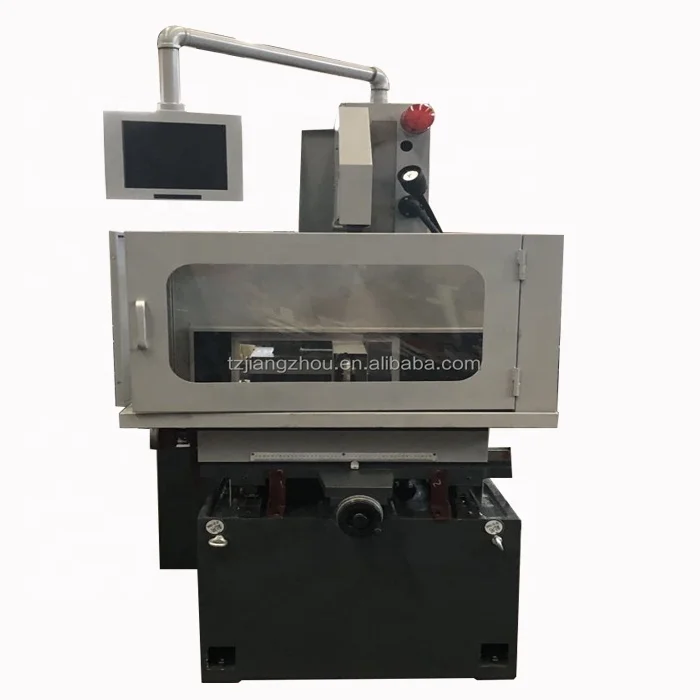

Product Display

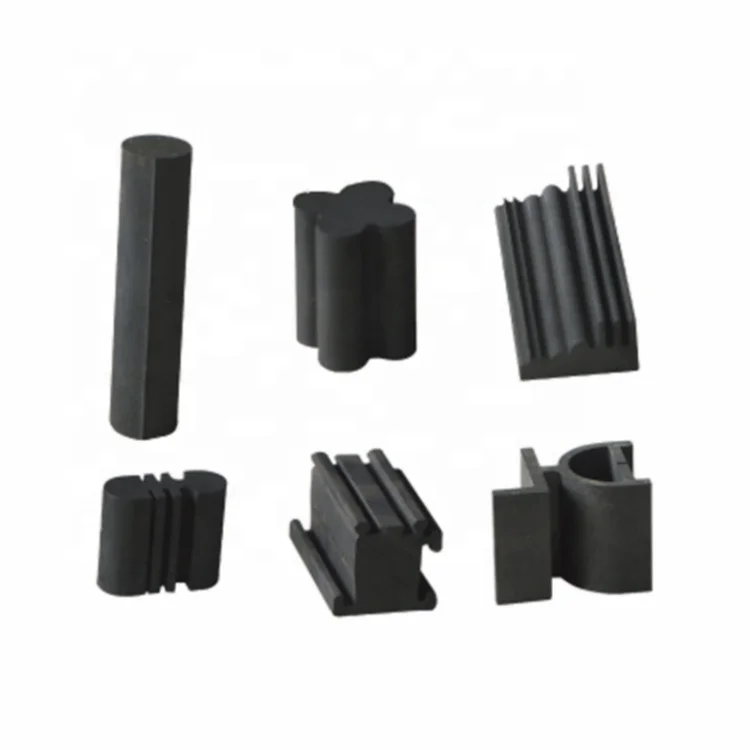

Workpiece Show
Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem, we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.
1.Technical support online service provided .
2.Technical files service provided.
3.Machine operation video provided
4.On-site training service provided.
5.Spare parts replacement and repair service provided.
6.All of the questions will be replied within 24 hours
During warranty period, if you have any parts broken because of qulity problem, we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.
1.Technical support online service provided .
2.Technical files service provided.
3.Machine operation video provided
4.On-site training service provided.
5.Spare parts replacement and repair service provided.
6.All of the questions will be replied within 24 hours
Main Products
Company Profile
1. 20 years experience in research, development and manufacture of cnc machine tool.
2. Covering an area of about 1500 square meters, Jiangzhou is equipped with professional engineers, skilled workers and scientific management system.
3. Reliable sale and after-sale service.
2. Covering an area of about 1500 square meters, Jiangzhou is equipped with professional engineers, skilled workers and scientific management system.
3. Reliable sale and after-sale service.
Certifications
Packing & Shipping
FAQ
Q: What information will you need to make the proposal?
A: The worktable size and worktable travel, your special requirements.
Q: Are you a manufacturer or trade company?
A: We are the professional manufacturer of cnc machine tool, commited to this field for above 20 years.
Q: Do you provide training and maintenance?
A: Yes. In order to make your production more efficient, after signing contract, you can send someone to my company for
professional operation training.
A: The worktable size and worktable travel, your special requirements.
Q: Are you a manufacturer or trade company?
A: We are the professional manufacturer of cnc machine tool, commited to this field for above 20 years.
Q: Do you provide training and maintenance?
A: Yes. In order to make your production more efficient, after signing contract, you can send someone to my company for
professional operation training.
