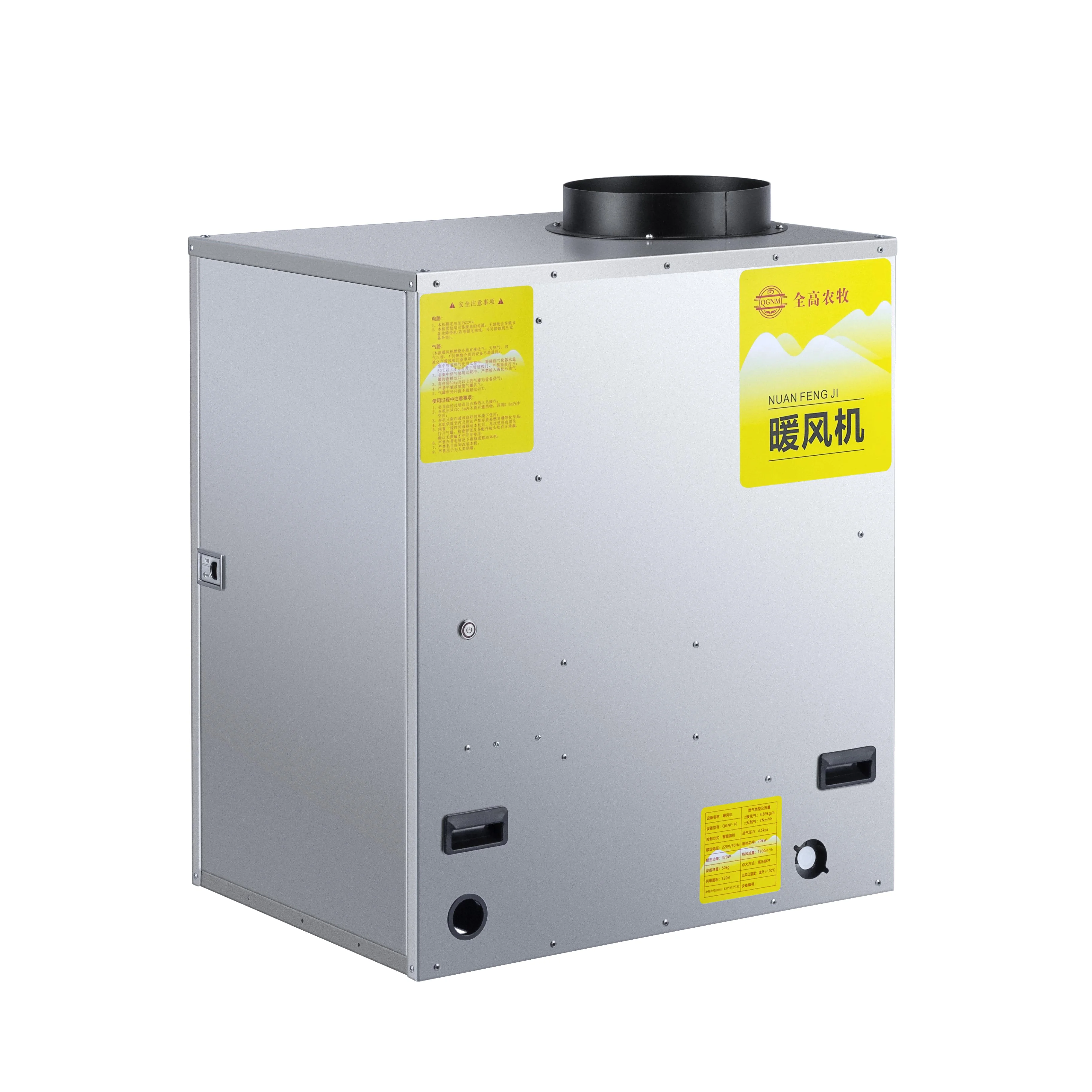

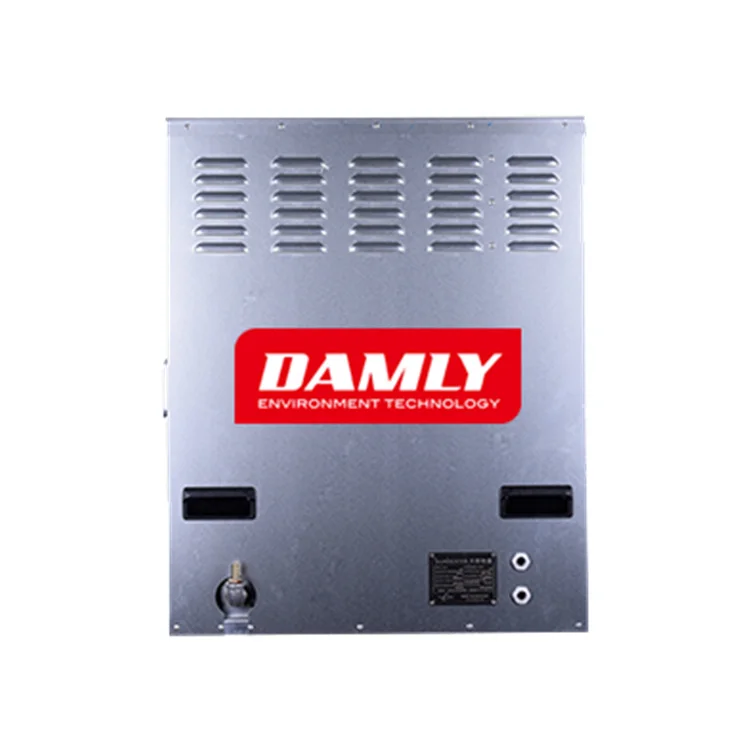

DAMLY High Heat Efficient Rabbit Farming Heater for Rabbit Cages
The purpose of this heater is the raising of farm animals and heating of agricultural use warehouses.
It is an ON/OFF heater with automatic ignition. It works with LPG or Natural gas depending on the model it could be placed inside or outside the farm buildings. A biogas model is also available.
Description of Rabbit LPG Gas Heater DO-66
- AISI 304 Stainless steel chassis or galvanized (depend on the model)
- Distribution fan with fixed flow
- Fan operation is controlled by 1 air flow switch.
- One double gas valve controlled by an electronic circuit card and programmer.
- Electronic ignition is produced by sparking generator
- Flame sensor by ionization
- Thermal protection by overheating thermostat
- The safety control box control the operation cycle of the heater. This programmer is equipped with a remote reset in case of a fault. And it can give information to the user when fault.
Technical Parameter of Rabbit Gas Heater DO-66
| PROPANE GAS | NATURAL GAS | BIOGAS | |
GAS CONNECTION | 1/2 ” | |||
ELECTRIC CONNECTION | 230 V – 50/60 Hz | |||
FUSE (inside control box) | A | 4 | ||
NET WEIGHT | Kg. | 55 | 55 | 55 |
NOMINAL POWER | KW. PCI | 66 | 66 | 45 |
KW PCS | 73 | 73 | 49 | |
GAS FLOW | Kg/h | 4.8 |
|
|
GAS FLOW | m3/h |
| 6.2 | 12 |
GAS PRESSURE | Mbar | 25-55 | 17-25 | 20-30 |
INCREASE OF TEMPERATURE | For 10° C air | 120 | 120 | 100 |
NOZZLE REFERENCE | 4 | 7 | 9 | |
AIR FLOW | m3/h | 1700 | 1700 | 1700 |
TOTAL ABSORBED ELEC. POWER | W | 370 | 370 | 370 |
Packaging Details | Standard export box, container or can be adjusted according to your demands |
Delivery Details | Within 3-5 days after payment received |
