Горячий продукт Оригинальный COB светодиоды высокой мощности 40 Вт белый светодиод 2700K 6500k 36V 500LM 40W
- Категория: >>>
- Поставщик: Shenzhen Huanyu Dream Technology Co. Ltd.
Сохранить в закладки 1600204838100:
Описание и отзывы
Характеристики
Product Presentation
cob led 20w cob cri 2500k 2700k 19x19 mm 36-39V 130-140LM/W Ra>80 110-120LM/W Ra>95 18w 24w cob diode
》》1313 1919 2828 3838 5047 6060 different size COB LED available
》》Small power COB 3W 5W 7W 12W 24W 48W
》》Midble Power COB 50W 60W 80W 100W

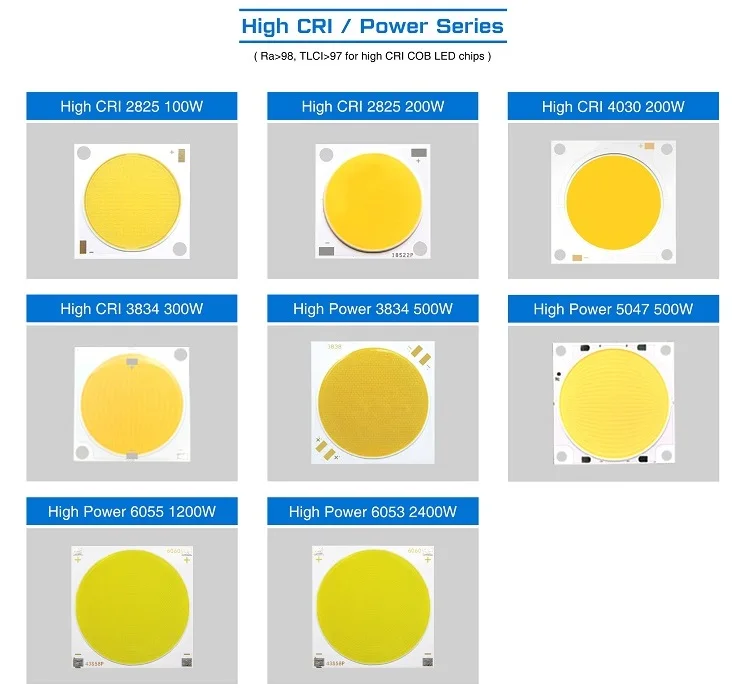

》》High Power COb 200W 300W 500W 1200W 2400W
》》Cri with Ra80 Ra90 Ra95 Ra98, customer made voltage,CCT
》》Small power COB 3W 5W 7W 12W 24W 48W
》》Midble Power COB 50W 60W 80W 100W
》》High Power COb 200W 300W 500W 1200W 2400W
》》Cri with Ra80 Ra90 Ra95 Ra98, customer made voltage,CCT
Hot selling COB LED 1919 Customize CCT& CRI& Volt | ||
Power | 30-36W (12-48W available) | |
Voltage | 36-39V | |
Current | 750-900mA | |
Series/Parallel | 12S6P | |
130-140LM/W(Ra>80) | ||
100-120lm/W (Ra>90) | ||
CCT | 1800K/2000K/3000K/4000K/5000K/6000K ( customize available) | |
CRI | Ra 90 ( CRI 80 /90/95 as choose) | |
Junction temperature | 115 ℃ | |
Solder temperature | 350 ℃ | |
Operating Temperature | -40 ~ + 85 ℃ | |
Packing | 49pcs | |
Available watt for 1919mm | ||||||||||
Part No. | Power | S&P | VF | IF | LM/W | |||||
HY01917-57D3-1208B | 42-48W | 12S8P | 36-39V | 1050-1200mA | 130-140LM/W(Ra>80) 110-120LM/W (Ra>95) | |||||
HY01917-57D3-1207B | 36-42W | 12S7P | 900-1050mA | |||||||
HY01917-57D3-1206B | 30-36W | 12S6P | 750-900mA | |||||||
HY01917-57D3-1205B | 24-30W | 12S5P | 600-750mA | |||||||
HY01917-57D3-1204B | 18-24W | 12S4P | 450-600mA | |||||||
HY01917-57D3-1203B | 12-18W | 12S3P | 300-450mA | |||||||
HY01917-57D3-1202B | 12W | 12S2P | 300mA | |||||||
Available watt for 1313mm | ||||||||||
HY01311-30D3-1204B | 20-24W | 12C4P | 36-39V | 500-600mA | 140-150LM/W(Ra>80) 110-130LM/W(Ra>95) | |||||
HY01311-30D3-1203B | 12-18W | 12C3P | 36-39V | 300-450mA | ||||||
HY01311-30D3-1802B | 18W | 18S2P | 54-58V | 300mA | ||||||
HY01311-30D3-1502B | 15W | 15S2P | 45-48V | 300mA | ||||||
HY01311-30D3-1202B | 7-12W | 12S2P | 36-39V | 180-300mA | ||||||
HY01311-30D3-1002B | 10W | 10S2B | 30-34V | 300mA | ||||||
HY01311-60D3-0702B | 7W | 7S2P | 21-23V | 300mA | ||||||
HY01311-60D3-0503B | 5W | 5S2P | 15-17V | 300mA | ||||||
HY01311-60D3-0303B | 3W | 3S3P | 9-10V | 300mA | ||||||
Part No. | Power (W) | Voltage (V) | Current (mA) | Luminous (LM) | CRI (Ra) | CCT (K) |
60*60mm | 1200W | 130-150 | 4650*2mA | 90-150LM/W | ||
38*38mm | 500W | 108-112V | 2340*2mA | 100-150LM/W | ||
28*28mm | 200W | 30-34V | 6670mA | 90-150LM/W | ||
28*28mm | 200W | 54-58V | 3300mA | 100-160LM/W | ||
40*40mm | 200W | 30-34V | 3350mA | 90-130LM/W | ||
40*40mm | 100W | 30-34V | 3000mA | 90-110LM/W | ||
40*40mm | 200W | 30-34V | 6670mA | 90-160LM/W | ||
28*28mm | 200W | 27-32V | 3700mA | 90-130LM/W | ||
18*18mm | 50W | 36-40V | 1400mA | 90-160LM/W | ||
13*13mm | 7W | 42-45V | 160mA | 90-130LM/W | ||
13*13mm | 15W | 45-50V | 330mA | 90-130LM/W |
Application
Related Products
Company Information
Certification
Customer Reviews
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-3 days, mass production time needs 3-7 days according order quantity .
Q3. Do you have any MOQ limit for led light order?What's the Payment way ?
A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways payment.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-3 days, mass production time needs 3-7 days according order quantity .
Q3. Do you have any MOQ limit for led light order?What's the Payment way ?
A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways payment.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
