Полностью автоматическая вертикальная упаковочная машина со шнековым наполнителем для порошковой муки 100 г 500
- Категория: >>>
- Поставщик: Hangzhou Zon Packaging Machinery Co. Ltd.
Сохранить в закладки 1600204939539:
Описание и отзывы
Характеристики
1.Product Application
It is suitable for weighing grain, stick, slice, globose, irregular shape products such as candy, chocolate, jelly, pasta, melon seeds, roasted seeds, peanuts, pistachios, almonds, cashews, nuts, coffee bean, chips ,raisins, plum, cereals and other leisure foods, pet food, puffed food, vegetable, dehydrated vegetables ,fruits, sea food, frozen food, small hardware, etc.
2. Technical Feature
1. Material conveying, measuring, filling, bag-making, date-printing, finished product outputting are all completed automatically
2. High measuring accuracy and efficiency
3.Packing efficiency will be high with vertical packing machine and easy to operate.
1. Material conveying, measuring, filling, bag-making, date-printing, finished product outputting are all completed automatically
2. High measuring accuracy and efficiency
3.Packing efficiency will be high with vertical packing machine and easy to operate.
III. Technical Specification
Product Description
Model | ZH-BA |
Weighing range | 10-5000g |
Packing speed | 10-40 Bags/Min |
System Output | ≥4.8 Ton/Day |
Packaging Accuracy | Base on product size |
System Unite | ||||||
1.Screw conveyor Conveyor size can be customize base on target weight. | ||||||
2.Auger filler Screw diameter can be customized base on target weight. | ||||||
3.Vertical packing machine: Options with ZH-V320, ZH-V420,ZH-V520,ZH-V720,ZH-V1050 | ||||||
4.Product conveyor: Chain plate type and belt type is available. | ||||||
Ⅳ.Packing Details

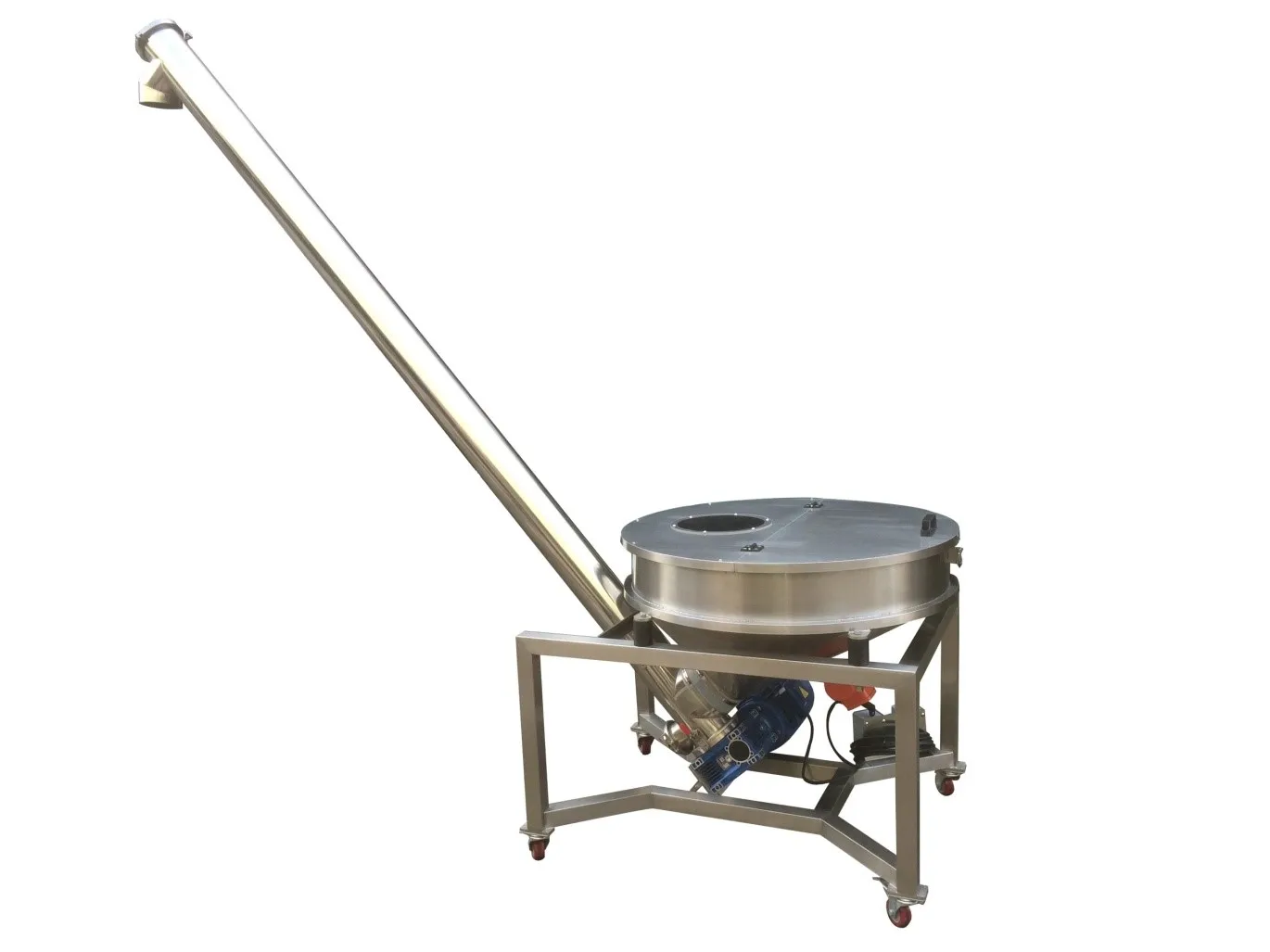

Model | ZH-CS2 Inclined Screw Conveyor with Vibrating Hopper | ||||||
Charging Capacity | 2m3/h | 3m3/h | 5m3/h | 7m3/h | |||
Diameter of pipe | Ø102 | Ø114 | Ø141 | Ø159 | |||
Hopper Volume | 100L | 200L | 200L | 200L | |||
Total Power | 610W | 810W | 1560W | 2260W | |||
Total Weight | 100kg | 130kg | 170kg | 200kg | |||
Hopper Dimensions | 720x620x800mm | 1023 ×820×900mm | |||||
Charging Height | Standard 1.85M, 1-5M could be designed and manufactured. | ||||||
Charging angle | Standard 45degree,30-60 degree are also available | ||||||
Power Supply | 3P AC208-415V 50/60Hz | ||||||

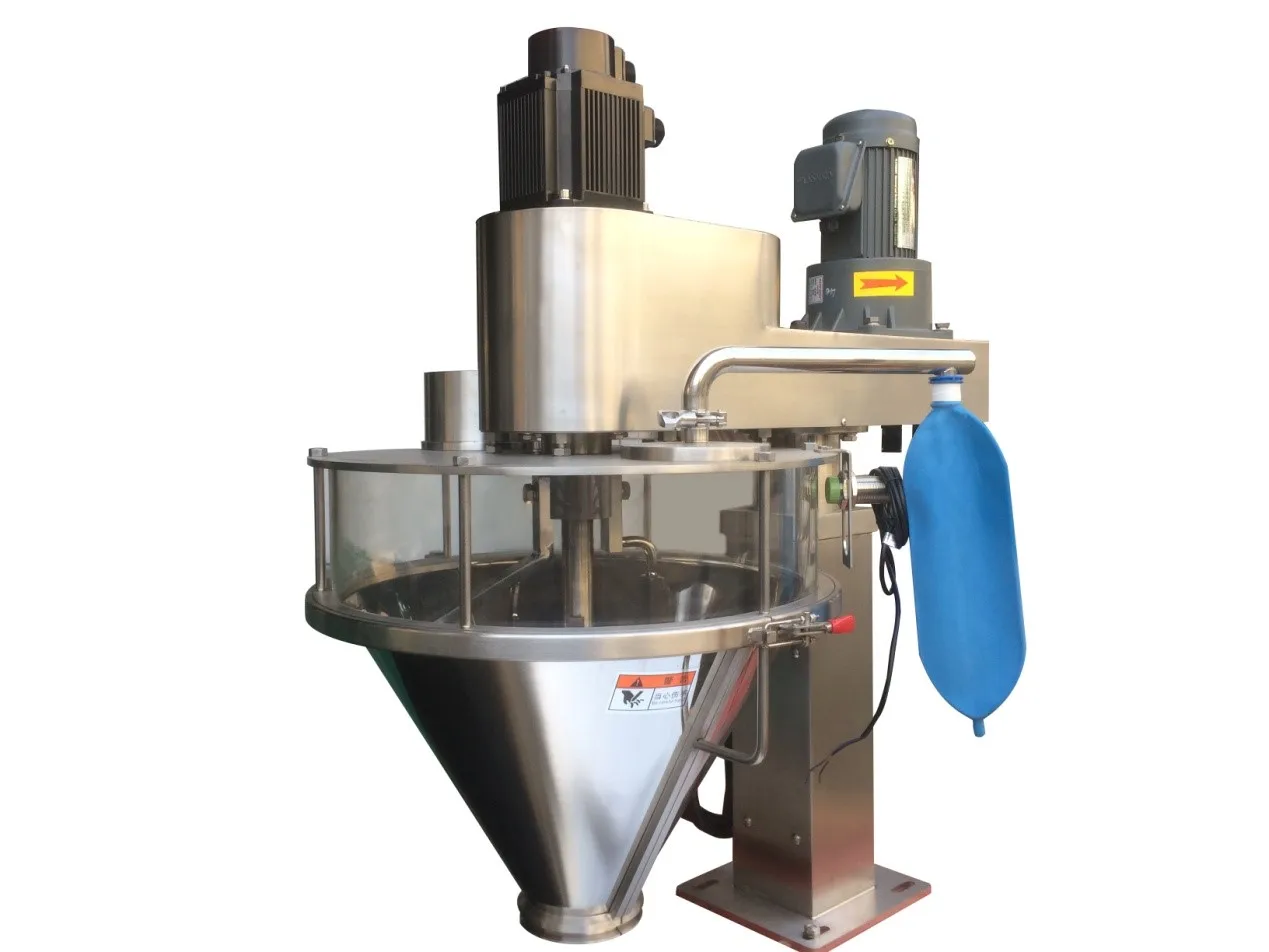

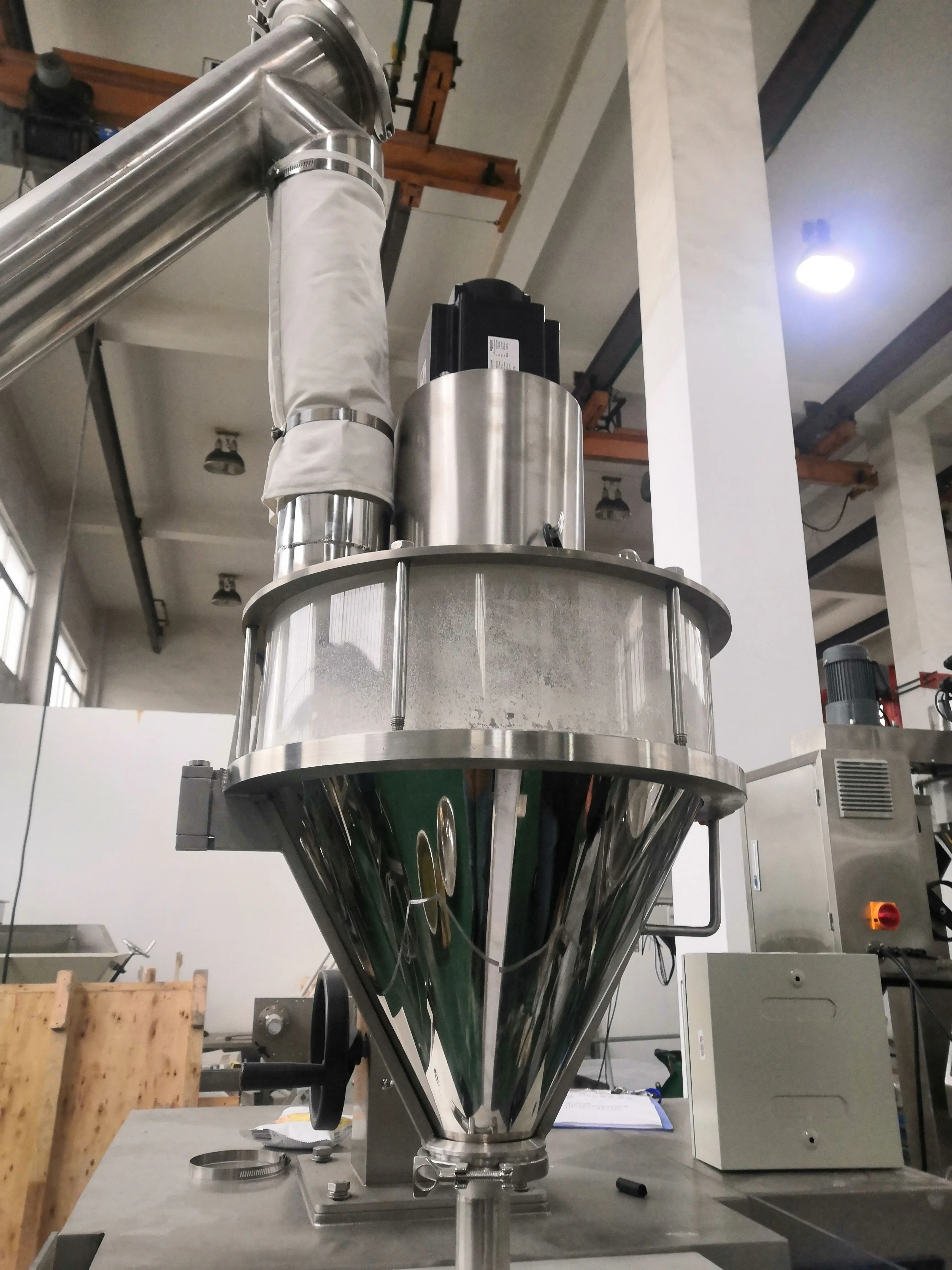

Model | ZH-PF-A14 |
Control system | PLC & Touch Screen |
Hopper | Quick disconnecting hopper 50L (enlarged hopper 70L) |
Packing Weight | 10 - 5000g |
Weight Feedback | By off-line scale (in picture) |
Packing Accuracy | ≤ 100g, ≤±2%; 100 – 500g, ≤±1%; ≥500g,≤±0.5% |
Filling Speed | 5 – 60 times per min |
Power Supply | 3P AC208-415V 50/60Hz |
Total Power | 1.4 KW |
Total Weight | 100kg |
Overall Dimensions | 900(L)×800(W)×1300(H) |
ZH-V320 | Bag width: 60-150mm Bag length: 40-200mm |
ZH-V420 | Bag width: 60-200mm Bag length: 60-300mm |
ZH-V520 | Bag width: 90-250mm Bag length: 80-350mm |
ZH-V620 | Bag width: 100-200mm Bag length: 100-400mm |
ZH-V720 | Bag width: 120-350mm Bag length: 100-450mm |
ZH-V1050 | Bag width: 200-500mm Bag length: 100-800mm |
Cases Show
Certificate
Exhibition & Team
1. Exhibition
2.Team
Packing & Delivery
Packaging | ||
Size | It depends on the product you choose | |
Gross Weight | It depends on the product you choose | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
If you have any question ,you can contact us at any time.And we will try our best to help you .The details are in the under.
1. Training services:
We will train your engineer to install our weigher. You can send your engineer to our factory or we dispatch our engineer to your company. We will introduce your engineer how to install the weigher and how to fix problem.
2. Trouble shooting service:
Some times if you can not fix the problem in your country, we will send our engineer there if you need us to support. By the way, you need to afford the round trip flight ticket and accommodation fee.
3. Spare Parts replacement:
In guarantee period, if spare part broken, we will send you the parts free and we will pay the express fee. And please send us the spare parts back. when machine is out of guarantee period, we will provide you the spare parts in cost price.
4. The documents that will be supplied:
1) Invoice;
2) Packing List;
3) Bill of Lading
4) Other files that buyer wanted.
Our Company
Hangzhou Zon Package Machinery co.,Ltd is a professional manufacturer of Packing System. We have nearly 10 years' experience in Packing Machinery Market. Our packing systems are suitable for food, granule, powder, hardware, fruit, vegetable and so on. Packing System including Packing machine, Multihead weigher, Check weigher, Metal detector, Bucket conveyor , Rotary table ,Rotary filling machine, and so on.
Based on our rich experience of weighing and packing solution, we always aim to fulfill or exceeds customers' expectations. Our machines have been sold to USA, Korea, Thailand, Africa and other 50 countries. And we won the trust and praise of many partners . Meanwhile we got high reputation in the field of packaging machinery.
Clients From All Over The World
FAQ
Q1. Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
Q2. Do you have quality certificate?
Yes we have CE, SGS etc.
Q3.What's the MOQ, delivery time, warranty and installation terms?
MOQ: 1 set
Delivery time: 25 working days. (based on order.)
Warranty period: whole machine 1 year. In warranty period, We will send the part free to replace the one that is not broken by purpose.
Installation: Engineers available to service machinery overseas.
Q4.What's payment terms & trade terms you accept ?
Usually we appreciate 40% in advance by T/T; T/T 60% before shipment. We usually offer FOB Ningbo/Shanghai. But we also accept other way like L/C and do CIF/ EXW etc.
Q5.Does it easy to operate and what can I do if it doesn't work?
First ,our machine is stable and easy to operate, what you need to do is just learn some basic skills like how to operate PLC. We will send you manual and video, we suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong, you can call us ,video-chat or email us .We will fix problems within 24 hrs .Our engineer also can be dispatched to overseas as you required.
