2 варианта: 1 дюйм DN25 нержавеющая сталь 304 4 20mA V Шаровой модуляции электрический клапан
- Категория: >>>
- Поставщик: Taizhou Tonhe Flow Control Co. Ltd.
Сохранить в закладки 1600206141462:
Описание и отзывы
Характеристики

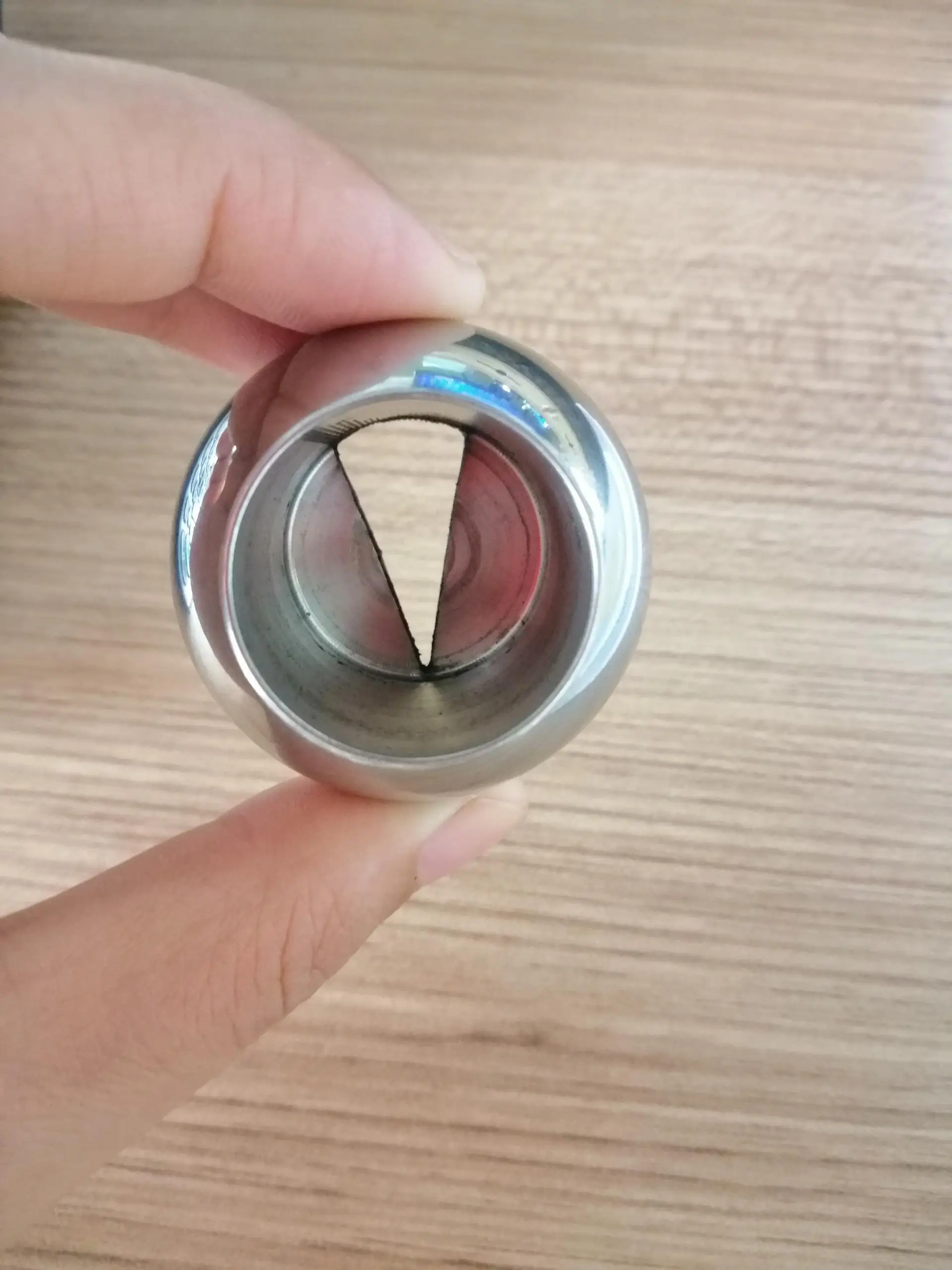

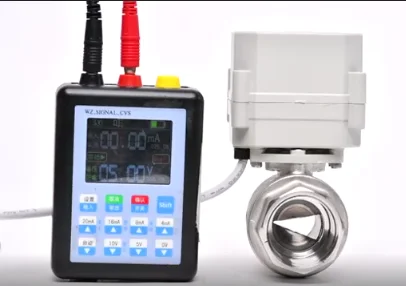

Tonhe series straight 30 degree V type ball modulating control valve, Has compact size with smart shape, Perform reliably, with long life time, intelligent control, high torque actuators, low noise, no leak, and many other features.
2-way NSF61 Motorized flow control water ball valves can control flow size, for auto drain , water cooling , electric brewing system ,DC9-24V,4-20mA, 0-5V, 0-10V,IP67 1.5Mpa,NSF61
Technical Parameters
Product size | NPT/BSP 1/4" 3/8” 1/2” 3/4” 1” (Optional ) |
Maximum working pressure | 1.0MPa |
Circulation medium | Fluid, air |
Rated voltage | DC9-24V |
control signal | 4-20mA ,0-5V,2-10V |
Wiring control methods | 5 wire control with feedback signal |
Position | Any position ( 0~100% is ok) Make as your requirement, for example, 4 position, 5 position,etc. |
Open/close time | ≤7S |
Life time | 100000 times |
Valve Body material | Brass SS304 (Optional) |
Actuator material | Engineering Plastics |
Sealing material | FKM & PTFE |
Actuator rotation | 90° |
Max. torque force | 3N.M |
Cable Length | 0.5m 1.5m |
Environment temperature | -15℃~60℃ |
Liquid temperature | 2℃~90℃ |
Manual override | No |
Indicator | Yes |
Protection class | IP67 |
Certificate | LVD, EMC,ROHS and SS304 valve passed NSF61-G |
Company passed | Iso9001:2008 |
Product Insurance | PICC |
Locked-rotor Current | 500mA |
Locked-rotor Delay Time | 2-4s |
Assemble Drawing:
Wiring diagram
5 wire control with feedback signal:
1,RD(red wire) connects to DC9-24V positive pole;
2,BK(black wire) connects to DC9 ~ 24V negative pole, and it is also 4-20mA-/0-5V-/0-10V’s negative pole;
3,GR(green wire) connects to analogy signal positive pole(e.g. 4-20mA, 0-5V, 0-10V) ;
4,YW(yellow wire) connects to ERROR output negative pole. Wet contact NPN triode collector output. When there is an error causing the motor to work with excessive current, such as when debris blocks the valve and the ball cannot rotate, the contact is closed; when working normally, the contact open, it only can pull down the external signal. The load is 500mA
5,WT(white wire) connects to position feedback negative pole.
Wet contact NPN triode collector output, OC output PWM signal, 100Hz, 5%-95%, indicating 0-90 degrees. The load is 500mA.
*PWM: Connecting a pull-up resistor to WT and RD, usually use a 1k or 5.1k resistor, recommend to use 1k for power supply below 15V, and 5.1k for over 15V. Oscilloscope clamp connects to power’s negative pole, and oscilloscope probe connects to PWM white wire.
*5%-95% represents duty cycle, which is the ratio of VCC time to the cycle time.
*PMW signal is a signal to give position feedback, the error signal needs to be connected with a 10k resistor to power’s positive pole. When blocking occurs, the error signal to the ground voltage will be lower, at this time, it is able to test signal with oscilloscope.
Design feature
1 All-copper gear design, high accuracy output torque, especially for multi-channel scaling system.
2 Small size, compact structure.
3 A variety of control methods, either to accept remote valve position control signal, but also the feedback signal in place for computer intelligence unit testing.
4 Good sealing performance.
Packaging & Shipping
Our Services
Pre-sale service
1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can
totally believe our service.
After you choose:
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.
After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.
TONHE is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved
CE certification and SS valve approved NSF61 international certification.
we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .
Company Information
When you inquiry our proudct , pls confirm below detail diameter :
Then Nadine ( Skype : nadine84081) will give you a reasonable price , thanks .
Proportinal control valve , electric motor control valve, regulating control water ball valve,electronic control valve
