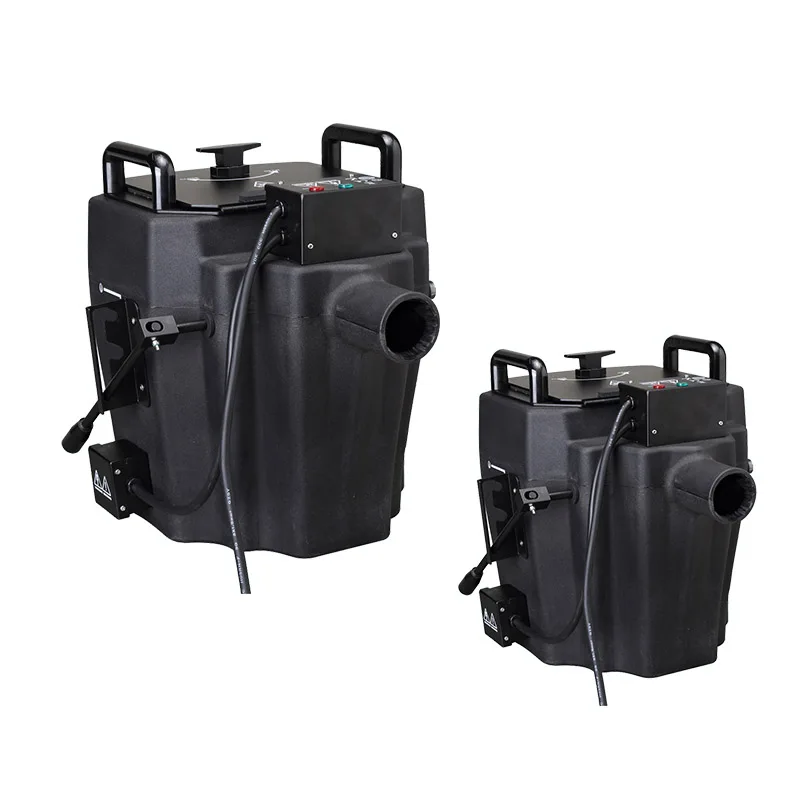

Сценическое освещение высокой производительности, 6000 Вт, низкий уровень сухого льда, тумана, дыма, низкий туман для свадьбы, сцены Fairyland
729,00 $ - 750,00 $
Автоматический контроллер коэффициента мощности FORERUN 380 В светодиодный английский дисплей Интеллектуальный трехфазный
- Категория: Professional Audio, Video & Lighting(old) >>>
- Поставщик: Shijiazhuang Furun Zhongcheng Trading Co. Ltd.
Сохранить в закладки 1600206209374:
Описание и отзывы
Характеристики
Product Description
Product name process | Intelligent reactive power compensation controller |
Product model | FJK-02S-12F |
Product Brief | 1. Full digital design, AC sampling, human-machine interface adopts large screen LCD Chinese LCD. 2. Adhering to the people-oriented design concept, modular assembly and streamlined design. 3. It can display the power factor, voltage, current, active power, reactive power, total harmonic distortion rate of voltage, total harmonic distortion rate of current, frequency, temperature, capacitance output display, switching status alarm and other information in real time. 4. Setting parameters and inputting numbers can be prompted in English 5. The capacitor control scheme supports three-phase compensation, split phase compensation and comprehensive compensation schemes, and the control scheme can be set through the menu. 6. It has two working modes of manual compensation and automatic compensation. 7. The sampling physical quantity is reactive power, with harmonic measurement and protection function. |

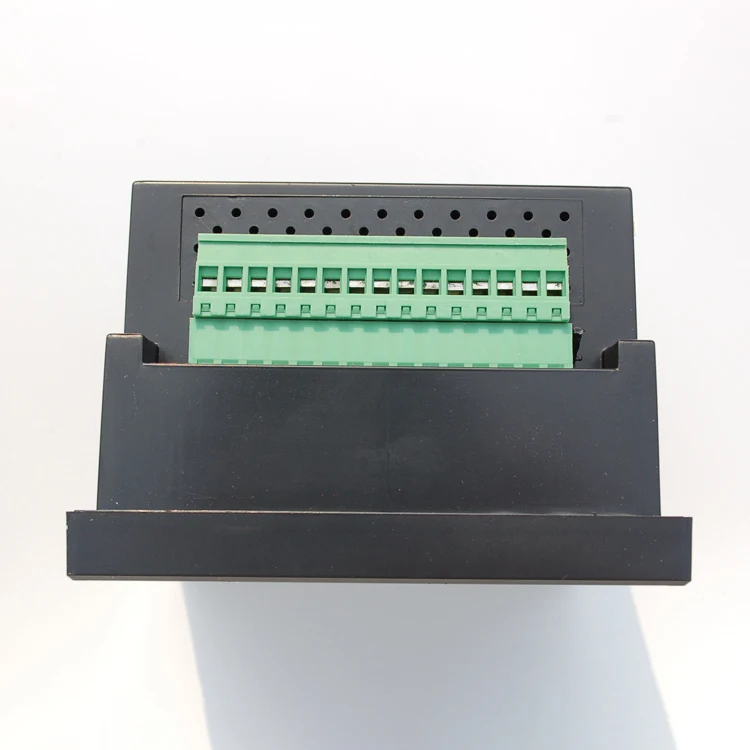

Product appearance | The overall dimension is：120mm*120mm*110mm The opening size is:113mm*113mm |
service conditions | 1. Altitude: ≤ 2500m 2. Working temperature: - 40 ℃ ~ + 60 ℃ 3. Storage temperature: - 40 ℃ ~ + 65 ℃ 4. There is no corrosive gas, conductive dust, inflammable and explosive medium, and there is no severe vibration, rain and snow erosion at the installation site |
technical data | measured data 1. Measurement voltage: 100V ～ 290v 2. Power factor measurement: 0.200 lagging to 0.200 leading 3. Measuring current: 0 ~ 6000a 4. Working power: 380V ± 20% 5. Measurement frequency: 47-53hz 6. Display reactive power: 0 ～ 6553kvar 7. Sensitivity: 50mA 8. Display active power: 0 ～ 6553kw 9. Display voltage total harmonic distortion rate: 0.0-100.0% 10. Display total harmonic distortion rate of current: 0.0-100.0% I / O signal 1. Sampling voltage: La, LB, LC phase voltage 2. Sampling current: secondary 0 ～ 5a of bus La, LB, LC phase current transformer 3.12v 30mA / Branch Error reporting display performance LCD data display refresh cycle ≤ 1s Communication interface data 4. Communication interface: RS-485 5. Protocol: Modbus communication protocol 6. Communication rate: 4800 ～ 38400bps (no check bit) measurement accuracy 1. Voltage: ± 0.5% 2. Current: ± 0.5% 3. Active power: ± 1.0% 4. Reactive power: ± 1.0% 5. Power factor: ± 1.0% 6. Frequency: ± 0.1Hz Note: the sampling voltage and current must be in phase! |

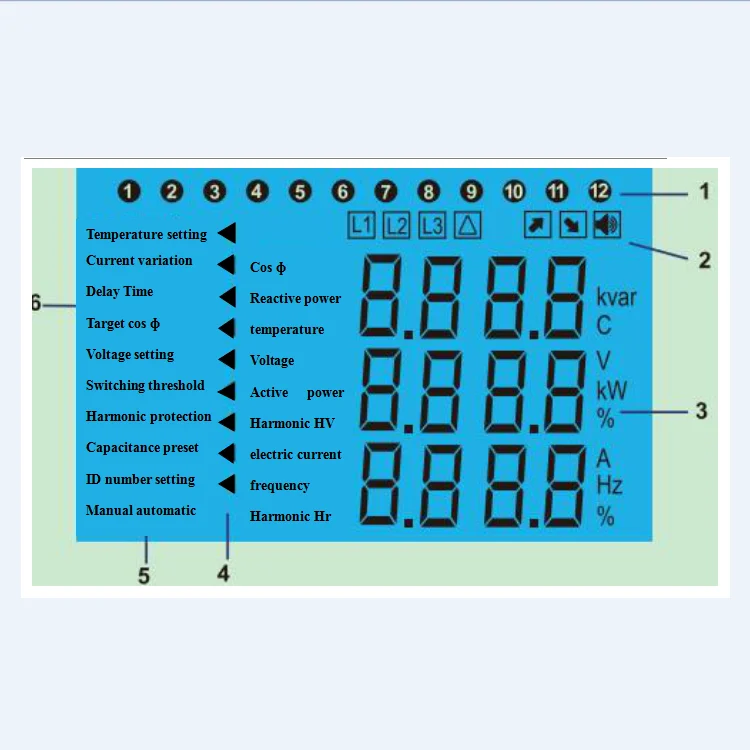

LED display description
1. Capacitance control output display
2. Status display: from left to right: input indication, removal indication and alarm indication
3. Data display area
4. Show menu item indicator
5. Manual and automatic operation mode display
6. Setup menu display
2. Status display: from left to right: input indication, removal indication and alarm indication
3. Data display area
4. Show menu item indicator
5. Manual and automatic operation mode display
6. Setup menu display

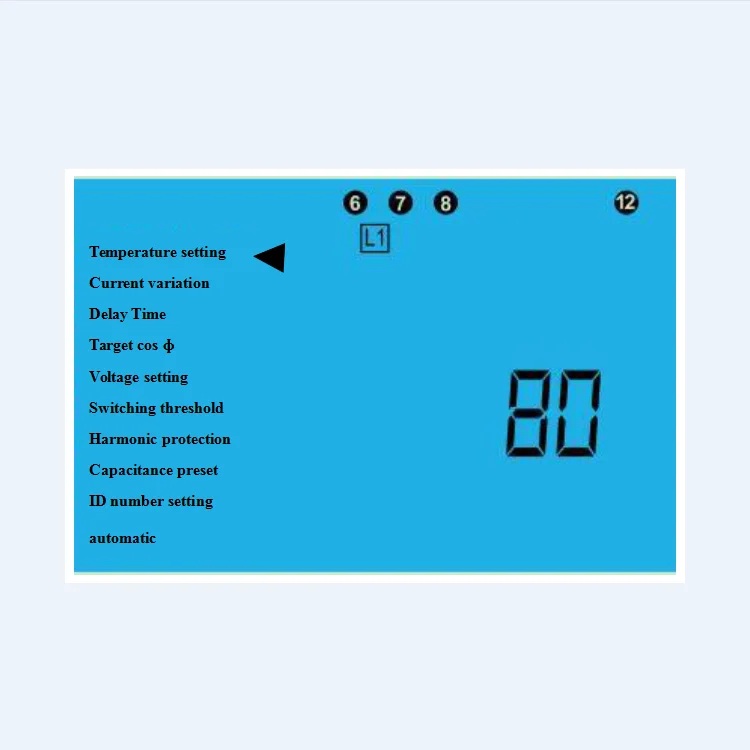

Temperature setting
This item displays the temperature protection setting value of the controller, the range is 50 ~ 100 ℃, and the factory default is 80 ℃. Operate the "▲▼" key to change the value. Press the "▲" or "▼" key all the time. The number will change rapidly. Press the "SET / ABC" key to enter the next parameter setting and save the modified data.
After the "ID number setting" is completed, press the "SET / ABC" key again to exit the parameter setting interface automatically
After the "ID number setting" is completed, press the "SET / ABC" key again to exit the parameter setting interface automatically
Related Products
Certifications

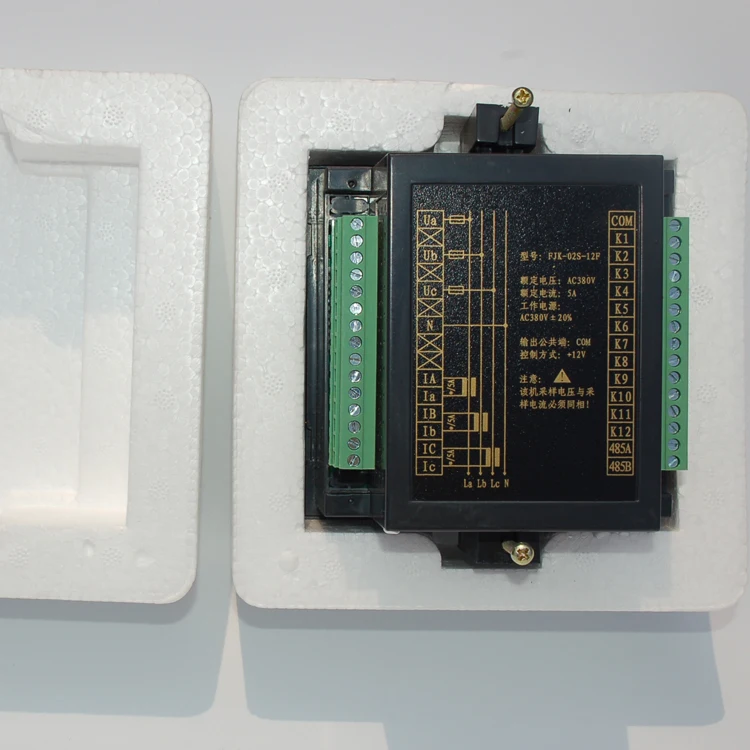

Packing&Shipping
Company Introduction
Shijiazhuang Furun Zhongcheng Trading Co., Ltd. is located in Chang'an District, Shijiazhuang City, Hebei Province. Is a diversified electronic product sales enterprise, with a professional management team, a wide range of industry background, professional financing institutions, in the national range has a perfect marketing and service network. The sales service area covers 20 provinces and cities in China and has established close cooperation with them. In the development of the company, we do not forget to optimize customer service. With strong economic and technological strength, high-quality professionals and high-quality and efficient services, we have established a good corporate image in the society, which has been widely trusted and praised by all walks of life and customers. We have won the highest evaluation of new and old customers with the same enthusiasm!
Похожие товары

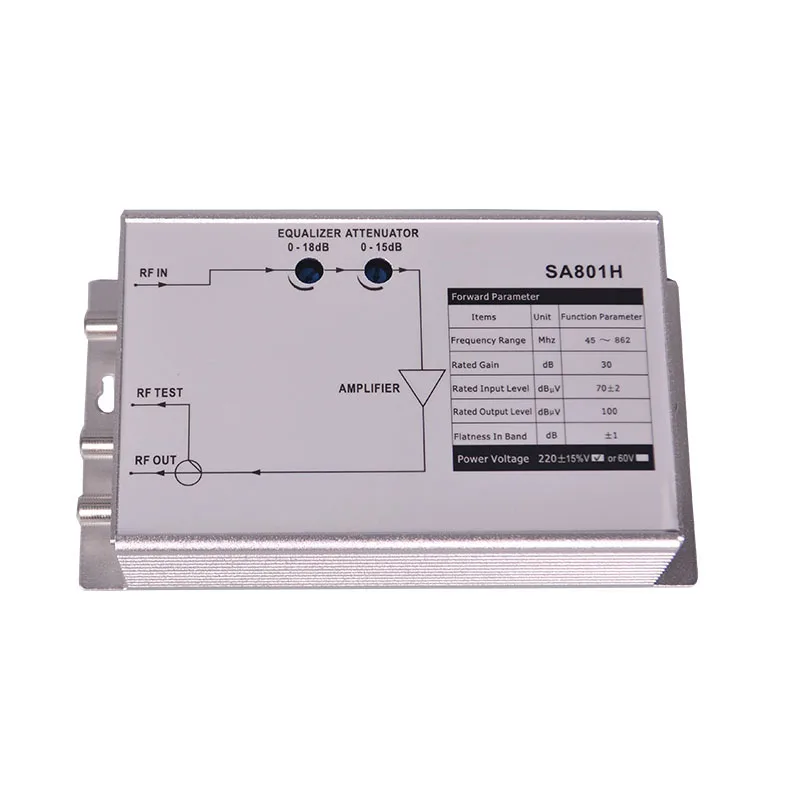

SA801H CATV RF усилитель домашний усилитель CATV усилитель

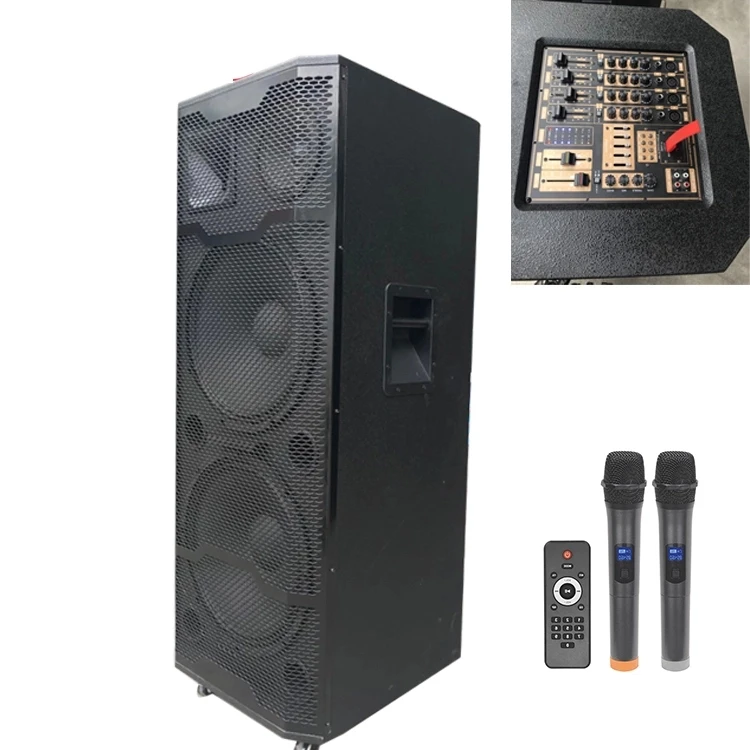

Горячая Распродажа 2020, колонка для караоке с беспроводным микрофоном для вечеринки 2,0
105,00 $ - 109,00 $

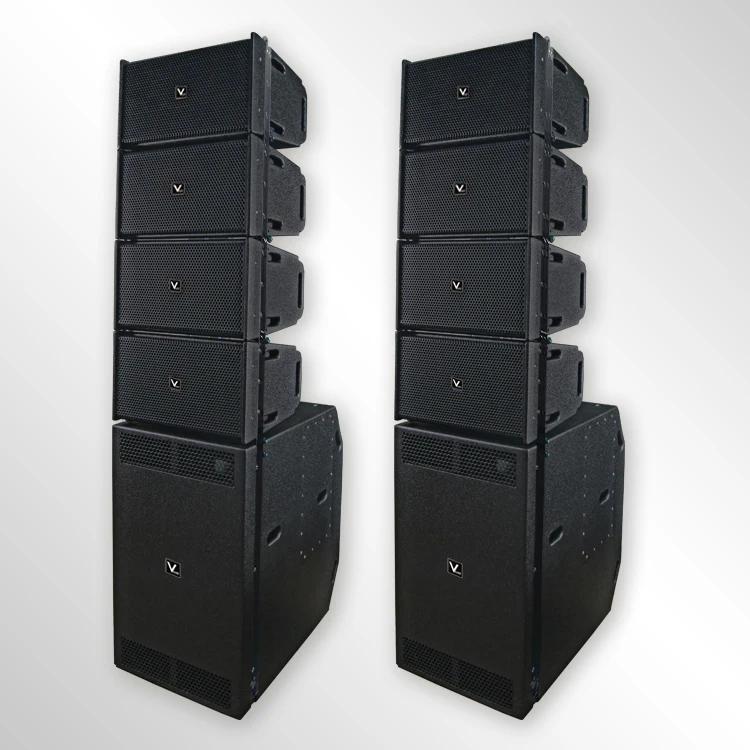

Ine array набор DSP усилитель активной мощности сабвуфер линейный массив громкоговоритель линейный массив

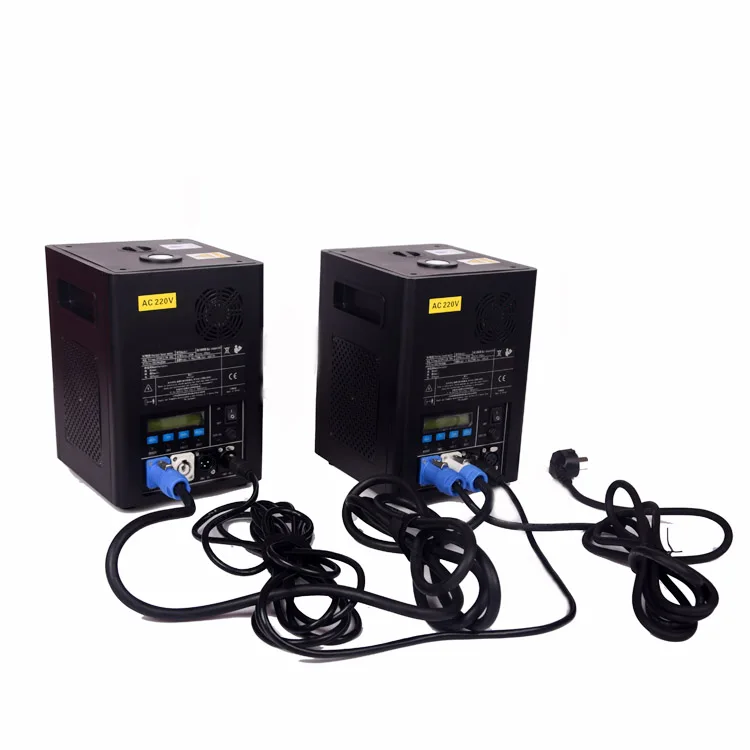

Заводская цена, холодный фейерверк, машина с dmx512 и дистанционным управлением
288,00 $ - 310,00 $

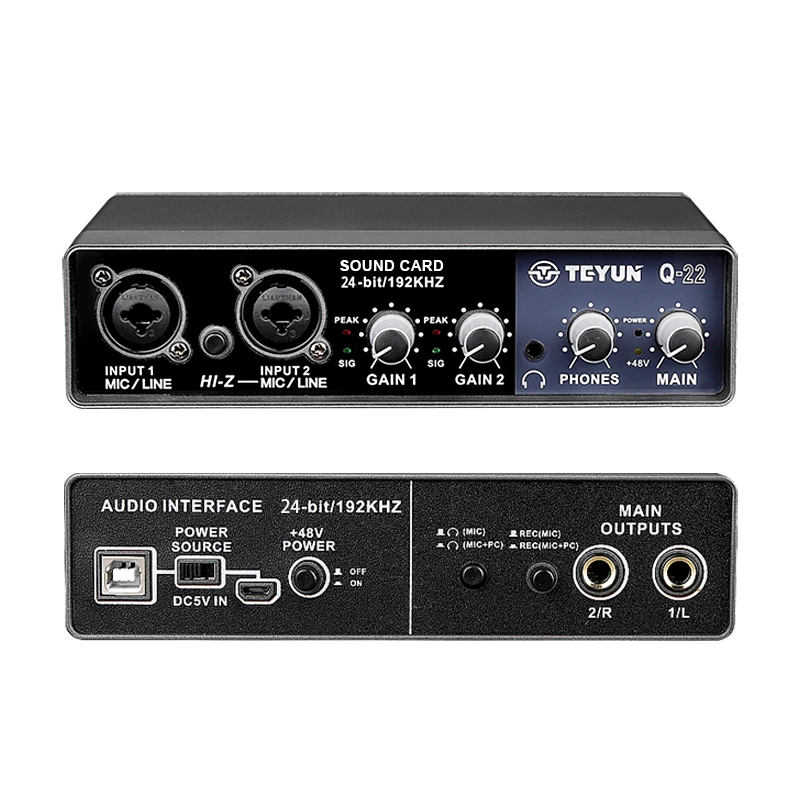

Профессиональный микрофон TEYUN внешняя звуковая карта USB компьютер без вождения микрофон для живой записи аудио интерфейс
28,58 $ - 57,14 $

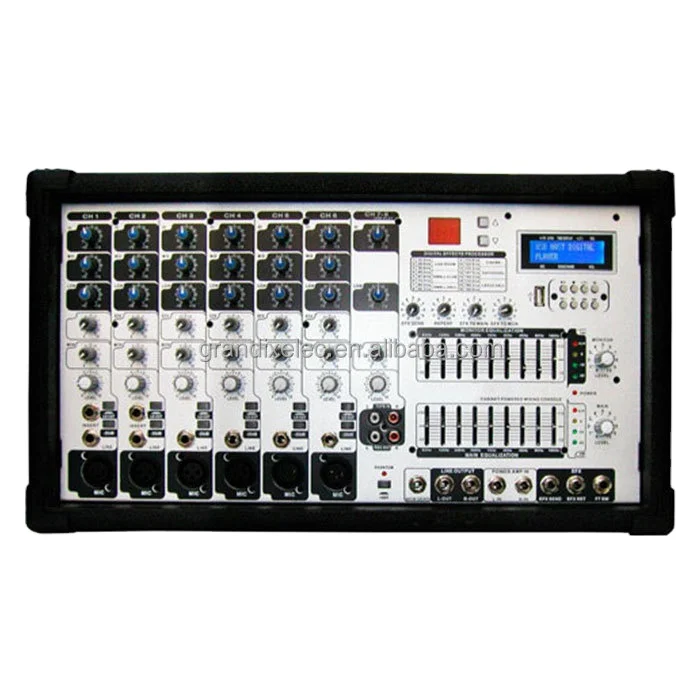

Прямая Заводская поставка, профессиональный миксер, аудио цифровой миксер, usb Запись
169,00 $ - 175,00 $

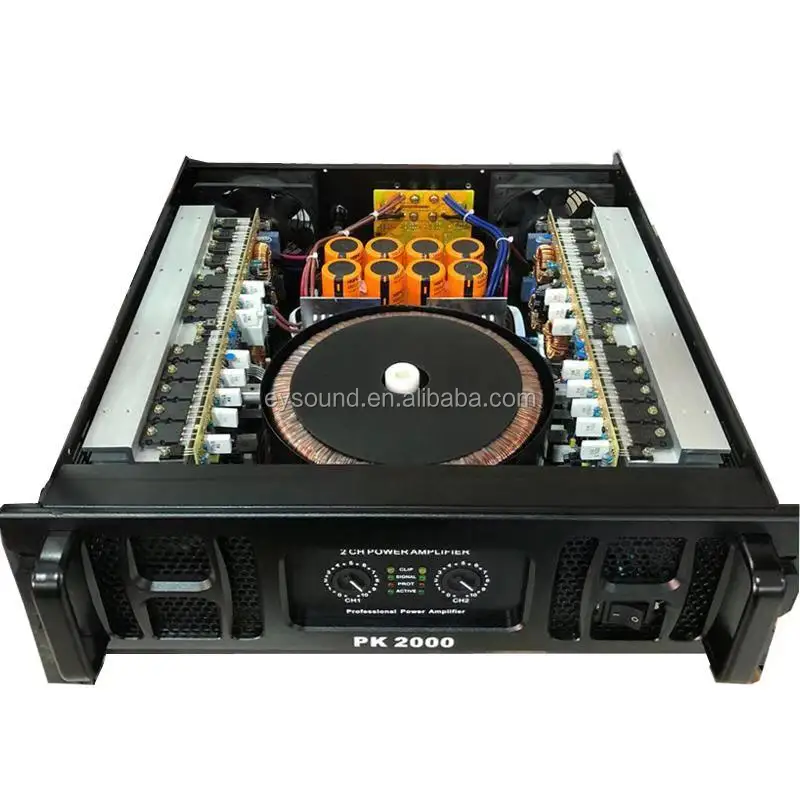

Усилитель сцены большой мощности 2X1800W @ 8OHM, профессиональный усилитель класса TD PK2000
