Датчик веса Luggagei R127 30 кг 50 150
- Категория: >>>
- Поставщик: Changzhou Right Measurement And Control System Co. Ltd.
Сохранить в закладки 1600206802452:
Описание и отзывы
Характеристики
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t
Introduction
The Load Cell for Extremely Fast Weighing Processes
The R127 single point load cell has been optimized for processes requiring very fast weighing, offers a flexible multi-range measuring range, and is unique in the market.

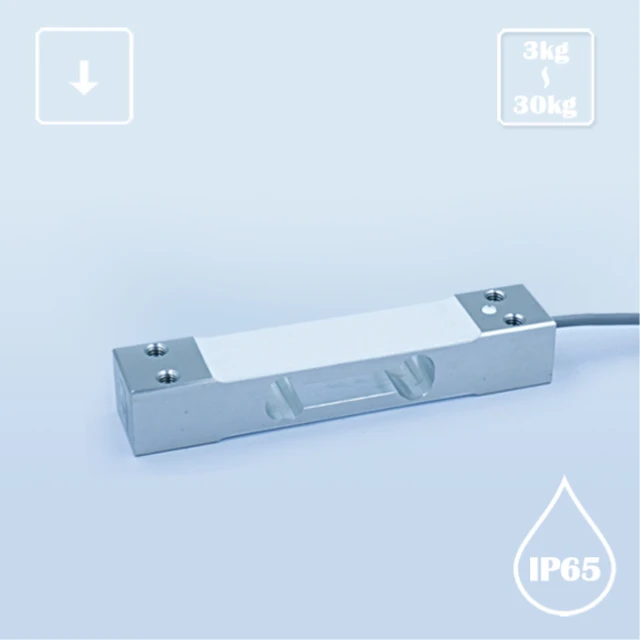

R127 Single Point Load Cell: Highly Dynamic Weighing up to 30 kg
The R127 single point load cell weighs static and, in particular, dynamic loads up to 30 kg with extremely high precision and speed. It displays an outstanding stiffness owing to its special design. The extraordinarily small nominal (rated) displacement ensures a high fundamental frequency that is unparalleled in the market. The R127 single point load cell is therefore ideal for utilization in rapid weighing processes in industrial applications. The load cell has been optimized for dynamic applications to facilitate weighing at high speed. Manufacturers dealing in individual weighing system solutions can also benefit from the extensive range of R127 variants.
Accuracy class: C3 (Multi Range)
Capacities: 3–30 kg
Degree of protection: IP65
Precise measurement results
Precise weighing with accuracy class C3 (Multi Range)
Very stable signal with 6-wire configuration, also finds utility in the event of temperature and resistance fluctuations in the connection line
High output signal due to the use of strain gauge technology
Off-center load compensation
Shielded connection cable ensures high EMC (electromagnetic compatibility)
Precise results due to high measurement accuracy and immunity to interference
High-speed measurements
Uniquely high measuring speed due to high stiffness of the measuring body
Specification
- Parameter -
Specifications | ||
Capacity | 3,6,10,20,30 kg | |
Rated output | 2.0±10%mV/V | |
Zero balance | ±2%F.S. | |
Non-linearity | 0.015%F.S. | |
Hysteresis | 0.015%F.S. | |
Repeatability | 0.02%F.S. | |
Creep(30min) | 0.017%F.S. | |
Temp.effect on output | 0.02%F.S./10℃ | |
Temp.effect on zero | 0.03%F.S./10℃ | |
Input impedance | 405±10Ω | |
Output impedance | 350±5Ω | |
Insulation | ≥5000MΩ/100VDC | |
Recommended excitation | 5~15V | |
Maximum excitation | 20V | |
Compensated temp range | -10~40℃ | |
Operation temp range | -20~60℃ | |
Safe overload | 150%F.S. | |
Ultimate overload | 300%F.S. | |
Cable size | φ4×3000mm | |
Material | Aluminum alloy | |
Weight approx. | 0.25kg | |

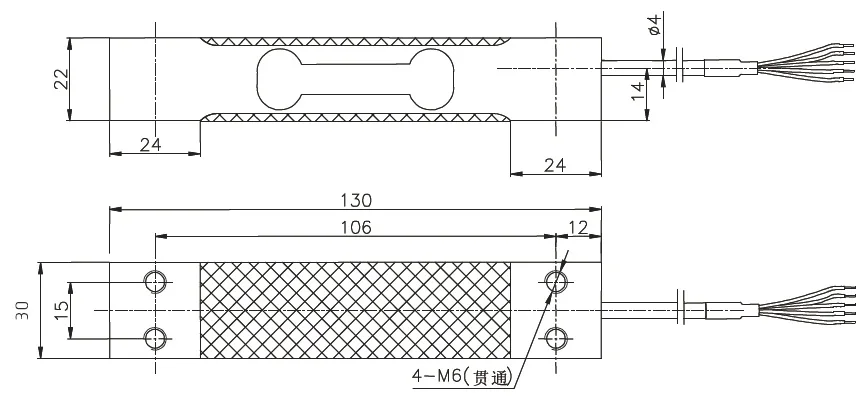

- Dimension -
- Load Direction -
- Wiring Code -
\t\t\t\t\t\t\t\t\tApplications \t\t\t\t\t\t\t
