QK-801D Высококачественная кожаная обувь с прямым приводом
32 569,07 ₽ - 38 089,25 ₽
Автоматическая проектирующая машина швейная с узорами 6040 Производство автоматической строчки
- Категория: >>>
- Поставщик: Dongguan Xingchi Sewing Equipment Co. Ltd.
Сохранить в закладки 1600206883471:
Описание и отзывы
Характеристики
Product decription
Big area computer pattern automatic Sewing Machine pattern sewing machine 60x40
Product application
Car mat, handbag, notebook cover, belt and other leather goods etc
Misutishi type:

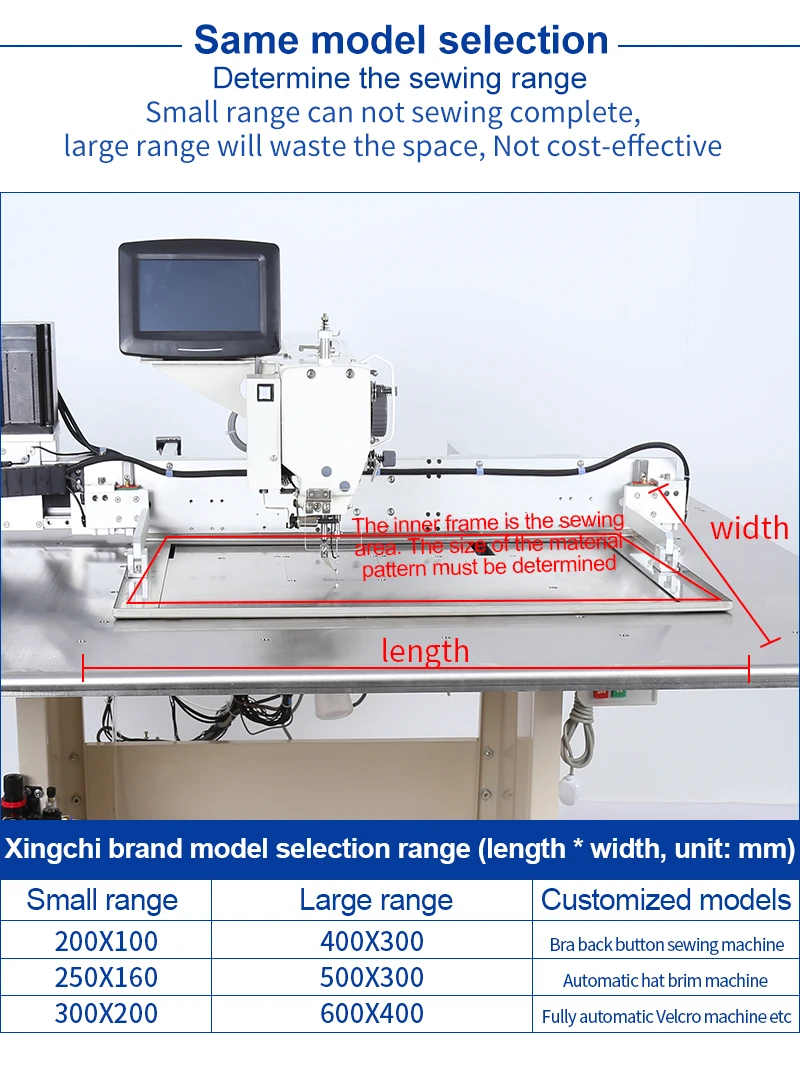

Small size sewing area as follows:
200mm*100mm, 250mm*160mm, 300mm*200mm, 350mm*200mm, 300mm*250mm, 350mm*250mm, 400mm*200mm, 450mm*250mm.
Big size Sewing area:
400mm*300mm; 500mm*300mm; 500mm*400mm; 600mm*300m; 600mm*400mm; 600mm*500mm;
700mm*500m; 800mm*400mm; 800mm*500mm; 900mm*500mm; 1000mm*600mm; 1000mm*800mm and other sewing area can be custom made.
brohter type: XC-1310G, XC-2210G, XC-3020G, XC-6040G
G type: XC-2516G, XC-3020G, XC-6040G
juuki type: XC-210D (sewing area 130mm*60mm)
Item Name | XC-6040F-YT pattern sewing machine 60x40 | XC-5030F-YT | XC-4030F-YT |
Sewing area | 600*400mm | 500*300mm | 400*300MM |
Needle | DP*17 #22(#18-25#) | Same | Same |
Max speed | 2500rpm | Same | Same |
max stitching length | 0.1-12.7mm | Same | Same |
Press foot Alternating movement | 4-10mm | Same | Same |
Hook | Rotary hook | Same | Same |
Machine head type | Misubishi type | Same | Same |
Press foot adjustable height | 20mm | Same | Same |
Clamp adjustable height | 32mm | Same | Same |
Main motor | Direct drive motor 750w | Same | Same |
Transmission motor(X,Y axis) | Stepper motor 550W | Same | Same |
Voltage | 220V | Same | same |
Volume | 2.8 | 2.8 | 2.8 |
Gross weight | 460KG | 460KG | 460KG |
Production Process
Production takes time and effort.
From pieces of raw material, we clean, assemble, grind, etc., step by step and finally the our technology become part of the machine.
Before the machine serves the users, so many works had been done by our engineers, workers and QCs.
With such hard work, quality of our machines is filled with confidence and pride.
Design Features
1.X, Y axis transmission sensor
Can quickly detect the machine arm transmission range, to control the raw material pattern within the sewing range.
2. Effective oil supply
Supply oil slowly when working, prevent high wastage during production process; indicator shows the oiling situation for daily maintenance.
3.Transmission gear and rack
Auto transmission system set workers free from moving the material to sew, just need to handle the material into the pattern panel, get the job done by pressing one button.
4.Big rotary hook & auto cutting
Twice big hook and shuttle means half time in pause and changing bottom thread, improve the production efficiency. As per pattern design, when rotary knife move to the fixed knife, the thread will be cut automatically.
5.Stepper motor for X, Y axis transmission
Unlike sewing head using direct drive servo motor, the X,Y axis transmission uses stepper motor, avoid any interruption of voltage or current change, stop moving exactly when needed.

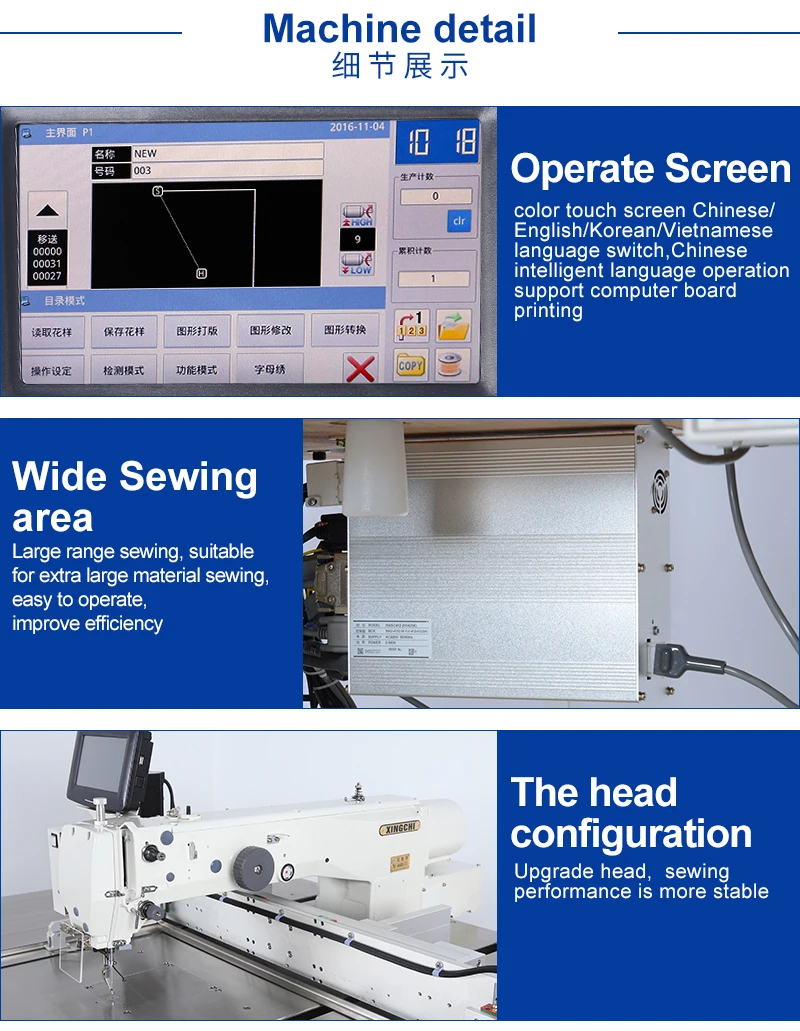

6.Full touch screen and simple interface
Six operating languages: Chinese, English, Japanese, Korean, Burmese, Turkish.
Colour graphics display, easy to operate and edit design, we have videos to teach people how to sew.
Our Company
Our Vision: Focus on quality & technology
* 19 years' effort on improving quality and technology.
* Large amount of R&D investment in sewing machine industry.
* Great attention on feedback concerning quality and technology.
* Engineering and service team work together to handle technology issues.
Xingchi Provide sewing equipments including whole set or spare parts of sewing machine:
* computer sewing machine series
* 341cylinder bed series
* debburring machine for box & handbag
* cylinder bed series
* computer automation series
* post bed series
* lockstitch zigzag sewing machine series
* special function series
* double needles sewing machine series
* flat bed series
* lockstitch sewing machine with top and bottom
* post bed bottom feed sewing machine
* post bed series
* overlock sewing machine series
* leather skiving machine
* automatic plastic folding machine series
Packing & Delivery
Xingchi guarantees to pack and deliver as per customers' request.
For head only: packed with carton, protected with foam, and certain cartons in a wooden box.
For whole set: head and accessories fixed with polybag after assembling and testing, then packed in wooden case.
Packaging | ||
Size | 1250 (W) * 750 (D) * 1340 (H) | |
Weight | 180kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Related Products
Contact info.
Service
Service:
1.We can give you the professional suggestion of the machine based on your products.
2. Give you the instructions of the machine.
3. Teach you how to make the pattern. (There is a video for this and we have instructions)
4.For the mold we can teach you how to make the mold of the machine.
5.Teach you how to make the pattern in the computer and convert the file to the machine. Which very easy.
6. If you buy the machine, together with the machine there is a free mold and some spare parts together with the machine.
2. Give you the instructions of the machine.
3. Teach you how to make the pattern. (There is a video for this and we have instructions)
4.For the mold we can teach you how to make the mold of the machine.
5.Teach you how to make the pattern in the computer and convert the file to the machine. Which very easy.
6. If you buy the machine, together with the machine there is a free mold and some spare parts together with the machine.
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; all goods with Inspection before shipment;
2.what can you buy from us?
Sewing Machine and other related machines we can provide full production line machines for handbag, shoes, luggage, backpack, car seat, glove and other leather goods
3. why should you buy from us not from other suppliers?
1.We have more than 20 years of technical team
Always a pre-production sample before mass production; all goods with Inspection before shipment;
2.what can you buy from us?
Sewing Machine and other related machines we can provide full production line machines for handbag, shoes, luggage, backpack, car seat, glove and other leather goods
3. why should you buy from us not from other suppliers?
1.We have more than 20 years of technical team
2.We are the real factory.Standard assembly line
3.We have our own patent products can do OEM , ODM
4.We are familiar with the use of the sewing machine of handbags, luggage, leather goods, etc.
4. what services can we provide?
Accepted Delivery Terms: FOB,CIF, EXW ETC；
Accepted Payment Currency:USD,RMB; 30% deposit via T/T, 70% balance before shipping
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
4.We are familiar with the use of the sewing machine of handbags, luggage, leather goods, etc.
4. what services can we provide?
Accepted Delivery Terms: FOB,CIF, EXW ETC；
Accepted Payment Currency:USD,RMB; 30% deposit via T/T, 70% balance before shipping
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
5.what's the MOQ?
No MOQ, One set is ok.
No MOQ, One set is ok.
6.what's the Warranty?
Answer: One year warranty
7.What's the Cargo ready date?
Answer: For sample or small qty, the machine can be ready about 5-10days after payment received. For mass production, will based on your qty and request.
Answer: One year warranty
7.What's the Cargo ready date?
Answer: For sample or small qty, the machine can be ready about 5-10days after payment received. For mass production, will based on your qty and request.
Contact : Amy Li
China headquarters:
China headquarters:
DONGGUAN XINGCHI SEWING EQUIPMENT CO.,LTD
wechat/Whatsapp:+86 13798857217 / +86 13556696536
Add: Room 301, Unit one, Building two, No.3 Yongxing road,Shayao village, Shijie Town, Dongguan city, Guangdong China.
wechat/Whatsapp:+86 13798857217 / +86 13556696536
Add: Room 301, Unit one, Building two, No.3 Yongxing road,Shayao village, Shijie Town, Dongguan city, Guangdong China.
Burma company:
ZHEN XUN SEWING EQUIPMENT TRADING CO.,LTD
No.9, Nang se Ya street, Shi da Road, Lai Da Yan.
No.9, Nang se Ya street, Shi da Road, Lai Da Yan.
Vietnam Company:
Cong ty TNHH thuong mai thiet bi may Kien Dat Viet Nam
Add：Thon Le Loi 2-xa Dong Xuan-huyen Dong Hung-Thai binh
Add：Thon Le Loi 2-xa Dong Xuan-huyen Dong Hung-Thai binh
Похожие товары

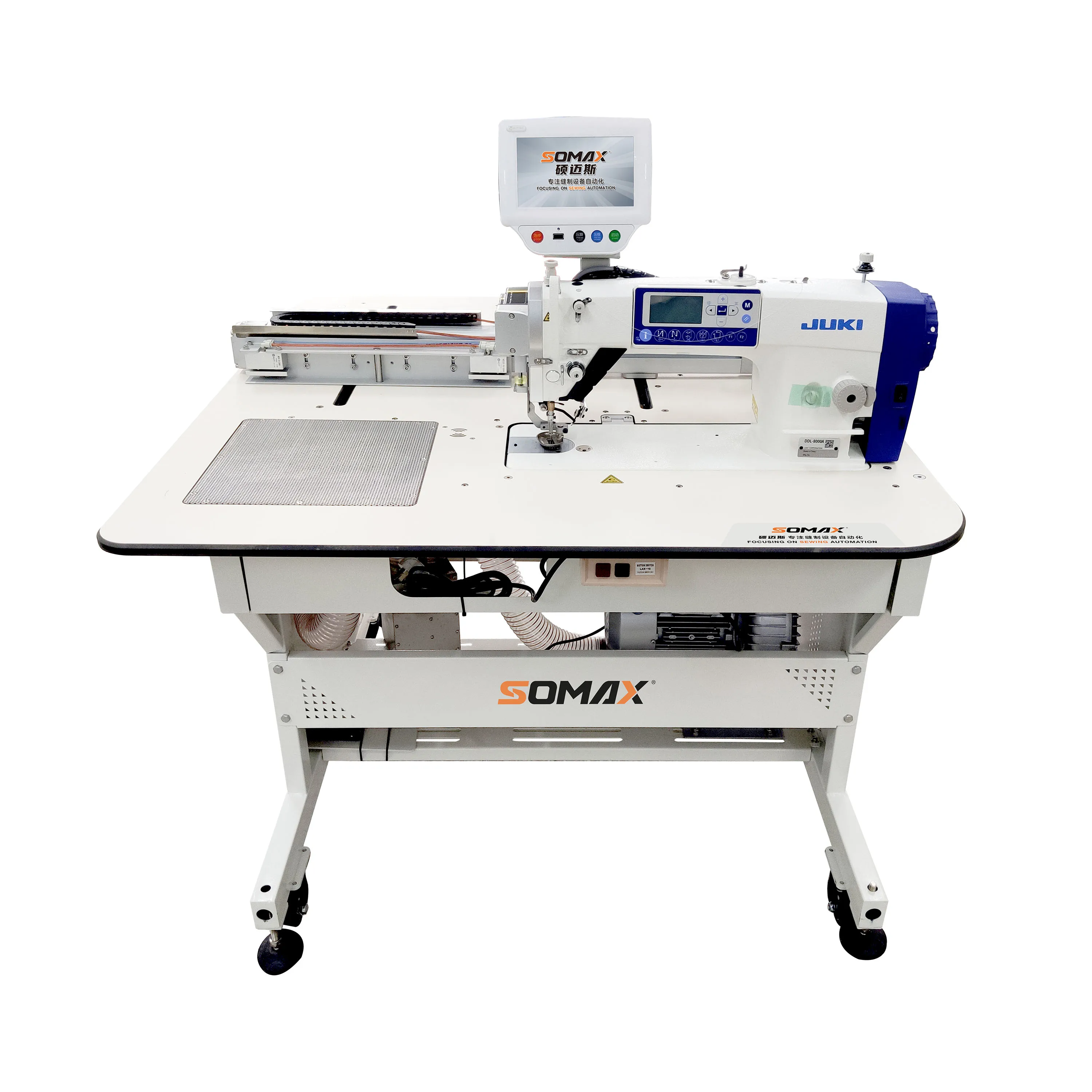

Высокоскоростная японская головка Somax SM-15V многофункциональная швейная машина с шаблоном

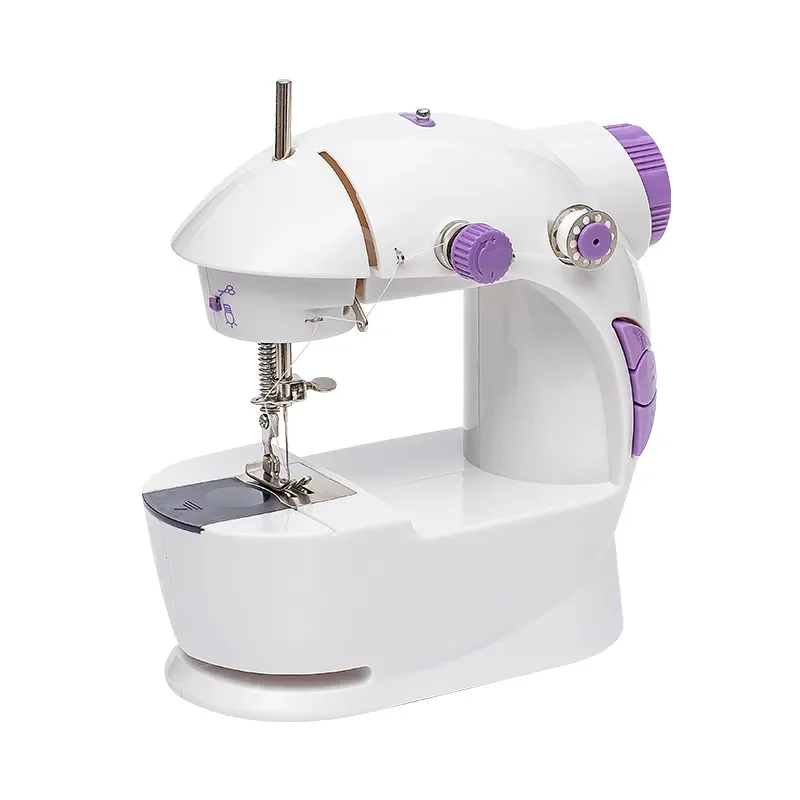

Горячая распродажа Бытовая мини-швейная машина небольшая автоматическая настольная швейная для плотной ткани
6 491,74 ₽ - 6 712,54 ₽

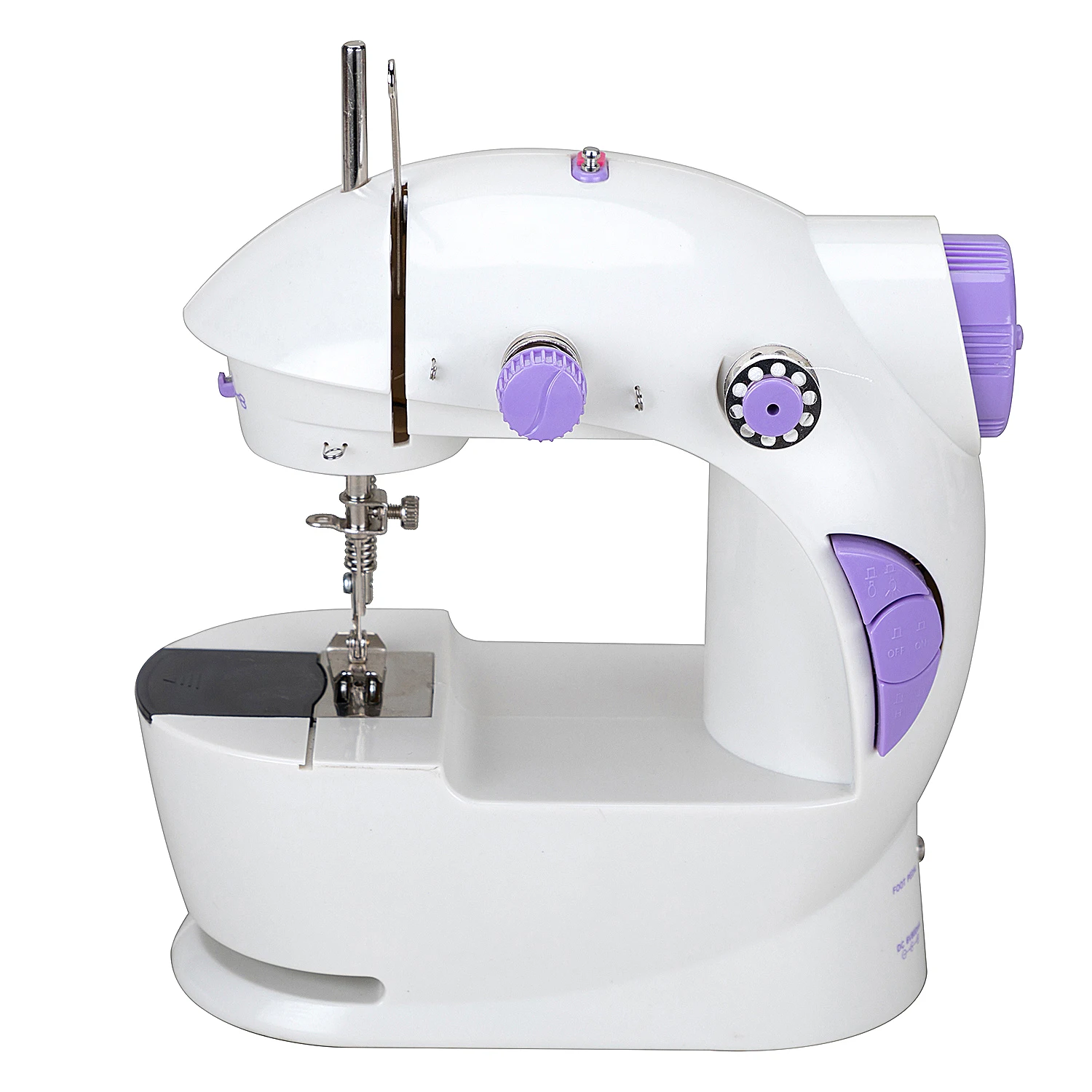

VOF FHSM-201 портативная швейная мини-машина для производства одежды
872,19 ₽ - 982,60 ₽
Удобная мини-портативная многофункциональная швейная машина
596,18 ₽ - 662,43 ₽
Маленькая швейная машина для домашнего использования fhsm-201 от оригинальной фабрики
828,03 ₽ - 1 059,88 ₽

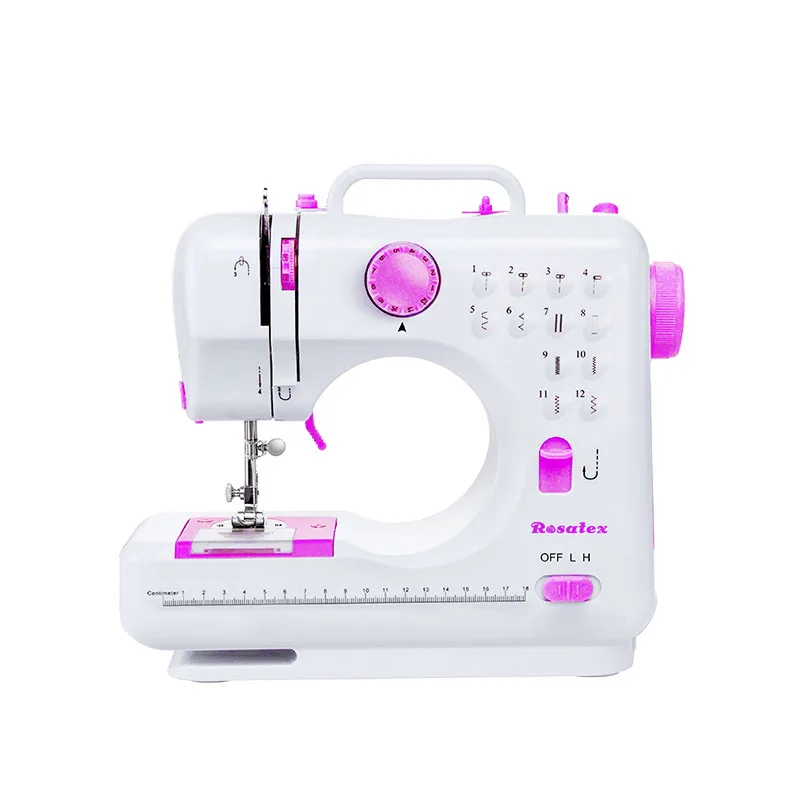

Розатекс 505a лидер продаж прочная небольшая домашняя мини-многофункциональная машина Silai
