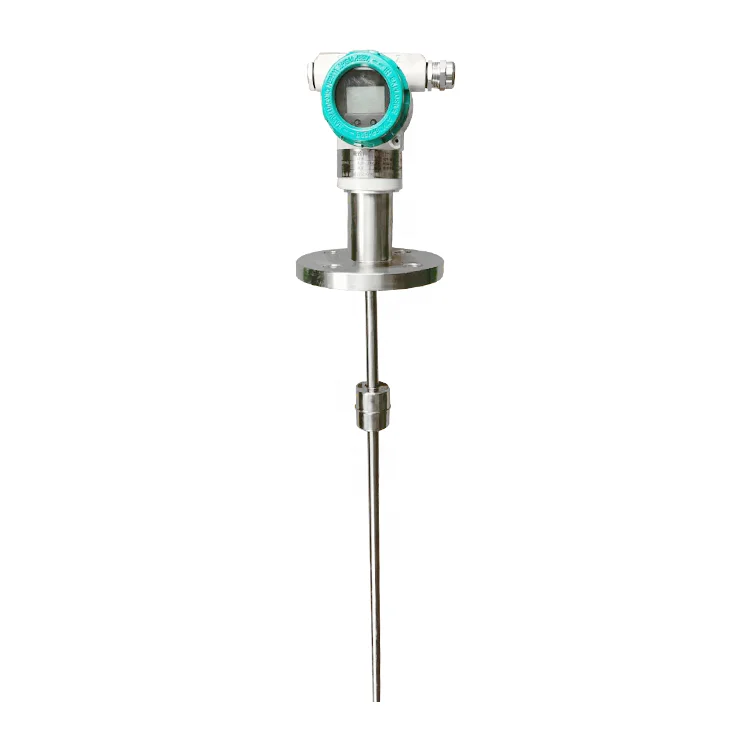

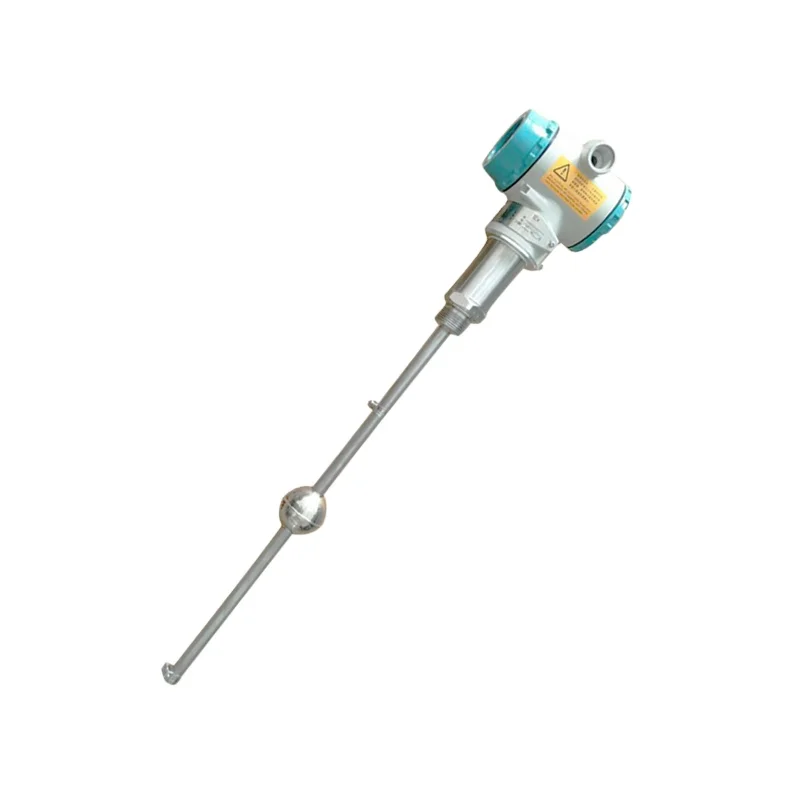

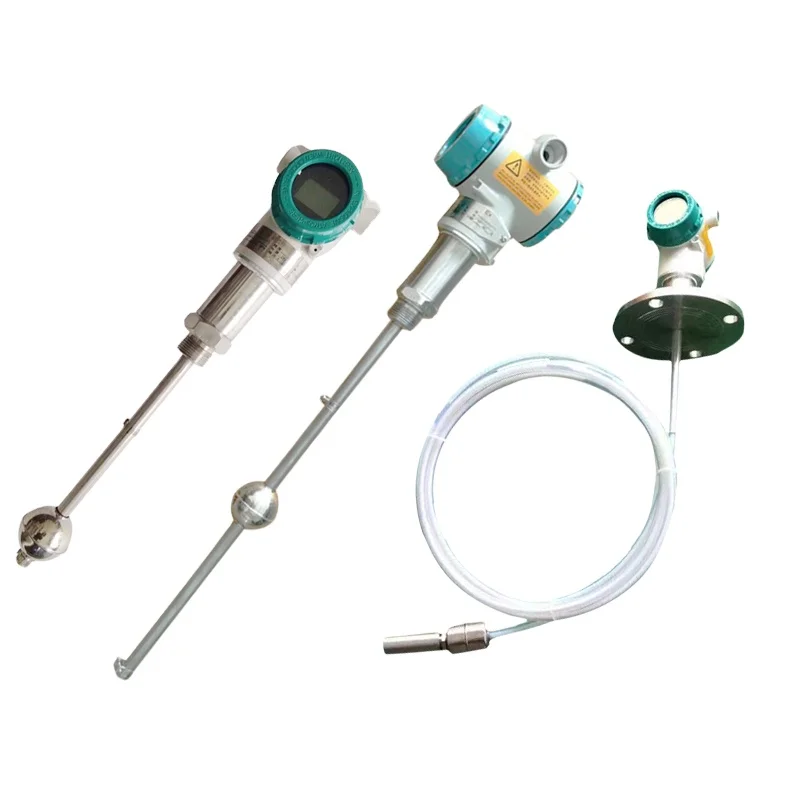

Standard contact magnetostrictive level gauge for measuring the level of fuel tank

High-precision measurement of liquid contact magnetostrictive level gauge/float level sensor

Magnetostrictive liquid level sensor (hereinafter referred to as sensor, including common type and flameproof type) is used for continuous measurement of liquid level and interface. In addition, magnetostrictive liquid level sensors are also widely used in various fields, including industrial measurement and control of liquid levels in various liquid tanks such as petroleum, storage of chemical raw materials, industrial processes, biochemistry, medicine, food and beverage, tank farm management and underground storage of gas stations, dam water level, reservoir water level monitoring and sewage treatment, etc.

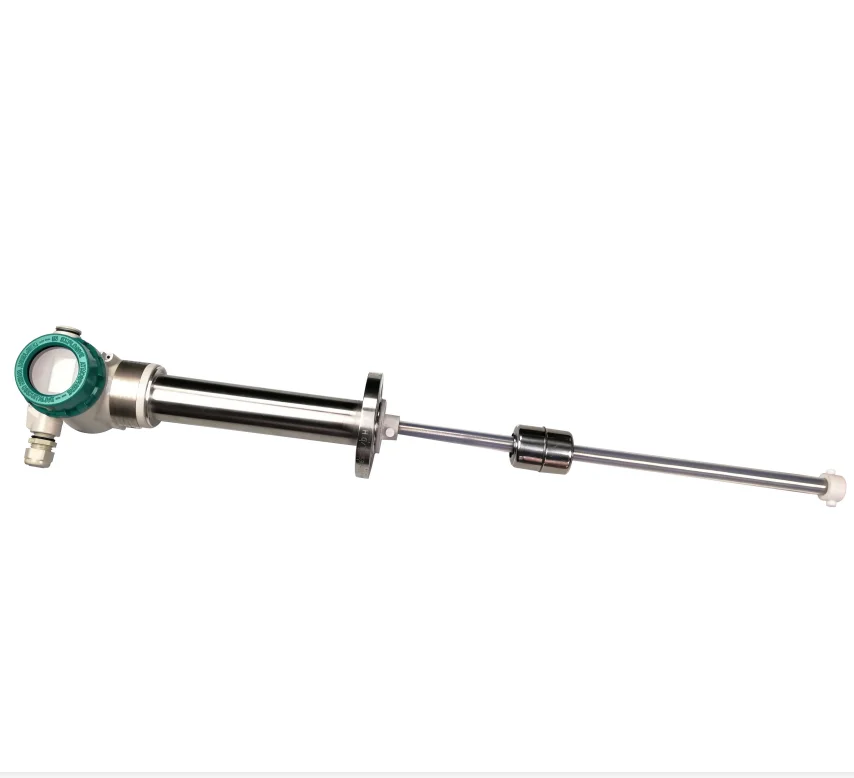

The APX901 high-precision magnetostrictive level gauge produced by Jining Epson Automation Instrumentation Co., Ltd. measures the level of oil tanks. Its advantages are:
1. Strong reliability: Since the magnetostrictive level gauge adopts the waveguide principle, there is no mechanical movable part, so there is no friction and no wear. The whole transducer is enclosed in a stainless steel tube and has no contact with the measuring medium. The sensor works reliably and has a long life.
2. High accuracy: Since the magnetostrictive level gauge works with waveguide pulses, the measured displacement is determined by measuring the time of the initial pulse and the end of the pulse during work, so the measurement accuracy is high, and the resolution is better than 0.01% FS. It is an accuracy that is difficult to achieve with other sensors.
3. Good safety: The magnetostrictive level gauge has high explosion-proof performance, intrinsically safe explosion-proof, safe to use, and is especially suitable for the measurement of chemical raw materials and flammable liquids. There is no need to open the tank lid during measurement, to avoid the insecurity of manual measurement.
4. Magnetostrictive level gauge is easy to install and simple to maintain: Magnetostrictive level gauges are generally installed through the existing nozzles on the top of the tank, and are especially suitable for the installation of underground storage tanks and tanks that have already been put into operation. The process does not affect normal production.
5. Facilitate system automation: the secondary instrument of the magnetostrictive level gauge adopts standard output signals, which is convenient for the microcomputer to process the signals, and it is easy to realize networking work and improve the automation degree of the entire measurement system.
