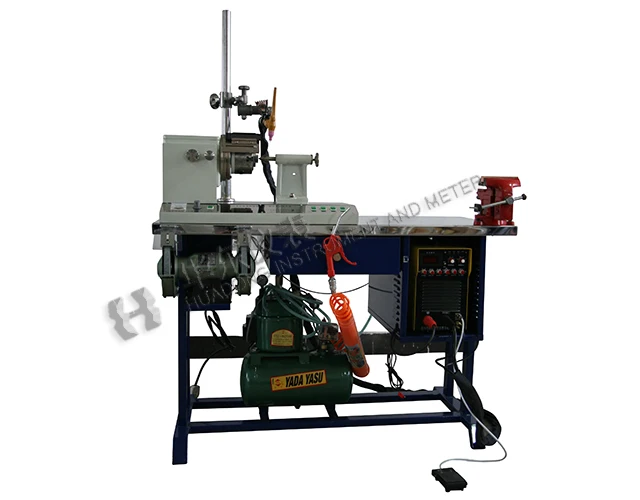

WSM-130 multi-function high-frequency direct current/pulse Argon welding machine, absorbing the international advanced technology, and the use of multiple patents from the design .Set welding arc welding and rectifier controller as a whole. Reliability and process of welding electrical characteristics are better than the general model, ranking the international advanced level, The machine can weld many metal like 0.15 mm~ 7mm thickness stainless steel, carbon steel, high temperature alloy steel and so on ,used for industrial automatic welding and manual welding.
This machine’s is mainly used for the welding of flange, bolted joint, various protective tubes, retaining ring/gasket, especially for armored cable’s measurement terminal. meanwhile, using this machine is better to normalize and standardization of welding technique in processing armored Pt resistor with diameter of φ3-8 and electric heaters with diameter of φ1-22. It’s indispensable device for temperature meter and electric heater producers (including electric heating component produces.)
The improved model not only retains all the original functions, and on the basis of the original increase the automatic wire feeding function and cooling water box, welding gun position adjustment is also improved from manual to automatic, can be used in automatic occasion.
Its national patent No.: ZL 2014 2 0212807
Features
1. It can weld metal like thickness 0.15-7mm stainless steel, carbon steel, high-temperature alloy steel and so on, used in industrial automatic welding and manual welding.
2. Welding convenient and quick , can choose direct current welding or pulse welding, working mode have manual, semi-automatic, automatic options.
3. Easy operation. can choose lie welding, stand welding or diagonal welding according to necessary,
4. Pulse argon arc welding can effectively control the heat, to prevent weld deformation, discoloration, it also can avoid the partial arc phenomenon which caused by surrounding magnetic field interfere when the plate material is too thin.
Equipment-Huadong instrument
1. Technical index
Pulse frequency
| 0.25~30Hz | Peak current | 3A~130A |
Floating voltage | 60V±10V |
Base ground | 3A~100A |
Rated welding current | 130A | Duty cycle | 60% |
Minimum welding current | 3A |
Arc starting style |
Non-contact high frequency arc |
Spindle speed
| 1.3r/s~9r/s |
Wire feed rate | 500mm/s~4000mm/s |
1. Input current: single phase 220V±15% 50±2Hz
2. Welding wire diameter: 0.8, 1.0, 1.2, 1.6
3. Boundary dimension: 1220*680*1250 (L*W*H)mm
4. Weight: 195kg
