3 оси алюминиевый дизельного топлива нефтяной танкер/Топливный бак полуприцеп грузовика
15 000,00 $ - 25 000,00 $

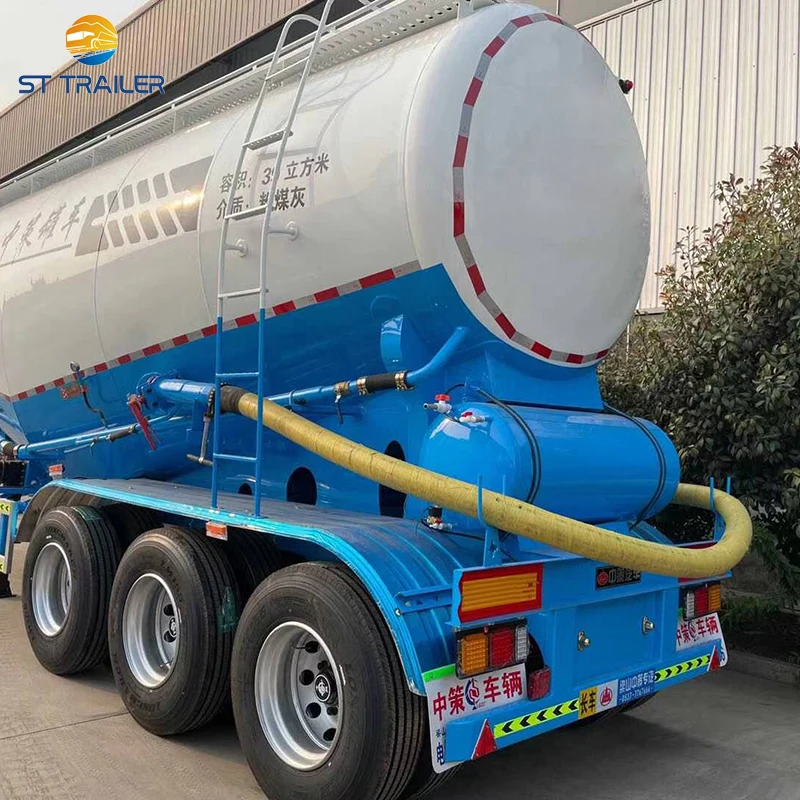

Грузоподъемность большой объем цементный танкер бункер силос полуприцеп на продажу
- Категория: Прицепы >>>
- Поставщик: SHANDONG ST TRAILER CO. LTD.
Сохранить в закладки 1600208192205:
Описание и отзывы
Характеристики
Product Description
Specification
Specifications of Tanker Body | ||
Dimension | 12000mm*2490mm*3990mm( Exact size depends on the final design) | |
Tare weight kg | About 11800KGS-13000KGS | |
Tank capacity | 30cbm-60cbm(Volume optional) | |
Shape | Optional(v or w shape) | |
Compartments | One or two compartment | |
Tanker Body Material | 5mm or 6mm/Q235 carbon steel | |
End Plate | 5mm or 6mm/Q235 carbon steel | |
Rim | 8.00-20/8.5-20/8.8-20/9.0-22.5 China Brand | |
Tire | 12R22.5/11R22.5/13R22.5/11.00R20/12.00R20( brand can be Optional) | |
Engine | Weichai 4105 Engine | |
Manhole Cover | 500mm carbon steel or aluminum alloy manhole | |

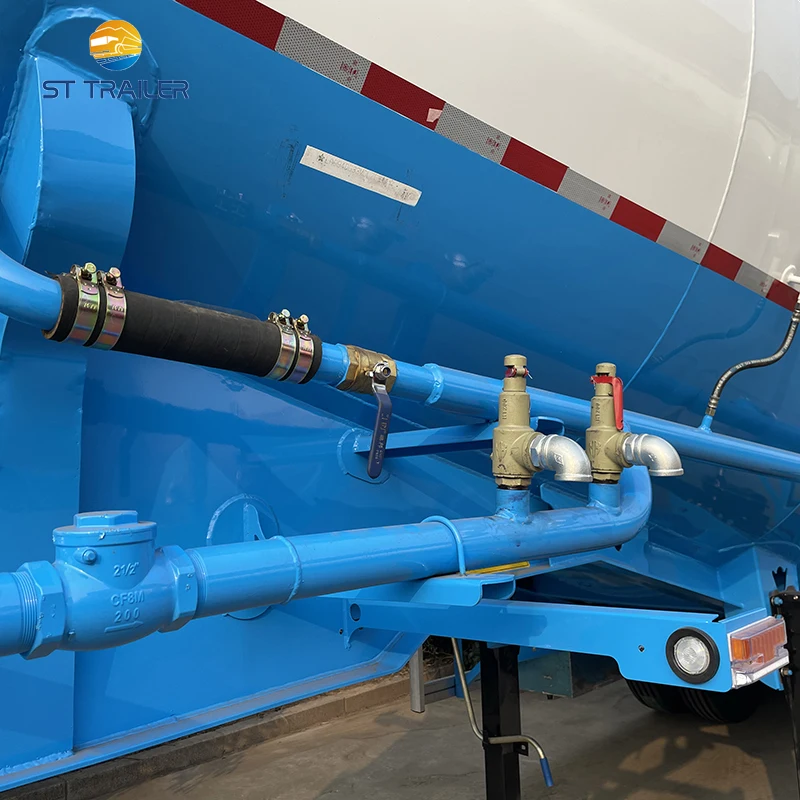

Bottom Valve | 3''/ 4” disc valve | |
Discharging Valve | Diameter is 3 or 4 inch | |

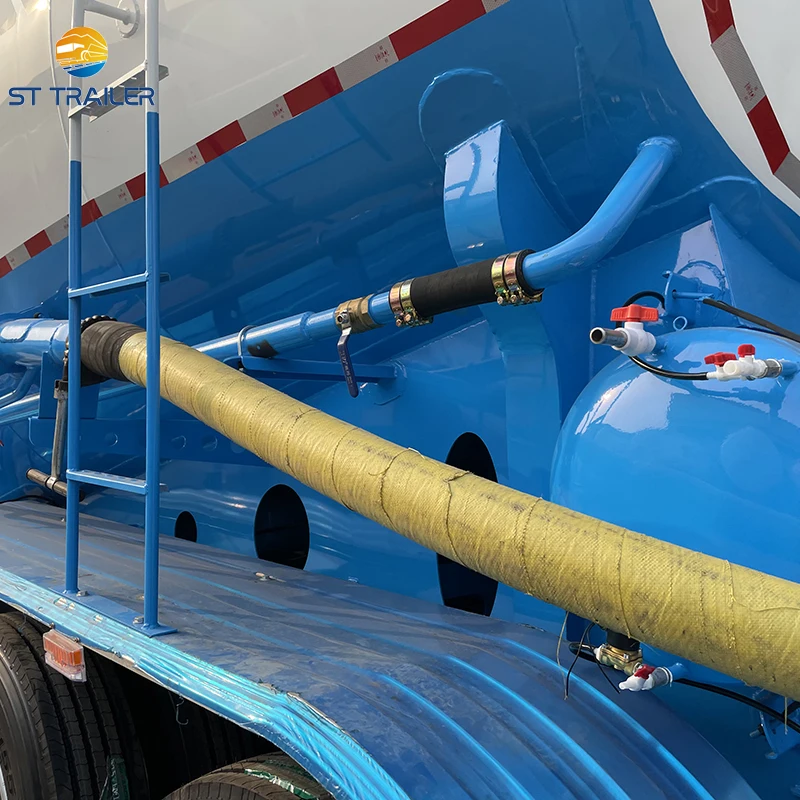

Discharging Pipe | 4” rubber hose, 2 pcs, 6m/each | |
Air compressor | 10 m3,12m3 | |
Diesel Engine | Weichai Huafeng, Tianhe 4102/4105 | |
Main Beam | Welding design or Special design, connected by bolts and nuts. Material:Q345 carbon steel Height 500mm, Upper Thickness 14~18mm, Middle Thickness 8~12mm, Down Thickness 16~20mm | |
Axle | 2 or 3 axles, BPW/FUWA brand(Optional) | |

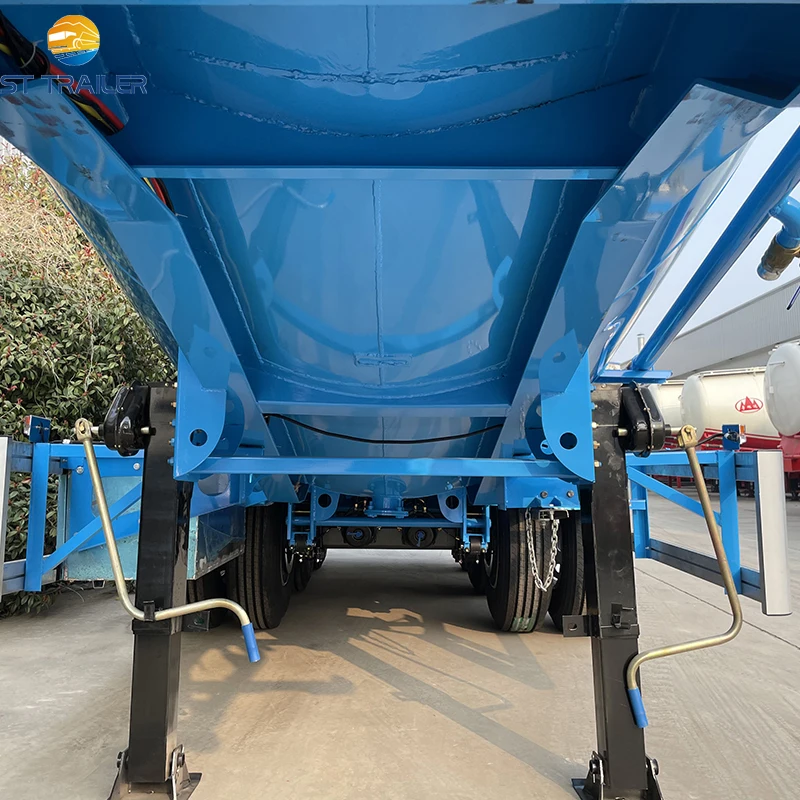

Landing Gear | JOST(D200T)or China brand 28T(two speed) | |
Brake System | WABCO Valve with big chamber | |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin | |
Suspension | Mechanical suspension or Air suspension | |
Leaf Spring | 90(W)mm×13(Thickness)mm×10(Layer) or 100mm×12mm×12 | |
Rear ladder | Dismountable | |
Lights | Turning Light, Side Marker Light, Tail Light | |
Voltage | 24V | |
Receptacle | 7 ways (7 wire harness) | |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |
ABS | Optional | |
Accessories | One standard tool box | |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Shandong Shengtong Automobile Co., Ltd. is a trailer sales company approved by the State Administration for Industry and Commerce, which integrates production, scientific research and sales. It has passed the mandatory "3C" certification and ISO9001:2000 quality management system certification by the China Quality Certification Center. The company is well-funded, covers an area of more than 68,000 square meters, has a production plant of 32,000 square meters, and has more than 2000 employees. It has first-class standard and strong production capacity flow-through production tooling equipment, using advanced production technology and high-quality raw materials and parts. .
The company insists on taking first-class equipment, first-class technology, and first-class quality as the root of enterprise development, and adheres to the tenet of people-oriented and sincere treatment, strengthens internal management, improves various systems, and serves new and old customers. Guests from all walks of life are welcome to come to the factory to negotiate business.
The company insists on taking first-class equipment, first-class technology, and first-class quality as the root of enterprise development, and adheres to the tenet of people-oriented and sincere treatment, strengthens internal management, improves various systems, and serves new and old customers. Guests from all walks of life are welcome to come to the factory to negotiate business.
FAQ
1. who are we?
We are based in Shandong, China, start from 2020,sell to Africa(00.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Semi Trailer,Flatbed Semi Trailer,Lowbed Semi Trailer,Dump Trailer,Tank Truck
4. why should you buy from us not from other suppliers?
Shandong Shengtong Automobile Co., Ltd. is a trailer sales enterprise approved by the State Administration for Industry and Commerce, which integrates production, scientific research and sales.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
We are based in Shandong, China, start from 2020,sell to Africa(00.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Semi Trailer,Flatbed Semi Trailer,Lowbed Semi Trailer,Dump Trailer,Tank Truck
4. why should you buy from us not from other suppliers?
Shandong Shengtong Automobile Co., Ltd. is a trailer sales enterprise approved by the State Administration for Industry and Commerce, which integrates production, scientific research and sales.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
