Ремонт подставки для телевизора ноутбука духовки VGA CPU GPU BGA Машина переделки чипов

* 3 independent control heaters

① Top and bottom heaters are hot-air heating while the third IR heater is infrared heating. The top and bottom heaters can heat
PCB from upper and bottom at the same time. With a temperature accuracy within ±3℃，there are multi segments which can be set at
the same time; IR preheating area is adjustable according to demand and heat PCB evenly.
② It can heat PCB board and BGA chips at the same time. The third IR heater can preheat the PCB board from bottom to prevent PCB
from deformation during repair process. The top and bottom heaters can work independently；
③ Choose high accurate K type close-loop thermocouple, and PID parameters automatic adjustment system；it can show seven
temperature curves and the millions of groups data can be saved through U storage device with instant curve analysis function of
BGA temperature at any time; The sensor is for precise temperature testing.

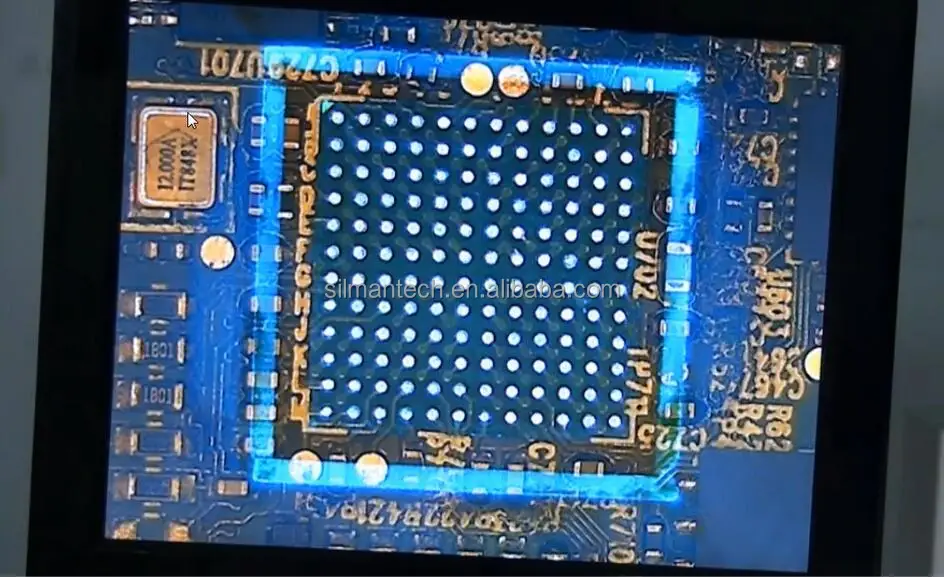

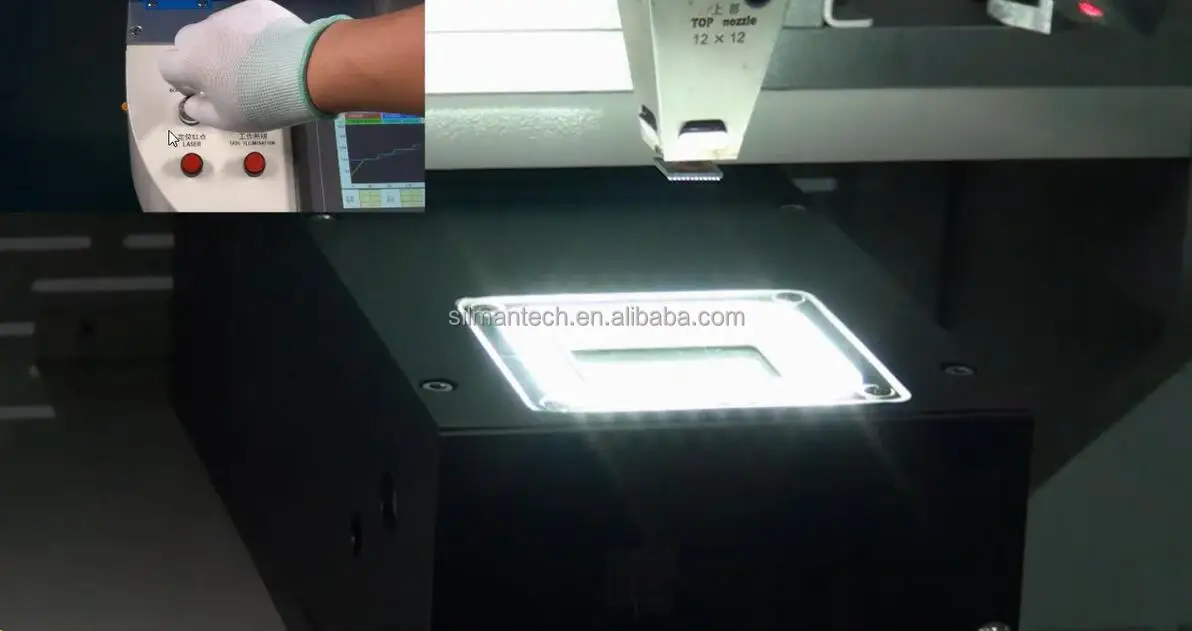

* Precise optical alignment system

Adopt adjustable CCD color optical system, with a beam split, zoom in, zoom out and micro-adjust functions, has automatic
chromatism resolution and brightness adjustment system, amplify to 230 X, mounting accuracy within ±0.01mm.

* Multi-function operation system

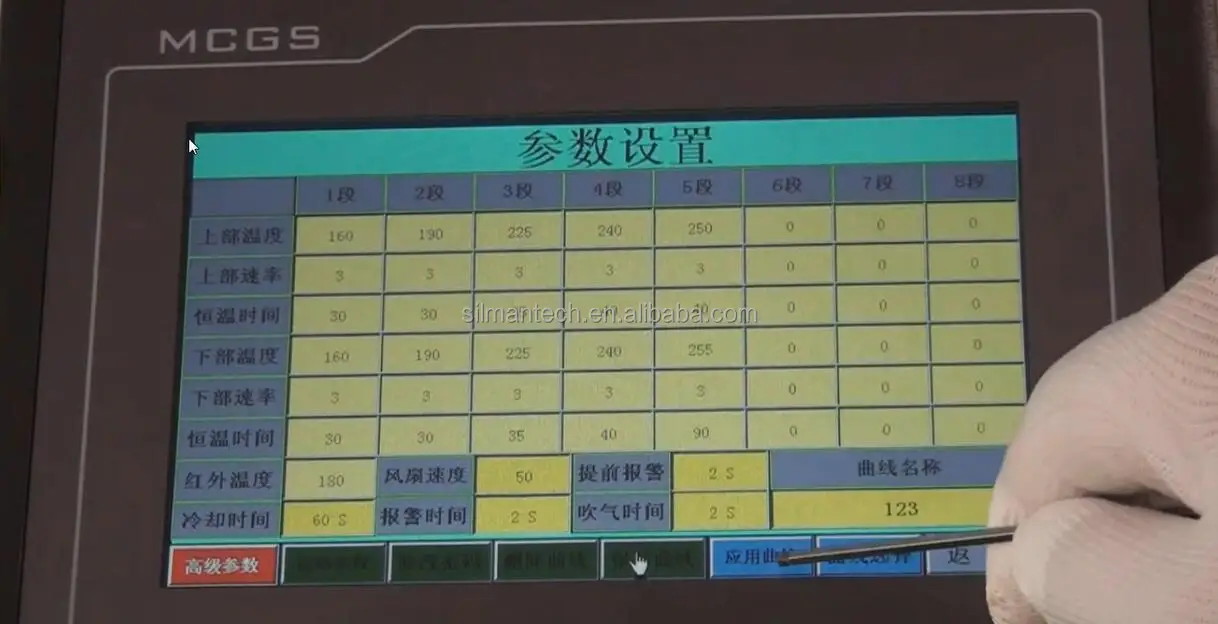

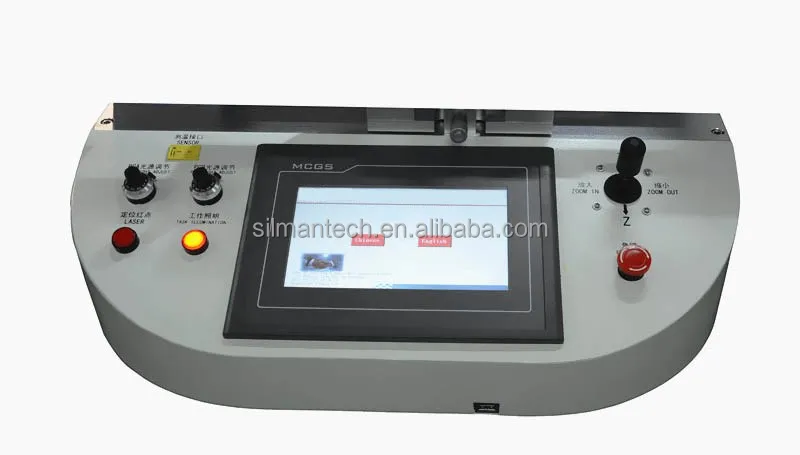

① Adopt high definition human-machine interface, available for setting “set up” and “operate” to avoid error settings, The top
heater device and mounting head 2 in 1 design, with automatic identify BGA chips and mounting height, it is of automatic soldering
and des-soldering function.it can set 6 segments rising temperature and 6 segments of activity temperature, and can save N groups
temperature profiles. Adopted all kinds of BGA nozzles, with 360° rotation, easy for installation and replacement, customized is
available;

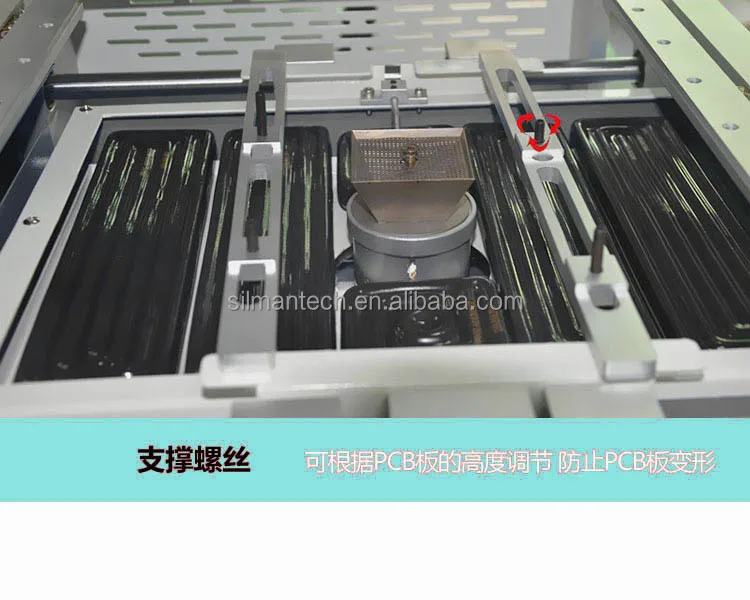

②V-groove PCB support, with rapid, convenient and accurate positioning, can fit for all kinds of PCB board; Flexible and removable
universal fixture has protective effects and no damage to the PCB board, suitable for all kinds of sizes of BGA repair.
* Superior safety functions

With CE certification; after des-soldering and soldering, there is alarming. when temperature goes out of control；the circuit will
automatically power off, it is of double over-temperature protection function. Temperature parameter has a password to avoid from
arbitrary changes, with superior safety protection functions, can protect PCB board components and the machine from damage at any
abnormal situation
