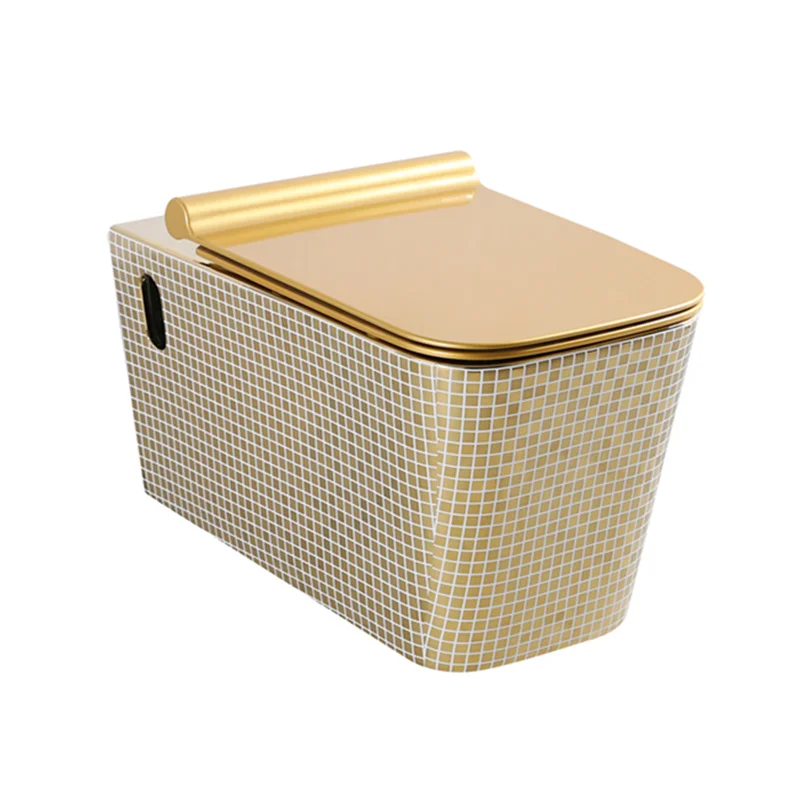

Роскошный современный дизайн золотого цвета хорошее качество китайская ванная комната без оправы в стиле слива квадратная форма Настенный
82,00 $ - 123,00 $

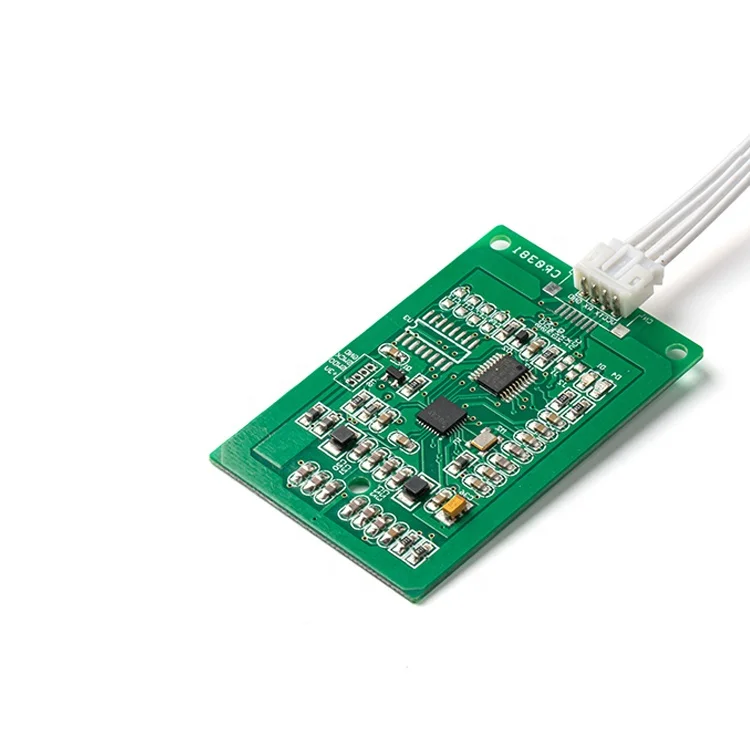

Пользовательская низкая цена smart RS232 TTL232 контроль доступа ISO 14443 ТИП A карта модуля oem модуль бесконтактного считывания
- Категория: >>>
- Поставщик: Beijing ChinaReader Technology Co. Ltd.
Сохранить в закладки 1600208832152:
Описание и отзывы
Характеристики
Products Display
PRODUCT DESCRIPTION
Our company is a leading RFID (2.45G 13.56M 125K / 134.2K) ODM/OEM
supplier, designing and manufacturing RF antennas, contactless RFID
modules, especially in terms of RF antennas. ChinaReader is committed to
promoting the development of RFID technology. Our products mainly include
radio frequency cards, magnetic cards, smart cards, RFID readers, RFID
reader modules, The operating frequencies of the RFID development kit and
TYPE A/B products are 125KHZ, 134.2KHZ and 13. 56MHZ, respectively.
Details
Memories 16 Kbytes Of Flash Memory
4 Kbytes Of SRAM With HW Parity Checking
Power Supply: 2.8V~3.6V(CR0131L ) Or 4.5V~5.5V (CR0131), 80-100mA
Interface: 232 TTL (CR0381A 01), IIC (CR0381A 02) Update To 400K
Transmission Speed: 19200 Bps (2400 ~115200 Setting )
R/W Distance Of Up To 60mm (Up To 100mm With Bigger Antenna Size), Depending On TAG
Storage Temperature: -60 ºC ~ +150ºC
Operating Temperature: -40 ºC ~ +85 ºC

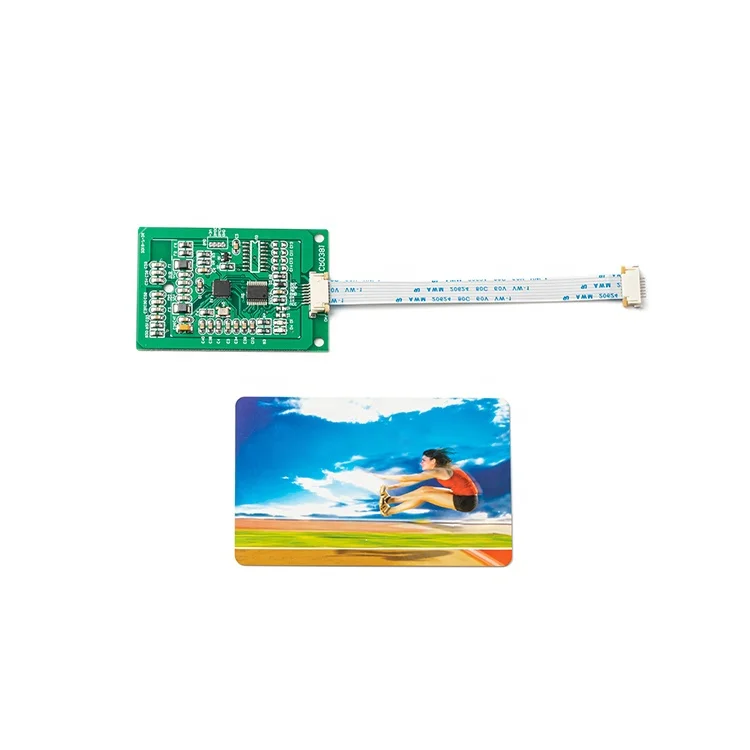

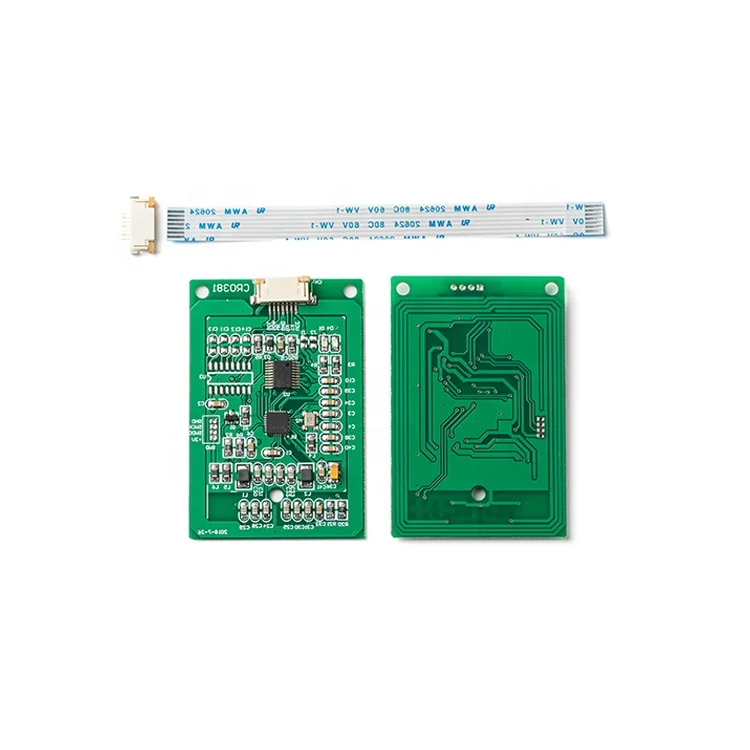

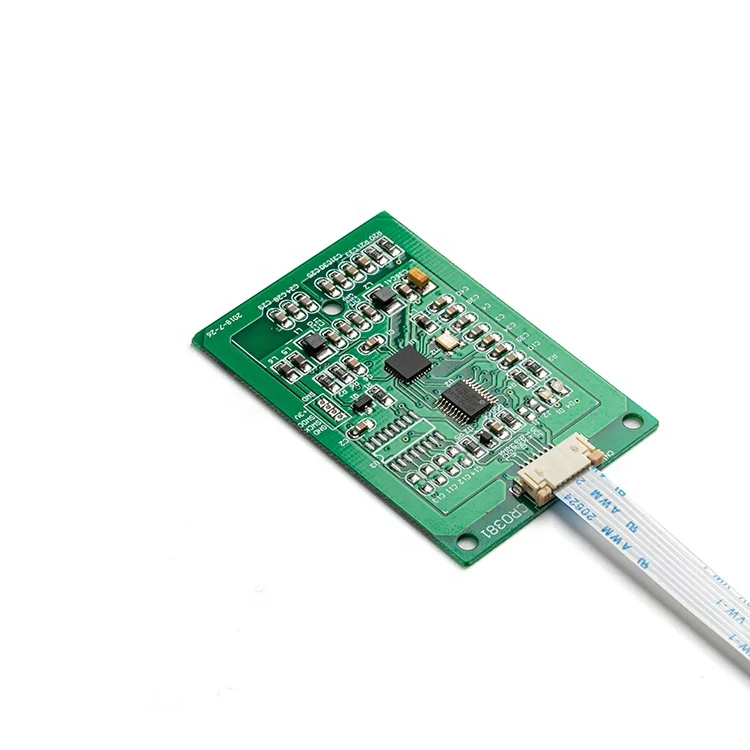

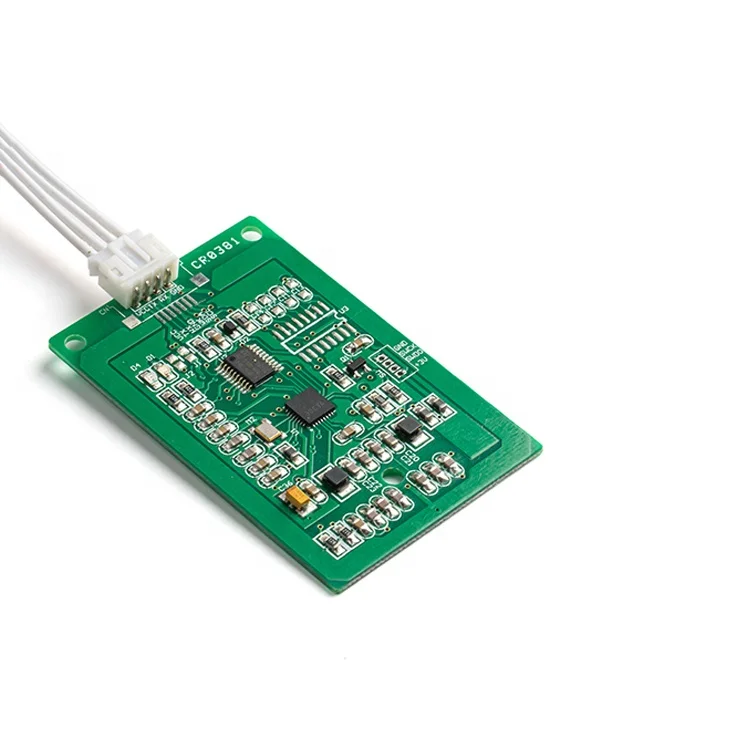

Name | CR0381A series Proximity Reader Module | ||||||
Weight | 12g | ||||||
Dimensions | 40*60(mm) | ||||||
Temperature | -20一s+85C | ||||||
Interface | COMS UART or IC | ||||||
Read Range | up to 8cm | ||||||
Frequency | 13. 56MHz | ||||||
Support | ISO14443A | ||||||
MIFARE® 1K，MIFARE®4K, MIFARE Utralight®, Ntag, SLE66R35,Fm1108 | |||||||
Power Requirement | DC2.6- 3.6 OR 4.5~5.5V ,50ma - 100ma | ||||||
MCU | Core: ARM® 32- bit CortexTM -M0 CPU | ||||||
CR0385A | CR0385B | CR0381 | CR9505F | ||||
ISO14443A | ✔ | ✔ | ✔ | ||||
ISO14443B | ✔ | ✔ | |||||
ISO15693 | ✔ | ✔ | |||||
CR0385 Serials&Similar Part Number Description:
Model | Description | Interface & Others |
CR0381A/D | MIFARE® S50/S70,Ultralight®,FM1108,TYP 25TV02K ,25TV0K,25TB176 | UART DC 2.6~5.5V |
CR9505 | MIFARE® 1K/4K,Ultralight®,Ultralight®C,Mifare®Plus FM1108,TYPE A.Ntag,SLE66R01P,NFC typeA tags l.code sliTi 2k , SRF55V01, SRF55V02 ,SRF55V10,LRI 2k,ISO15693 STD 25TB512 ,25TB04K,25TB176 | 2.6~5.5V |
CR0381D | l.code sliTi 2k , SRF55V01, SRF55V02 ,SRF55V10,LRI 2k,ISO15693 STD | UART DC 2.6~3.6V |
Application Scene
ENTRANCE GUARD
KOLLER SYSTEM / HOTEL EL EVATOR
KOLLER SYSTEM / HOTEL EL EVATOR
BUS/CAMPUS CARD
TRANSPORTATION PAYMENT SYSTEM
TRANSPORTATION PAYMENT SYSTEM
MOBILE NFC PAYMENT
MOBIL E PHONE PAYMENT AND
OTHER NFC OCCASIONS
MOBIL E PHONE PAYMENT AND
OTHER NFC OCCASIONS
SMART WATER
ELECTRIC METER
SWIPE CARD PAYMENT CHARGING SYSTEM
ELECTRIC METER
SWIPE CARD PAYMENT CHARGING SYSTEM
Product Category
About Us
Company Profile
Beijing ChinaReader Technology Co., Ltd. is a leading RFID (2.45G 13.56M 125K/134.2K) ODM/OEM provider, designing and manufacturing RF antennas and contactless RFID modules. We have made our commitment of resource investment, especially in RF antennas. With more than 30 R&D employees, we utilize superior engineering resource.ChinaReader is devoted to RFID technology's promotion. Our products mainly include RF cards, Magcards, Smart cards, RFID readers, RFID reader modules, RFID development kits, and TYPEA/B products operated at 125KHZ, 134.2KHZ, and 13.56MHZ. All our products are ISO14443 and ISO15693 certified. We also can make special RFID reader module kits and RFID reader modules under the requirements of customers.
Prodution Runs
Certificate Show
All our products are ISO14443 and ISO155693 certified. We also can make special RFID
reader module kits and RF ID reader modules under the requirements of customers.
reader module kits and RF ID reader modules under the requirements of customers.
Logistics Package
PACKAGE AND TRANSPORTATION
Trading information
Trade Terms: EXW, FOB,CFR,CIF,FCA.
Payment terms: T/T,Paypal,Western,union,Casch,Escrow.
Delivery Time: 7-15 days for mass production, 2-3 days for samples.
Shipping: bulk order by sea, by air or by express delivery. Sample order by express delivery.
Trade Terms: EXW, FOB,CFR,CIF,FCA.
Payment terms: T/T,Paypal,Western,union,Casch,Escrow.
Delivery Time: 7-15 days for mass production, 2-3 days for samples.
Shipping: bulk order by sea, by air or by express delivery. Sample order by express delivery.
PACKAGE AND TRANSPORTATION
FAQ
Q:Do you offer OEM/ODM serive?
A:We have been offering OEM/ODMproduct to customers for many years, we have a large R&D group who can customize the hardware and software as your request.
Q:How can l order some samples?
A:Afetr confirming the module Nowth our salesyou can transfer the payment and we will send the samples to youWe can accept
T/Tpaypal and western union payment for samples,you can offer your shipment account to pick up the samples or prepay shipment cost
for us to arrange shipment.We always use DHL/FEDEX/UPS/TNT for the goods.
Q:Can you provide after sale technical support?
A:Yes,we have strong R&D group can provide after sale technical support service.
Q:How can l order some samples?
A:Afetr confirming the module Nowth our salesyou can transfer the payment and we will send the samples to youWe can accept
T/Tpaypal and western union payment for samples,you can offer your shipment account to pick up the samples or prepay shipment cost
for us to arrange shipment.We always use DHL/FEDEX/UPS/TNT for the goods.
Q:Can you provide after sale technical support?
A:Yes,we have strong R&D group can provide after sale technical support service.
Похожие товары

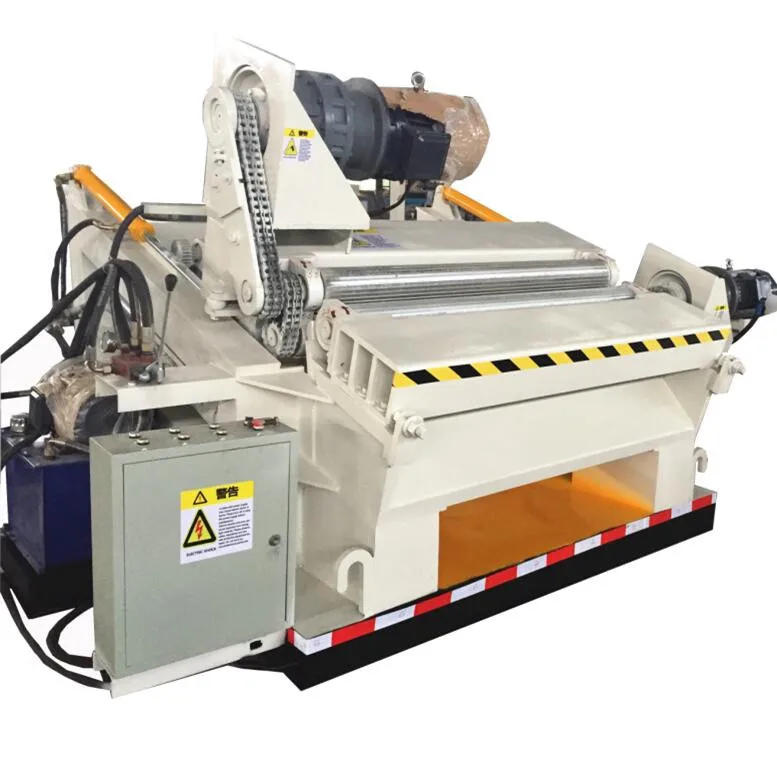

Оборудование для производства фанеры YUJIE, машина для обрезки древесины на продажу
6 800,00 $

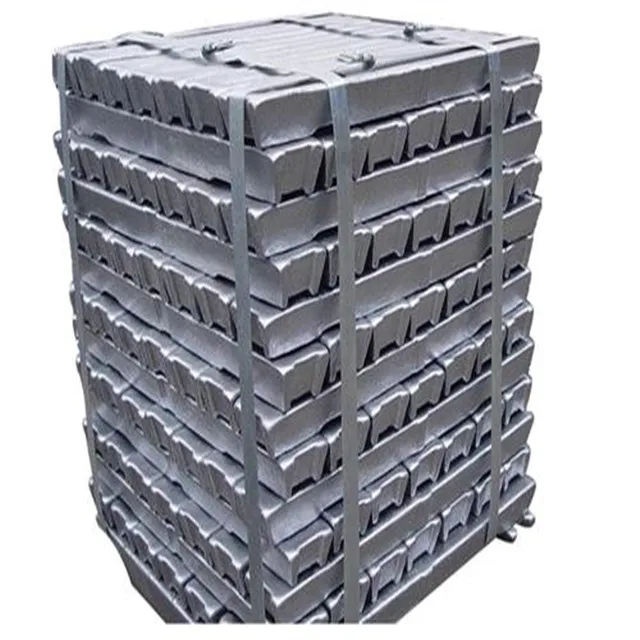

99.5% продажа антимональных слиток
Amazon Лидер продаж двухъярусные двуспальные кровати Королевского Калифорнийского размера постельные комплекты 3 шт.

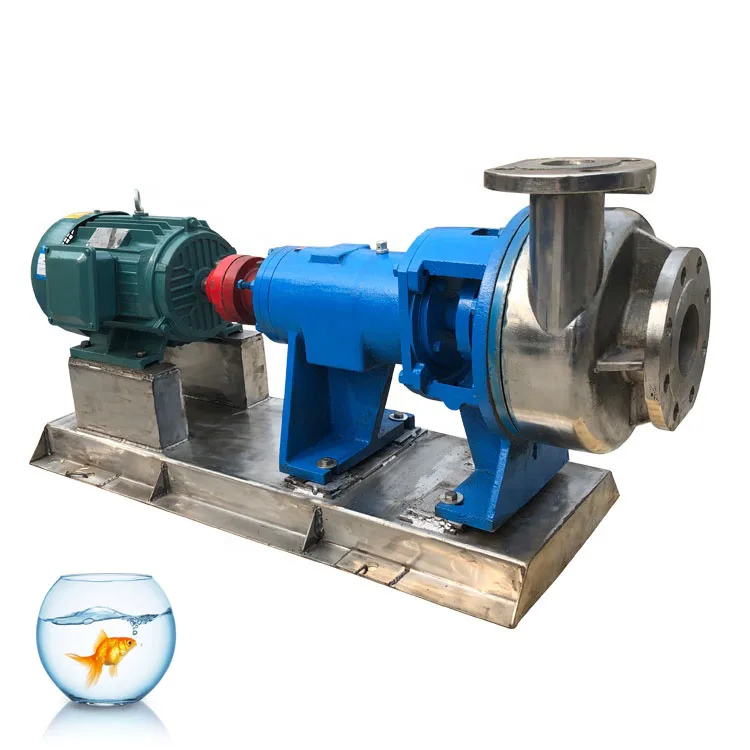

Промышленное производство, высококачественный центробежный твердый насос для живой рыбы
4 900,00 $ - 5 000,00 $

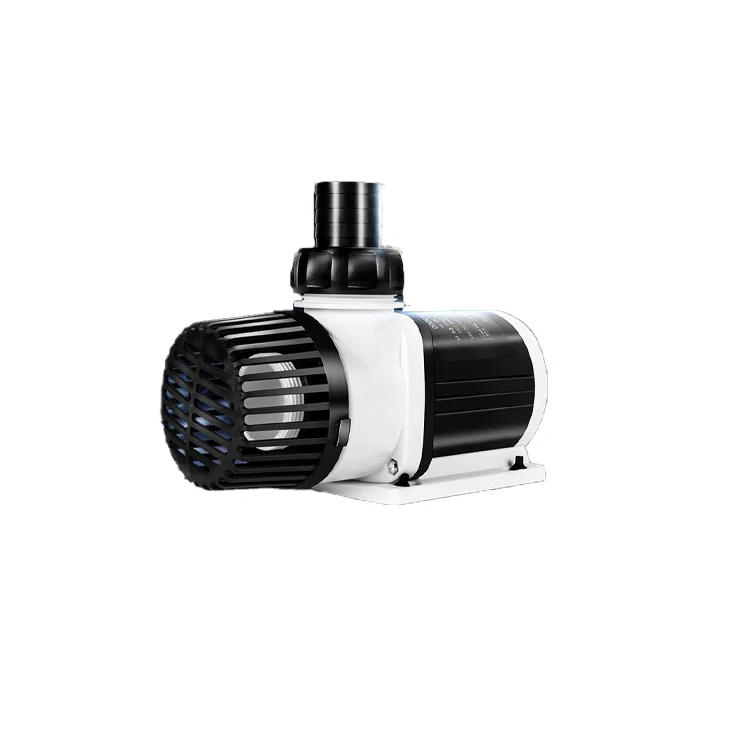

Профессиональное производство дешевый насос циркуляционный водяной насос для аквариума водяные насосы для рыб
30,00 $ - 30,60 $

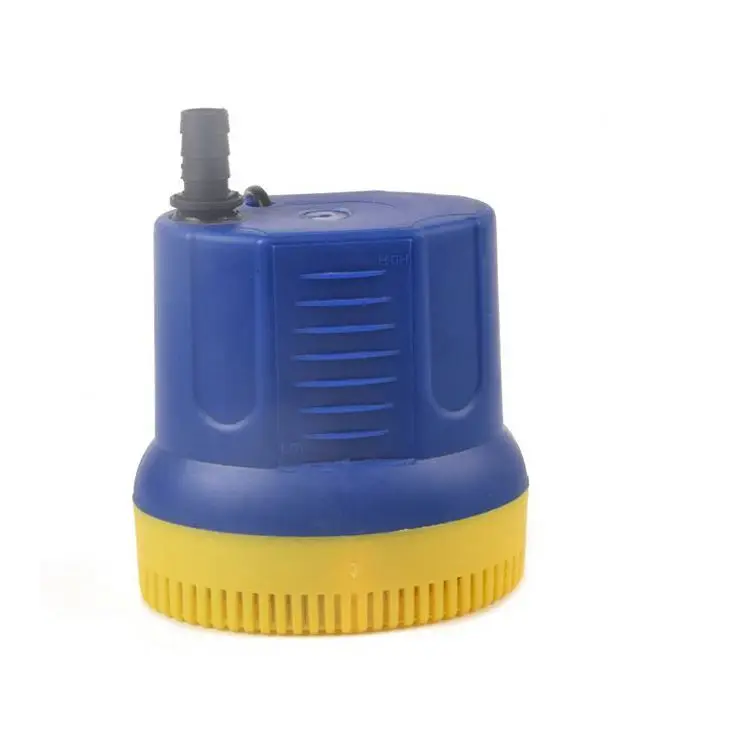

Пластиковый Погружной водяной мини-насос, производство под заказ, погружной водяной насос для рыбы
