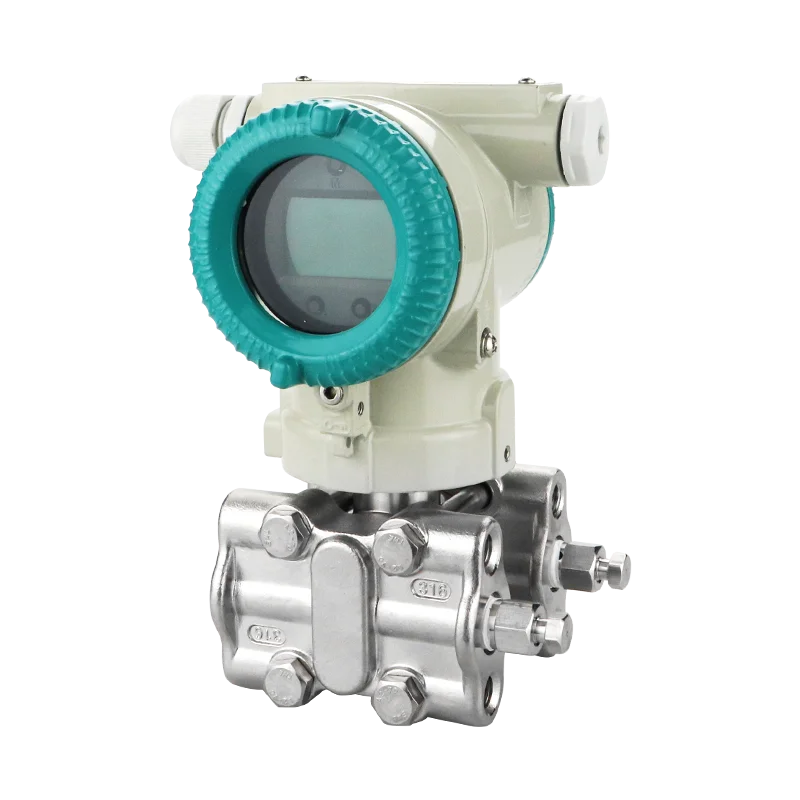

Лидер продаж, цифровой индикаторный передатчик давления 12-45 В постоянного тока, точный датчик перепада давления 0.1% воздуха на уровне жидкости
229,00 $ - 298,00 $
Дешевый офисный степлер машина для производства степлера
- Категория: >>>
- Поставщик: SSS Hardware International Trading Co. Ltd.
Сохранить в закладки 1600210411892:
Описание и отзывы
Характеристики
Product Description

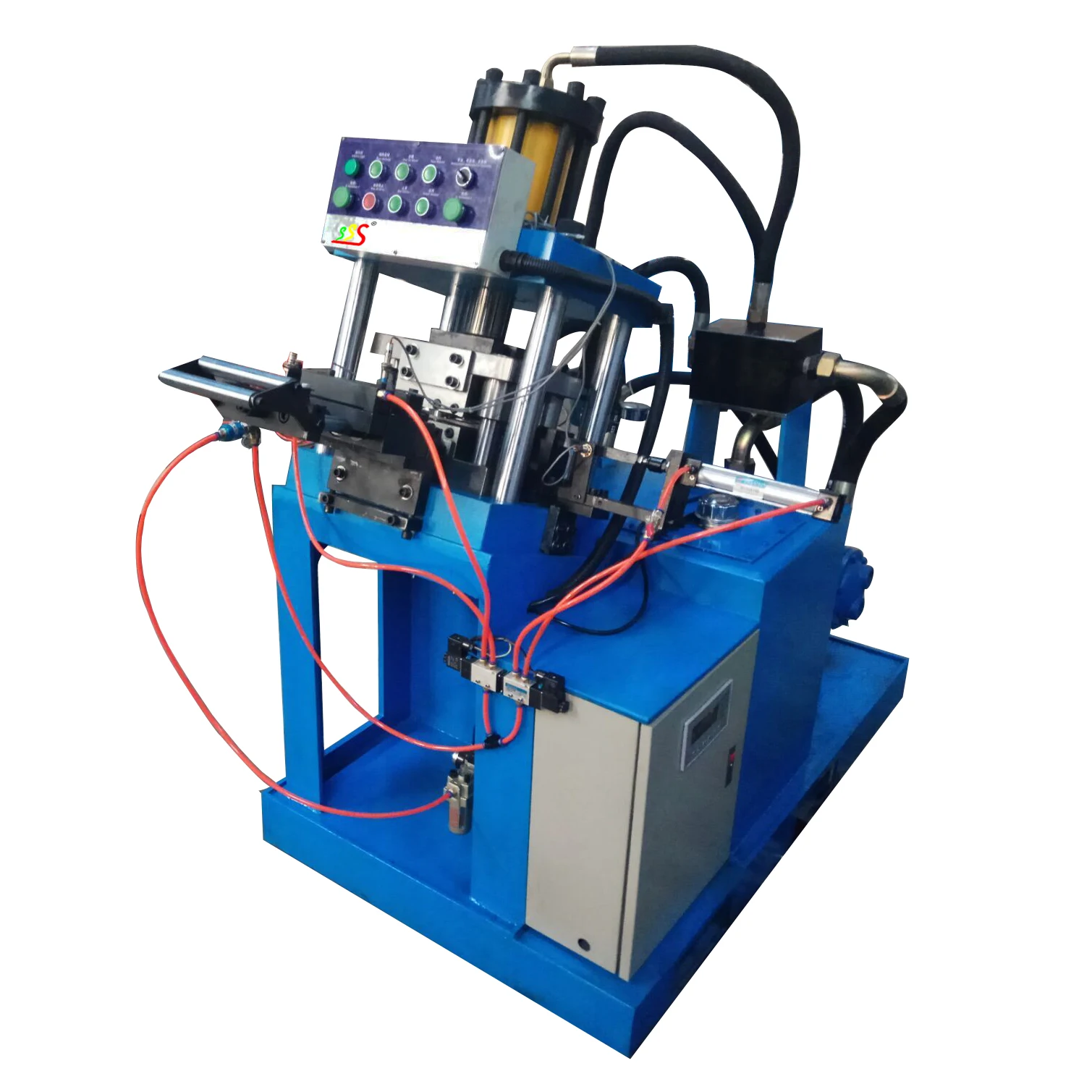

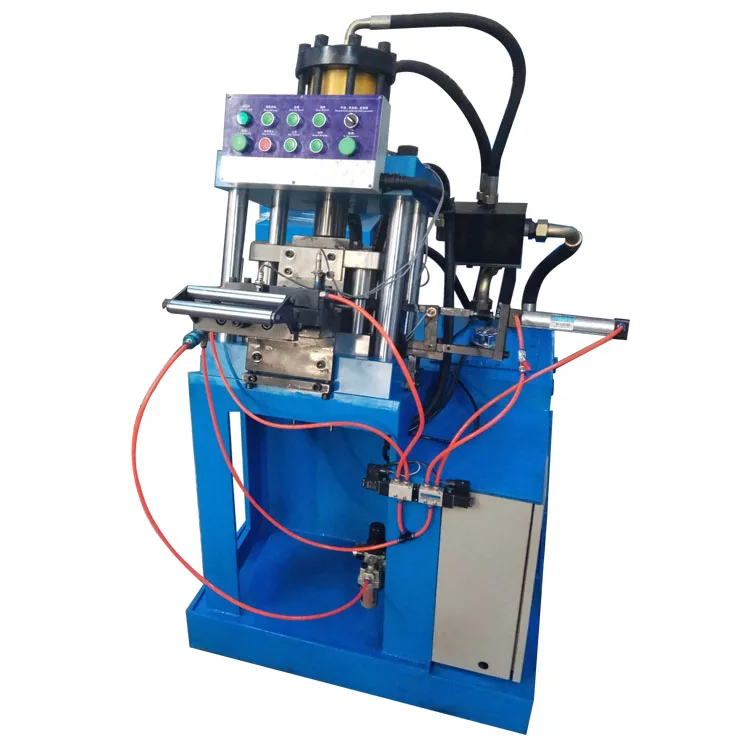

Hydraulic office staple making machine from China
This machine has abandoned the traditional heavy-duty punching machine, adopts the hydraulic system as the execution component,
and uses the centralized control of the PLC microcomputer.
A. Suitable for 23 series staple pins
B. Hydraulic pressure system is adopted in this machine instead of traditional heavy punching type.
C. PLC microcomputer centralized control
D. Advantages: High speed Safety operation Stable performance Low noise
E. With 200-wire wire band, 2 strips can be produced every stroke.
23-8 hydraulic staple making machine and fully automatic staple packing machine
and uses the centralized control of the PLC microcomputer.
A. Suitable for 23 series staple pins
B. Hydraulic pressure system is adopted in this machine instead of traditional heavy punching type.
C. PLC microcomputer centralized control
D. Advantages: High speed Safety operation Stable performance Low noise
E. With 200-wire wire band, 2 strips can be produced every stroke.
23-8 hydraulic staple making machine and fully automatic staple packing machine
Technical Data
Specifications | Unit | SSS-TJB-WJ24 |
23 series | ||
Nominal Pressure | KN | 250 |
Number of strokes | Times/min | 100-140 |
Wire band width | mm | 100-130 |
Wire band thickness | mm | 0.35-0.7 |
Capacity | Boxes/min | 12-18 |
Dimensions(L*W*H) | mm | 1345*1170*1700 |
Motor | Kw | 5.5 |
Weight | Kg | 1400 |
Related Machines

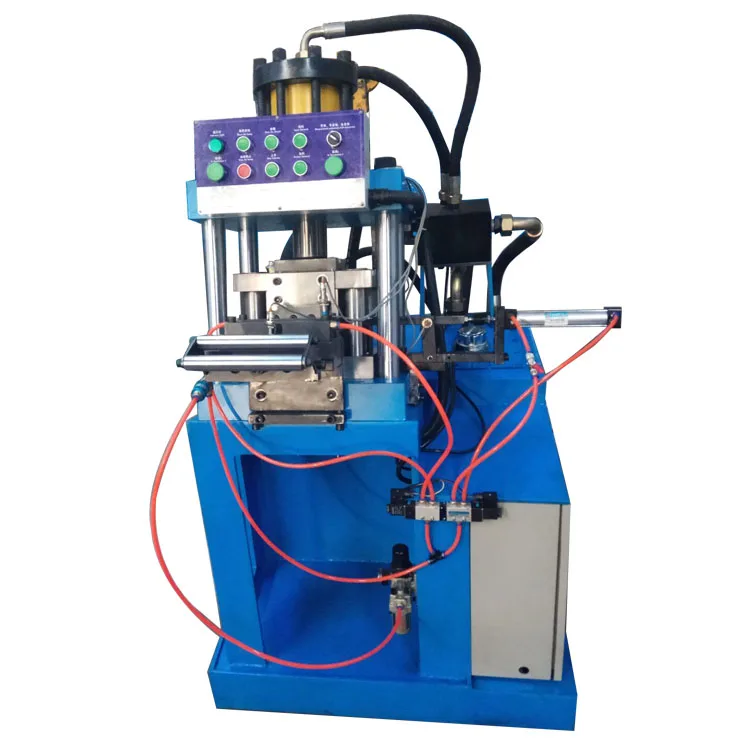

Staple forming machine
To press and form the wire band to the final product staples/staple pins
This machine has abandoned the traditional heavy punch press, adopting the hydraulic system as the executive part, utilizing the PLC system, which has the characteristics of safe operation, stable performance, low noise and so on. Compared with the traditional punch machine, the speed is greatly increased.
This machine has abandoned the traditional heavy punch press, adopting the hydraulic system as the executive part, utilizing the PLC system, which has the characteristics of safe operation, stable performance, low noise and so on. Compared with the traditional punch machine, the speed is greatly increased.
Specifications | Unit | SSS-U25 | SSS-U60 | ||
Nominal Pressure | KN | 250 | 630 | ||
Slide Strokes Per Minute | times/min | 90-170 | 80-100 | ||
Wire band width | mm | 60-120 | 60-130 | ||
Wire band thickness | mm | 0.4-0.7 | 1.0-1.35 | ||
Dimensions L*W*H | mm | 1300*1200*1550 | 1300*1250*1650 | ||
Motor | Kw | 4 | 5.5 | ||
Weight | Kg | 1500 | 1700 | ||
Wire band gluing machine
This group of machines including wire pay-off frame, with leveling and straightening equipment at front and rear part of the production line. The production line can glue the wires automatically and dry the wire band automatically.
Specifications | Unit | Model SSS-BXJ-JX150 |
Speed | m/min | 0-13 |
Wire band width | mm | 50-120 |
Wire band thickness | mm | 0.35-1.85 |
Dimensions(L*W*H) | mm | 2800*1500*1700 |
Motor | Kw | 3+9 |
Weight | Kg | 1100 |
Wire flattening machine.
This single wire flattening machine adopts tungsten carbide alloy pressing roller, which has the advantages of high hardness and good brightness of the surface of the pressing wheel, and stepless speed change.
Water cooling in the pressing roller effectively extends the life of the alloy roller.
Water cooling in the pressing roller effectively extends the life of the alloy roller.
Specifications | Unit | Model SSS-YB150 | Model SSS-YB200 | Model SSS-YB300 |
Speed | m/min | 0-350 | 0-350 | 0-350 |
Wire thickness | mm | 0.3-1.0 | 0.5-1.5 | 1.0-2.2 |
Thickness tolerance | mm | ±0.01 | ±0.01 | ±0.01 |
Dimensions(L*W*H) | mm | 1800*760*1280 | 1800*760*1280 | 2000*800*1350 |
Motor | Kw | 3 | 3 | 5.5 |
Weight | Kg | 460 | 475 | 530 |
Water tank wire drawing and flattening integrated machine
High speed water tank wire drawing and flattening integrated machine adopts 17 molds and 4 groups of cone type pulley wheels, all wheels with tungsten carbide coating. The flattening machine adopts tungsten carbide wheel with high hardness and shining surface, which can ensure the exact flattening thickness. This group of machines can work together smoothly like one machine with one starting button.
Maximum in-let wire diameter: 2.0mm
Minimum out-let wire diameter: 0.43mm
Maximum in-let wire diameter: 2.0mm
Minimum out-let wire diameter: 0.43mm
Specifications | Unit | Model SSS-LB150 | Model SSS-LB350 |
Speed | m/min | ≤1000 | ≤1000 |
Inlet wire dia. range | mm | 2.0-1.8 | 3.8-3.6 |
Outlet wire dia. Range | mm | 0.55-0.43 | 1.5-1.15 |
Thickness tolerance | mm | ±0.01 | ±0.01 |
Dimensions(L*W*H) | mm | 6000*1500*1800 | 3000*1600*1800 |
Motor | Kw | 22 | 40 |
Weight | Kg | 3500 | 3800 |

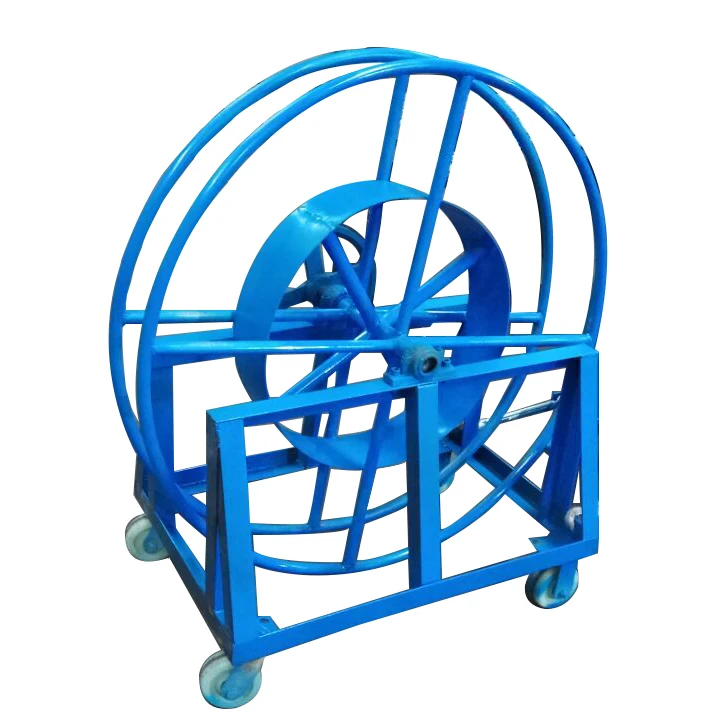

210-spool pay-off SSS-JX210
Straighten each wire through the wire take-up spool. Each wire is equipped with a pulley cycloid device, and the pulley cycloid device sends the wire to the straightening wheel in the order of the wire. The bent wire will be automatically straightened by the straightening wheel to meet the qualified requirements.
Advantages:
Each wire gets the same pulling force
Even thickness
Smooth wire band
Each wire gets the same pulling force
Even thickness
Smooth wire band
Specifications | Unit | SSS-TJB-JX210 |
Working speed | m/min | 0-13 |
Wire band width | mm | 50-120 |
Wire band thickness | mm | 0.35-0.45 |
Dimensions (L*W*H) | mm | 42000*1500*1700 |
Motor | Kw | 7.5+4+9 |
Weight | Kg | 3800 |

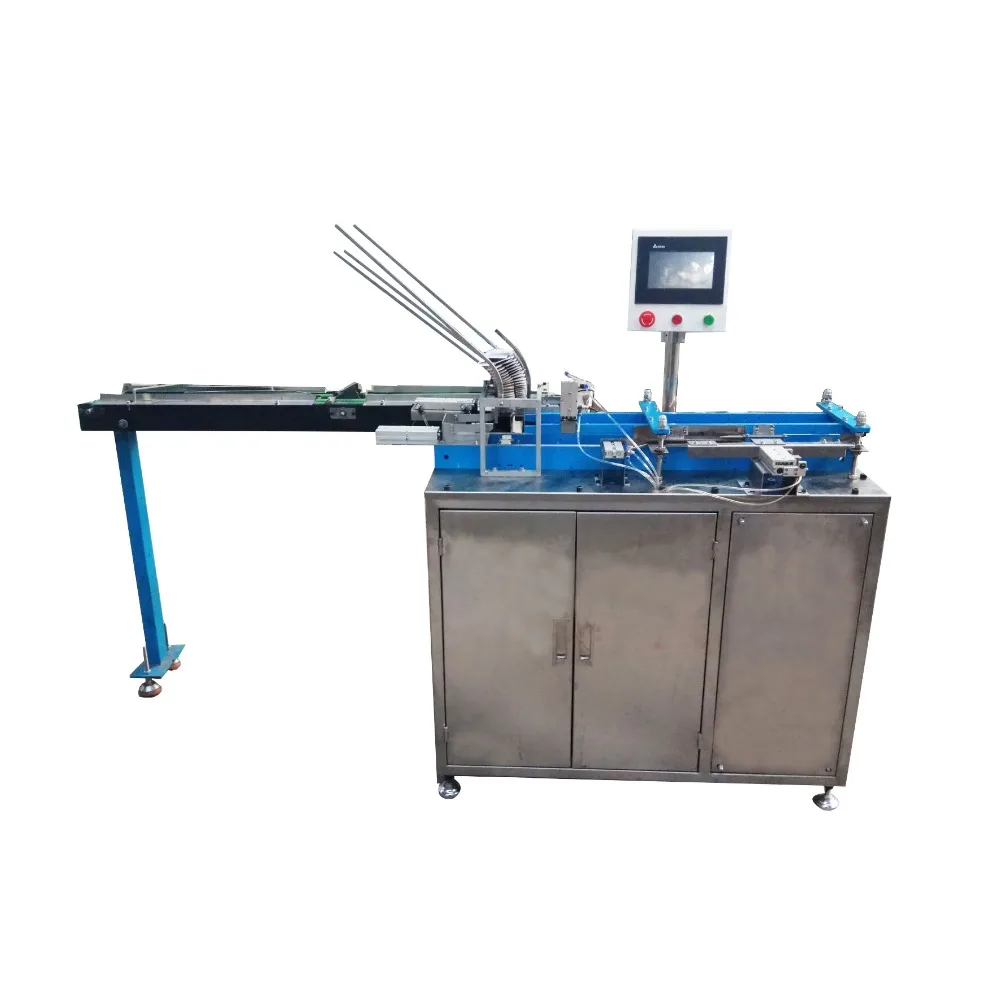

Automatic staple packaging machine
Power of main motor: 80W
Max. Designed capacity: 40 boxes/min
Machine dimension: 1.2×1.1×1.5m(L×W×H)
Machine weight: about 150Kg
Size of carton: max. 125×45×30mm(L×W×H)
min. 120×20×15mm (L×W×H)
Noise:less than 85 db
Max. Designed capacity: 40 boxes/min
Machine dimension: 1.2×1.1×1.5m(L×W×H)
Machine weight: about 150Kg
Size of carton: max. 125×45×30mm(L×W×H)
min. 120×20×15mm (L×W×H)
Noise:less than 85 db
Technical parameters | Unit | SSS-BZJ-OS |
Packing speed | boxes/min | 1-18 |
Weight of a box | g | 5-20 |
Dimension of box | mm | (100~120)x(30~65)x(20~40) |
Weight of machine | kg | 120 |
Dimension of machine | mm | 1300x1100x1300 |
Air consumption: | L | 3-10 |
Vacuum suction | Mpa | 0.5-0.8 |
Packing & Delivery
Contact Us
Sales manager: Helen
Email: export(at)3shardware.com
Whatsapp/wechat:+8618556536386
Skype: Helenlee558
Tel/Fax:+86-551-82819016
Hydraulic office staple making machine from China
Похожие товары

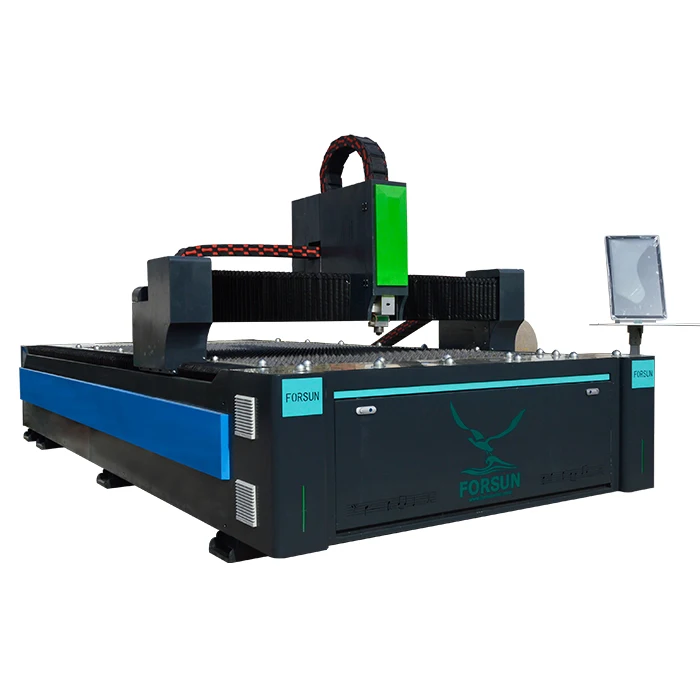

2022 лучший экономичный 1000 Вт 1500 Вт 2000 Вт волоконный лазерный станок для резки для листового металла 1530 3015 для CS SS
288 606,64 ₽ - 309 221,40 ₽

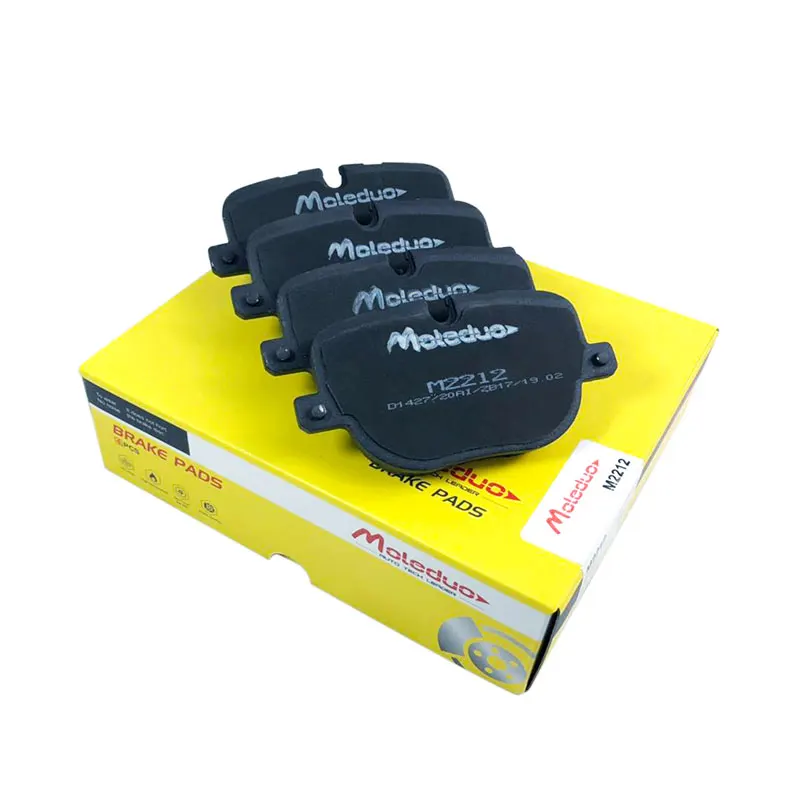

M2212 Автоматическая пусковая площадка тормоза номер детали D1427 для Land Rover сцены 5,0 задний изображение Gdb1824 Fdb4106 D1427-8544
8,78 $ - 9,78 $

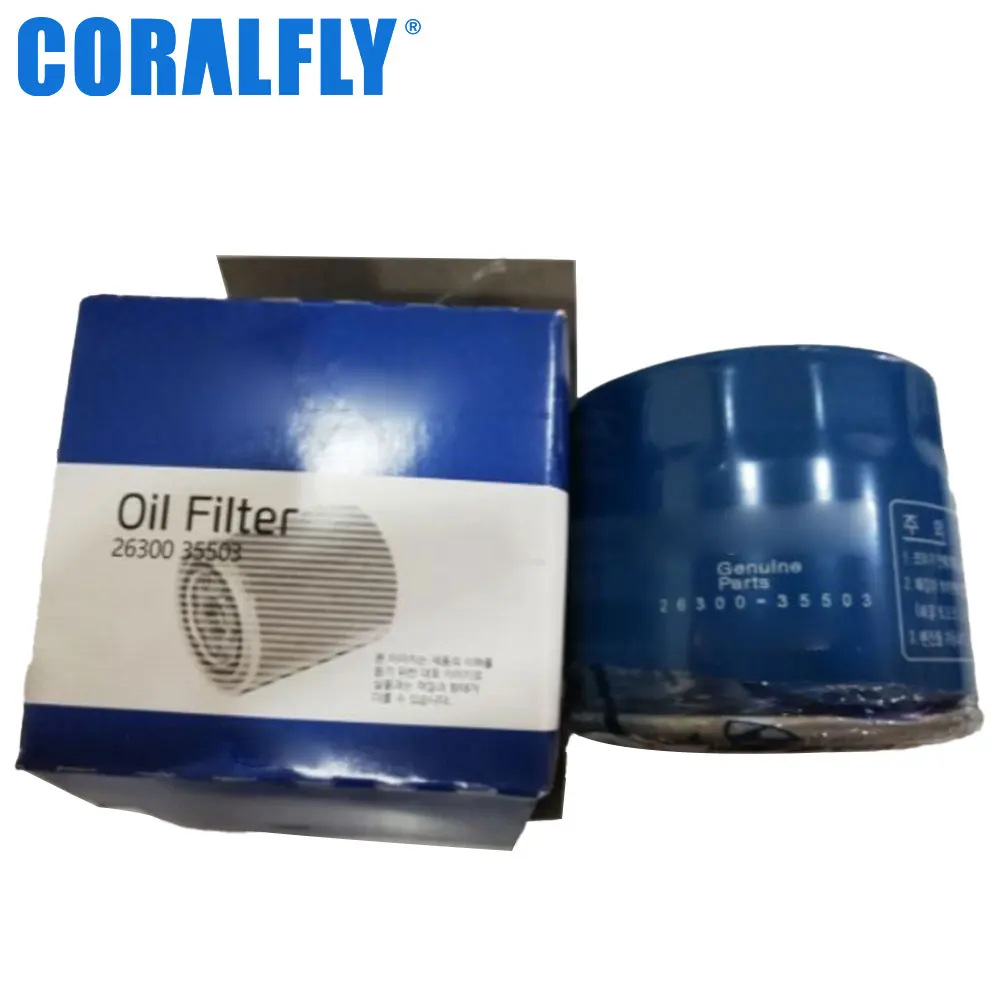

Основа фильтра трансмиссии 26300-35503 для hyundai accent с прокладками экскаваторов
