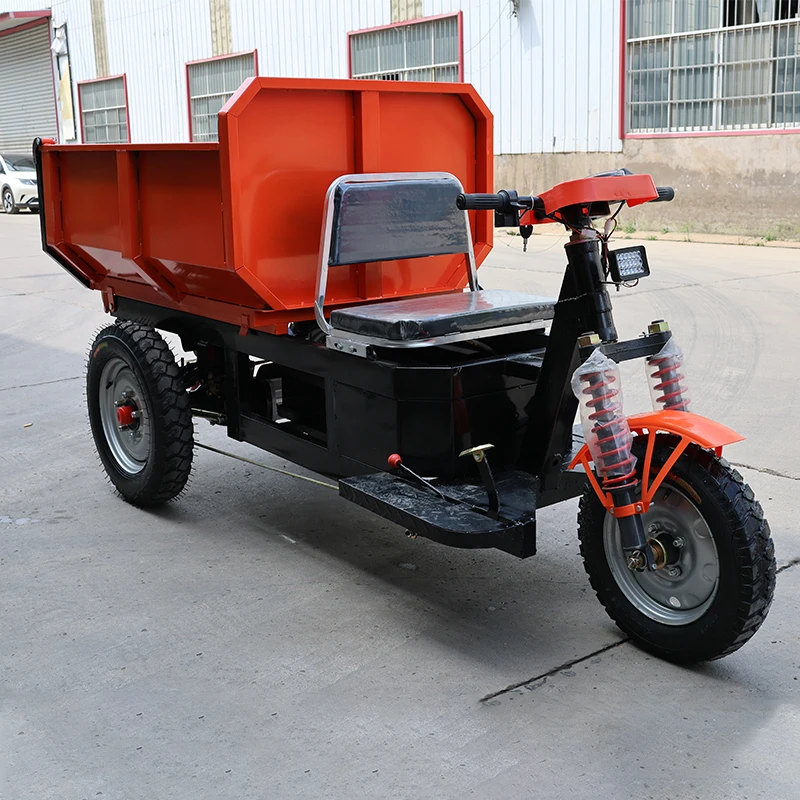

Трехколесный Мини-самосвалы
345,10-414,10 $

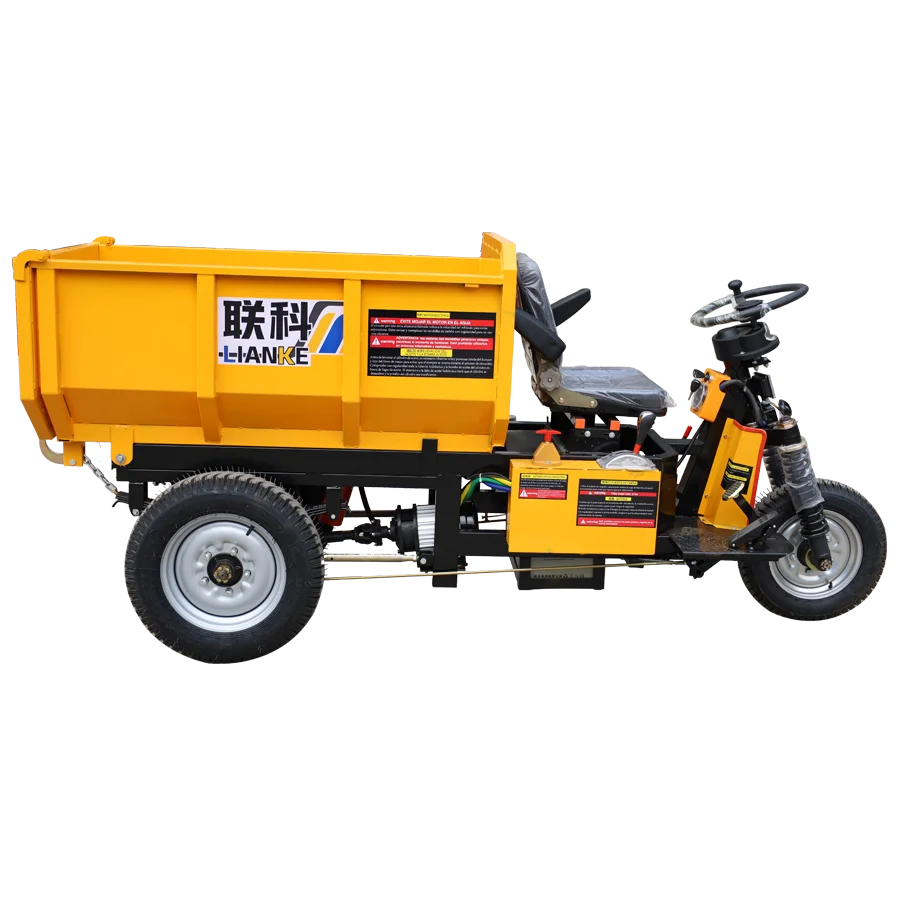

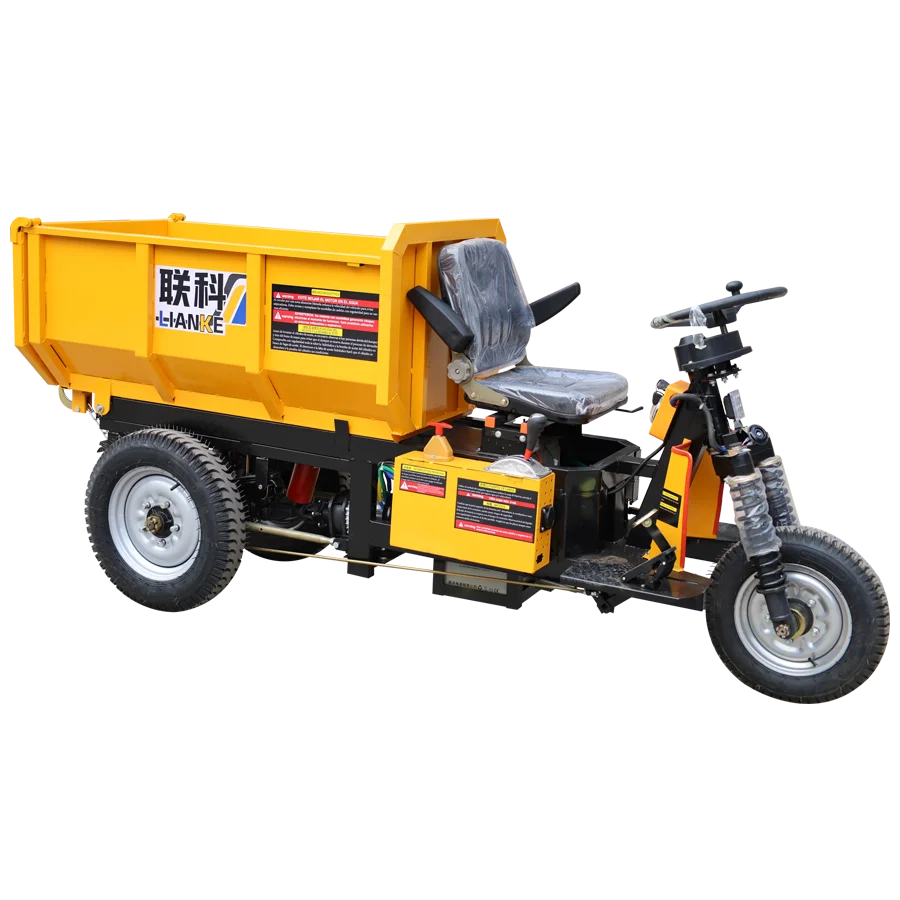

LK135 800 мм Ширина ручного управления мини самосвал 500 кг Сельскохозяйственный самосвал
- Категория: >>>
- Поставщик: Henan Pssroh Trading Co. Ltd.Henan Ltd.
Сохранить в закладки 1600211909246:
Описание и отзывы
Характеристики
Product Overview
Zhengzhou Lianke Machinery Manufacturing Co., Ltd. is a professional factory in the production of electric agriculture dumper and other mining machines. This LK135 load one ton electric site dumper is one of our best selling products. It is popular in many countries and has won good reputation.now we have exported to Africa, Europe, United states, and North American. It has the advantages of wide application, large loading capacity, environmental protection, long work hours. It use electricity as power source, used in mining, brickyard, sanitation and cleaning.
Youtube video links for more details:
you can search Cindy-Zhengzhou Lianke on Youtube for more videos
you can search Cindy-Zhengzhou Lianke on Youtube for more videos

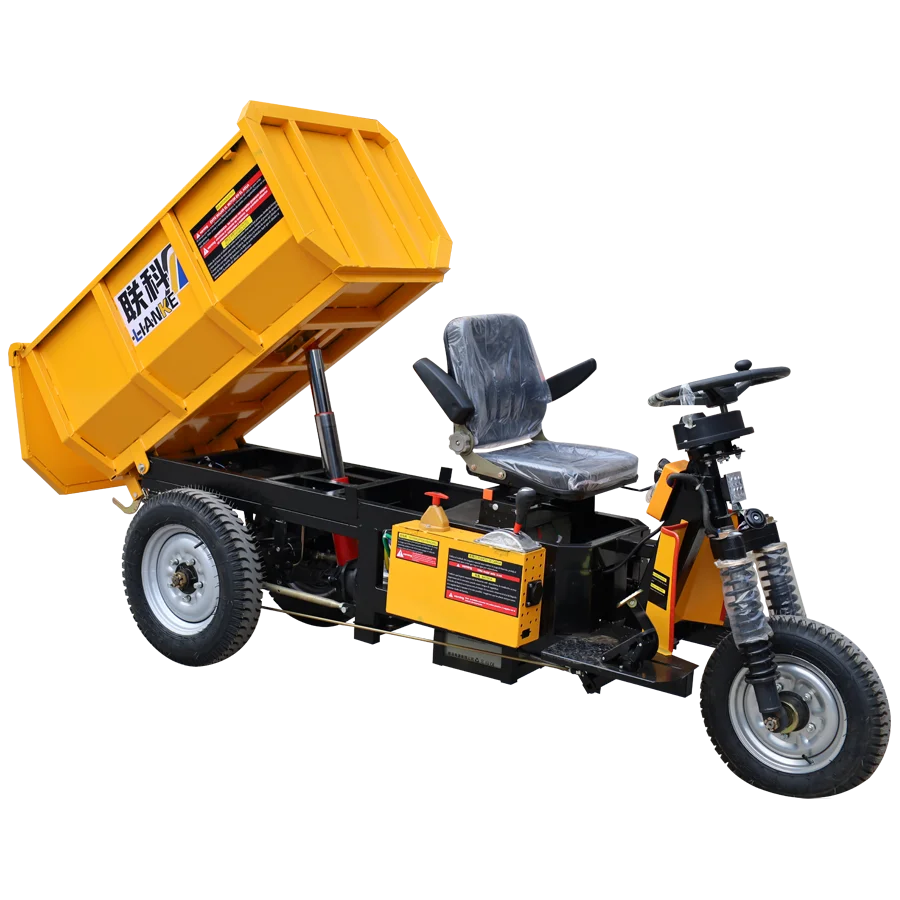

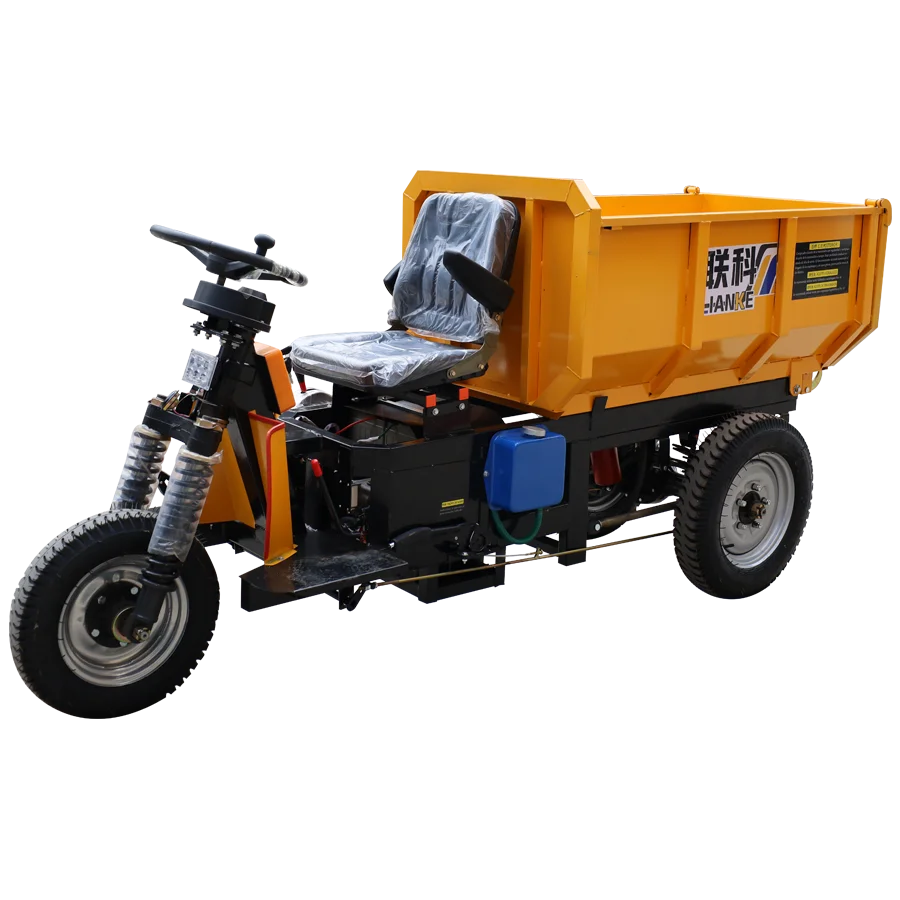

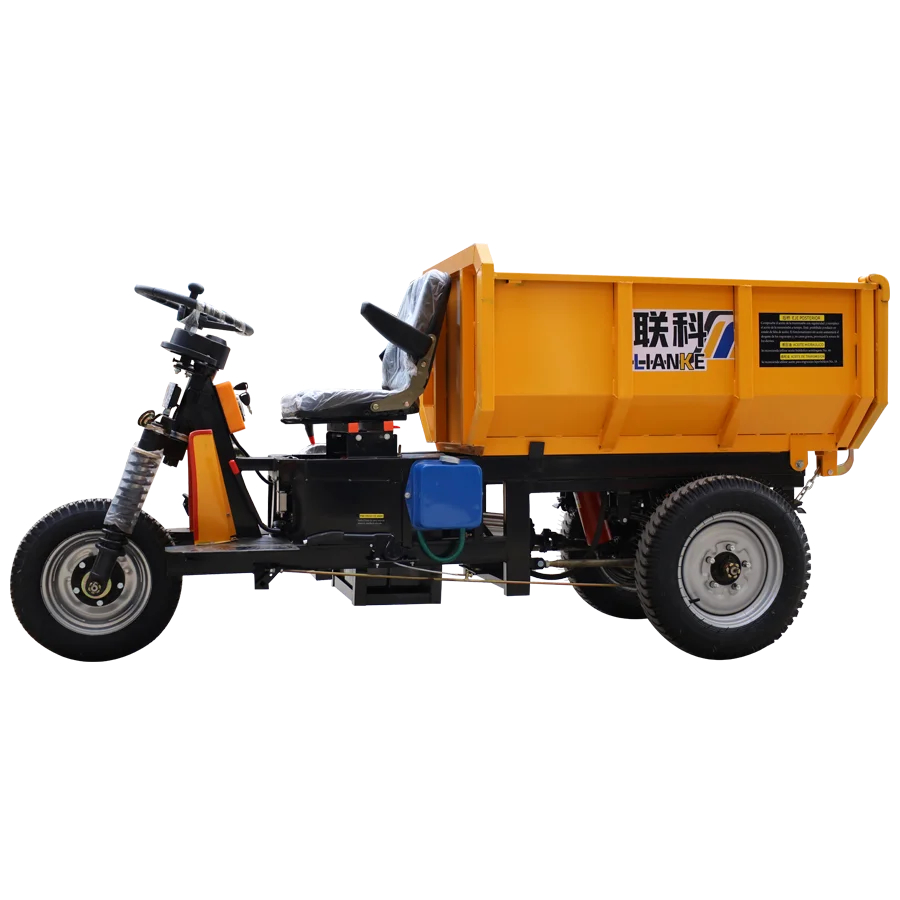

This dumper is a customized by our Peruvian customer. It uses the
1. Heighten the hopper to 500mm
2. 48V80Ah dry battery famous brand and luxury seat with armrest
3. Cardan shaft rear axle
4. Customized vehicle frame into 800mm width
Specification of LK135 electric mini dumper-800mm width model | ||||||
Loading capacity | 1500kg | Net weight | 480kg | |||
Front tire | 4.00-12 HUANYAN | Rear tire | 5.00-14 HUANYAN | |||
Overall size | 2800*800*1350mm | Cargo box size | 1400*800*500mm | |||
Battery | 12V*4 PCS=48V 80Ah dry battery famous brand | |||||
Battery time | Charge time, First time is 12h, the next for 8h Using time, 6 - 8h | |||||
Driving Motor | 2500W Brushless motor | |||||
Lifting motor | 1300W | |||||
Color | Yellow, Red, Orange, pure White, Green and Blue | |||||
Manipulation method | Round steering wheel with a ball head | |||||
VIN&Logo | We can customize VIN plate and logo for container order | |||||
Optional configurations (extra cost) | 1.Motor: 3000W brush motor, 3000W Brushless motor 2.Rear axle: Cardan shaft rear axle/double chain gearbox rear axle, but Direct-inserted rear axle need extra cost. 3.Battery: 60V/72V Water battery or Dry battery. | |||||
Our product
About the standard configuration of the electric mine dumper
We can provide different configurations for different customer environments.
For example, the current standard configuration(Cardan shaft rear axle with brush motor) is suitable for various mines and road conditions. If the mine is located in high altitude area, we can provide the customer with direct-connection brushless motor rear axle or Cardan shaft brushless motor rear axle, which can reduce motor power attenuation caused by high altitude.
Therefore, if your customer has specific use environment, you can tell us such as the altitude of the mine, the local temperature of the mine dumper, the slope of the mine, and the speed of the vehicle required by the customer, which will help us recommend more suitable products to the customer.
For example, the current standard configuration(Cardan shaft rear axle with brush motor) is suitable for various mines and road conditions. If the mine is located in high altitude area, we can provide the customer with direct-connection brushless motor rear axle or Cardan shaft brushless motor rear axle, which can reduce motor power attenuation caused by high altitude.
Therefore, if your customer has specific use environment, you can tell us such as the altitude of the mine, the local temperature of the mine dumper, the slope of the mine, and the speed of the vehicle required by the customer, which will help us recommend more suitable products to the customer.
Cardan shaft rear axle
The LK135 electric dumper adopts the rear axle of the cardan shaft, there is no resistance caused by the operation of the double row chain type, the operation is relatively stable, and there is no noise. The cardan shaft can buffer the impact of the motor, and the motor is not easy to be damaged.
Motor : driving motor and lifting motor
Driving motor adopts 60V3000W brushed motor with cooling fan which has heavy loading and prevent damage from overheating. Add a motor protection plate and red box to the motor wiring port for insulation treatment.
Lifting motor is 1000W dynamic balance "动平衡" brush motor.
In addition, the main line has been upgraded to 8mm ², and all the lines are wrapped with fire-resistand and flame-retardant cloth.
Lifting motor is 1000W dynamic balance "动平衡" brush motor.
In addition, the main line has been upgraded to 8mm ², and all the lines are wrapped with fire-resistand and flame-retardant cloth.
Battery
Under normal circumstances, the standard configuration on our LK135 electric mining dumper truck is 4 pieces of 80Ah water battery, 30kg/piece, which can be replaced by 4pcs of 52Ah dry battery for free.
Controller
The controller has been newly upgraded, adding a black master switch and now we both upgrade to white air switch, and bilingual signs in Chinese and Spanish are posted on the outside of the body and the controller.
Hydraulic controlling system
A: 1000w lifting brush motor,
B: lifting control rod,
C: Limit switch,
D: Hydraulic oil pump
The lifting brush motor combine with oil pump offer power to push the hydraulic oil moving to achieve cargo box's lifting and down;
The function of hydraulic oil is transfer energy, lubrication, anti-rust, cooling, etc.
The lifting control rod control the cylinder to automatic discharge the cargo, which is very easy to operate.
While the dumper add a limit switch which function is controls the electric signal, only the metal plate connects the end of limit switch, will the oil pump start up work.
B: lifting control rod,
C: Limit switch,
D: Hydraulic oil pump
The lifting brush motor combine with oil pump offer power to push the hydraulic oil moving to achieve cargo box's lifting and down;
The function of hydraulic oil is transfer energy, lubrication, anti-rust, cooling, etc.
The lifting control rod control the cylinder to automatic discharge the cargo, which is very easy to operate.
While the dumper add a limit switch which function is controls the electric signal, only the metal plate connects the end of limit switch, will the oil pump start up work.
Tire: Both are HUANYAN Chinese famous brand
Front: 4.00-12
Rear: 5.00-14
HENAN HUANYAN TIRE CO.LTD, the front tire loading capacity is 300kg, the rear tire loading capacity is 895kg per pieces, then the total loading capacity is 2090kg, remove the dumper net weight 500kg, the actual loading capacity can be more than 1590kg.
Rear: 5.00-14
HENAN HUANYAN TIRE CO.LTD, the front tire loading capacity is 300kg, the rear tire loading capacity is 895kg per pieces, then the total loading capacity is 2090kg, remove the dumper net weight 500kg, the actual loading capacity can be more than 1590kg.
Double front fork shock absorber
Shandong Shifeng: Chinese famous brand, (produced by the original Shifeng factory, with the Shifeng "时风" logo)
The double shock absorption of this LK135 electric dumper is around 32.15kg, which has stronger carrying capacity and better shock absorption effect, and it is not easy to be damaged after long-term use, but it needs extra money.
The double shock absorption of this LK135 electric dumper is around 32.15kg, which has stronger carrying capacity and better shock absorption effect, and it is not easy to be damaged after long-term use, but it needs extra money.
The frame
①The frame used by this LK135 electric mining dumper truck is independently developed and produced by our factory. It is formed by a beam through an integrated bending machine, and the buckles are welded in advance for later wiring. The entire line is neatly routed and easy to maintain and quality assurance.
②The two small designs at the rear of the frame fully demonstrate that our company prioritizes customer needs. The first rear end is sealed during welding, which is waterproof and rust proof. The second rear end is also cut with a gap to facilitate smooth self unloading, making the vehicle smoother during self unloading.
③Added battery sealing bracket and integrated into the frame. When the battery is loaded into the vehicle, a layer of waterproof insulation cloth has been added at the top to prevent water from entering the battery, and the bottom is sealed to prevent flying stones from shattering the battery.
②The two small designs at the rear of the frame fully demonstrate that our company prioritizes customer needs. The first rear end is sealed during welding, which is waterproof and rust proof. The second rear end is also cut with a gap to facilitate smooth self unloading, making the vehicle smoother during self unloading.
③Added battery sealing bracket and integrated into the frame. When the battery is loaded into the vehicle, a layer of waterproof insulation cloth has been added at the top to prevent water from entering the battery, and the bottom is sealed to prevent flying stones from shattering the battery.
The cargo box
LK135 electric agriculture dumper 3mm thick steel plate is crash worthy and wear resistant (other supplier use 1-2mm). ①The weld-free box plate that is bent four times is more durable. ②Use the pills to strongly intensively strike and rub the box, so that the scale, rust and dirt on the surface will fall off quickly. ③After welding the frame, it is manually polished before starting painting and assembly. At last, The cargo box is processed by lacquer powder, painting is good.
Latest free upgraded parts
1. Galvanized seats and front gantry
The LK135 load 1.5T electric dumper seats are changed to a silver galvanized style from 2022. The advantage of silver galvanizing is that the seat will not rust due to bumping and peeling paint.
Now our front gantry are technically updated and use laser cutting technology and then welding. The frame after laser cutting is also one piece, but we add two uprights at the front. This can greatly strengthen the front gantry.
Now our front gantry are technically updated and use laser cutting technology and then welding. The frame after laser cutting is also one piece, but we add two uprights at the front. This can greatly strengthen the front gantry.
2. Front and rear headlights and reversing sound "beep beep beep"
LED front and rear headlights, front and rear horns, when you reverse the dumpers, the LK135(1.5T), LK200(2T) and LK270(2.5T) electric dumpers will emit a beeping sound(original is Chinese sound)to ensure normal operation in a dark environment.
3. Main line+slot for stuck line+insulation tube
The main line has been upgraded from the original 6mm² to 8mm² which is not easy cause heat. The main line is wrapped with a glass fiber tube with insulating and flame-retardant functions which can be well insulated and wear-resistant corrosion-resistant high temperature resistant and strong flame-retardant.
The alignment of the dumper is more tidy. Because when the frame is produced, all wiring positions are welded to the frame in advance. In this way the entire fixed line is easy to view.
The alignment of the dumper is more tidy. Because when the frame is produced, all wiring positions are welded to the frame in advance. In this way the entire fixed line is easy to view.
4. The new frame design
The rectangular tube is more precise after being cut by the laser tube cutting machine, and different boxes and frames can be matched with each other.
5. The position of the lift lever for oil pump
It is welded and fixed on the frame in advance, and is subjected to uniform shot blasting and sandblasting before painting.
6. The reinforcement column on the side of the box
It is laser cut and bent in one piece, and no welding is used in the middle position.
7. Weld and seal the rear of the frame
Add seals at the tail of the frame, the rear of the frame is welded to prevent water from rusting.
8. Detail treatment of spray paint and anti-rust
The shim plate supporting the steel spring plate on the rear axle was originally painted on one side only, but now the interior has also been painted to prevent rust.
9. Upgraded dump hook
The new self-unloading hook is cut by laser cutting and use one long pin to be fixed, the edge is smooth and bright. It is more beautiful and strong, anti-reverse hook.
10.1 Controller cabinet
The inside and outside of the controller box are painted (only the outside was sprayed before)
10.2 Free upgraded parts of controller cabinet
Increase the ventilation holes. The mudguard of the charging port. Change the knife to an air switch.
11. The motor protection plate adds a gap to prevent the chain from rubbing.
Add a red box to the motor wiring port for insulation treatment.
12. Unified free upgrade to 12KG thickened and widened rear leaf spring.
The before is 7.87kg, now electric dumper adopt total weight of 12kg will drive more steady. Not only focus on the numbers, but also on the weight.
13. Two-section chrome cylinder for LK135 model electric dumper
Now our LK135 load 1.5T dumper electric dumpers upgrade to new brand two-section chrome-plated cylinder, rise and fall faster and more smoothly.
Customized item
Luxury seats & thicken 6mm bottom plate
need extra cost
Front shock absorption(there are 3 types)
Our LK135 electric dumper can upgraded to double shock absorption. Shandong Shifeng (Chinese famous brand)
The 40cm small shock absorber(Picture 1) is not suitable for driving on the roads in the mining area after market verification, so vehicles leaving the factory after August 2022 will be upgraded to a single row large shock absorber for free (50cm in the picture 2 is a single row large shock absorber). If double row shock absorber(Picture 3) is required, additional fees will be paid. If it is not used in the mining area, the 40cm ordinary small shock absorber(Picture 1) can still be used, and the price can be reduced.
The 40cm small shock absorber(Picture 1) is not suitable for driving on the roads in the mining area after market verification, so vehicles leaving the factory after August 2022 will be upgraded to a single row large shock absorber for free (50cm in the picture 2 is a single row large shock absorber). If double row shock absorber(Picture 3) is required, additional fees will be paid. If it is not used in the mining area, the 40cm ordinary small shock absorber(Picture 1) can still be used, and the price can be reduced.
The uprights on the side of the hopper
The standard numbers of the upright for LK135 hopper is one, but if you want add the uprights, we can produce for you, and it is free.
SIMILAR PRODUCTS
If you have any questions please contact me WhatsApp:
Cindy-Zhengzhou Lianke +86-15515991837
Loading capacity: 1500kg
Overall size:3100*1020*1400mm
Hopper size:1450*950*450mm
Tire:4.00-12/5.00-14
Engine power:13.2kw/18hp/2200rpm
If use in high altitude areas need to upgrade to 22hp, need an extra cost of $125 each vehicle.
Overall size:3100*1020*1400mm
Hopper size:1450*950*450mm
Tire:4.00-12/5.00-14
Engine power:13.2kw/18hp/2200rpm
If use in high altitude areas need to upgrade to 22hp, need an extra cost of $125 each vehicle.
Loading capacity: 2500kg
Overall size:3300*1150*1350mm
Hopper size:1800*1100*500mm
Tire:5.00-14/6.50-16
Engine power: 17kw/24hp/2200rpm
Contain front face with turn signal and tail gas purification treatment.
Overall size:3300*1150*1350mm
Hopper size:1800*1100*500mm
Tire:5.00-14/6.50-16
Engine power: 17kw/24hp/2200rpm
Contain front face with turn signal and tail gas purification treatment.
Overall size:3300*1100*1350mm
Hopper size:1800*1100*450mm
Tire:4.50-14/6.00-16 (HUANYAN)
Driving motor: 60V2000W/3000W(Brush/Brushless motor)
Rear axle: Double chain gear box or direct-connection rear axle
Weight: 685kg
Hopper size:1800*1100*450mm
Tire:4.50-14/6.00-16 (HUANYAN)
Driving motor: 60V2000W/3000W(Brush/Brushless motor)
Rear axle: Double chain gear box or direct-connection rear axle
Weight: 685kg
Overall size:3300*1150*1400mm
Hopper size:1800*1150*500mm
Tire:4.50-14/6.00-16 (HUANYAN)
Driving motor: 72V4000W(Brushless motor)
Rear axle: Direct-connection rear axle with high-medium-low gear
Rear axle brand:DATAI or YUANHAO
Weight: 780kg
Hopper size:1800*1150*500mm
Tire:4.50-14/6.00-16 (HUANYAN)
Driving motor: 72V4000W(Brushless motor)
Rear axle: Direct-connection rear axle with high-medium-low gear
Rear axle brand:DATAI or YUANHAO
Weight: 780kg
Packing&Delivery
FCL Delivery
For the order quantities of 16-24 units of electric agriculture dumper, normally we advise to adopt full container load, full container shipment without any demolition, it's more convenient transportation and cost savings.
Contact information
Cindy
Sales Rep. | Sales Department
Trade manager ID: cn1528658030bgfg Mobile/WhatsApp: +86 15515991837 Email: cindy@pssroh.com
WeChat ID: +86 18838982793
Please scan the QR code for more details.
Похожие товары
Лидер продаж недорогой небольшой мини-самосвал tc500 500 кг портативный самосвал мини-транспортер строительный гидравлический дизельный

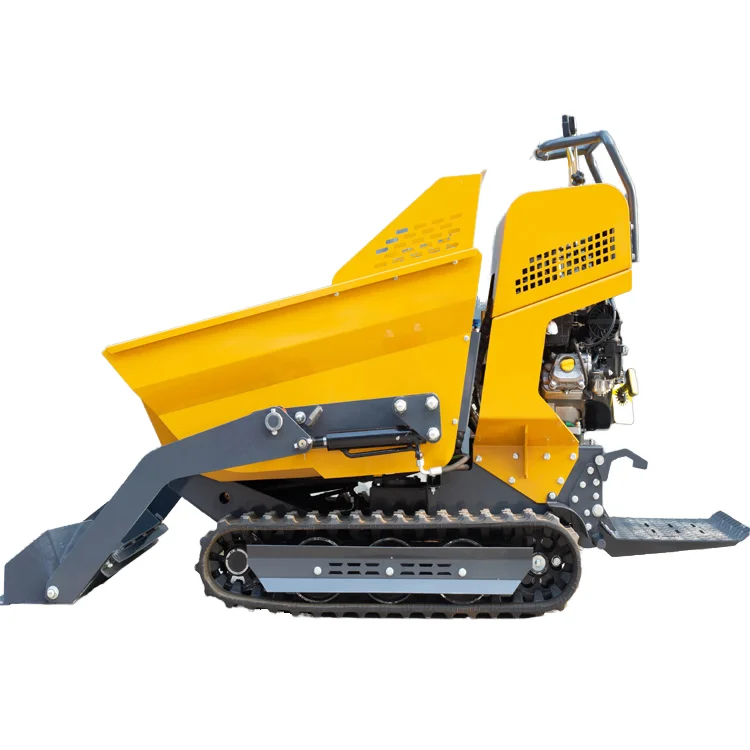

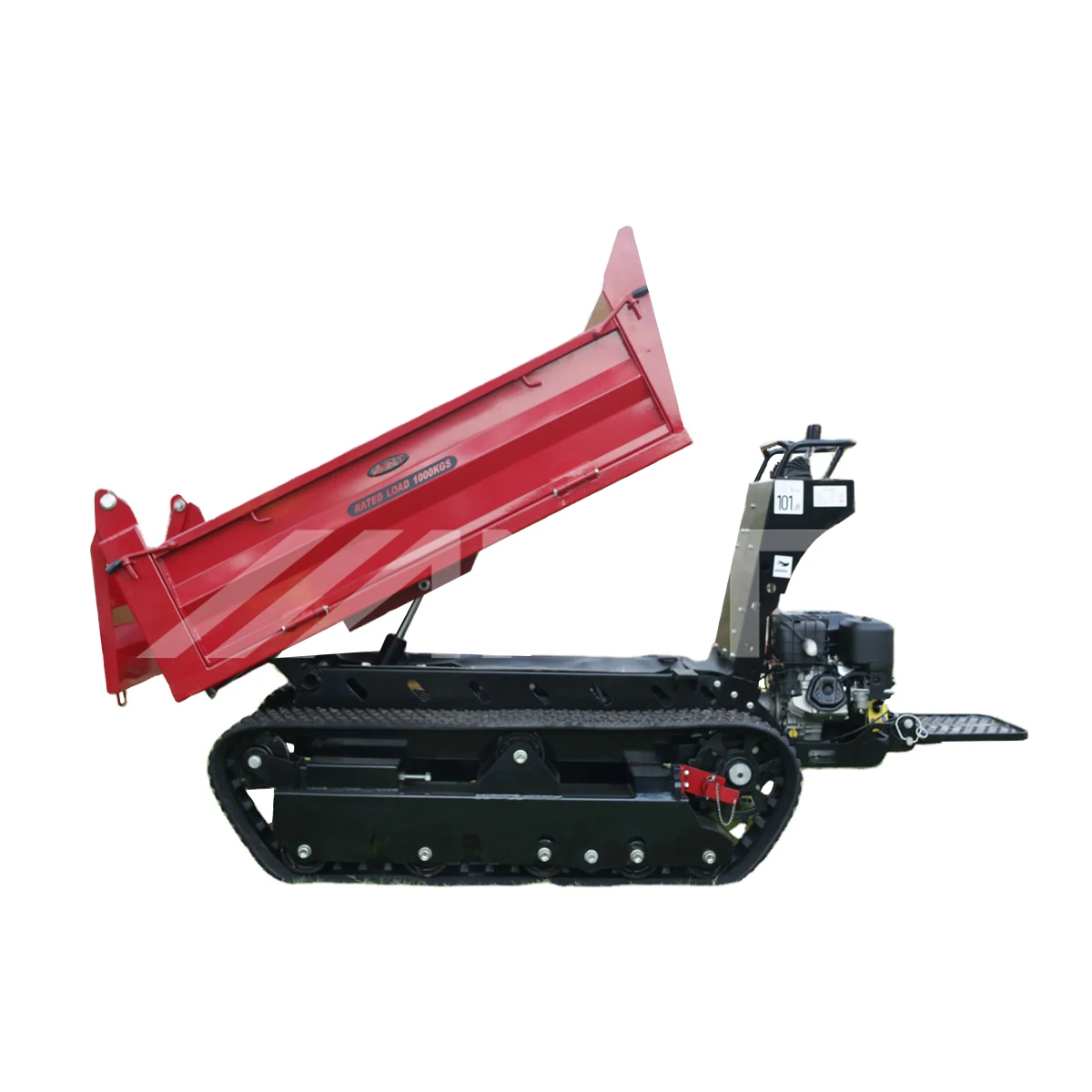

Самозагружающий гусеничный самосвал OEM & ODM китайский погрузчик для эффективного мини-самосвала
1 450,00-1 700,00 $
Заводская цена грузовик Сельскохозяйственный самосвал Горнодобывающий высококачественный Мини-гусеничный транспортер для различных задач обработки
1 400,00-1 600,00 $
Компактный бензиновый мини-самосвал для сельскохозяйственных плантаций
5 500,00-6 000,00 $

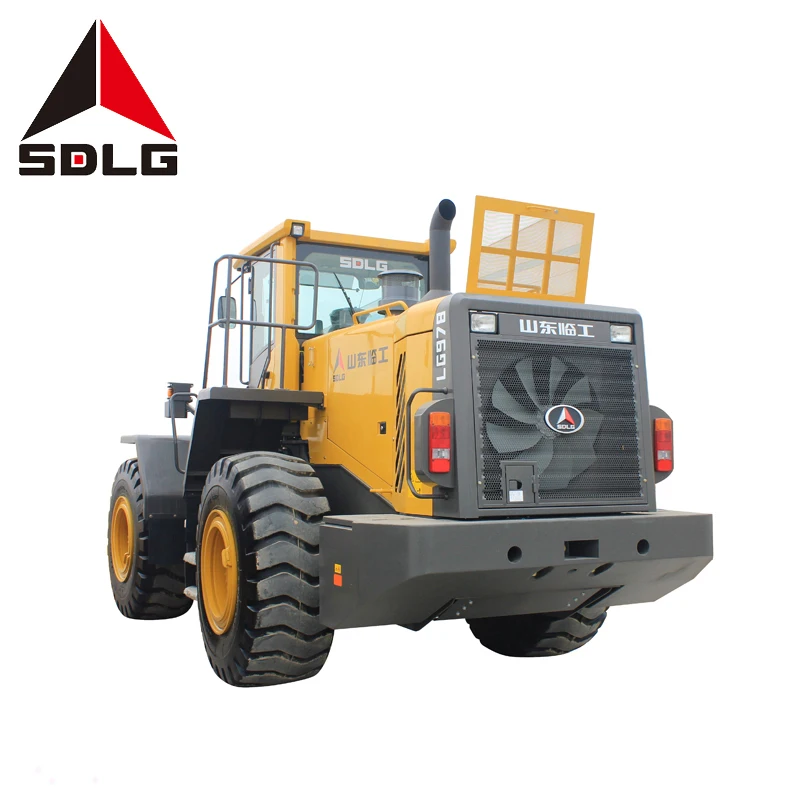

SDLG LG978 заводская цена маленький трактор спереди фронтальный погрузчик
Agricalchar машина мини radlader Китай 2 тонны LW200K фронтальный погрузчик для продажи

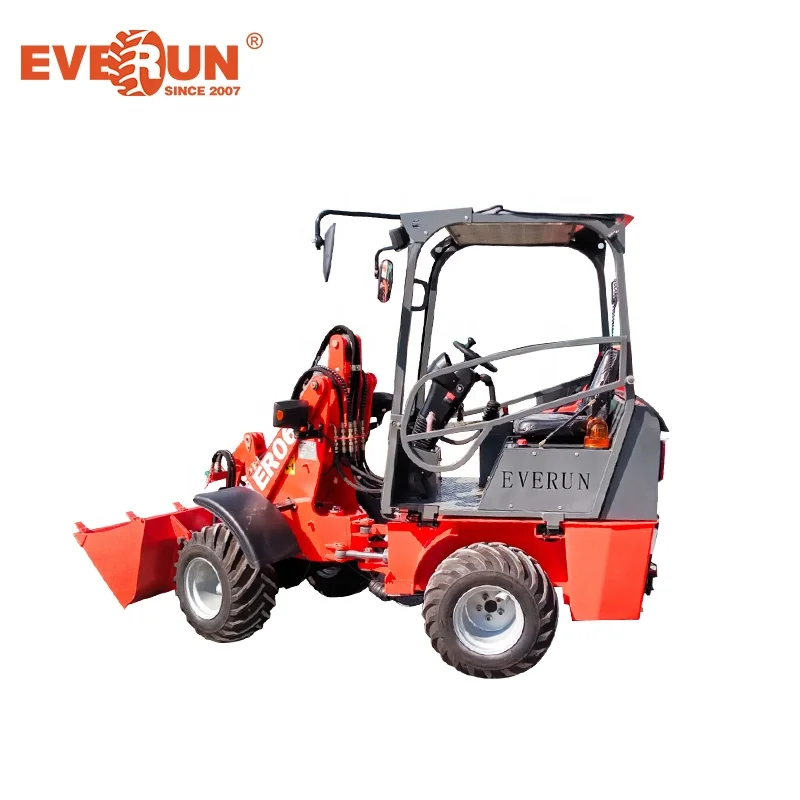

Конкурентоспособная цена Everun бренд ER06 китайский мини фронтальный погрузчик
