Product Overview

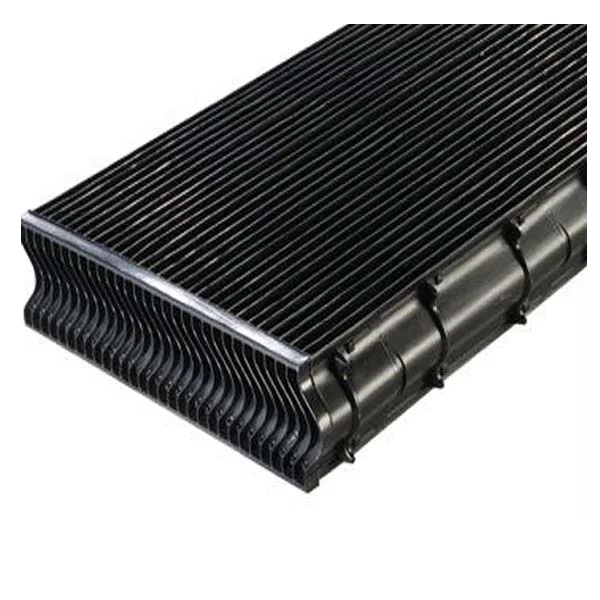

New Design PVC Fill Pack Block Industrial Cooling Tower Water Drift Eliminator
Drift Eliminators, made from rigid PVC, are designed to remove entrained particles from air steam efficiently, with minimum pressure drop, thereby reducing the fan power requirement when the air passes through the Drift Eliminator.
Water droplets are separated from the air drift at the three direction change points on the drift eliminator.
Water droplets are separated from the air drift at the three direction change points on the drift eliminator.
FEATURES AT A GLANCE
• Significantly block sunlight (70:1 light reduction) to reduce algae growth on interior surfaces of the cooling tower system,
thus reducing the cost of algae-removal chemicals and labor.
• Reduces noise leaving the tower through the louver modules by approximately three decibels.
• Achieves very low pressure drop results.
• Pre-assembled modules available in a variety of lengths.
• Optional Assembly frames made of extruded PVC available for easy installation and access for cleaning and maintenance (mounting
flanges available on 1, 2, or all 4 sides).
• Rigid, UV-stabilized PVC meets Cooling Technology Institute Standard 136.
thus reducing the cost of algae-removal chemicals and labor.
• Reduces noise leaving the tower through the louver modules by approximately three decibels.
• Achieves very low pressure drop results.
• Pre-assembled modules available in a variety of lengths.
• Optional Assembly frames made of extruded PVC available for easy installation and access for cleaning and maintenance (mounting
flanges available on 1, 2, or all 4 sides).
• Rigid, UV-stabilized PVC meets Cooling Technology Institute Standard 136.
PRODUCT SPECIFICATIONS
No | Item | Data | ||||
1 | Name | Cooling tower drift eliminator or air inlet louver | ||||
2 | Material | PVC | ||||
3 | Panel size | D65/125/130/245mm*W*L | ||||
4 | Thickness | 0.3-0.5mm | ||||
5 | Woring temperature | -15-+65degrees | ||||
6 | Type | Cellular type or tubular type | ||||
7 | Application | Industrial Cooling towers | ||||
8 | Customization and sample | Acceptable | ||||

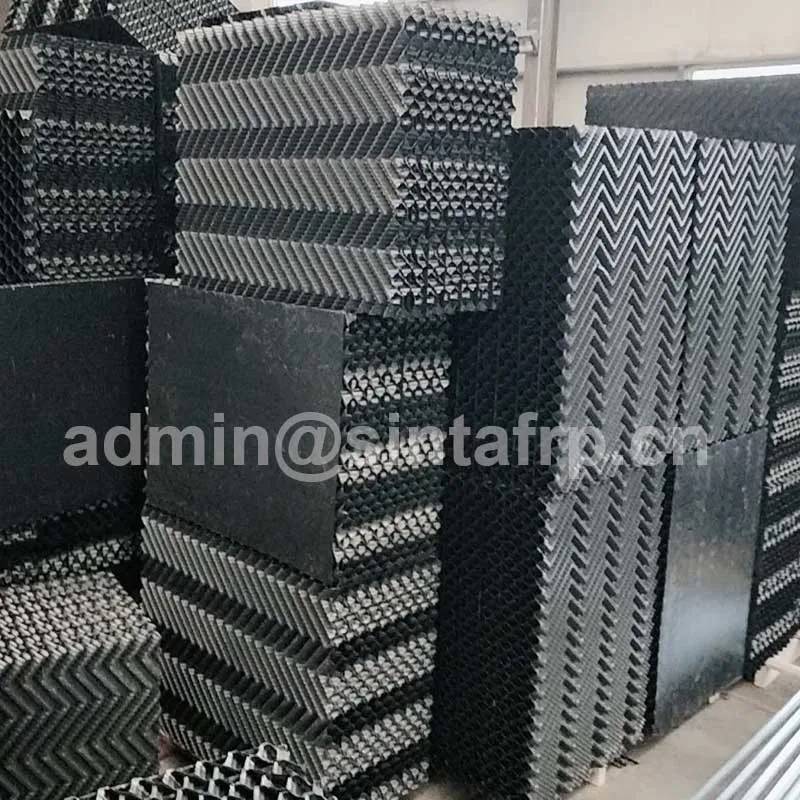

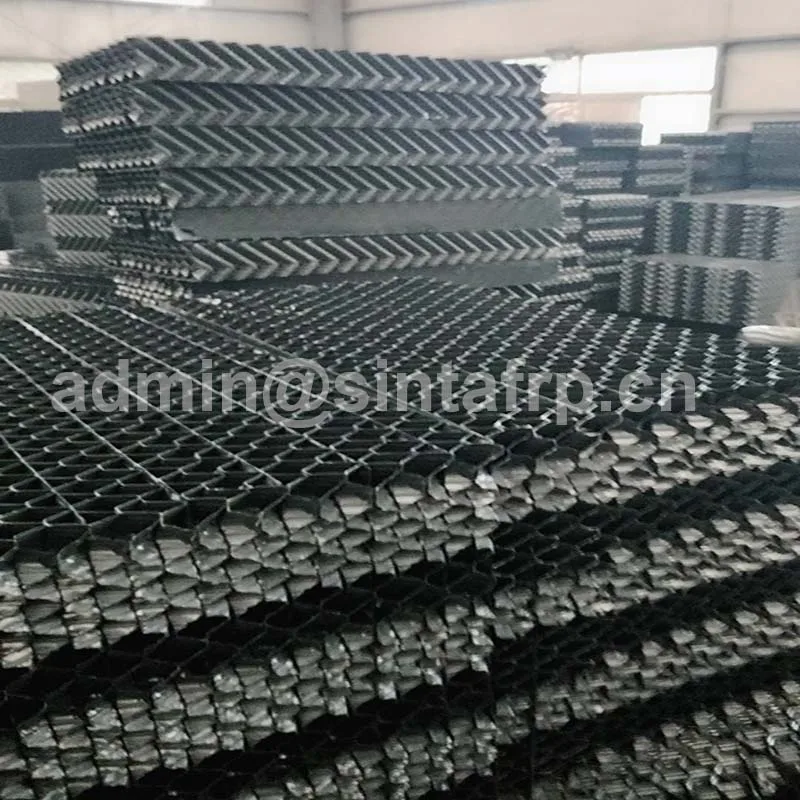

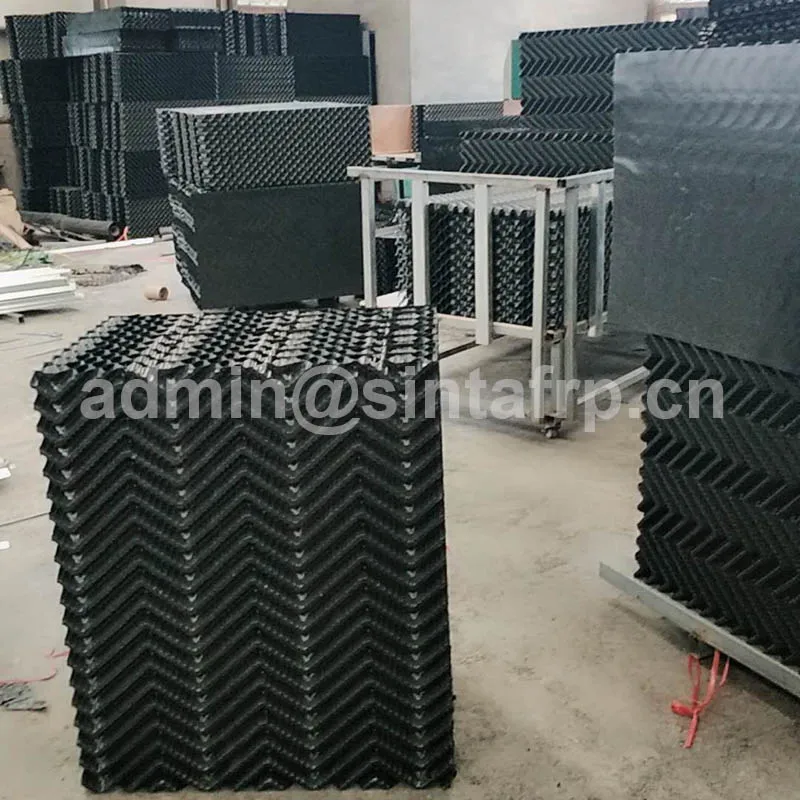

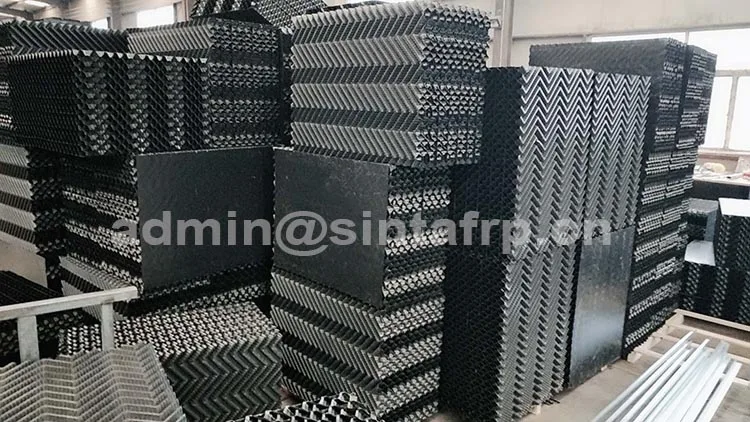

Detailed Images
we can customize the panel size and offer finished blocks for you. Few clients need loose sheets, that is also fine for us, price will be cheaper and clients can save much shipping freight.
Cooling Tower drift eliminator Application:
Inlet louvers are used in a wide variety of new and retrofit applications, including air inlets for both package and field-erected counterflow and straight-sided crossflow towers, fresh air make-up systems, air pollution control scrubbers, and VOC strippers.
Inlet louvers are used in a wide variety of new and retrofit applications, including air inlets for both package and field-erected counterflow and straight-sided crossflow towers, fresh air make-up systems, air pollution control scrubbers, and VOC strippers.
Cooling tower air inlet louvers you may need:
Air Inlet Louvers improve air flow into the cooling tower, keep out debris, eliminate water splash-out (which can cause icing, near-site water damage, and costly water and water treatment chemical loss), restrict the amount of sunlight into the cooling tower (to impede algae growth), reduce noise from the tower, and improve the tower's appearance.
Material : Air intake louvers are constructed of UV-stabilized PVC. This compound has outstanding resistance to weather exposure and is nearly impervious to chemical degradation by alkalis, acids, greases, fats, oils, and biological attacks. It also has an excellent fire rating due to its self-extinguishing characteristics and meets or exceeds Cooling Technology Institute Standard 136. We also have PP and CPVC material which can meet the water high temperature requirement.
The drift eliminator thickness can be 65mm,125mm,130mm,etc. The loose sheet is cut from the whole pvc thermoformed sheet.
Material : Air intake louvers are constructed of UV-stabilized PVC. This compound has outstanding resistance to weather exposure and is nearly impervious to chemical degradation by alkalis, acids, greases, fats, oils, and biological attacks. It also has an excellent fire rating due to its self-extinguishing characteristics and meets or exceeds Cooling Technology Institute Standard 136. We also have PP and CPVC material which can meet the water high temperature requirement.
The drift eliminator thickness can be 65mm,125mm,130mm,etc. The loose sheet is cut from the whole pvc thermoformed sheet.
Cooling tower louvers with plastic frme
air inlet louvers with galvanized steel frame
About Us
Hebei Sinta FRP Products Co., Ltd. is specialized in various cooling tower spare parts, is a enterprise engaged in design,
manufacture and Sales. The cooling tower spare parts include cooling tower pvc fills, cooling tower drift eliminators, cooling tower nozzles. The products meet specific application and are widely used for various brands of cross flow/counter flow cooling tower and evaporative condenser,The products also can be made as your special requests. If you provide us detailed drawing,our engineer will evaluate the mould and cost issues.
Sinta always supply best quality and excellent service to meet your all requirements, hope to establish good and long time
cooperation with much joy with you!
Any inquiry will be answered in the first time. www.sintafrp.com
manufacture and Sales. The cooling tower spare parts include cooling tower pvc fills, cooling tower drift eliminators, cooling tower nozzles. The products meet specific application and are widely used for various brands of cross flow/counter flow cooling tower and evaporative condenser,The products also can be made as your special requests. If you provide us detailed drawing,our engineer will evaluate the mould and cost issues.
Sinta always supply best quality and excellent service to meet your all requirements, hope to establish good and long time
cooperation with much joy with you!
Any inquiry will be answered in the first time. www.sintafrp.com
Contact us
Welcome to contact us for New Design PVC Fill Pack Block Industrial Cooling Tower Water Drift Eliminator
Похожие товары

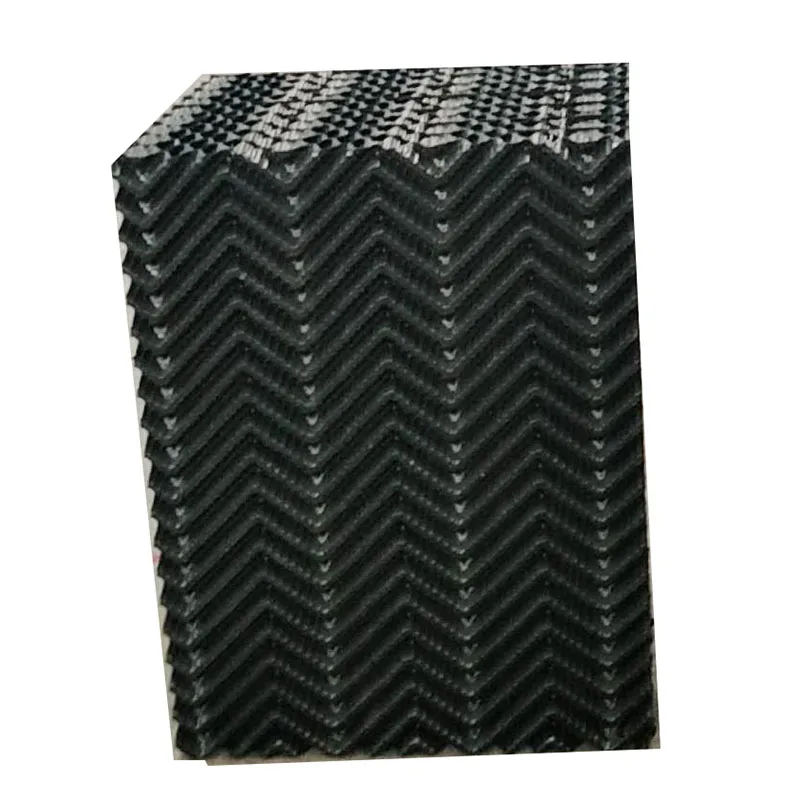

Низкая Скорость дрейфа сотовый водяной охлаждающий башенный Устранитель дрейфа
5,00 $ - 10,00 $
4,75 дюймовый Испарительный заполнитель лезвия DE-120, замена 305*1830 мм, башенный водяной охладитель, Устранитель дрейфа
25,00 $

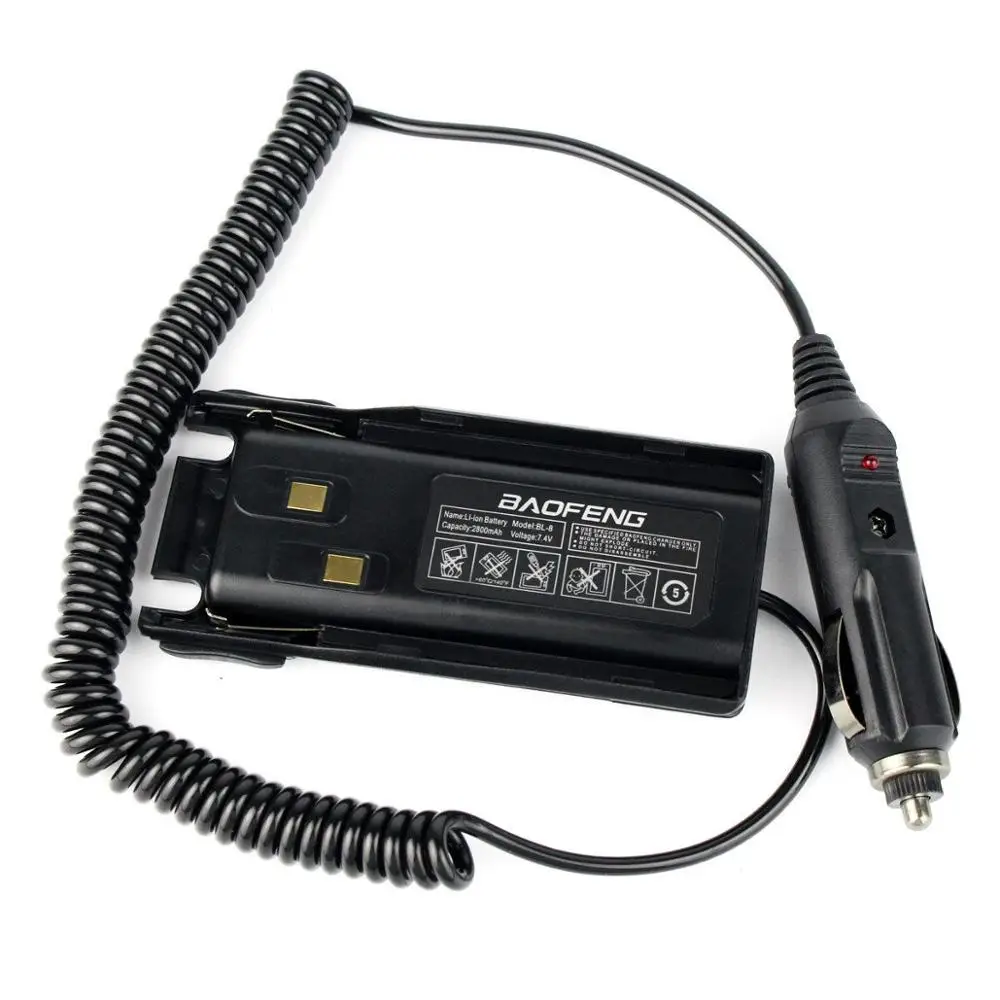

Автомобильное зарядное устройство Baofeng, уничтожитель аккумулятора для раций UV82, 12 В постоянного тока
3,50 $ - 3,90 $

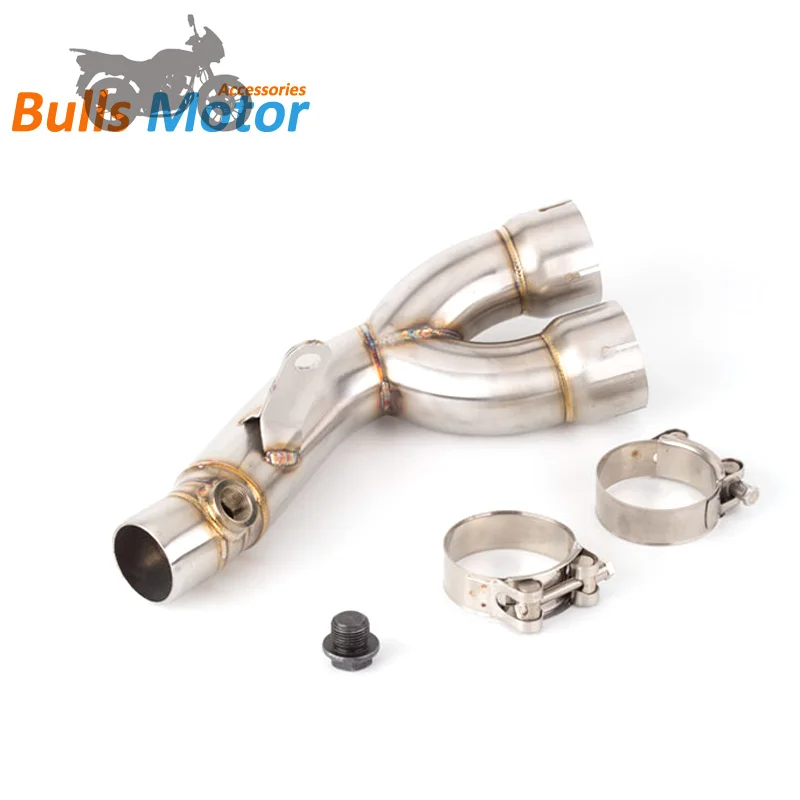

Выхлопной глушитель Y Mid Link Pipe Race Cat Eliminator для Yamaha YZF R6 Decat Pipe 2006-2019 Catalyst удаленный Средний соединительный трубопровод
32,00 $ - 39,00 $

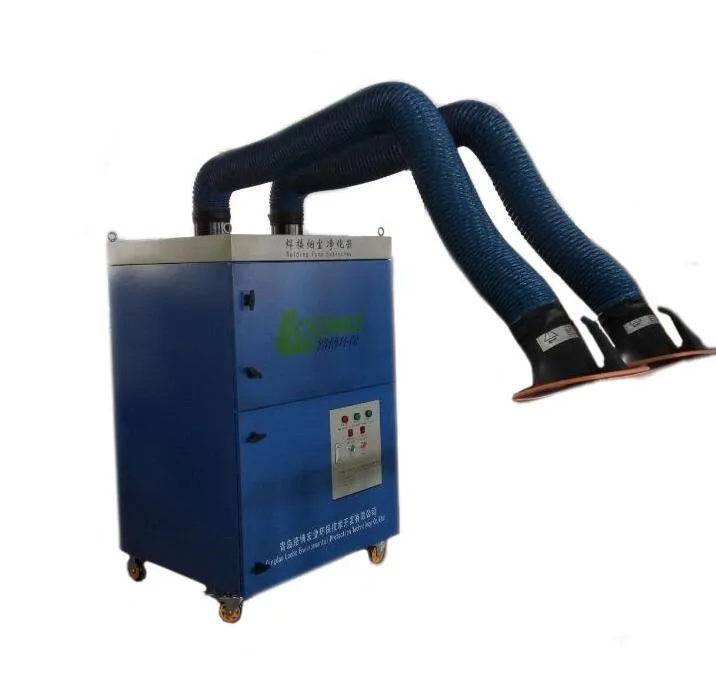

Промышленное использование, горячая Распродажа, сварочное оборудование, очиститель дыма, выхлопные системы, Устранитель дыма, прочный с двумя дужками
2 300,00 $ - 2 400,00 $

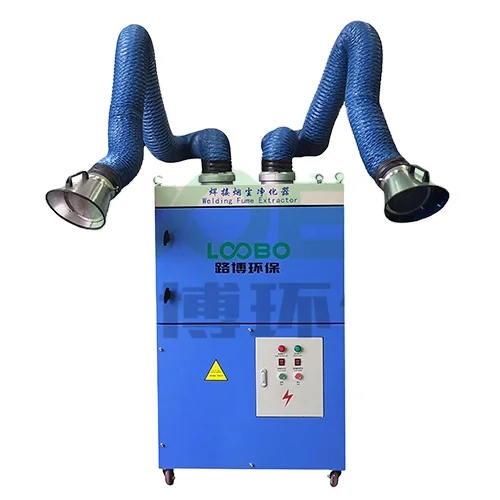

Промышленное использование, горячая Распродажа, сварочное оборудование, очиститель дыма, выхлопные системы, Устранитель дыма, прочный с двумя дужками
2 500,00 $ - 2 600,00 $

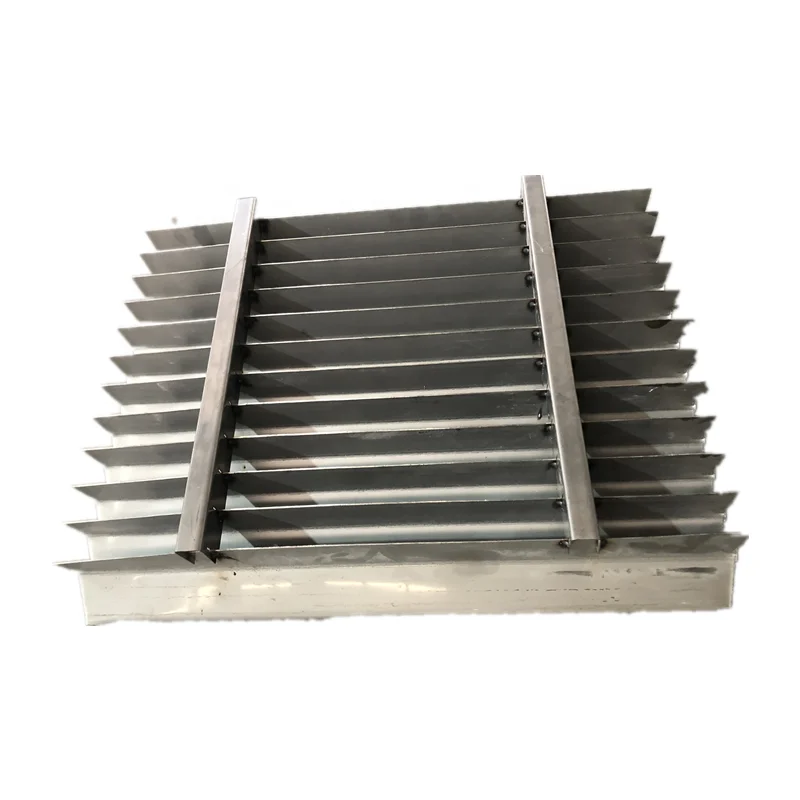

Металлический корпус из нержавеющей стали с лезвием из нержавеющей стали типа дрейф влагоулавливатель лопасти ячеистой сети/тумана
