WTF-B500 anemometer are used in the meteorological observatory (station), chemical industry, power station, Industrial and mining establishment to record the wind's traveling schedule and observe instantaneous wind speed installment. The anemometer can realize the equipment wind speed instruction digitally and automatically. And it is essential sophisticated equipment for some modern equipment.

Anemometer is composed with STC12C2052 single-chip and its related periphery line, the display screen adopts two windows high brightness eight nixie tubes which can display currently actual wind speed and wind scale separately.

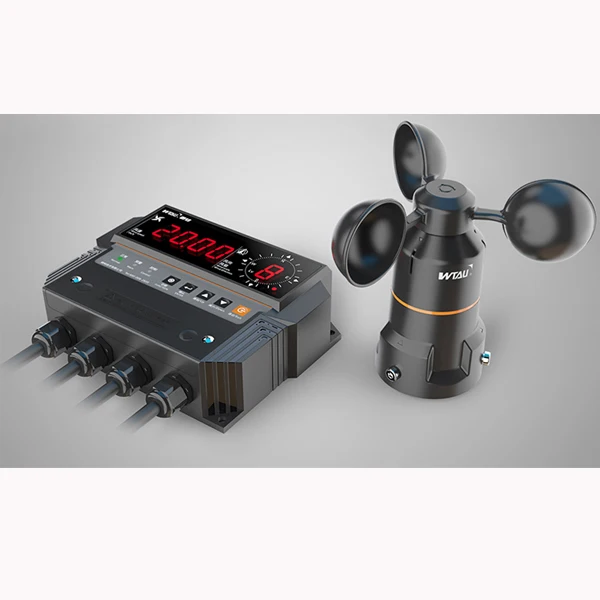

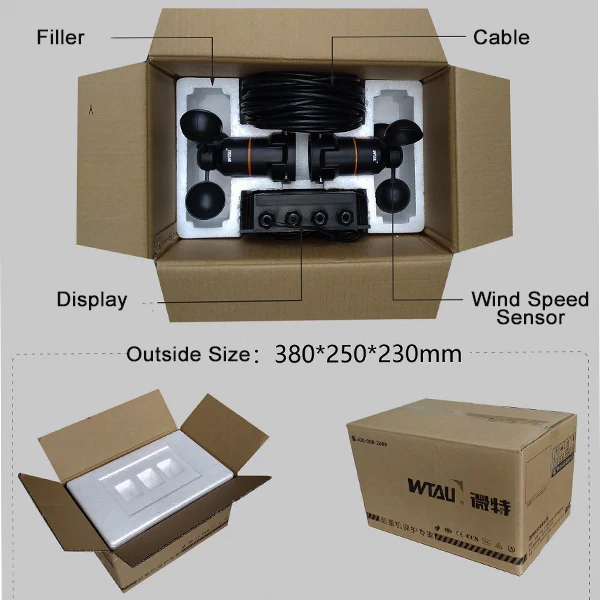

One whole set of anemometer includes the following:

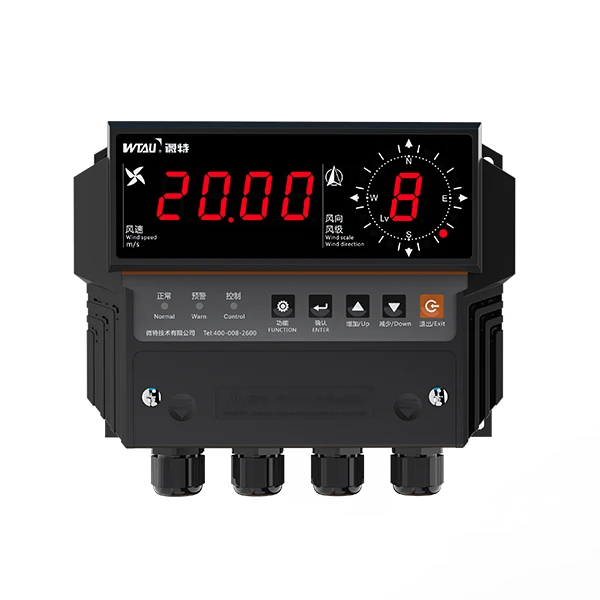

1. WTF Intelligent Display

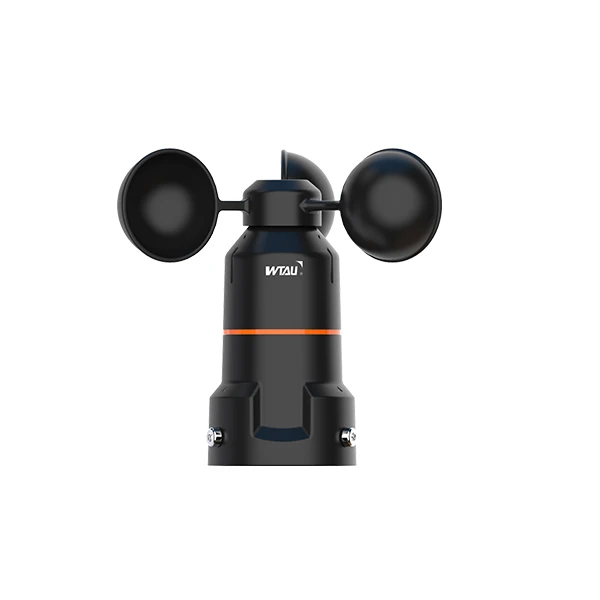

2. WFS-1 Wind Speed Sensor


3. cable (the length depends on your requests)





















































































   item	value
   Applicable Industries	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Construction works , Energy & Mining, Other
   Showroom Location	Canada, Turkey, United Kingdom, Italy, France, Germany, Viet Nam, Philippines, Brazil, Saudi Arabia, Pakistan, India, Mexico, Spain, Morocco, South Korea, UAE, Algeria, Romania, Bangladesh, South Africa, Ukraine, Japan, Malaysia
   Video outgoing-inspection	Provided
   Machinery Test Report	Provided
   Marketing Type	Ordinary Product
   Place of Origin	China
   	Hebei
   Brand Name	WTAU
   Warranty	1 Year
   Model Number	WTF-B500
   Power	24V, 220V, 380V(+20%)
   Wind speed measurement range	0.1 ~ 40 (m/s)
   Starting wind velocity	< 0.2 m/s
   Working temperature	- 20 °C ~ + 70 °C
   Action Error	≤3%
   IP Grade	65
   Product Name	anemometer
   Relative Humidity	20%--90%
   Output signal	4~20mA/RS485
