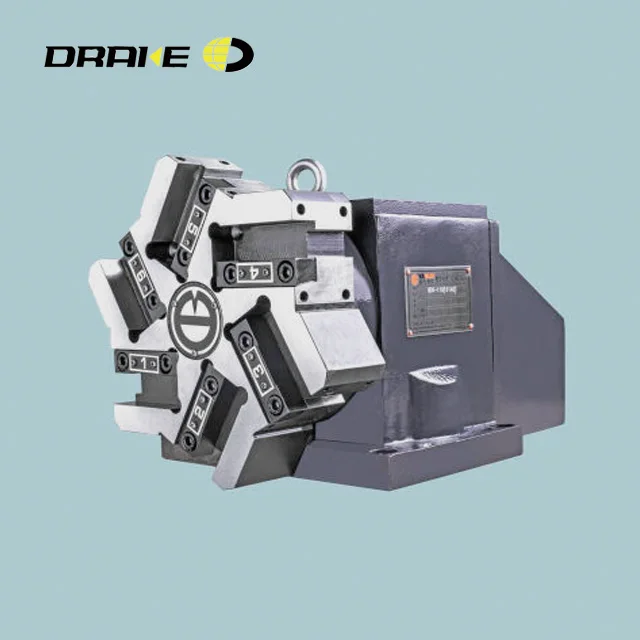

Горизонтальная револьверная башня серии WD 6 станций однонаправленная

Сохранить в закладки 1600214409862:


Цена:980,00 $ - 1 025,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


XWD series horizontal 6/8 position nc turret



Product Description

















 .png











Technical features:



Unidirectional choose tool, Non-Contact transmitter, gear teeth
Precise positioning, camlock-type, compact-conruct and reliable.
It suites for all kinds of lathes whose grades is higher than
C6140.









Parameters







Performance Parameters

































































ModelChanging time(s)




Max. allowable torque (Nm)






The max bias torque (Nm)


Repeatability accuracy (mm)

Indexing accuracy


Motor power (w)Motor speed (r/min)Net weight (kg)
60º120º300ºaxialtangential
WD**-100(0625)1.523.56006008<0.005±7"60140025
WD**-118(6132)1.523.51200120010<0.005±7"120140040
WD**-118(6140)1.523.51200120010<0.005±7"120140044










Size Parameters































































































































ModelDimension
HABCDEFG1JKLMN0PQRSTUVWXYZ
WD6-100(0625)5910112133372791721025116211520130451443880106891441641004516
WD6-118(6132)781011216055305200133112019253218467200101401401031852241187320
WD6-118(6140)781011216055305200133262521253218467200101401401031852241187320
