MINDIAN DC 800 в 40 кА новейший красный SPD стабилизатор напряжения настенное зарядное устройство
- Категория: >>>
- Поставщик: Mindian Electric Co. Ltd.
Сохранить в закладки 1600214473882:
Описание и отзывы
Характеристики

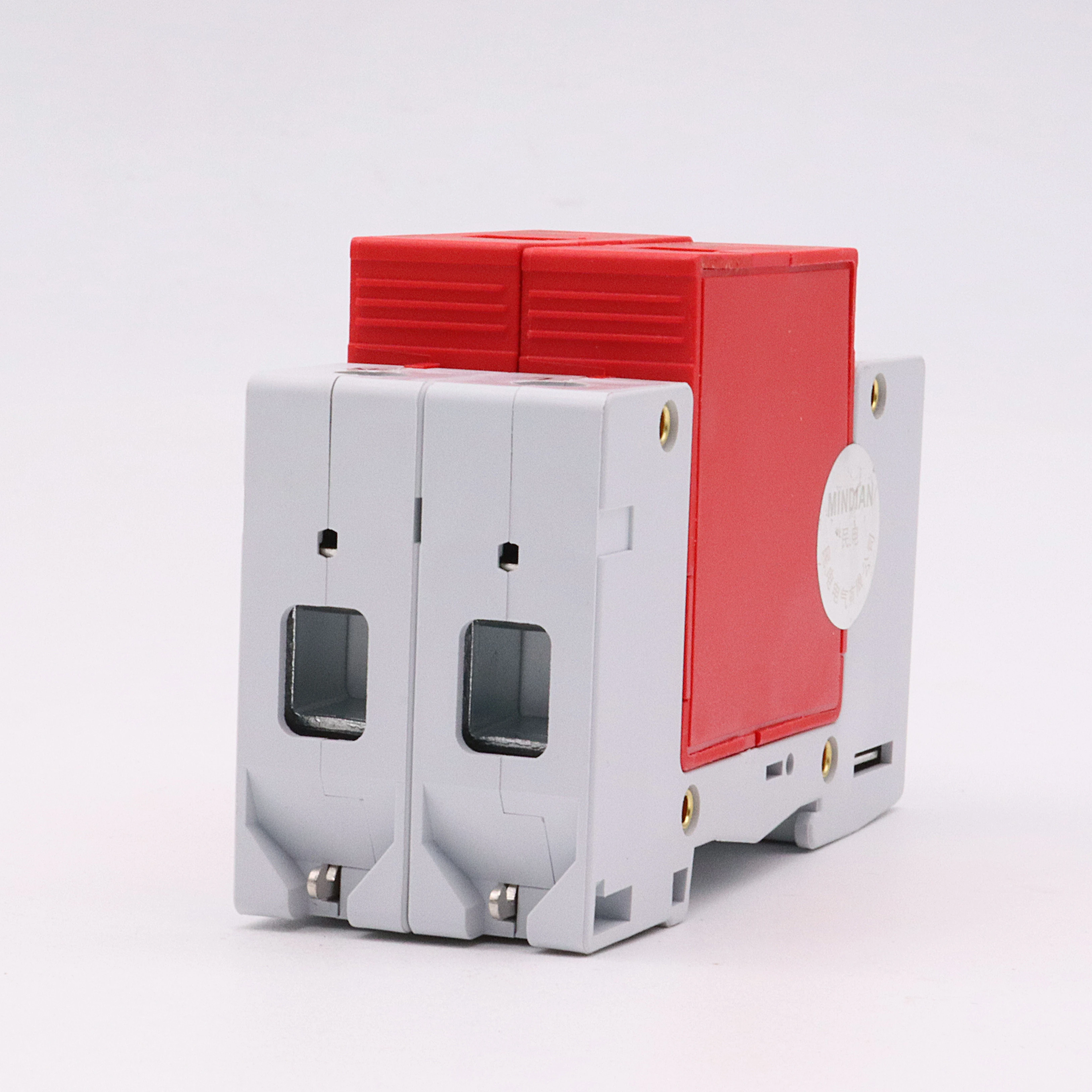

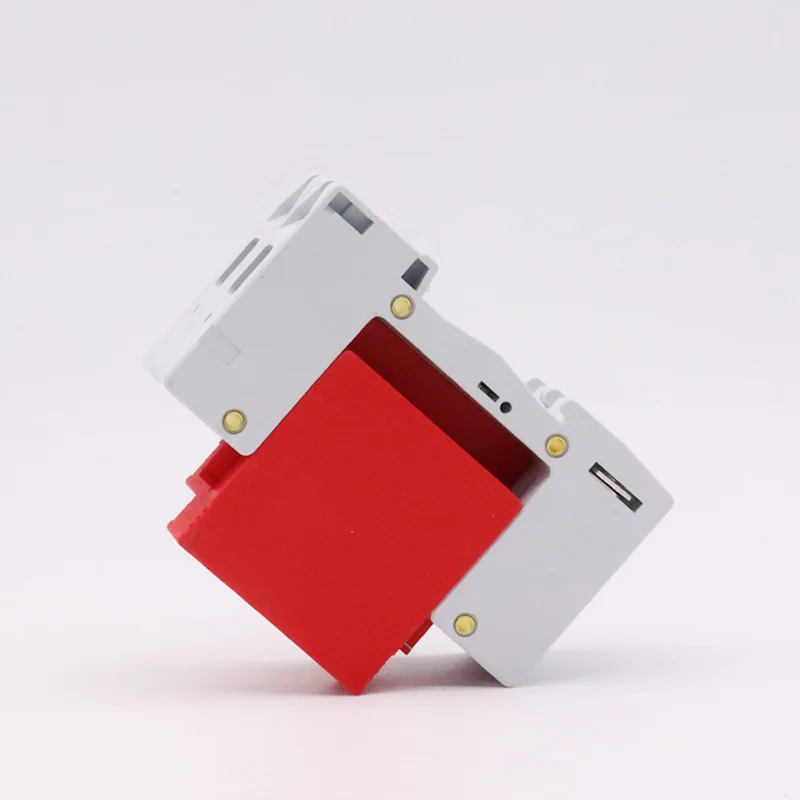

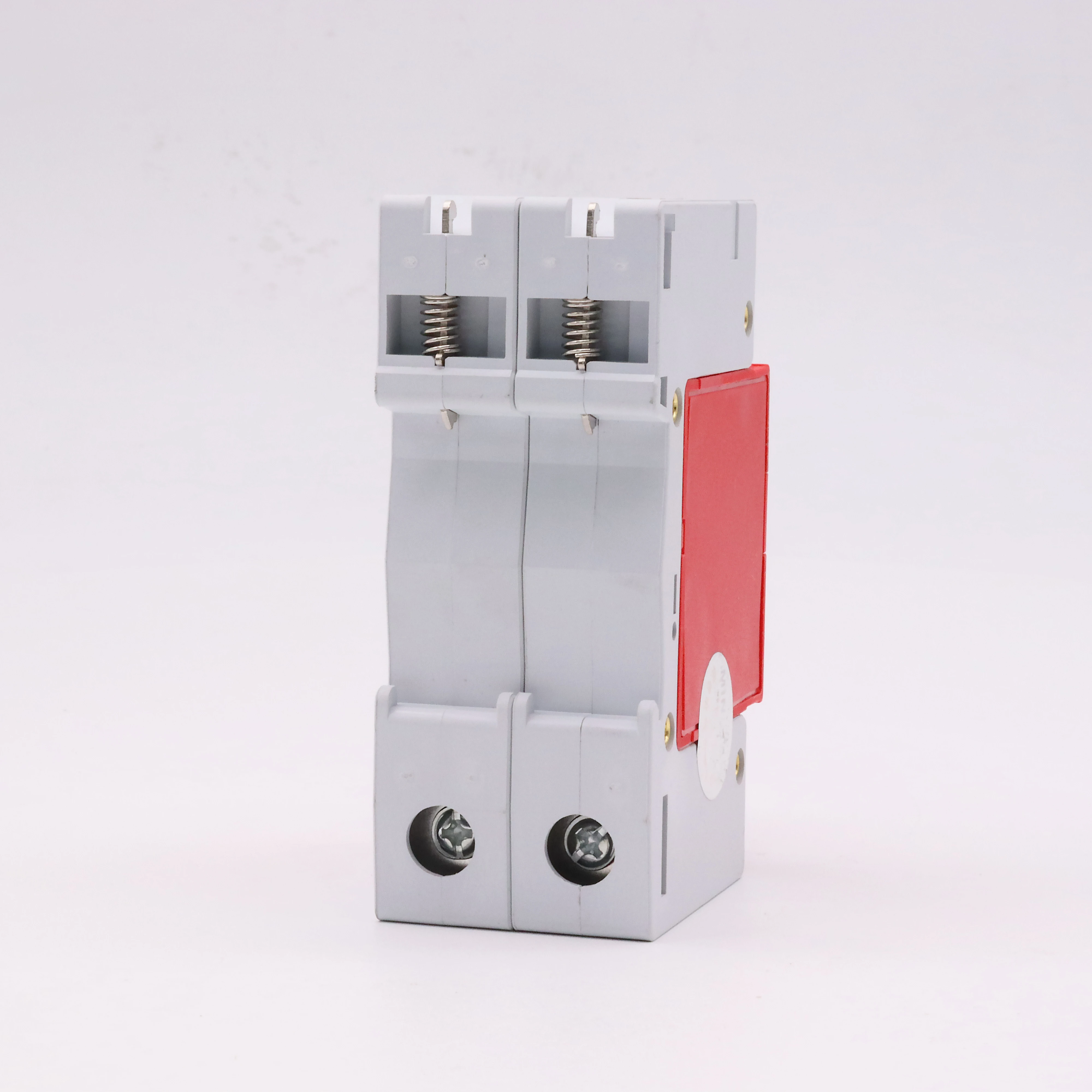

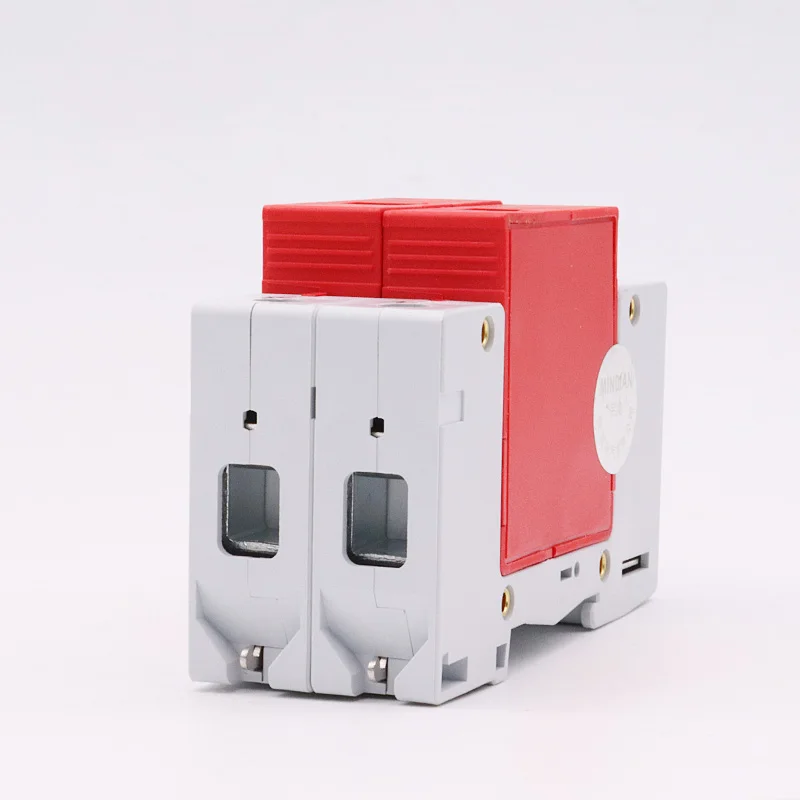

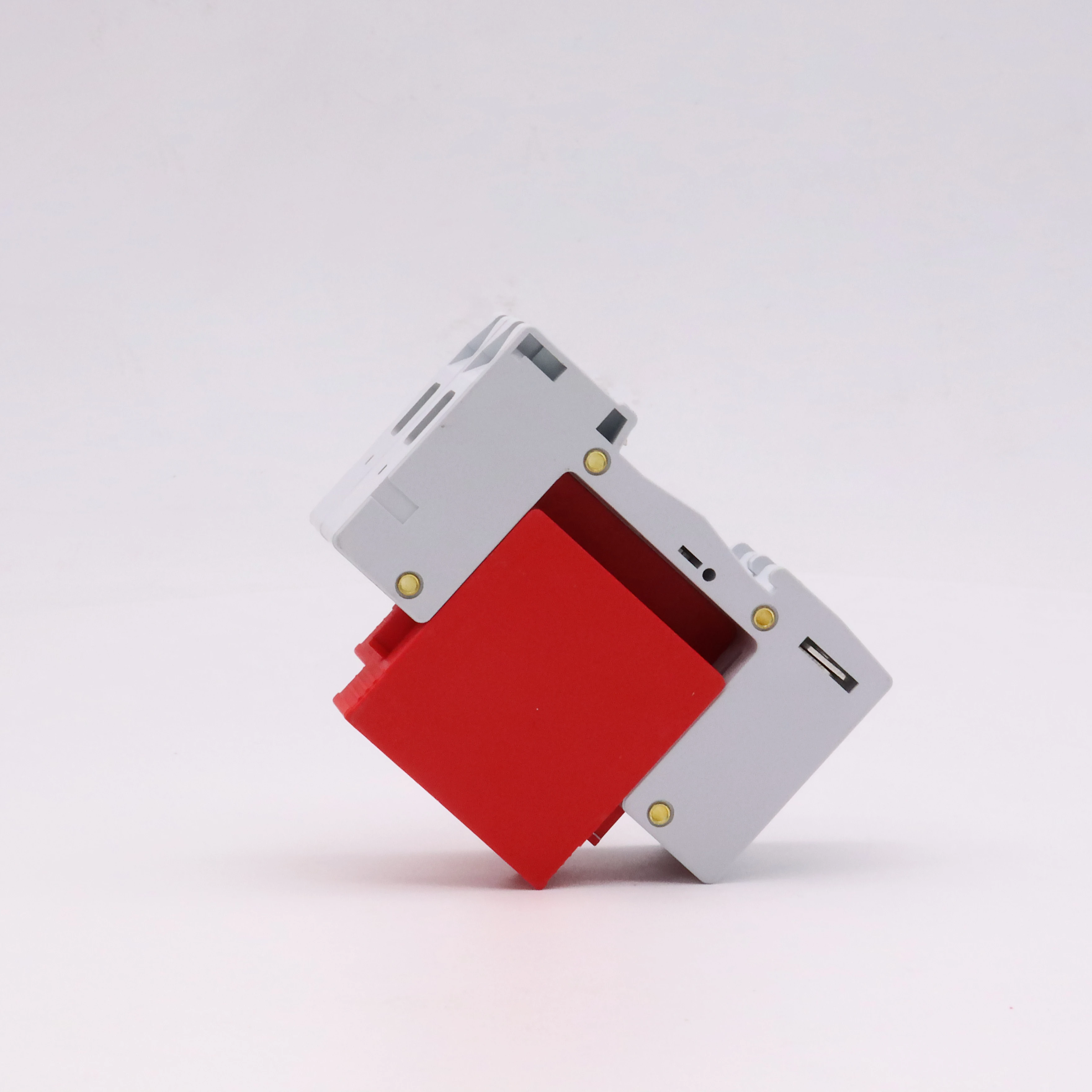

MINDIAN AC 800V 40KA latest red SPD surge protector wall charger surge protector
Product Description
Product Name | MINDIAN AC 800V 40KA latest red SPD surge protector wall charger surge protector |
Product model | MD1-80 |
Pole | 2p,3p,4p |
Rated frequency | One port |
SPD category | Combined type |
Test category | Class Ⅱ test |
Rated voltage Un | 220V AC 50~60Hz |
Maximum continuous operating voltage Uc | 385V AC 50~60Hz |
Nominal discharge current ln(8/20μs) | 40kA |
Maximum discharge current lmax(8/20μs) | 80kA |
Voltage protection level Up(8/20μs) | 2.2kV |
Fuse or circuit breaker / backup Protector | 32A/80kA |
Response time tA | ≤25ns |
Size | 72x90x69 |
Failure indication | Green: Normal Red: Failure |
Sectional area of wires | 6~25mm2 |
Installation method | 35mm standard rail (EN50022/DIN46277-3) |
Working environment temperature | -40~85℃ |
Sheathing material | FIRE RESISTANCE PA66 |
Protection level | IP20 |
Authentication | CQC CE CCC Type test |
Remote alarm | Normally open / normally closed contact terminal (optional) |
Remote signaling interface wiring capability | Maximum 1.5mm2 single strand/soft wire |
Product Detail
Our ac surge protector advantages:
1)Simple on-site processing
2)Mating safety provided by keyed housings
3)Accomodates PV cable with deferent insulation diamaters
4)High Voltage and Current carrying capacity
5)CCC and CE approved
6)High quality
7)Competitive price
Our Service
We do good service to ALL SOLAR SYSTEM PRODUCTS.
1.Prompt Delivery
2.Made by high purity copper & all good material products.
3.Well appreciated by purchasers
4.Small Order Accept
5.OEM service
6.We have more than 15 years experience on solar system and has achieved good reputation in the industry.
7.We acquired IS09001 environment and management systems certification to ensure high quality.
1.Prompt Delivery
2.Made by high purity copper & all good material products.
3.Well appreciated by purchasers
4.Small Order Accept
5.OEM service
6.We have more than 15 years experience on solar system and has achieved good reputation in the industry.
7.We acquired IS09001 environment and management systems certification to ensure high quality.
Product Paramenters
Our Service
We do good service to ALL SOLAR SYSTEM PRODUCTS.
1.Prompt Delivery
2.Made by high purity copper & all good material products.
3.Well appreciated by purchasers
4.Small Order Accept
5.OEM service
1.Prompt Delivery
2.Made by high purity copper & all good material products.
3.Well appreciated by purchasers
4.Small Order Accept
5.OEM service
6.We have more than 15 years experience on solar system and has achieved good reputation in the industry.
7.We acquired IS09001 environment and management systems certification to ensure high quality.
7.We acquired IS09001 environment and management systems certification to ensure high quality.
Exhibition
Every year ,we attend professional exhibitions for Solar systems and Electric fairs. Which let us known to more customers and won us unanimous praise all over the world.
Certifications
Mindian has a strong independent innovation capability,has a number of core technologies,and obtained a number of patients,it has passed IS09001:2008, 14000, OHSAS18000 and other certifications.Among them, Solar grids,Dc combiner box, Dc cable, DC MCCB, DC MCB,DC Surge Protector, DC Fuse these products are leading in the industry in China and have passed CE CB NEMKO,SAA,VDE,CCC,CQC and Gold-sun etc.
Company Profile
Mindian Electric is a leading manufacturer of Solar energy and wind energy, located in the electrical center of China –Yueqing For more than 20 years, with our own up to 20,000 square meters production sites, employing over 200 peoples in its operations,Mindian have 3 subsidaries and more than 300 collaboration supporting material suppliers.
Mindian’s main products including: Solar distribution system(DC COMBINER, DC MCCB, DC MCB,DC Surge Protector, DC Fuse, SOLAR CABLE,MC4 CONNECTOR, DC OFF-GRID CONTROLLER etc); Power distribution systems for construction industry (such as ATS, MCB, MCCB, etc.).
Mindian’s main products including: Solar distribution system(DC COMBINER, DC MCCB, DC MCB,DC Surge Protector, DC Fuse, SOLAR CABLE,MC4 CONNECTOR, DC OFF-GRID CONTROLLER etc); Power distribution systems for construction industry (such as ATS, MCB, MCCB, etc.).
Completed the transition from the AC system to the DC system and enriched the company's product line.
Mindian has a strong independent innovation capability,has a number of core technologies,and obtained a number of patents,it has passed IS09001:2008, 14000, OHSAS18000 and other certifications.Among them, Solar grids,Dc combiner box, Dc cable, DC MCCB, DC MCB,DC Surge Protector, DC Fuse these products are leading in the industry in China and have passed CE CB NEMKO,SAA,VDE,CCC,CQC and Gold-sun etc.
Mindian Electric adheres to the spirit of : “Quality first, service by heart “ and always will following the business stage of “profession R&D and profession marketing”.
Mindian increases the strong reliability and high quality in various industries and applications to ensure the safe, efficient operation of their systems every time.
We are always look forward to be your nice partner.
Mindian has a strong independent innovation capability,has a number of core technologies,and obtained a number of patents,it has passed IS09001:2008, 14000, OHSAS18000 and other certifications.Among them, Solar grids,Dc combiner box, Dc cable, DC MCCB, DC MCB,DC Surge Protector, DC Fuse these products are leading in the industry in China and have passed CE CB NEMKO,SAA,VDE,CCC,CQC and Gold-sun etc.
Mindian Electric adheres to the spirit of : “Quality first, service by heart “ and always will following the business stage of “profession R&D and profession marketing”.
Mindian increases the strong reliability and high quality in various industries and applications to ensure the safe, efficient operation of their systems every time.
We are always look forward to be your nice partner.
Our Factory
Product packaging
We accept all customer required packings . (Welcome for OEM packing) and we will follow customer requirments of send goods via seafreight,airplane,or DHL,TNT...so on.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer for most solar system items show in our website .
Q:Can you supply samples for checking ?
A: Yes, we can supply samples for our solar products and other products, pls contact for detailed required.
Q:How long is your delivery time?
A: Generally it is within 2days for small qty. or it is arround 15-20 days to a general order.
Q: What is your usual terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
Q: What is the standard of package of your goods?
A: Export standard package or special package according to customer requirement.
Q:How about inspection?
A: We have the whole inspection system from raw material to end products include Transient test, delay test,mechanical life test and so on.
Q:What is the service offered by company?
A: We have the professional engineer team which can design and develop the mould to arrive different customer requirements.
We also have the professional sales team to offer good service from pre-sale to after-sale.
If you have another questions, pls feel free to contact us.
A: We are manufacturer for most solar system items show in our website .
Q:Can you supply samples for checking ?
A: Yes, we can supply samples for our solar products and other products, pls contact for detailed required.
Q:How long is your delivery time?
A: Generally it is within 2days for small qty. or it is arround 15-20 days to a general order.
Q: What is your usual terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
Q: What is the standard of package of your goods?
A: Export standard package or special package according to customer requirement.
Q:How about inspection?
A: We have the whole inspection system from raw material to end products include Transient test, delay test,mechanical life test and so on.
Q:What is the service offered by company?
A: We have the professional engineer team which can design and develop the mould to arrive different customer requirements.
We also have the professional sales team to offer good service from pre-sale to after-sale.
If you have another questions, pls feel free to contact us.
Похожие товары
Сосуды из нержавеющей стали UF 8080 на элементах 8038

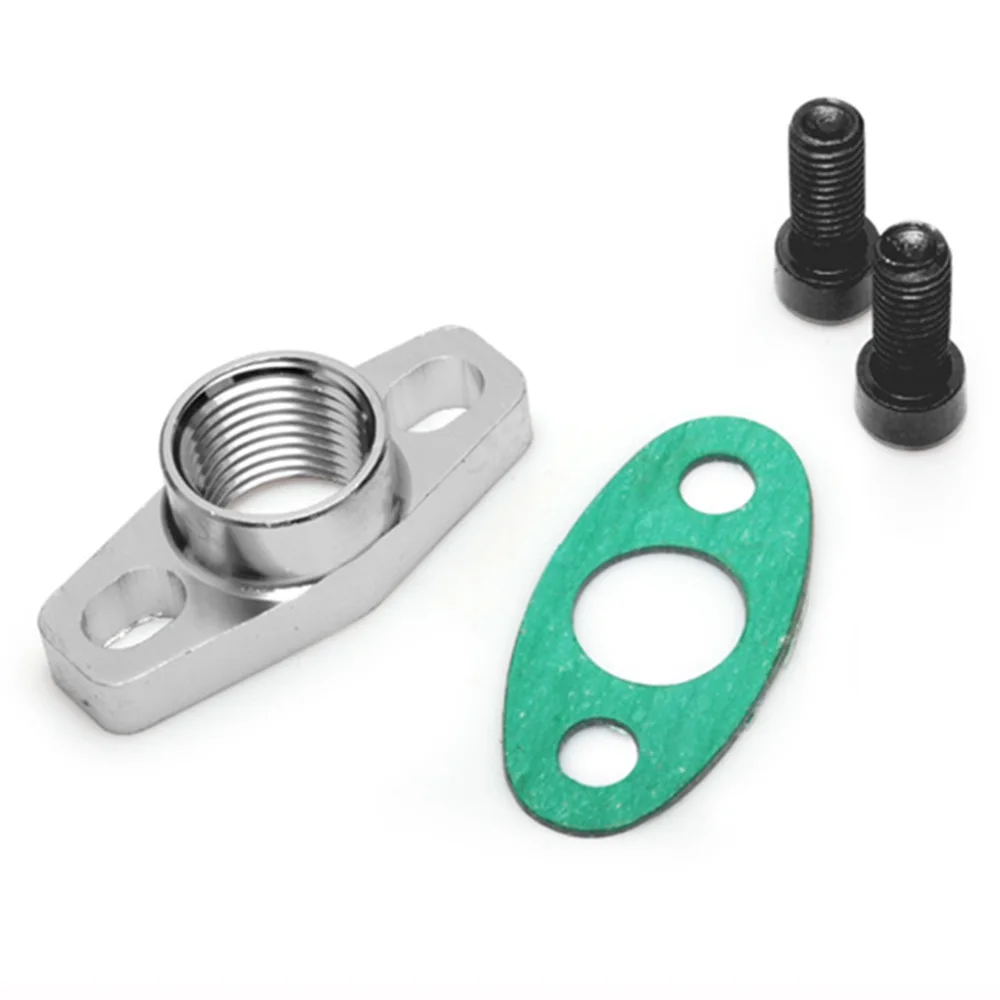

Адаптер фланцевого дренажа для EP-TF005 GT25 GT28 T25 T28 T28 GT28 GT28 GT28 GT30 GT35
1,05 $ - 1,10 $
VS1003B плата декодирования аудио IO SPI MP3 WMA WMV MIDI SP-MIDI аудио декодер ADPCM кодер 16 бит DAC декодер конвертер VS1003

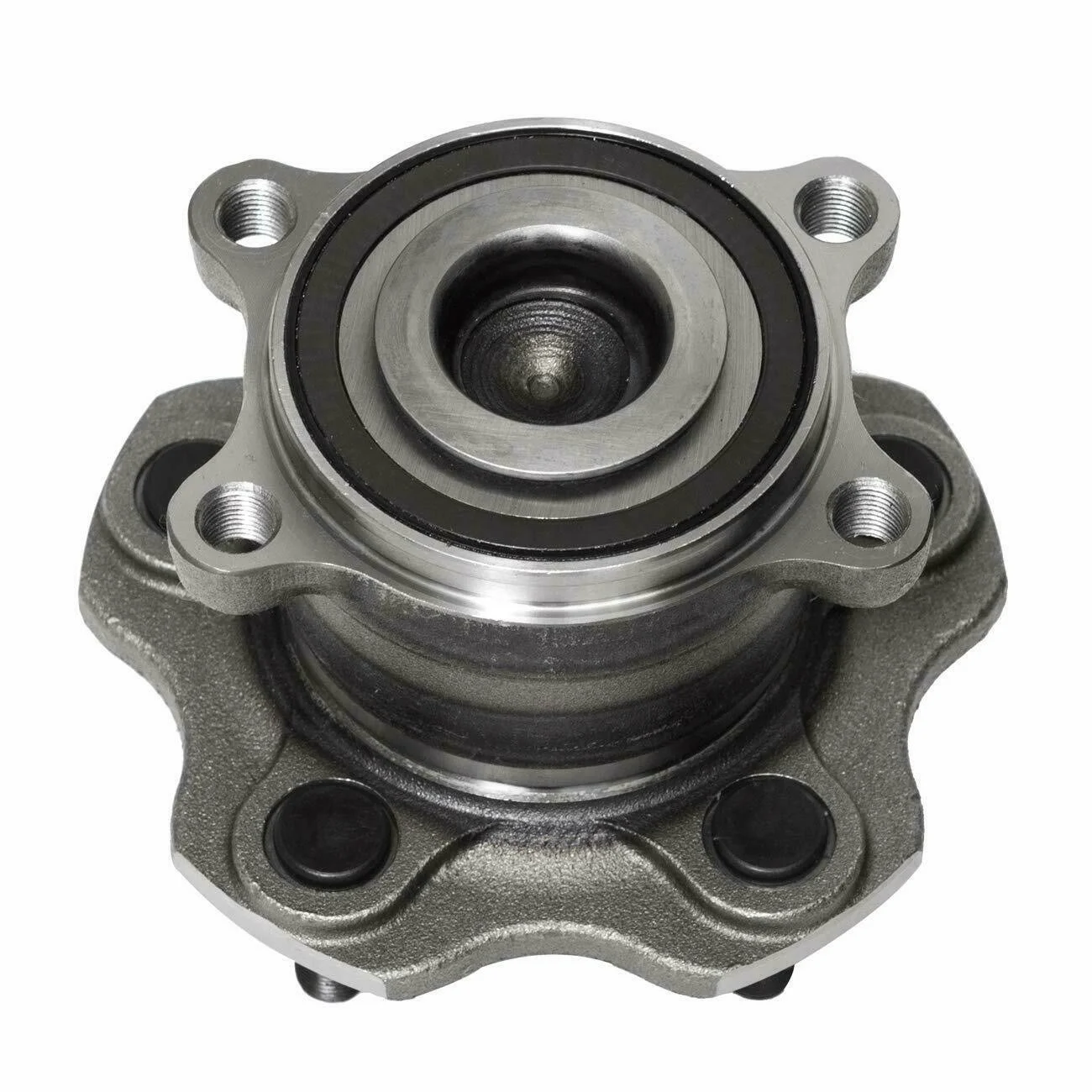

Ступица подшипника переднего и заднего колеса в сборе 43502-26110, ступица колеса 513272, 513294, 518515, 515081, 512360, 515078, 515066, 521000, 512333
3,70 $ - 4,00 $

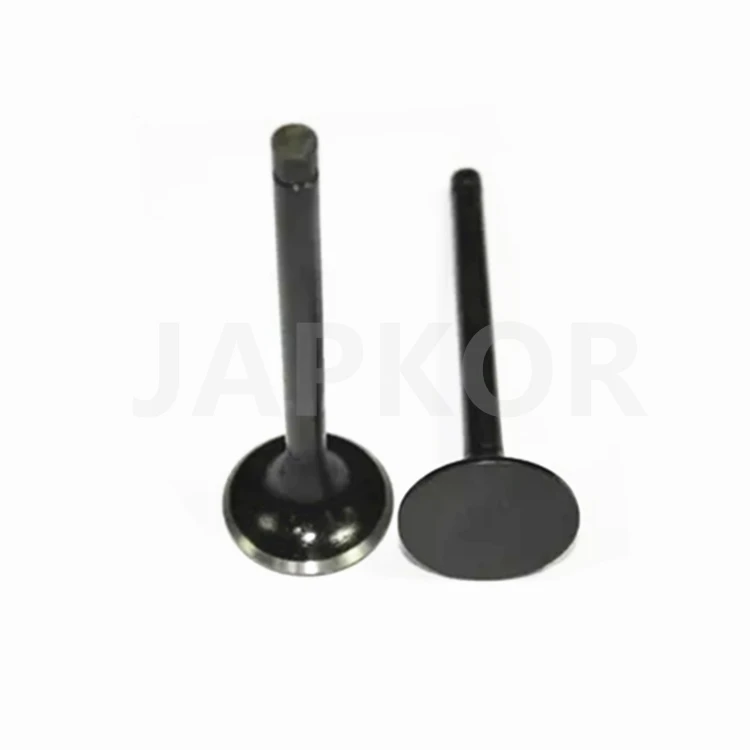

Выпускной клапан Набор для GAZ-2410.3302 двигатели ZMZ-402 UMZ-417 420 421 4216 A274 Evotech 2,7 4022,1007015
2,00 $ - 3,50 $
Уличные полки для цветов для теплиц, длинная подставка для горшков, садовая полка, подставка для растений с кастрюлей
20,00 $ - 56,00 $

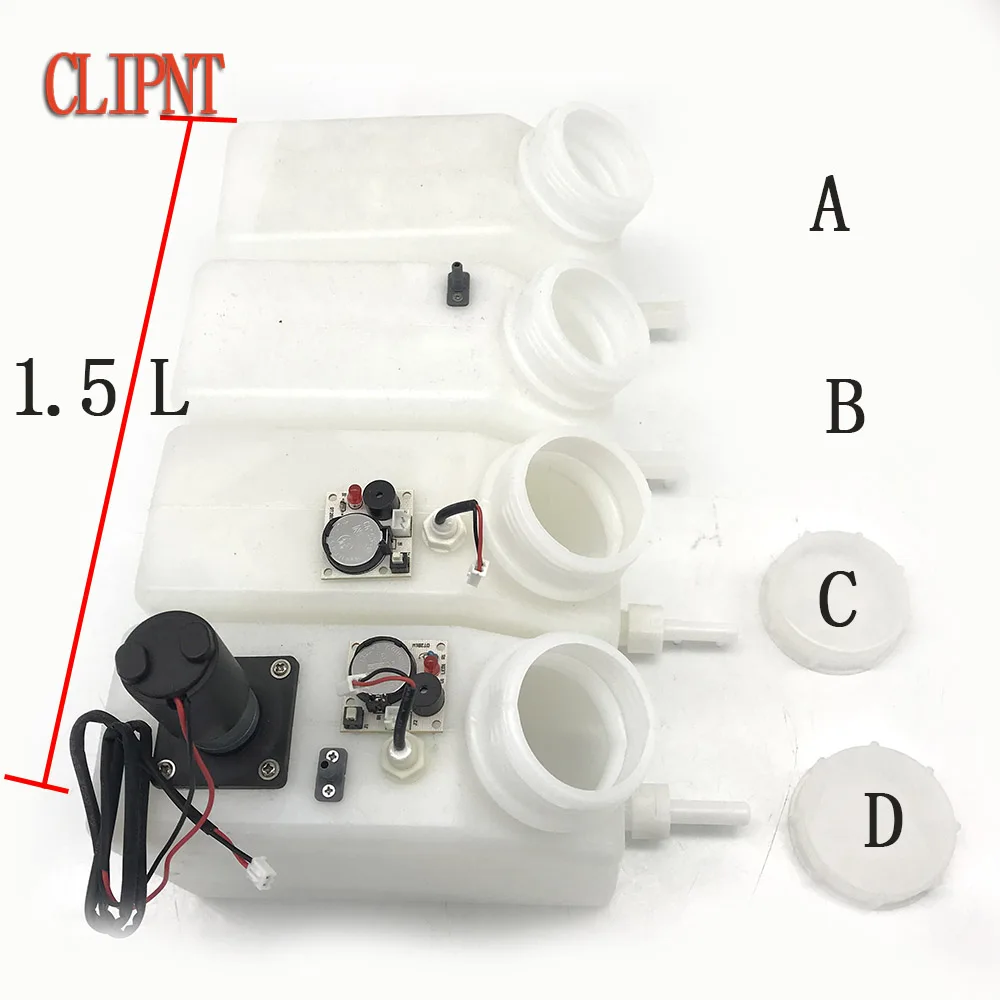

Чернильный резервуар DW L1800 R1390, модификация DTF, для принтера с белыми чернилами 1,5 л, со смесителем, розетками двигателя, таймером и контроллером
