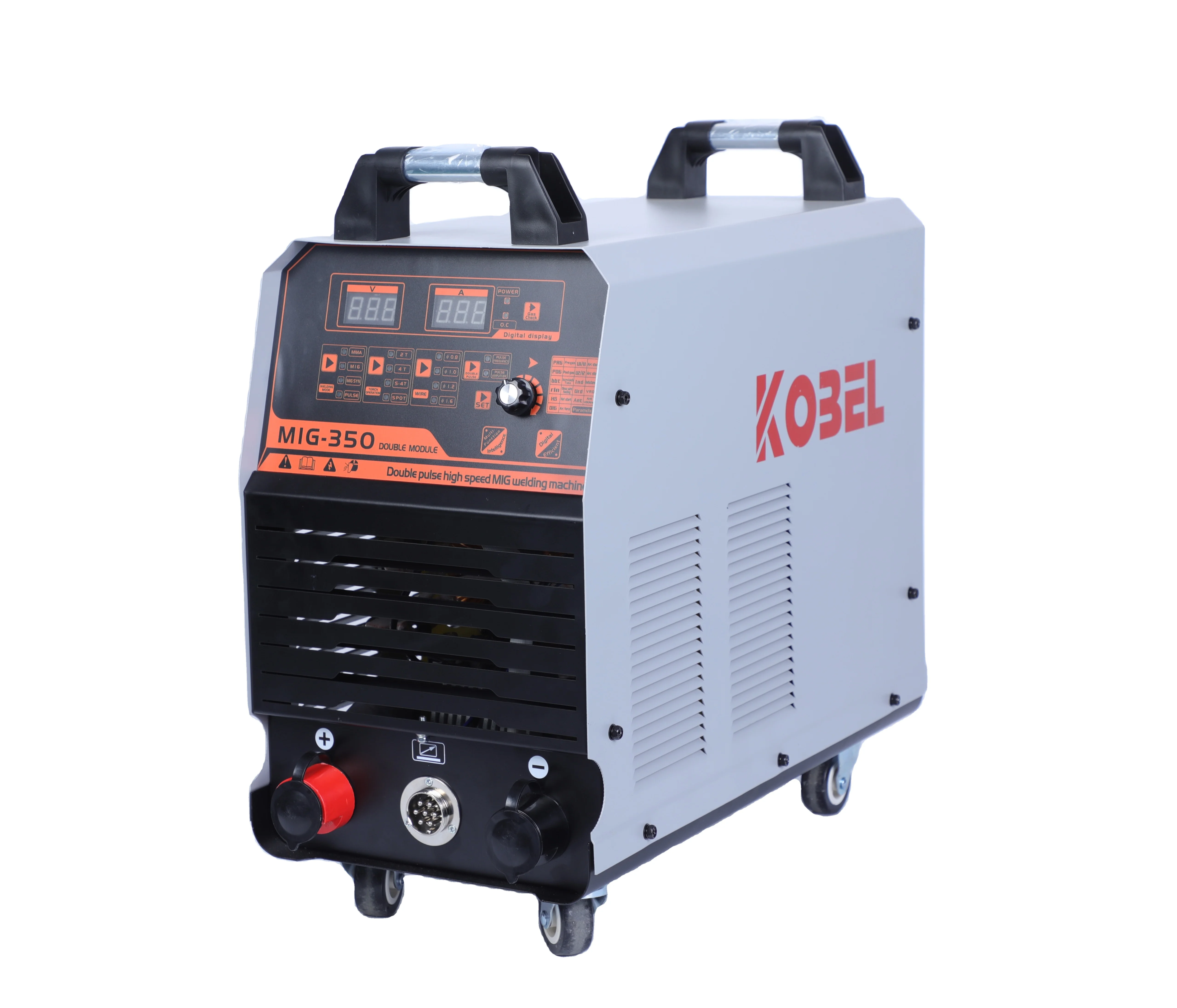

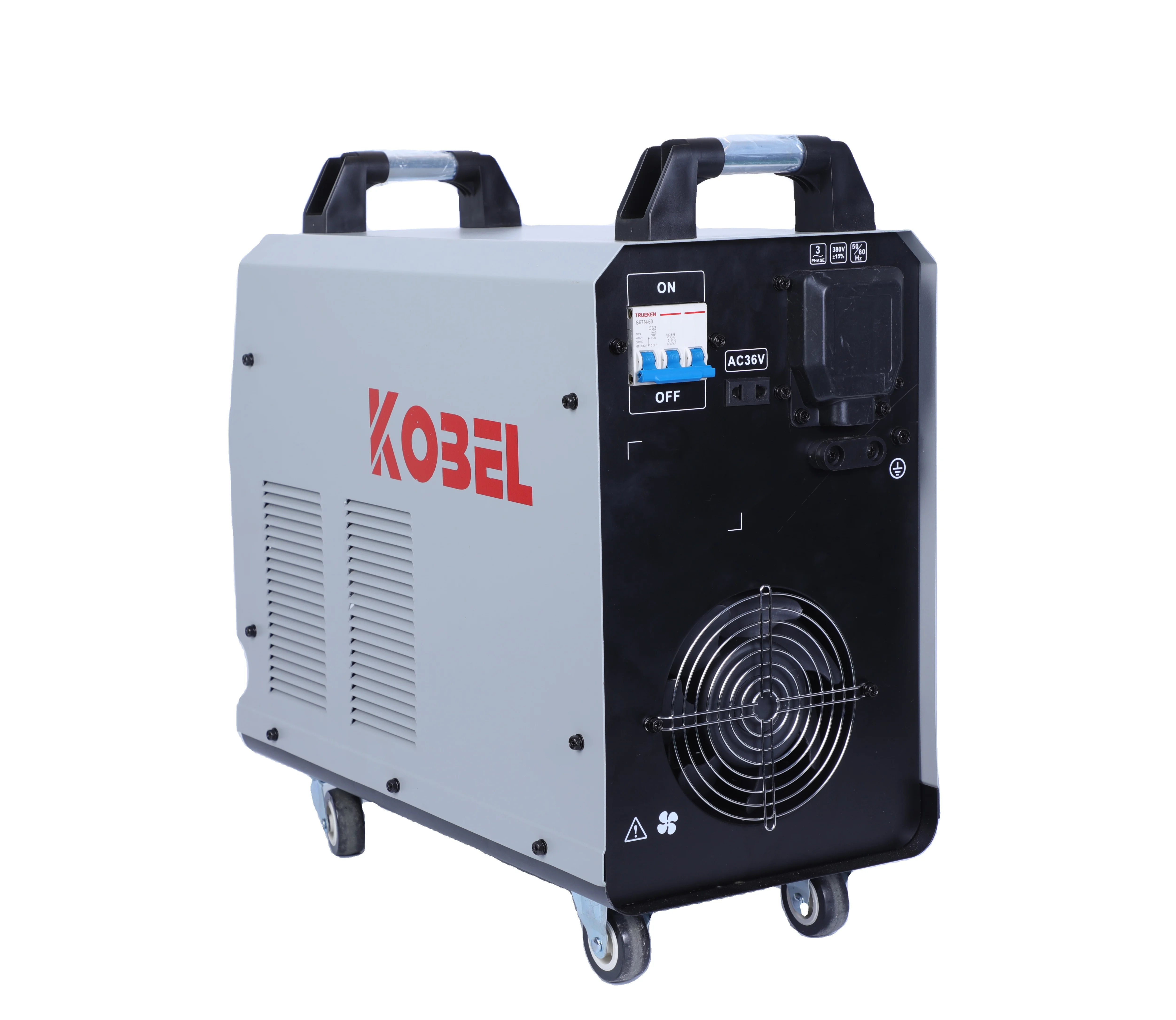

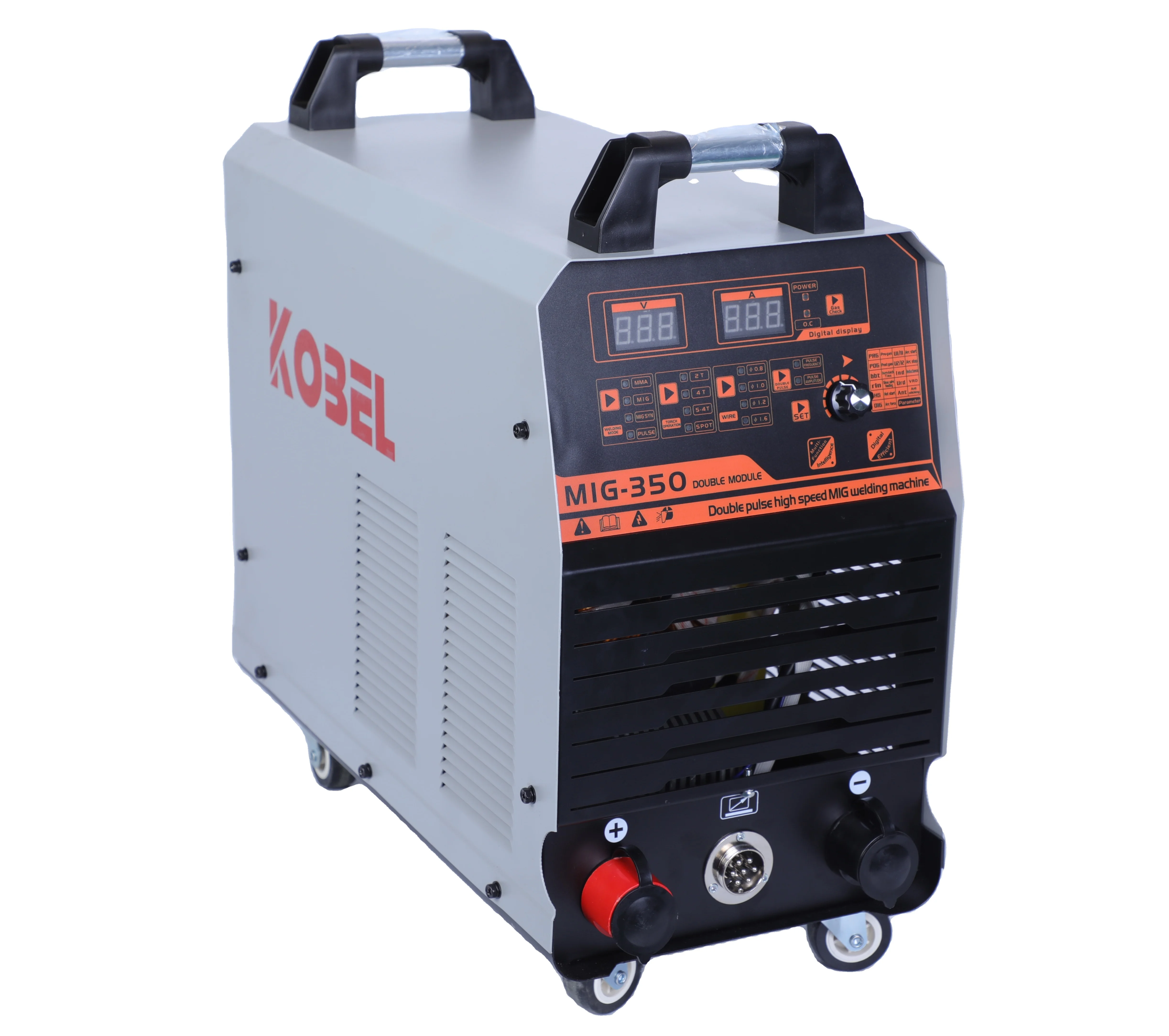

Промышленное использование MIG 350 с проволочным фидером igbt А для щелей/плоских/филейных/вертикальных сварочных аппаратов
- Категория: >>>
- Поставщик: Shenzhen Zendaa Technology Co. Ltd.
Сохранить в закладки 1600214564498:
Описание и отзывы
Характеристики
Industry used MIG 350 with wire feeder igbt 350 Amps for Slit/flat/fillet/vertical welding machine
Products Description
1. Full bridge IGBT inverter technology, high reliability and less energy consumption, over-heat and over current protection
2. MIG and MMA combination enables multiple functions and high cost effectiveness
3. Unique welding dynamics control circuit; double drive wire feeding configuration to ensure stable arc, less spatter, fine welding bead and high welding efficiency
4. High duty circle can with stand long time high load welding
5. High welding efficiency. Double pulse high speed.
3. Unique welding dynamics control circuit; double drive wire feeding configuration to ensure stable arc, less spatter, fine welding bead and high welding efficiency
4. High duty circle can with stand long time high load welding
5. High welding efficiency. Double pulse high speed.
6. Multi-functional intelligence
PRODUCT SPECIFICATIONS
Model | MIG350 | MIG500 | |
Input Power Source | 3-phase AC380V±15% 50/60Hz | ||
Rated Input Current(A) | 21 | 37 | |
Rated Input Power Capacity(KVA) | 14 | 24.6 | |
Output Current Range(A) | 50-350A | 50-500A | |
Wire Speed(m/min) | 1.5-16 | 1.5-16 | |
No-load Voltage(V) | 60V | 70V | |
Rated Duty Cycle(%)@40℃ | 60% | 60% | |
Electrode & Wire Diameter(mm) | 0.8/1.0/1.2 | 1.0/1.2/1.6 | |
Efficiency(%) | 85% | 85% | |
Power Factor(cosΦ) | 0.93 | 0.93 | |
Protection Class | IP21S | IP21S | |
Insulation Class | F | F | |
Machine Dimensions(mm) | 590*340*530 | 700*400*610 | |
Machine Weight(kg) | 35 | 48 | |
Optional Accessories
1 set wire feeder+5m cable
1 pc 3m MIG torch
1 set 500A earth clamp+3m cable
1pc AC36V CO2 regulator
Optional Accessories
earth clamp+3m cable
electrode holder+3m cable
Recommend Products
Shenzhen Zendaa Technology Co., Ltd estibalished in 2012 & we fully hold two factories who are in this filed more than 25years, our products (CE standards) are inverter welding machines ARC, TIG, MIG MAG, PLASMA Cutting machines, Spot and Stud welding machines and welding accessories. Products are widely applied in shipbuilding, container construction, petroleum, chemical engineering, railway, bridge building industry, electricity industry, steel structure, metallurgy, automobile, etc... We corporate with Japan and German companies in aspect of R&D and design ensure quality. Our turnover is around $50millions and we service clients from 60 countries OEM or under our brands (ZENDAA, STATWELD, ELEFAN WELD, KOBEL) up to now we have U.K. & China teams for your services.
Our slogan is “Reliable Quality, Good Brand, and Loyalty Customer” and our service target is to be an “integrated welding solution provider”. In a word, Zendaa strives to sustainable development route into its products and services with premium standards, consistently focuses on meeting the needs of its customers. Finally, warm welcome for visiting our website and send your further inquires. Thank you very much for your attention.

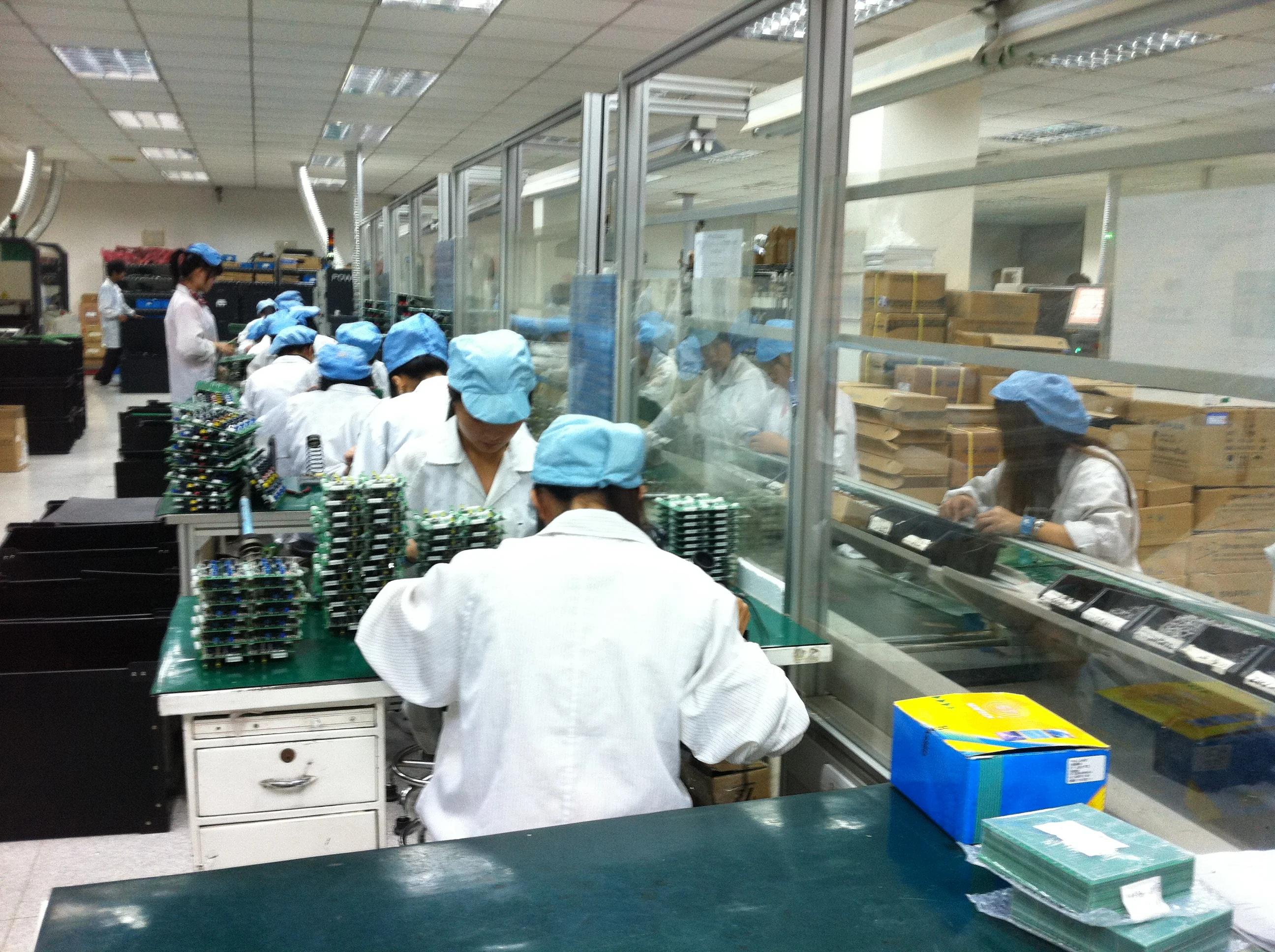

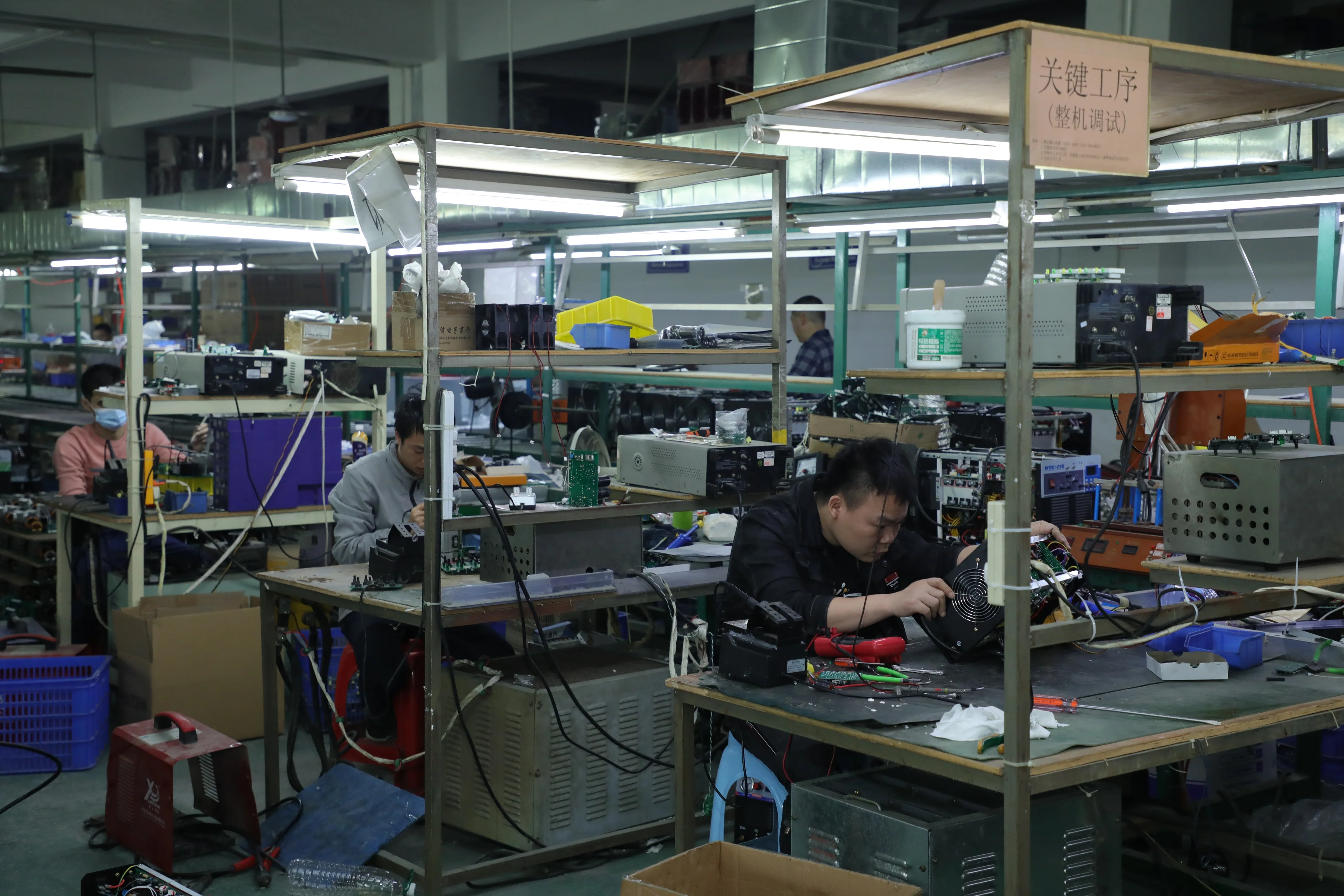

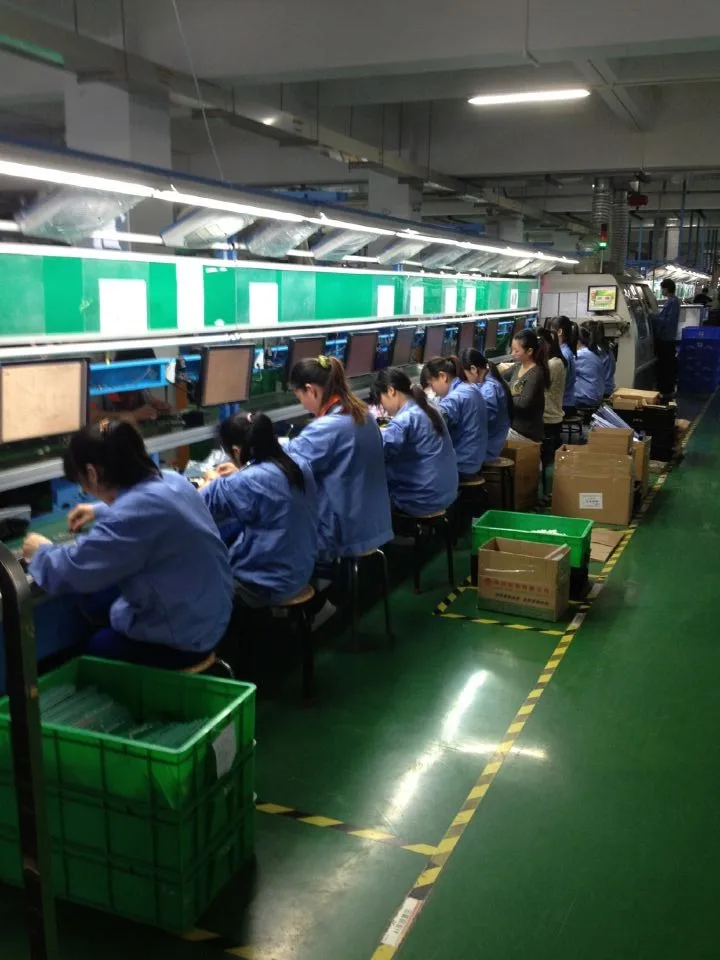

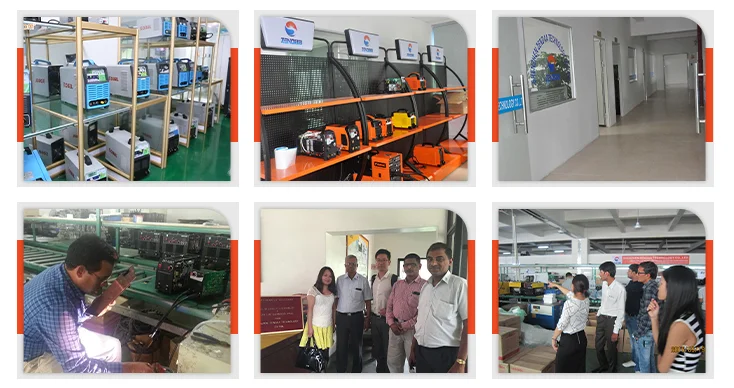

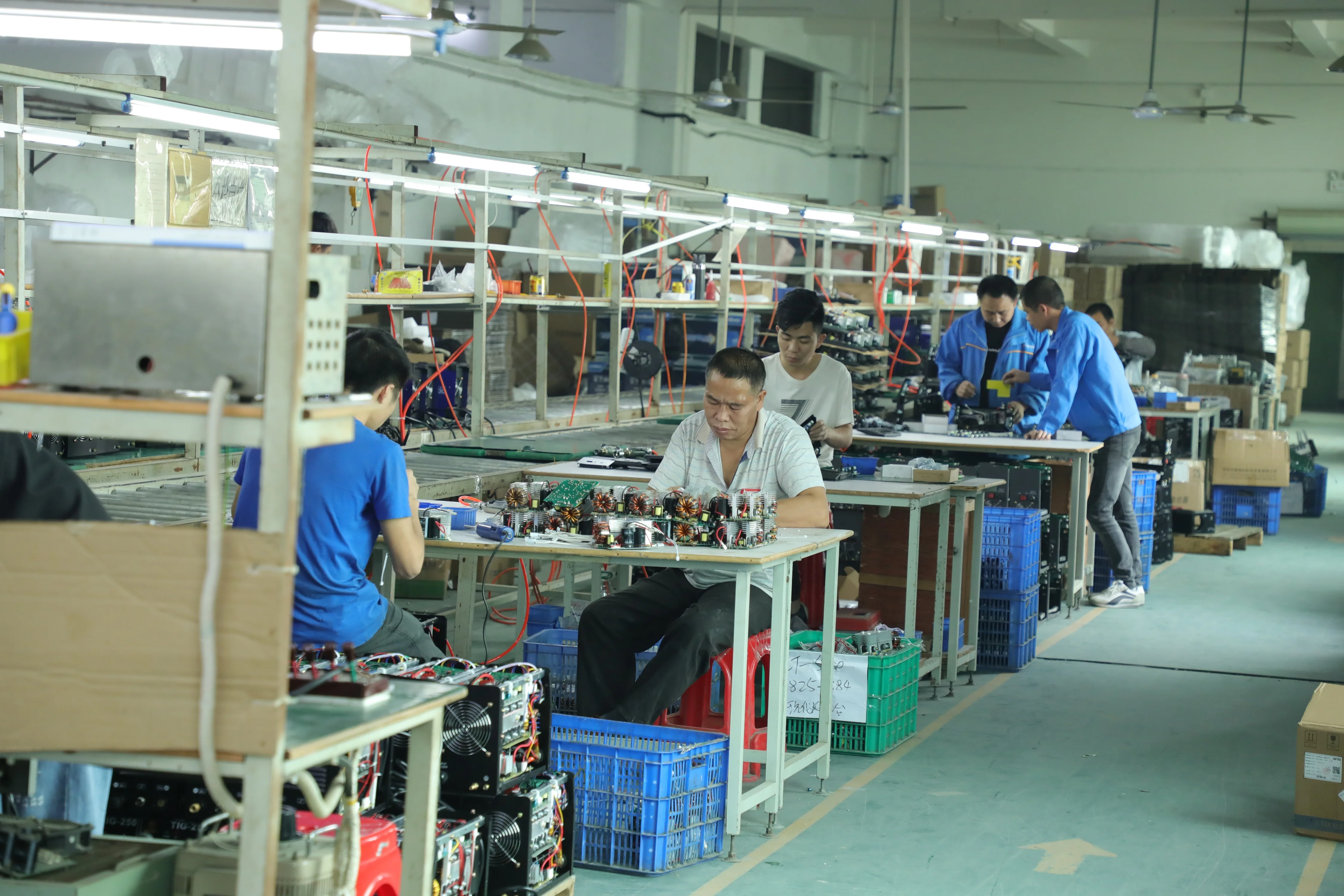

Our Workshop
Packaging & Delivery
1. All appearance of our products are exclusively developed by ourself. Its unique for our customers in their regions therefore it can over come many local competitors.
2. We have high quality control system processing your orders and stricly followed up by our sales representatives. So high accurately.
3. Professional R&D center where we corporated with Japan and German companies, so our products identify as Japan technology & German technology. So high reliability.
4. We located in Shenzhen the high-tech innovation center, we can ganrantee our supply chains are well sourcing and quality controlled under our management system. We have teams in China, UK, USA can reply inquiries in different times without jet lag. So excellent services.
2. We have high quality control system processing your orders and stricly followed up by our sales representatives. So high accurately.
3. Professional R&D center where we corporated with Japan and German companies, so our products identify as Japan technology & German technology. So high reliability.
4. We located in Shenzhen the high-tech innovation center, we can ganrantee our supply chains are well sourcing and quality controlled under our management system. We have teams in China, UK, USA can reply inquiries in different times without jet lag. So excellent services.
1. Q: Are you a factory or trading company?
A: We're a group company including 2 factories and 1 trading company. To avoide competition and factories’ private and confidential purpose, we used ZENDAA a vertify trading company to present our products and services.
2. Q: What certificates do you have ?
A: We have gained the certificate of CE, EMC, ROHS, CSA, SAA and ISO9001.we can satisfy your regional requsted if necessary.
3. Q: Can you do OEM ?
A: Yes. We offer OEM/ODM service apart from our standards.
4. Q: Can I have a sample?
A: Yes, we welcome samples or small trial orders for your testing purpose. Standrad samples usually few days ready, but special requested samples might need 2 weeks. It depends and can be discussed.
5. Q: Why choose us?
A：Firstly, we located in Shenzhen the high-tech innovation center, we can guarantee our supply chains are well sourcing and quality controled under our management system. Secondly, we have teams in China, UK, USA, can reply inquiries in different times
without jet lag.
A: We're a group company including 2 factories and 1 trading company. To avoide competition and factories’ private and confidential purpose, we used ZENDAA a vertify trading company to present our products and services.
2. Q: What certificates do you have ?
A: We have gained the certificate of CE, EMC, ROHS, CSA, SAA and ISO9001.we can satisfy your regional requsted if necessary.
3. Q: Can you do OEM ?
A: Yes. We offer OEM/ODM service apart from our standards.
4. Q: Can I have a sample?
A: Yes, we welcome samples or small trial orders for your testing purpose. Standrad samples usually few days ready, but special requested samples might need 2 weeks. It depends and can be discussed.
5. Q: Why choose us?
A：Firstly, we located in Shenzhen the high-tech innovation center, we can guarantee our supply chains are well sourcing and quality controled under our management system. Secondly, we have teams in China, UK, USA, can reply inquiries in different times
without jet lag.
Похожие товары

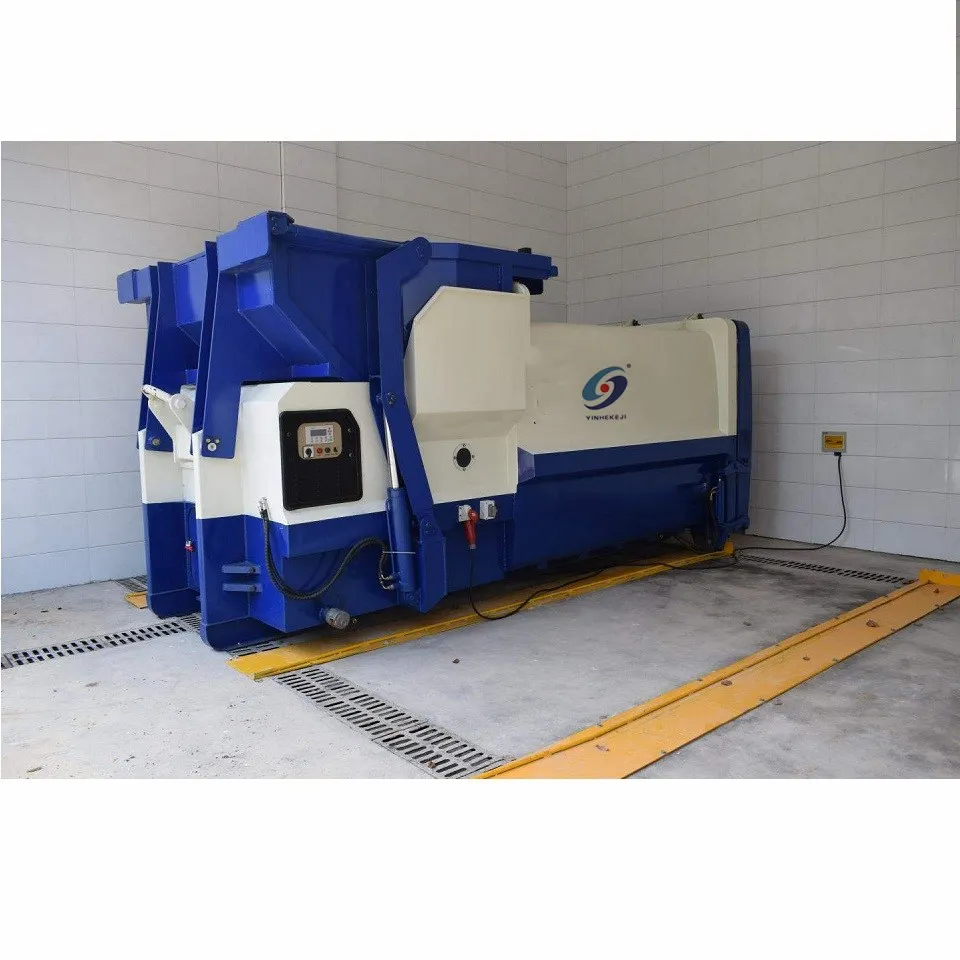

Новый подъемник Dongfeng с контейнером для уплотнения мусора 15 куб. М/тяговый рычаг, гидравлический подъемный контейнер, мусорная станция
21 000,00 $
Горячая Распродажа, ПВХ защитная пленка, пищевая пленка
0,50 $ - 5,00 $
Пончик для собаки круглая Роскошная мягкая Съемная моющаяся большая кровать для собаки двойная молния для домашнего питомца Всесезонная кровать от производителя
Комплект сцепления для FIAT PEUGEOT CITROEN 205244 2052Y1 71722770 71734907 71784561 диск сцепления

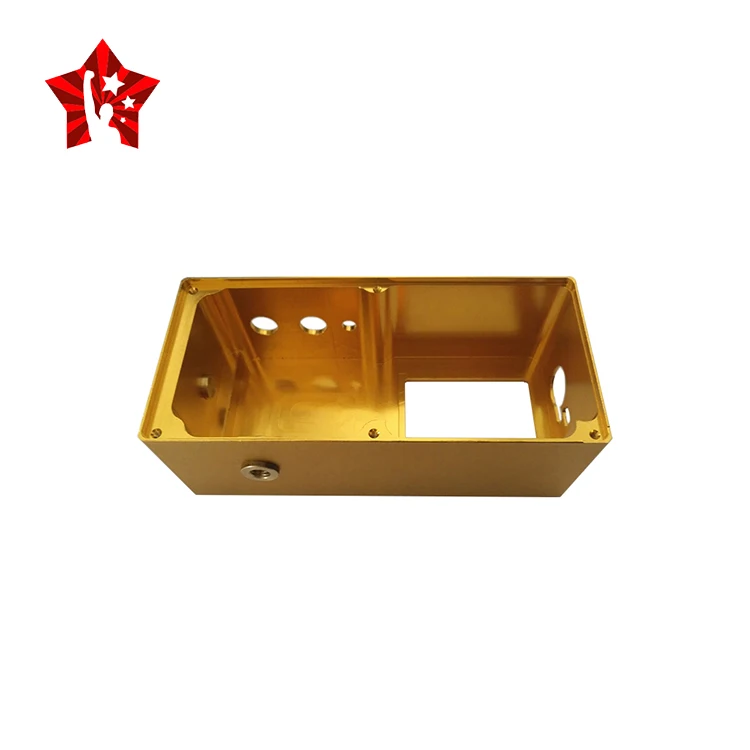

Пользовательский Металлический токарный станок с функцией алюминиевого корпуса, деталь фрезерного станка с ЧПУ
Новое поступление, светодиодные шумоподавляющие наушники Bt 5,0 с кошачьими ушами, детская гарнитура, декомпрессионная Поддержка TF-карты, штекер 3,5 мм с микрофоном
0,80 $ - 8,50 $

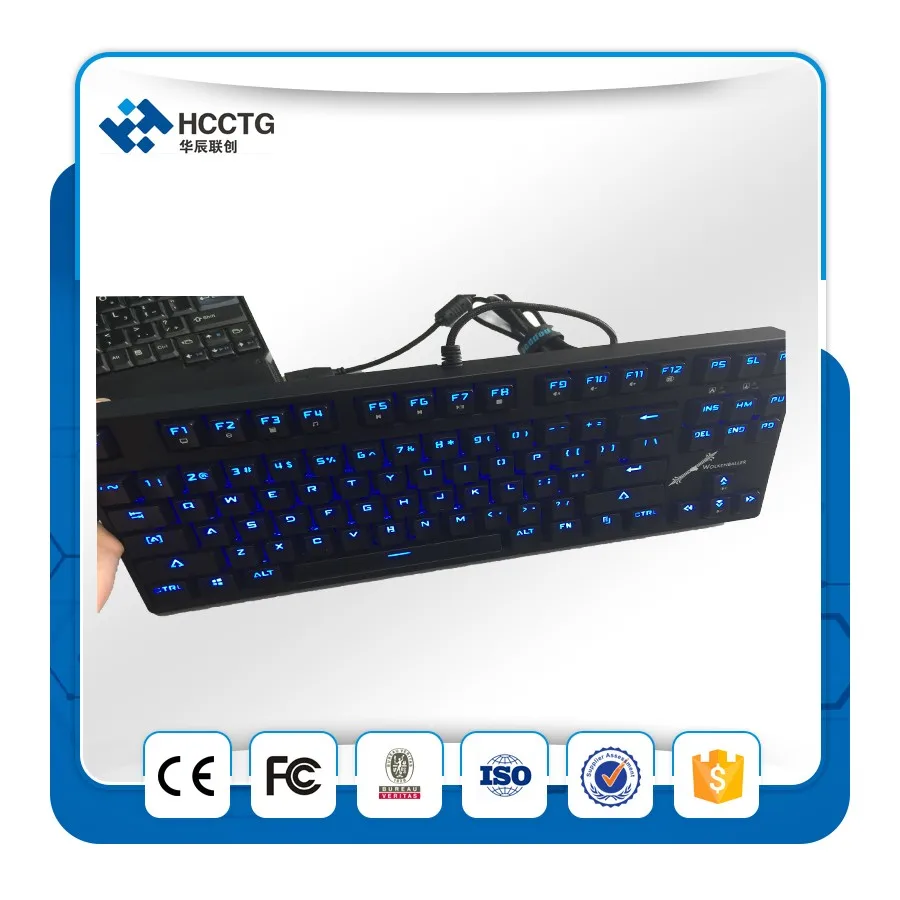

Китай поставщика дешевой цене механической игровой клавиатуры HGK87
