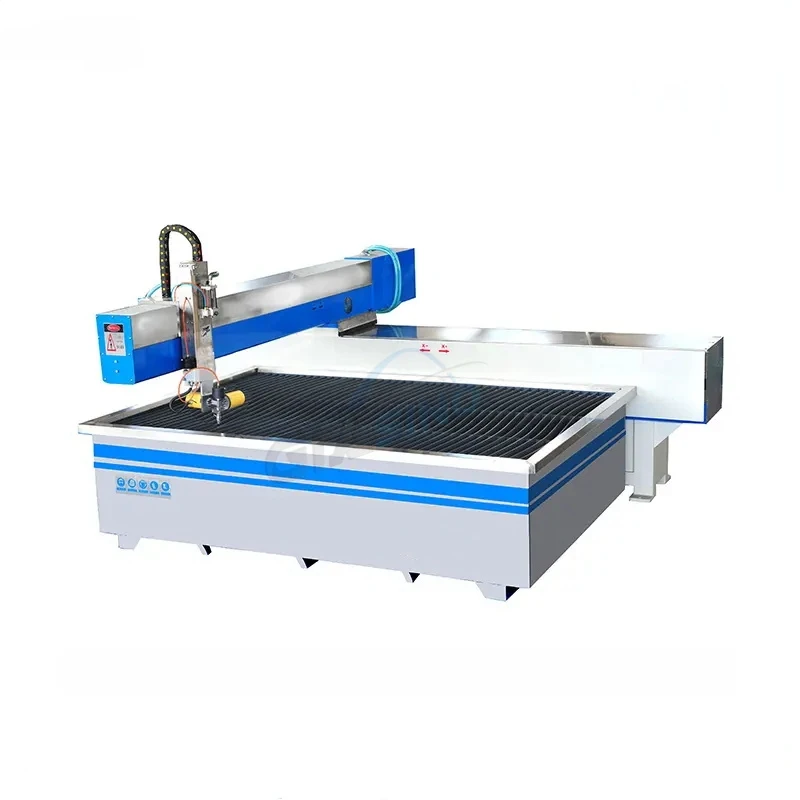

Станок для резки стекла, мрамора, гранита, водоструйной струйной резки с ЧПУ, 3 оси, 5 оси
4 445 871,90 ₽ - 4 662 743,70 ₽
Доступная автоматическая высокоскоростная ЧПУ надувная Вертикальная изоляционная линия производства стекла жалюзи пленка для штор в продаже
- Категория: >>>
- Поставщик: Jinan Kation Trading Co. Ltd.
Сохранить в закладки 1600214599230:
Описание и отзывы
Характеристики
Affordable Automatic High-speed CNC Inflation Vertical Insulating Glass Production Line Louver Curtain Film Machine on Sale
Product Description

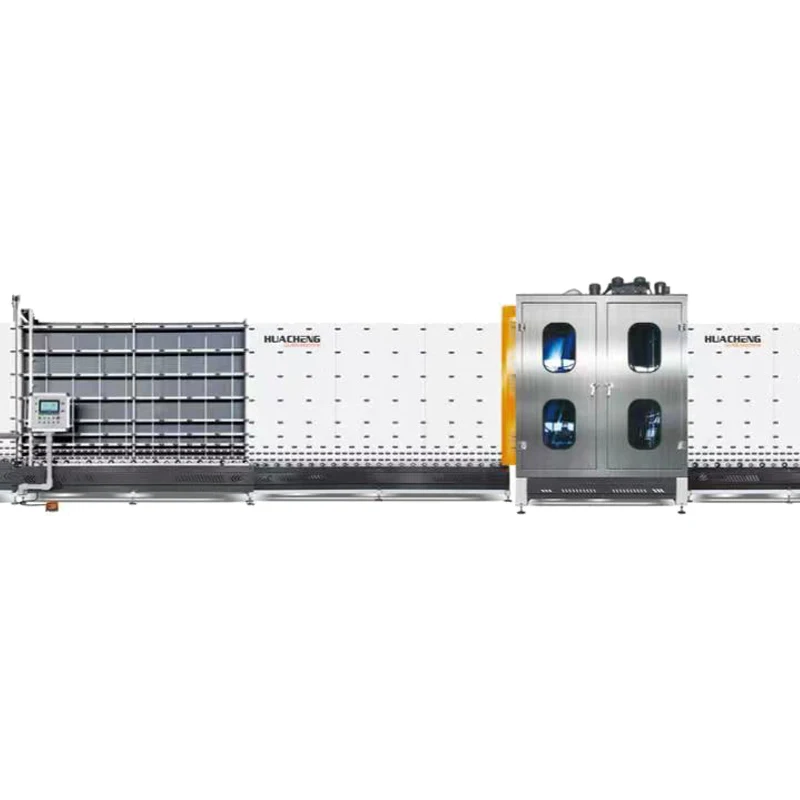

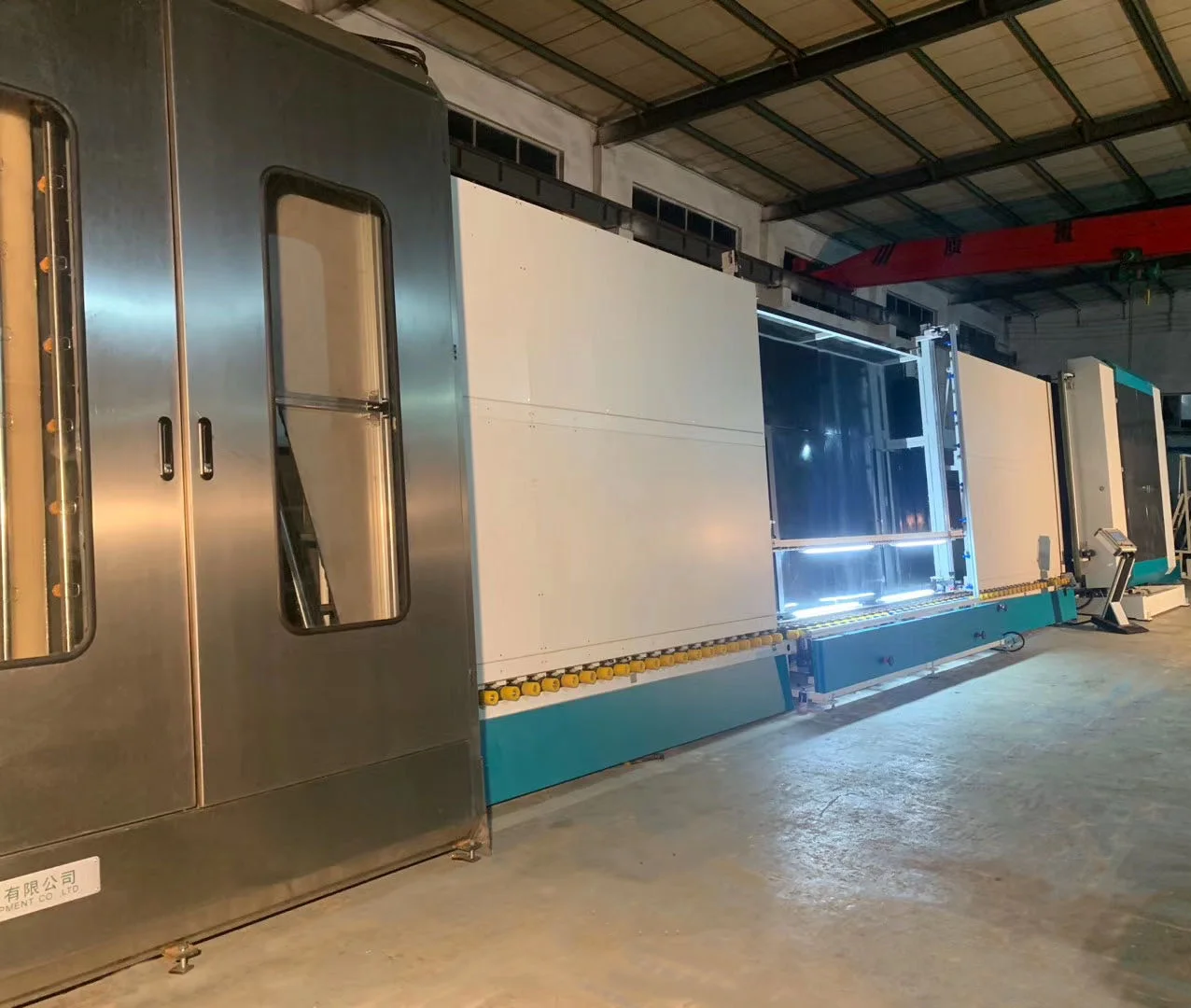

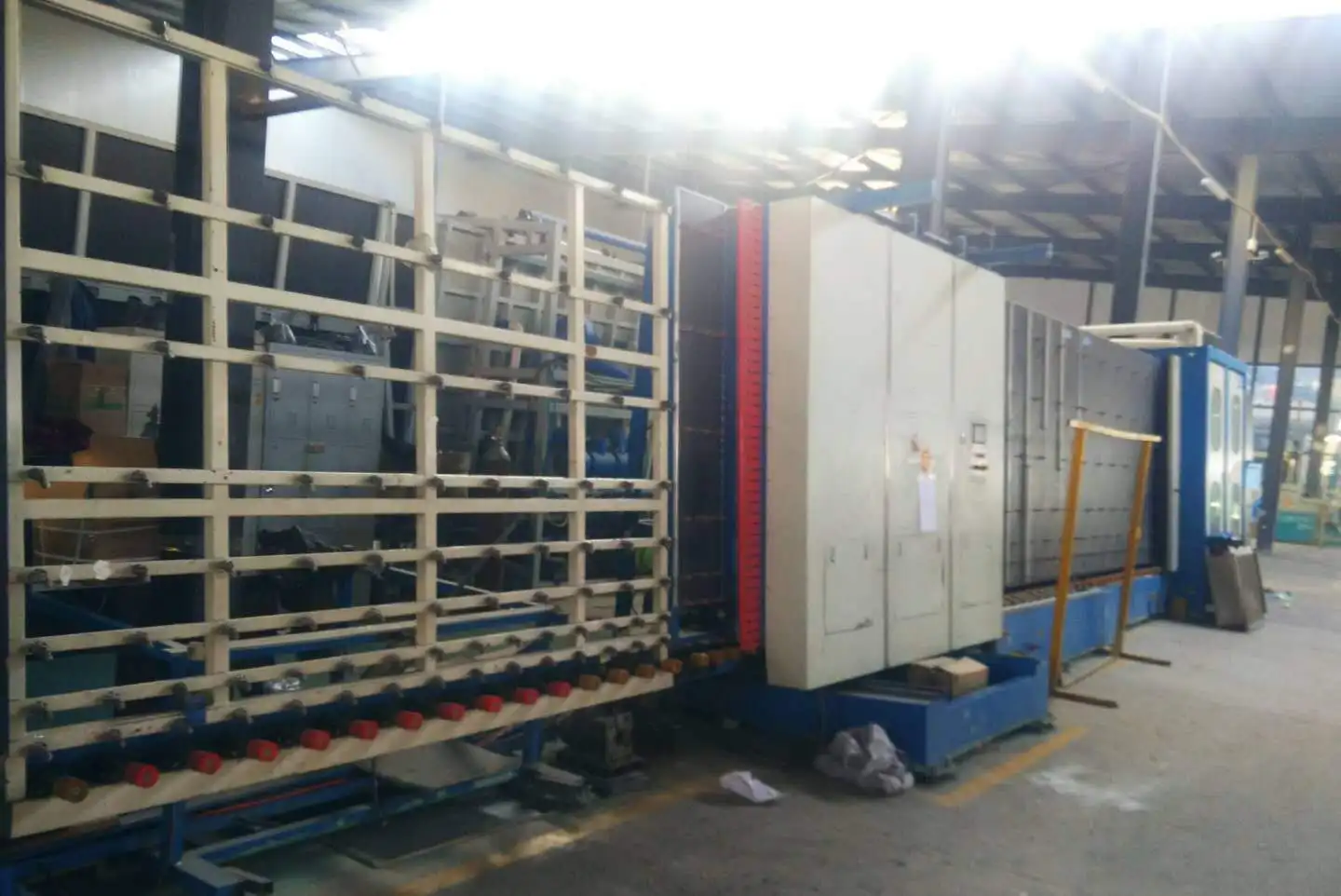

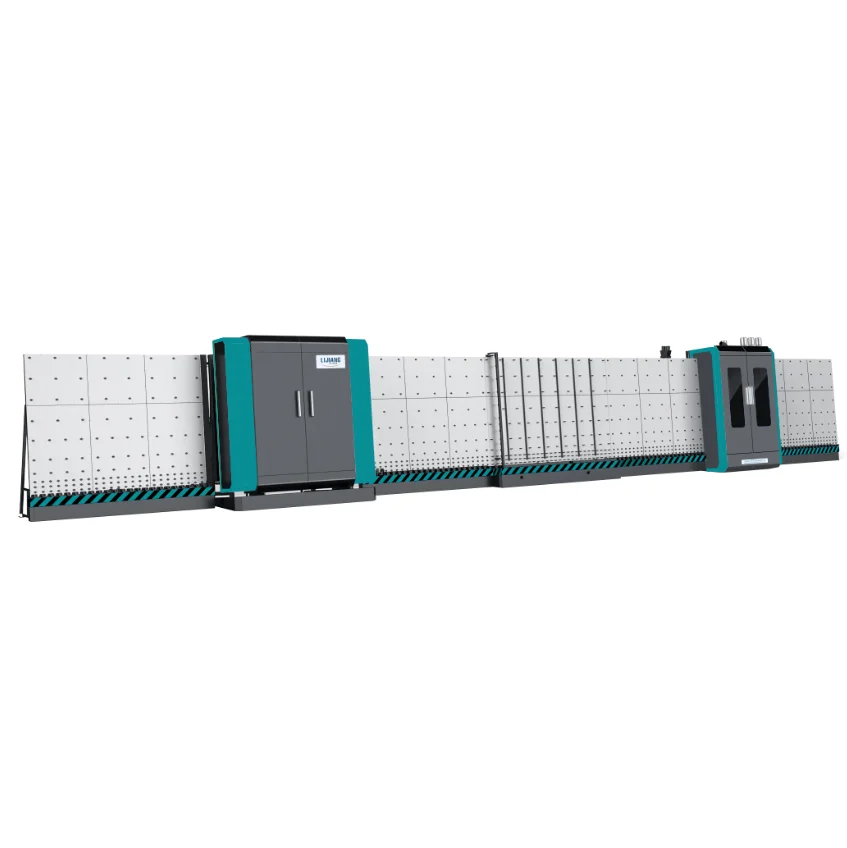

LJBZ2535 Automatic Insulating Glass Production Line

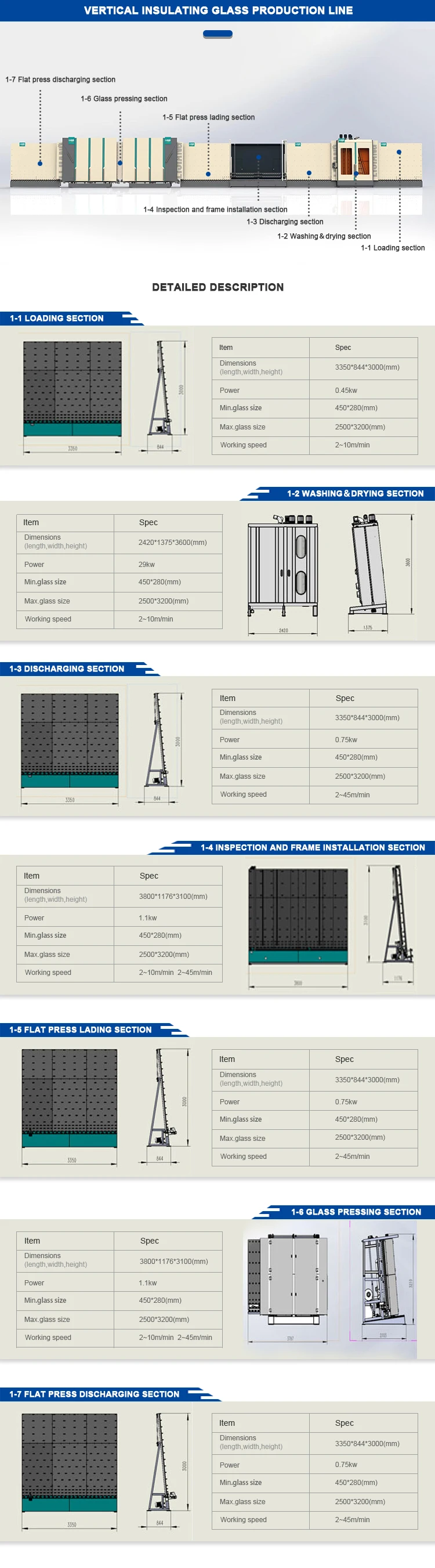

The whole LJBZ2535 Insulating Glass Production Line has 7 sections:
01 transfer section;
02 washing machine;
03 discharge section;
04 inspection and installation section;
05 transfer section;
06 pressing and filling section;
07 discharge section.
Optional functions:
•Step glass with optional edges
•Shaped glass
•Filling argon gas automatically
•Air-floating technology to transfer glass
•PLC control system, touch screen interface
•Using Siemens servo motors
•Applicable to produce double glass, triple glass
To prevent the glass from being contaminated by wheels and leaving traces to improve the IG production’s high quality.
01 transfer section;
02 washing machine;
03 discharge section;
04 inspection and installation section;
05 transfer section;
06 pressing and filling section;
07 discharge section.
Optional functions:
•Step glass with optional edges
•Shaped glass
•Filling argon gas automatically
•Air-floating technology to transfer glass
•PLC control system, touch screen interface
•Using Siemens servo motors
•Applicable to produce double glass, triple glass
To prevent the glass from being contaminated by wheels and leaving traces to improve the IG production’s high quality.

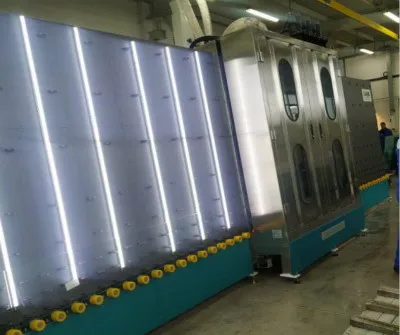

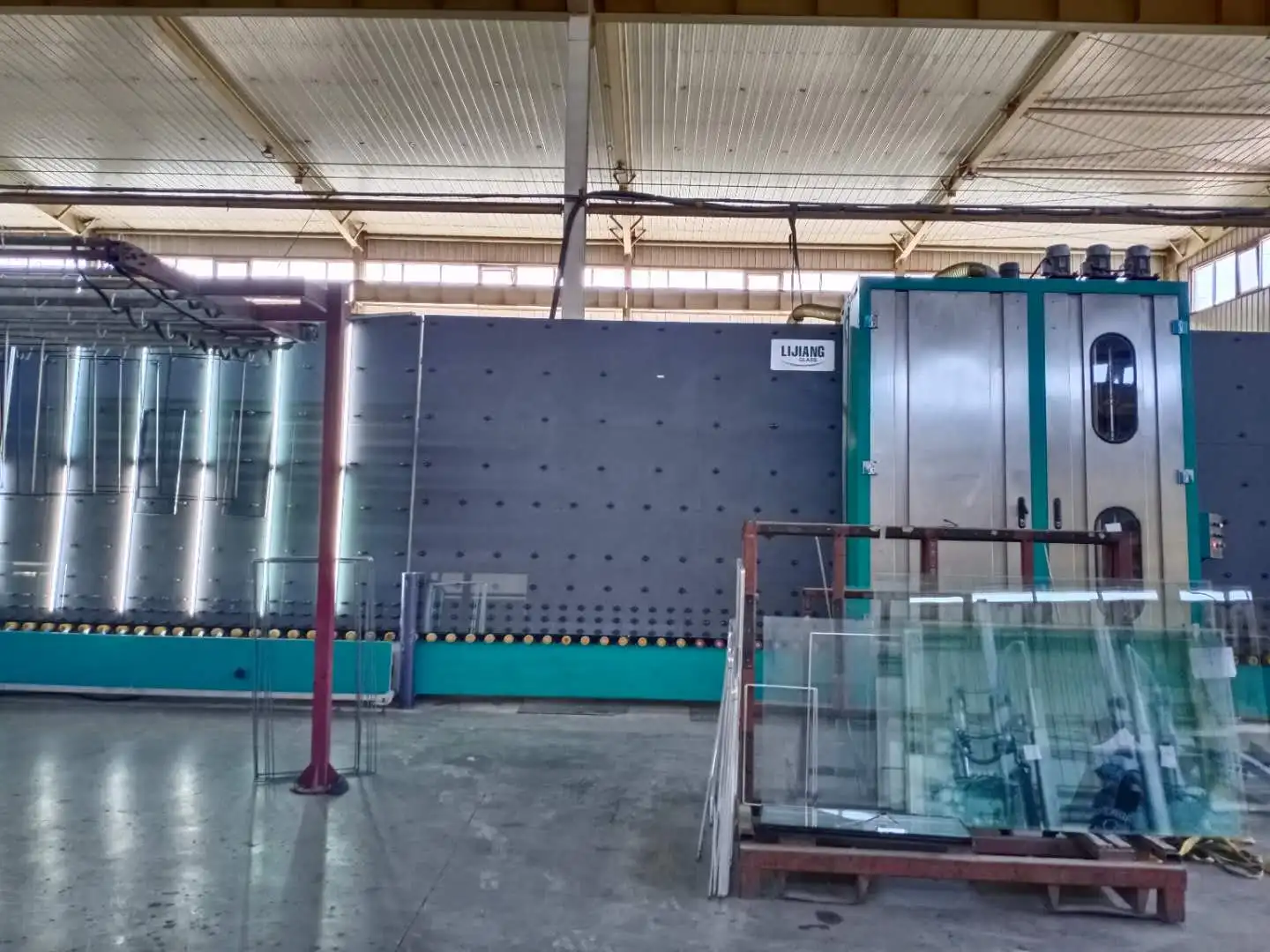

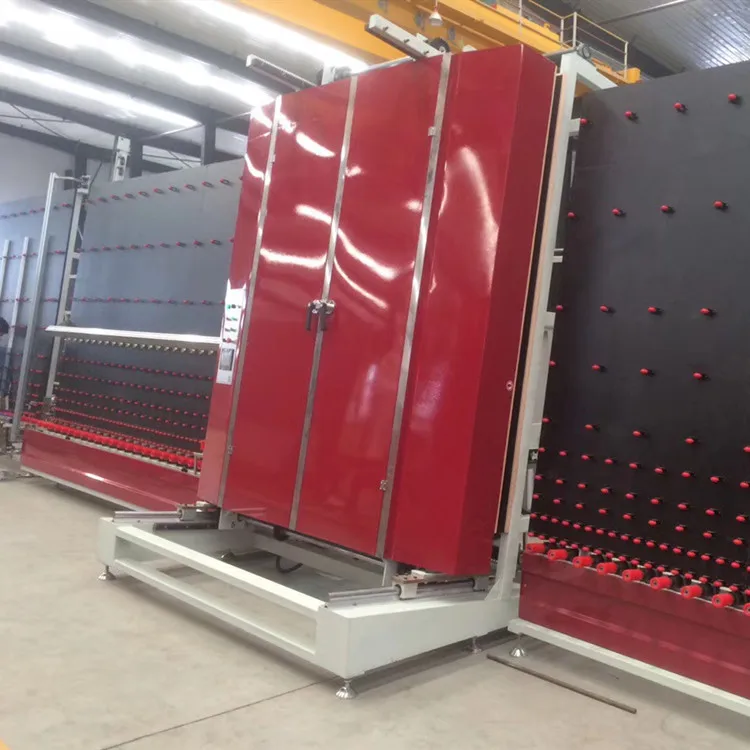

The second part: the washing and drying section.
In this glass washing and drying section, there are three pairs of soft brushes and four pairs of water spray for washing and drying glass.

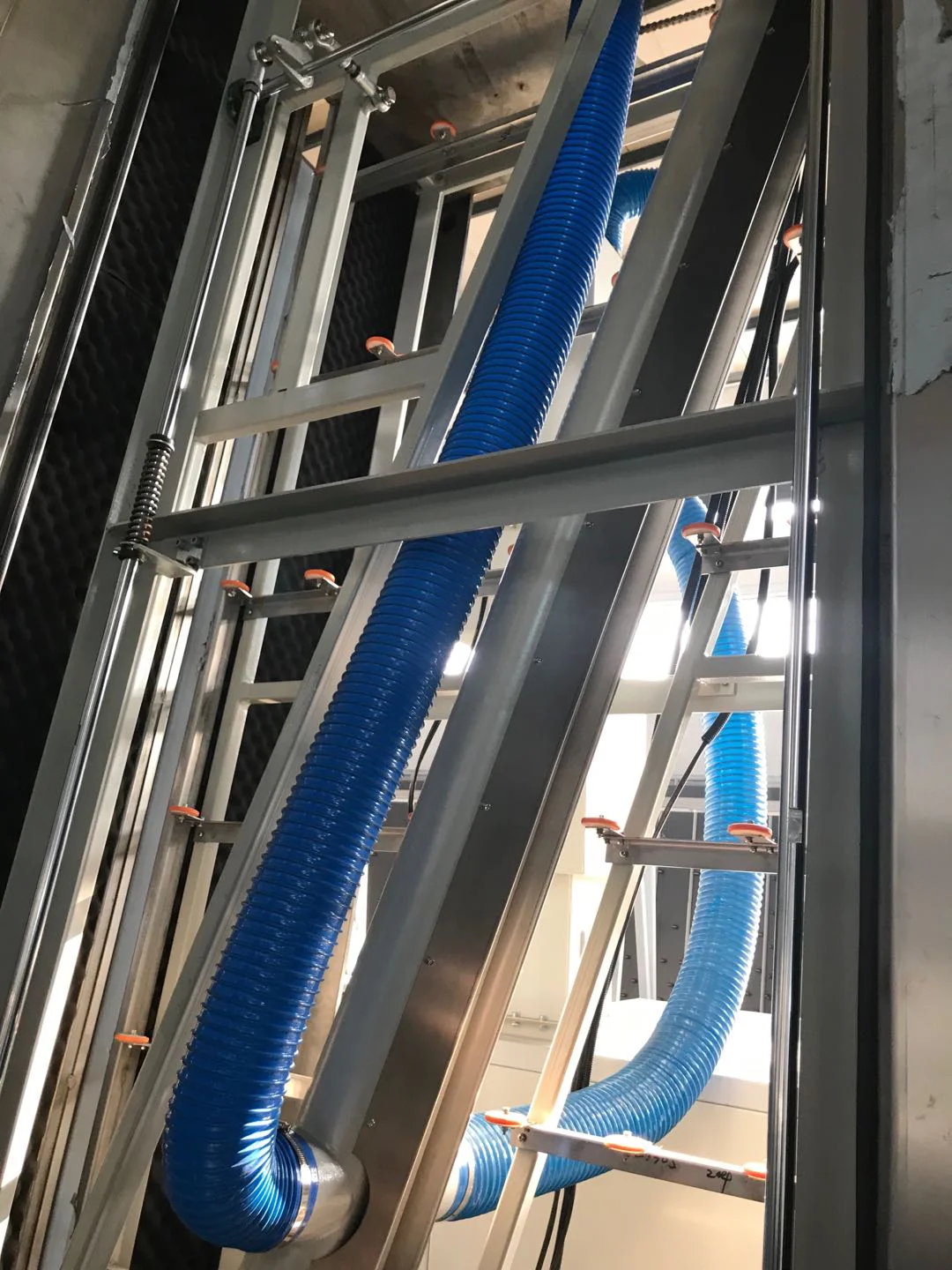

The air knife is float designed, which part always keeps the right and suitable distance between the glass and air knife in the press and design section. ( Entirely as same as the LISEC )
The transfer wheel from this section: The front and back transfer wheel is all-direction moved, all actively transferred. Whatever the glass size is big or small, it always guarantees the glass pass through smoothly. ( Entirely as same as the LISEC )
The axle and bearing of brushes adopt all stainless steel, which could keep the machine can washing stabilized and using for a long time.
The whole drying machine uses a sound insulation design, which could reduce noise pollution effectively.
The air knife is float designed, which part always keeps the right and suitable distance between the glass and air knife in the press and design section. ( Entirely as same as the LISEC )
The transfer wheel from this section: The front and back transfer wheel is all-direction moved, all actively transferred. Whatever the glass size is big or small, it always guarantees the glass pass through smoothly. ( Entirely as same as the LISEC )
The axle and bearing of brushes adopt all stainless steel, which could keep the machine can washing stabilized and using for a long time.
The whole drying machine uses a sound insulation design, which could reduce noise pollution effectively.

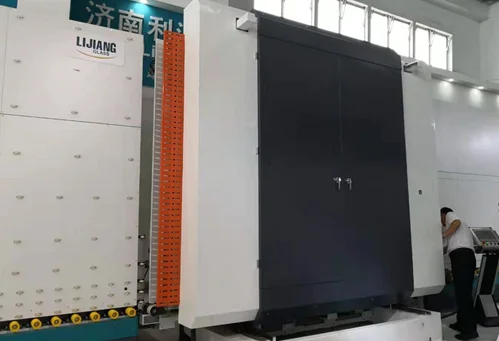

The 6th parts: the pressing and gas filling section.
In this section, it could adopts online input the suitable gas proportion value, all the data could showed off on the touch screen, and during the gas filling processing, the touch screen can show off the whole gas filing process visually.
However, how to show off the percentage of the argon gas filling on the touch screen online, is the importance technology on insulating glass producing. Jinan Lijiang Glass, which is the first and the only one manufactory, could master this technology very well from China.
There is no doubt that it could be very useful for customers, when argon gas are filling, it will show off the whole processing on the screen. When it reach the customers setting data, It will alarm and stop immediately. So it not only can save the argon gas, but also can save the processing-time.
By the way, the bottom of gas filling is our special structure. (Entirely as same as the structure of LISEC)
Whole press and gas filling section are divided into five parts (per 750mm), when the small size glass (less than 750mm) pass through the pressing and gas filling section, only one part could work.
When the difference size glass, which glass is more than 750mm but less than 1500mm, pass through the pressing and gas filling section, it will two parts work, no need the whole press and gas filling section work, to saving more the argon gas.
However, how to show off the percentage of the argon gas filling on the touch screen online, is the importance technology on insulating glass producing. Jinan Lijiang Glass, which is the first and the only one manufactory, could master this technology very well from China.
There is no doubt that it could be very useful for customers, when argon gas are filling, it will show off the whole processing on the screen. When it reach the customers setting data, It will alarm and stop immediately. So it not only can save the argon gas, but also can save the processing-time.
By the way, the bottom of gas filling is our special structure. (Entirely as same as the structure of LISEC)
Whole press and gas filling section are divided into five parts (per 750mm), when the small size glass (less than 750mm) pass through the pressing and gas filling section, only one part could work.
When the difference size glass, which glass is more than 750mm but less than 1500mm, pass through the pressing and gas filling section, it will two parts work, no need the whole press and gas filling section work, to saving more the argon gas.
Above information is the Brief Introduction of Jinan LIJIANG Auto IG Line.
If customers want to know more special details, please contact us directly.
Advantages & Features
Benefits & Advantages

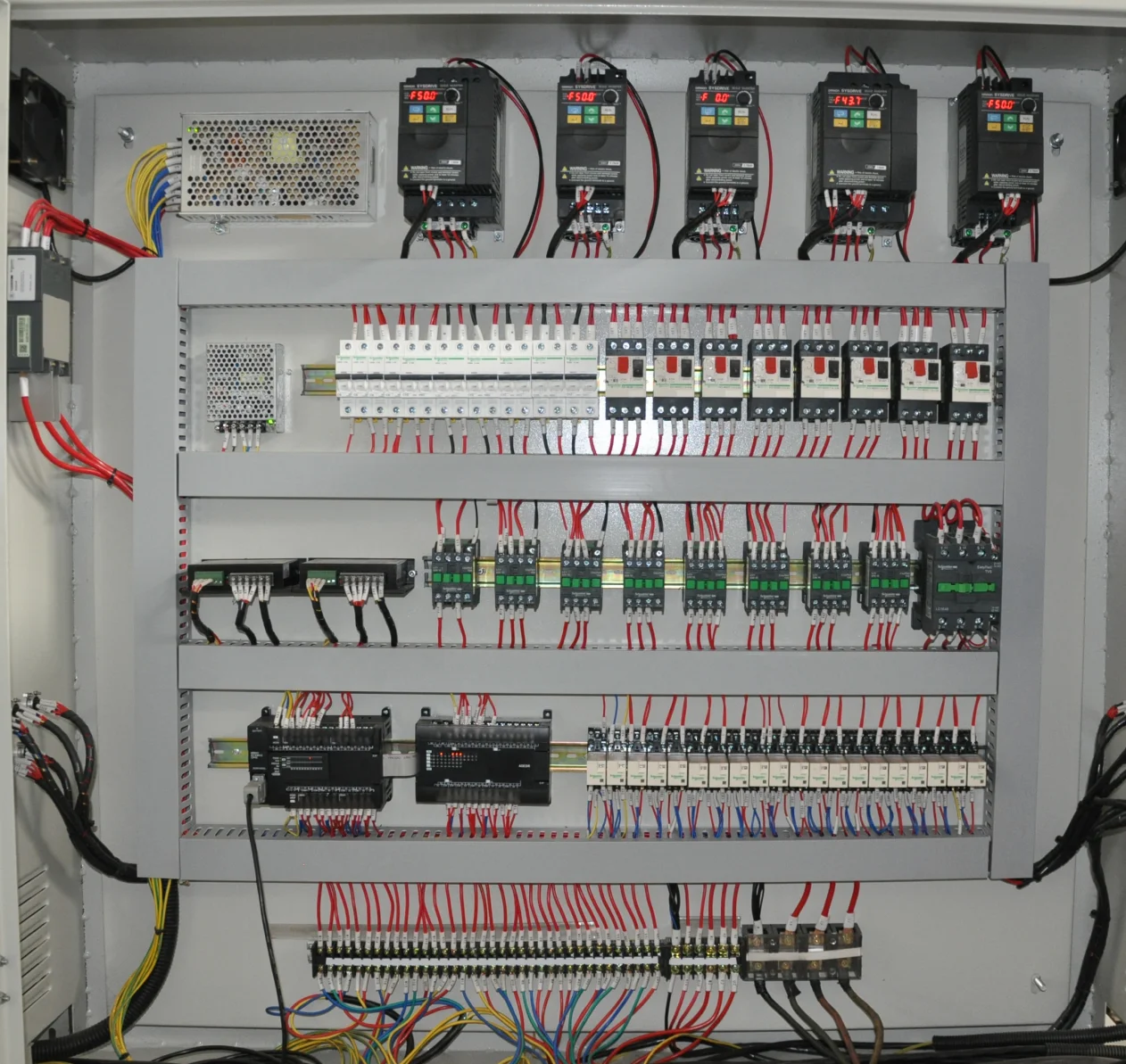

Adopt SIEMENS control system, keep stable performance
PLC control system, touch screen interface
Automatically adjust the depth of glue with digital display
Using servo to control system, modular function, superposition function
Applicable to produce stepped IG, triple IG and shaped IG
Two pieces of IGU can be made and filled with argon gas in one time (Optional)
Min & Max glass sizes can be optional
European design concept, simple and smart operation;
the world-famous brand of core components, ensure stable operation and long service life;
It is designed for processing high quality glass, such as reflective glass, Low-E glass, reflective glass and tempered glass;
Large glass processing size, various models and customization available;
Large production capacity, output 1,000pcs in working days;
It can be used for two-layer, three-layer, pad and glass with irregular shape;
Automatic air gas filling during the glass paper assembly process.
PLC control system, touch screen interface
Automatically adjust the depth of glue with digital display
Using servo to control system, modular function, superposition function
Applicable to produce stepped IG, triple IG and shaped IG
Two pieces of IGU can be made and filled with argon gas in one time (Optional)
Min & Max glass sizes can be optional
European design concept, simple and smart operation;
the world-famous brand of core components, ensure stable operation and long service life;
It is designed for processing high quality glass, such as reflective glass, Low-E glass, reflective glass and tempered glass;
Large glass processing size, various models and customization available;
Large production capacity, output 1,000pcs in working days;
It can be used for two-layer, three-layer, pad and glass with irregular shape;
Automatic air gas filling during the glass paper assembly process.
The coating inspection

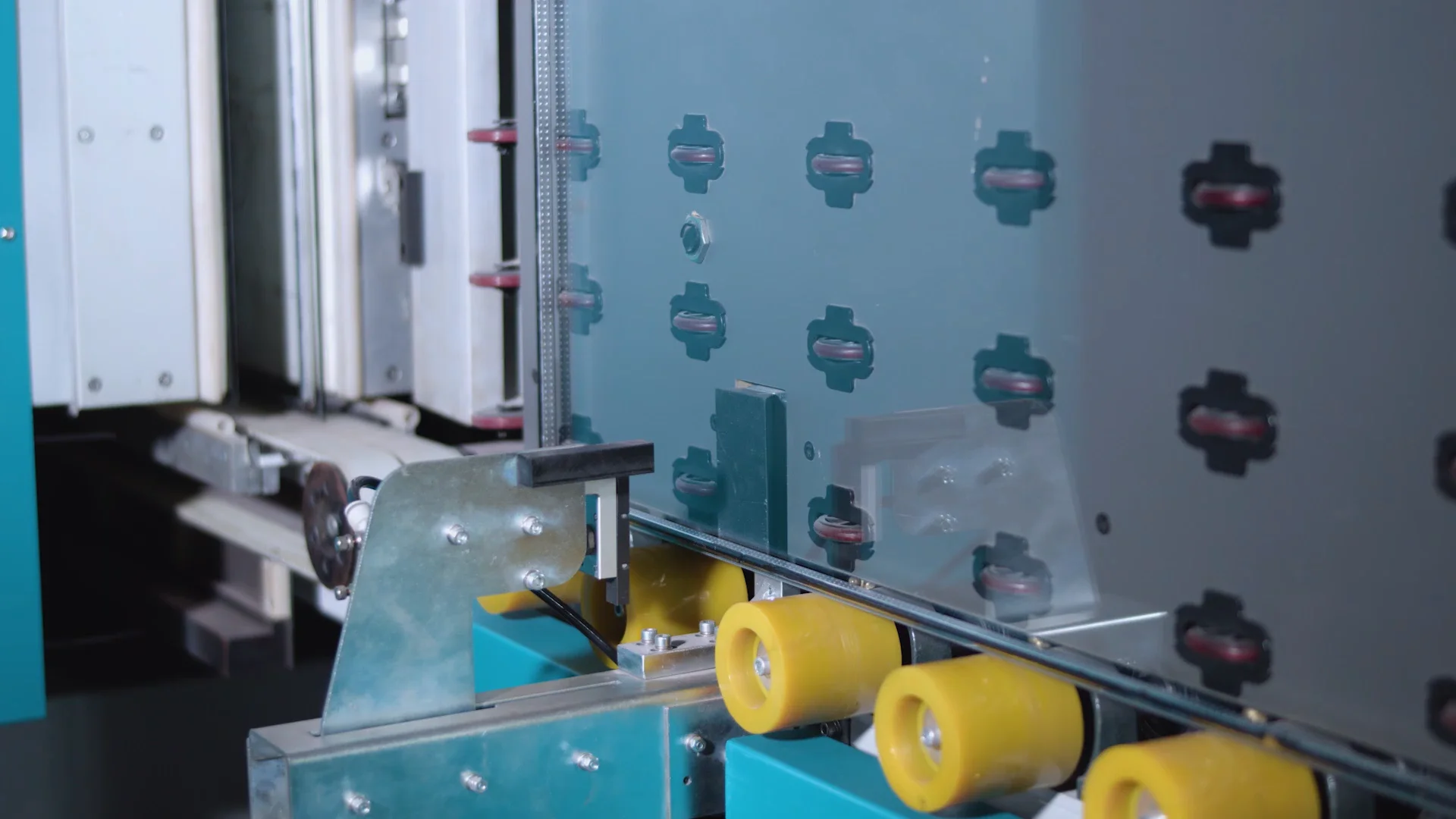

To avoid the Low-E glass or Coated glass put inverse side and Leave wheel marks or scratch low-e Coating, Jinan LIJIANG Glass uses coating inspection -metal film conductive. (others suppliers from China, usually use the photoelectric detection, and it's actually little hard to recognize for higher transparent)
The pressing box uses the high precision servo motor.
The servo motor could be accurately calculated the thickness of the Insulated glass and aluminum spacer. Compared with traditional hydraulic station. And also, it could guarantee the precise working pressure and protect the glass from damage, at the same time increasing the working speed.

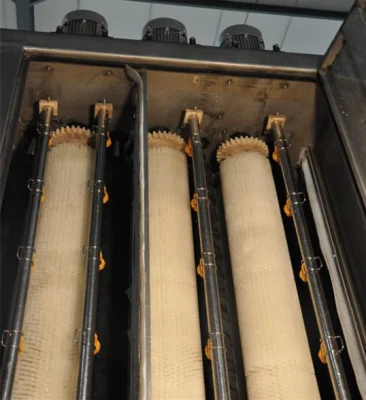

It uses six soft (Low-E Glass) brushes with the 0.1mm diameter only.
It has 6 brushes which are all soft brush, could wash and dry more difference types and sizes ofr low-e glass, flat glass,
tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass washing.
tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass washing.

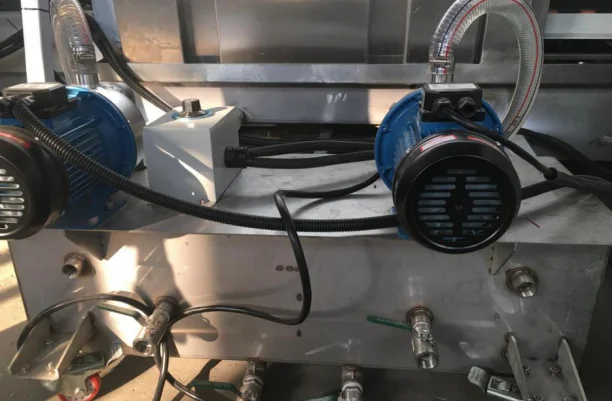

The whole washing machine all uses #304 stainless steel materials
The whole washing and drying section adopt #304 stainless steel materials, including the plate and interior spare parts. The thickness plate can up to 4mm and the interior plate can be 8mm.The equipment performance is better and service life is much longer than other suplliers.
Air floating technology - Optional

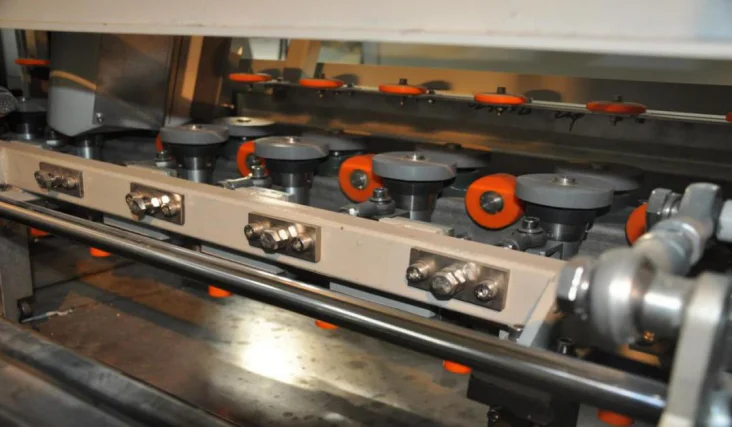

The front and back transfer wheel are all moved, all actively transferred. It can guarantee the big and thick glass pass through smoothly. The equipment adopts the new air – floating technology uses air to support glass and transfer glass. When glass is washed clearly from the washing machine, using air to transport the glass, it won't be contaminated. Ensure that the produced insulating glass is of the highest quality.
The first one to use adjustable points to ensure that the platen will never deform.
The whole equipment adopts CNC technology into the pressing board. It was designed the adjustable points inside the pressing board to keep the backplate straight all the time. In China, except LIJIANG, no more others suppliers could guarantee that the pressing board will remain vertical andstraight all the time after used over 10 or 20 years.
Above information is the special details from Jinan LIJIANG Glass.
If customers want to know more special details, please contact us directly.
Main Technical Parameter
Item. | Spec. |
Max. glass size | 2500mm*3500mm |
Min. glass size | 280mm*400mm |
Glass thickness | 3-15mm / 19mm |
Insulating glass thickness | 50mm / 60mm |
Glass washing speed | 2-10m/min |
Glass conveyor speed | 45m/min |
Washing brushes | 3 pairs |
Water supply | Water consumption:0.5t/h conductivity：40μs/cm |
Air supply | Flow: 0.8m/min |
Air pressure | ≥0.8MPa |
Total power | 3P 380V 50HZ 40KW |
Dimension | 23500*3500*3700mm |
Weight | 6500kgs |
Name | Brand |
Servo motor | Germany Simens |
Servo driver | Germany Simens |
Servo motor | Germany Simens |
Servo motor | Germany Simens |
PLC | Germany Simens |
Low voltage component | Germany Simens |
Frequency converter | Germany Simens |
Switching power supply | Taiwan MW |
Optoelectronic switch | Korea Autonics |
Pneumatic component | Taiwan Airtac |
Pneumatic component | Taiwan Airtac |
Touch screen | Taiwan Wenview |
Travel switch | Taiwan (TEND) |
Relay | Japan Omron |
Button and indicator light | French Schneider |
Above information is the Specification. from Jinan LIJIANG Glass Standards.
If customers want to know more details of Spec., please let us know.
Company Profie
The Brief Information
Founded in 2009, Kation-International Group specializes in R&D, production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry, which is the international group company including the Jinan LIJIANG Automatic Equipment Co,.Ltd. to producing the automatic insulating glass production line, and including the Jinan Kation International Trading Co,.Ltd. to export the automatic insulating glass processing machine around the world. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows & doors solution for domestic and foreign customers well. Until 2021, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on,nearly 30 countries and regions. We have established a perfect international business relationship with 10+ powerful agents and made an endeavor together to build a famous international brand to the world.
Kation-International Group, with craftsmanship, profession and honesty, wins the future with you together!
Kation-International Group, with craftsmanship, profession and honesty, wins the future with you together!
Team
Technician Team
Jinan LIJIANG Glass, has own technician team, IG line and automatic sealing robot technician team have 6 experts which all have more than 15 years+ glass machine producing experience. Aluminum spacer bending and desiccant filling machine technician team we have 3 technician which have rich experience in double glass machines. Butyl extruder machine and sealing pump and hot melt machine team have 4 experienced technician, all of them are worked in glass machine filed more than 12 years,
Service Team: Jinan LIJIANG Glass, has the own chinese domestic team and oversea service team. The whole team was included by 15 chinese engineers who worked in glass machine filed more than 20 years and 5 oversea engineers, two of them from india and others from south America and midle east. 24 hours online service and local engineer available, guarantee customers got timely service and solution.
Service Team: Jinan LIJIANG Glass, has the own chinese domestic team and oversea service team. The whole team was included by 15 chinese engineers who worked in glass machine filed more than 20 years and 5 oversea engineers, two of them from india and others from south America and midle east. 24 hours online service and local engineer available, guarantee customers got timely service and solution.

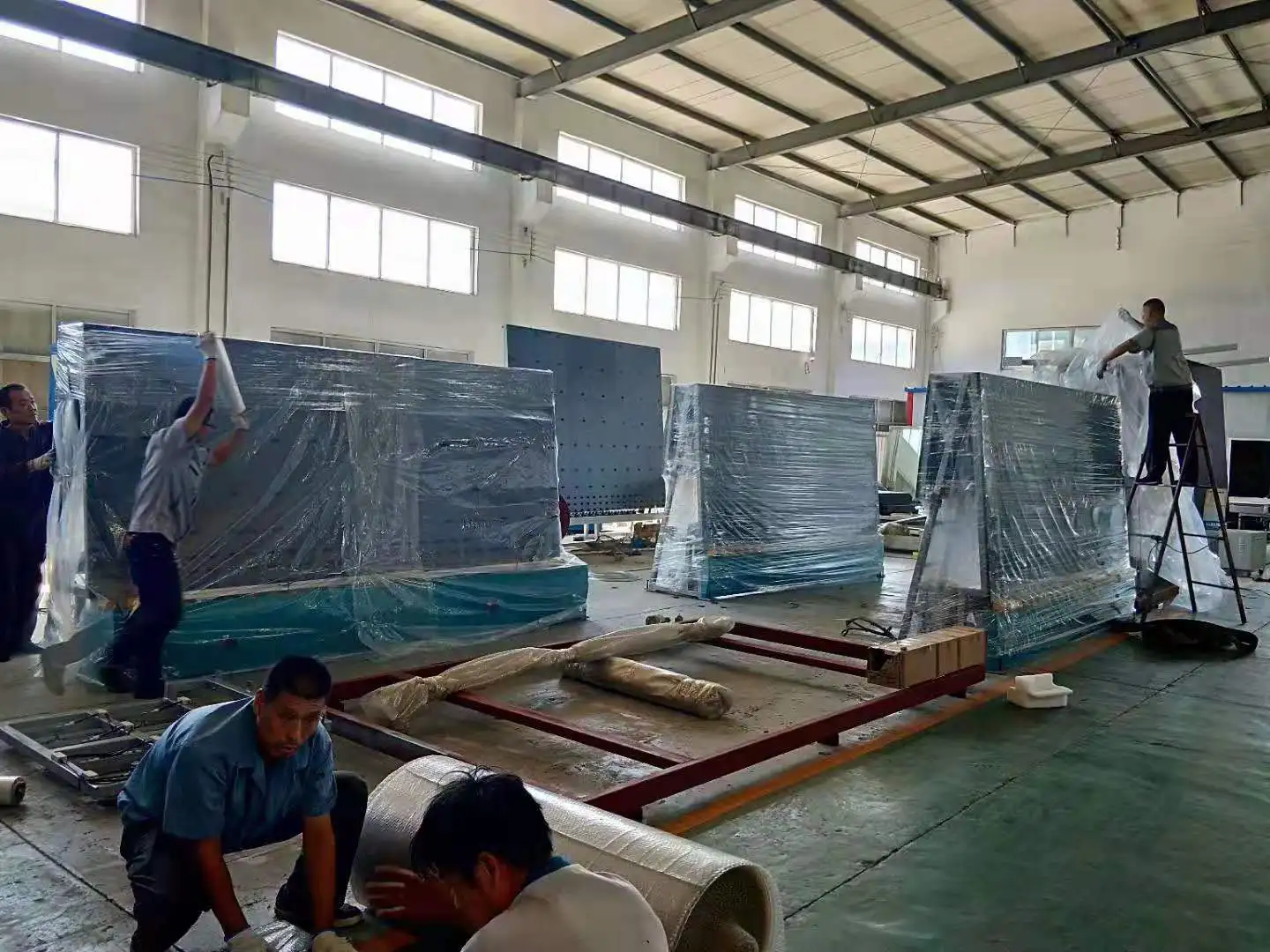

Our Service
National Expo
Glass International Expo
International Glass Expo: Glasstec in Germany, CAM Eurasia Glass in Istanbul, India Zak, India Glasspro, Glasstech Aisa , Glass build in America, Mexico glass expo .Big Five In Dubai, Egpyt and so on.
Domestic Glass Expo: China glass, (Beijing /shanghai), Guangzhou and so on.
Domestic Glass Expo: China glass, (Beijing /shanghai), Guangzhou and so on.
Beijing Glass Expo
Shanghai Glass Expo
Guangzhou Glass Canton Fair
Turkish Glass Exhibition
Contact Us
Похожие товары
Full Automatic CNC High Speed Insulating Glass Process Line
Универсальное полностью автоматическое вертикальное стекло с ЧПУ
4 749 492,42 ₽

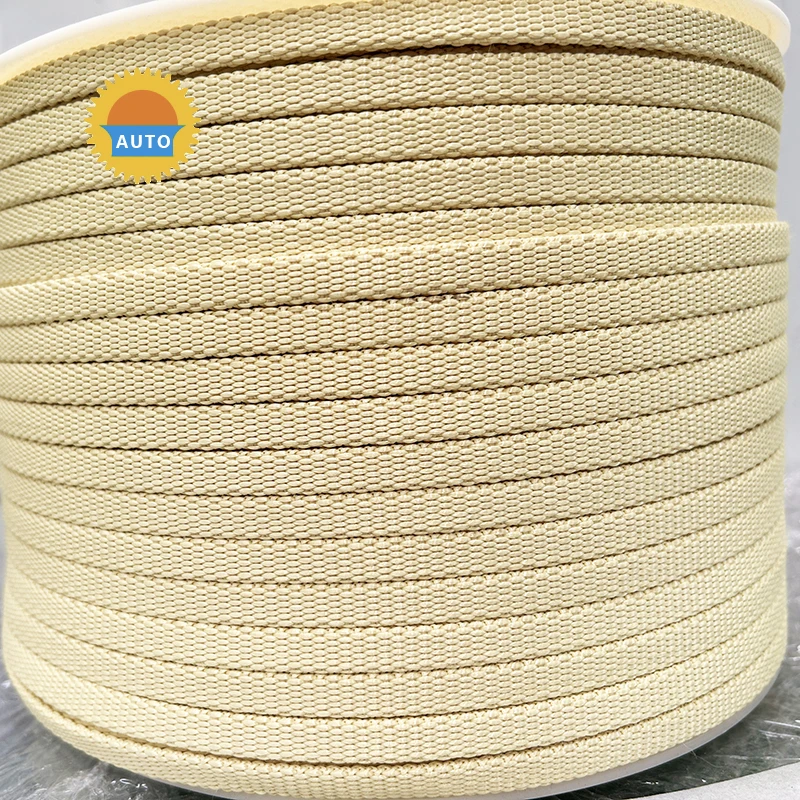

Огнестойкий арамидный плетеный канат 3 мм высокопрочный кевларовый плоский канат 10 мм

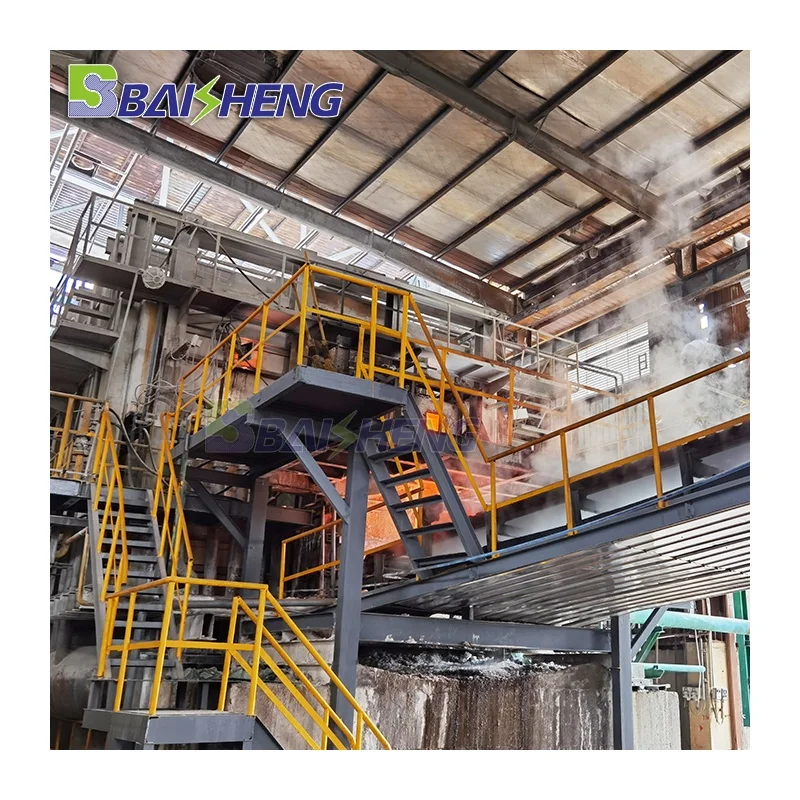

Оборудование для производства водного стекла, крупногабаритная производственная линия силиката натрия
563 866 680,00 ₽
Вертикальный стеклянный фрезерный станок сверлильный станок
845 800,02 ₽ - 867 487,20 ₽

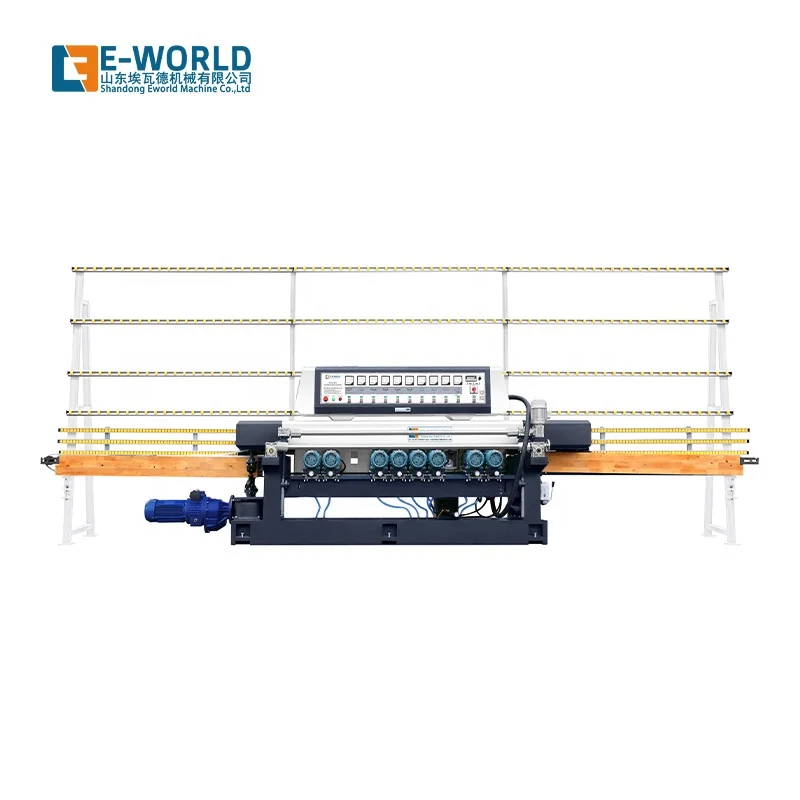

Машина для шлифовки стекла с двумя краями
