Milk full-automatic plate sterilizer, plate ultra-high temperature sterilizer, plate sterilizer, beverage sterilizer

Our advantages:
Our own factory.
Customized.
Reliable quality.
Good price.
One year warranty.
Lifetime maintenance.

Overview and use of plate ultra-high temperature sterilization equipment

The plate-type ultra-high temperature sterilization equipment is a primary sterilization equipment specially designed for dairy beverages or similar liquid materials. It is an ideal equipment for materials to achieve the purpose of extending the shelf life through sterilization and cooling. According to the user's different process requirements for heating, sterilization, heat preservation, and cooling of different materials, different process combinations can be designed to meet process requirements, with various safety protection measures, high temperature alarms, and low temperature reflux functions. At the same time, the corresponding high-precision automatic control system can be configured according to user requirements.

The plate-type ultra-high temperature sterilization equipment is suitable for the process requirements of heating, sterilizing, heat preservation and cooling of heat sensitive liquids such as fresh milk, fruit juice drinks, and alcohol.

Features of plate ultra-high temperature sterilization equipment

1. The materials and heating medium are heated in their own sealed systems through non-contact heat exchange to ensure the sanitary and safety of the materials.

2. The sterilization time is short, which can ensure that the nutrients of the materials are not destroyed.

3. The whole machine adopts food-grade stainless steel materials to ensure that it meets the national requirements for the safety and sanitation of beverage and food equipment.

4. Good heat transfer effect, high heat recovery rate and low energy consumption.

5. The main control components, valves and supporting parts are all imported parts, which have a long service life.

6. Using PLC control, it can automatically control the heating temperature, hot water temperature, and steam flow adjustment of each section of the material, and is equipped with an automatic material reflux system to ensure that 100% of the material achieves the sterilization effect.

Technical parameters of plate ultra-high temperature sterilization equipment

Process parameters: 5℃→65℃ homogenization→95℃→140℃(4S)→25℃

Medium: ice water 1:1 (2℃) cooling water 1:1 (25℃)

Note:

1. The parameters in the chart are for reference only (subject to the actual product). If the customer requires otherwise, please submit.

2. Process parameters that need to be provided for the selection of plate sterilizer: material properties, sterilization technology, special requirements, etc.

3. Auxiliary equipment: air storage tank, air compressor, water storage tank, boiler. (Need to be prepared by the customer)

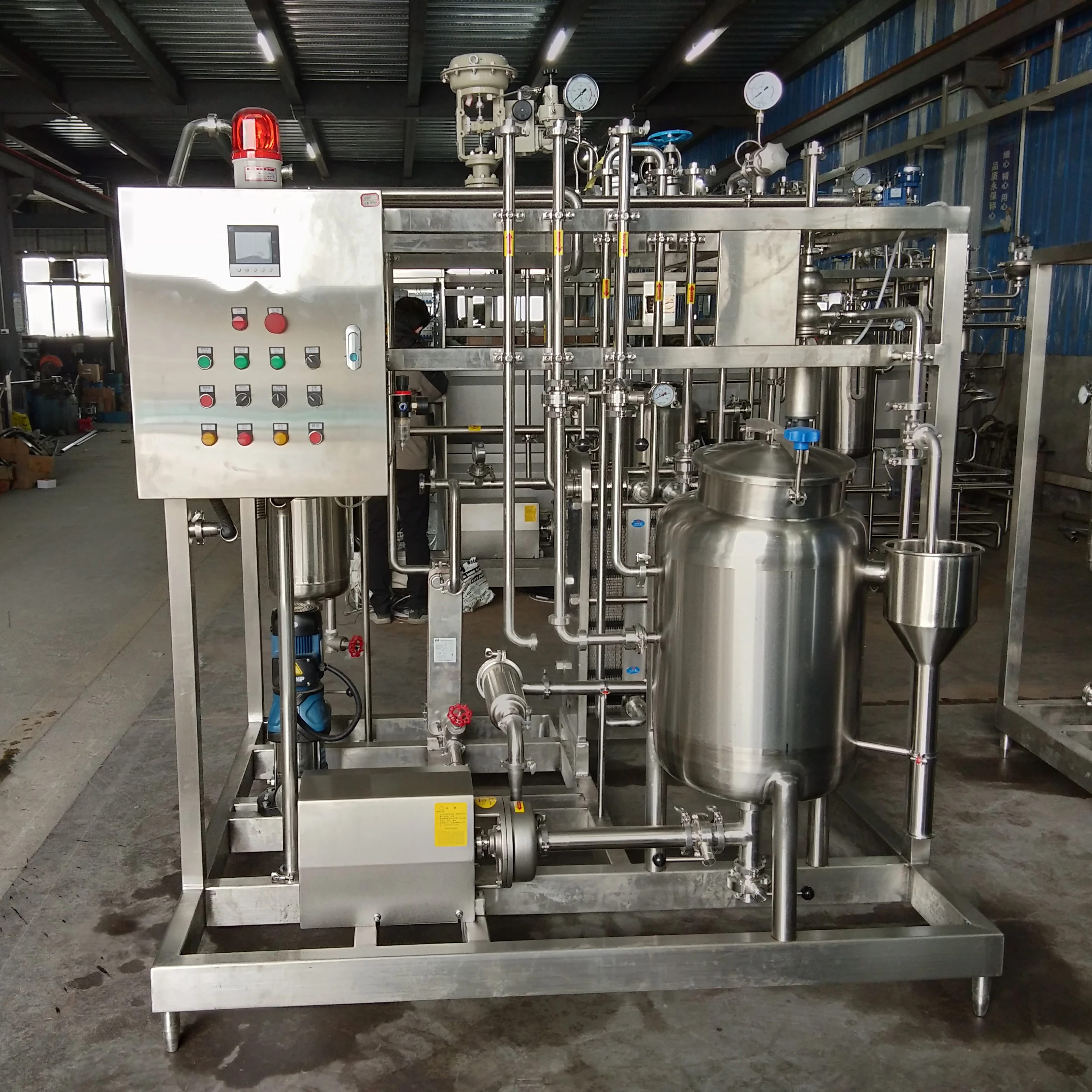

Full-auto steam heating plate type sterilization machine

Semi-auto steam heating plate type sterilization machine

Semi-auto electric heating plate type sterilization machine
