ZW Заводские запасные части для гидравлической коробки передач E312D редуктор для трактора
36 868,21 ₽
Запчасти для экскаваторов электроприводные двигатели мини экскаваторов B17.2 ex 120
- Категория: >>>
- Поставщик: Qingdao Weitai Hydraulic Co. Ltd.
Сохранить в закладки 1600215711908:
Описание и отзывы
Характеристики
Product Description

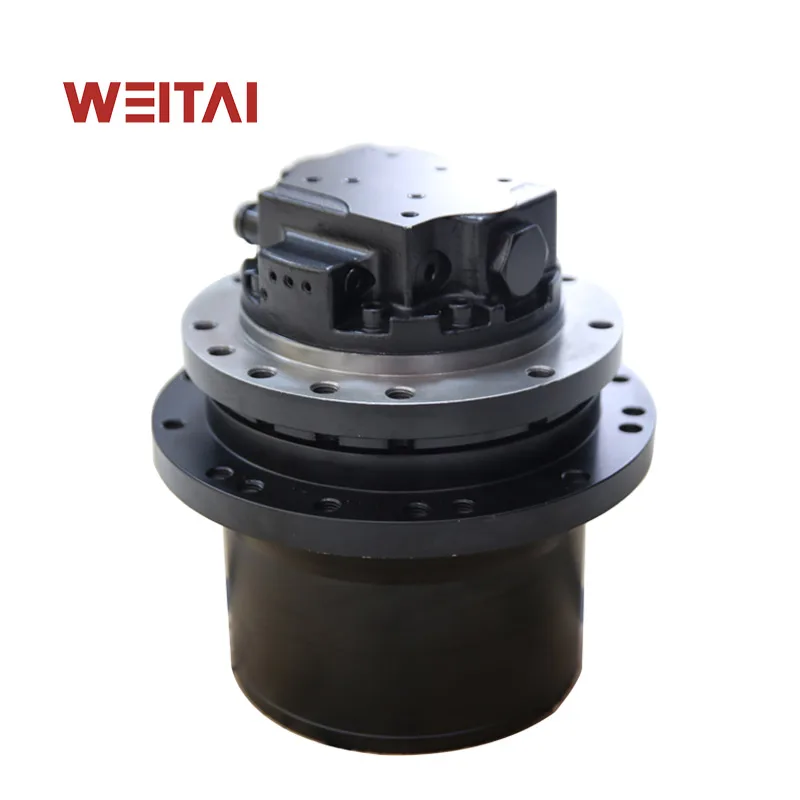

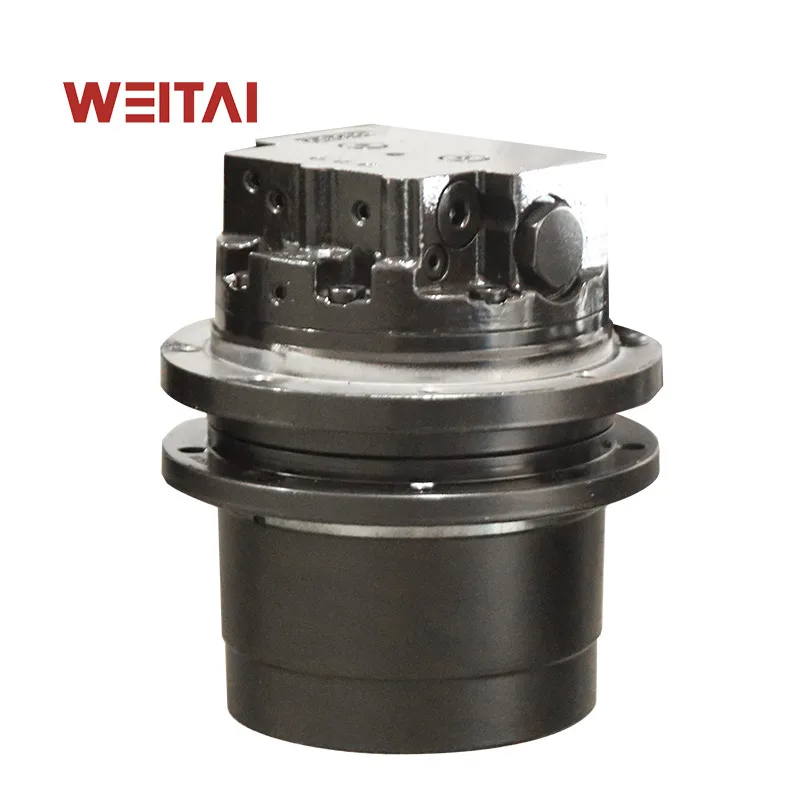

Hydraulic Travel Motor /
Final Drive
1. Integrated structure with Axial Piston Motor and Planetary Gearbox.
2. High reliability - all main parts are made by the automatic CNC production line.
3. High efficiency - the axial piston motor maintains high efficiency.
4. Compact in volume and low noise.
5. Two-speed function, exchange in high speed and strong torque.
6. Parking brake - included as standard for safety.
7. Interchangeable: same flange dimensions with the original final drives.
3. High efficiency - the axial piston motor maintains high efficiency.
4. Compact in volume and low noise.
5. Two-speed function, exchange in high speed and strong torque.
6. Parking brake - included as standard for safety.
7. Interchangeable: same flange dimensions with the original final drives.
FULL RANGE OF MODELS FOR VARIOUS EQUIPMENT (0.8 ~ 36 TON).
Model | Max Output Torque (Nm) | Max Working Pressure (Mpa) | Max Output Speed (r/min) | Applicable Tonnage(T) |
WTM-02 | 1500 | 24.5 | 75 | 1-1.8T |
WTM-03 | 2100 | 24.5 | 70 | 1.5-3.5T |
WTM-03A | 2900 | 24.5 | 50 | 2.5-3.5T |
WTM-04 | 4200 | 24.5 | 55 | 3.5-4.5T |
WTM-06 | 6300 | 27.5 | 55 | 5-6T |
WTM-07 | 10500 | 31.5 | 50 | 6-8T |
WTM-09 | 11500 | 31.5 | 50 | 7-9T |
WTM-10 | 13700 | 27.5 | 50 | 9-11T |
WTM-18 | 16900 | 31.5 | 60 | 10-13T |
WTM-22 | 22000 | 31.5 | 55 | 13-16T |
WTM-40 | 46000 | 34.5 | 50 | 18-22T |
WTM-60 | 60000 | 34.5 | 50 | 30-36T |
Recommended Products
Production Process
Product Application
Company Profile
Packaging & Delivery
FAQ
1) What types of hydraulic motors does your company produce?
A: WEITAI mainly produces complete and fully assembled brand new axial piston motors integrated with planetary gearboxes, which are widely used for track equipment. We can also produce hydraulic motors for wheeled machines.
2) Hydraulic motors of which brands can be replaced with WEITAI's ones?
A: Our motors are interchangeable with the motors of the following brands: Eaton, Doosan, Jeil, KYB, Nachi, Nabtesco, Rexroth, Poclain, Bonfiglioli, etc.
3) How can I choose the right model of the hydraulic motor to fit my machine?
A: Different markets have different machine variations. The best way to find the right motor is to look at the motor brand and the machine model you have. Another way would be by measuring the key dimensions of the flange frame and the sprocket flange. Please contact our sales team to get technical support if you have difficulties choosing the right motor for your application.
4) Can you produce hydraulic motors based on your customer's designs and dimensions?
A: Yes, we can. We are ready to provide the best customized hydraulic solutions for your business.
5) Can the OEM parts apply to WEITAI's travel motors?
A: No, they cannot. Although they might have a similar appearance, their internal structures are different. Only WEITAI's spare parts can fit WEITAI's travel motors.
6) What information do we need our customers to provide while choosing the right hydraulic motor for their application?
A: (1) Drawing, or (2) original motor model, or (3) machine model and part No.
A: WEITAI mainly produces complete and fully assembled brand new axial piston motors integrated with planetary gearboxes, which are widely used for track equipment. We can also produce hydraulic motors for wheeled machines.
2) Hydraulic motors of which brands can be replaced with WEITAI's ones?
A: Our motors are interchangeable with the motors of the following brands: Eaton, Doosan, Jeil, KYB, Nachi, Nabtesco, Rexroth, Poclain, Bonfiglioli, etc.
3) How can I choose the right model of the hydraulic motor to fit my machine?
A: Different markets have different machine variations. The best way to find the right motor is to look at the motor brand and the machine model you have. Another way would be by measuring the key dimensions of the flange frame and the sprocket flange. Please contact our sales team to get technical support if you have difficulties choosing the right motor for your application.
4) Can you produce hydraulic motors based on your customer's designs and dimensions?
A: Yes, we can. We are ready to provide the best customized hydraulic solutions for your business.
5) Can the OEM parts apply to WEITAI's travel motors?
A: No, they cannot. Although they might have a similar appearance, their internal structures are different. Only WEITAI's spare parts can fit WEITAI's travel motors.
6) What information do we need our customers to provide while choosing the right hydraulic motor for their application?
A: (1) Drawing, or (2) original motor model, or (3) machine model and part No.
Похожие товары

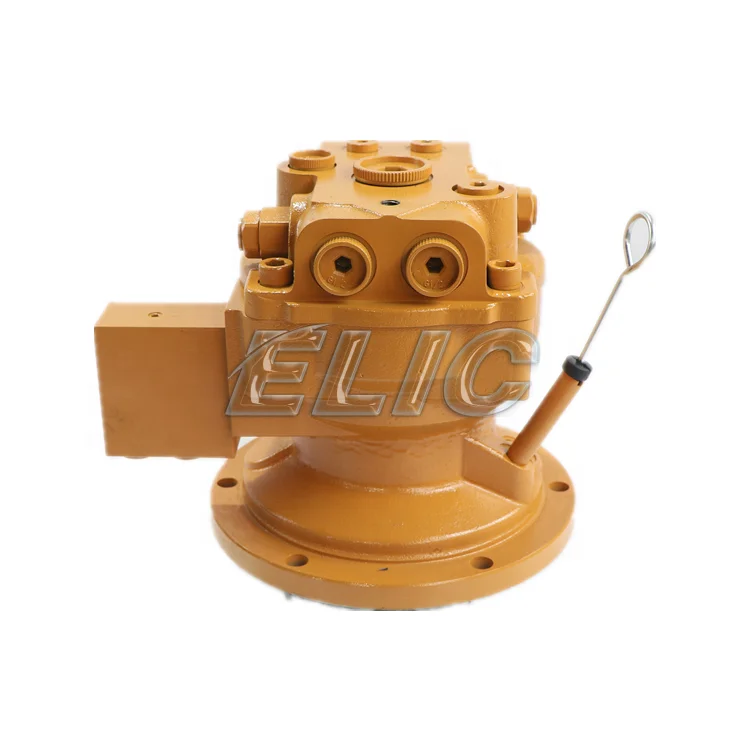

Мини-экскаватор robex, гидравлические поворотные ворота, моторное устройство 31m6-10130 JMF29, запчасти редуктора
130 014,65 ₽ - 173 389,01 ₽
Прочная конструкция машины устройство EX300-5 путешествия гидравлические постоянного тока мотор-редуктор система привода экскаватора
180 003,60 ₽
Экскаватор ECR88 двигатель для путешествий VOE14520757 ECR88 финальный привод

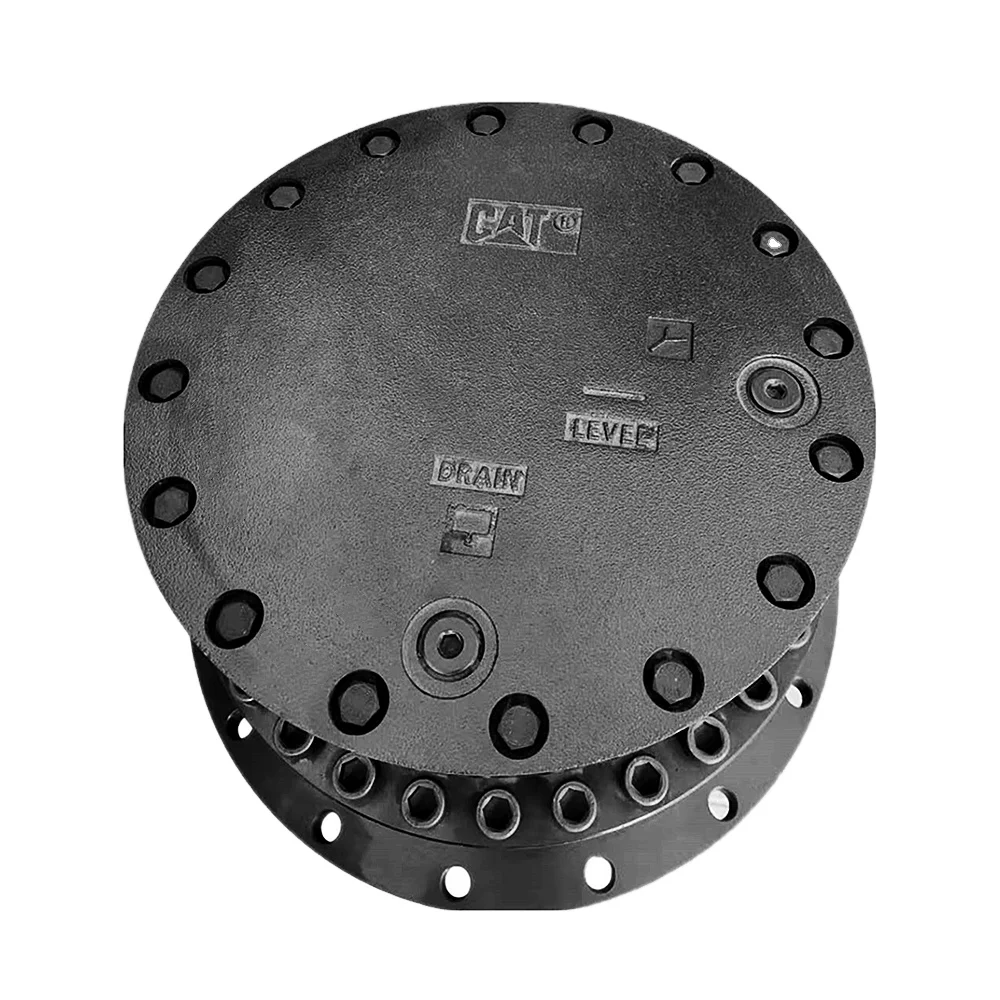

WY гидравлическая дорожная сборка для CAT336D E330, запасные части для экскаватора, дорожная коробка передач 227-6196 296-6218 227-6189 353-0602

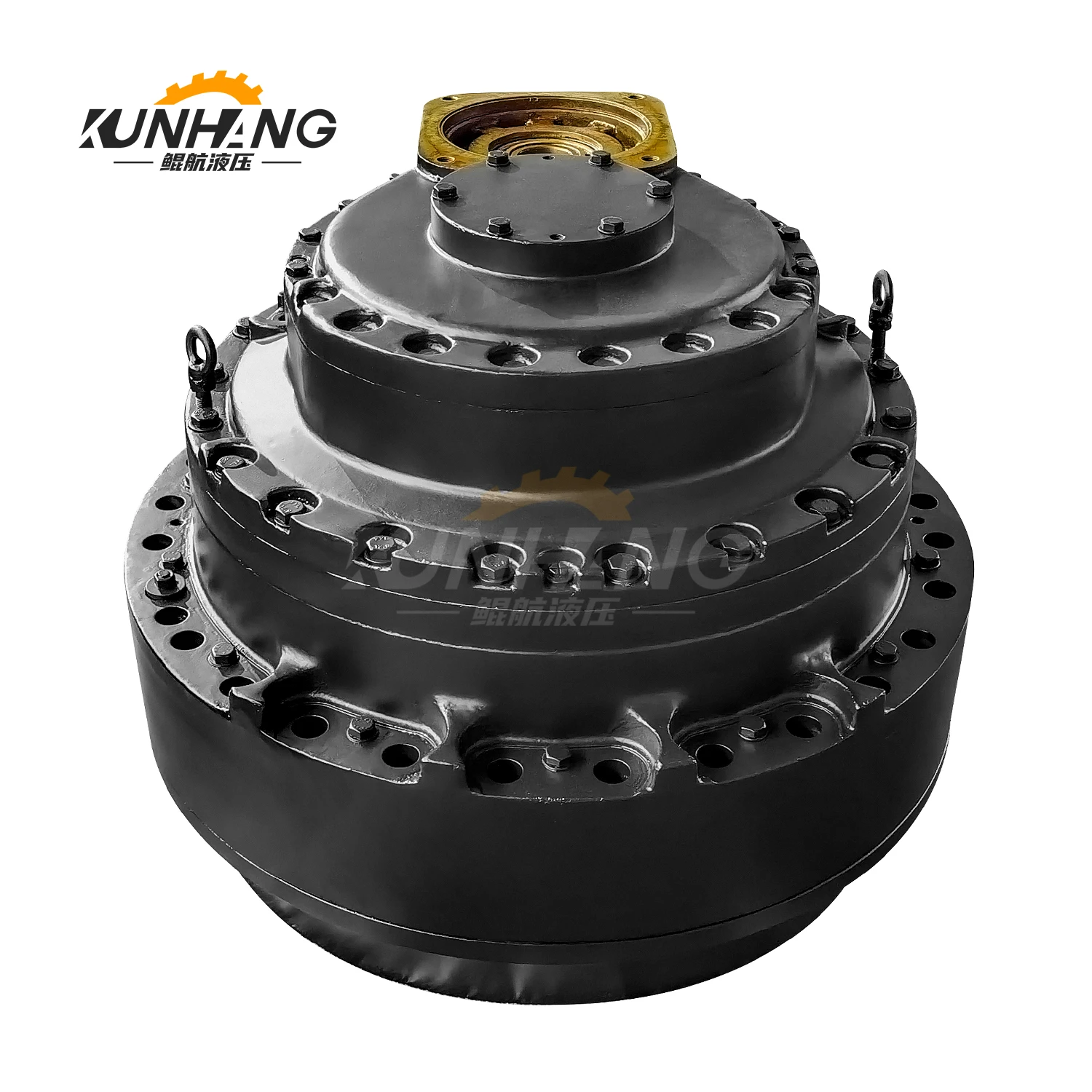

Aftermarket Новый редуктор с электроприводом EX2500 EX5500 4477062 4380300 9166399 9174830 ходовой мотор для EX2500-5 EX2500-6 экскаватора
526 022,56 ₽ - 638 362,15 ₽

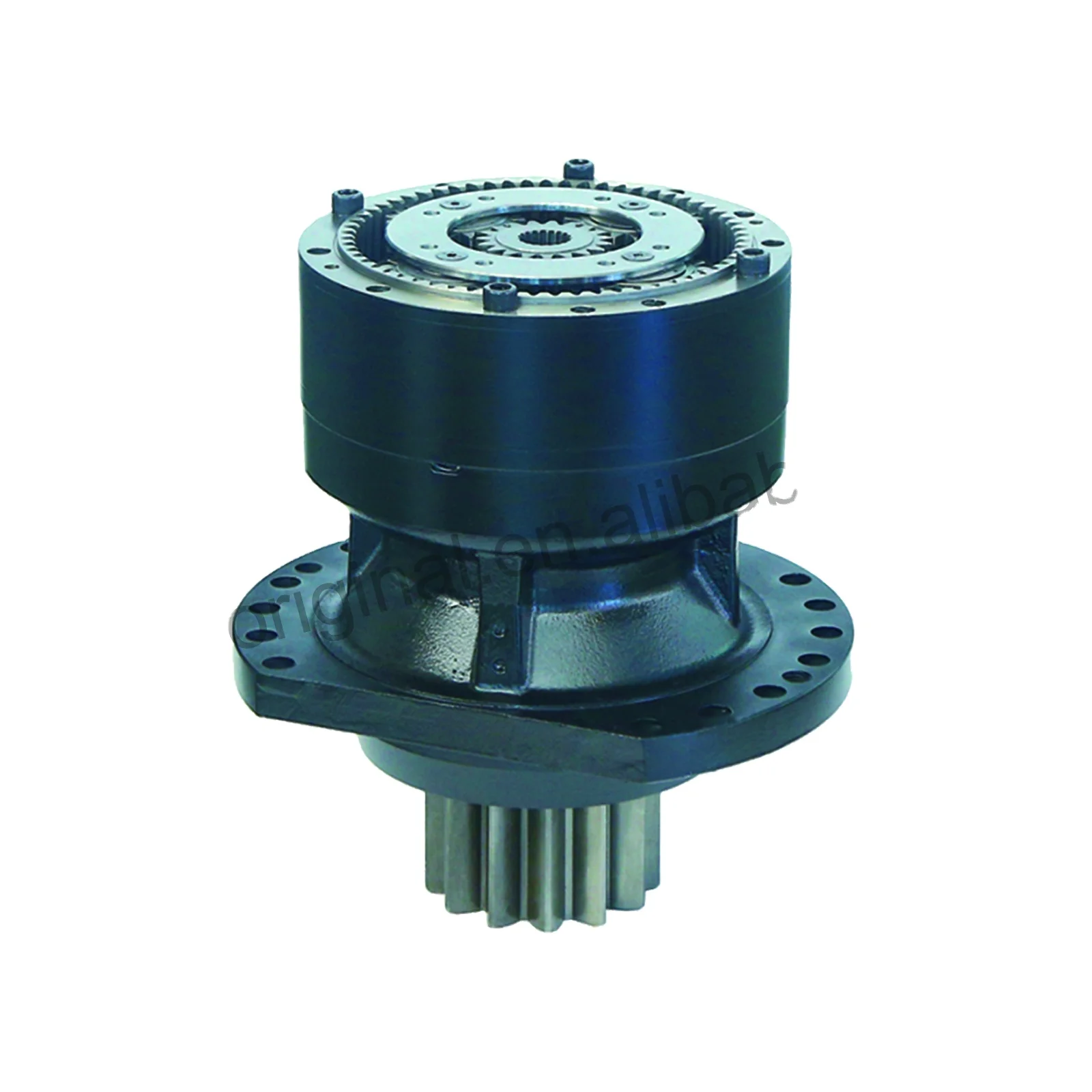

ZX210-3 ZX240 экскаватор гидравлический поворотный редуктор M5X130 редуктор 4625367 4610138 для замены Hitachi
