GMP стандарт под ключ проект ISO6 Чистая комната
887 420,00 ₽ - 1 109 275,00 ₽
Модульная 100 для чистой комнаты ISO 5 7
- Категория: >>>
- Поставщик: Dongguan Yaning Purification Equipment Co. Ltd.
Сохранить в закладки 1600215779512:
Описание и отзывы
Характеристики
Clean Booth
Features
Clean room is a local high clean environment can provide air purification equipment, Is the most convenient to establish a simple clean room, clean shed mainly by the box, fan, early high efficiency air filter, damping layer, lamps and other components, shell spray, The product can be suspended, but also ground support, compact structure, easy to use, Can be used alone, but also a number of connections to form a band clean area, At the same time can be in the general level of clean room in some areas need high cleanliness of the place to do some local increase to reduce costs.

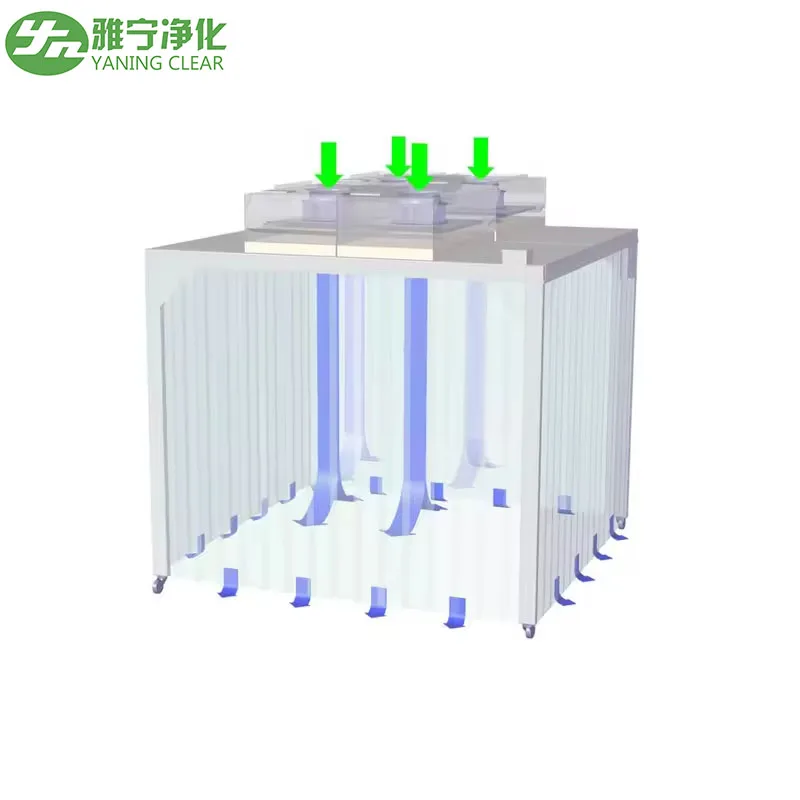

Fan from the top of the FFU inhalation of air, the initial effect of the filter, high efficiency filter, filtered clean air in the entire wind surface to 0.45m/s+20% of the wind speed sent to the clean shed, The formation of the current layer, so that clean air flow was vertical one-way flow, thus ensuring the work area required cleanliness.
Product Description
Clean booth (simple clean room) is a kind of air purification equipment that can provide local high clean environment. It is a simple clean room for the fastest and most convenient establishment. The top FFU inhales the air, and the clean air filtered by the filter presents a vertical unidirectional flow on the entire air outlet surface, thus ensuring the required cleanliness in the working area.
Available Types

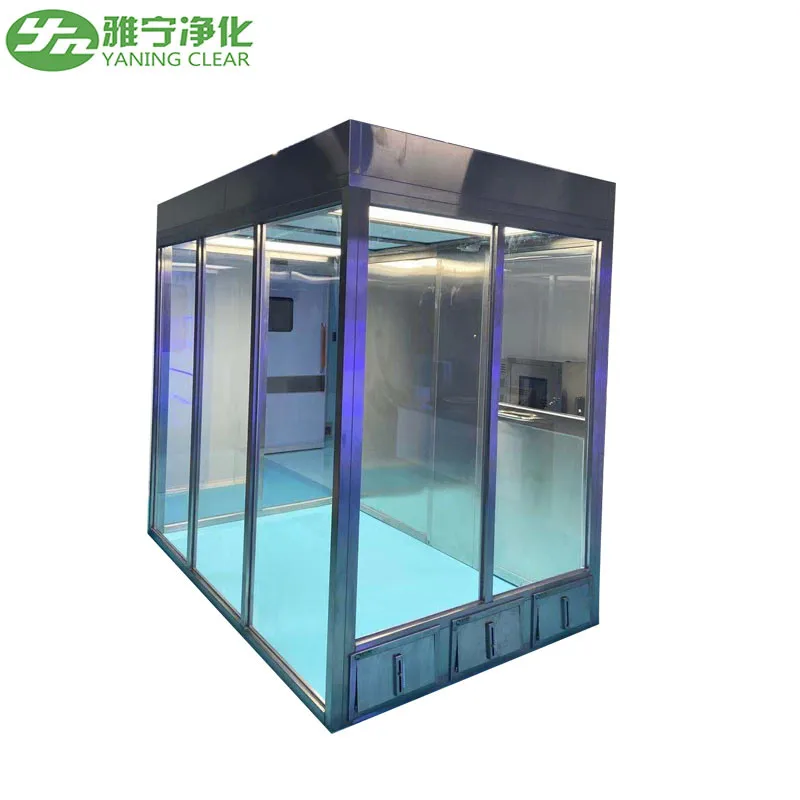

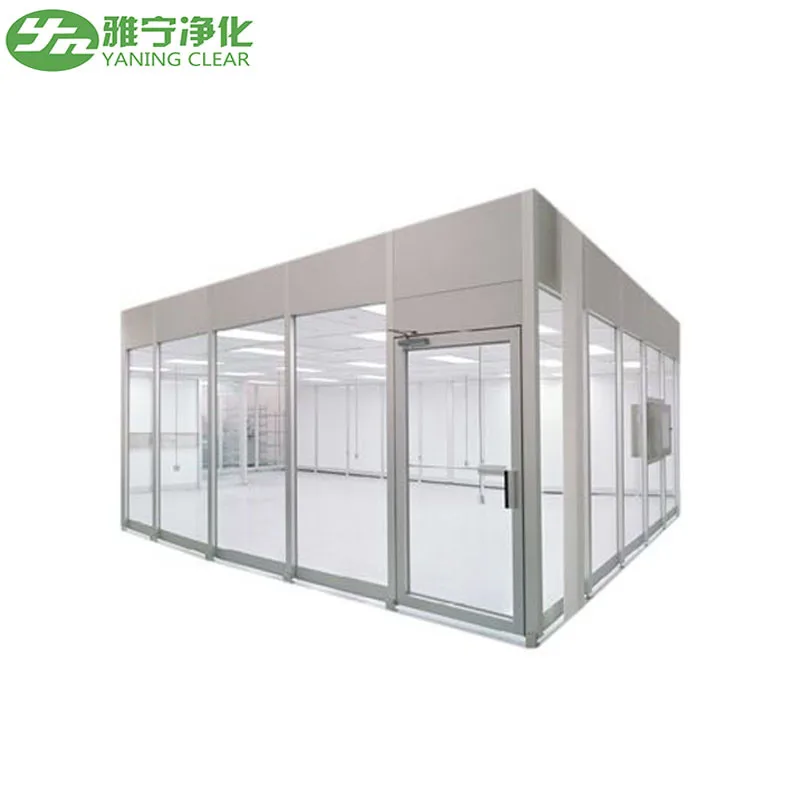

Hardwall Cleanroom
* Hardwall cleanrooms have a strong support frame and panels. They are made from rigid materials, such as stainless steel, welded steel, acrylic, tempered glass, PVC, etc.
*More permanent than soft wall clean rooms. * offer excellent environmental and contamination control.
* often made with modular construction which is more efficient assembly and disassembly.
* often made with modular construction which is more efficient assembly and disassembly.

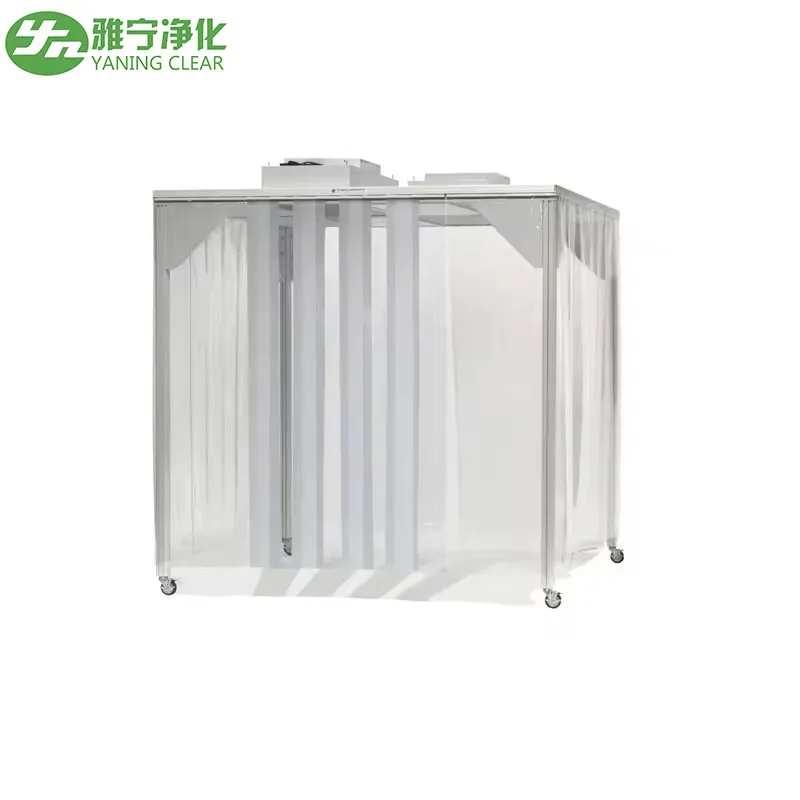

Softwall Cleanroom
*A softwall cleanroom is a confined controlled
space with a metal frame, clear panel walls, an entrance, high efficiency particulate air (HEPA) filters, and exceptional lighting that is designed to provide a contaminant and particulate matter free workspace.
*Softwall cleanrooms are cleanrooms with fabric walls. These fabric walls may either be made from free-hanging plastic strips or fabric stretched tightly over a frame.
* Softwall cleanrooms are highly portable, and may be designed modularly more efficient assembly and disassembly.
space with a metal frame, clear panel walls, an entrance, high efficiency particulate air (HEPA) filters, and exceptional lighting that is designed to provide a contaminant and particulate matter free workspace.
*Softwall cleanrooms are cleanrooms with fabric walls. These fabric walls may either be made from free-hanging plastic strips or fabric stretched tightly over a frame.
* Softwall cleanrooms are highly portable, and may be designed modularly more efficient assembly and disassembly.
Model item | Laminar flow Clean Shed | ||||||||
YN-CR1500 | YN-CR2000 | YN-CR3000 | YN-CR5000 | ||||||
Size(mm) | 1500*2000*2400 | 2000*3000*2400 | 3000*4000*2400 | 5000*5000*2400 | |||||
Material | Framework | Cold rolled steel /Aluminum/Stainless steel | |||||||
Around | Plexiglass,Soft curtain,Anti-static strip curtain | ||||||||
Clean Class Level | 100 | 1000 | 10000 | 100000 | |||||
HEPA filter | Size(mm) | 610*610*69 | 1220*610*69 | 1220*610*69 | 1220*610*69 | ||||
Efficiency(%) | 99.99 | 99.99 | 99.99 | 99.99 | |||||
Air flow (m3/h) | 400 | 4000 | 5040 | 7560 | |||||
Pre filter | Size(mm) | Optional | |||||||
Motor Spec | Power supply | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | ||||
Noise(dB) | 62 | 63 | 62 | 63 | |||||
Model item | YN-CS1500 | YN-CS200 | YN-CS3000 | YN-CS5000 | ||||
Size(mm) | 1500*2000*2400 | 2000*3000*2400 | 3000*4000*2400 | 5000*5000*2400 | ||||
Material | Framework | Cold rolled steel/Aluminum/Stainless sheel | ||||||
Material | Around | Plexiglass,Soft curtain,Anti-static strip curtain | ||||||
Clean class level | 100 | 1000 | 10000 | 100000 | ||||
Hepa filter | Size(mm) | 610*610*69 | 1220*610~69 | 1220*610*69 | 1220*610~69 | |||
Efficiency% | 99.99 | 99.99 | 99.99 | 99.99 | ||||
Hepa filter | Air flow(m3/h) | 4000 | 5040 | 7560 | 12000 | |||
Pre filter | Size(mm) | Optional | ||||||
Motor spec | Power supply | 220V150hHZ | 220V150hHZ | 220V150hHZ | 220V150hHZ | |||
Motor spec | Noisel(db) | 62 | 63 | 62 | 63 | |||
Product Parameter
Benefits:
①Sturdy structure, beautiful and durable, no rust, no dust.
②Simple clean room with the lowest cost and quick construction.
③Can be customized to meet the needs of the site space and usage.
④UV sterilization lamp can be installed.
②Simple clean room with the lowest cost and quick construction.
③Can be customized to meet the needs of the site space and usage.
④UV sterilization lamp can be installed.
Frame
* Aluminum profile
* Stainless Steel
Curtains
* 40mm Thick Clear Vinyl
* Static Dissipative Material
* Easy-to-use Dual Lock Attachment
* Strip Doors for Convenient Access
Filters and Lights
* Motorized Ceiling H14 HEPA Filter Units
* Variable Speed Control
* Class 100,000 to Class 10 (ISO 8 to ISO 4)
* LED Flat Panel Lights
* Available Flow-thru lights Recommended Applications / Industries
* Microelectronics
* Pharmaceutical
* Research and Development
* Semiconductor Manufacturing
* Aluminum profile
* Stainless Steel
Curtains
* 40mm Thick Clear Vinyl
* Static Dissipative Material
* Easy-to-use Dual Lock Attachment
* Strip Doors for Convenient Access
Filters and Lights
* Motorized Ceiling H14 HEPA Filter Units
* Variable Speed Control
* Class 100,000 to Class 10 (ISO 8 to ISO 4)
* LED Flat Panel Lights
* Available Flow-thru lights Recommended Applications / Industries
* Microelectronics
* Pharmaceutical
* Research and Development
* Semiconductor Manufacturing
Success case show
Our Factory
Dongguan Yaning Purification Equipment Co.,Ltd is located in Dongguan, the advanced manufacturing center of the Guangdong-Hong Kong-Macao Greater Bay Area. It is an integrated supplier of clean technology solutions integrating technology, research and development, design, manufacturing, sales and installation. The company has more than 200 employees, a plant area of more than
30,000 square meters, and an annual output value of more than 300 million RMB.
30,000 square meters, and an annual output value of more than 300 million RMB.
Province,With more than ten years of independent R&D and innovation, YANING Purification has obtained more than 30 technical patents and has become a national high-tech enterprise. It has passed the ISO9001:2015 quality management system certification and
ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong
ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong
Packaging & Delivery
Exhibition
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%). There are total about 101-200 people in our
office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Air Shower, Fast Roll Doors, FFU, Operating Room, HEPA Filter,Clean Bench,Scrub Sink.etc.
4. Why should you buy from us not from other suppliers?
YANING brand clean room equipment:air shower pass box,clean bench,FFU,softwall clean room YANING brand Air
filters:HEPA,prefilter,pocket filter,V type filter Matched ISO14001,ISO9001,TUV,ROHS.CE,UL Best price and service,each products
strict facty test.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%). There are total about 101-200 people in our
office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Air Shower, Fast Roll Doors, FFU, Operating Room, HEPA Filter,Clean Bench,Scrub Sink.etc.
4. Why should you buy from us not from other suppliers?
YANING brand clean room equipment:air shower pass box,clean bench,FFU,softwall clean room YANING brand Air
filters:HEPA,prefilter,pocket filter,V type filter Matched ISO14001,ISO9001,TUV,ROHS.CE,UL Best price and service,each products
strict facty test.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
